Gauges and Displays

u

Driver Information Interface (A-type Meter)

Continued

In

strum

e

nt Pa

nel

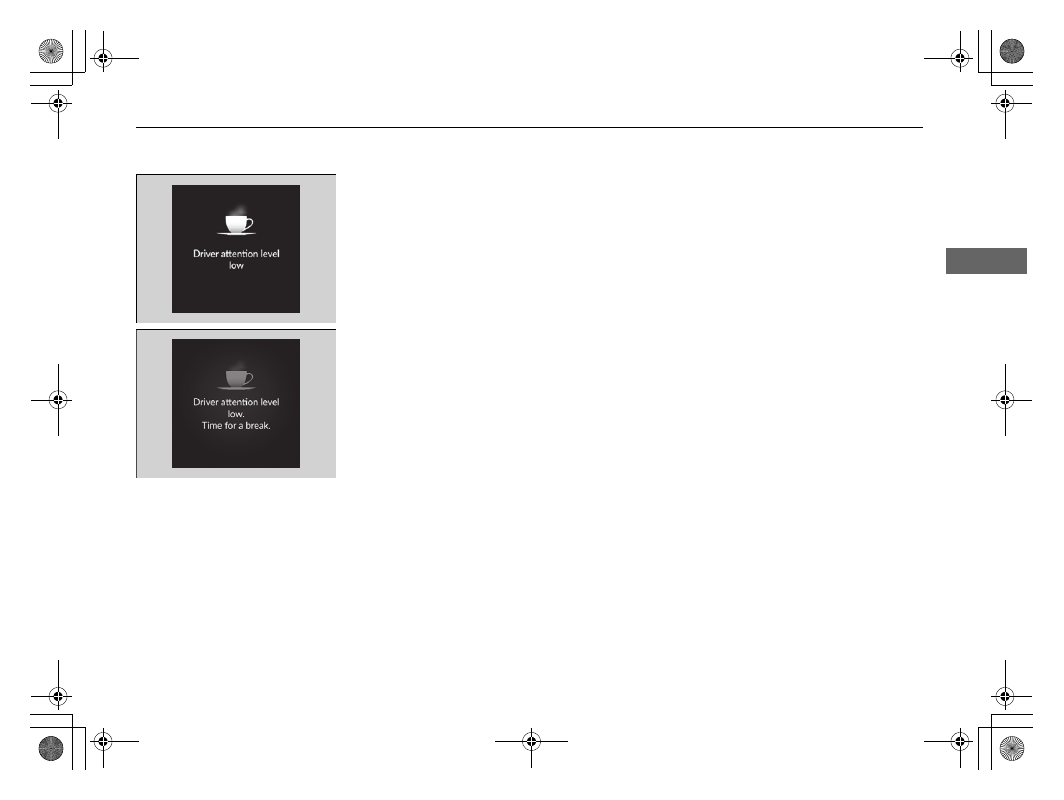

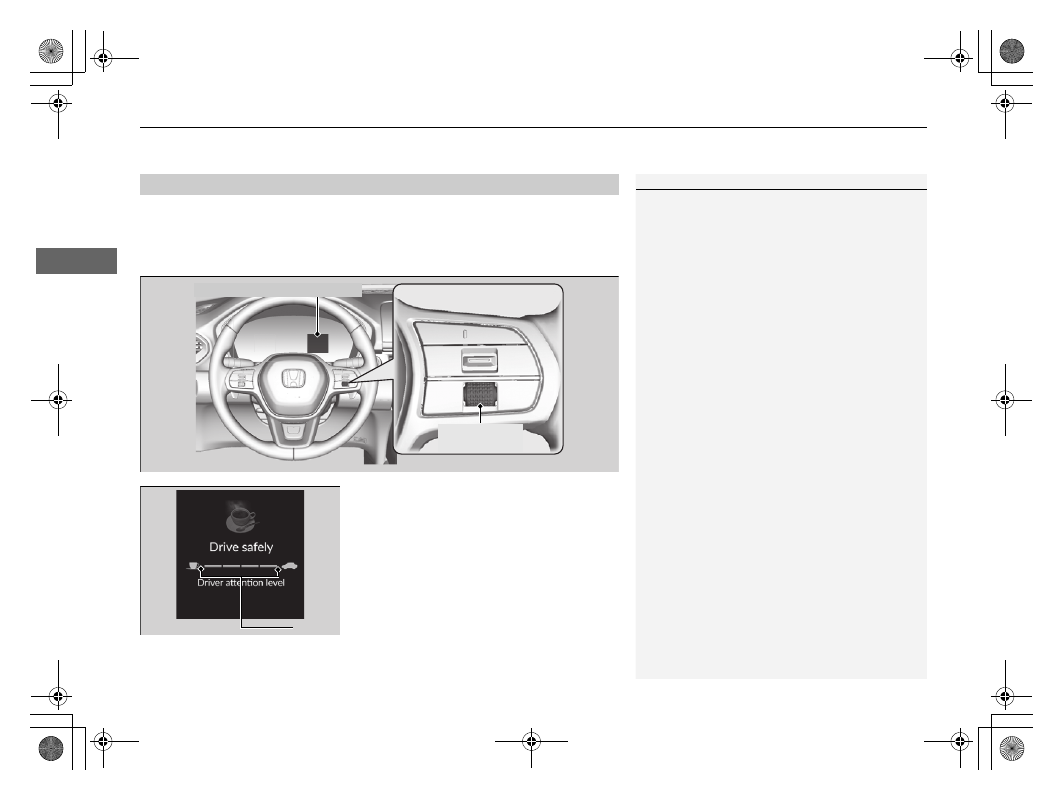

If two bars light up, the

Driver attention

level low

 message will appear.

If one bar lights up, the

Driver attention

level low. Time for a break.

 message will

appear, a beep will sound, and the steering
wheel will vibrate.
If this message appears, stop in a safe location
and rest for as long as needed.
The message will disappear when the left
selector wheel is pressed or when the system
has determined that the driver is driving
normally.
If the driver does not take a break and the
monitor continues to detect that the driver is
very tired, the message will appear again after
approximately 15 minutes, accompanied by a
beep and steering wheel vibrations.
The message does not appear when the
traveling time is 30 minutes or less.

uu

Gauges and Displays

u

Driver Information Interface (A-type Meter)

134

In

strum

e

nt Pa

nel

■

The Driver Attention Monitor resets when:

•

The engine is turned off.

•

The driver unfastens the seat belt and opens the door while the vehicle is stopped.

■

For the Driver Attention Monitor to function:

•

The vehicle must be traveling above 25 mph (40 km/h).

•

The electric power steering (EPS) system indicator must be off.

■

Depending on driving conditions or other factors, the Driver Attention
Monitor may not function in the following circumstances:

•

The steering assist function of the Lane Keeping Assist System (LKAS) is active.

2

Lane Keeping Assist System (LKAS)

 P. 609

•

The condition of the road is poor; e.g., the surface is unpaved or bumpy.

•

It is windy.

•

The driver is frequently operating the vehicle in an assertive manner, such as
changing lanes or accelerating.

■

Customizing

You can change the Driver Attention Monitor settings. Select

Tactile and audible

alert

*1

/

Tactile And Audible Alert

*2

,

Tactile alert

*1

/

Tactile Alert

*2

 or

OFF.

2

Settings

*

 P. 140

2

Customized Features

 P. 426

*1 : Models with 7-in. Color Touchscreen
*2 : Models with 9-in. Color Touchscreen

1

For the Driver Attention Monitor to function:

The bars on the driver information interface remain
grayed-out unless the Driver Attention Monitor is
functioning.

* Not available on all models

135

uu

Gauges and Displays

u

Driver Information Interface (A-type Meter)

Continued

In

strum

e

nt Pa

nel

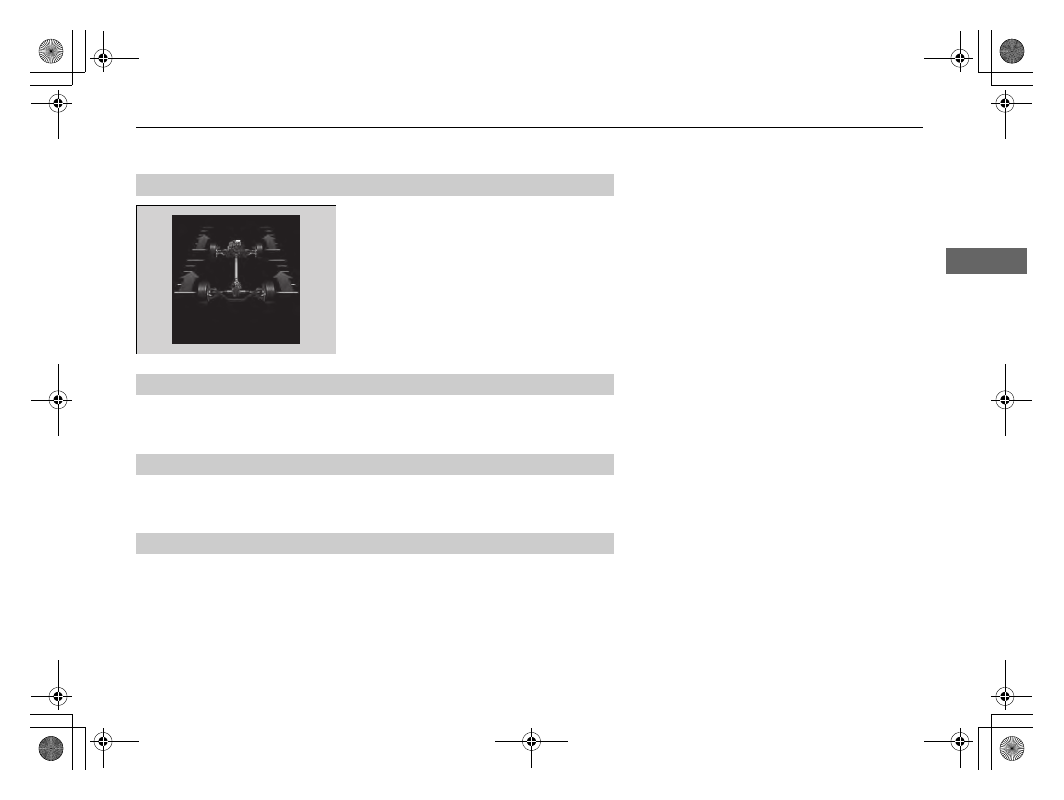

The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.

2

Intelligent Variable Torque Management
(i-VTM4

TM

) AWD System

*

 P. 547

Occurs, under specified conditions, when seat belts are latched or unlatched.

2

Seat Belt Reminder

 P. 45

Shows the remaining oil life and Maintenance Minder

TM

.

2

Maintenance Minder

TM

 P. 683

Shows each tire’s pressure.

2

Tire Pressure Monitoring System (TPMS) with Tire Fill Assist

 P. 548

■

AWD Torque Distribution Monitor

*

■

Seat Belts

■

Maintenance

■

Tire Pressure Monitor

* Not available on all models

uu

Gauges and Displays

u

Driver Information Interface (A-type Meter)

136

In

strum

e

nt Pa

nel

Indicates the status of the Road Departure Mitigation system, CMBS

TM

, Low Speed

Braking Control

*

, blind spot information system

*

, and parking sensor system

*

, such

as On, Off, or Failure, by color and letters.

The following colors indicate the status of any of the above-mentioned systems:

•

Green: The system is on.

•

Gray: The system is off.

•

Amber: There is a problem with the system.

■

Safety Support

1

Safety Support

If a system is indicated by the color amber, have your
vehicle checked by a dealer immediately.

To turn each system on or off, first rotate the left
selector wheel to switch displays. From the next
display, you can select which system to turn on or off.

2

Road Departure Mitigation System

 P. 579

2

Blind Spot Information System

*

 P. 552

2

Collision Mitigation Braking System

TM



(CMBS

TM

)

 P. 561

2

Low Speed Braking Control

*

 P. 573

2

Parking Sensor System

*

 P. 652

You can also confirm the state of each function by
the color of the safety support indicator.

2

Safety Support Indicator (Amber)

 P. 117

2

Safety Support Indicator (Green/Gray)



P. 120

Even when the parking sensor system icon is green, if
the

Rear Sensor Setting

 is turned off, the rear

parking sensor will not operate when reversing.

2

Customized Features

 P. 426

Even when the Low Speed Braking Control icon is
green, if the

Rear Sensor Setting

 is turned off, the

brake assist will not operate when reversing.

2

Customized Features

 P. 426

Models with Parking Sensor System

Models with Low Speed Braking Control

* Not available on all models

137

uu

Gauges and Displays

u

Driver Information Interface (A-type Meter)

Continued

In

strum

e

nt Pa

nel

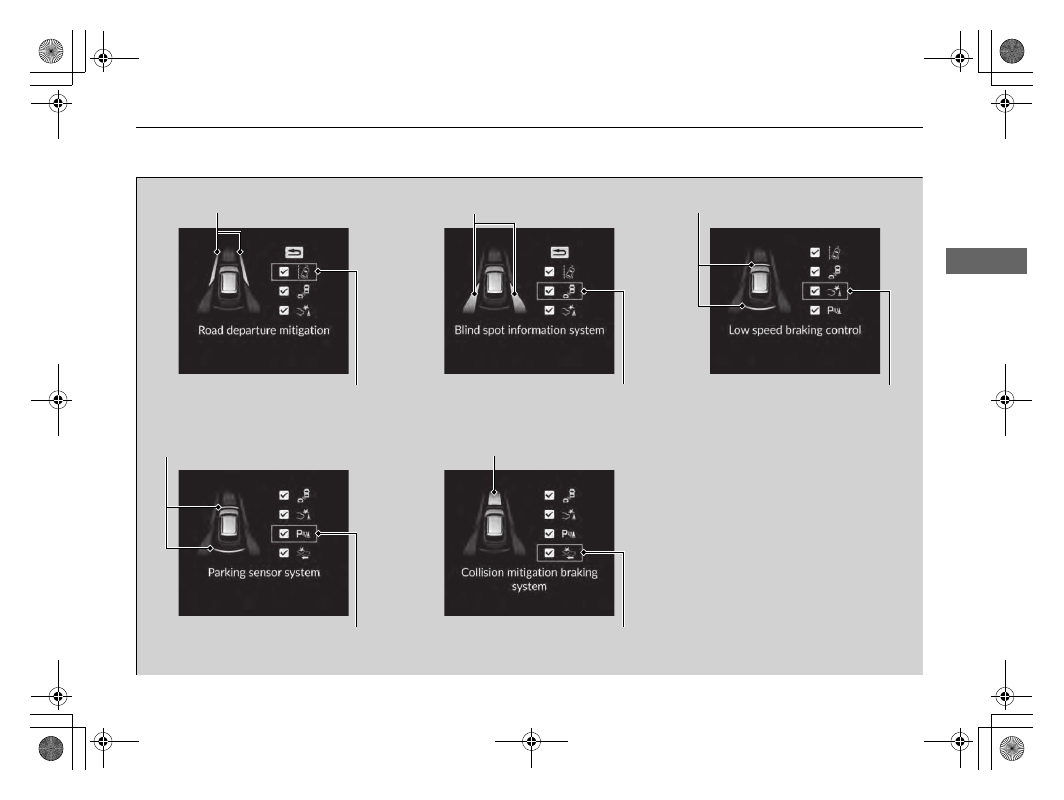

Area Info for Road Departure
Mitigation System

Road Departure Mitigation
System Icon and Status Info

Area Info for CMBS

TM

CMBS

TM

 Icon and Status Info

Area Info for Parking
Sensor System

*

Area Info for Blind Spot
Information System

*

Area Info for Low Speed
Braking Control

*

Blind Spot Information System
Icon and Status Info

*

Low Speed Braking Control
Icon and Status Info

*

Parking Sensor System
Icon and Status Info

*

* Not available on all models

uu

Gauges and Displays

u

Driver Information Interface (A-type Meter)

138

In

strum

e

nt Pa

nel

2

Tachometer

 P. 122

■

Speed/Distance Units

Enables you to show another unit on the driver information interface and audio/
information screen and set the displayed measurements to read in either miles and
mph or km and km/h.

Press and hold the left selector wheel when you select

No content

 on the driver

information interface. Each time you do this, the unit will change from miles and
mph to km and km/h or vice versa. After this, a confirmation screen will appear for
a few seconds.

Press the left selector wheel when the

Brightness

 screen is displayed.

When the power mode is in ON, you can use the left selector wheel to adjust
instrument panel brightness.

Brighten:

Roll the left selector wheel up.

Dim:

Roll the left selector wheel down.

Press the left selector wheel to exit.

■

No Content

■

Brightness

1

No Content

The tachometer can be turned on and off using the
driver information interface or audio/information
screen.

2

Settings

*

 P. 140

2

Customized Features

 P. 426

Even if you have turned off the tachometer on the
driver information interface or audio/information
screen, if

No content

 is selected on the driver

information interface, it will change to a tachometer-
only display.

2

Switching the Display

 P. 125

1

Brightness

The brightness of the gauge is automatically adjusted
depending on the ambient brightness.

•

The brightness dims when the ambient light is
dark.

•

The brightness brightens when the ambient light is
bright.

You can change the setting even when the ambient
lighting is bright, but the brightness of the gauge
won’t change.

* Not available on all models

Continued

139

uu

Gauges and Displays

u

Driver Information Interface (A-type Meter)

In

strum

e

nt Pa

nel

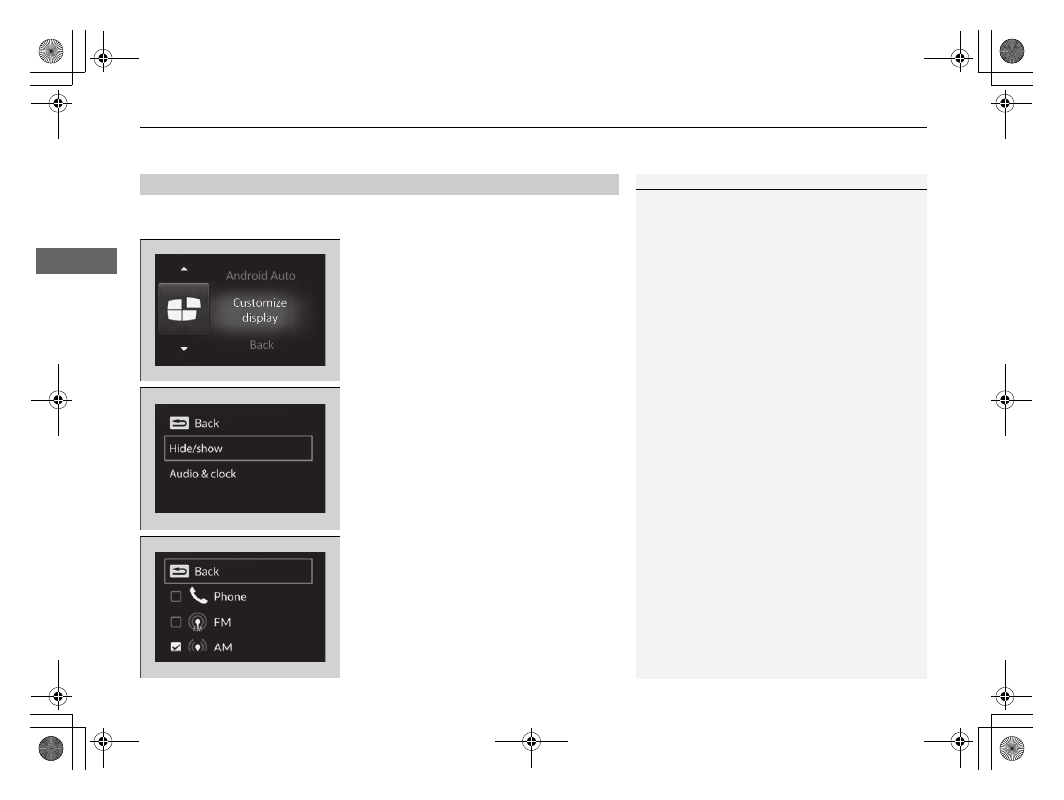

You can choose which icons to display on the home screen.

1.

Roll the left selector wheel to scroll to select

Gauge display settings

, then press the

left selector wheel.

2.

Roll the left selector wheel.

3.

Roll the left selector wheel to scroll
between icons, then press the left selector
wheel to check or uncheck them.

You can check if there are any active warning messages.

■

Gauge Display Settings

1

Gauge Display Settings

Icons that are gray cannot be removed from the
home screen.

When you customize settings, shift to

(

P

.

■

Warnings

1

Warnings

If there are multiple warnings, you can roll the left
selector wheel to see other warnings.

uu

Gauges and Displays

u

Driver Information Interface (A-type Meter)

140

In

strum

e

nt Pa

nel

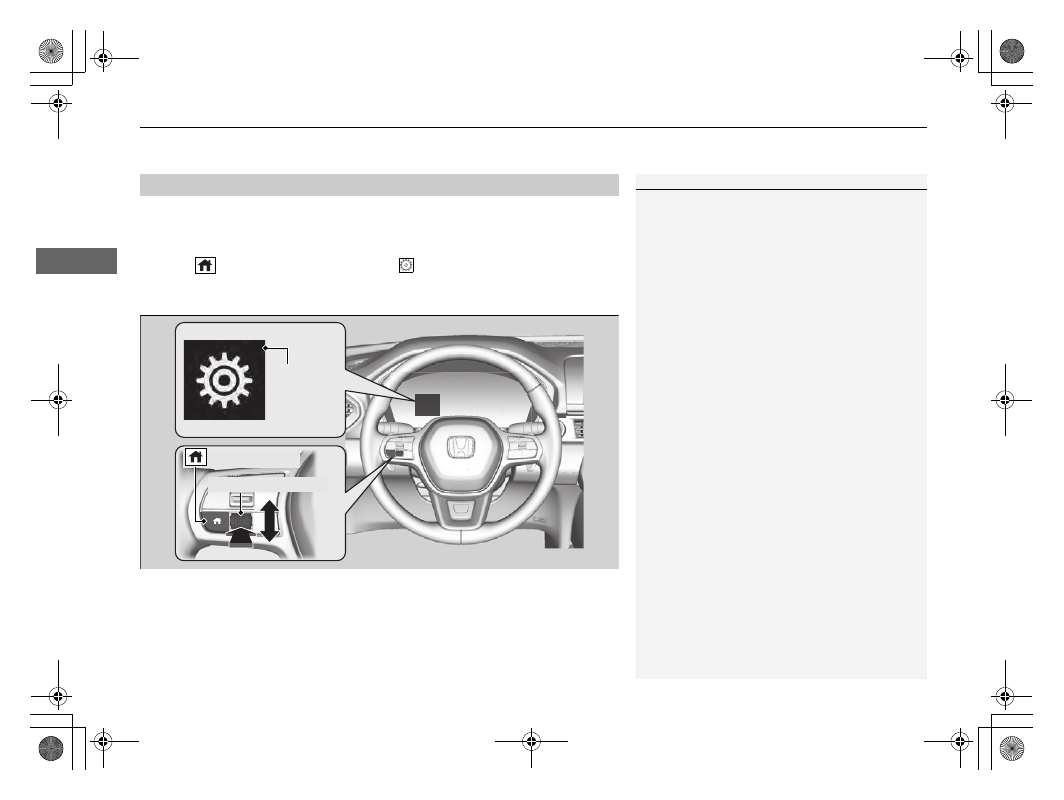

Use the driver information interface to customize certain features.

■

How to customize

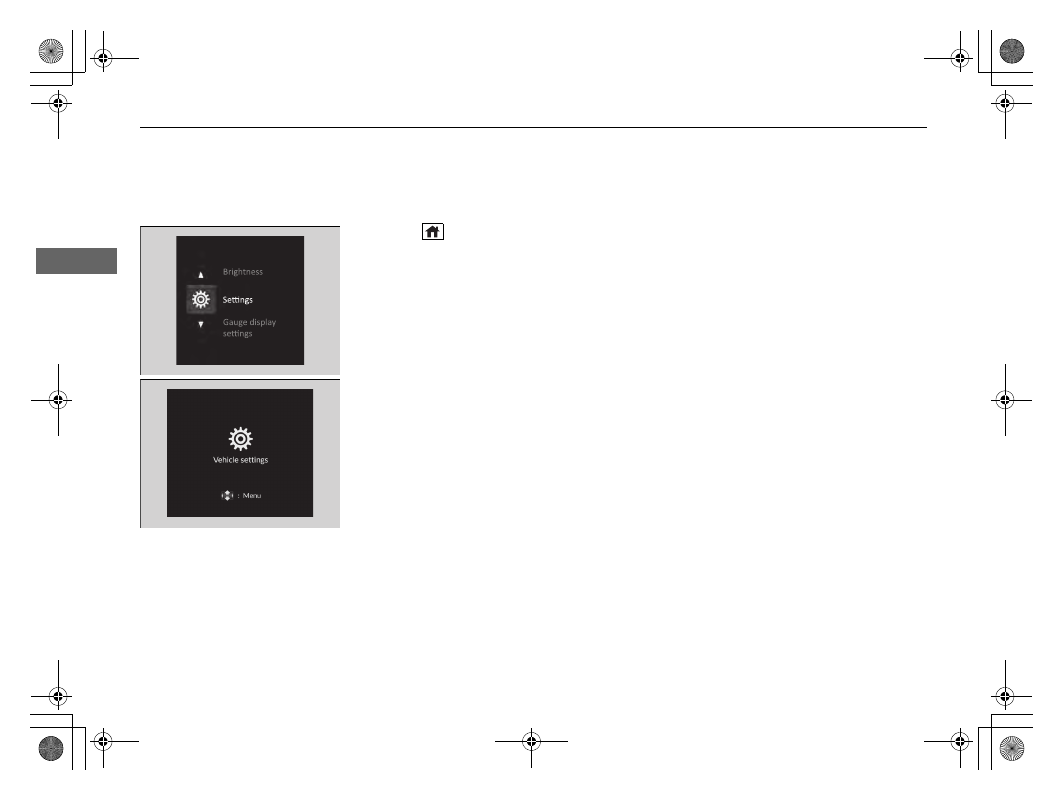

Press the

 (home) button, then select the

 screen by rolling the left selector

wheel while the power mode is in ON, the vehicle is at a complete stop, and the shift
position is in

(

P

. Then, press the left selector wheel.

■

Settings

*

1

Settings

*

To customize other features, roll the left selector
wheel.

2

List of customizable options

 P. 141

2

Example of customization settings

 P. 148

Put the transmission into

(

P

 before you attempt to

change any customized setting.

Driver
Information
Interface

Left Selector Wheel

 (home) Button

* Not available on all models

141

uu

Gauges and Displays

u

Driver Information Interface (A-type Meter)

Continued

In

strum

e

nt Pa

nel

■

List of customizable options

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Driver assist
system setup

Forward collision
warning distance

Changes the distance at which CMBS

TM

 alerts.

Long

/

Normal

*1

/

Short

ACC forward vehicle
detect beep

Causes the system to beep when a vehicle is detected or
when the vehicle is out of ACC with Low Speed Follow
range.

ON

/

OFF

*1

Road departure
mitigation setting

Changes the setting for the Road Departure Mitigation
system.

Narrow

/

Normal

*1

/

Wide

/

Warning only

Lane keeping assist
suspend beep

Causes the system to beep when the LKAS is suspended.

ON

/

OFF

*1

Blind spot
information

*

Changes the setting for the blind spot information.

Audible and visual
alert

*1

/

Visual alert

* Not available on all models

142

uu

Gauges and Displays

u

Driver Information Interface (A-type Meter)

In

strum

e

nt Pa

nel

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Driver assist
system setup

Traffic sign
recognition system
display setting

Turns the traffic sign recognition system on and off.

ON

*1

/

OFF

Traffic sign
recognition system
exceeding speed
warning

Turns the traffic sign recognition system over speed
warning on and off.

ON

/

OFF

*1

Speed limit warning
threshold setting

Changes the setting speed at which the traffic sign
recognition system over speed warning is activated.

Speed limit

*1

/

Speed limit+3mph

/

Speed limit+5mph

/

Speed limit+10mph

(When mph is selected)

Speed limit

*1

/

Speed limit+5km/h

/

Speed limit+10km/h

/

Speed limit+15km/h

(When km/h is selected)

Driver attention
monitor

Changes the setting for the driver attention monitor.

Tactile and audible
alert

*1

/

Tactile alert

/

OFF

143

uu

Gauges and Displays

u

Driver Information Interface (A-type Meter)

Continued

In

strum

e

nt Pa

nel

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Meter setup

Language selection

Changes the displayed language.

English

*1

/

Français

/

Español

Adjust outside temp.
display

Adjusts the temperature reading by a few degrees.

-5°F

 ~

±0°F

*1

 ~

+5°F



(U.S.)

-3°C

 ~

±0°C

*1

 ~

+3°C



(Canada)

“Trip A” reset timing

Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and elapsed
time A.

When fully refueled

/

IGN OFF

/

Manually reset

*1

“Trip B” reset timing

Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and elapsed
time B.

When fully refueled

/

IGN OFF

/

Manually reset

*1

144

uu

Gauges and Displays

u

Driver Information Interface (A-type Meter)

In

strum

e

nt Pa

nel

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Meter setup

Adjust alarm volume

Changes the alarm volume, such as buzzers, warnings,
turn signal sound, and so on.

High

/

Mid

*1

/

Low

Reverse alert tone

Turns the reverse alert tone on and off.

ON

*1

/

OFF

Fuel efficiency backlight

Turns the ambient meter feature on and off.

ON

*1

/

OFF

Rear seat reminder

Turns the Rear Seat Reminder feature on and off.

ON

*1

/

OFF

Speed/distance units

Selects the trip meter units.

km/h∙km

/

mph∙miles

*1



(U.S.)

km/h∙km

*1

/

mph∙miles



(Canada)

Tachometer

Selects whether the tachometer is displayed on the
instrument panel.

ON

*1

/

OFF

145

uu

Gauges and Displays

u

Driver Information Interface (A-type Meter)

Continued

In

strum

e

nt Pa

nel

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Keyless access
setup

Door unlock mode

Changes which doors unlock when you grab the driver’s
door handle.

Driver door only

*1

/

All

doors

Keyless access light
flash

Causes some exterior lights to flash when you unlock/
lock the doors.

ON

*1

/

OFF

Keyless access beep

Causes the beeper to sound when you unlock/lock the
doors.

ON

*1

/

OFF

Remote start system
ON/OFF

*

Turns the remote engine start feature on and off.

ON

*1

/

OFF

Lighting setup

Auto high-beam

Turns the auto high-beam on and off.

ON

*1

/

OFF

Interior light dimming
time

Changes the length of time the interior lights stay on
after you close the doors.

60sec

/

30sec

*1

/

15sec

Headlight auto off
timer

Changes the length of time the exterior lights stay on
after you close the driver’s door.

60sec

/

30sec

/

15sec

*1

/

0sec

Auto light sensitivity

*

Changes the timing for the headlights to come on.

Max

/

High

/

Mid

*1

/

Low

/

Min

Auto headlight ON
with wiper ON

Changes the settings for the wiper operation when the
headlights automatically come on while the headlight
switch is in the

AUTO

 position.

ON

*1

/

OFF

* Not available on all models

146

uu

Gauges and Displays

u

Driver Information Interface (A-type Meter)

In

strum

e

nt Pa

nel

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Door setup

Auto door lock

Changes the setting for when the doors
automatically lock.

With vehicle speed

*1

/

Shift from P

/

OFF

Auto door unlock

Changes the setting for when the doors
automatically unlock.

All doors when driver’s door opens

*1

/

All

doors when shifted to Park

/

All doors

when ignition switched OFF

/

OFF

Walk away auto lock

Changes the settings for the automatic
locking the doors when you walk away
from the vehicle while carrying the
keyless remote.

ON

/

OFF

*1

Keyless lock answer
back

LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.

ON

*1

/

OFF

Security relock timer

Changes the time it takes for the doors to
relock and the security system to set after
you unlock the vehicle without opening
any door.

30sec

*1

/

60sec

/

90sec

Keyless remote power
window control

Turns remote window control using the
keyless remote on and off.

ON

*1

/

OFF

Lockout prevention

Changes the settings for the lockout
protection function.

ON

*1

/

OFF

Lock presetting

Changes the settings for the Lock
Presetting function.

ON

*1

/

OFF

147

uu

Gauges and Displays

u

Driver Information Interface (A-type Meter)

Continued

In

strum

e

nt Pa

nel

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Power
tailgate
setup

*

Keyless open mode

Changes the keyless setting for when the
power tailgate opens.

Anytime

*1

/

When unlocked

Power open by outer
handle

Changes the setting to open power
tailgate by tailgate outer handle.

ON(Power/Manual)

*1

/

OFF(Manual only)

Maintenance
reset

—

Resets the Maintenance Minder display
when you have performed the
maintenance service.

(Selects Reset Items)

Default all

—

Cancels customized changes you have
made or restores them to their default
setting.

Cancel

/

Set

* Not available on all models

148

uu

Gauges and Displays

u

Driver Information Interface (A-type Meter)

In

strum

e

nt Pa

nel

■

Example of customization settings

The steps for changing the

“Trip A” reset timing

 setting to

When fully refueled



are shown below. The default setting for

“Trip A” reset timing

 is

Manually reset

.

1.

Press the

 (home) button and roll the left

selector wheel to select

Settings

, then

press the left selector wheel.

149

uu

Gauges and Displays

u

Driver Information Interface (A-type Meter)

Continued

In

strum

e

nt Pa

nel

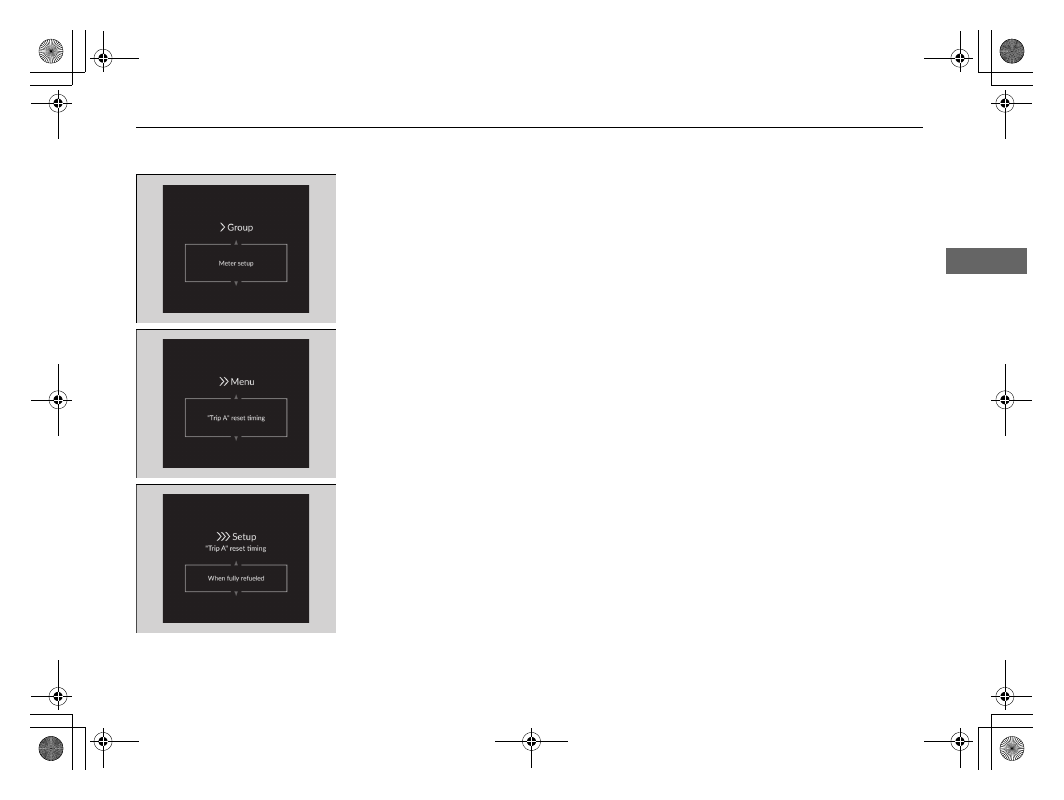

2.

Roll the left selector wheel until

Meter

setup

 appears on the display.

3.

Press the left selector wheel.

4.

Roll the left selector wheel until

“Trip A”

reset timing

 appears on the display, then

press the left selector wheel.

u

The display switches to the
customization setup screen, where you
can select

When fully refueled

,

IGN

OFF

,

Manually reset

, or

Back

.

5.

Roll the left selector wheel and select

When fully refueled

, then press the left

selector wheel.

u

The

Selected

 appears, then the display

returns to the customization menu
screen.

150

uu

Gauges and Displays

u

Driver Information Interface (A-type Meter)

In

strum

e

nt Pa

nel

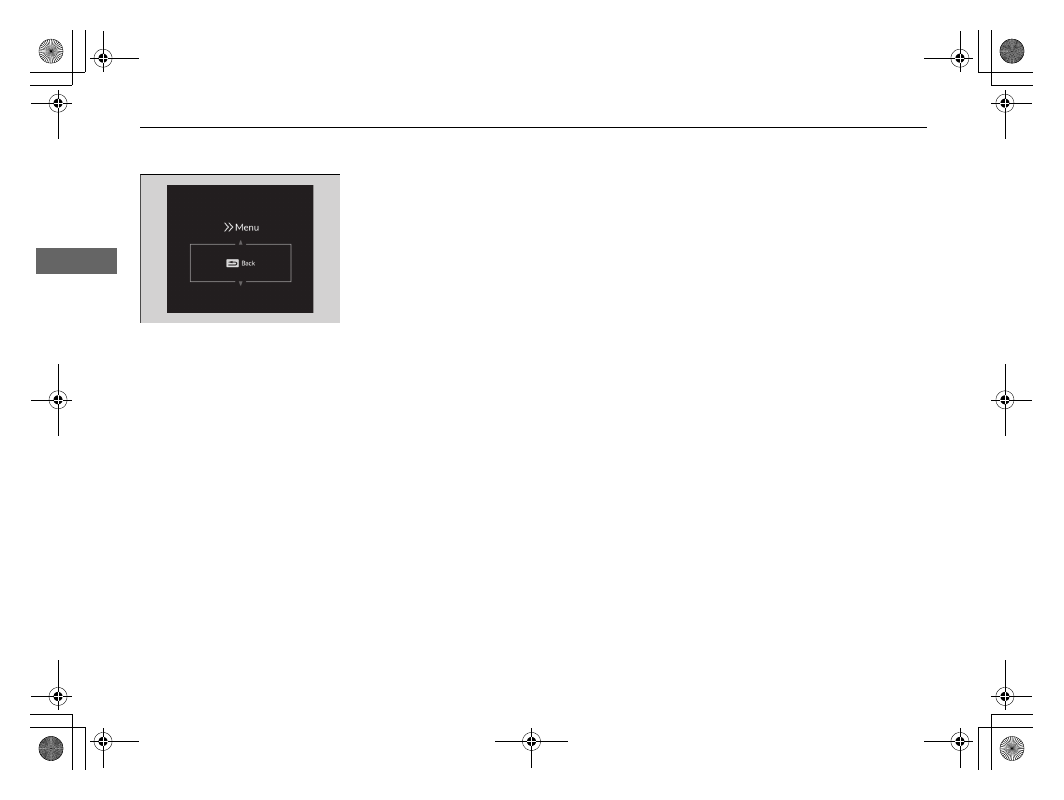

6.

Press the left selector wheel after

Back



appears on the display.

7.

Repeat Step 6 until you return to the
normal screen.

151

uu

Gauges and Displays

u

Driver Information Interface Left Side Area (B-type-Meter)

Continued

In

strum

e

nt Pa

nel

Driver Information Interface Left Side Area (B-type-
Meter)

Shows the current mode for audio and phone information, etc.

2

Audio Remote Controls

 P. 296

2

Bluetooth

®

 HandsFreeLink

®

 P. 468

Shows the clock.

■

Clock

1

Clock

You can adjust the time manually and change the
clock display to show the 12 hour clock or 24 hour
clock.

2

Clock

 P. 176

You can choose whether the clock is displayed on the
driver information interface.

2

Customize Display

 P. 152

uu

Gauges and Displays

u

Driver Information Interface Left Side Area (B-type-Meter)

152

In

strum

e

nt Pa

nel

■

Arrange audio source on the left side area

You can choose which sources to display on the audio source screen.

1.

Roll the left selector wheel until

Customize

display

 is selected, then press the left

selector wheel.

2.

Roll the left selector wheel to scroll to select

Hide/show

, then press the left selector

wheel.

3.

Roll the left selector wheel to scroll
between audio sources, then press the left
selector wheel to check or uncheck them.

■

Customize Display

1

Customize Display

When you customize settings, shift to

(

P

.

153

uu

Gauges and Displays

u

Driver Information Interface Left Side Area (B-type-Meter)

In

strum

e

nt Pa

nel

■

Turn the displaying on the left side area on and off

You can select whether the current audio information and clock appear on the left
side area.

1.

Roll the left selector wheel until

Customize

display

 is selected, then press the left

selector wheel.

2.

Roll the left selector wheel to scroll to select

Audio & clock

, then press the left selector

wheel.

3.

Roll the left selector wheel to scroll to select
your desired settings, then press the left
selector wheel.

154

uu

Gauges and Displays

u

Driver Information Interface Right Side Area (B-type-Meter)

In

strum

e

nt Pa

nel

Driver Information Interface Right Side Area (B-type-
Meter)

The driver information interface shows information such as the estimated travelable
distance and fuel economy of the vehicle. It also displays messages such as warnings
and other helpful information.
When a warning message displays, please check the message and contact a dealer
to have the vehicle inspected if necessary. Please refer to the pages below if the

Engine oil pressure low

 or

Engine temperature too hot

 message is displayed.

2

If the Engine oil pressure low Warning Appears

 P. 759

2

Overheating

 P. 757

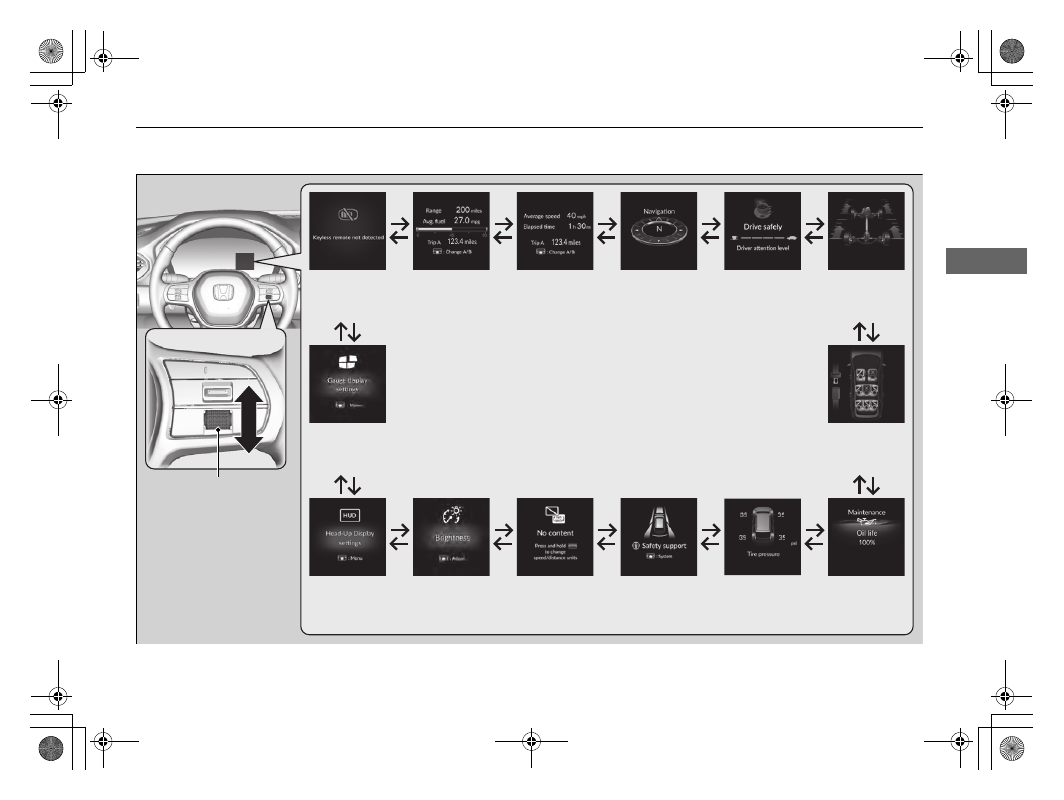

Roll the right selector wheel to view different types of content.

■

Switching the Display

1

Switching the Display

You can add or delete the meter contents.

2

Gauge Display Settings

 P. 167

155

uu

Gauges and Displays

u

Driver Information Interface Right Side Area (B-type-Meter)

Continued

In

strum

e

nt Pa

nel

Right Selector
Wheel

Warning
Messages

 P. 168

Range/Fuel/
Trip Meter

 P. 156

No Content/
Unit Change

 P. 166

Driver Attention
Monitor

 P. 160

Navigation/
Compass

 P. 159

Speed/Time/
Trip Meter

 P. 158

Gauge Display
Settings

 P. 167

Maintenance

 P. 163

Safety Support

 P. 164

Seat Belts

 P. 163

Head-Up Display
Settings

 P. 170

Brightness

 P. 166

Tire Pressure

 P. 163

AWD torque
distribution

 P. 163

156

uu

Gauges and Displays

u

Driver Information Interface Right Side Area (B-type-Meter)

In

strum

e

nt Pa

nel

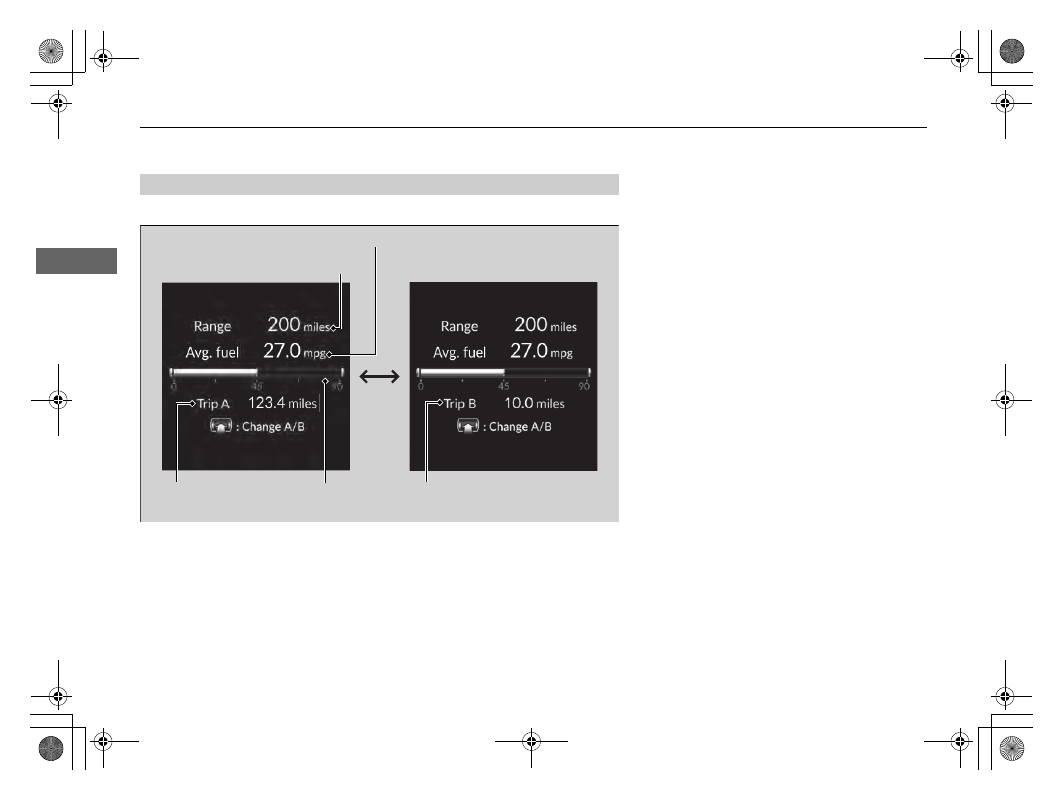

Press the right selector wheel to switch between trip meter A and trip meter B.

■

Trip meter

Shows the total number of miles or kilometers driven since the last reset. Meters A
and B can be used to measure two separate trips.

Resetting a trip meter

To reset the trip meter, display it, press and hold the right selector wheel, and then
select

Reset

.

u

The trip meter is reset to 0.0.

■

Range/Fuel/Trip Meter

Trip Meter A

Range

Average Fuel Economy

Instant Fuel
Economy

Trip Meter B

Continued

157

uu

Gauges and Displays

u

Driver Information Interface Right Side Area (B-type-Meter)

In

strum

e

nt Pa

nel

■

Average fuel economy

Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.

■

Instant fuel economy

Shows the instant fuel economy as a bar graph in mpg or l/100 km.

■

Range

Shows the estimated distance you can travel on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.

1

Average fuel economy

You can change when to reset the average fuel
economy.

2

Customized Features

 P. 426

1

Range

The driving range displayed is only an estimate and
may differ from the actual distance the vehicle can
travel.

158

uu

Gauges and Displays

u

Driver Information Interface Right Side Area (B-type-Meter)

In

strum

e

nt Pa

nel

Press the right selector wheel to switch between trip meter A and trip meter B.

■

Speed/Time/Trip Meter

Trip Meter A

Elapsed Time

Trip Meter B

Average Speed

Continued

159

uu

Gauges and Displays

u

Driver Information Interface Right Side Area (B-type-Meter)

In

strum

e

nt Pa

nel

■

Trip meter

2

Trip meter

 P. 156

■

Elapsed time

Shows the time elapsed since Trip A or Trip B was reset.

■

Average speed

Shows the average speed in mph or km/h since Trip A or Trip B was reset.

■

Compass

Shows the compass screen.

■

Turn-by-Turn Directions

When driving guidance is provided by the navigation system, Apple CarPlay or
Android Auto, turn-by-turn directions to your destination appear.

2

Refer to the Navigation System Manual

2

Apple CarPlay

 P. 385

2

Android Auto

TM

 P. 392

■

Navigation

1

Elapsed time

You can change when to reset the elapsed time.

2

Customized Features

 P. 426

1

Average speed

You can change when to reset the average speed.

2

Customized Features

 P. 426

1

Navigation

When the compass or turn-by-turn directions are
displayed, you can control some navigation system
functions on the driver information interface by
pressing the right selector wheel.

2

Refer to the Navigation System Manual

You can select whether to have the turn-by-turn
display come on or not during the route guidance.

2

Customized Features

 P. 426

Turn-by-turn directions may not be available for all
apps.

uu

Gauges and Displays

u

Driver Information Interface Right Side Area (B-type-Meter)

160

In

strum

e

nt Pa

nel

The Driver Attention Monitor analyzes steering inputs to determine if the vehicle is
being driven in a manner consistent with drowsy or inattentive driving. If it
determines that the vehicle is being driven in such a manner, it will display the
degree of the driver’s attention on the driver information interface.

When you select Driver Attention Monitor on
the driver information interface, bars on it
light up in white to indicate the degree of the
driver’s attention.

2

Switching the Display

 P. 154

■

Driver Attention Monitor

1

Driver Attention Monitor

The Driver Attention Monitor cannot always detect if
the driver is tired or inattentive.
Regardless of the system’s feedback, if you are
feeling tired, stop in a safe location and rest for as
long as needed.

Driver Information Interface

Right Selector
Wheel

Level

161

uu

Gauges and Displays

u

Driver Information Interface Right Side Area (B-type-Meter)

Continued

In

strum

e

nt Pa

nel

If two bars light up, the

Driver attention

level low

 message will appear.

If one bar lights up, the

Driver attention

level low. Time for a break.

 message will

appear, a beep will sound, and the steering
wheel will vibrate.
If this message appears, stop in a safe location
and rest for as long as needed.
The message will disappear when the right
selector wheel is rolled or when the system
has determined that the driver is driving
normally.
If the driver does not take a break and the
monitor continues to detect that the driver is
very tired, the message will appear again after
approximately 15 minutes, accompanied by a
beep and steering wheel vibrations.
The message does not appear when the
traveling time is 30 minutes or less.

uu

Gauges and Displays

u

Driver Information Interface Right Side Area (B-type-Meter)

162

In

strum

e

nt Pa

nel

■

The Driver Attention Monitor resets when:

•

The engine is turned off.

•

The driver unfastens the seat belt and opens the door while the vehicle is stopped.

■

For the Driver Attention Monitor to function:

•

The vehicle must be traveling above 25 mph (40 km/h).

•

The electric power steering (EPS) system indicator must be off.

■

Depending on driving conditions or other factors, the Driver Attention
Monitor may not function in the following circumstances:

•

The steering assist function of the Lane Keeping Assist System (LKAS) is active.

2

Lane Keeping Assist System (LKAS)

 P. 609

•

The condition of the road is poor; e.g., the surface is unpaved or bumpy.

•

It is windy.

•

The driver is frequently operating the vehicle in an assertive manner, such as
changing lanes or accelerating.

■

Customizing

You can change the Driver Attention Monitor settings. Select

Tactile And Audible

Alert

,

Tactile Alert

, or

OFF

.

2

Customized Features

 P. 426

1

For the Driver Attention Monitor to function:

The bars on the driver information interface remain
grayed-out unless the Driver Attention Monitor is
functioning.

163

uu

Gauges and Displays

u

Driver Information Interface Right Side Area (B-type-Meter)

Continued

In

strum

e

nt Pa

nel

The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.

2

Intelligent Variable Torque Management
(i-VTM4

TM

) AWD System

*

 P. 547

Occurs, under specified conditions, when seat belts are latched or unlatched.

2

Seat Belt Reminder

 P. 45

Shows the remaining oil life and Maintenance Minder

TM

.

2

Maintenance Minder

TM

 P. 683

Shows each tire’s pressure.

2

Tire Pressure Monitoring System (TPMS) with Tire Fill Assist

 P. 548

■

AWD Torque Distribution Monitor

*

■

Seat Belts

■

Maintenance

■

Tire Pressure Monitor

* Not available on all models

uu

Gauges and Displays

u

Driver Information Interface Right Side Area (B-type-Meter)

164

In

strum

e

nt Pa

nel

Indicates the status of the Road Departure Mitigation system, CMBS

TM

, Low Speed

Braking Control, blind spot information system, and parking sensor system, such as
On, Off, or Failure, by color and letters.

The following colors indicate the status of any of the above-mentioned systems:

•

Green: The system is on.

•

Gray: The system is off.

•

Amber: There is a problem with the system.

■

Safety Support

1

Safety Support

If a system is indicated by the color amber, have your
vehicle checked by a dealer immediately.

To turn each system on or off, first press the right
selector wheel to switch displays. From the next
display, you can select which system to turn on or off.

2

Road Departure Mitigation System

 P. 579

2

Blind Spot Information System

*

 P. 552

2

Collision Mitigation Braking System

TM



(CMBS

TM

)

 P. 561

2

Low Speed Braking Control

*

 P. 573

2

Parking Sensor System

*

 P. 652

You can also confirm the state of each function by
the color of the safety support indicator.

2

Safety Support Indicator (Amber)

 P. 117

2

Safety Support Indicator (Green/Gray)



P. 120

Even when the Low Speed Braking Control icon is
green, if the

Rear Sensor Setting

 is turned off, the

brake assist will not operate when reversing.

2

Customized Features

 P. 426

Even when the parking sensor system icon is green, if
the

Rear Sensor Setting

 is turned off, the rear

parking sensor will not operate when reversing.

2

Customized Features

 P. 426

* Not available on all models
