Airbags

Side Airbags

Safe Driving

Side Airbags

The side airbags help protect the torso and pelvis of the driver or a front passenger
during a moderate-to-severe side impact.

The side airbags are housed in the outside
edge of the driver’s and passenger’s seat-
backs.

Both are marked

SIDE AIRBAG

When the sensors detect a moderate-to-
severe side impact, the control unit signals the
side airbag on the impact side to immediately
inflate.

■

Housing Locations

Side Airbags

Make sure you and your front seat passenger always
sit upright. Leaning into the path of a side airbag can
prevent the airbag from deploying properly and
increases your risk of serious injury.

Do not attach accessories on or near the side airbags.
They can interfere with the proper operation of the
airbags, or hurt someone if an airbag inflates.

Do not cover or replace the front seat-back covers
without consulting a dealer.
Improperly replacing or covering front seat-back
covers can prevent your side airbags from properly
deploying during a side impact.

Side airbag deployment is controlled by a pressure
sensor inside each front door. Damage or changes to
the inside or outside of the doors may negatively
affect side airbag deployment. Contact an authorized
dealer before changing or repairing a front door.

Housing
Location

■

Operation

When
inflated

Side
Airbag

Airbags

Side Curtain Airbags

Safe Driving

Side Curtain Airbags

The side curtain airbags help protect the heads of the driver and passengers in the
outer seating positions during a moderate-to-severe side impact. The side curtain
airbags equipped in this vehicle are also designed to help reduce the likelihood of
partial and complete ejection of vehicle occupants through side windows in crashes,
particularly rollover crashes.

The side curtain airbags are located in the
ceiling above the side windows on both sides
of the vehicle.

The side curtain airbag is designed to deploy
in a rollover or a moderate-to-severe side
impact.

■

Housing Locations

Side Curtain Airbags

To get the best protection from the side curtain
airbags, occupants should wear their seat belts
properly and sit upright and well back in their seats.

Do not attach any objects to the side windows or roof
pillars as they can interfere with the proper operation
of the side curtain airbags.

If the impact is on the passenger’s side, the
passenger’s side curtain airbag deploys even if there
are no occupants on that side of the vehicle.

If the SRS control unit senses that your vehicle is
about to rollover, it immediately deploys both side
curtain airbags and activates the seat belt tensioners
for the front seats and the second row outer seats.

Side Curtain Airbag Storage

■

Operation

Deployed Side Curtain Airbag

Continued

Airbags

Airbag System Indicators

Safe Driving

■

When side curtain airbags deploy in a frontal collision

One or both side curtain airbags may also inflate in a moderate-to-severe angled
frontal collision.

Airbag System Indicators

If a problem occurs in the airbag system, the SRS indicator will come on and a
message appears on the driver information interface.

■

When the power mode is set to ON

The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.

If the indicator comes on at any other time, or
does not come on at all, have the system
checked by a dealer as soon as possible. If you
don’t, your airbags and seat belt tensioners
may not work properly when they are needed.

■

Supplemental Restraint System (SRS) Indicator

Supplemental Restraint System (SRS) Indicator

WARNING

Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.

Have your vehicle checked by a dealer as
soon as possible if the SRS indicator alerts
you to a possible problem.

Models with A-type meter

Models with B-type meter

Airbags

Airbag System Indicators

Safe Driving

■

When the passenger airbag off
indicator comes on

The indicator comes on to alert you that the
passenger’s airbag has been turned off.
This occurs if the seat is empty or when the
weight sensors determine that a small child or
infant is on the passenger seat.

Children age 12 or under should always ride properly restrained in a back seat.

Child Safety

P. 77

If the indicator is on, in the event of a crash the passenger’s airbag will not deploy.
The passenger’s knee airbag will not deploy, either.

When you set the power mode to ON, the indicator comes on and goes off a few
seconds later to indicate that system checks are being performed. After that, the
indicator comes on or off depending on the passenger’s occupant classification.

■

Passenger Airbag Off Indicator

Passenger Airbag Off Indicator

To ensure the passenger is detected properly, confirm
that:

•

The occupant is sitting in an upright position
wearing the seat belt properly and the seat-back is
not excessively reclined.

•

The occupant is not leaning against the door or
center console.

•

The occupant’s feet are placed on the floor in front
of them.

•

There are no objects hanging from the front
passenger’s seat.

•

Only small, lightweight objects are in the seat-back
pocket.

•

No liquid has been spilled on or under the seat.

•

There is no child seat or other object pressing
against the rear of the seat or seat-back.

•

There is no rear passenger pushing or pulling on
the back of the front passenger’s seat.

•

There are no objects placed under or beside the
front passenger’s seat. Improperly positioned
objects can interfere with the advanced airbag
sensors.

•

The floor mat behind the front passenger’s seat is
hooked to the floor mat anchor. An improperly
placed mat can interfere with the advanced airbag
sensors.

•

The head restraint is not contacting the roof.

U.S.

Canada

Airbags

Airbag System Indicators

Safe Driving

Passenger Airbag Off Indicator

The passenger airbag off indicator may come on and
go off periodically if the total weight on the seat is
near the airbag cutoff threshold. For a small adult,
depending on physique and posture, the system may
not recognize him/her as an adult and thus deactivate
the passenger’s airbag.
If this occurs, please confirm that the conditions set
forth in the above bullet points on the previous page
are met.
If the above conditions are met and the indicator is
still on, then with the transmission is in

(

, set the

power mode to OFF and back to ON.

Have your vehicle checked by a dealer as soon as
possible if:

•

All of the above conditions are met, and the
indicator comes on with an adult seated in the
front passenger seat.

•

The seat is empty and the indicator is off.

•

The indicator does not come on and go off after
setting the power mode to ON as described.

Airbags

Airbag Care

Safe Driving

Airbag Care

You do not need to, and should not, perform any maintenance on or replace any
airbag system components yourself. However, you should have your vehicle
inspected by a dealer in the following situations:

■

When the airbags have deployed

If an airbag has inflated, the control unit and other related parts must be replaced.
Similarly, once an automatic seat belt tensioner has been activated, it must be
replaced.

■

When the vehicle has been in a moderate-to-severe collision

Even if the airbags did not inflate, have your dealer inspect the following: the driver’s
seat position sensor, weight sensors in the passenger’s seat, seat belt tensioners for
the front seats and second row outer seats, and each seat belt that was worn during
the crash.

■

Do not remove or modify a front seat without consulting a dealer

This would likely disable or affect the proper operation of the driver’s seat position
sensor or the weight sensors in the passenger’s seat. If it is necessary to remove or
modify a front seat to accommodate a person with disabilities, contact a Honda
dealer. For U.S. vehicles, contact American Honda Automobile Customer Service at
1-800-999-1009. For Canadian vehicles, contact Honda Canada Customer Relations
at 1-888-9-HONDA-9.

Airbag Care

We recommend against the use of salvaged airbag
system components, including the airbag, tensioners,
sensors, and control unit.

Continued

Safe Driving

Child Safety

Protecting Child Passengers

Each year, many children are injured or killed in vehicle crashes because they are
either unrestrained or not properly restrained. In fact, vehicle crashes are the
number one cause of death of children ages 12 and under.

To reduce the number of child deaths and injuries, every state and Canadian
province and territory requires that infants and children be properly restrained when
they ride in a vehicle.

Children should sit properly restrained in a rear seat.

This is because:

•

An inflating front airbag can injure or kill a
child sitting in the front seat.

•

A child in the front seat is more likely to
interfere with the driver’s ability to safely
control the vehicle.

•

Statistics show that children of all sizes and
ages are safer when they are properly
restrained in a rear seat.

Protecting Child Passengers

The National Highway Traffic Safety Administration
and Transport Canada recommend that all children
ages 12 and under be properly restrained in a rear
seat. Some states or provinces/territories have laws
restricting where children may ride.

WARNING

Children who are unrestrained or
improperly restrained can be seriously
injured or killed in a crash.

Any child too small for a seat belt should be
properly restrained in a child seat. A larger
child should be properly restrained with a
seat belt, using a booster seat if necessary.

Child Safety

Protecting Child Passengers

Safe Driving

•

Never hold a child on your lap because it is impossible to protect them in the
event of a collision.

•

Never put a seat belt over yourself and a child. During a crash, the belt would
likely press deep into the child and cause serious or fatal injuries.

•

Never let two children use the same seat belt. Both children could be very
seriously injured in a crash.

•

Any child who is too small to wear a seat belt correctly must be restrained in an
approved child seat that is properly secured to the vehicle using either the seat
belt or the lower anchors of the LATCH system.

•

Do not allow children to operate the doors, windows, or seat adjustments.

•

Do not leave children in the vehicle unattended, especially in hot weather when
the inside of the vehicle can get hot enough to kill them. They could also activate
vehicle controls, causing it to move unexpectedly.

Protecting Child Passengers

To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.

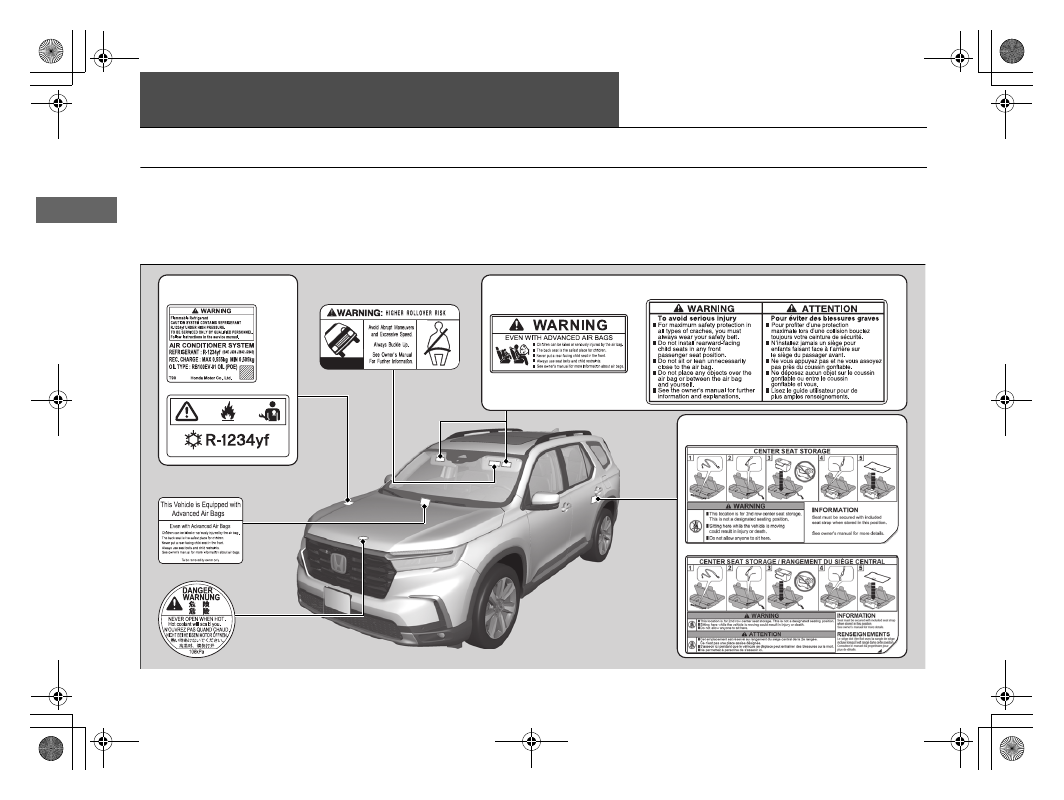

To remind you of the passenger’s front airbag
hazards and child safety, your vehicle has warning
labels on the dashboard (U.S. models) and on the
front visors. Please read and follow the instructions
on these labels.

Safety Labels

P. 96

WARNING

Allowing a child to play with a seat belt or
wrap one around their neck can result in
serious injury or death.

Instruct children not to play with any seat
belt and make sure any unused seat belt a
child can reach is buckled, fully retracted,
and locked.

Child Safety

Safety of Infants and Small Children

Continued

Safe Driving

Safety of Infants and Small Children

An infant must be properly restrained in a rear-facing child seat until the infant
reaches the seat manufacturer’s weight or height limit for the seat.

■

Positioning a rear-facing child seat

Child seats must be placed and secured in a
rear seating position.

When properly installed, a rear-facing child seat may prevent the driver or a front
passenger from moving their seat all the way back, or from locking their seat-back
in the desired position. Make sure that there is no contact between the child seat
and the seat in front of it.

It can also interfere with proper operation of the passenger’s advanced front airbag
system.

Airbags

P. 59

If this occurs, we recommend that you install the child seat directly behind the front
passenger’s seat, move the seat as far forward as needed, and leave it unoccupied.
Or, you may wish to get a smaller rear-facing child seat.

■

Protecting Infants

Protecting Infants

Experts recommend use of a rear-facing seat for a
child so long as the child’s height and weight are
appropriate for a rear-facing seat.

Infants should never be seated in a forward-facing
position.

Always refer to the child seat manufacturer’s
instructions before installation.

Do not allow a front seat to rest against a child seat
installed in a rear seating position.
The weight sensor in the front seat may not correctly
detect the actual weight of the occupant.

WARNING

Placing a rear-facing child seat in the front
seat can result in serious injury or death
during a crash.

Always place a rear-facing child seat in the
rear seat, not the front.

Child Safety

Safety of Infants and Small Children

Safe Driving

If a child has exceeded the weight and height limitations of a rear-facing child seat,
the child should be properly restrained in a firmly secured forward-facing child seat
until they exceed the weight and height limitations for the forward-facing child seat.

■

Forward-facing child seat placement

We strongly recommend placing a forward-
facing child seat in a rear seating position.

Placing a forward-facing child seat in the front seat can be hazardous, even with
advanced front airbags that automatically turn the passenger’s front airbag off. A
rear seat is the safest place for a child.

■

Protecting Smaller Children

Protecting Smaller Children

Educate yourself about the laws and regulations
regarding child seat use where you are driving, and
follow the child seat manufacturer’s instructions.

WARNING

Placing a forward-facing child seat in the
front seat can result in serious injury or
death if the front airbag inflates.

If you must place a forward-facing child
seat in front, move the vehicle seat as far
back as possible, and properly restrain the
child.

Continued

Child Safety

Safety of Infants and Small Children

Safe Driving

Most child seats are LATCH-compatible (Lower Anchors and Tethers for Children).
Some have a rigid-type connector while others have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions including recommended expiration dates
as well as the instructions in this manual. Proper installation is key to maximizing
your child’s safety.

In seating positions and vehicles not equipped with LATCH, a LATCH-compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with a lap belt or the lap part of a lap/shoulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a specified weight. Please read the child seat owner’s manual
for proper installation instructions.

■

Important consideration when selecting a child seat

Make sure the child seat meets the following three requirements:

•

The child seat is the correct type and size for the child.

•

The child seat is the correct type for the seating position.

•

The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.

■

Selecting a Child Seat

Selecting a Child Seat

Installation of a LATCH-compatible child seat is
simple.

LATCH-compatible child seats have been developed
to simplify the installation process and reduce the
likelihood of injuries caused by incorrect installation.

Child Safety

Safety of Infants and Small Children

Safe Driving

A LATCH-compatible child seat can be installed in the marked second and third row
seats. A child seat is attached to the lower anchors with either the rigid or flexible
type of connectors.

Locate the lower anchors under the marks.

■

Installing a LATCH-Compatible Child Seat

Installing a LATCH-Compatible Child Seat

For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.

WARNING

Never attach two child seats to the same
anchor. In a collision, one anchor may not
be strong enough to hold two child seat
attachments and may break, causing
serious injury or death.

Marks

Models with second row center seat

Marks

Models without second row center seat

Child Safety

Safety of Infants and Small Children

Safe Driving

Pull up the head restraint and push
rearwards until it latches, then route the
tether strap hook between/outside the
head restraint legs, and secure the tether
strap hook onto the anchor.
Make sure the strap is not twisted.

Tighten the tether strap as instructed by the
child seat manufacturer.

Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.

Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the belt is fully retracted
and locked.

Protecting Child Passengers

P. 77

Third row seat

Straight Top Tether Type

Anchor

Other Top Tether Type

Anchor

Tether Strap Hook

Third row seat

All positions

Continued

Child Safety

Safety of Infants and Small Children

Safe Driving

A child seat can be installed with a lap/shoulder belt in any rear seat or, if absolutely
necessary, the front passenger seat.

Place the child seat on the vehicle seat.

Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.

Insert the latch plate fully until it clicks.

Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.

Let the seat belt retract a few inches and
check that the retractor has switched
modes by pulling on the webbing. It should
not pull out again until it is reset by
removing the latch plate from the buckle.

If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Slowly pull the seat belt all the
way out, and repeat steps 3 – 4.

■

Installing a Child Seat with a Lap/Shoulder Seat Belt

Installing a Child Seat with a Lap/Shoulder Seat Belt

A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.

Child Safety

Safety of Infants and Small Children

Safe Driving

Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the belt.

Push the child seat firmly into the vehicle
seat while tightening the vehicle seat belt
to remove excess slack.

Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; less than one inch of movement
should occur near the seat belt.

Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the belt is fully retracted
and locked.

Installing a Child Seat with a Lap/Shoulder Seat Belt

To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.

Child Safety

Safety of Infants and Small Children

Safe Driving

■

Using a second row anchor

Raise the outer head restraint to its highest
position, then route the tether strap
between the head restraint legs, and secure
the tether strap hook to the anchor. Make
sure the strap is not twisted.

Raise the outer head restraint to its highest
position, then route the tether strap outside
the head restraint legs, and secure the
tether strap hook to the anchor. Make sure
the strap is not twisted.

Once the tether strap has been routed,
secured to the anchor, and tightened, the
head restraint may be lowered to any
position to allow proper child seat fit.

Tether Strap Hook

Anchor

Straight Top Tether Type

Tether Strap Hook

Anchor

Other Top Tether Type

Outer positions

Straight Top Tether Type

Outer positions

Other Top Tether Type

Outer positions

All Tether Type

Child Safety

Safety of Infants and Small Children

Continued

Safe Driving

Lower the center head restraint to its lowest
position, then route the tether strap over
the top of the head restraint and secure the
tether strap hook to the anchor. Make sure
the strap is not twisted.

Tighten the tether strap as instructed by the
child seat manufacturer.

Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.

Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the belt is fully retracted
and locked.

Protecting Child Passengers

P. 77

Straight Top Tether Type

Tether Strap Hook

Anchor

Other Top Tether Type

Tether Strap Hook

Models with second row center seat

Anchor

Center position

All positions

* Not available on all models

Child Safety

Safety of Infants and Small Children

Safe Driving

■

Using a third row anchor

Tighten the tether strap as instructed by the
child seat manufacturer.

Tether
Strap
Hook

Anchor

Straight Top Tether Type

Tether
Strap
Hook

Anchor

Other Top Tether Type

Outer positions

Center position

All positions

Child Safety

Safety of Larger Children

Continued

Safe Driving

Safety of Larger Children

The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.

When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upright and all the way back, then answer the
following questions.

■

Checklist

•

Do the child’s knees bend comfortably over
the edge of the seat?

•

Does the shoulder belt cross between the
child’s neck and arm?

•

Is the lap part of the seat belt as low as
possible, touching the child’s thighs?

•

Will the child be able to stay seated like this
for the whole trip?

If you answer yes to all these questions, the child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.

■

Protecting Larger Children

■

Checking Seat Belt Fit

Safety of Larger Children

WARNING

Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.

If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, using a booster seat if
needed.

Child Safety

Safety of Larger Children

Safe Driving

If a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
the rear seat. For the child’s safety, check that
the child meets the booster seat
manufacturer’s recommendations.

Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:

•

Make sure you read and fully understand the instructions and safety information
in this manual.

•

Move the front passenger seat as far back as possible.

•

Have the child sit upright and well back in the seat.

•

Check that the seat belt is properly positioned so that the child is secure in the
seat.

■

Monitoring child passengers

We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be reminded to fasten their seat belts and sit up
properly.

■

Booster Seats

Booster Seats

When installing a booster seat, make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.

Some U.S. states and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or weight (e.g., 6 years or 60
lbs). Be sure to check current laws in the state,
province, or territory where you intend to drive.

■

Protecting Larger Children - Final Checks

Safe Driving

Exhaust Gas Hazard

Carbon Monoxide Gas

The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.

■

Have the exhaust system inspected for leaks whenever

•

The exhaust system is making an unusual noise.

•

The exhaust system may have been damaged.

•

The vehicle is raised for an oil change.

When you operate a vehicle with the tailgate open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the tailgate
open, open all the windows and set the climate control system as shown below.

Select the fresh air mode.

Select the

mode.

Set the fan speed to high.

Set the temperature control to a comfortable setting.

Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.

Carbon Monoxide Gas

An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately after starting the engine.

WARNING

Carbon monoxide gas is toxic.

Breathing it can cause unconsciousness and
even kill you.

Avoid any enclosed areas or activities that
expose you to carbon monoxide.

Safe Driving

Safety Labels

Label Locations

These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.

If a label comes off or becomes hard to read (except for the U.S. dashboard label, which may be removed by the owner), contact a dealer
for a replacement.

Radiator Cap

U.S. models

U.S. models only

Dashboard

Canadian models

Air Conditioner System

Sun Visor

U.S. models

Canadian models

U.S. models only

Sun Visor

U.S. models

Center Seat Storage

Canadian models

* Not available on all models

strum

nt Pa

nel

Indicators

Indicators come on/blink depending on the condition of the vehicle. Messages may
display on the driver information interface at the same time. Please take the
appropriate action outlined in the message, such as contacting a dealer.

Parking Brake and
Brake System
Indicator (Red)

U.S.

Canada



P. 100

(sequential mode)

Indicator/Gear
Selection Indicator



P. 103

Parking Brake and
Brake System
Indicator (Amber)

U.S.

Canada

Automatic Brake
Hold System
Indicator

Automatic Brake
Hold Indicator

U.S.

Canada

*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the engine

has started. If an indicator does not come on or turn off, there may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in the
owner's manual.

Malfunction
Indicator Lamp

Charging System
Indicator

Seat Belt Reminder
Indicator

Low Fuel Indicator
(Amber)



P. 102



P. 102



P. 102



P. 103



P. 103

Gear Position
Indicator



P. 103

Transmission System
Indicator



P. 104



P. 105



P. 105

Anti-lock Brake System
(

ABS

) Indicator

Vehicle Stability Assist

(VSA

) System Indicator

Vehicle Stability Assist

(VSA

)

OFF

Indicator

Supplemental
Restraint System
Indicator

Electric Power Steering
(EPS) System Indicator



P. 106



P. 106



P. 107



P. 107



P. 106

Low Tire Pressure/
TPMS Indicator

Turn Signal and
Hazard Warning
Indicators

Lights On
Indicator



P. 108



P. 108



P. 108

Indicators

Continued

strum

nt Pa

nel

*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the engine

has started. If an indicator does not come on or turn off, there may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in the
owner's manual.

Auto High-Beam
Indicator

High Beam
Indicator

Fog Light
Indicator

System Message
Indicator

Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator
(Amber)

Lane Keeping Assist
System (LKAS) Indicator
(Amber)

Safety Support
Indicator (Green/Gray)

Auto Idle Stop System
Indicator (Amber)



P. 113



P. 108
