Honda Pilot (2024 year). Manual in english

101

Indicators

Continued

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Parking Brake and
Brake System
Indicator (Red)

●

Comes on if there is a problem with the
brake system.

●

Comes on along with the Parking Brake and
Brake System Indicator (amber)

- Immediately

stop in a safe place. Contact a dealer for repair. The
brake pedal becomes harder to operate. Depress
the pedal further than you normally do.

If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On

P. 763

●

Comes on along with the ABS indicator

- Have

your vehicle checked by a dealer.

If the Brake System Indicator (Red) Comes On
or Blinks

P. 761

●

Blinks and the Parking Brake and Brake System
Indicator (amber) comes on at the same time

There is a problem with the electric parking brake
system. The parking brake may not be set.
Avoid using the parking brake and have your
vehicle checked by a dealer immediately.

If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On

P. 763

U.S.

Canada

(Red)

102

Indicators

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Parking Brake and
Brake System
Indicator (Amber)

●

Comes on if there is a problem with a
system related to braking other than the
conventional brake system.

●

Comes on while driving

- Avoid high speeds and

sudden braking. Take the vehicle to a dealer
immediately.

●

Comes on if there is a problem with the
electric parking brake system and/or the
automatic brake hold system.

●

Stays on constantly

- Avoid using the parking

brake and have your vehicle checked by a dealer
immediately.

●

Comes on if the brake system is
deactivated temporarily after the battery
has been disconnected, then reconnected.

●

Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it does
not, have your vehicle checked by a dealer.

●

Comes on if there is a problem with the
radar sensor.

●

Indicator may come on temporarily when
the Maximum Load Limit is exceeded.

●

Make sure the total load is within the Maximum
Load Limit.

Maximum Load Limit

P. 493

●

Stays on constantly

- Have your vehicle checked

by a dealer.

Automatic Brake
Hold System
Indicator

●

Comes on when the automatic brake hold
system is on.

Automatic Brake Hold

P. 645

Automatic Brake
Hold Indicator

●

Comes on when the automatic brake hold
is activated.

Automatic Brake Hold

P. 645

U.S.

Canada

(Amber)

U.S.

Canada

103

Indicators

Continued

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Malfunction
Indicator Lamp

●

After you have set the power mode to ON,
the vehicle performs system checks.
However, if the readiness codes have not
been set by that time, this indicator will
blink five times and then go off.

●

Readiness codes are part of the on-board
diagnostics for the emissions control systems.

Testing of Readiness Codes

P. 785

●

Comes on if there is a problem with the
emissions control systems.

●

Blinks when a misfire in the engine’s
cylinders is detected.

If the Malfunction Indicator Lamp Comes On
or Blinks

P. 760

Charging System
Indicator

●

Comes on when there is a problem with
the charging system.

●

Stop in a safe place and contact a dealer
immediately.

Checking the Battery

P. 725

If the Charging System Indicator Comes On

P. 760

Gear Position
Indicator

●

Indicates the current gear selection.

Shifting

P. 521

(sequential

mode) Indicator/
Sequential Mode
Gear Selection
Indicator

●

Comes on when the sequential mode is
applied.

Sequential Mode

P. 528

104

Indicators

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Transmission
System Indicator

•

The current gear selection blinks if the
transmission system has a problem.

•

Blinks while driving

- Performance may be

reduced. Avoid sudden starts and acceleration and
have your vehicle checked by a dealer immediately.

•

The indicated current gear selection blinks if
you cannot put the transmission into

(

due

to a transmission system failure.

•

The indicated current gear selection blinks if
the transmission system has a problem and
the performance of the vehicle is reduced.

•

Avoid sudden starts, sudden acceleration and high
speed, and have your vehicle checked by a dealer
immediately.

•

The indicated current gear selection blinks if
the transmission system has a problem and
the paddle shifters cannot be used.

•

Have your vehicle checked by a dealer immediately.

•

The current gear position or all the gear
positions blink if there is a problem with the
transmission and the vehicle is no longer
able to run.

•

Immediately park your vehicle in a safe place.

Emergency Towing

P. 773

•

Have your vehicle checked by a dealer.

•

The current gear position or all the gear
positions blink if there is a problem with the
transmission and it is not possible to select

(

•

Depending on the circumstances, you can set the
power mode to ON as an emergency measure.

If the Transmission System Indicator Blinks
along with the Warning Message

P. 765

•

While the vehicle is stopped, apply the parking
brake.

•

Have your vehicle checked by a dealer immediately.

105

Indicators

Continued

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Seat Belt Reminder
Indicator

●

Blinks and the beeper sounds for a few
seconds if you are not wearing a seat belt
when you set the power mode to ON, then
the indicator comes on.

●

If the front passenger is not wearing a seat
belt, the indicator comes on a few seconds
later.

●

Comes on for a while when the rear seat
belt is unfastened while the power mode in
ON.

●

Blinks while driving if you and/or any
passenger has not fastened a seat belt. The
beeper sounds and the indicator blinks at
regular intervals.

●

The beeper stops and the indicator goes off when
you and the passengers fasten their seat belts.

●

Stays on after you and/or the passengers have
fastened the seat belt(s)

- A detection error may

have occurred in the sensor. Have your vehicle
checked by a dealer.

Seat Belt Reminder

P. 45

Low Fuel Indicator
(Amber)

●

Comes on when the fuel reserve is running
low (approximately 2.77 U.S. gal/10.5 Liter
left).

●

Refuel your vehicle as soon as possible.

●

Blinks if there is a problem with the fuel
gauge.

●

Have your vehicle checked by a dealer.

106

Indicators

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Anti-lock Brake
System (

ABS

)

Indicator

●

Comes on if there is a problem with the
ABS.

●

Stays on constantly

- Have your vehicle checked

by a dealer. With this indicator on, your vehicle still
has normal braking ability but no anti-lock
function.

Anti-lock Brake System (ABS)

P. 648

Supplemental
Restraint System
Indicator

●

Comes on if a problem with any of the
following is detected:

Supplemental Restraint System

Side airbag system

Side curtain airbag system

Seat belt tensioner

●

Stays on constantly

- Have your vehicle checked

by a dealer.

Electric Power
Steering (EPS)
System Indicator

•

Comes on if there is a problem with the
EPS system.

•

Stays on constantly

- Have your vehicle checked

by a dealer.

•

Do not drive displays on the driver
information interface

- Immediately stop in a

safe place and contact a dealer.

If the Electric Power Steering (EPS) System
Indicator Comes On

P. 762

107

Indicators

Continued

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Vehicle Stability
Assist

(VSA

)

System Indicator

●

Blinks when VSA

or trailer stability assist is

active.

—

●

Comes on if there is a problem with the
VSA

system, brake assist system, hill start

assist system, starting assist brake function,
agile handling assist, or trailer stability
assist.

●

Stays on constantly

- Have your vehicle checked

by a dealer.

Vehicle Stability Assist

(VSA

), aka

Electronic Stability Control (ESC), System

P. 544

Trailer Stability Assist

P. 503

Hill start assist system

P. 518

Brake Assist System

P. 649

Starting Assist Brake Function

P. 535

Agile Handling Assist

P. 546

●

When

Trailer stability assist problem

is displayed

on the driver information interface, the VSA

does

not activate.

●

Comes on if the VSA

system is deactivated

temporarily after the battery has been
disconnected, then reconnected.

●

Drive a short distance at more than 12 mph (20 km/h).
The indicator should go off. If it does not, have your
vehicle checked by a dealer.

Vehicle Stability
Assist

(VSA

)

OFF

Indicator

●

Comes on when you partially disable VSA

●

Comes on in

TRAIL

and

SAND

drive

modes.

VSA

On and Off

P. 545

Drive Mode System

P. 536

* Not available on all models

108

Indicators

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Low Tire Pressure/
TPMS Indicator

●

Comes on if the tire pressure of any of the
tires becomes low.

●

Comes on while driving

- Stop in a safe place,

check tire pressures, and inflate the tire(s) if
necessary.

●

Blinks for about one minute, and then stays
on if there is a problem with the TPMS with
Tire Fill Assist, or when a spare tire is
temporarily installed.

●

Blinks and remains on

- Have your vehicle

checked by a dealer. If the vehicle is fitted with a
spare tire, get your regular tire repaired or replaced
and put back on your vehicle as soon as you can.

Turn Signal and
Hazard Warning
Indicators

•

Blinks when you operate the turn signal
lever.

•

Blinks along with all turn signals when you
press the hazard warning button.

•

Does not blink or blinks rapidly

Replacing Light Bulbs

P. 706, 707

Lights On Indicator

•

Comes on when the parking, tail, and
other external lights are on.

Lights

P. 220

High Beam
Indicator

•

Comes on when the high beam headlights
are on.

—

Auto High-Beam
Indicator

•

Comes on when all the operating
conditions of the auto high-beam are met.

Auto High-Beam

P. 226

Fog Light
Indicator

•

Comes on when the fog lights are on.

Fog Lights

P. 224

* Not available on all models

109

Indicators

Continued

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Hill Descent
Control System
Indicator (White/
Green)

•

Lights up in white when the Hill Descent
Control System is on and ready to use.

•

Lights up in green when the Hill Descent
Control System is in operation.

Hill Descent Control System

P. 542

System Message
Indicator

•

Comes on along with a beep when a
problem is detected. A system message on
the driver information interface appears at
the same time.

●

Refer to the Indicators information in this chapter
when a system message appears on the driver
information interface. Take the appropriate action
for the message.

●

While the indicator is on, press the

(home)

button, and select

Warnings

to see the message

again.

Switching the Display

P. 125

●

The driver information interface will not return to
the normal screen unless the warning is canceled,
or the

(home) button is pressed.

●

While the indicator is on, roll the right selector
wheel to see the message again.

Switching the Display

P. 154

●

The driver information interface will not return to
the normal screen unless the warning is canceled,
or the right selector wheel is rolled.

Models with A-type meter

Models with B-type meter

110

Indicators

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

SPORT

Mode

Indicator

●

Comes on when you set the drive mode to

SPORT

●

The ambient meter remains light up in red as long
as

SPORT

mode is selected.

●

The ambient meter goes off and gauges in the
instrument panel light up in red as long as

SPORT

mode is selected.

Drive Mode System

P. 536

NORMAL

Mode

Indicator

●

Comes on when you set the drive mode to

NORMAL

Drive Mode System

P. 536

ECON

Mode

Indicator

●

Comes on when you set the drive mode to

ECON

Drive Mode System

P. 536

SNOW

Mode

Indicator

●

Comes on when you set the drive mode to

SNOW

Drive Mode System

P. 536

Models with A-type meter

Models with B-type meter

* Not available on all models

111

Indicators

Continued

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

TRAIL

Mode

Indicator

●

Comes on when you set the drive mode to

TRAIL

Drive Mode System

P. 536

SAND

Mode

Indicator

●

Comes on when you set the drive mode to

SAND

Drive Mode System

P. 536

TOW

Mode

Indicator

●

Comes on when you set the drive mode to

TOW

Drive Mode System

P. 536

Low Temperature
Indicator

●

Comes on when the engine coolant
temperature is low.

●

If the indicator stays on after the engine has
reached normal operating temperature, there may
be a problem with the temperature sensors. Have
your vehicle inspected by a dealer.

* Not available on all models

112

Indicators

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Immobilizer System
Indicator

•

Blinks if the immobilizer system cannot
recognize the key information.

•

Blinks

- You cannot start the engine. Set the

power mode to VEHICLE OFF, then select the ON
mode again.

Depress and hold the brake pedal before setting
the power mode to ON.

•

Repeatedly blinks

- The system may be

malfunctioning. Have your vehicle checked by a
dealer.

•

Do not attempt to alter this system or add other
devices to it. Electrical problems can occur.

Security System
Alarm Indicator

•

Blinks when the security system alarm has
been set.

Security System Alarm

P. 207

Models with
A-type meter

Indicator

Models with
B-type meter

Canadian models

Models with
A-type meter

Indicator

Models with
B-type meter

113

Indicators

Continued

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Auto Idle Stop
Indicator (Green)

●

Comes on when Auto Idle Stop is in
operation. The engine automatically shuts
off.

Auto Idle Stop

P. 530

Auto Idle Stop

OFF

Indicator

●

Comes on when the Auto Idle Stop system
has been turned off by the Auto Idle Stop

OFF

button.

Auto Idle Stop System ON/OFF

P. 531

Auto Idle Stop
System Indicator
(Amber)

●

Blinks if there is a problem with the Auto
Idle Stop system.

●

Have your vehicle checked by a dealer.

114

Indicators

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Auto Idle Stop
Suspend Indicator

●

Comes on while Auto Idle Stop is
temporarily suspended in the following
situations.

—

Brake pedal is not fully pressed

●

Depress the brake pedal firmly.

The transmission is in a position other than

(

Auto Idle Stop

P. 530

System charging is prioritized

Climate control system is prioritized

is ON (indicator on).

Engine coolant temperature is not in
operating range

SNOW

TOW

SPORT

TRAIL

, or

SAND

mode is selected.

Auto Idle Stop

P. 530

Drive Mode System

P. 536

The battery temperature is too low.

Auto Idle Stop does not activate for some
reason.

Auto Idle Stop

P. 530

* Not available on all models

115

Indicators

Continued

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Adaptive Cruise
Control (ACC) with
Low Speed Follow
Indicator (Amber)

●

Comes on if there is a problem with ACC
with Low Speed Follow.

●

Comes on while driving

- Have your vehicle

checked by a dealer.

●

Comes on if the ACC with Low Speed
Follow is deactivated temporarily after the
battery has been disconnected, then
reconnected.

●

Drive a short distance at more than 12 mph (20 km/h).
The indicator should go off. If it does not, have your
vehicle checked by a dealer.

●

Indicator may come on temporarily when
the Maximum Load Limit is exceeded.

●

ACC with Low Speed Follow has been
automatically canceled.

●

Make sure the total load is within the Maximum
Load Limit.

Maximum Load Limit

P. 493

●

Stays on constantly

- Have your vehicle checked

by a dealer.

Adaptive Cruise
Control (ACC) with
Low Speed Follow
Indicator
(White/Green)

●

Lights up in white when you press the

button.

●

Lights up in green when you press the

RES/

SET/−

switch up or down.

Adaptive Cruise Control (ACC) with Low
Speed Follow

P. 587

116

Indicators

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Lane Keeping
Assist System
(LKAS) Indicator
(Amber)

●

Comes on if there is a problem with the
LKAS.

●

Stays on constantly

- Have your vehicle checked

by a dealer.

●

Indicator may come on temporarily when
the Maximum Load Limit is exceeded.

●

Make sure the total load is within the Maximum
Load Limit.

Maximum Load Limit

P. 493

●

Stays on constantly

- Have your vehicle checked

by a dealer.

Lane Keeping
Assist System
(LKAS) Indicator
(White/Green)

●

Lights up in white when you press the LKAS
button.

●

Lights up in green when the LKAS is in
operation.

Lane Keeping Assist System (LKAS)

P. 609

Traffic Jam Assist

P. 622

Cruise Mode
Indicator
(White/Green)

●

Lights up in white when you change to
cruise mode.

●

Lights up in green when you have set a
speed for cruise control.

To Switch ACC with Low Speed Follow to
Cruise Control

P. 606

Adaptive Cruise
Control (ACC) with
Low Speed Follow
Interval Indicator

●

Comes on when Adaptive Cruise Control
(ACC) with Low Speed Follow indicator
comes on.

●

Each time you press the interval button, the
following interval (the interval behind a vehicle
detected ahead of you) setting cycles through extra
long, long, middle, and short following intervals.

To Set or Change Following-interval

P. 601

* Not available on all models

117

Indicators

Continued

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Safety Support
Indicator (Amber)

●

Comes on if there is a problem with Road
Departure Mitigation system, CMBS

, Low

Speed Braking Control

or blind spot

information system

●

Stays on constantly

- Have your vehicle checked

by a dealer.

●

Comes on if there is a problem with the
parking sensor.

●

Check if the area around the sensor(s) is covered
with mud, ice, snow, etc. If the indicator stays on
even after you clean the area, have the system
checked by a dealer.

●

Indicator may come on temporarily when
the Maximum Load Limit is exceeded.

●

Make sure the total load is within the Maximum
Load Limit.

Maximum Load Limit

P. 493

●

Stays on constantly

- Have your vehicle checked

by a dealer.

●

Comes on if the Road Departure Mitigation
system, CMBS

and Low Speed Braking

Control

are deactivated temporarily after

the battery has been disconnected and
then reconnected.

●

Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not,
have your vehicle checked by a dealer.

Models with Parking Sensor System

* Not available on all models

118

Indicators

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Safety Support
Indicator (Amber)

●

Comes on when the Road Departure
Mitigation system and/or CMBS

shuts

itself off.

●

Indicator may come on temporarily if the radar
sensor cannot detect any objects when passing
through an enclosed space such as a tunnel, or
driving on an open road without any structures
nearby.

●

The area around the radar sensor is blocked by dirt,
mud, etc. Stop your vehicle in a safe place and wipe
the debris off with a soft cloth. Indicator may take
some time to go off after the radar sensor is
cleaned.

●

Have your vehicle checked by a dealer if the
indicator does not go off even after you have
cleaned the radar sensor.

Radar Sensor

P. 639

●

Stays on

- The temperature inside the camera is

too high.
Use the climate control system to cool down the
camera.
The system activates when the temperature inside
the camera cools down.

Front Sensor Camera

P. 637

119

Indicators

Continued

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Safety Support
Indicator (Amber)

●

Comes on when the Road Departure
Mitigation system and/or CMBS

shuts

itself off.

●

Stays on

- The area around the camera is blocked

by dirt, mud, etc. Stop your vehicle in a safe place
and wipe the debris off with a soft cloth.

●

Have your vehicle checked by a dealer if the
indicator and message are still displayed even after
you have cleaned the area around the camera.

Front Sensor Camera

P. 637

●

It may come on when the ambient conditions are
dark, such as when driving in a tunnel, or at night,
dawn, or dusk.

●

Comes on when mud, snow, or ice
accumulates in the vicinity of the sonar
sensor.

●

Remove the obstacle in the vicinity of the sonar
sensor.

Low Speed Braking Control

P. 573

●

Comes on when mud, snow, or ice
accumulates in the vicinity of the blind spot
information system sensor.

●

Comes on when the temperature of the
blind spot information system sensor is
high.

●

Comes on while driving

- Something may be

interfering with the blind spot information system
sensor. Check the vicinity of the blind spot
information system sensor and remove any
obstacles.

●

The system will return to normal when the
temperature cools down.

Blind Spot Information System

P. 552

Models with Low Speed Braking Control

Models with blind spot information system

* Not available on all models

120

Indicators

strum

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Safety Support
Indicator (Green/
Gray)

●

Lights up in green when Road Departure
Mitigation system, CMBS

, Low Speed

Braking Control

, blind spot information

system

, and parking sensor system

are

on.

●

Lights up in green and gray when Road
Departure Mitigation system, CMBS

, Low

Speed Braking Control

, blind spot

information system

, or parking sensor

system

, or any two, three or four of these

systems are off.

●

Lights up in gray when Road Departure
Mitigation system, CMBS

, Low Speed

Braking Control

, blind spot information

system

, and parking sensor system

are

off.

Road Departure Mitigation System

P. 579

Blind Spot Information System

P. 552

Low Speed Braking Control

P. 573

Collision Mitigation Braking System

(CMBS

)

P. 561

Parking Sensor System

P. 652

* Not available on all models

121

Continued

strum

nt Pa

nel

Gauges and Displays

Gauges

Gauges include the speedometer, fuel gauge, and other related indicators.
They are displayed when the power mode is in ON.

Displays your driving speed in mph or km/h.

■

Speedometer

Speedometer

You can change the Speed/Distance units.

Speed/Distance Units

P. 138, 166

Settings

P. 140

Customized Features

P. 426

If you change the unit from miles and mph to km and
km/h, the current vehicle speed in mph appears next
to the digital speedometer.

U.S. models with B-type meter

Vehicle Speed in mph

* Not available on all models

Gauges and Displays

Gauges

122

strum

nt Pa

nel

Shows the number of engine revolutions per minute.

Displays the amount of fuel left in the fuel tank.

Displays the temperature of the engine coolant.

Shows the total number of miles or kilometers that your vehicle has accumulated.

■

Tachometer

■

Fuel Gauge

■

Temperature Gauge

■

Odometer

Tachometer

You can turn the tachometer display on or off.

Settings

P. 140

Customized Features

P. 426

Models with A-type meter

Fuel Gauge

NOTICE

You should refuel when the reading approaches

Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.

The actual amount of remaining fuel may differ from
the fuel gauge reading.

Models with B-type meter

Temperature Gauge

NOTICE

Driving with the temperature gauge reading in the
upper zone can cause serious engine damage. Pull
safely to the side of the road and allow engine
temperature to return to normal.

Overheating

P. 757

* Not available on all models

Continued

123

Gauges and Displays

Gauges

strum

nt Pa

nel

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

■

Adjusting the outside temperature display

Adjust the temperature reading by up to ±5°F or ±3°C if the temperature reading
seems incorrect.

Shows certain detected traffic signs while driving.
If speed limit warning is activated, the sign icon blinks when the maximum speed of
the traffic sign detected is exceeded by a threshold, when compared with the vehicle
speed.

Traffic Sign Recognition System

P. 631

■

Outside Temperature

■

Traffic Sign Recognition System

Outside Temperature

The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be
updated after the temperature reading has stabilized.

You can adjust the temperature reading.

Settings

P. 140

Customized Features

P. 426

Traffic Sign Recognition System

The default speed limit warning threshold is the
maximum speed of the traffic sign detected.

You can adjust the threshold for speed limit warning.

Settings

P. 140

Customized Features

P. 426

Models with A-type meter

Models with B-type meter

* Not available on all models

Gauges and Displays

Gauges

124

strum

nt Pa

nel

Shows the current mode for ACC with Low Speed Follow, LKAS, and Traffic Jam
Assist.

Adaptive Cruise Control (ACC) with Low Speed Follow

P. 587

Lane Keeping Assist System (LKAS)

P. 609

Traffic Jam Assist

P. 622

Shows the clock.
You can adjust the time manually and change the clock display to show the 12 hour
clock or 24 hour clock.

Clock

P. 176

■

Current Mode for ACC with Low Speed Follow, the LKAS,

and Traffic Jam Assist

■

Clock

Current Mode for ACC with Low Speed Follow, the LKAS, and
Traffic Jam Assist

When you set speed for ACC with Low Speed Follow
or cruise control, a set speed mark will be displayed
on the speedometer.

Models with B-type meter

Set
Speed

Models with A-type meter

125

Gauges and Displays

Driver Information Interface (A-type Meter)

Continued

strum

nt Pa

nel

Driver Information Interface (A-type Meter)

The driver information interface shows information such as the estimated travelable
distance and fuel economy of the vehicle. It also displays messages such as warnings
to other helpful information.
When a warning message displays, please check the message and contact a dealer
to have the vehicle inspected if necessary. Please refer to the pages below if the

Engine oil pressure low

Engine temperature too hot

message is displayed.

If the Engine oil pressure low Warning Appears

P. 759

Overheating

P. 757

Press the

(home) button, then roll the left selector wheel to scroll to the content

you want to see. Press the left selector wheel to see detailed information.

■

Switching the Display

Switching the Display

You can add or delete the meter contents.

Gauge Display Settings

P. 139

126

Gauges and Displays

Driver Information Interface (A-type Meter)

strum

nt Pa

nel

Gauge display
settings

P. 139

Left Selector
Wheel

(home) Button

Roll the left
selector wheel.

No content

P. 138

Speed & time

P. 129

Warnings

P. 139

Range & fuel

P. 127

Settings

P. 140

Driver
attention

P. 132

Seat belts

P. 135

Safety
support

P. 136

Maintenance

P. 135

Brightness

P. 138

Tire pressure

P. 135

AWD torque
distribution

P. 135

Navigation

P. 131

Phone

P. 130

Audio

P. 130

* Not available on all models

Gauges and Displays

Driver Information Interface (A-type Meter)

128

strum

nt Pa

nel

■

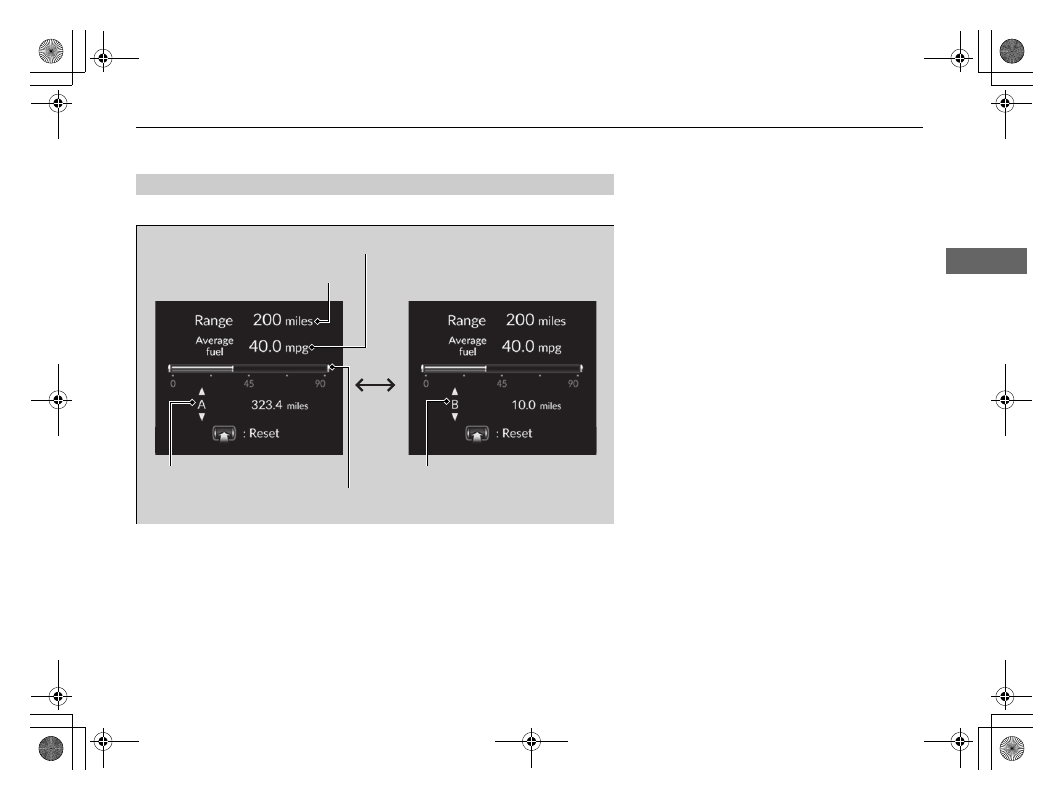

Trip meter

Shows the total number of miles or kilometers driven since the last reset. Meters A
and B can be used to measure two separate trips.

Resetting a trip meter

To reset the trip meter, display it, press the left selector wheel, and then select

Reset

The trip meter is reset to 0.0.

■

Average fuel economy

Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.

■

Instant fuel economy

Shows the instant fuel economy as a bar graph in mpg or l/100 km.

■

Range

Shows the estimated distance you can travel on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.

Average fuel economy

You can change when to reset the average fuel
economy.

Settings

P. 140

Customized Features

P. 426

Range

The driving range displayed is only an estimate and
may differ from the actual distance the vehicle can
travel.

* Not available on all models

Gauges and Displays

Driver Information Interface (A-type Meter)

130

strum

nt Pa

nel

■

Trip meter

P. 128

■

Elapsed time

Shows the time elapsed since Trip A or Trip B was reset.

■

Average speed

Shows the average speed in mph or km/h since Trip A or Trip B was reset.

Shows the current audio information.

Audio System Basic Operation

P. 326

Shows the current phone information.

Bluetooth

HandsFreeLink

P. 468

■

Audio

■

Phone

Elapsed time

You can change when to reset the elapsed time.

Settings

P. 140

Customized Features

P. 426

Average speed

You can change when to reset the average speed.

Settings

P. 140

Customized Features

P. 426

* Not available on all models

Continued

131

Gauges and Displays

Driver Information Interface (A-type Meter)

strum

nt Pa

nel

■

Compass

Shows the compass screen.

■

Turn-by-Turn Directions

When driving guidance is provided by the navigation system

, Android Auto or

Apple CarPlay, turn-by-turn directions to your destination appear.

Refer to the Navigation System Manual

Android Auto

P. 392

Apple CarPlay

P. 385

■

Navigation

Navigation

You can select whether to have the turn-by-turn
display come on or not during the route guidance.

Customized Features

P. 426

Turn-by-turn directions may not be available for all
apps.

When the compass or turn-by-turn directions are
displayed, you can control some navigation system
functions on the driver information interface by
scrolling the left selector wheel.

Refer to the Navigation System Manual

Models with navigation system

* Not available on all models

Gauges and Displays

Driver Information Interface (A-type Meter)

132

strum

nt Pa

nel

The Driver Attention Monitor analyzes steering inputs to determine if the vehicle is
being driven in a manner consistent with drowsy or inattentive driving. If it
determines that the vehicle is being driven in such a manner, it will display the
degree of the driver’s attention on the driver information interface.

When you select

Driver attention

on the

driver information interface, bars on it light up
in white to indicate the degree of the driver’s
attention.

Switching the Display

P. 125

■

Driver Attention Monitor

Driver Attention Monitor

The Driver Attention Monitor cannot always detect if
the driver is tired or inattentive.
Regardless of the system’s feedback, if you are
feeling tired, stop in a safe location and rest for as
long as needed.

Driver Information
Interface

Left Selector
Wheel

(home) Button

Level

Honda Pilot (2024 year). Manual in english - page 3
