39. Disassemble lower mounting bracket of panel frame-

work [68000074].

(a) Disassemble the screw and disconnect wiring harness.

(b) Disassemble the screw cap, bolt and lower assemble

bracket of panel framework.

40. Disassemble panel framework body assembly

[68000070].

(a) Disassemble three bolts and disconnect panel junction box

and joint fixed plug.

(b) Release fixed clamp from panel framework body and dis-

connect the wiring harness.

(c) Disassemble five bolts and panel framework body

assembly.

41. Disassemble wind outlet of Defogger.

Release five fixed claws and disassemble wind outlet of de-

fogger

42. Disassemble control cable assembly of air mixing

flow choke (manual air conditioner).

(a) Disassemble pull cable from fixed clamp.

(b) Disassemble control cable of air mixing flow choke.

43. Disassemble engine ECU.

Disassemble two bolts and disconnect engine ECU.

44. Disassemble air conditioner group assembly.

Disassemble two screw caps, screws, bolts and air condi-

Air conditioner--Air conditioner central heating core assembly

 229

Fixing claw

Fixing clamp

tioner group assembly.

45. Disassemble air conditioner central heating core

assembly.

(a) Disassemble the screw and pull out wind leading pipe.

(b) Disassemble two screws.

(c) Disconnect fixed claw and disassemble air conditioner

central heating core assembly.

46. Disassemble servo motor of module state flow

choke (automatic air conditioner).

Disassemble three screws and servo motor of module state

flow choke.

Air conditioner--Air conditioner central heating core assembly

 230

Fixing claw

Fixing claw

47. Disassemble servo motor of air mixing flow choke

(automatic air conditioner).

Disassemble two screws and servo motor of air mixing flow

choke.

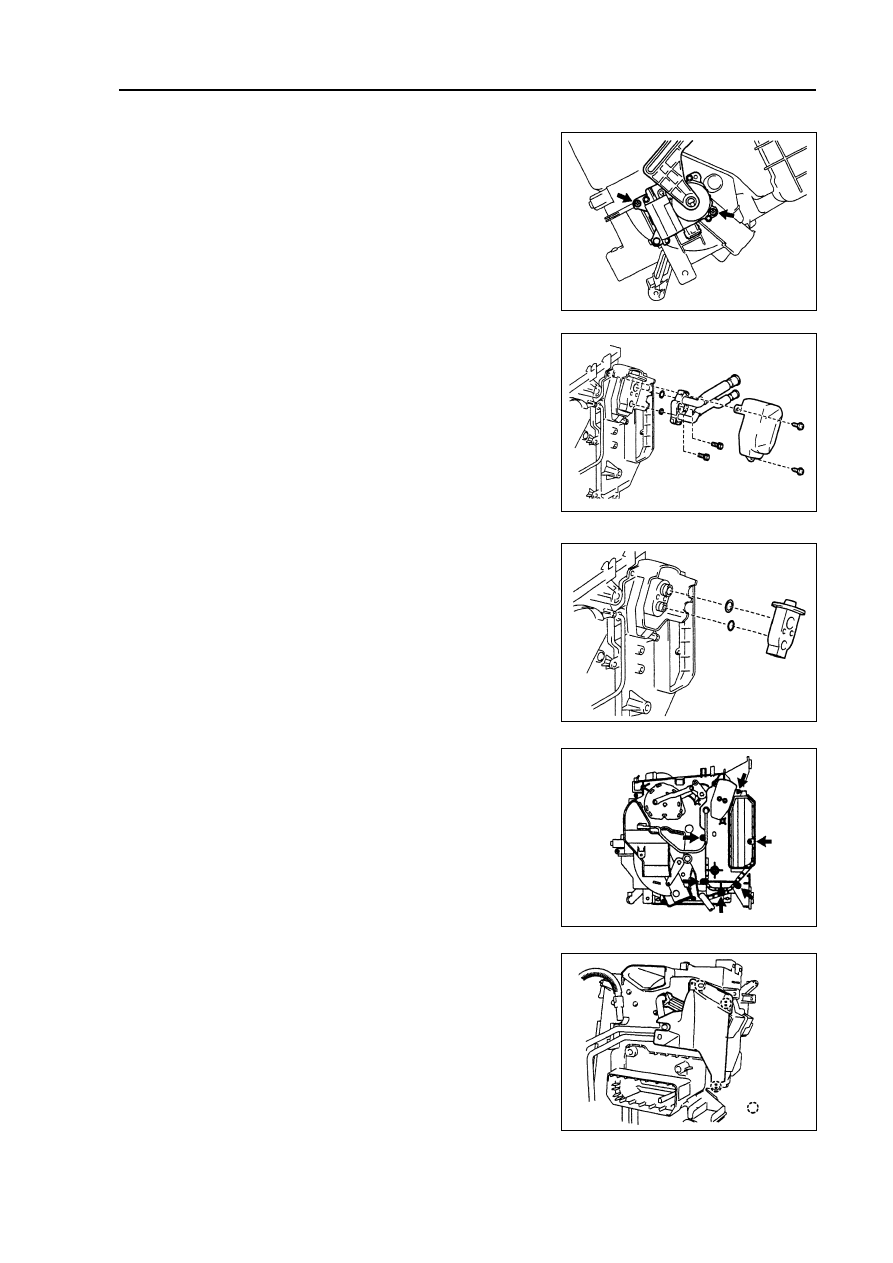

48. Disassemble air conditioner pipeline.

(a) Disassemble two screws and extending cover.

(b) Use planetary wrench (5.0mm) to disassemble two plan-

etary bolts and air conditioner pipeline.

(c) Disassemble two O-shape loops from air conditioner

pipeline.

49. Disassemble expansion valve.

(a) Disassemble expansion valve from air conditioner group.

(b) Disassemble two O-shape rings from air conditioner

pipeline.

50. Disassemble No.1 air conditioning heat sensitive

resistance.

51. Disassemble evaporator.

(a) Disassemble six screws and air conditioning group parts.

(b) Pull out evaporator.

52. Disassemble central heating core.

Disconnect fixed claw and central heating water pipe defend-

ing cover, then pull out central heating core.

Air conditioner--Air conditioner central heating core assembly

Fixing
claw

 231

Air conditioner--Air conditioner central heating core assembly

53. Assemble expansion valve.

(a) Spread Refrigerant oil on two O-shape loops and assemble

it on expansion valve.

Refrigerant oil: ND-OIL No. 8 or other products with

same grade.

(b) Assemble expansion valve on evaporator.

54. Assemble air conditioner pipeline.

(a) Spread Refrigerant oil on two O-shape loops and assemble

it on air conditioner pipeline.

Refrigerant oil: ND-OIL No. 8 or other products with

same grade.

(b) Use planetary wrench (5.0mm) to assemble air conditioner

pipeline with two planetary bolts.

Torque: 3.5 N

xxxxx

m

(c) Assemble two screws and extending cover.

55. Assemble panel framework body assembly

Assemble panel strengthening beam and five bolts.

56. Assemble lower assemble bracket of panel

framework.

Assemble lower assemble bracket of panel framework, screw

cap and bolt.

 232
