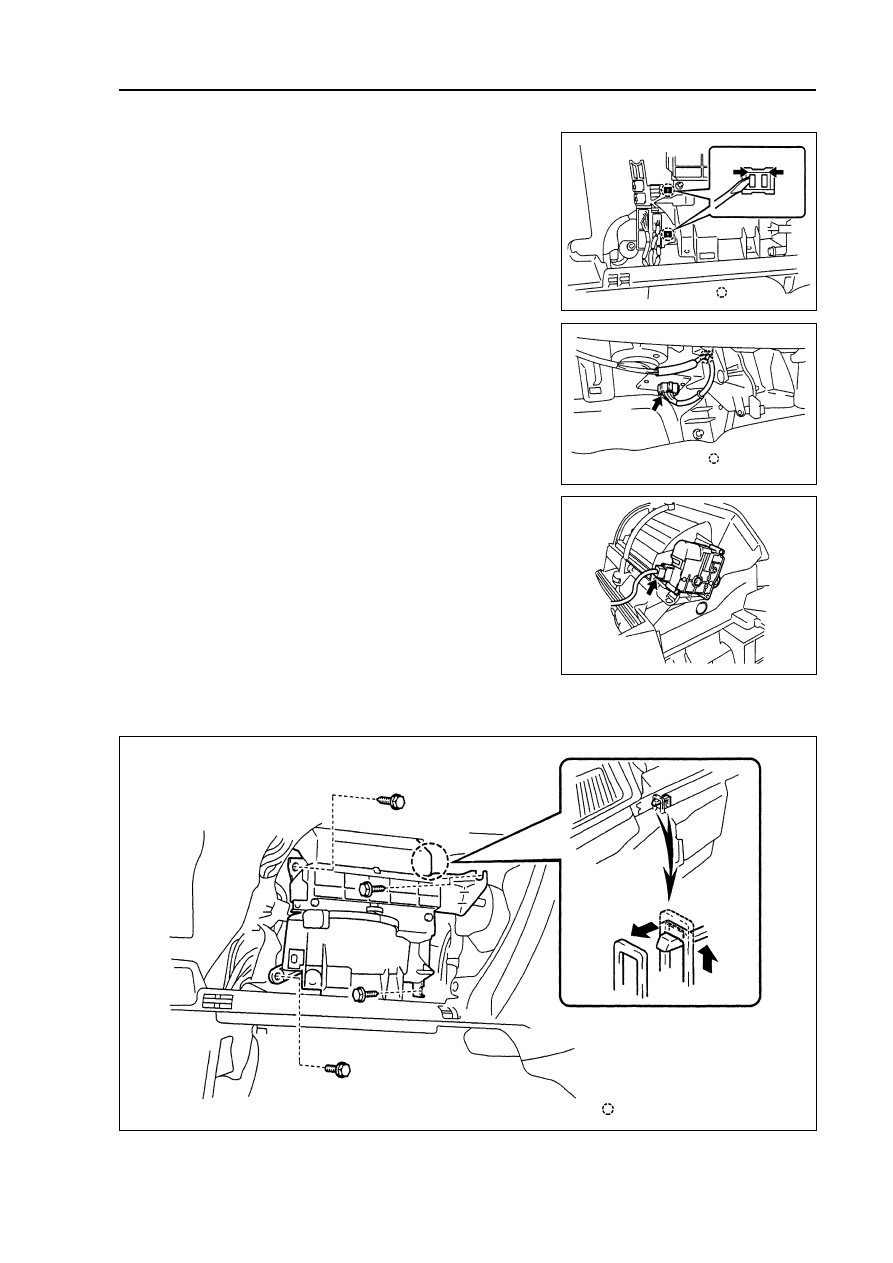

Air conditioner--Fan assembly

(c) Disconnect joint and fixed clamp.

(d) Disassemble servo motor assembly joint of in-out air cycle

flow choke.

(e) Disassemble three screws and bolts.

(f) Disconnect fixed claw and disassemble electric engine of

fan.

(g) Disassemble fan assembly.

 225

Fixing claw

Fixing clamp

Fixing claw

Locking point

7. Disassemble servo motor assembly of indoor cycle

flow choke.

Disassemble two screws and servo electric engine assembly

of indoor cycle flow choke.

8. Disassemble fan motor assembly.

Disassemble three screws and fan electric engine assembly.

9. Disassemble fan motor control assembly (automatic

air conditioner).

Disassemble two screws and fan electric engine control

assembly.

Air conditioner--Fan assembly

 226

Air conditioner--Air conditioner central heating core assembly

3. Disconnect refrigerant No.1 low pressure hose.

Note:

after disassembling the pipeline, it is necessary to cover

the joint to prevent humidity or dust from entering in

system.

4. Disconnect refrigerant liquid pipe A.

Hint: disconnect liquid pipe A with the method being

same as No.1.

5. Disconnect water outlet  hose of heating.

(a) Slide out fixed clamp and disassemble water outlet hose

of  heating.

6. Disconnect water intake hose of  heating.

Slide out fixed clamp and disassemble water intake hose of

heating.

7. Disassemble cathode wire of battery.

8. Make front wheels face the front.

9. Disassemble safety airbag assembly at the side of

driver.

10. Disassemble steering wheel.

11. Disassemble combination instrument cover

[68000077].

12. Disassemble combination instrument assembly

[68000081].

13. Disassemble ventilation orifice assembly at the left

side of panel [68010010].

14. Disassemble ventilation orifice assembly at the right

side of panel [68010011].

Air conditioner central heating core assembly

Overhaul

1. Disassemble radiator cover.

2. Reclaim HFC-134a(R134a)

 227

 low pressure
hose

liquid pipe A

15. Disassemble central ventilation orifice assembly of panel [68010012].

16. Disassemble right storage box assembly of lower panel [68010008].

17. Disassemble inner trim board assembly of right front column [68010017].

18. Disassemble inner trim board assembly of left front column [68010014].

19. Disconnect the joint of safety airbag assembly at the side of passenger.

20. Disassemble upper panel assembly  [6801004].

21. Disassemble upper/lower trim board of steering pipe [64000128/64000129].

22. Disassemble left combination switch assembly [67000078].

23. Disassemble right combination switch assembly [67000079].

24. Disassemble air spring assembly of right storage box [68000082].

25. Disassemble decoration panel assembly of shift organization [68000076].

26. Disassemble air conditioner control panel assembly [67000148].

27. Disassemble the assemble bracket of CD machine.

28. Disassemble ventilation pipe assembly of evaporator [67000149].

29. Disassemble air conditioner control assembly.

30. Disassemble parking brake lever hole cover.

31. Disassemble auxiliary panel assembly.

32. Disassemble step trim board of right front door [68010021].

33. Disassemble step trim board of left front door [68010020].

34. Disassemble lower inner trim board of right defender [68010016].

35. Disassemble lower inner trim board of left defender [68010015].

36. Disassemble central linking board of lower panel [68010006].

37. Disassemble lower panel assembly [68010005].

38. Disconnect steering column assembly [64000122].

(a) Disassemble three bolts.

(b) Disassemble steering column from panel framework body.

Air conditioner--Air conditioner central heating core assembly

 228
