Ford Ranger (2024 year). Manual in english

ADJUSTING THE STEERING
WHEEL

WARNING:

Do not adjust the

steering wheel when your vehicle is
moving.

Note:

Make sure that you are sitting in the

correct position. See

Sitting in the Correct

Position

(page 144).

E386533

Unlock the steering column.

2. Adjust the steering wheel to the

position you prefer.

3. Lock the steering column.

LOCKING THE STEERING
WHEEL - VEHICLES WITHOUT:
PUSH BUTTON START

Remove the key from the ignition.

2. Slightly rotate the steering wheel to

engage the lock.

Unlocking the Steering Wheel

WARNING:

Always check that the

steering is unlocked before attempting
to move your vehicle.

Insert the key in the ignition.

2. Turn the key to position

Note:

You may have to slightly rotate the

steering wheel to assist unlocking it.

LOCKING THE STEERING
WHEEL - VEHICLES WITH:
PUSH BUTTON START

The steering wheel lock locks shortly after
you have parked your vehicle and the
passive key is outside it.

Note:

The steering wheel lock does not lock

when the ignition is on or when your vehicle
is moving.

Unlocking the Steering Wheel

The steering wheel lock unlocks when the
system detects a valid passive key inside
your vehicle. If the steering wheel lock
relocks, switch the ignition on to unlock it.

Note:

You may have to slightly rotate the

steering wheel to assist unlocking it.

HORN

E270945

Press on the center of the
steering wheel near the horn icon
to activate the horn.

Steering Wheel

SWITCHING THE HEATED
STEERING WHEEL ON AND OFF

E369755

To activate the heated steering
wheel, press the button on the
touchscreen near the climate

controls. The button illuminates when the
heated steering wheel is on. To turn it off,
press the heated steering wheel button
again.

Note:

The engine must be running to use

the heated steering wheel.

Note:

A sensor regulates the temperature

of the steering wheel.

Note:

Depending on the remote start

settings, the heated steering wheel may
remain on after remote starting your vehicle.
It may also turn on when you start your
vehicle if it was on the last time the engine
was switched off.

Steering Wheel

WIPERS

WIPER PRECAUTIONS

Do not operate the wipers on a dry
windshield. This could scratch the glass or
damage the wiper blades. Use the
windshield washers before wiping a dry
windshield.

Fully defrost the windshield before you
switch the windshield wipers on.

Switch the windshield wipers off before
entering a car wash.

Do not manually move the wiper arms for
service activities.

Note:

For vehicles with a service position,

make sure the windshield wipers are in this
position before proceeding. To place the
wiper arms in a service position, switch your
vehicle on in accessory mode, switch on the
wipers and switch your vehicle off when the
wipers are at their highest position.

SWITCHING WINDSHIELD WIPERS
ON AND OFF

E295996

Single wipe.

Intermittent wipe/Auto wipe.

Normal wipe.

High-speed wipe.

E270969

Push the lever up or down to
operate the windshield wipers.

AUTOWIPERS

(IF EQUIPPED)

WHAT ARE AUTOWIPERS

Autowipers turns on and controls the
speed and frequency of the windshield
wipers.

Wipers and Washers

AUTOWIPERS SETTINGS

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Wipers

4. Switch

Rain Sensing

on or off.

Note:

When you switch the feature off, the

wipers do not operate based on the rain
sensor. When you switch on the windshield
wipers to the intermittent wipe position with
the feature off, the wipers use the wipe
speed set by the rotary control.

ADJUSTING THE SENSITIVITY OF
THE RAIN SENSOR

E308824

High sensitivity.

Low sensitivity.

Use the rotary control to set the rain sensor
sensitivity.

When you select high sensitivity, the wipers
operate when the sensor detects a small
amount of water on the windshield.

When you select low sensitivity, the wipers
operate when the sensor detects a large
amount of water on the windshield.

CHECKING THE WIPER
BLADES

E142463

Run the tip of your fingers over the edge of
the blade to check for roughness.

REPLACING THE FRONT
WIPER BLADES

Make sure your vehicle is off before
beginning this procedure.

Note:

Do not manually move the wiper

arms. To place the wiper arms in a service
position, switch your vehicle on in accessory
mode, switch on the wipers and switch your
vehicle off when the wipers are at their
highest position.

E72899

Wipers and Washers

Lift the wiper arm and then press the
wiper blade locking button.

Note:

Do not hold the wiper blade to lift the

wiper arm.

2. Remove the wiper blade.

Note:

Make sure that the wiper arm does

not spring back against the glass when the
wiper blade is not attached.

3. To install, reverse the removal

procedure.

Note:

Make sure that the wiper blade locks

into place.

WASHERS

WASHER PRECAUTIONS

WARNING:

If you operate your

vehicle in temperatures below 41°F
(5°C), use washer fluid with antifreeze
protection. Failure to use washer fluid
with antifreeze protection in cold
weather could result in impaired
windshield vision and increase the risk
of injury or accident.

Do not operate the washers when the
washer reservoir is empty. This could cause
the washer pump to overheat.

Keep the outside of the windshield clean.
The rain sensor is very sensitive and the
wipers may operate if dirt, mist or insects
hit the windshield.

USING THE WINDSHIELD WASHER

E308825

E270967

Pull the lever toward you to
operate the windshield washer.

Note:

A courtesy wipe occurs a short time

after the wipers stop to clear any remaining
washer fluid when switched on. See

Switching the Courtesy Wipe On and Off

(page 94).

SWITCHING THE COURTESY WIPE
ON AND OFF

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Wipers

4. Switch

Courtesy Wipe

on or off.

Note:

When you switch the feature on, the

wipers make an additional single wipe at
the end of the washer request. When you
switch it off, the wipers finish the current
washer request.

Wipers and Washers

ADDING WASHER FLUID

E358287

WASHER FLUID SPECIFICATION

See

Washer Fluid Specification

(page

487).

WIPERS AND WASHERS
VIDEOS

Improving Your Windshield Wiper
Performance Video Link

Courtesy Wipe Video Link

WIPERS AND WASHERS –
TROUBLESHOOTING

WIPERS AND WASHERS –
WARNING LAMPS

E132353

Illuminates when the windshield
washer fluid is low.

WIPERS AND WASHERS –
FREQUENTLY ASKED QUESTIONS

Why are there streaks and smears
on the windshield?

•

The wiper blades could be dirty, worn
or damaged. Check the wiper blades.
See

Checking the Wiper Blades

(page 93). If the wiper blades are dirty,
clean them with washer fluid or water
applied with a soft sponge or cloth. If
the wiper blades are worn or damaged,
install new ones. See

Replacing the

Front Wiper Blades

(page 93).

Wipers and Washers

EXTERIOR LIGHTING
CONTROL

E327629

Lamps off.

Parking lamps on.

Autolamps on.

Headlamps on.

Rotate the control to make a selection.

Note:

The lighting control defaults to

autolamps every time you switch your
vehicle on.

HEADLAMPS

USING THE HIGH BEAM
HEADLAMPS

E328253

E67019

Push the lever away from you to
switch the high beams on.

Push the lever forward again or pull the
lever toward you to switch the high beams
off.

Slightly pull the lever toward you and
release it to flash the headlamps.

Note:

Continuous activation only with

headlamps on.

SWITCHING HEADLAMP EXIT
DELAY ON AND OFF

To switch headlamp exit delay on, pull the
turn signal lever toward you after switching
your vehicle off.

To switch headlamp exit delay off, pull the
turn signal lever toward you again or switch
your vehicle on.

Note:

The headlamps turn off after three

minutes with any door open or 30 seconds
after the last door closes.

ADJUSTING THE LEVEL OF THE
HEADLAMPS

(If Equipped)

Your vehicle has a dynamic leveling
system. The headlamps do not require
additional aim adjustment.

HEADLAMP INDICATORS

Lamps On

E71341

Illuminates when you switch the
low beam headlamps or the
parking lamps on.

Headlamp High Beam

E67019

Illuminates when you switch the
high beam headlamps on.

Exterior Lighting

HEADLAMPS –
TROUBLESHOOTING

HEADLAMPS – FREQUENTLY
ASKED QUESTIONS

Why is there condensation in the
headlamps?

•

Headlamps have vents to
accommodate normal changes in air
pressure. Condensation can be a
natural by-product of this design.
When moist air enters the lamp
assembly through the vents, there is a
possibility that condensation can occur
when the temperature is cold. When
normal condensation occurs, a fine
mist can form on the interior of the
lens. The fine mist eventually clears
and exits through the vents during
normal operation.

How much condensation is
acceptable?

•

The presence of a fine mist, for
example no streaks, drip marks or large
droplets. A fine mist covers less than
50% of the lens.

How long does it take for the
acceptable condensation to clear?

•

Clearing time can take as long as 48
hours under dry weather conditions.

How much condensation is
unacceptable?

•

A water puddle inside the lamp.
Streaks, drip marks or large droplets
present on the interior of the lens.

What should I do if unacceptable
condensation is present?

•

Have your vehicle checked as soon as
possible.

Why do my headlamps turn off
when I have them switched on
when I switch my vehicle off?

•

The battery saver turns the headlamps
off after a short period of time after you
switch your vehicle off.

AUTOLAMPS

WHAT ARE AUTOLAMPS

WARNING:

The system does not

relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the headlamps on in low visibility
conditions, for example daytime fog.

Autolamps turn the headlamps on in low
light situations or when the windshield
wipers operate.

AUTOLAMP SETTINGS

To set the amount of time that the
headlamps remain on after you switch your
vehicle off:

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Lighting

4. Press

Autolamp Delay

5. Press a setting.

Exterior Lighting

EXTERIOR LAMPS

USING THE TURN SIGNAL LAMPS

E242676

E67018

Push the lever up or down to
switch the turn signal lamps on.

Set the lever to the middle position to
switch the turn signal lamps off.

Note:

Tap the lever up or down to make the

turn signal lamps flash three times.

Turn Signal Lamp Indicator

E67018

It flashes when you switch the
turn signal lamps on.

Note:

An increase in the rate of flashing

warns of a failed turn signal lamp.

SWITCHING THE DAYTIME
RUNNING LAMPS ON AND OFF -
VEHICLES WITH: CONFIGURABLE
DAYTIME RUNNING LAMPS

WARNING:

The daytime running

lamps system does not activate the rear
lamps and may not provide adequate
lighting during low visibility driving
conditions. Make sure you switch the
headlamps on, as appropriate, during all
low visibility conditions. Failure to do so
may result in a crash.

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Lighting

4. Switch

Daytime Running Lights

on or

off.

The daytime running lamps turn on when
all of the following occur:
•

You switch the system on.

•

You switch the vehicle on.

•

The transmission is not in park (P) for
vehicles with automatic transmissions
or you release the parking brake for
vehicles with manual transmissions.

•

The lighting control is in the autolamps
position.

•

The headlamps are off.

Note:

Other lighting control positions do

not turn on the daytime running lamps.

Exterior Lighting

SWITCHING THE DAYTIME
RUNNING LAMPS ON AND OFF -
VEHICLES WITH: DAYTIME
RUNNING LAMPS (DRL)

WARNING:

The daytime running

Daytime running lamps are always on
unless you switch on the headlamps or
your vehicle is in park (P).

USING THE FRONT FOG LAMPS

(If

Equipped)

To switch the lamps on or off:

Set the lighting control to the parking
lamps, headlamps or autolamps
position.

Note:

When the lighting control is in the

autolamps position, you cannot switch the
fog lamps on unless the low beam
headlamps are on.

Press the button on the

lighting control to switch the front fog
lamps on or off.

Note:

Only switch the front fog lamps on

during reduced visibility.

Note:

The brightness of the daytime running

lamps may decrease when the front fog
lamps are switched on.

Note:

The front fog lamps lights switch off

automatically when high beams are
activated.

Front Fog Lamps Indicator

It illuminates when you switch
the front fog lamps on.

SWITCHING THE CARGO LAMPS
ON

Pickup Bed Lamps

E367943

The pickup bed lamps turn on when
opening any door.

Note:

The cargo lamps turn off after a short

period of time.

Using the Cargo Lamp Switch

E189587

Press the button on the lighting
control to switch the lamps on
and off.

Note:

If the cargo lamps turned on

automatically, this button does not turn
them off.

Using the Roller Shutter

The cargo lamps switch on when you open
the roller shutter.

Exterior Lighting

SWITCHING WELCOME LIGHTING
ON AND OFF

Welcome lighting slowly turns on the
exterior lamps when you approach your
vehicle with an authenticated device or
unlock the doors.

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Lighting

4. Switch

Welcome Lighting

on or off.

EXTERIOR LAMP INDICATORS

Front Fog Lamp Indicator

It illuminates when you switch
the front fog lamps on.

Rear Fog Lamp Indicator

E67040

It illuminates when you switch
the rear fog lamps on.

Turn Signal Lamp Indicator

E67018

It flashes when you switch the
turn signal lamps on.

Note:

An increase in the rate of flashing

warns of a failed turn signal lamp.

EXTERIOR LAMP INDICATORS

Front Fog Lamp

It illuminates when you switch
the front fog lamps on.

Turn Signal Lamp

E67018

It flashes when you switch the
turn signal lamps on.

Note:

An increase in the rate of flashing

warns of a failed turn signal lamp.

EXTERIOR LAMPS ON AUDIBLE
WARNING

Exterior Lamps On

Sounds when you open the driver door and
the lighting control is left in the parking
lamps position and the ignition is off.

EXTERIOR ZONE LIGHTING

WHAT IS EXTERIOR ZONE
LIGHTING

Exterior zone lighting divides the exterior
lighting into zones and allows you to switch
them on and off to provide lighting around
the perimeter of your vehicle.

USING THE EXTERIOR ZONE
LIGHTING

Depending on your vehicle software
version, the zone lighting controls may be
located in either the settings menu or the
apps menu.

Apps menu:

E386798

Press the button on the

touchscreen.

2. Press

Zone Lighting

Settings menu:

E386797

Press the button on the

touchscreen.

100

Exterior Lighting

2. Press

Zone Lighting

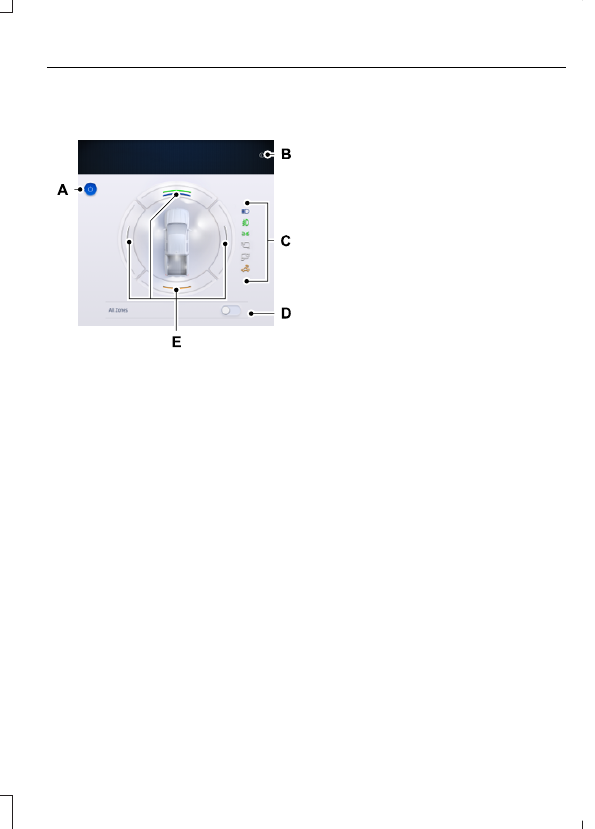

E397816

On and off button.

Contextual help.

Exterior lamp indicators.

All zones on and off.

Individual zones on and off.

You can use zone lighting when your
vehicle is on or off. When your vehicle is
off, the lighting switches off after a certain
period of time to avoid draining the battery.

Note:

You can also use individual zone

controls to switch on each zone.

Note:

Make sure to remove exterior lighting

covers when using zone lighting.

Note:

When your vehicle is off and the timer

has one minute remaining, the turn signals
flash six times.

Note:

Indicators on the touchscreen

illuminate when the lights outside of the
zone lighting control are on.

Note:

You can remotely control the zone

lighting using the FordPass app.

Note:

Vehicles without mirror puddle lamps

only have two zones.

Zone Lighting Settings

Scroll down within the zone lighting
application to access zone lighting
settings.

Enable Autolamp Override

This setting allows the vehicle to override
the autolamps when zone lighting is on.

When you access zone lighting for the first
time, you can choose this setting. You can
change this setting at any time.

Include Reverse Lamps

This setting turns the reverse lamps on
when you switch the rear lighting zone on.

Switch this setting off if you have a backup
alarm installed to prevent the reverse
lamps from turning on and sounding the
alarm when using zone lighting.

AUTOMATIC HIGH BEAM
CONTROL

HOW DOES AUTOMATIC HIGH
BEAM CONTROL WORK

Automatic high beam control turns the
high beams on if it is dark enough and no
other traffic is present. If it detects an
approaching vehicle’s headlamps or tail
lamps, or street lighting ahead, the system
turns the high beams off.

A camera sensor, centrally mounted
behind the windshield of your vehicle,
continuously monitors conditions to turn
the high beams on and off.

101

Exterior Lighting

E327596

Without automatic high beam
control.

With automatic high beam
control.

AUTOMATIC HIGH BEAM
CONTROL PRECAUTIONS

WARNING:

The system does not

relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the high beams on or off.

WARNING:

The system may not

switch the high beams off if the lights of
oncoming vehicles are hidden by
obstacles, for example guard rails.

WARNING:

You may need to

override the system when approaching
other road users.

WARNING:

In situations with poor

visibility, such as fog, heavy rain or other
inclement weather, you may need to
override or completely switch off the
system.

AUTOMATIC HIGH BEAM
CONTROL REQUIREMENTS

The system turns the high beams on if all
of the following occur:
•

You switch the system on.

•

You set the lighting control to the
autolamps position.

•

The ambient light level is low enough
that you require high beams.

•

There is no traffic in front of your
vehicle.

•

The vehicle speed is greater than
approximately 25 mph (40 km/h).

AUTOMATIC HIGH BEAM
CONTROL LIMITATIONS

The system turns the high beams off if any
of the following occur:
•

You switch the system off.

•

You set the lighting control to any
position except autolamps.

•

The ambient light level is high enough
that you do not require high beams.

•

The system detects an approaching
vehicle's headlamps or a leading
vehicle's tail lamps.

102

Exterior Lighting

•

The system detects severe rain, snow,
or fog.

•

The system detects street lighting.

•

The camera has reduced visibility.

•

The vehicle speed is less than
approximately 19 mph (30 km/h).

SWITCHING AUTOMATIC HIGH
BEAM CONTROL ON AND OFF

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Lighting

4. Switch

Auto High Beam

on or off.

AUTOMATIC HIGH BEAM
CONTROL INDICATORS

E146105

Illuminates to confirm when the
system is ready to assist.

OVERRIDING AUTOMATIC HIGH
BEAM CONTROL

E248603

Push the lever away from you to switch
the high beams on.

Push the lever away from you again to
switch the high beams off.

Push the lever away from you for a third
time to switch automatic high beam
control back on.

AUTOMATIC HIGH BEAM CONTROL – TROUBLESHOOTING

AUTOMATIC HIGH BEAM CONTROL – INFORMATION MESSAGES

Details

Message

The camera has reduced visibility. Clean the windshield. If
the message continues to appear, have your vehicle checked
as soon as possible.

Front Camera Low Visib-
ility Clean Screen

The camera has malfunctioned. Wait a short period of time
for the camera to cool down. If the message continues to
appear, have your vehicle checked as soon as possible.

Front Camera Tempor-
arily Not Available

The camera has malfunctioned. Have your vehicle checked
as soon as possible.

Front Camera Malfunc-
tion Service Required

103

Exterior Lighting

ADAPTIVE FRONT LIGHTING

(IF

EQUIPPED)

HOW DOES ADAPTIVE FRONT
LIGHTING WORK

Dynamic Bending Lamps

(If Equipped)

WARNING:

Inspect and replace the

windshield wiper blades regularly to
make sure the camera sensor has a clear
view. The windshield wiper blades must
be the correct length.

Uses steering wheel and vehicle speed
input to adjust the headlamps.

E161714

Without dynamic bending lamps.

With dynamic bending lamps.

Static Bending Lamps

(If Equipped)

Illuminates the inside of a corner when you
are turning the steering wheel.

104

Exterior Lighting

E327599

Headlamp beam.

Static bending lamp beam.

Note:

Depending on the angel of the

steering wheel, the brightness and activation
of the feature may vary.

Cornering Lamps

(If Equipped)

Illuminates the inside of a corner when you
are turning the steering wheel or when you
switch the turn signal lamps on. They turn
on when the vehicle speed is below
24.9 mph (40 km/h).

Note:

Only the cornering lamp located on

the side where your vehicle is turning
illuminates.

E327599

Headlamp beam.

Cornering lamp beam.

SWITCHING ADAPTIVE FRONT
LIGHTING ON AND OFF

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Lighting

4. Switch

Adaptive Headlamps

on or off.

Set the lighting control to the autolamps
position or the low beams position to use
the adaptive front lighting.

105

Exterior Lighting

SWITCHING ALL OF THE
INTERIOR LAMPS ON AND OFF

Switching All of the Interior Lamps
On

E259649

Press the button on the
overhead console toward the
icon.

Switching All of the Interior Lamps
Off

Press the button on the
overhead console toward the
icon.

SWITCHING THE FRONT
INTERIOR LAMPS ON AND OFF

E249791

Press the edge of the lamp lens.

SWITCHING THE REAR
INTERIOR LAMPS ON AND OFF

E250958

Press the lens to switch the lamps on or
off.

Note:

If you switch the rear lamps on

through the overhead console, you cannot
switch them off with the rear lamp switch.

INTERIOR LAMP FUNCTION

WHAT IS THE INTERIOR LAMP
FUNCTION

The interior lamp function switches the
courtesy and door lamps on or off.

SWITCHING THE INTERIOR LAMP
FUNCTION ON AND OFF

The switch is on the overhead console.

E299443

Set the switch to the middle position.

106

Interior Lighting

When you switch the interior lamp function
on, the interior lamps turn on if:

•

You open a door.

•

You press the unlock button on the
remote control.

•

You switch the ignition off.

ADJUSTING THE INSTRUMENT
PANEL LIGHTING
BRIGHTNESS

The instrument lighting dimmer buttons
are on the lighting control.

E291299

E296433

Repeatedly press one of the
buttons to adjust the brightness.

AMBIENT LIGHTING

(IF EQUIPPED)

SWITCHING AMBIENT LIGHTING
ON AND OFF

E386797

Press the button on the

touchscreen.

2. Press

General

3. Press

Ambient Light

4. Switch

Ambient Light

on or off.

ADJUSTING AMBIENT LIGHTING

Drag the slider left or right.

INTERIOR LIGHTING –
TROUBLESHOOTING

INTERIOR LIGHTING –
FREQUENTLY ASKED QUESTIONS

Why do my courtesy lamps or
interior lamps turn off when I have
them switched on when I switch
my vehicle off?

•

The battery saver turns the courtesy
lamps and interior lamps off after a
short period of time after you switch
your vehicle off.

107

Interior Lighting

OPENING AND CLOSING THE
WINDOWS

WARNING:

Do not leave children

or pets unattended in your vehicle and
do not let children play with the power
windows. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

When closing the

power windows, verify that they are free
of obstructions and make sure children
and pets are not in the proximity of the
window openings. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

If an obstruction is

detected, release the switch and reverse
the window immediately. Failure to
follow this instruction could result in
personal injury or death.

WARNING:

Do not leave a key or

remote control unattended in the vehicle.
Children or pets could operate the power
windows and could become trapped in
a closing window. Failure to follow this
instruction could result in personal injury
or death.

Press the window control switch
to open the window. Lift the
window control switch to close

the window.

Note:

The power windows operate with the

ignition on, and for several minutes after you
switch the ignition off or until you open a
front door.

To reduce wind noise or pulsing noise when
one window is open, slightly open the
opposite window.

One-Touch Open

Fully press the window control switch and
release it. Press again or lift it to stop the
window.

One-Touch Close

Fully lift the window control switch and
release it. Press again or lift it to stop the
window.

Resetting One-Touch Close

Carry out all steps within 30 seconds of
starting the sequence.

Close the window.

2. Press and hold the window control

switch until the window is fully open.
Keep the window control switch
pressed for a few seconds.

3. Lift and hold the window control switch

until the window is fully closed. Keep
the window control switch held for a
few seconds.

4. Press and hold the window control

switch until the window is fully open.
Keep the window control switch
pressed for a few seconds.

5. Lift and hold the window control switch

until the window is fully closed. Keep
the window control switch held for a
few seconds.

Note:

Repeat the procedure if the window

does not close when you use one-touch.

GLOBAL OPENING AND
CLOSING

WHAT IS GLOBAL OPENING AND
CLOSING

You can use the remote control to operate
the windows with the ignition off.

108

Windows

USING GLOBAL OPENING

Press and release the unlock button on
the remote control.

2. Within one second, press and hold the

unlock button on the remote control.

3. Release the button when the windows

start to open.

Press the lock or the unlock button on the
remote control to stop global opening.

Note:

Global opening will only respond to

a press and hold of the unlock button for a
short period of time after the unlock button
is pressed on the remote control.

SWITCHING GLOBAL OPENING ON
AND OFF

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Windows

4. Switch

Remote Open

on or off.

USING GLOBAL CLOSING

WARNING:

When closing the

Press and hold the lock button on the
remote control.

2. Release the button when the windows

start to close.

Press the lock or the unlock button on the
remote control to stop global closing.

Note:

Bounce-back is on during global

closing. See

What Is Window

Bounce-Back

(page 109).

SWITCHING GLOBAL CLOSING ON
AND OFF

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Windows

4. Switch

Remote Close

on or off.

WINDOW BOUNCE-BACK

WHAT IS WINDOW BOUNCE-BACK

The window stops and reverses if it detects
an obstruction when closing.

OVERRIDING WINDOW BOUNCE-
BACK

WARNING:

If you override

bounce-back, the window does not
reverse if it detects an obstacle. Take
care when closing the windows to avoid
personal injury or damage to your
vehicle.

Close the window until it reaches the
point of resistance and let it reverse.

2. Lift and hold the window control switch

within two seconds to override
bounce-back and close the window.
Bounce-back is now disabled and you
can close the window manually.

Note:

The window goes past the point of

resistance and you can fully close it.

Note:

If the window does not close, have

your vehicle checked as soon as possible.

109

Windows

LOCKING THE REAR WINDOW
CONTROLS

WARNING:

When children are in

the rear seat, use the power window
lockout button to prevent accidental
operation of the power windows.

Press the window control switch
to lock or unlock the rear window
controls. It illuminates when you

lock the rear window controls.

OPENING AND CLOSING THE
SLIDING WINDOWS

WARNING:

Do not leave children

or pets unattended in your vehicle and
do not let children play with the power
windows. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

When closing the

WARNING:

If an obstruction is

detected, release the switch and reverse
the window immediately. Failure to
follow this instruction could result in
personal injury or death.

WARNING:

Do not leave a key or

E392059

The window control switch is on the
overhead console.

Press and hold the window control switch
to open the window. Pull and hold the
window control switch to close the
window.

110

Windows

INTERIOR MIRROR
PRECAUTIONS

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

Note:

Do not clean the mirror housing or

glass with harsh abrasives, fuel or other
petroleum-based cleaning products.

MANUALLY DIMMING THE
INTERIOR MIRROR

Pull the tab below the mirror toward you
to reduce glare at night.

AUTO-DIMMING INTERIOR
MIRROR

(IF EQUIPPED)

WHAT IS THE AUTO-DIMMING
INTERIOR MIRROR

The mirror dims to reduce the effect of
bright light from behind. It returns to
normal when the bright light from behind
is no longer present or if you shift into
reverse (R), to make sure you have a clear
view when backing up.

AUTO-DIMMING INTERIOR
MIRROR LIMITATIONS

Do not block the sensors on the front and
back of the mirror.

Note:

A rear center passenger or raised rear

center head restraint could prevent light
from reaching the sensor.

111

Interior Mirror

ADJUSTING THE EXTERIOR
MIRRORS

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

E311081

Power fold.

Window lock.

Adjustment control.

Right-hand mirror.

Left-hand mirror.

To adjust the mirrors, switch your vehicle
on and place the ignition in accessory or
start.

Select the mirror you want to adjust.
The control light turns on.

2. Use the adjustment control to adjust

the position of the mirror.

3. Press the mirror control again. The

control light turns off.

FOLDING THE EXTERIOR
MIRRORS - VEHICLES WITH:
MANUAL FOLDING MIRRORS

Push the mirror toward the door window
glass. Make sure that you fully engage the
mirror in its support when returning it to its
original position.

Directional Indicator Mirrors

When your vehicle is running, the
forward-facing portion of the appropriate
mirror housing blinks when you switch on
the turn signal.

Puddle Lamps

(If Equipped)

The puddle lamps turn on when you
approach your vehicle with a remote
control or phone. If your vehicle has
auto-folding mirrors, the puddle lamps are
only on if the mirrors are unfolded and turn
off when the mirrors fold.

Heated Exterior Mirrors

(If Equipped)

360 Degree Camera

(If Equipped)

See

Locating the 360 Degree Cameras

(page 251).

Blind Spot Information System

(If

Equipped)

See

What Is Blind Spot Information

System

(page 301).

FOLDING THE EXTERIOR
MIRRORS - VEHICLES WITH:
POWER FOLDING MIRRORS

(IF

EQUIPPED)

The exterior mirrors fold when you lock
your vehicle and unfold when you unlock
your vehicle.

112

Exterior Mirrors

Note:

This feature requires you to switch

the exterior mirrors auto fold on.

For tight parking conditions,
press the control to fold the
mirrors.

Press the control switch again to unfold
the mirrors.

Note:

Do not stop the mirrors midway

through their movement. Wait until the
mirrors stop moving and press the control
again.

The left-hand and right-hand mirrors move
at different rates. For example, one mirror
may stop while the other one continues to
move. This is normal.

If you press the control switch to fold the
mirrors with auto fold on, the mirrors do
not unfold when you unlock your vehicle.

Note:

The power folding mirrors operate

with the vehicle on, and for several minutes
after you switch the vehicle off.

Note:

If you fold and unfold the mirrors

several times within one minute, the power
fold function may turn off to protect the
motors from overheating.

Switching Auto fold On and Off

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Mirrors

4. Switch

Autofold

on or off.

Loose Mirror

If your power folding mirrors are manually
folded, they may not work properly even
after you reposition them. You need to
reset them if:
•

The mirrors vibrate when you drive.

•

The mirrors feel loose.

•

The mirrors do not stay in the folded or
unfolded position.

•

One of the mirrors is not in its normal
driving position.

To reset the mirrors perform the following
steps:

Fold or retract both mirrors manually.

2. Using the power folding/power

telescoping mirror control switch,
operate the mirrors until you hear an
audible click.

3. Operate the power folding or power

telescoping mirrors an additional 3 to
4 times to synchronize the mirrors.

AUTO-DIMMING EXTERIOR
MIRROR

(IF EQUIPPED)

WHAT IS THE AUTO-DIMMING
EXTERIOR MIRROR

The driver exterior mirror dims when the
interior auto-dimming mirror turns on.

113

Exterior Mirrors

OPENING AND CLOSING THE
SUNSHADE

WARNING:

Do not leave children

or pets unattended in your vehicle and
do not let children play with the
sunshade. Failure to follow this
instruction could result in personal injury.

The sliding sunshade can be manually
opened or closed when the moonroof is
closed. Pull the sunshade toward the front
of the vehicle to close it.

OPENING AND CLOSING THE
MOONROOF

WARNING:

Do not leave children

or pets unattended in your vehicle and
do not let children play with the
moonroof. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

Do not leave a key or

remote control unattended in the vehicle.
Children or pets could operate the
moonroof and could become trapped in
a closing moonroof. Failure to follow this
instruction could result in personal injury
or death.

The moonroof controls are located on the
overhead console and have a one-touch
open and close feature. To stop its
movement during one-touch operation,
press the control a second time.

Opening the Moonroof

E340663

Press and release the switch to
activate the one-touch open
feature. To stop movement,

press the switch a second time.

Closing the Moonroof

WARNING:

When closing the

moonroof, verify that it is free of
obstructions and make sure children and
pets are not in the proximity of the
moonroof. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

If an obstruction is

detected, release the switch and reverse
the moonroof immediately. Failure to
follow this instruction could result in
personal injury or death.

E340636

Press and release the switch to
activate the one-touch close
feature, from either the open or

vent positions. To stop movement, press
the switch a second time.

VENTING THE MOONROOF

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the moonroof. Failure
to follow this instruction could result in
personal injury.

WARNING:

When closing the

moonroof, verify that it is free of
obstruction and make sure that children
and pets are not in the proximity of the
roof opening.

The moonroof controls are on the
overhead console.

E340636

With the moonroof in the closed
position, press and release the
switch to vent the moonroof. To

close the moonroof from the vent position,
press and release the switch again.

114

Moonroof

(If Equipped)

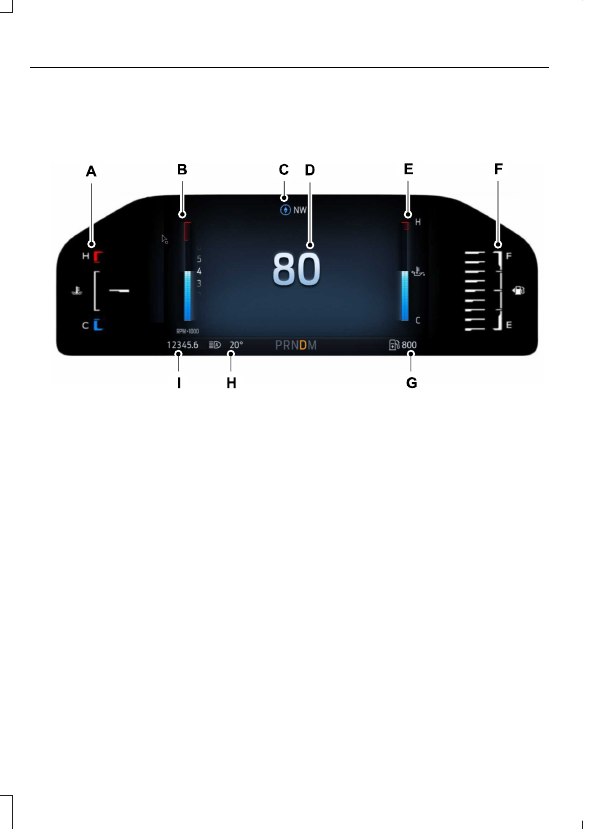

INSTRUMENT CLUSTER
OVERVIEW - VEHICLES WITH:
8 INCH SCREEN

Note:

Depending on the setting you select,

your cluster could look different than what
you see here.

E359717

Engine coolant temperature gauge.

Tachometer.

Compass.

Speedometer.

Engine oil temperature.

Fuel gauge.

Distance to empty.

Outside air temperature.

Odometer.

Note:

The tachometer and engine oil

temperature gauge can be configured on or
off.

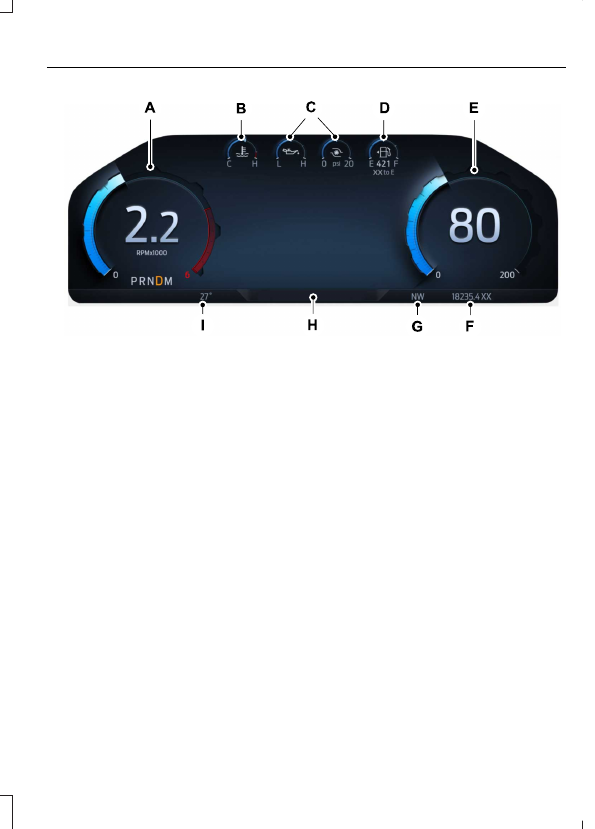

INSTRUMENT CLUSTER
OVERVIEW - VEHICLES WITH:
12 INCH SCREEN

Note:

Depending on the setting you select,

your cluster could look different than what
you see here.

116

Instrument Cluster

E359716

Tachometer.

Engine coolant temperature gauge.

Configurable gauges.

Fuel gauge.

Speedometer.

Odometer.

Compass.

Information bar.

Ambient temperature.

TACHOMETER

Indicates the engine speed.

The red line indicates the point at which
engine revolutions could become limited
to avoid over-revving the engine.

SPEEDOMETER

Indicates the vehicle speed.

Secondary Speedometer

You can select a secondary speedometer
that displays other measurement units.

Note:

When only the primary speedometer

is shown, the units are the same as the trip
distance units selected. See

Changing the

Measurement Unit

(page 133).

117

Instrument Cluster

FUEL GAUGE

WHAT IS THE FUEL GAUGE

Indicates approximately how much fuel is
in the fuel tank.

FUEL GAUGE LIMITATIONS

The fuel gauge may not provide an
accurate reading when your vehicle is on
an incline.

LOCATING THE FUEL FILLER
DOOR

The arrow adjacent to the fuel pump
symbol indicates on which side of your
vehicle the fuel filler door is located.

WHAT IS THE LOW FUEL
REMINDER

A low fuel level reminder displays and
sounds when the distance to empty
reaches 50 mi (80 km), 25 mi (40 km),
10 mi (20 km) and 0 mi (0 km).

Note:

The low fuel reminder can appear at

different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

WHAT IS DISTANCE TO EMPTY

Indicates the approximate distance your
vehicle can travel on the fuel remaining in
the tank. Changes in driving pattern can
cause the value to not only decrease but
also increase or stay constant for periods
of time.

ENGINE COOLANT
TEMPERATURE GAUGE

Indicates the engine coolant temperature.
See

Checking the Coolant Level

(page

408).

ENGINE OIL PRESSURE GAUGE
- VEHICLES WITH: 8 INCH
SCREEN

(IF EQUIPPED)

Indicates the engine oil pressure. The
gauge turns red when the oil pressure
warning lamp illuminates.

This gauge is available in an information
on demand screen. See

Instrument

Cluster Display Main Menu

(page 126).

ENGINE OIL PRESSURE GAUGE
- VEHICLES WITH: 12 INCH
SCREEN

(IF EQUIPPED)

Indicates the engine oil pressure. The
gauge turns red when the oil pressure
warning lamp illuminates.

Note:

This is a configurable gauge.

TRANSMISSION FLUID
TEMPERATURE GAUGE -
VEHICLES WITH: 8 INCH
SCREEN

Indicates the transmission fluid
temperature.

Note:

Special operating conditions such as

snowplowing, towing or off-road use can
cause higher than normal operating
temperatures.

This gauge is available in an information
on demand screen. See

Instrument

Cluster Display Main Menu

(page 126).

118

Instrument Cluster

TRANSMISSION FLUID
TEMPERATURE GAUGE -
VEHICLES WITH: 12 INCH
SCREEN

Indicates the transmission fluid
temperature.

Note:

Special operating conditions such as

snowplowing, towing or off-road use can
cause higher than normal operating
temperatures.

Note:

This is a configurable gauge.

WHAT ARE THE INSTRUMENT
CLUSTER WARNING LAMPS

Warning lamps alert you to a vehicle
condition that could become serious.
Some lamps illuminate when you start
your vehicle to make sure they work. If any
lamps remain on after starting your vehicle,
refer to the respective system warning
lamp for further information.

INSTRUMENT CLUSTER
WARNING LAMPS

Depending on your vehicle options and
instrument cluster type, not all warning
lamps shown are available.

Airbags

E67017

See

Airbags

(page 60).

Anti-Lock Brake System

E67020

If it illuminates when you are
driving, this indicates a
malfunction. Your vehicle

continues to have normal braking without
the anti-lock brake system function. Have
your vehicle checked as soon as possible.

Battery

E67021

Illuminates when you switch the
ignition on.

If it illuminates when the engine

is running, this indicates your vehicle
requires service. Have your vehicle
checked as soon as possible.

Brake System

E270480

E67024

Illuminates red when you apply
the parking brake and the
ignition is on. If it illuminates
when your vehicle is moving,
make sure the parking brake is
released. If the parking brake is

released, this indicates low brake fluid level
or the brake system requires service. Have
your vehicle checked as soon as possible.

Note:

Indicators may vary depending on

region.

Door Ajar

E249859

Illuminates when you switch the
ignition on and remains on if any
door is open.

Electric Park Brake

E325775

Illuminates yellow or flashes
when the electric parking brake
requires service.

Note:

Indicators may vary depending on

region.

Engine Coolant Temperature

E103308

If it illuminates, safely stop your
vehicle and switch the vehicle
off.

119

Instrument Cluster

Fasten Seatbelt

E71880

Illuminates and a tone sounds
until you fasten the seatbelts.

Hood Ajar

E296055

Illuminates when the ignition is
on and the hood is not
completely closed.

Low Beam Warning

E181350

Illuminates when there is a
malfunction with the LED low
beam headlamp.

Low Fuel Level

Illuminates when the fuel level
is low.

Low Tire Pressure

E139232

Illuminates when your tire
pressure is low. If illuminated,
check your tire pressure as soon

as possible. If it begins to flash at anytime,
have the system checked as soon as
possible.

Low Washer Fluid Level

E132353

Illuminates when the washer
fluid is low.

Malfunction Indicator Lamp

E67028

Illuminates when the ignition is
on and the engine is off, this is
normal. If it illuminates when the

engine is on this indicates the emission
control system requires service. If it flashes,
have your vehicle checked immediately.
See

Emission Law

(page 608). See

Starting and Stopping the Engine –
Warning Lamps

(page 176).

Oil Pressure

WARNING:

If it illuminates when

you are driving do not continue your
journey, even if the oil level is correct.
Have your vehicle checked.

E67022

Illuminates when the engine oil
pressure is low.

Over Speed Warning

E280486

Illuminates if the vehicle speed
exceeds the over speed
threshold.

Over speed thresholds vary depending on
region.

Powertrain Malfunction, Reduced
Power, Electronic Throttle Control,
Check 4X4

Illuminates when the powertrain
or four-wheel drive require
service. Have the system

checked as soon as possible.

Transmission Temperature

E362284

Illuminates when the
transmission temperature
exceeds the normal operating

range.

WHAT ARE THE INSTRUMENT
CLUSTER INDICATORS

Indicators notify you of various features
that are active on your vehicle.

120

Instrument Cluster

Ford Ranger (2024 year). Manual in english - page 3
