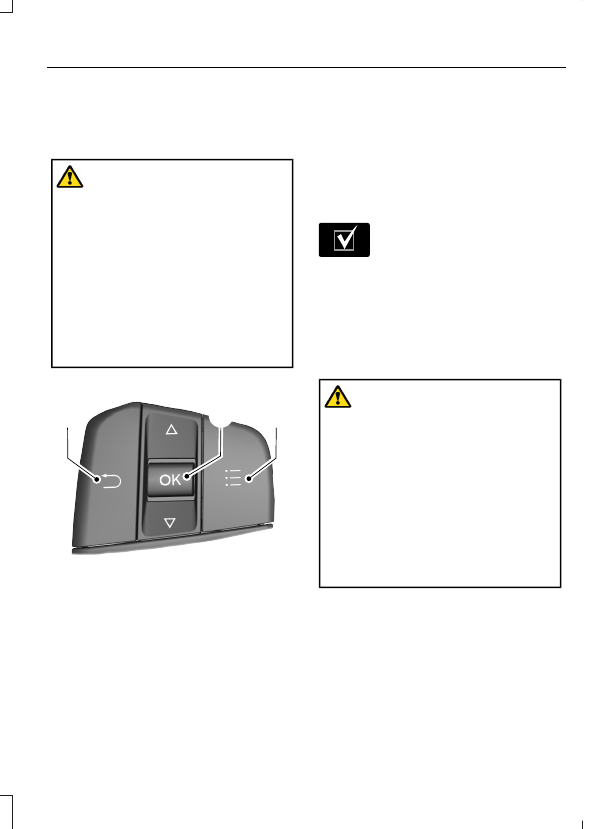

The controls are on the steering wheel.

E250032

Back button.

OK button.

Menu button.

Back Button

Press to go back or exit a menu.

Button

Press to make a selection.

Menu Button

Press to display the submenus.

Scroll Buttons

Press the toggle up or down button to
scroll through menu items.

Status Indicator

E204495

Menu items with a checkbox
indicate a feature's status. A
check in the box indicates the

feature is on, an unchecked box indicates
the feature is off.

USING THE INSTRUMENT
CLUSTER DISPLAY CONTROLS
- RAPTOR

WARNING:

Driving while distracted

The controls are on the steering wheel.

125

Instrument Cluster Display

E362434

OK button.

Back and Menu button.

Back Button

Press to go back or exit a menu.

Button

Press to make a selection.

Menu Button

Press to display the submenus.

Scroll Buttons

Press the toggle up or down button to
scroll through menu items.

Status Indicator

E204495

Menu items with a check box
indicate a feature's status. A
check in the box indicates the

feature is on, and unchecked indicates the
feature is off.

INSTRUMENT CLUSTER
DISPLAY MAIN MENU -
VEHICLES WITH: 12 INCH
SCREEN, EXCLUDING:
RAPTOR

Depending on your vehicle options, some
menu items can appear different or not at
all.

Note:

For your safety, some features are

speed-dependent and could be unavailable
when your vehicle is above a certain speed.

Submenu 2

Submenu 1

Menu Item

Configure MyView

MyView

Trip 1

Trip/Fuel

Trip 2

Fuel Economy

Auto StartStop

Seat belts

Driver Assistance

Off-Road Status

Off-Road

Pitch & Roll

126

Instrument Cluster Display

Submenu 2

Submenu 1

Menu Item

Power distribution

Driver Assistance

Trailer Information

Towing

Trailer tire info

Trailer light status

Towing status

Driver Assistance

Navigation

Phone

Audio

Show selectable gauges

Configure Gauges

Settings

Left Selectable Gauge

Right Selectable Gauge

Secondary Speedometer

Turn-by-turn indication

Reminder On

Border Crossing

Reminder Off

Neutral Tow

Tire Pressure

Vehicle Maintenance

Tire Monitor

Engine Information

Oil level

Oil Life

Engine Air Filter

127

Instrument Cluster Display

INSTRUMENT CLUSTER
DISPLAY MAIN MENU -
RAPTOR, VEHICLES WITH: 12
INCH SCREEN

Depending on your vehicle options, some
menu items can appear different or not at
all.

Note:

For your safety, some features are

speed-dependent and could be unavailable
when your vehicle is above a certain speed.

Submenu 2

Submenu 1

Menu Item

Configure MyView

MyView

Trip 1

Trip/Fuel

Trip 2

Fuel economy

Auto StartStop

Seat belts

Driver Assistance

Off-Road Status

Off-Road

Raptor status

Pitch & Roll

Power distribution

MyGauges

Measurements

Driver Assistance

Trailer Information

Towing

Trailer tire info

Trailer light status

Towing status

Driver Assistance

Navigation

Phone

128

Instrument Cluster Display

Submenu 2

Submenu 1

Menu Item

Audio

Show selectable gauges

Configure Gauges

Settings

Left Selectable Gauge

Right Selectable Gauge

Secondary Speedometer

Turn-by-turn indication

Enabled

Performance Shift Indicator

Shift Tone

Shift Point

Reminder On

Border Crossing

Reminder Off

Neutral Tow

Tire Pressure

Vehicle Maintenance

Tire Monitor

Engine Information

Oil level

Oil Life

Engine Air Filter

129

Instrument Cluster Display

INSTRUMENT CLUSTER
DISPLAY MAIN MENU -
VEHICLES WITH: 8 INCH
SCREEN

Depending on your vehicle options, some
menu items can appear different or not at
all.

Note:

For your safety, some features are

speed-dependent and could be unavailable
when your vehicle is above a certain speed.

Submenu 2

Submenu 1

Main Menu

Configure MyView

MyView

Trip 1

Trip/Fuel

Trip 2

Fuel Economy

Eco Coach

Auto StartStop

Seatbelt Status

Off-Road Status

Off-Road

Power Distribution

Vehicle Gauges

Engine Info

Trailer Information

Towing

Trailer Light Status

Towing Status

Configure View

Audio

Phone

Navigation

Secondary Speedometer

Screen Content

Settings

Left Gauge

Right Gauge

130

Instrument Cluster Display

CUSTOMIZING THE
INSTRUMENT CLUSTER
DISPLAY - VEHICLES WITH: 8
INCH SCREEN

Adding Screens Using MyView

Using the instrument cluster display
controls on the steering wheel, select

MyView

2. Select

Configure MyView

3. Select an item from the list that you

want to include in your MyView list.

Note:

A minimum of two items must be

selected.

Note:

You can select a maximum of seven

items to include in MyView.

4. Press the

button.

Configuring Gauges

Select

Settings

2. Select

Screen Content

3. Select

Left Gauge

Right Gauge

switch the gauge on or off.

CUSTOMIZING THE
INSTRUMENT CLUSTER
DISPLAY - VEHICLES WITH: 12
INCH SCREEN

Adding Screens Using MyView

Using the instrument cluster display
controls on the steering wheel, select

MyView

2. Select

Configure MyView

3. Select an item from the list that you

want to include in your MyView list.

Note:

A minimum of two items must be

selected.

Note:

You can select a maximum of seven

items to include in MyView.

4. Press the

button.

Configuring Gauges

Select

Settings

2. Select

Configure Gauges

3. Select to change the left-hand side and

right-hand side gauges.

132

Instrument Cluster Display

CHANGING THE LANGUAGE

E386797

Press the button on the

touchscreen.

2. Press

General

3. Press

Language

4. Select a language.

CHANGING THE
MEASUREMENT UNIT

E386797

Press the button on the

touchscreen.

2. Press

General

3. Press

Measurement Units

4. Select a measurement unit.

CHANGING THE
TEMPERATURE UNIT

E386797

Press the button on the

touchscreen.

2. Press

General

3. Press

Temperature Units

4. Select a temperature unit.

CHANGING THE TIRE
PRESSURE UNIT

E386797

Press the button on the

touchscreen.

2. Press

General

3. Press

Tire Pressure Units

4. Select a pressure unit.

133

Personalized Settings

ACCESSING THE TRIP
COMPUTER

Use the instrument cluster display
controls to navigate to the main menu.

2. Select

Trip/Fuel

3. Select

Trip 1

Trip 2

RESETTING THE TRIP
COMPUTER

Use the instrument cluster display
controls to navigate to the main menu.

2. Select

Trip/Fuel

3. Select

Trip 1

Trip 2

4. Press and hold the

button for a few

seconds.

134

Trip Computer

WHAT IS REMOTE START

The system allows you to remotely start
your vehicle and to adjust the interior
temperature according to the settings that
you chose.

REMOTE START
PRECAUTIONS

WARNING:

Do not start the engine

in a closed garage or in other enclosed
areas. Exhaust fumes are toxic. Always
open the garage door before you start
the engine. Failure to follow this
instruction could result in personal injury
or death.

REMOTE START LIMITATIONS

Remote start does not work under the
following conditions:

•

The alarm horn is sounding.

•

The hood is open.

•

The transmission is not in park (P).

•

The ignition is on.

•

The battery voltage is below the
minimum operating voltage.

•

Remote start is not enabled.

Note:

Do not use remote start if the fuel

level is low.

Note:

You can use remote start with

FordPass. See

Connecting FordPass to

the Modem

(page 493).

ENABLING REMOTE START

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Remote Start Setup

4. Switch

Remote Start

on or off.

Note:

To remote start with FordPass, make

sure that the modem is enabled. See

Enabling and Disabling the Modem

(page

493).

REMOTELY STARTING AND
STOPPING THE VEHICLE

Remotely Starting the Vehicle

E138623

Press the button on the remote
control.

E138625

Within three seconds, press the
button on the remote control.

Within three seconds, press the

button again.

Note:

You can also use FordPass to start

the vehicle.

Note:

The vehicle doors lock when you

successfully remote start your vehicle.

Note:

The turn signal lamps flash twice.

Note:

The parking lamps turn on when the

vehicle is running.

Note:

The horn sounds if the system fails

to start.

Note:

All other vehicle systems remain off

when you have remotely started the vehicle.

Note:

The vehicle remains secured when

you have remotely started the vehicle. A
valid key must be inside your vehicle to
switch the ignition on and drive your vehicle.

Remotely Stopping the Vehicle

E138625

Press the button on the remote
control.

135

Remote Start

EXTENDING THE REMOTE
START DURATION

To extend the remote start duration during
remote start, do the following:

E138623

Press the button on the remote
control.

E138625

Within three seconds, press the
button on the remote control.

Within three seconds, press the

button again.

If the duration is set to 15 minutes, the
duration extends by another 15 minutes.
This provides a total of 30 minutes.

Note:

Remote start can only be extended

once.

Note:

A maximum of two remote starts, or

one remote start with an extension, are
allowed. To reset the restart procedure
switch the vehicle to on, then to off.

REMOTE START REMOTE
CONTROL INDICATORS

Remote Control Feedback

An LED on the remote control provides
status feedback of remote start or stop
commands.

Status

LED

Remote start

successful.

Solid green.

Remote stop

successful.

Solid red.

Request failed or

status not received.

Blinking red.

Status incomplete.

Blinking green.

REMOTE START SETTINGS

To access the settings menu:

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Remote Start Setup

Switching Climate Control Auto
Mode On and Off

Press

Auto

Last settings

Note:

If you switch the auto mode on, the

system attempts to heat or cool the interior
to 72°F (22°C). When you switch the vehicle
on, the climate control system returns to
the last used settings.

Note:

If you switch the last settings on, the

system remembers the last used settings.

Heated Seat Settings

Press

Seats

2. Press

Auto

Off

Note:

If you switch the heated seat settings

on, the heated seats turn on during cold
weather.

Heated Steering Wheel Settings

Press

Seats and Steering Wheel

2. Press

Auto

Off

Note:

If you switch the heated steering

wheel settings on, the heated steering wheel
turns on during cold weather.

Remote Start Duration

Press

Duration

2. Press the duration you prefer.

136

Remote Start

IDENTIFYING THE CLIMATE
CONTROL UNIT

E358851

Depending on your vehicle options, the
controls could look different than what you
see here.

SWITCHING CLIMATE
CONTROL ON AND OFF

Press the button.

SWITCHING RECIRCULATED
AIR ON AND OFF

Press the button to recirculate
air currently in the passenger
compartment.

Note:

Recirculated air may turn off

automatically, or prevent you from switching
on in all air flow modes except MAX A/C to
reduce the risk of fogging. Recirculation may
also turn on and off automatically in various
air distribution control combinations to
improve heating or cooling efficiency.

SWITCHING AIR
CONDITIONING ON AND OFF

Press the button.

Note:

Under certain conditions, the air

conditioning compressor could continue to
operate after you switch air conditioning off.

Note:

To keep the system and its

components fully functional, switch air
conditioning on and let your vehicle idle at
least once per month for a minimum of two
minutes.

SWITCHING MAXIMUM
DEFROST ON AND OFF

Press the button.

Air flows through the windshield air vents,
the temperature is set to the highest
setting, and the blower motor adjusts to
the highest speed.

You can also use this setting to defog and
clear the windshield of a thin covering of
ice.

Note:

To prevent window fogging, you

cannot select recirculated air when
maximum defrost is on.

Note:

The heated rear window and heated

mirrors also turn on when you select
maximum defrost.

Note:

When maximum defrost is on, the air

conditioning compressor may continue to
operate even though you switch off the A/C.

SWITCHING MAXIMUM
COOLING ON AND OFF

Press the button.

Note:

When you switch maximum cooling

off, air conditioning remains on.

137

Climate Control - Vehicles With: Automatic Temperature

Control

SWITCHING THE HEATED
REAR WINDOW ON AND OFF

Press the touchscreen to clear
the rear window of thin ice and
fog. The heated rear window

turns off after a short period of time.

Note:

Do not use harsh chemicals, razor

blades or other sharp objects to clean or
remove decals from the inside of the heated
rear window as this could cause damage to
the heated rear window grid lines not
covered by the vehicle Warranty.

SETTING THE BLOWER MOTOR
SPEED

Press

to select the blower

motor speed.

SETTING THE TEMPERATURE

E359472

Turn the control on the left-hand side of
the climate control to set the left-hand
temperature.

Note:

This control also sets the right-hand

side temperature when you switch off dual
zone mode.

Turn the control on the right-hand side of
the climate control to set the right-hand
temperature.

DIRECTING THE FLOW OF AIR

Directing Air to the Windshield Air
Vents

E335134

Press the button on the
touchscreen to access the
climate controls.

Press the button.

Directing Air to the Instrument
Panel Air Vents

E335134

Press the button on the
touchscreen to access the
climate controls.

E244097

Press the button.

Directing Air to the Footwell Air
Vents

E335134

Press the button on the
touchscreen to access the
climate controls.

E244098

Press the button.

AUTO MODE

SWITCHING AUTO MODE ON AND
OFF

Press the button to switch auto
mode on. Repeatedly press the
button to adjust auto mode.

138

Climate Control - Vehicles With: Automatic Temperature

Control

IDENTIFYING THE CLIMATE
CONTROL UNIT

E358852

Depending on your vehicle options, the
controls could look different than what you
see here.

SWITCHING CLIMATE
CONTROL ON AND OFF

Press the button.

SWITCHING RECIRCULATED
AIR ON AND OFF

Press the button to recirculate
air currently in the passenger
compartment.

Note:

Recirculated air may turn off

SWITCHING AIR
CONDITIONING ON AND OFF

Press the button.

Note:

Under certain conditions, the air

conditioning compressor could continue to
operate after you switch air conditioning off.

Note:

To keep the system and its

components fully functional, switch air
conditioning on and let your vehicle idle at
least once per month for a minimum of two
minutes.

SWITCHING MAXIMUM
DEFROST ON AND OFF

Press the button.

Air flows through the windshield air vents,
the temperature is set to the highest
setting, and the blower motor adjusts to
the highest speed.

You can also use this setting to defog and
clear the windshield of a thin covering of
ice.

Note:

To prevent window fogging, you

cannot select recirculated air when
maximum defrost is on.

Note:

The heated rear window and heated

mirrors also turn on when you select
maximum defrost.

Note:

When maximum defrost is on, the air

conditioning compressor may continue to
operate even though you switch off the A/C.

SWITCHING MAXIMUM
COOLING ON AND OFF

Press the button.

Note:

When you switch maximum cooling

off, air conditioning remains on.

140

Climate Control - Vehicles With: Manual Temperature Control

SWITCHING THE HEATED
REAR WINDOW ON AND OFF

(IF

EQUIPPED)

Press the touchscreen to clear
the rear window of thin ice and
fog. The heated rear window

turns off after a short period of time.

Note:

Do not use harsh chemicals, razor

blades or other sharp objects to clean or
remove decals from the inside of the heated
rear window as this could cause damage to
the heated rear window grid lines not
covered by the vehicle Warranty.

SETTING THE BLOWER MOTOR
SPEED

Turn the control to adjust the
volume of air circulated in the
vehicle.

SETTING THE TEMPERATURE

E359472

Turn the temperature control
counterclockwise for cooler temperature
settings.

Turn the temperature control clockwise
for warmer temperature settings.

DIRECTING THE FLOW OF AIR

Directing Air to the Windshield Air
Vents

E335134

Press the button on the
touchscreen to access the
climate controls.

Press the button.

Directing Air to the Instrument
Panel Air Vents

E335134

Press the button on the
touchscreen to access the
climate controls.

E244097

Press the button.

Directing Air to the Footwell Air

Vents

E335134

Press the button on the
touchscreen to access the
climate controls.

E244098

Press the button.

CLIMATE CONTROL HINTS

General Hints

•

Prolonged use of recirculated air may
cause the windows to fog up.

•

You may feel a small amount of air
from the footwell air vents regardless
of the air distribution setting.

•

To reduce humidity build-up inside your
vehicle, do not drive with the system
switched off or with recirculated air
always switched on.

141

Climate Control - Vehicles With: Manual Temperature Control

•

Do not place objects under the front
seats as this may interfere with the
airflow to the rear seats.

•

Remove any snow, ice or leaves from
the air intake area at the base of the
windshield.

•

To improve the time to reach a
comfortable temperature in hot
weather, drive with the windows open
until you feel cold air through the air
vents.

Quickly Heating the Interior

Adjust the blower motor speed to the
highest speed setting.

2. Adjust the temperature control to the

highest setting.

3. Direct air to the footwell air vents.

Recommended Settings for
Heating

Adjust the blower motor speed to the
center setting.

2. Adjust the temperature control to the

midway point of the hot settings.

3. Direct air to the footwell air vents.

Quickly Cooling the Interior

Press

MAX A/C

2. Drive with the windows open for a short

period of time.

Recommended Settings for
Cooling

Adjust the blower motor speed to the
center setting.

2. Adjust the temperature control to the

midway point of the cold settings.

3. Direct air to the instrument panel air

vents.

Defogging the Side Windows in
Cold Weather

Direct air to the instrument panel and
windshield air vents.

2. Press and release

A/C

3. Adjust the temperature control to the

setting you prefer.

4. Adjust the blower motor speed to the

highest setting.

5. Direct air toward the side windows.
6. Close the instrument panel air vents.

142

Climate Control - Vehicles With: Manual Temperature Control

WHAT IS THE CABIN AIR
FILTER

The cabin air filter improves the quality of
air in your vehicle by trapping dust, pollen
and other particles.

REPLACING THE CABIN AIR
FILTER

Replace the filter at regular intervals. See

Scheduled Maintenance

(page 534).

The cabin air filter is behind the glove
compartment.

To remove the lower glove compartment
and access the filter:

Open the glove compartment.

E311296

2. Press the tab on each side.

3. Fully lower the glove compartment.

4. Pull the glove compartment toward

you.

143

Interior Air Quality

FRONT SEAT PRECAUTIONS

WARNING:

Sitting improperly, out

of position or with the seatback reclined
too far can take weight off the seat
cushion and affect the decision of the
passenger sensing system, resulting in
serious injury or death in the event of a
crash. Always sit upright against your
seat back, with your feet on the floor.

WARNING:

Do not recline the seat

backrest too far as this can cause the
occupant to slide under the seatbelt,
resulting in personal injury in the event
of a crash.

WARNING:

Do not place objects

higher than the top of the seat backrest.
Failure to follow this instruction could
result in personal injury or death in the
event of a sudden stop or crash.

WARNING:

Do not adjust the driver

seat or seat backrest when your vehicle
is moving. This may result in sudden seat
movement, causing the loss of control
of your vehicle.

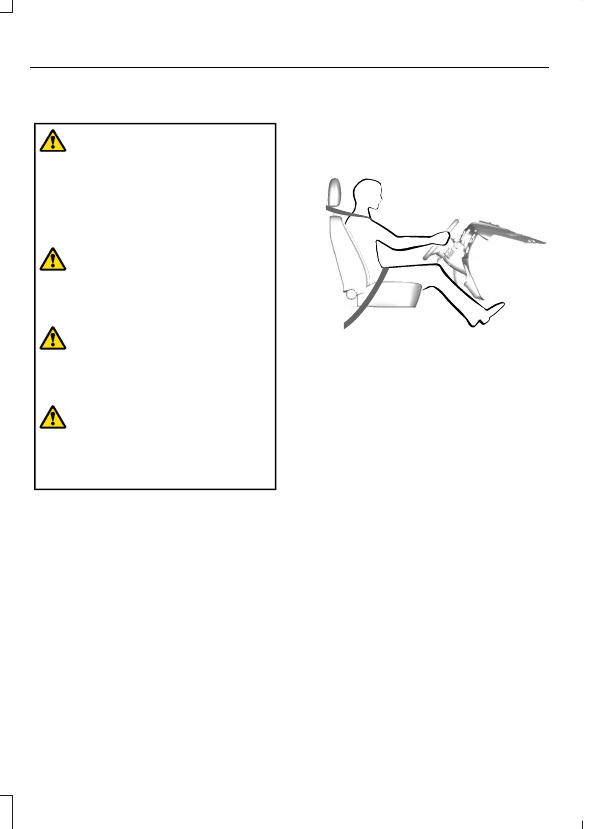

SITTING IN THE CORRECT
POSITION

E68595

When you use them properly, the seat,
head restraint, seatbelt and airbags will
provide optimum protection in the event
of a crash.

We recommend that you follow these
guidelines:
•

Sit in an upright position with the base
of your spine as far back as possible.

•

Do not recline the seat backrest so that
your torso is more than 30 degrees
from the upright position.

•

Adjust the head restraint so that the
top of it is level with the top of your
head and as far forward as possible.
Make sure that you remain
comfortable.

•

Keep sufficient distance between
yourself and the steering wheel. We
recommend a minimum of 10 in
(25 cm) between your breastbone and
the airbag cover.

•

Hold the steering wheel with your arms
slightly bent.

144

Front Seats

•

Bend your legs slightly so that you can
press the pedals fully.

•

Position the shoulder strap of the
seatbelt over the center of your
shoulder and position the lap strap
tightly across your hips.

Make sure that your driving position is
comfortable and that you can maintain full
control of your vehicle.

MANUAL SEATS

HEAD RESTRAINT COMPONENTS

E363837

The head restraints consist of:

An energy absorbing head
restraint.

Guide sleeve lock and release
button.

Guide sleeve.

Two steel stems.

ADJUSTING THE HEAD
RESTRAINT

WARNING:

Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk
of neck injury in the event of a crash. Do
not adjust the head restraint when your
vehicle is moving.

WARNING:

The head restraint is a

safety device. Whenever possible it
should be installed and properly
adjusted when the seat is occupied.
Failure to adjust the head restraint
properly could reduce its effectiveness
during certain impacts.

WARNING:

Adjust the head

restraints for all passengers before you
drive your vehicle. This will help minimize
the risk of neck injury in the event of a
crash. Do not adjust the head restraints
when your vehicle is moving.

Note:

Adjust the seat backrest to an upright

driving position before adjusting the head
restraint. Adjust the head restraint so that
the top of it is level with the top of your
head. Make sure that you remain
comfortable. If you are tall, adjust the head
restraint to its highest position.

Pull the head restraint up to raise it.

To lower the head restraint:

Press and hold the adjust and release
button.

2. Push the head restraint down.

145

Front Seats

REMOVING THE HEAD RESTRAINT

Pull up the head restraint until it
reaches its highest position.

2. Press and hold the adjust and release

button and the unlock and remove
button.

3. Pull up the head restraint.

INSTALLING THE HEAD
RESTRAINT

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

MOVING THE SEAT BACKWARD
AND FORWARD

WARNING:

Do not adjust the driver

seat or seat backrest when your vehicle
is moving. This may result in sudden seat
movement, causing the loss of control
of your vehicle.

WARNING:

Make sure the seat fully

locks into place by rocking it backward
and forward. Not securing the seat into
the locked position can be dangerous in
a crash and could cause serious personal
injury or death.

WARNING:

Accessory seat covers

not released by Ford Motor Company
could prevent the seatbelt from
retracting correctly. This could cause the
seatbelt to become slack which could
increase the risk of injuries in a crash.

E363844

ADJUSTING THE SEAT BACKREST

WARNING:

Reclining the seatback

can cause an occupant to slide under the
seat's seatbelt, resulting in severe
personal injuries in the event of a crash.

WARNING:

Do not place cargo or

any objects behind the seatback before
returning it to the original position.

E363845

146

Front Seats

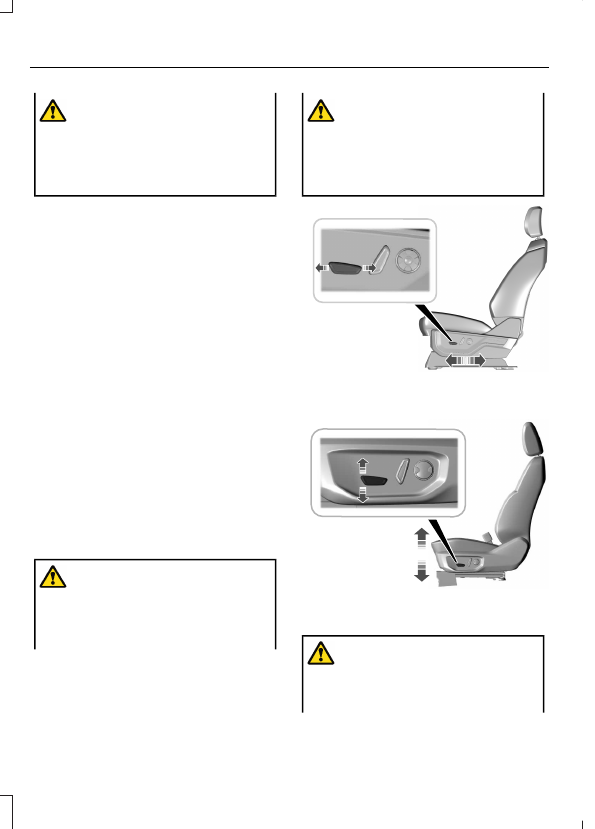

ADJUSTING THE SEAT HEIGHT

(If

Equipped)

E363846

ADJUSTING THE LUMBAR
SUPPORT

(If Equipped)

E363847

POWER SEATS

(IF EQUIPPED)

HEAD RESTRAINT COMPONENTS

E363837

The head restraints consist of:

An energy absorbing head
restraint.

Guide sleeve lock and release
button.

Guide sleeve.

Two steel stems.

ADJUSTING THE HEAD
RESTRAINT

WARNING:

Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk
of neck injury in the event of a crash. Do
not adjust the head restraint when your
vehicle is moving.

WARNING:

The head restraint is a

147

Front Seats

WARNING:

Adjust the head

restraints for all passengers before you
drive your vehicle. This will help minimize
the risk of neck injury in the event of a
crash. Do not adjust the head restraints
when your vehicle is moving.

Pull the head restraint up to raise it.

To lower the head restraint:

Press and hold the adjust and release
button.

2. Push the head restraint down.

REMOVING THE HEAD RESTRAINT

Pull up the head restraint until it
reaches its highest position.

2. Press and hold the adjust and unlock

button.

3. Pull up the head restraint.

INSTALLING THE HEAD
RESTRAINT

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

MOVING THE SEAT BACKWARD
AND FORWARD

WARNING:

Do not adjust the driver

seat or seat backrest when your vehicle
is moving. This may result in sudden seat
movement, causing the loss of control
of your vehicle.

WARNING:

Accessory seat covers

not released by Ford Motor Company
could prevent the seatbelt from
retracting correctly. This could cause the
seatbelt to become slack which could
increase the risk of injuries in a crash.

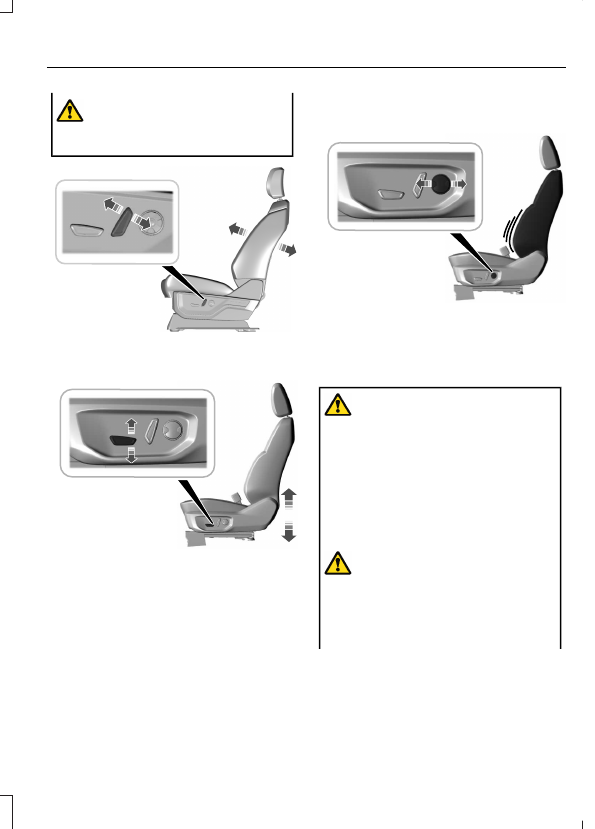

E308339

ADJUSTING THE SEAT CUSHION

E363849

ADJUSTING THE SEAT BACKREST

WARNING:

Reclining the seatback

can cause an occupant to slide under the
seat's seatbelt, resulting in severe
personal injuries in the event of a crash.

148

Front Seats

WARNING:

Do not place cargo or

any objects behind the seatback before
returning it to the original position.

E308338

ADJUSTING THE SEAT HEIGHT

E363851

ADJUSTING THE LUMBAR
SUPPORT

E363852

HEATED SEATS

(IF EQUIPPED)

HEATED SEAT PRECAUTIONS

WARNING:

Use caution when using

the heated seat if you are unable to feel
pain to your skin because of advanced
age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use,
exhaustion or other physical conditions.
The heated seat could cause burns even
at low temperatures, especially if used
for long periods of time. Failure to follow
this instruction could result in personal
injury.

WARNING:

Do not poke sharp

objects into the seat cushion or seat
backrest. This could damage the heated
seat element and cause it to overheat.
Failure to follow this instruction could
result in personal injury.

149

Front Seats

WARNING:

Do not place anything

on the seat that blocks the heat, for
example a seat cover or a cushion. This
could cause the seat to overheat. Failure
to follow this instruction could result in
personal injury.

Do not:
•

Place heavy objects on the seat.

•

Operate the heated seat if water or any
other liquid spills on the seat. Allow the
seat to dry.

SWITCHING THE HEATED SEATS
ON AND OFF

The vehicle must be running to use this
feature.

E146322

Press the heated seat symbol to cycle
through the various heat settings and off.
The more indicators that display, the
warmer the temperature of the seat.

Note:

The heated seats may remain on

after you remote start your vehicle, based
on your remote start settings. The heated
seats may also turn on when you start your
vehicle if they were on when you switched
your vehicle off.

150

Front Seats

MANUAL SEATS

HEAD RESTRAINT COMPONENTS

Rear Seat Outermost Head Restraints

E363853

The head restraints consist of:

An energy absorbing head
restraint.

Guide sleeve.

Locking guide sleeve.

Rear Seat Center Head Restraint

E363854

The head restraint consists of:

An energy absorbing head
restraint.

Two steel stems.

Guide sleeve adjust and release
button.

Guide sleeve unlock and remove
button (If equipped).

ADJUSTING THE HEAD
RESTRAINT

WARNING:

The head restraint is a

WARNING:

Adjust the head

restraints for all passengers before you
drive your vehicle. This will help minimize
the risk of neck injury in the event of a
crash. Do not adjust the head restraints
when your vehicle is moving.

Adjust the head restraint so that the top
of it is level with the top of your head.

The outermost head restraints are
non-adjustable.

Pull the center head restraint up to raise
it.

To lower the center head restraint:

Press and hold the unlock and remove
button.

2. Push the head restraint down.

REMOVING THE HEAD RESTRAINT

Fold the seat backrest forward before
removing the head restraint.

2. Pull up the head restraint until it

reaches its highest position.

151

Rear Seats

3. Press and hold the adjust and release

button and the unlock and remove
button.

4. Pull up the head restraint.

INSTALLING THE HEAD
RESTRAINT

Fold the seat backrest forward before
installing the head restraint.

2. Align the steel stems into the guide

sleeves and push the head restraint
down until it locks.

FOLDING THE SEAT BACKREST

WARNING:

When folding the seat

backrest down, take care not to get your
fingers caught in the mechanism.

E368037

Pull the strap to fold the backrest forward.

Note:

Move the front seats forward to avoid

interference between the front and rear
seats. This provides more access to the
back.

UNFOLDING THE SEAT BACKREST

WARNING:

When unfolding the

seat, make sure that the seatbelts are
not trapped behind the seat.

WARNING:

Do not place cargo or

any objects behind the seatback before
returning it to the original position.

WARNING:

Make sure that the

seats and the seat backrests are secure
and fully locked in their catches.

Pull the seat backrest up until it latches in
the upright position.

Note:

We recommend that you push the

seat backrest upright from the passenger
side of the vehicle.

FOLDING THE SEATS

E384547

Pull one of the straps to fold the seat up.

152

Rear Seats

Ford Ranger (2024 year). Manual in english - page 4
