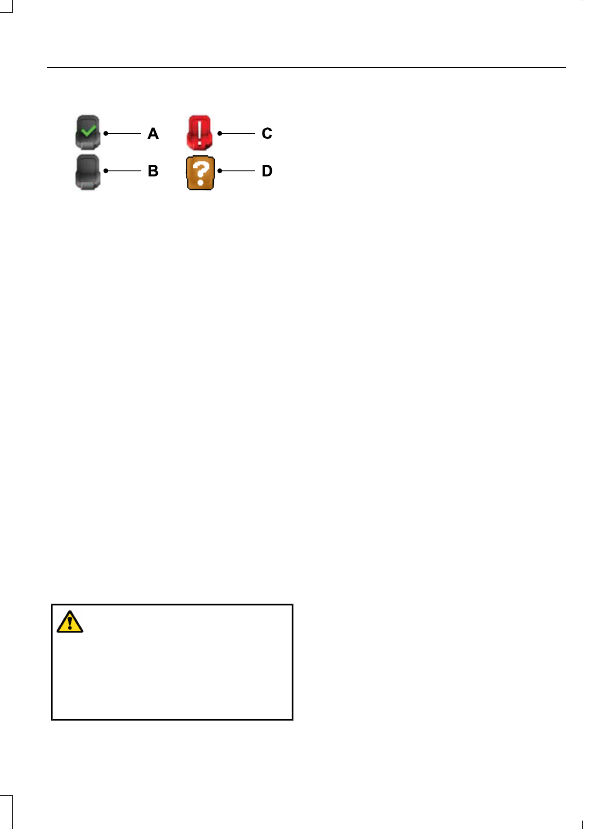

Seatbelt fastened.

Seatbelt not fastened.

Seatbelt recently unfastened.

Fault.

SEATBELT REMINDER AUDIBLE
WARNINGS

A warning tone sounds if you do not fasten
your seatbelt when you switch the ignition
on. The tone switches off when you fasten
your seatbelt or about one minute elapses.

When the initial warning expires for the
driver, more warnings are provided for the
driver and front passenger. This warning
tone sounds if you or your front passenger
do not fasten the seatbelt buckle and the
vehicle speed exceeds 6 mph (10 km/h).

This tone also sounds if an occupant
unfastens the rear seatbelt buckle or it
becomes unfastened.

SWITCHING THE SEATBELT
REMINDER ON AND OFF

WARNING:

While the system

allows you to deactivate it, this system
is designed to improve your chances of
being safely belted and surviving an
accident. We recommend you leave the
system activated for yourself and others
who may use the vehicle.

Note:

The driver and front passenger

warnings switch off independently. When
you perform this procedure for one seating
position, do not buckle the other position as
this cancels the process.

Read Steps 1 - 4 before proceeding with
the programming procedure.

Make sure that:
•

You set the parking brake.

•

The transmission is in park (P).

•

The ignition is off.

•

You close all vehicle doors.

•

You unfasten the driver and front
passenger seatbelts.

Switch the ignition on. Do not start the
engine.

2. After Step 1, wait an additional five

seconds before proceeding with Step
3. Once you start Step 3, you must
complete the procedure within 60
seconds.

3. For the seating position you are

switching off, buckle then unbuckle the
seatbelt three times at a moderate
speed, ending in the unbuckled state.
After Step 3, the seatbelt warning light
switches on.

4. When the seatbelt warning light is on,

buckle then unbuckle the seatbelt.
After Step 4, the seatbelt warning light
flashes for confirmation.

This switches the feature off for that
seating position if it is currently on.

This switches the feature on for that
seating position if it is currently off.

Seatbelts

CHECKING THE SEATBELTS

Check the seatbelts and child restraints
periodically to make sure they work
properly and are not damaged. Make sure
there are no nicks, tears or cuts. Replace if
necessary.

Check the following seatbelt assemblies
after a crash.

•

Retractors.

•

Buckles.

•

Front seatbelt buckle assemblies.

•

Shoulder belt height adjusters.

•

Shoulder belt guide on seat backrest.

•

Child restraint and tether anchors.

•

Attaching hardware.

Read the child restraint manufacturer's
instructions for additional inspection and
maintenance information specific to the
child restraint.

We recommend that all seatbelt
assemblies in use in vehicles involved in a
crash be replaced. However, if the crash
was minor and an authorized dealer finds
that the belts do not show damage and
continue to operate properly, they do not
need to be replaced. Seatbelt assemblies
not in use during a crash should also be
checked and replaced if either damage or
improper operation is noted.

Seatbelts – Information Messages

Description

Message

The system has detected a fault that requires service. Have
your vehicle checked as soon as possible.

Rear Belt Monitor
Malfunction Service
Required

SEATBELT EXTENSIONS

WARNING:

Persons who fit into

the vehicle's seatbelt should not use an
extension. Unnecessary use could result
in serious personal injury in the event of
a crash.

WARNING:

Only use extensions

provided free of charge by our dealers.
The dealer will provide an extension
designed specifically for this vehicle,
model year and seating position. The use
of an extension intended for another
vehicle, model year or seating position
may not offer you the full protection of
your vehicle's seatbelt restraint system.

WARNING:

Never use seatbelt

extensions to install child restraints.

WARNING:

Do not use extensions

to change the way the seatbelt fits
across the torso, over the lap or to make
the seatbelt buckle easier to reach.

If, because of body size or driving position,
it is not possible to properly fasten the
seatbelt over your lap and shoulder, an
extension that is compatible with the
seatbelts is available free of charge from
our dealers. Only use our seatbelt
extensions made by the original equipment
seatbelt manufacturer with our seatbelts.
Ask your authorized dealer if your extension
is compatible with your vehicle restraint
system.

Seatbelts

WHAT IS THE PERSONAL
SAFETY SYSTEM

An advanced safety system that protects
occupants in frontal crashes.

HOW DOES THE PERSONAL
SAFETY SYSTEM WORK

This system provides an improved level of
frontal crash protection to front seat
occupants and is designed to reduce the
risk of airbag-related injuries. The system
analyzes occupant conditions and crash
severity before activating the appropriate
safety devices. During a crash, the
restraints control module may deploy the
seatbelt pretensioners, and one or both
stages of the dual-stage airbags based on
crash severity and occupant conditions.

PERSONAL SAFETY SYSTEM
COMPONENTS

•

Driver and passenger dual-stage airbag
supplemental restraints.

•

Front seat outermost seatbelts with
pretensioners, energy management
retractors and seatbelt usage sensors.

•

Driver seat position sensor.

•

Passenger seat position sensor.

•

Front passenger sensing system.

•

Passenger airbag off and on indicators.

•

Front crash severity sensors.

•

Restraints control module with impact
and safing sensors.

•

Restraint system warning light and
tone.

•

The electrical wiring for the airbags,
crash sensors, seatbelt pretensioners,
front seatbelt usage sensors, front
passenger sensing system and
indicator lights.

Personal Safety System™

HOW DO THE FRONT AIRBAGS
WORK

E151127

The driver and front passenger airbags
deploy during significant frontal and near
frontal crashes.

The driver and passenger front airbag
system consists of:
•

Driver and passenger airbag modules.

•

Front passenger sensing system.

•

Crash sensors and monitoring system
with readiness indicator. See

Crash

Sensors and Airbag Indicator

(page

67).

The airbags are a supplemental restraint
system and are designed to work with the
seatbelts to help protect the driver and
right front passenger from certain upper
body injuries. Airbags do not inflate slowly;
there is a risk of injury from a deploying
airbag.

Note:

You will hear a loud bang and see a

cloud of harmless powdery residue if an
airbag deploys. This is normal.

The airbags inflate and deflate rapidly
upon activation. After airbag deployment,
it is normal to notice a smoke-like, powdery
residue or smell the burnt propellant. This
may consist of cornstarch, talcum powder
(to lubricate the bag) or sodium

compounds (for example, baking soda)
that result from the combustion process
that inflates the airbag. Small amounts of
sodium hydroxide may be present which
may irritate the skin and eyes, but none of
the residue is toxic.

Contact with a deploying airbag may cause
abrasions or swelling. Temporary hearing
loss is also a possibility as a result of the
noise associated with a deploying airbag.

Because airbags must inflate rapidly and
with considerable force, there is the risk of
death or serious injuries such as fractures,
facial and eye injuries or internal injuries,
particularly to occupants who are not
properly restrained or are otherwise out of
position at the time of airbag deployment.
Thus, it is extremely important that
occupants be properly restrained as far
away from the airbag module as possible.

Routine maintenance of the airbags is not
required.

HOW DO THE SIDE AIRBAGS
WORK

WARNING:

Do not place objects

or mount equipment on or near the
airbag cover, on the side of the front or
rear seatbacks, or in areas that may
come into contact with a deploying
airbag. Failure to follow these
instructions may increase the risk of
personal injury in the event of a crash.

WARNING:

Accessory seat covers

not released by Ford Motor Company
could prevent the deployment of the
airbags and increase the risk of injuries
in a crash.

Airbags

WARNING:

Do not lean your head

on the door. The side airbag could injure
you as it deploys from the side of the
seatback.

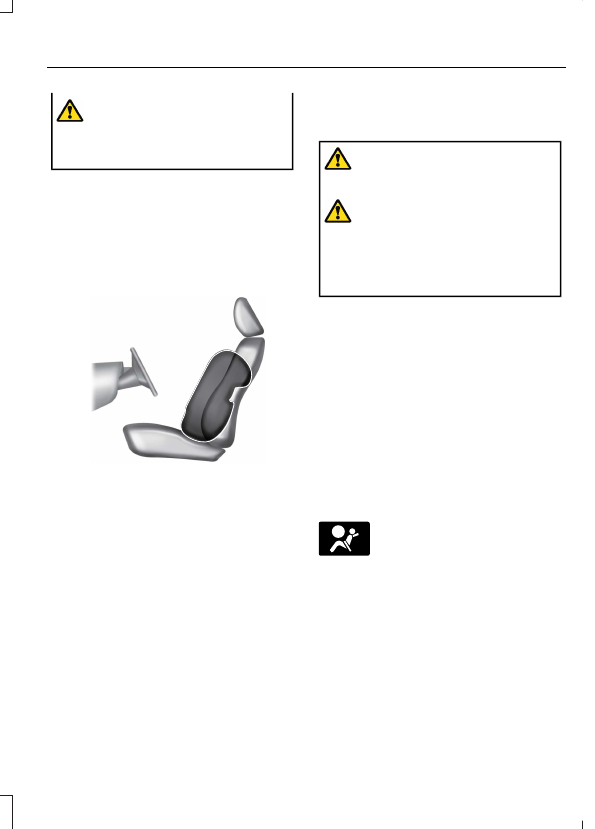

The side airbags are on the outermost side
of each front seat backrest. In certain
sideways crashes or rollovers, the airbags
will be inflated.

The airbag was designed to inflate
between the door panel and occupant to
further enhance the protection provided
occupants in side impact crashes.

E152533

The system consists of the following:
•

A label or embossed side panel
indicating that your vehicle has side
airbags.

•

Side airbags inside the driver and front
passenger seat backrests.

•

Crash sensors and monitoring system
with a readiness indicator. See

Crash

Sensors and Airbag Indicator

(page

67).

HOW DO THE KNEE AIRBAGS
WORK

WARNING:

To reduce risk of injury,

do not obstruct or place objects in the
deployment path of the airbag.

WARNING:

Close the glove box

door when your vehicle is moving. Failure
to follow this instruction could reduce
the effectiveness of the passenger knee
airbag and increase the risk of injury in a
crash.

A driver knee airbag is under or within the
instrument panel. A passenger knee airbag
is within or under the glove box door.

During a crash, the restraints control
module may activate the driver and
passenger knee airbags based on crash
severity and occupant conditions. Under
certain crash and occupant conditions, the
driver and passenger knee airbags may
deploy, but the front airbags may not
activate.

As with front and side airbags, it is
important to be properly seated and
restrained to reduce the risk of death or
serious injury.

E67017

Make sure the knee airbags are
operating properly. See

Crash

Sensors and Airbag Indicator

(page 67).

Airbags

HOW DOES THE SAFETY
CANOPY™ WORK

WARNING:

Do not place objects

or mount equipment on or near the
headliner at the siderail that may come
into contact with a deploying curtain
airbag. Failure to follow these
instructions may increase the risk of
personal injury in the event of a crash.

WARNING:

Do not lean your head

on the door. The curtain airbag could
injure you as it deploys from the
headliner.

WARNING:

To reduce risk of injury,

do not obstruct or place objects in the
deployment path of the airbag.

The Safety Canopy deploys during
significant side crashes or when a certain
likelihood of a rollover event is detected
by the rollover sensor. The Safety Canopy
is mounted to the roof side-rail sheet
metal, behind the headliner, above each
row of seats. In certain sideways crashes
or rollover events, the Safety Canopy will
be activated, regardless of which seats are
occupied. The Safety Canopy inflates
between the side window area and
occupants to further enhance protection
provided in side impact crashes and
rollover events.

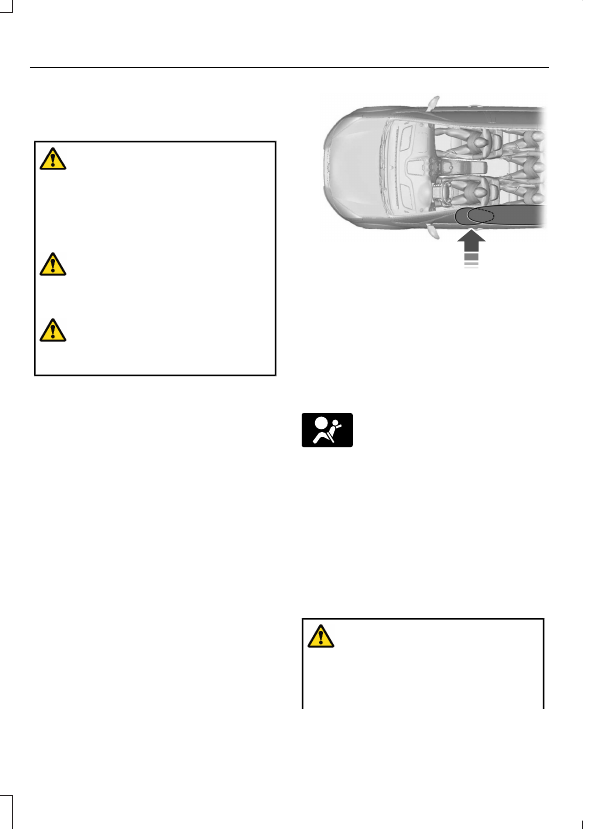

E75004

The system consists of the following:
•

Safety Canopy curtain airbags above
the trim panels over the front and rear
side windows identified by a label or
wording on the headliner or roof-pillar
trim.

•

A flexible headliner which opens above
the side doors to allow air curtain
deployment

E67017

· Crash sensors and monitoring
system with a readiness
indicator. See

Crash Sensors

and Airbag Indicator

(page 67).

Properly restrain children 12 years old and
under in the rear seats. The Safety Canopy
will not interfere with children restrained
using a properly installed child or booster
seat because it is designed to inflate
downward from the headliner above the
doors along the side window opening.

AIRBAG PRECAUTIONS

WARNING:

Airbags do not inflate

slowly or gently, and the risk of injury
from a deploying airbag is the greatest
close to the trim covering the airbag
module.

Airbags

WARNING:

All occupants of your

vehicle, including the driver, should
always properly wear their seatbelts,
even when an airbag supplemental
restraint system is provided. Failure to
properly wear your seatbelt could
seriously increase the risk of injury or
death.

WARNING:

Properly secure

children 12 years old and under in a rear
seating position whenever possible. If
you are unable to properly secure all
children in a rear seating position,
properly secure the largest child on the
front seat. If you must use a forward
facing child restraint on the front seat,
move the seat as far back as possible.
Failure to follow these instructions could
result in personal injury or death.

WARNING:

Do not place your arms

on the airbag cover or through the
steering wheel. Failure to follow this
instruction could result in personal injury.

WARNING:

Keep the areas in front

of the airbags free from obstruction. Do
not affix anything to or over the airbag
covers. Objects could become projectiles
during airbag deployment. Failure to
follow this instruction could result in
personal injury or death.

WARNING:

To reduce risk of injury,

do not obstruct or place objects in the
deployment path of the airbag.

WARNING:

Do not place a

rearward facing child restraint in front of
an active airbag. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

Do not attempt to

service, repair, or modify the
supplementary restraint system or
associated components. Failure to
follow this instruction could result in
personal injury or death.

WARNING:

Several airbag system

components get hot after inflation. To
reduce the risk of injury, do not touch
them after inflation.

WARNING:

If a supplementary

restraint system component has
deployed, it will not function again. Have
the system and associated components
inspected as soon as possible. Failure to
follow this instruction could result in
personal injury or death.

PROPERLY ADJUSTING THE
DRIVER AND FRONT
PASSENGER SEATS

WARNING:

National Highway

Traffic Safety Administration (NHTSA)
recommends a minimum distance of at
least 10 in (25 cm) between an
occupant's chest and the driver airbag
module.

To properly position yourself away from
the airbag:
•

Move your seat to the rear as far as you
can while still reaching the pedals
comfortably.

•

Recline the seat slightly one or two
degrees from the upright position.

Airbags

After all occupants have adjusted their
seats and put on seatbelts, it is very
important that they continue to sit
properly. Properly seated occupants sit
upright, lean against the seat backrest, and
center themselves on the seat cushion,
with their feet comfortably extended on
the floor. Sitting improperly can increase
the chance of injury in a crash event. For
example, if an occupant slouches, lies
down, turns sideways, sits forward, leans
forward or sideways, or puts one or both
feet up, the chance of injury during a crash
greatly increases.

CHILDREN AND AIRBAGS

WARNING:

Do not place a

rearward facing child restraint in front of
an active airbag. Failure to follow this
instruction could result in personal injury
or death.

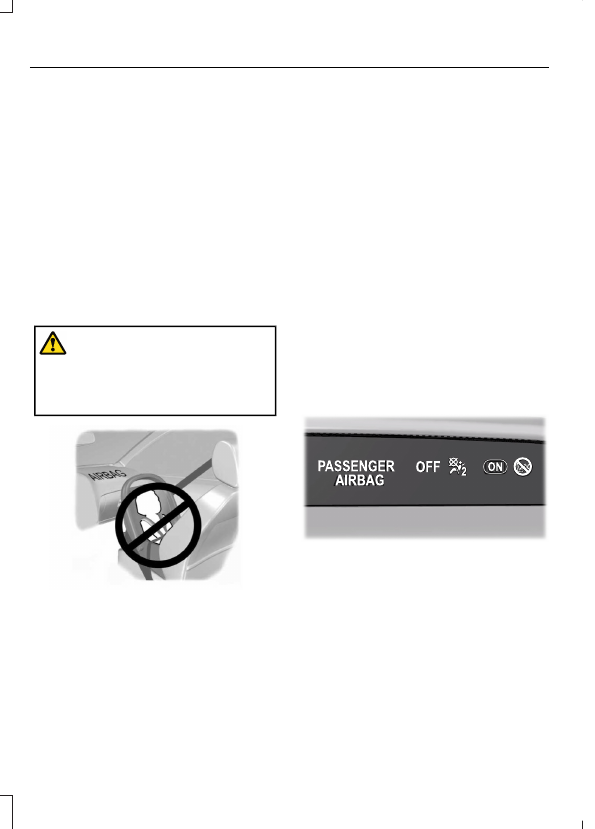

E142846

Children must always be properly
restrained. Accident statistics suggest that
children are safer when properly restrained
in the rear seating positions than in the
front seating position. Failure to follow
these instructions may increase the risk of
injury in a crash.

FRONT PASSENGER SENSING
SYSTEM

WHAT IS THE FRONT PASSENGER
SENSING SYSTEM

This system detects a properly seated
occupant and determines if the front
passenger airbag should be enabled.

HOW DOES THE FRONT
PASSENGER SENSING SYSTEM
WORK

The system uses a passenger airbag status
indicator which illuminates indicating that
the front passenger frontal airbag is either
enabled or disabled.

Note:

When you first switch the ignition on,

the passenger airbag status indicator off
and on lamps illuminate for a short period
to confirm they are functional.

E384539

The indicator lamps are on the center of
the instrument panel.

The front passenger sensing system is
designed to disable the front passenger
frontal airbag under these conditions:
•

The front passenger seat is
unoccupied.

•

The system determines an infant is
present in a child restraint.

Airbags

•

A passenger takes their weight off of
the seat for a period of time.

•

If there is a problem with the airbag
system or the passenger sensing
system.

Note:

Even with this technology, parents

are strongly encouraged to always properly
restrain children in the rear seat.

•

When the front passenger sensing
system disables the front passenger
frontal airbag, the passenger airbag
status indicator illuminates the off
lamp.

•

If you have installed the child restraint,
but the passenger airbag status
indicator illuminates the on lamp,
switch your vehicle off, remove the
child restraint from your vehicle and
reinstall the restraint following the
child restraint manufacturer's
instructions.

The front passenger sensing system works
with sensors that are part of the front
passenger seat and seatbelt. The sensors
are designed to detect the presence of a
properly seated occupant and determine
if the front passenger frontal airbag should
be enabled.

•

When the front passenger sensing
system enables the front passenger
frontal airbag, the passenger airbag
status indicator illuminates the on
lamp.

If a person of adult size is sitting in the front
passenger seat, but the passenger airbag
status indicator off lamp is illuminated, it
is possible that the person is not sitting
properly in the seat. If this happens:
•

Switch your vehicle off and ask the
person to place the seat backrest in an
upright position.

•

Have the person sit upright in the seat,
centered on the seat cushion, with the
person's legs comfortably extended.

•

Restart your vehicle and have the
person remain in this position for about
two minutes. This allows the system
to detect that person and enable the
passenger frontal airbag.

•

If the indicator off lamp remains
illuminated even after this, advise the
person to ride in the rear seat.

After all occupants have adjusted their
seats and put on seatbelts, it is very
important that they continue to sit upright,
leaning against the seat backrest, and
centered on the seat cushion, with their
feet comfortably extended on the floor.

Sitting improperly can increase the chance
of injury in a crash event. For example, if
an occupant slouches, lies down, turns
sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the
chance of injury during a crash greatly
increases.

If you think that the state of the passenger
airbag status indicator lamp is incorrect,
check the following:
•

Objects lodged underneath the seat.

•

Objects between the seat cushion and
the center console.

•

Objects hanging off the seat backrest.

•

Objects stowed in the seat backrest
map pocket.

•

Objects placed on the occupant's lap.

•

Cargo interference with the seat

•

Other passengers pushing or pulling on
the seat.

•

Rear passenger feet and knees resting
or pushing on the seat.

The listed conditions could cause the
weight of a properly seated occupant to
be incorrectly interpreted by the front
passenger sensing system. The person in
the front passenger seat could appear
heavier or lighter due to the conditions
listed.

Airbags

E67017

Make sure the front passenger
sensing system is operating
properly. See

Crash Sensors

and Airbag Indicator

(page 67).

If the airbag readiness light is on, do the
following:

•

Pull your vehicle over.

•

Switch your vehicle off.

•

Check for any objects lodged
underneath the front passenger seat
or cargo interfering with the seat.

•

Remove the obstruction if found.

•

Restart your vehicle.

•

Wait at least two minutes and verify
that the airbag readiness light in the
instrument cluster is no longer
illuminated.

•

If the airbag readiness light in the
instrument cluster remains illuminated,
there may be a problem due to the
front passenger sensing system.

Do not attempt to repair or service the
system. Take your vehicle in for service
immediately.

If it is necessary to modify an advanced
front airbag system to accommodate a
person with disabilities, contact your
Customer Relationship Center.

FRONT PASSENGER SENSING
SYSTEM PRECAUTIONS

WARNING:

Sitting improperly, out

of position or with the seatback reclined
too far can take weight off the seat
cushion and affect the decision of the
passenger sensing system, resulting in
serious injury or death in the event of a
crash. Always sit upright against your
seat back, with your feet on the floor.

WARNING:

Any alteration or

modification to the front passenger seat
may affect the performance of the front
passenger sensing system. This could
seriously increase the risk of injury or
death.

WARNING:

Do not place objects

under the front passenger seat or
between the seat and the center
console. Failure to follow this instruction
may interfere with the front passenger
seat sensing system and increase the
risk of injury or death in a crash.

WARNING:

Check the passenger

airbag indicator lamp for proper airbag
status. Failure to follow this instruction
could result in personal injury or death.

FRONT PASSENGER SENSING SYSTEM INDICATORS

Passenger Airbag

Passenger Airbag Status

Indicator

Occupant

Disabled

OFF: Illuminated

Empty

ON: Not Illuminated

Disabled

OFF: Illuminated

Child

Airbags

Passenger Airbag

Passenger Airbag Status

Indicator

Occupant

ON: Not Illuminated

Enabled

OFF: Not Illuminated

Adult

ON: Illuminated

CRASH SENSORS AND
AIRBAG INDICATOR

WARNING:

Modifying or adding

equipment to the front of your vehicle
could affect the performance of the
airbag system, increasing the risk of
injury. This includes the hood, bumper
system, frame, front body structure, tow
hooks, hood pins, push bar and
snowplows.

Your vehicle has a collection of crash and
occupant sensors. These sensors provide
information to the restraints control
module which deploys the following:

•

Seatbelt pretensioners.

•

Driver airbag.

•

Passenger airbag.

•

Knee airbag(s).

•

Seat mounted side airbags.

•

Safety Canopy.

Based on the type of crash, the restraints
control module deploys the appropriate
safety devices.

The restraints control module also
monitors the readiness of the above safety
devices plus the crash and occupant
sensors. The safety system displays an
indicator in the instrument cluster when it
is ready. The system sends out a tone if it
is not working. The airbag does not require
routine maintenance.

One or more of the following indicates a
difficulty with the system:

E67017

The readiness light does not
immediately illuminate after you
switch the ignition on.

•

The readiness light either flashes or
stays on.

•

You hear a series of five beeps. The
tone pattern periodically repeats until
the problem, the light or both are
repaired.

If any of these things happen, even
intermittently, have the supplemental
restraint system serviced immediately at
an authorized dealer. Unless serviced, the
system may not properly function in the
event of a crash.

The fact that the seatbelt pretensioners
or front airbags did not activate for both
front seat occupants in a crash does not
mean that something is wrong with the
system. Rather, it means the restraints
control module determined the accident
conditions (crash severity, seatbelt usage)
were not appropriate to activate these
safety devices.
•

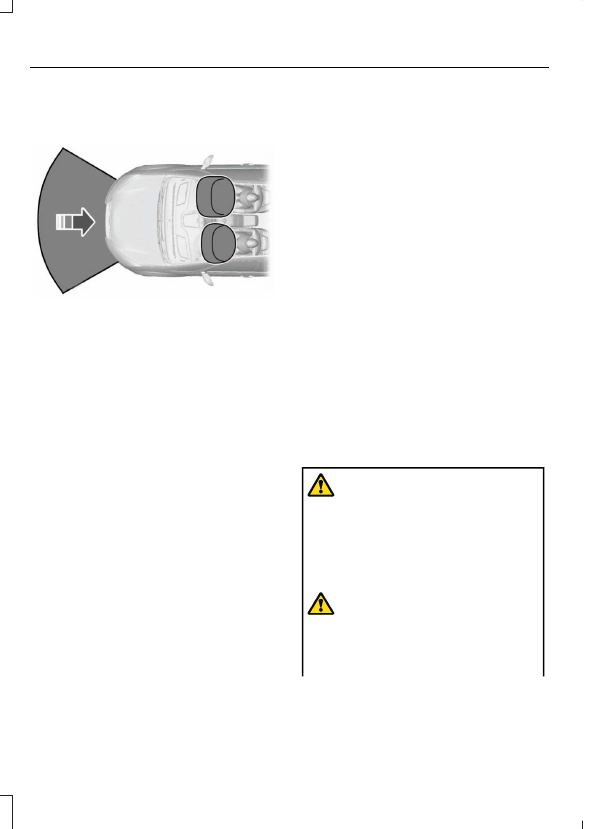

The design of the front airbags is to
activate only in frontal and near-frontal
crashes (not rollovers, side impacts or
rear impacts) unless the crash causes
sufficient frontal deceleration.

•

The design of the front and rear
seatbelt pretensioners is to activate in
frontal, near-frontal and side crashes,
and in rollovers.

Airbags

•

The design of the knee airbag(s) is to
deploy based on crash severity and
occupant conditions.

•

The design of the side airbags is to
inflate in certain side impact crashes
or rollover events. Side airbags may
activate in other types of crashes if the
vehicle experiences sufficient sideways
motion or deformation.

•

The design of the Safety Canopy is to
inflate in certain side impact crashes
or rollover events. The Safety Canopy
may activate in other types of crashes
if the vehicle experiences sufficient
sideways motion or deformation, or a
certain likelihood of rollover.

DISPOSING OF AIRBAGS

Contact your authorized dealer as soon as
possible. Airbags must be disposed of by
qualified personnel.

Airbags

WHAT IS 911 ASSIST

911 Assist is a SYNC system feature that
can call for help.

For more information, visit

www.owner.ford.com

HOW DOES 911 ASSIST WORK

If a crash deploys an airbag, excluding knee
airbags and rear inflatable seatbelts, or
activates the fuel pump shut-off, your
vehicle may be able to contact emergency
services by dialing 911 through a paired and
connected

Bluetooth®

enabled phone.

Not all crashes deploy an airbag or activate
the fuel pump shut-off. If a connected cell
phone sustains damage or loses its
connection to SYNC during a crash, SYNC
searches for and tries to connect to a
previously paired cell phone. SYNC then
attempts to call the emergency services.

Before making the call:
•

SYNC provides about 10 seconds to
cancel the call. If you fail to cancel the
call, SYNC attempts to dial 911.

•

SYNC says the following, or a similar
message: SYNC will attempt to call 911,
to cancel the call, press Cancel on your
screen or press and hold the phone
button on your steering wheel.

If you do not cancel the call and SYNC
makes a successful call a pre-recorded
message plays for the 911 operator. The
occupants in your vehicle are able to talk
with the operator. Be prepared to provide
your name, phone number and location
immediately because not all 911 systems
are capable of receiving this information
electronically.

During an emergency call the system
transmits vehicle data to the emergency
service.

EMERGENCY CALL
REQUIREMENTS

WARNING:

Do not wait for 911

Assist to make an emergency call if you
can do it yourself. Dial emergency
services immediately to avoid delayed
response time which could increase the
risk of serious injury or death after a
crash. If you do not hear 911 Assist within
five seconds of the crash, the system or
phone may be damaged or
non-functional.

WARNING:

Always place your

phone in a secure location in your vehicle
so it does not become a projectile or get
damaged in a crash. Failure to do so may
cause serious injury to someone or
damage the phone which could prevent
911 Assist from working properly.

WARNING:

Unless the 911 Assist

setting is set on before a crash, the
system will not dial for help which could
delay response time, potentially
increasing the risk of serious injury or
death after a crash.

•

SYNC is powered and working properly
at the time of the incident and
throughout feature activation and use.

•

The 911 Assist feature must be set on
before the incident.

•

You must pair and connect a

Bluetooth®

enabled and compatible

cell phone to SYNC.

•

A connected

Bluetooth®

enabled

phone must have the ability to make
and maintain an outgoing call at the
time of the incident.

911 Assist

•

A connected

Bluetooth®

enabled

phone must have adequate network
coverage, battery power and signal
strength.

•

The vehicle must have battery power
and be located in the U.S., Canada or
in a territory in which 911 is the
emergency number.

Note:

If any user sets 911 Assist to on or off,

that setting applies for all paired phones. If
911 Assist is off and the phone connected
to SYNC, an icon displays on the status bar.

Note:

Every phone operates differently.

While SYNC 911 Assist works with most
cellular phones, some may have trouble
using this feature.

EMERGENCY CALL
LIMITATIONS

The SYNC 911 Assist feature only operates
in the U.S., Canada or in a territory in which
911 is the emergency number. The following
are limitations of this feature:

•

Your cellular phone or 911 Assist
hardware sustains damage in a crash.

•

The vehicle's battery or the SYNC
system has no power.

•

The phone(s) thrown from your vehicle
are the ones paired and connected to
the system.

911 Assist

REMOTE CONTROL
LIMITATIONS

WARNING:

Changes or

modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.

This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.

Make sure a valid remote control is within
3 ft (1 m) from the front door handles and
rear of vehicle.

The system may not function if:
•

The remote control remains stationary
for about a minute.

•

The vehicle battery has no charge.

•

The remote control battery has no
charge.

•

There is interference causing issues
with the remote control frequencies.

•

The remote control is too close to
metal objects or electronic devices, for
example keys or a cell phone.

USING THE REMOTE CONTROL

WARNING:

Do not leave a key or

remote control unattended in the vehicle.
Children or pets could operate the power
windows, moonroof or other controls.
Failure to follow this instruction could
result in personal injury or death.

Use your remote control to access various
vehicle systems.

Note:

The buttons on your remote may vary

depending on the vehicle region or options.

Unlock

E138629

Press the button to unlock all
doors. See

Unlocking and

Locking the Doors Using the

Remote Control

(page 79).

Lock

E138623

Press the button to lock all
doors. See

Unlocking and

Locking the Doors Using the

Remote Control

(page 79).

Remote Start

(If Equipped)

E138625

Press the button within three
seconds to remote start. See

Remotely Starting and

Stopping the Vehicle

(page 135).

Panic Alarm

(If Equipped)

E138624

Press the button to sound the
panic alarm. See

Sounding the

Panic Alarm

(page 72).

Keys and Remote Controls

OPENING AND CLOSING THE
FLIP KEY

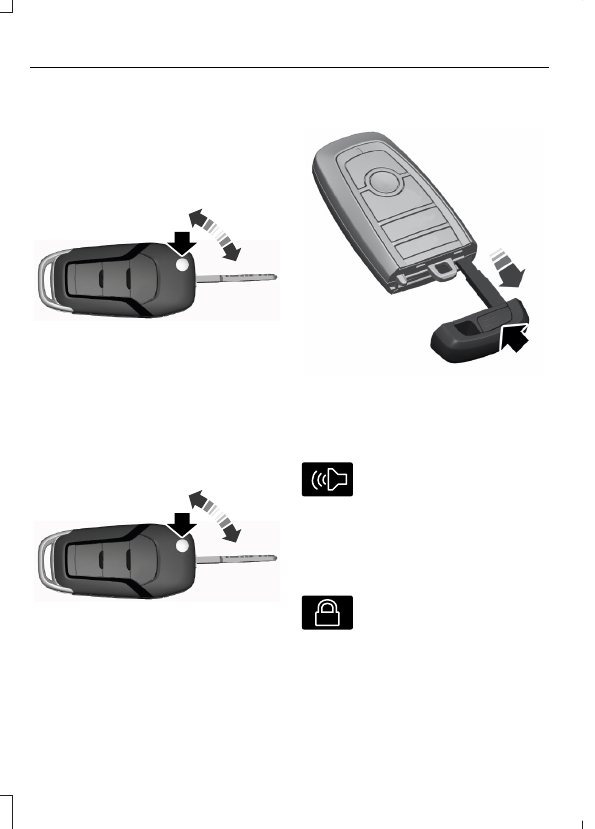

Opening Your Flip Key

Press the round button on the remote
control to extend the flip key.

E191532

Note:

Inspect the key blade for debris.

Periodically clean with a brush.

Closing Your Flip Key

Press and hold the round button on the
remote control to fold the key blade when
not in use.

E191532

REMOVING THE KEY BLADE

E322866

Push the release button on your passive
key and pull the key blade out.

SOUNDING THE PANIC ALARM

E138624

Press the button to sound the
panic alarm. Press the button
again or switch the ignition on to

turn it off.

Note:

The panic alarm only operates when

the ignition is off.

LOCATING YOUR VEHICLE

E138623

Press the lock button twice
within three seconds. The turn
signal lamps flash.

Note:

We recommend you use this method

to locate your vehicle.

Keys and Remote Controls

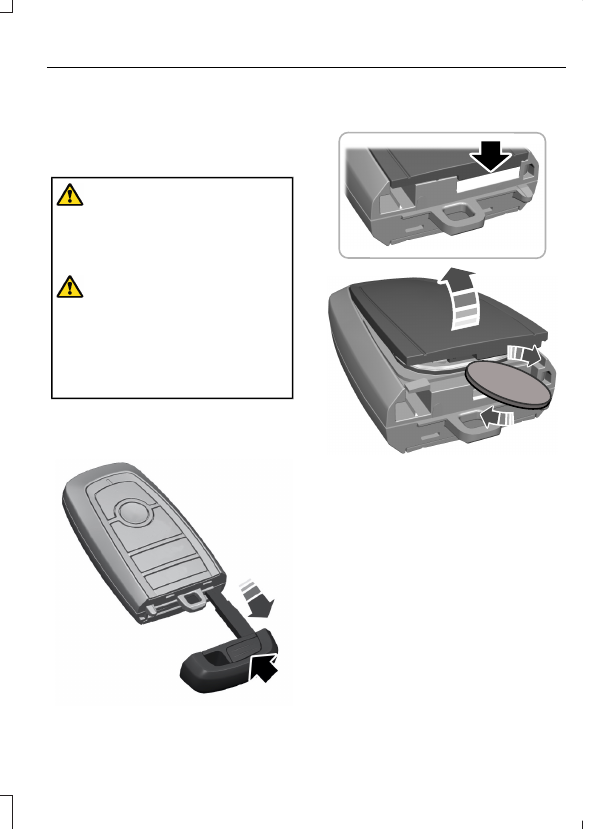

CHANGING THE REMOTE
CONTROL BATTERY -
VEHICLES WITH: PUSH
BUTTON START

WARNING:

Keep batteries away

from children to prevent ingestion.
Failure to follow this instruction could
result in personal injury or death. If
ingested, immediately seek medical
attention.

WARNING:

If the battery

compartment does not securely close,
stop using the remote control and
replace it as soon as possible. In the
meantime, keep the remote control away
from children. Failure to follow this
instruction could result in personal injury
or death.

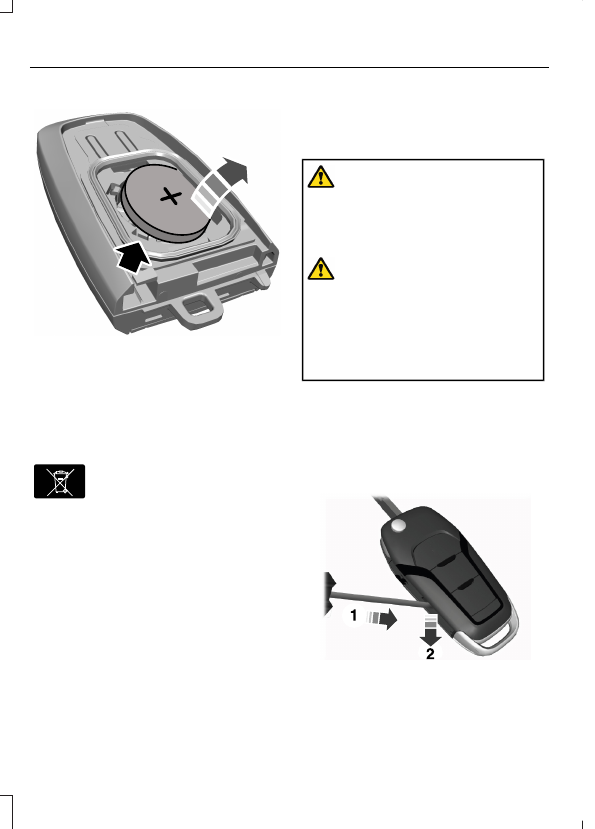

The remote control uses one coin-type
3-volt lithium battery CR2450 or
equivalent.

E322866

Push the release button and pull the
key blade out.

E303824

2. Twist a thin coin under the tab hidden

behind the key blade head to remove
the battery cover.

Keys and Remote Controls

E218402

3. Insert a screwdriver, and carefully

remove the battery.

4. Install a new battery with the

facing

upward.

5. Reinstall the battery housing cover

onto the transmitter and install the key
blade.

E107998

Dispose of old batteries in an
environmentally friendly way.
Seek advice from your local

authority about recycling old batteries.

Note:

Do not wipe off any grease on the

battery terminals or on the back surface of
the circuit board.

Note:

Replacing the battery does not erase

the programmed key from your vehicle. The
remote control should operate normally.

CHANGING THE REMOTE
CONTROL BATTERY -
VEHICLES WITH: FLIP KEY

WARNING:

Keep batteries away

from children to prevent ingestion.
Failure to follow this instruction could
result in personal injury or death. If
ingested, immediately seek medical
attention.

WARNING:

If the battery

Battery Replacement Procedure

The remote control uses one coin-type
3-volt lithium battery CR2032 or
equivalent.

Press the button to release the key blade
before beginning the procedure.

E191533

Insert a screwdriver, in the position
shown and gently push the clip.

2. Press the clip down to release the

battery cover.

Keys and Remote Controls

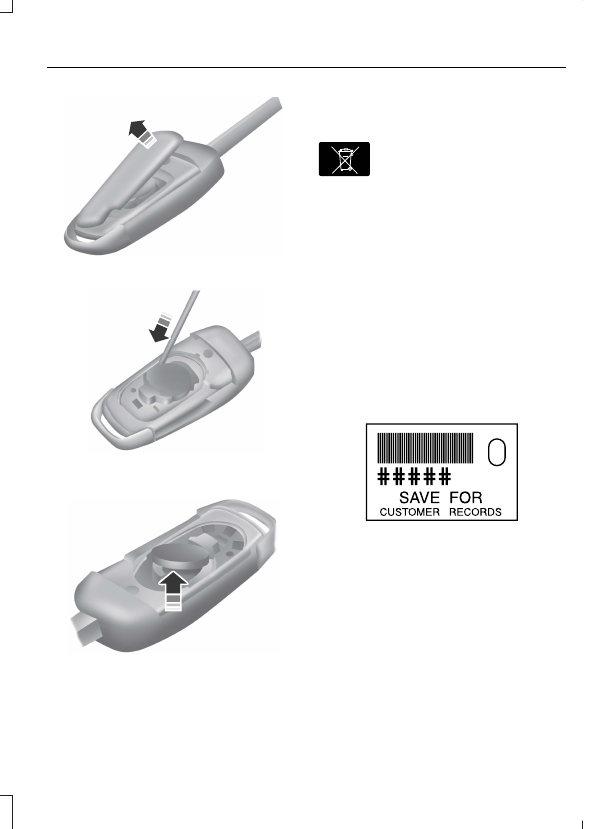

E151799

3. Carefully remove the cover.

E151800

4. Insert a screwdriver as shown to

release the battery.

E151801

Note:

Do not touch the battery contacts or

the printed circuit board with the
screwdriver.

5. Remove the battery.

6. Install a new battery with the

facing

up.

Replace the battery cover.

E107998

Dispose of old batteries in an
environmentally friendly way.
Seek advice from your local

authority about recycling old batteries.

Note:

Do not wipe off any grease on the

battery terminals or on the back surface of
the circuit board.

Note:

Replacing the battery does not erase

the programmed key from your vehicle. The
remote control should operate normally.

REPLACING A LOST KEY OR
REMOTE CONTROL

You can purchase replacement keys or
remote controls from an authorized dealer.
Authorized dealers can program remote
controls for your vehicle.

E151795

Note:

Your vehicle keys came with a

security label that provides important key
cut information. Keep the label in a safe
place for future reference.

Keys and Remote Controls

PROGRAMMING THE REMOTE
CONTROL - VEHICLES WITH:
PUSH BUTTON START

You must have two previously
programmed remote controls inside your
vehicle and the new, unprogrammed
remote controls readily accessible. Contact
an authorized dealer to have the spare
remote control programmed if two
previously programmed remote controls
are not available. Make sure that your
vehicle is off before beginning this
procedure.

Make sure that you close all the doors
before beginning and that they remain
closed throughout the procedure. Perform
all steps within 30 seconds of starting the
sequence. Stop and wait for at least one
minute before starting again if you perform
any steps out of sequence.

Note:

You can program a maximum of four

remote controls to your vehicle.

Note:

If your programmed remote controls

get lost or stolen and you do not have an
extra coded remote, you need to have your
vehicle towed to an authorized dealer. Store
an extra programmed remote away from
your vehicle in a safe place to help prevent
any inconvenience. Contact an authorized
dealer to purchase additional spare or
replacement remote controls.

Read and understand the entire procedure
before you begin.

Programming Backup Location

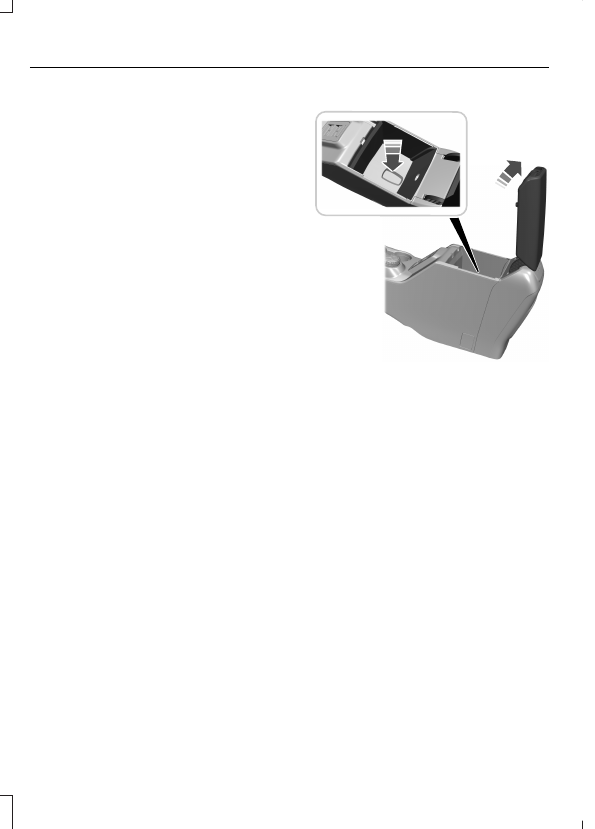

E327286

Place the first programmed remote in
the backup slot inside the center
console. With your foot off the brake
pedal, press and release the push
button ignition switch.

2. Wait five seconds and then press and

release the push button ignition switch
again.

3. Remove the remote control.

4. Within 10 seconds, place a second

programmed remote control in the
backup slot. Press and release the
push button ignition switch.

5. Wait five seconds and then press and

release the push button ignition switch
again. Keep the ignition on for at least
3 seconds, but no more than 10
seconds.

6. Remove the remote control.

Place the unprogrammed remote
control in the backup slot and press
and release the push button ignition
switch.

Keys and Remote Controls

Programming is now complete. With your
foot on the brake pedal, press the push
button ignition switch to verify the remote
control functions operate and your vehicle
starts with the new remote control.

If programming was not successful, wait
10 seconds and repeat Steps 1 through 7.
If you are still unsuccessful, take your
vehicle to an authorized dealer.

PROGRAMMING THE REMOTE
CONTROL - VEHICLES WITH:
FLIP KEY

General Information

You can program your own remote control
to your vehicle. This procedure programs
both the engine immobilizer keycode and
the remote entry portion of the remote
control to your vehicle.

Only use remote controls with an
integrated mechanical key.

You must have two previously
programmed coded remote controls and
the new un–programmed remote readily
accessible. Contact an authorized dealer
to have the spare remote control
programmed if the two previously
programmed coded remote controls are
not available.

Read and understand the entire procedure
before you begin.

Steps for Programming Your Spare
Remote Control

Insert the first previously programmed
coded key into the ignition.

2. Switch the ignition from off to on. Keep

the ignition on for at least three
seconds, but no more than 10 seconds.

3. Switch the ignition off and remove the

first coded key from the ignition.

4. After three seconds but within 10

seconds of switching the ignition off,
insert the second previously coded key
into the ignition.

5. Switch the ignition from off to on. Keep

the ignition on for at least three
seconds, but no more than 10 seconds.

6. Switch the ignition off and remove the

second previously programmed coded
key from the ignition.

After three seconds but within 10
seconds of switching the ignition off
and removing the previously
programmed coded key, insert the new
un–programmed key into the ignition.

8. Switch the ignition from off to on. Keep

the ignition on for at least six seconds
until you hear the door locks cycle.

9. Remove the newly programmed coded

key from the ignition.

The key starts the engine if programming
is successful. You can operate the keyless
remote entry system with the new remote
control with integrated key.

If programming was not successful, wait
20 seconds and repeat Steps 1 through 8.
If you are still unsuccessful, take your
vehicle to an authorized dealer.

Note:

You can program a maximum of six

coded remote controls to your vehicle.

KEYS AND REMOTE
CONTROLS AUDIBLE
WARNINGS - VEHICLES WITH:
PUSH BUTTON START

Key In Reminder

Sounds when the following conditions are
met:

•

Vehicle is out of park (P).

•

You switch the vehicle off.

Keys and Remote Controls

•

You open the driver's door.

•

You have left the key inside the vehicle.

KEYS AND REMOTE
CONTROLS AUDIBLE
WARNINGS - VEHICLES WITH:
FLIP KEY

Sounds when you open the driver's door,
turn off the vehicle and you have left the
key in the ignition.

KEYS AND REMOTE CONTROLS – TROUBLESHOOTING

KEYS AND REMOTE CONTROLS – INFORMATION MESSAGES

Action

Message

Replace remote control battery.

Key Battery Low Replace
Soon

Keys and Remote Controls

OPERATING THE DOORS
FROM OUTSIDE YOUR
VEHICLE

UNLOCKING AND LOCKING THE
DOORS USING THE REMOTE
CONTROL

You can only use the remote control when
your vehicle is stationary.

Unlocking the Doors

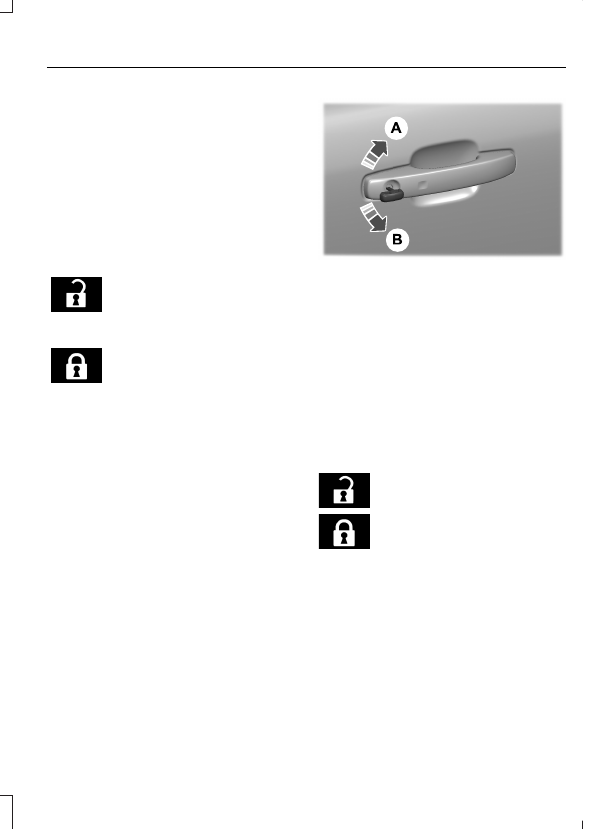

E267112

Press the button to unlock all
doors.

Locking the Doors

E267111

Press the button to lock all
doors. One short flash of the
turn signal lamps confirms that

your vehicle has locked.

You can also use the remote control to lock
or unlock the tailgate if your vehicle comes
with a power tailgate lock. See

Locking

and Unlocking the Tailgate

(page 85).

Note:

For more information on operating

the doors from outside your vehicle See

Keyless Entry

(page 83).

UNLOCKING AND LOCKING THE
DOORS USING THE KEY BLADE

If there is a power door lock fault you can
use the key blade to lock and unlock the
doors.

E361648

Lock.

Unlock.

OPERATING THE DOORS
FROM INSIDE YOUR VEHICLE

UNLOCKING AND LOCKING THE
DOORS USING THE CENTRAL
LOCKING

The power door lock control is on the front
doors.

E267112

Press the button to unlock all
doors.

E267111

Press the button to lock all
doors.

Note:

The central locking only operates if

the front doors are fully closed.

OPENING THE DOORS FROM
INSIDE YOUR VEHICLE

Pull the interior door handle to unlock and
open a door.

Doors and Locks

AUTOUNLOCK

WHAT IS AUTOUNLOCK

Autounlock is a feature that centrally
unlocks the vehicle doors when your
vehicle comes to a stop and you open the
driver door.

AUTOUNLOCK REQUIREMENTS

Autounlock unlocks all the doors after:

The vehicle speed exceeds 12 mph
(20 km/h).

2. Your vehicle comes to a stop.

3. You open the driver door.

Note:

Autounlock operates for only 10

minutes after the ignition is switched off.

SWITCHING AUTOUNLOCK ON
AND OFF

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Locks

4. Switch

Autounlock

on or off.

AUTOLOCK

WHAT IS AUTOLOCK

Autolock is a locking feature that centrally
locks your vehicle doors when driving.

AUTOLOCK REQUIREMENTS

Autolock locks all the doors after:

All doors are closed and the ignition is
on.

2. Your vehicle speed exceeds 12 mph

(20 km/h).

Autolock repeats if:

Your vehicle is stopped.

2. Any door is opened and closed again.

3. Your vehicle speed exceeds 12 mph

(20 km/h).

MISLOCK

WHAT IS MISLOCK

Mislock is a locking feature that warns you
if your vehicle has not locked.

MISLOCK LIMITATIONS

The turn signals will not flash when you
press the lock button once and the hood
or any door is open.

If you switch mislock off, the horn does not
sound if you press the lock button on the
remote control when a door is open.

SWITCHING MISLOCK ON AND
OFF

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Locks

4. Switch

Mislock

on or off.

Doors and Locks

AUTORELOCK

HOW DOES AUTORELOCK WORK

The doors automatically relock if you do
not open a door within 45 seconds of
unlocking the doors with the remote
control. The door locks and the alarm
return to their previous state.

DOOR LOCK INDICATORS

An LED on the power door lock control
illuminates when all doors are locked. It
remains on for up to five minutes after you
switch the ignition off.

DOORS AND LOCKS AUDIBLE
WARNINGS

Door Ajar Audible Warning

Sounds when any front door is not fully
closed and your vehicle is moving.

DOORS AND LOCKS –
TROUBLESHOOTING

DOORS AND LOCKS – WARNING

LAMPS

Door Ajar Warning Lamp

E249859

Illuminates when you switch the
ignition on and remains on if any
door or the hood is open.

DOORS AND LOCKS – INFORMATION MESSAGES

Details

Message

Displays if a door is open. Fully close the door.

Driver Door Ajar

Passenger Door Ajar

Rear Left Door Ajar

Rear Right Door Ajar

Displays if a hood is open. Fully close the hood.

Hood Ajar

Doors and Locks

WHAT IS KEYLESS ENTRY

The system allows you to lock and unlock
your vehicle without taking the passive key
out of your pocket or purse.

KEYLESS ENTRY LIMITATIONS

Make sure your remote control is within 3 ft
(1 m) from the front door handles and the
tailgate.

The system could not function if:
•

The remote control remains stationary
for about a minute.

•

The vehicle battery has no charge.

•

The remote control battery has no
charge.

•

There is interference causing issues
with the remote control frequencies.

•

The remote control is too close to
metal objects or electronic devices, for
example keys or a cell phone.

KEYLESS ENTRY SETTINGS

Switching Keyless Entry On and
Off

Press

Settings

on the touchscreen.

2. Press

Vehicle

3. Press

Locks

4. Switch

KeyFree

on or off.

USING KEYLESS ENTRY

Unlocking the Doors

E333747

With your passive key within 3 ft (1 m) of
your vehicle, touch the unlock sensor on
the back of the door handle for a brief
period and then pull on the door handle to
unlock, being careful not to touch the lock
sensor at the same time or pull on the door
handle too quickly. The intelligent access
system requires a brief delay to
authenticate your passive key.

Locking the Doors

E333746

With your passive key within 3 ft (1 m) of
your vehicle, touch the outer door handle
lock sensor for approximately one second
to lock, being careful not to touch the
unlock sensor on the back of the door
handle at the same time. After locking, you
can immediately pull on the door handle
to confirm locking occurred without
inadvertently unlocking.

KEYLESS ENTRY –
TROUBLESHOOTING

KEYLESS ENTRY – FREQUENTLY
ASKED QUESTIONS

Why does the keyless entry system not
function?

If the system does not function it may
be limited. See

Keyless Entry

Limitations

(page 83). If the system

still does not function use the remote
control or the key blade to lock and
unlock your vehicle.

Keyless Entry

(If Equipped)

TAILGATE PRECAUTIONS

WARNING:

It is extremely

dangerous to ride in a cargo area, inside
or outside of a vehicle. In a crash, people
riding in these areas are more likely to be
seriously injured or killed. Do not allow
people to ride in any area of your vehicle
that is not equipped with seats and
seatbelts. Make sure everyone in your
vehicle is in a seat and properly using a
seatbelt. Failure to follow this warning
could result in serious personal injury or
death.

OPENING THE TAILGATE

OPENING THE TAILGATE FROM
OUTSIDE YOUR VEHICLE

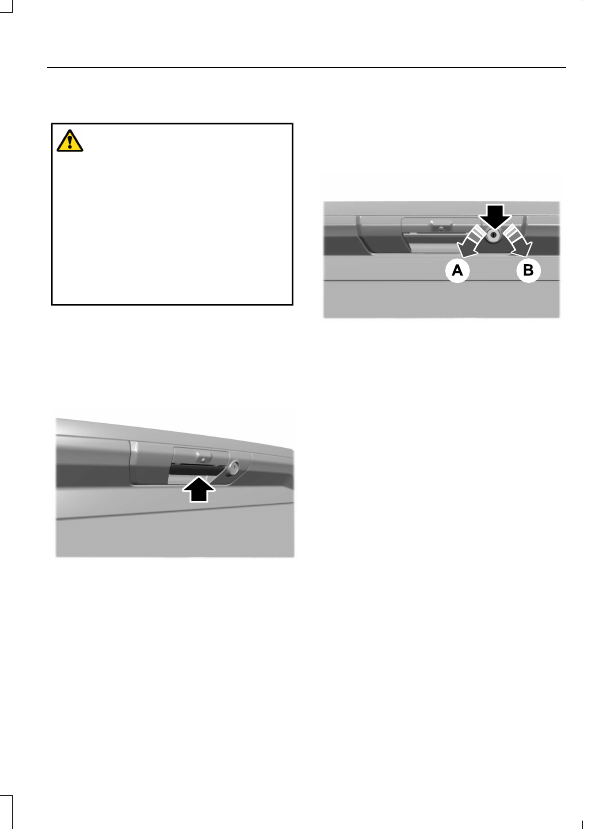

E333071

Pull up on the handle to release the
tailgate.

Note:

You may need to unlock the tailgate

first.

LOCKING AND UNLOCKING
THE TAILGATE

Manual

E332901

Lock.

Unlock.

Insert the ignition key into the tailgate
lock.

2. Turn it to the left to lock the tailgate.

3. Turn it to the right to unlock the

tailgate.

Power

You can lock and unlock the tailgate with
the remote control or power door unlock
control.

TAILGATE WORK SURFACE

The tailgate work surface is a durable and
functional surface on the inside portion of
your tailgate you can use to perform
various tasks.

To use the tailgate work surface, fold down
the tailgate.

Tailgate

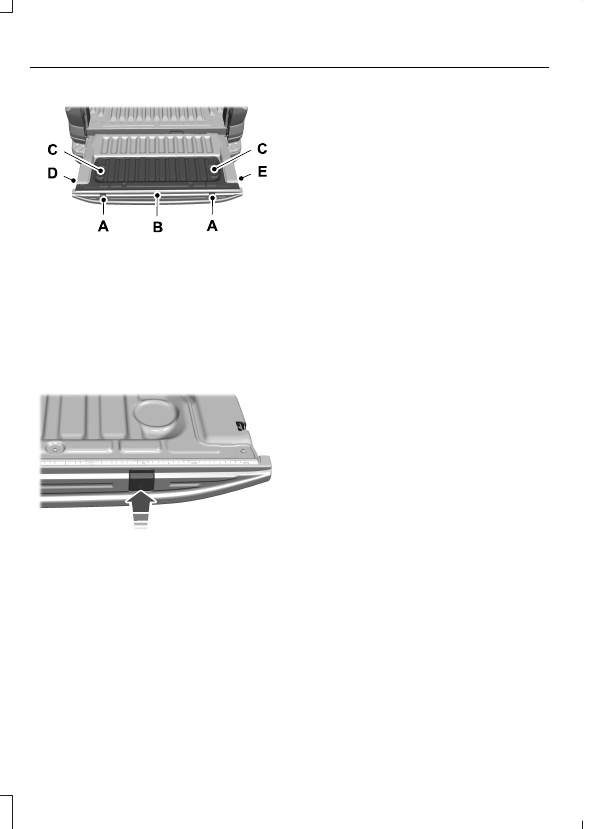

E396520

Clamp pocket.

Ruler.

Cup holder.

Bottle opener.

Bag holder.

E399566

The tailgate work surface contains clamp
pockets that allow you to secure work
material.

Note:

Damage could occur to the tailgate

if the vertical clamp arm is overloaded in
any direction.

Note:

Do not put more than 10 kg in the bag

holder.

Note:

When you have finished using the

tailgate work surface, make sure you remove
all of your belongings from the tailgate, then
close the tailgate.

Note:

Ruler is subject to thermal variations

with measurement errors of ±0.2 in (5 mm).

Tailgate

PASSIVE ANTI-THEFT
SYSTEM

WHAT IS THE PASSIVE ANTI-
THEFT SYSTEM

The passive anti-theft system prevents
someone from starting your vehicle with
an incorrectly coded key.

Note:

Do not leave a duplicate coded key

in your vehicle. Always take the keys and
lock all the doors when leaving your vehicle.

HOW DOES THE PASSIVE ANTI-
THEFT SYSTEM WORK

The passive anti-theft system arms when
you switch the ignition off.

It disarms when you switch the ignition on
with a correctly coded key.

Note:

The system is not compatible with

non-Ford aftermarket remote start systems.

Note:

Do not leave a duplicate coded key

in your vehicle. Always take the keys and
lock all doors when leaving your vehicle.

ANTI-THEFT ALARM SYSTEM

WHAT IS THE ANTI-THEFT ALARM
SYSTEM

The anti-theft alarm system warns you of
an unauthorized entry to your vehicle.

HOW DOES THE ANTI-THEFT
ALARM SYSTEM WORK

When armed, the anti-theft alarm is
triggered in any of the following ways:
•

If someone opens a door or the hood
without a correctly coded key or
remote control.

•

If you turn the power on without a
correctly coded key.

•

If the interior sensors detect movement
inside your vehicle.

•

If the inclination sensors detect an
attempt to raise your vehicle.

•

If someone disconnects the vehicle
battery or the battery backup alarm.

Any further attempts to carry out one of
the above, sounds the alarm again.

If the anti-theft alarm is triggered, the
alarm horn sounds for 30 seconds and the
turn signals flash for five minutes.

WHAT IS THE PERIMETER ALARM

The perimeter alarm is designed to detect
unauthorized access to your vehicle.

ARMING THE ANTI-THEFT ALARM
SYSTEM

The alarm is ready to arm when you switch
your vehicle off.

Lock your vehicle with your remote control
to arm the alarm.

Security

DISARMING THE ANTI-THEFT
ALARM SYSTEM

Disarm the alarm by performing any of the
following actions:

•

Unlock the doors or luggage
compartment with the remote control.

•

Switch your vehicle on or start your
vehicle.

SECURITY – TROUBLESHOOTING

SECURITY – INFORMATION MESSAGES

Details

Message

The system has not detected a correctly coded key.

No Key Detected

The system has malfunctioned. Have your vehicle checked
as soon as possible.

Starting System Fault

Displays when the alarm has been triggered due to unauthor-
ized entry.

Vehicle Alarm To Stop
Alarm, Start Vehicle.

Alarm

Security

Ford Ranger (2024 year). Manual in english - page 2
