WARNING:

Do not connect

wireless plug-in devices to the data link
connector. Unauthorized third parties
could gain access to vehicle data and
impair the performance of safety related
systems. Only allow repair facilities that
follow our service and repair instructions
to connect their equipment to the data
link connector.

We respect your privacy and are
committed to protecting it. The
information contained in this publication
was correct at the time of release, but as
technology rapidly changes, we
recommend that you visit the local Ford
website for the latest information.

Your vehicle has electronic control units
that have data recording functionality and
the ability to permanently or temporarily
store data. This data could include
information on the condition and status of
your vehicle, vehicle maintenance
requirements, events and malfunctions.
The types of data that can be recorded are
described in this section. Some of the data
recorded is stored in event logs or error
logs.

Note:

Error logs are reset following a service

or repair.

Note:

We may provide information in

response to requests from law enforcement,
other government authorities and third
parties acting with lawful authority or
through a legal process. Such information
could be used by them in legal proceedings.

Data recorded includes, for example:
•

Operating states of system
components, for example fuel level,
tire pressure and battery charge level.

•

Vehicle and component status, for
example wheel speed, deceleration,
lateral acceleration and seatbelt
status.

•

Events or errors in essential systems,
for example headlamps and brakes.

•

System responses to driving situations,
for example airbag deployment and
stability control.

•

Environmental conditions, for example
temperature.

Some of this data, when used in
combination with other information, for
example an accident report, damage to a
vehicle or eyewitness statements, could
be associated with a specific person.

Services That We Provide

If you use our services, we collect and use
data, for example account information,
vehicle location and driving characteristics,
that could identify you. We transmit this
data through a dedicated, protected
connection. We only collect and use data
to enable your use of our services to which
you have subscribed, with your consent or
where permitted by law. For additional
information, see the terms and conditions
of the services to which you have
subscribed.

For additional information about our
privacy policy, refer to the local Ford
website.

Services That Third Parties
Provide

We recommend that you review the terms
and conditions and data privacy
information for any services equipped with
your vehicle or to which you subscribe. We
take no responsibility for services that third
parties provide.

Where equipped, SiriusXM with 360L could
use the modem. To disable, turn off the
SiriusXM with 360L or Vehicle Connectivity
setting. See

Enabling and Disabling the

Modem

(page 493).

Data Privacy

SERVICE DATA

Service data recorders in your vehicle are
capable of collecting and storing
diagnostic information about your vehicle.
This potentially includes information about
the performance or status of various
systems and modules in the vehicle, such
as engine, throttle, steering or brake
systems. In order to properly diagnose and
service your vehicle, Ford Motor Company
(Ford of Canada in Canada), and service
and repair facilities may access or share
among them vehicle diagnostic
information received through a direct
connection to your vehicle when
diagnosing or servicing your vehicle.
Additionally, Ford Motor Company (Ford
of Canada, in Canada) may, where
permitted by law, use vehicle diagnostic
information for vehicle improvement or
with other information we may have about
you, for example, your contact information,
to offer you products or services that may
interest you. Data may be provided to our
service providers such as part suppliers
that may help diagnose malfunctions, and
who are similarly obligated to protect data.
We retain this data only as long as
necessary to perform these functions or to
comply with law. We may provide
information where required in response to
official requests to law enforcement or
other government authorities or third
parties acting with lawful authority or court
order, and such information may be used
in legal proceedings. For U.S. only (if
equipped), if you choose to use connected
apps and services, you consent that certain
diagnostic information may also be
accessed electronically by Ford Motor
Company and Ford authorized service
facilities, and that the diagnostic
information may be used to provide
services to you, personalizing your
experience, troubleshoot, and to improve
products and services and offer you
products and services that may interest

you, where permitted by law. For Canada
only, for more information, please review
the Ford of Canada privacy policy at
www.ford.ca, including our U.S. data
storage and use of service providers in
other jurisdictions who may be subject to
legal requirements in Canada, the United
States and other countries applicable to
them, for example, lawful requirements to
disclose personal information to
governmental authorities in those
countries.

EVENT DATA

This vehicle is equipped with an event data
recorder. The main purpose of an event
data recorder is to record, in certain crash
or near crash-like situations, such as an
airbag deployment or hitting a road
obstacle; this data will assist in
understanding how a vehicle’s systems
performed. The event data recorder is
designed to record data related to vehicle
dynamics and safety systems for a short
period of time, typically 30 seconds or less.

The event data recorder in this vehicle is
designed to record such data as:
•

How various systems in your vehicle
were operating.

•

Whether or not the driver and
passenger seatbelts were
buckled/fastened.

•

How far (if at all) the driver was
depressing the accelerator and/or the
brake pedal.

•

How fast the vehicle was traveling.

•

Where the driver was positioning the
steering wheel.

This data can help provide a better
understanding of the circumstances in
which crashes and injuries occur.

Data Privacy

Note:

Event data recorder data is recorded

by your vehicle only if a non-trivial crash
situation occurs; no data is recorded by the
event data recorder under normal driving
conditions and no personal data or
information (for example name, gender,
age, and crash location) is recorded.
However, parties, such as law enforcement,
could combine the event data recorder data
with the type of personally identifying data
routinely acquired during a crash
investigation.

To read data recorded by an event data
recorder, special equipment is required,
and access to the vehicle or the event data
recorder is needed. In addition to the
vehicle manufacturer, other parties, such
as law enforcement, that have such special
equipment, can read the information if they
have access to the vehicle or the event
data recorder.

SETTINGS DATA

Your vehicle has electronic control units
that have the ability to store data based
on your personalized settings. The data is
stored locally in the vehicle or on devices
that you connect to it, for example, a USB
drive or digital music player. You can delete
some of this data and also choose whether
to share it through the services to which
you subscribe.

Comfort and Convenience Data

Data recorded includes, for example:
•

Seat and steering wheel position.

•

Climate control settings.

•

Radio presets.

Entertainment Data

Data recorded includes, for example:
•

Music, videos or album art.

•

Contacts and corresponding address
book entries.

•

Navigation destinations.

CONNECTED VEHICLE DATA

The modem has a SIM. The
modem was enabled when your
vehicle was built and periodically

sends messages to stay connected to the
cell phone network, receive automatic
software updates and send vehicle-related
information to us, for example diagnostic
information. These messages could
include information that identifies your
vehicle, the SIM and the electronic serial
number of the modem. Cell phone network
service providers could have access to
additional information, for example cell
phone network tower identification. For
additional information about our privacy
policy, visit

www.FordConnected.com

refer to your local Ford website.

Note:

The modem continues to send this

information unless you disable the modem
or stop the modem from sharing vehicle
data by changing the modem settings. See

Connected Vehicle

(page 493).

Note:

The service can be unavailable or

interrupted for a number of reasons, for
example environmental or topographical
conditions and data plan coverage.

Note:

To find out if your vehicle has a

modem, visit

www.FordConnected.com

Data Privacy

MOBILE DEVICE DATA

If you connect a mobile device to your
vehicle, you can display data from your
device on the touchscreen for example,
music and album art. You can share your
vehicle data with mobile apps on your
device through the system. See

App

Requirements

(page 519).

The mobile apps function operates by your
connected device sending data to us in the
United States. The data is encrypted and
includes, for example, the vehicle
identification number of your vehicle, the
SYNC module serial number, odometer,
enabled apps, usage statistics and
debugging information. We retain it only
as long as necessary to provide the service,
to troubleshoot, for continuous
improvement and to offer you products
and services that may be of interest to you
according to your preferences and where
allowed by law.

If you connect a cell phone to the system,
the system creates a profile that links to
that cell phone. The cell phone profile
enables more mobile features and efficient
operation. The profile contains, for
example data from your phonebook, read
and unread text messages and call history,
including history of calls when your cell
phone was not connected to the system.

If you connect a media device, the system
creates and retains a media device index
of supported media content. The system
also records a short diagnostic log of
approximately 10 minutes of all recent
system activity.

The cell phone profile, media device index
and diagnostic log remain in your vehicle
unless you delete them and are generally
accessible only in your vehicle when you
connect your cell phone or media device.
If you no longer plan to use the system or
your vehicle, we recommend you use the
system reset function to erase the stored
information. See

Performing a System

Reset

(page 526).

System data cannot be accessed without
special equipment and access to your
vehicle's module.

For additional information about our
privacy policy, refer to the local Ford
website.

Note:

To find out if your vehicle has

connectivity technology, visit

www.FordConnected.com

EMERGENCY CALL SYSTEM
DATA

When the emergency call system is active,
it may disclose to emergency services that
your vehicle has been in a crash involving
the deployment of an airbag or activation
of the fuel pump shut-off. Certain versions
or updates to the emergency call system
may also be capable of electronically or
verbally disclosing to emergency services
operators your vehicle location or other
details about your vehicle or crash to assist
emergency services operators to provide
the most appropriate emergency services.
If you do not want to disclose this
information, do not activate the emergency
call system.

Note:

You cannot deactivate emergency

call systems that are required by law.

Data Privacy

UNIQUE FEATURES

Powertrain

•

3.0L Twin Turbo EcoBoost engine.

•

10R60 10-speed automatic
transmission with Magnesium paddle
shifters and water to air transmission
cooler.

•

Electronic Transfer Case with Front
Locking Differential.

•

Rear differential capable of locking in
4A, 4H and 4L.

•

Electronically controlled Twin Pipe
Active Exhaust with switchable modes
and black 3-inch tips.

•

Anti Lag Technology available in Baja
Mode.

Chassis

•

Cast aluminum lower control arms.

•

Steel upper control arms.

•

Fox Factory 2.5 Live Valve Internal
Bypass front shocks.

•

Fox Factory 2.5 Live Valve Internal
Bypass Remote Reservoir rear shocks.

•

Unique underbody shields.

•

Heavy duty reinforced frame.

•

Unique Watts Link Rear suspension.

•

Ride height sensors at each corner.

•

33 inch All Terrain Tires on 17-inch
wheels.

Exterior

•

Modified rear bumper with integrated
rear tow hooks.

•

Underbody shields plus front tow
hooks.

•

Hood with functional air extractors.

•

Front and rear LED marker lamps.

•

17 x 8.5 aluminum wheels.

•

Optional 17 x 8.5 bead lock compatible
wheels.

Interior

•

Unique terrain-mode and trail control
functionality plus six auxiliary switches.

•

Unique front and rear seats with code
orange accents.

•

SYNC 4.0 with off-road screen and
360-degree camera.

•

Unique steering wheel with switches
to control and customize MyMode,
exhaust and damping.

Unique Features - Raptor

CHILD SAFETY PRECAUTIONS

WARNING:

Always make sure your

child is secured properly in a device that
is appropriate for their height, age and
weight. Child safety restraints must be
bought separately from your vehicle.
Failure to follow these instructions and
guidelines may result in an increased risk
of serious injury or death to your child.

WARNING:

All children are shaped

differently. The National Highway Traffic
Safety Administration and other safety
organizations, base their
recommendations for child restraints on
probable child height, age and weight
thresholds, or on the minimum
requirements of the law. We recommend
that you check with a NHTSA Certified
Child Passenger Safety Technician
(CPST) to make sure that you properly
install the child restraint in your vehicle
and that you consult your pediatrician to
make sure you have a child restraint
appropriate for your child. To locate a
child restraint fitting station and CPST,
contact NHTSA toll free at
1-888-327-4236 or go to
www.nhtsa.dot.gov. In Canada, contact
Transport Canada toll free at
1-800-333-0371 or go to www.tc.gc.ca
to find a Child Car Seat Clinic in your
area. Failure to properly restrain children
in child restraints made especially for
their height, age and weight, may result
in an increased risk of serious injury or
death to your child.

WARNING:

On hot days, the

temperature inside the vehicle can rise
very quickly. Exposure of people or
animals to these high temperatures for
even a short time can cause death or
serious heat related injuries, including
brain damage. Small children are
particularly at risk.

WARNING:

Do not place a

rearward facing child restraint in front of
an active airbag. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

Properly secure

children 12 years old and under in a rear
seating position whenever possible. If
you are unable to properly secure all
children in a rear seating position,
properly secure the largest child on the
front seat. If you must use a forward
facing child restraint on the front seat,
move the seat as far back as possible.
Failure to follow these instructions could
result in personal injury or death.

WARNING:

Always carefully follow

the instructions and warnings provided
by the manufacturer of any child
restraint to determine if the restraint
device is appropriate for your child's size,
height, weight, or age. Follow the child
restraint manufacturer's instructions and
warnings provided for installation and
use in conjunction with the instructions
and warnings provided by your vehicle
manufacturer. A safety seat that is
improperly installed or utilized, is
inappropriate for your child's height, age,
or weight or does not properly fit the
child may increase the risk of serious
injury or death.

Child Safety

WARNING:

Do not allow a

passenger to hold a child on their lap
when your vehicle is moving. Failure to
follow this instruction could result in
personal injury or death in the event of a
sudden stop or crash.

WARNING:

Do not use pillows,

books or towels to boost your child's
height. Failure to follow this instruction
could result in personal injury or death.

WARNING:

Properly secure child

restraints or booster seats when they are
not in use. They could become projectiles
in a sudden stop or crash. Failure to
follow this instruction could result in
personal injury or death.

WARNING:

Do not put the shoulder

section of the seatbelt or allow the child
to put the shoulder section of the
seatbelt under their arm or behind their
back. Failure to follow this instruction
could reduce the effectiveness of the
seatbelt and increase the risk of injury or
death in a crash.

WARNING:

Do not leave children

or pets unattended in your vehicle.
Failure to follow this instruction could
result in personal injury or death.

When installing a child restraint with
seatbelts:
•

Place the vehicle seat in the upright
position before you install the child
restraint.

•

Use the correct seatbelt buckle for that
seating position.

•

Insert the belt tongue into the buckle.
Make sure the tongue is securely
fastened in the buckle.

•

Keep the buckle release button
pointing up and away from the child
restraint, with the tongue between the
child restraint and the release button,
to prevent accidental unbuckling.

•

Put the seatbelt in the automatic
locking mode.

CHILD RESTRAINT ANCHOR
POINTS

WHAT ARE THE CHILD RESTRAINT
ANCHOR POINTS

Anchor points allow you to quickly and
safely install a child restraint.

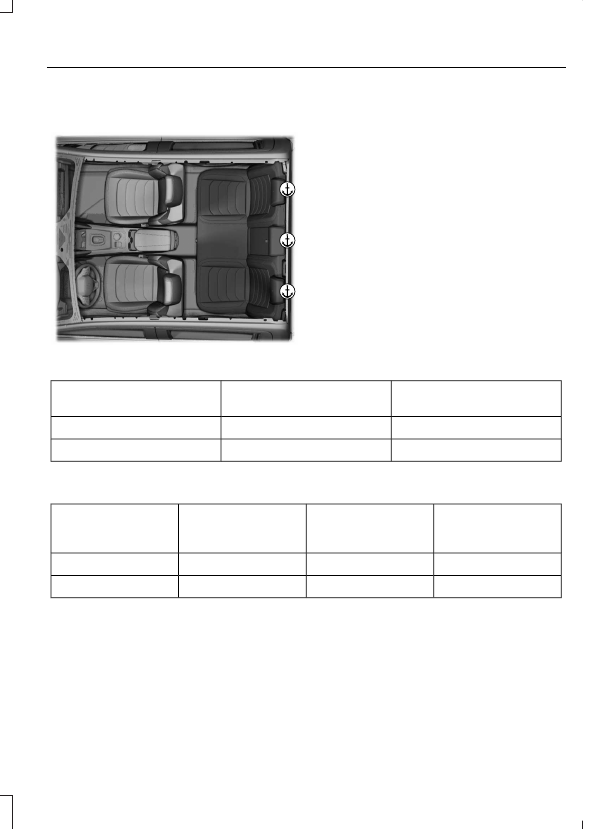

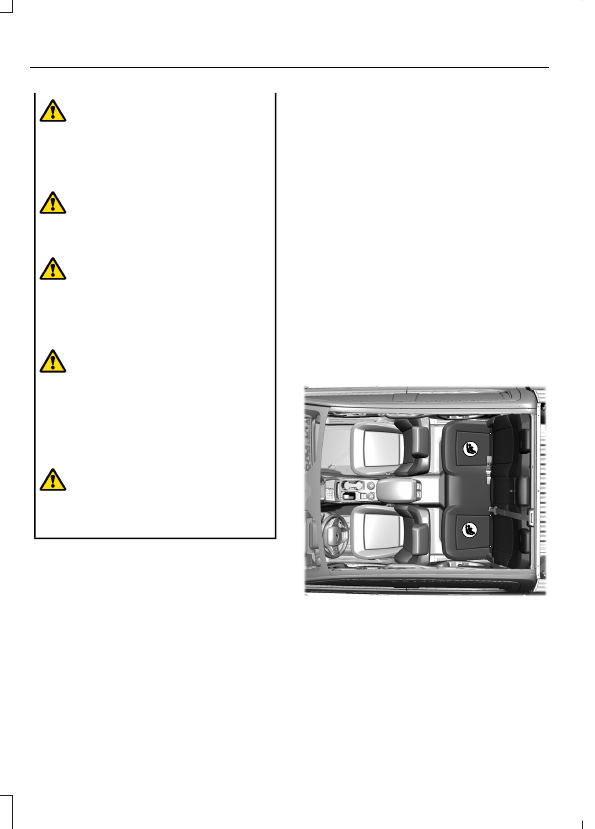

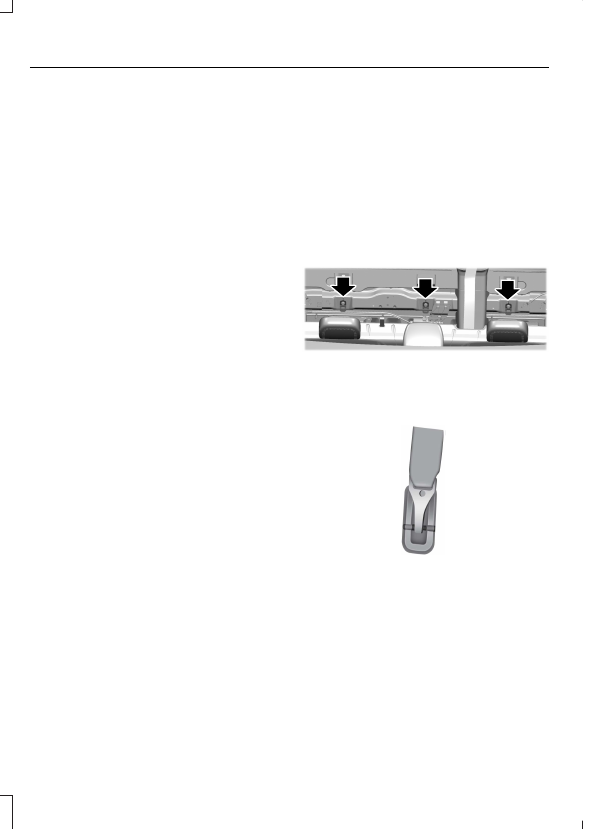

LOCATING THE CHILD RESTRAINT
LOWER ANCHOR POINTS

E363831

Child Safety

LOCATING THE CHILD RESTRAINT
TOP TETHER ANCHOR POINTS

E385435

CHILD RESTRAINTS

CHILD RESTRAINT POSITION
INFORMATION

Install the child restraint tightly against the
vehicle seat. It may be necessary to lift or
remove the head restraint.

Rear Facing Child Restraints

Seatbelt Only

LATCH (Lower Anchors

Only)

Combined Weight of Child

and Child Restraint

Up to 65 lb (29 kg)

Over 65 lb (29 kg)

Forward Facing Child Restraints

Seatbelt and LATCH
(Lower Anchors and

Top Tether Anchor)

Seatbelt and Top

Tether Anchor

LATCH (Lower

Anchors and Top

Tether Anchor)

Combined Weight of

Child and Child

Restraint

Up to 65 lb (29 kg)

Over 65 lb (29 kg)

Child Safety

CHILD RESTRAINTS RECOMMENDATION

Recommended Restraint Type

Child Size, Height, Weight, or Age

Use a child restraint (sometimes

called an infant carrier, convertible

seat, or toddler seat).

Children weighing 40 lb (18 kg) or less (generally

age four or younger).

Use a belt-positioning booster

seat.

Children who have outgrown or no longer properly

fit in a child restraint (generally children who are
less than 57 in (1.45 m) tall, are greater than age

four and less than age 12, and between 40 lb (18 kg)

and 80 lb (36 kg) and upward to 100 lb (45 kg) if

recommended by your child restraint manufacturer).

Use a vehicle seatbelt having the

lap belt snug and low across the

hips, shoulder belt centered across

the shoulder and chest, and seat

backrest upright.

Children who have outgrown or no longer properly

fit in a belt-positioning booster seat (generally chil-

dren who are at least 57 in (1.45 m) tall or greater

than 80 lb (36 kg) or 100 lb (45 kg) if recommended

by child restraint manufacturer).

You are required by law to properly use
child restraints for infants and toddlers in
the United States, Canada and Mexico.

Many states and provinces require that
small children use approved booster seats
until they reach age eight, a height of 57 in
(1.45 m) tall, or 80 lb (36 kg). Check your
local and state or provincial laws for
specific requirements about the safety of
children in your vehicle.

When possible, properly restrain children
12 years of age and under in a rear seating
position of your vehicle. Accident statistics
suggest that children are safer when
properly restrained in the rear seating
positions than in a front seating position.

When installing a rear facing child restraint,
adjust the vehicle seats to avoid
interference between the child restraint
and the vehicle seat in front of the child
restraint.

INSTALLING CHILD
RESTRAINTS

USING SEATBELTS

WARNING:

Depending on where

you secure a child restraint, and
depending on the child restraint design,
you may block access to certain seatbelt
buckle assemblies and LATCH lower
anchors, rendering those features
potentially unusable. To avoid risk of
injury, make sure occupants only use
seating positions where they are able to
be properly restrained.

Note:

Although the child restraint

illustrated is a forward-facing child restraint,
the steps are the same for installing a
rear-facing child restraint.

Perform the following steps when
installing the child restraint with seatbelts:

Child Safety

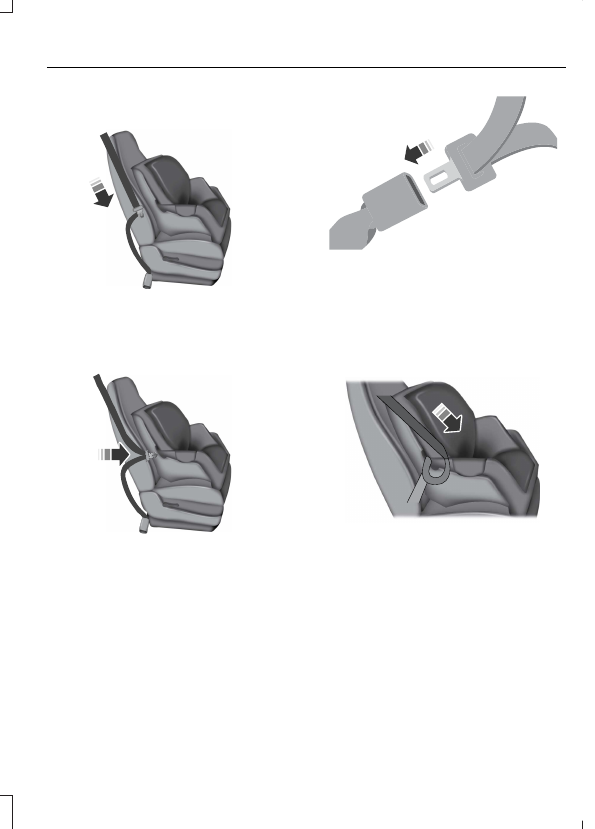

Position the child restraint in a seat
with a seatbelt.

E142529

2. After positioning the child restraint in

the proper seating position, pull down
on the shoulder belt and then grasp the
shoulder belt and lap belt together
behind the belt tongue.

E142530

3. While holding the shoulder and lap belt

portions together, route the tongue
through the child restraint according
to the child restraint manufacturer's
instructions. Make sure that you did not
twist the belt webbing.

E142531

4. Insert the belt tongue into the proper

buckle (the buckle closest to the
direction the tongue is coming from)
for that seating position until you hear
a snap and feel the latch engage. Make
sure the tongue is latched securely by
pulling on it.

E142875

5. To put the retractor in the automatic

locking mode, grasp the shoulder
portion of the belt and pull downward
until you pull all of the belt out.

Note:

The automatic locking mode is

available on the front passenger and rear
seats.

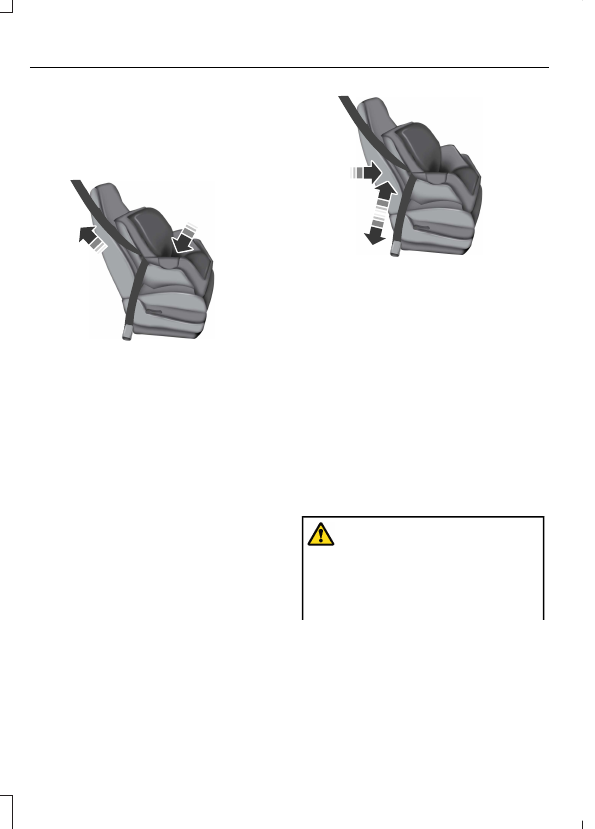

6. Allow the belt to retract to remove

slack. The belt clicks as it retracts to
indicate it is in the automatic locking
mode.

Child Safety

Try to pull the belt out of the retractor
to make sure the retractor is in the
automatic locking mode. You should
not be able to pull more belt out. If the
retractor did not lock, unbuckle the belt
and repeat Steps 5 and 6.

E142533

8. Remove remaining slack from the belt.

Force the seat down with extra weight,
for example, by pressing down or
kneeling on the child restraint while
pulling up on the shoulder belt in order
to force slack from the belt. This is
necessary to remove the remaining
slack that exists once you add the extra
weight of the child to the child restraint.
It also helps to achieve the proper
snugness of the child restraint to your
vehicle. Sometimes, a slight lean
toward the buckle will provide extra
help to remove remaining slack from
the belt.

9. If the child restraint has a tether strap,

attach it.

E142534

10.

Before placing the child in the seat,
forcibly move the seat forward and
back to make sure the seat is securely
held in place. To check this, grab the
seat at the belt path and attempt to
move it side to side and forward and
back. There should be no more than
1 in (2.5 cm) of movement.

We recommend checking with a NHTSA
Certified Child Passenger Safety
Technician to make certain the child
restraint is properly installed. In Canada,
check with Transport Canada for referral
to a Child Car Seat Clinic.

USING LOWER ANCHORS AND
TETHERS FOR CHILDREN

WARNING:

Do not attach two child

safety restraints to the same anchor. In
a crash, one anchor may not be strong
enough to hold two child safety restraint
attachments and may break, causing
serious injury or death.

Child Safety

WARNING:

Depending on where

The LATCH (Lower Anchors and Tethers
for CHildren) system has three vehicle
anchor points.

•

Two lower anchors where the seat
backrest and seat cushion meet, called
the seat bight.

•

One top tether anchor behind that
seating position.

LATCH-compatible child restraints have
two rigid or webbing mounted
attachments that connect to the two lower
anchors at the LATCH-equipped seating
positions in your vehicle. This type of
attachment method eliminates the need
to use seatbelts to attach the child
restraint.

However, you can still use the seatbelt to
attach the child restraint. For
forward-facing child restraints, you must
also attach the top tether strap to the
proper top tether anchor if a top tether
strap has been provided with your child
restraint.

Follow the instructions on attaching child
restraints with tether straps.

INSTALLING A CHILD RESTRAINT
IN A CENTER SEAT

WARNING:

The standardized

spacing for LATCH lower anchors is 11 in
(280 mm) center to center. Do not use
LATCH lower anchors for the center
seating position unless the child restraint
manufacturer's instructions permit and
specify using anchors spaced at least as
far apart as those in this vehicle.

The lower anchors at the center of the
second row rear seat are spaced 18 in
(46 cm) apart. You cannot install a child
restraint with rigid LATCH attachments at
the center seating position. You can only
use LATCH compatible child restraints with
attachments on belt webbing at this
seating position provided that the child
restraint manufacturer's instructions
permit use with the anchor spacing stated.
Do not attach a child restraint to any lower
anchor if an adjacent child restraint is
attached to that anchor.

Each time you use the child restraint, check
that the seat is properly attached to the
lower anchors and tether anchor, if
applicable. Tug the child restraint from side
to side and forward and back where it is
secured to your vehicle. The seat should
move less than 1 in (2.5 cm).

If you did not properly anchor the child
restraint, the risk of a child being injured in
a crash greatly increases.

Child Safety

COMBINING THE SEATBELT AND
LOWER ANCHORS FOR
ATTACHING CHILD RESTRAINTS

When used in combination, you may attach
either the seatbelt or the LATCH lower
anchors first, provided a proper installation
is achieved. Attach the tether strap
afterward, if it is included with the child
restraint.

USING TETHER STRAPS

Many forward-facing child restraints
include a tether strap which extends from
the back of the child restraint and hooks
to an anchoring point called the top tether
anchor. Tether straps are available as an
accessory for many older child restraints.

Contact the manufacturer of your child
restraint for information about ordering a
tether strap, or to obtain a longer tether
strap if the tether strap on your child
restraint does not reach the appropriate
top tether anchor in your vehicle.

Once you install the child restraint using
either the seatbelt, the lower anchors of
the LATCH system, or both, you can attach
the top tether strap.

Perform the following steps to install a
child restraint with tether anchors.

Note:

If you install a child restraint with rigid

LATCH attachments, do not tighten the
tether strap enough to lift the child restraint
off your vehicle seat cushion when the child
is seated in it. Keep the tether strap just snug
without lifting the front of the child restraint.
Keeping the child restraint just touching your
vehicle seat gives the best protection in a
severe crash.

Route the child restraint tether strap
over the back of the seat. For the
outermost seating positions, route the
tether strap under the head restraint
and between the head restraint posts.
For the center seating position, route
the tether strap over the top of the
head restraint.

2. To access the top tether anchors, pull

the strap on the top of the rear seat
backrest and fold the backrest forward.

E356728

3. Locate the correct anchor for the

selected seating position.

E142539

4. Clip the tether strap to the anchor as

shown.

5. Tighten the child restraint tether strap

according to the manufacturer's
instructions. If your child restraint
system has a tether strap, and the child
restraint manufacturer recommends
its use, we also recommend its use.

Child Safety

6. Return the rear seat backrest to its

original rearward and locked position.
Pull slightly on the seat backrest and
make sure that it is locked.

BOOSTER SEATS

Use a belt-positioning booster seat for
children who have outgrown or no longer
properly fit in a child restraint and meet
the following criteria.

•

Generally children who are less than
57 in (1.45 m) tall.

•

Are greater than age four (4) and less
than age twelve (12).

•

Are between 40 lb (18 kg) and 80 lb
(36 kg) and upward to 100 lb (45 kg).

Many state and provincial laws require that
children use approved booster seats until
they reach age eight, a height of 57 in
(1.45 m) tall, or 80 lb (36 kg).

Booster seats should be used until you can
answer yes to all of these questions when
seated without a booster seat:

E142595

•

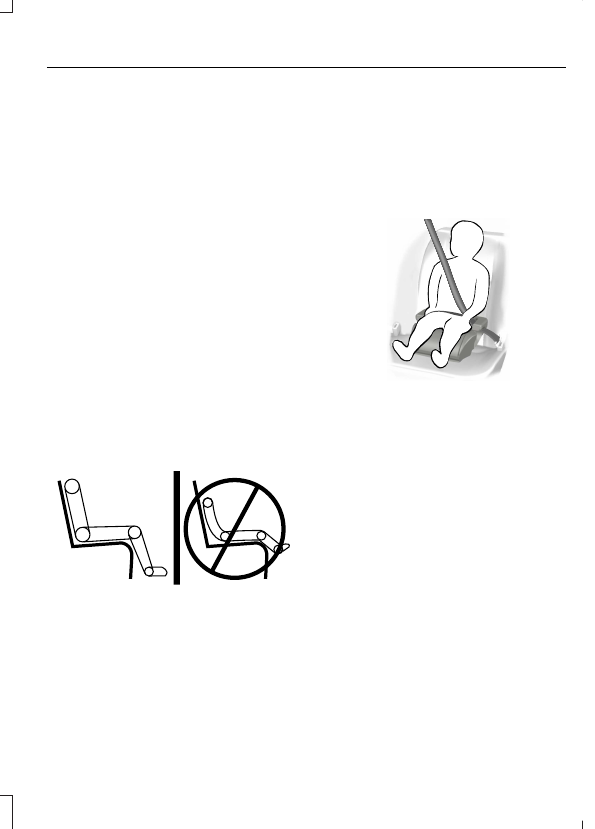

Can the child sit all the way back
against their vehicle seat backrest with
knees bent comfortably at the edge of
the seat cushion?

•

Can the child sit without slouching?

•

Does the lap belt rest low across the
hips?

•

Is the shoulder belt centered on the
shoulder and chest?

•

Can the child stay seated like this for
the whole trip?

Always use booster seats in conjunction
with your vehicle lap and shoulder belt.

Types of Booster Seats

E68924

•

Backless booster seats

If your backless booster seat has a
removable shield, remove the shield.

If a vehicle seating position has a low seat
backrest or no head restraint, a backless
booster seat may place your child's head,
as measured at the tops of the ears, above
the top of the seat. In this case, move the
backless booster to another seating
position with a higher seat backrest or
head restraint and lap and shoulder belts,
or consider using a high-back booster seat.

Child Safety

E70710

•

High-back booster seats

If, with a backless booster seat, you cannot
find a seating position that adequately
supports your child's head, a high-back
booster seat would be a better choice.

Children and booster seats vary in size and
shape. Choose a booster that keeps the
lap belt low and snug across the hips,
never up across the stomach, and lets you
adjust the shoulder belt to cross the chest
and rest snugly near the center of the
shoulder.

The following drawings compare the ideal
fit to a shoulder belt uncomfortably close
to the neck and a shoulder belt that could
slip off the shoulder. The drawings also
show how the lap belt should be low and
snug across the child's hips.

E142596

E142597

Child Safety

If the booster seat slides on the vehicle
seat upon which it is being used, placing a
rubberized mesh sold as shelf or carpet
liner under the booster seat may improve
this condition. Do not use any item thicker
than this under the booster seat. Check
with the booster seat manufacturer's
instructions.

CHILD SAFETY LOCKS

WARNING:

You cannot open the

rear doors from inside if you have put the
child safety locks on.

E238364

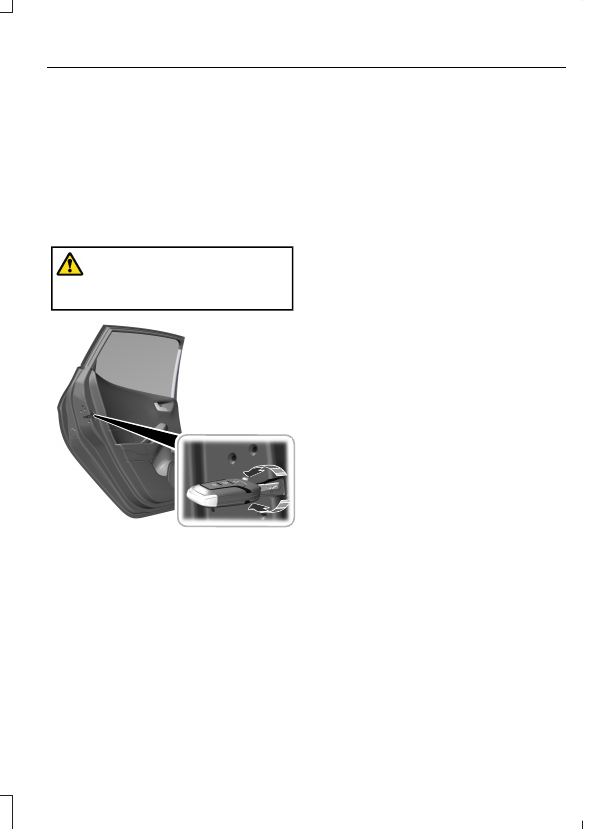

A child safety lock is on the rear edge of
each rear door. You must switch the child
safety lock separately on each door.

Left-Hand Side

Turn the key clockwise to switch the child
lock on and counterclockwise to switch it
off.

Right-Hand Side

Turn the key counterclockwise to switch
the child lock on and clockwise to switch
it off.

Note:

To make sure the child safety lock is

on, pull the inside door handle twice to verify
the door does not open.

Note:

To open the rear doors from inside

the vehicle when the child lock is engaged,
roll down the rear window and use the
outside door handle. Or have someone
outside the vehicle open the door.

Child Safety

SEATBELT PRECAUTIONS

WARNING:

Always drive and ride

with your seatback upright and the lap
belt snug and low across the hips.

WARNING:

Children must always

be properly restrained.

WARNING:

Do not allow a

passenger to hold a child on their lap
when your vehicle is moving. Failure to
follow this instruction could result in
personal injury or death in the event of a
sudden stop or crash.

WARNING:

All occupants of your

vehicle, including the driver, should
always properly wear their seatbelts,
even when an airbag supplemental
restraint system is provided. Failure to
properly wear your seatbelt could
seriously increase the risk of injury or
death.

WARNING:

It is extremely

dangerous to ride in a cargo area, inside
or outside of a vehicle. In a crash, people
riding in these areas are more likely to be
seriously injured or killed. Do not allow
people to ride in any area of your vehicle
that is not equipped with seats and
seatbelts. Make sure everyone in your
vehicle is in a seat and properly using a
seatbelt. Failure to follow this warning
could result in serious personal injury or
death.

WARNING:

In a rollover crash, an

unbelted person is significantly more
likely to die than a person wearing a
seatbelt.

WARNING:

Each seating position

in your vehicle has a specific seatbelt
assembly made up of one buckle and
one tongue designed to be used as a pair.
Use the shoulder belt on the outside
shoulder only. Never wear the shoulder
belt under the arm. Never use a single
seatbelt for more than one person.

WARNING:

Even with advanced

restraints systems, properly restrain
children 12 and under in a rear seating
position. Failure to follow this could
seriously increase the risk of injury or
death.

WARNING:

Seatbelts and seats

may be hot in a vehicle that is in the
sunshine. The hot seatbelts or seats may
burn a small child. Check seat covers and
buckles before you place a child
anywhere near them.

WARNING:

If your vehicle is

involved in a crash, have the seatbelts
and associated components inspected
as soon as possible. Failure to follow this
instruction could result in personal injury
or death.

All seating positions in this vehicle have
lap and shoulder seatbelts. All occupants
of the vehicle should properly wear their
seatbelts, even when an airbag
supplemental restraint system is provided.

The seatbelt system consists of:
•

Lap and shoulder seatbelts.

•

A shoulder seatbelt with automatic
locking mode, except driver seatbelt.

•

Height adjusters at the front outermost
seating positions.

Seatbelts

•

Seatbelt pretensioners at the front
outermost and second row outermost
seating positions.

•

Belt tension sensor at the front
outermost passenger seating position.

E71880

A seatbelt warning light and
tone.

E67017

Crash sensors and monitoring
system with readiness indicator.

The seatbelt pretensioners are designed
to tighten the seatbelts when activated. In
frontal and near-frontal crashes, the
seatbelt pretensioners may be activated
alone or, if the crash is of sufficient severity,
together with the front airbags. The
pretensioners may also activate when a
Safety Canopy airbag deploys.

FASTENING AND
UNFASTENING THE
SEATBELTS

All seatbelts in your vehicle are a
three-point combination lap and shoulder
seatbelt.

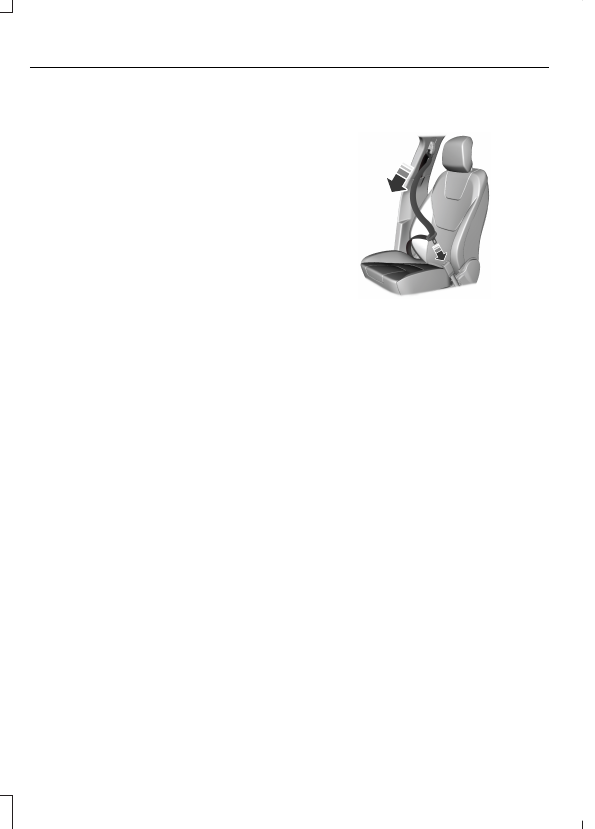

E338014

Seatbelt tongue.

Seatbelt buckle.

Pull the seatbelt out steadily.

Note:

It may lock if you pull it sharply or if

the vehicle is on a slope.

2. Insert the tongue into the buckle.

3. Pull the seatbelt tight to remove any

slack.

Unfastening the Seatbelts

Press the red button on the buckle to
release the seatbelt.

2. Hold the seatbelt tongue and let it

retract completely and smoothly to its
stowed position.

Seatbelts

SENSITIVE LOCKING MODE

WHAT IS SENSITIVE LOCKING
MODE

Sensitive locking mode is a seatbelt
retractor feature that allows shoulder belt
length adjustment according to your
movements and locking in response to
vehicle movement.

HOW DOES SENSITIVE LOCKING
MODE WORK

If the driver suddenly brakes, turns a corner
sharply, or the vehicle receives an impact
of about 5 mph (8 km/h) or more, the
seatbelts lock to help reduce forward
movement of the driver and passengers.

In addition, the seatbelt retractor locks if
you pull the seatbelt webbing out too
quickly. If the retractor locks, slowly lower
the height adjuster to allow the seatbelt
to retract.

If the retractor does not unlock, pull the
seatbelt out slowly then feed a small
length of webbing back toward the stowed
position.

AUTOMATIC LOCKING MODE

WHAT IS AUTOMATIC LOCKING
MODE

This is a safety feature built into the
seatbelt retractors that keeps the
seatbelts pre-locked.

ENGAGING AUTOMATIC LOCKING
MODE

E142591

Fasten the combination lap and
shoulder belt.

2. Grasp the shoulder portion and pull

downward until you pull the entire belt
out.

3. Allow the belt to retract. As the belt

retracts, you will hear a clicking sound.
This indicates the seatbelt is now in the
automatic locking mode.

DISENGAGING AUTOMATIC
LOCKING MODE

Unbuckle the combination lap and
shoulder belt and allow it to retract
completely to disengage the automatic
locking mode and activate the vehicle
sensitive locking mode.

Extracting Seatbelts in the Rear
Outermost Seat Positions

Seatbelts in the rear outermost positions
can lock if you firmly return the seat
backrest to its upright position. You can
unlock the seatbelts using the following
procedures.

For vehicles where the rear seats recline:

Recline the seat to its full rear recline
position.

Seatbelts

2. The seatbelt should then unlock.

3. Return the seat backrest to its desired

upright position.

For vehicles with rear seats that do not
recline or are locked with the seat in its full
rear recline position:

Grasp the seatbelt webbing at the top
of the seat backrest.

2. Pull the seatbelt webbing forward,

firmly.

3. After pulling the seatbelt forward,

allow the seatbelt to feed back into the
seatbelt retractor as much as possible.
If necessary, press the seat backrest
down to allow the seatbelt webbing to
retract further.

4. The seatbelt should then unlock.

5. If the seatbelt does not unlock, repeat

steps 1-3.

ADJUSTING THE SEATBELTS
DURING PREGNANCY

WARNING:

Always ride and drive

with your seatback upright and properly
fasten your seatbelt. Fit the lap portion
of the seatbelt snugly and low across
the hips. Position the shoulder portion of
the seatbelt across your chest. Pregnant
women must follow this practice. See
the following figure.

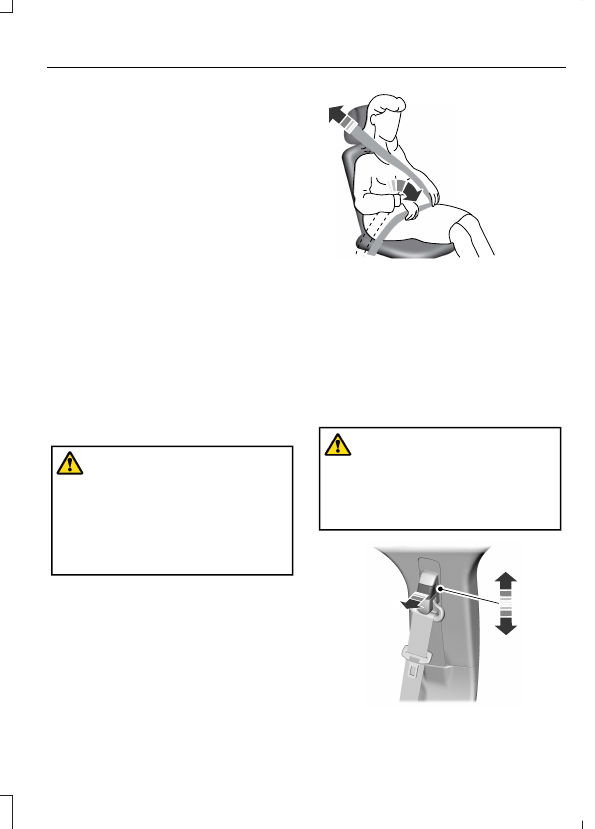

E142590

Pregnant women should always wear their
seatbelt. Position the lap belt portion of a
combination lap and shoulder belt low
across the hips below the belly and worn
as tight as comfort allows. Position the
shoulder belt to cross the middle of the
shoulder and the center of the chest.

ADJUSTING THE SEATBELT
HEIGHT

WARNING:

Position the seatbelt

height adjuster so that the seatbelt rests
across the middle of your shoulder.
Failure to adjust the seatbelt correctly
could reduce its effectiveness and
increase the risk of injury in a crash.

E145664

Seatbelts

Pull the button and slide the height
adjuster up or down.

2. Release the button and pull down on

the height adjuster to make sure it is
locked in place.

SEATBELT REMINDER

HOW DOES THE SEATBELT
REMINDER WORK

WARNING:

The system will only

provide protection when you use the
seatbelt correctly.

This system monitors all seating positions
and provides audio and graphic feedback.

SEATBELT REMINDER
INDICATORS

E71880

This lamp illuminates if you do
not fasten your seatbelt when
you switch the ignition on. The

lamp switches off when you fasten your
seatbelt or about one minute has elapsed.

When the initial warning expires for the
driver, more warnings are provided for the
driver and front passenger. This lamp
illuminates if you or your front passenger
do not fasten the seatbelt buckle and the
vehicle speed exceeds 6 mph (10 km/h).

Note:

To avoid inadvertent warnings, do

not place large objects on the front
passenger seat.

E206718

This lamp illuminates when you
switch the ignition on, identifying
the number of seating positions

with fastened buckles. It illuminates again
when a seating position changes from
unfastened to fastened.

E331448

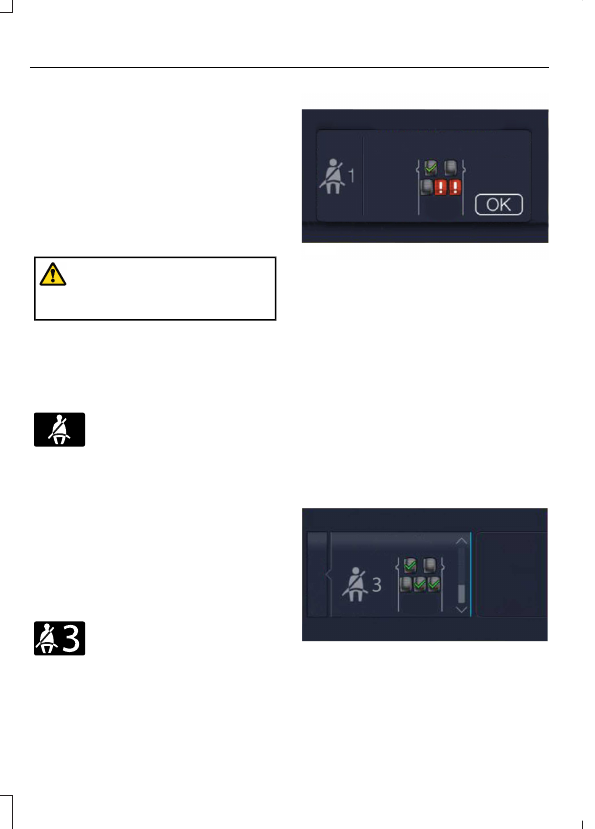

This warning displays if an occupant
unfastens the rear seatbelt buckle or it
becomes unfastened.

Note:

If a rear seat is unoccupied, or an

occupant never fastens the seatbelt buckle
to begin with, the warning will not display.

Note:

Front seating positions appear in this

warning display. Warnings for unfastened
front seatbelt buckles appear in the initial
warning lamp.

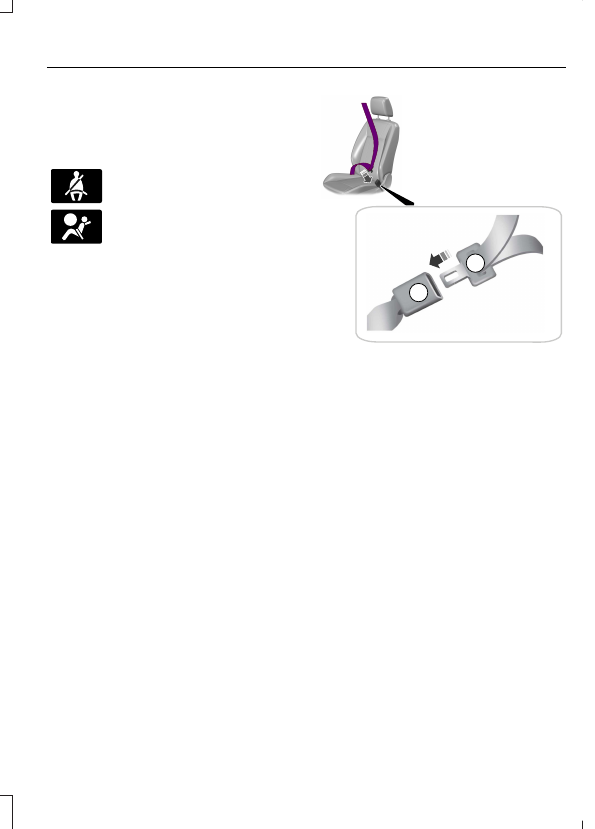

Seatbelt Status

To view the seatbelt status, use the
information cluster controls on the steering
wheel.

E281361

Seatbelts

Ford Ranger (2024 year). Manual in english - page 1
