Ford Mustang (2024 year). Manual in english

EXTENDING THE REMOTE
START DURATION

To extend the remote start duration during
remote start, do the following:

E138623

Press the button on the remote
control.

E138625

Within three seconds, press the
button on the remote control.

Within three seconds, press the

button again.

If the duration is set to 15 minutes, the
duration extends by another 15 minutes.
This provides a total of 30 minutes.

Note:

Remote start can only be extended

once.

Note:

A maximum of two remote starts, or

one remote start with an extension, are
allowed. To reset the restart procedure
switch the vehicle to on, then to off.

REMOTE START SETTINGS

Climate Control Settings

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Remote Start Setup

4. Press

Climate Control

5. Press

Auto

Last settings

Note:

If you switch the auto mode on, the

system attempts to heat or cool the interior
to 72°F (22°C). When you switch the vehicle
on, the climate control system returns to
the last used settings.

Note:

If you switch the last settings on, the

system remembers the last used settings.

Heated Seat Settings

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Remote Start Setup

4. Press

Seats

5. Press

Auto

Off

Note:

If you switch the heated seat settings

on, the heated seats turn on during cold
weather.

Note:

You cannot adjust the heated seat

settings when you remotely start your
vehicle.

Heated Steering Wheel Settings

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Remote Start Setup

4. Press

Seats and Steering Wheel

5. Press

Auto

Off

Note:

If you switch the heated steering

wheel settings on, the heated steering wheel
turns on during cold weather.

Note:

You cannot adjust the heated

steering wheel settings when you remotely
start your vehicle.

Remote Start Duration

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Remote Start Setup

4. Press

Duration

5. Press the duration you prefer.

118

Remote Start

(If Equipped)

IDENTIFYING THE CLIMATE
CONTROL UNIT

E372889

Note:

Depending on your vehicle options,

the controls may look different from what
you see here.

SWITCHING CLIMATE
CONTROL ON AND OFF

E265283

Press the button to activate the
selection screen.

Press the button.

SWITCHING RECIRCULATED
AIR ON AND OFF

E265283

Press the button to activate the
selection screen.

Press the button to recirculate
air currently in the passenger
compartment.

Note:

Recirculated air may turn off

automatically, or prevent you from switching
on in all air flow modes except MAX A/C to
reduce the risk of fogging. Recirculation may
also turn on and off automatically in various
air distribution control combinations to
improve heating or cooling efficiency.

SWITCHING AIR
CONDITIONING ON AND OFF

Press the button.

Note:

Under certain conditions, the air

conditioning compressor could continue to
operate after you switch air conditioning off.

Note:

To keep the system and its

components fully functional, switch air
conditioning on and let your vehicle idle at
least once per month for a minimum of two
minutes.

SWITCHING DEFROST ON AND
OFF

E265283

Press the button to activate the
selection screen.

Press the button on the
touchscreen to switch the
windshield air vents on.

E244097

Make sure that the instrument
panel air vents are switched off.

E244098

Make sure that the footwell air
vents are switched off.

SWITCHING MAXIMUM
DEFROST ON AND OFF

Press the button on the
touchscreen.

Air flows through the windshield air vents,
and the blower motor adjusts to the
highest speed.

You can also use this setting to defog and
clear the windshield of a thin covering of
ice.

119

Climate Control - Vehicles With: Dual Automatic Temperature

Control (DATC)

Note:

You can also press the button on the

instrument panel to switch the maximum
defrost on or off.

Note:

To prevent window fogging, you

cannot select recirculated air when
maximum defrost is on.

Note:

The heated rear window and air

conditioning also turn on when you select
maximum defrost.

SWITCHING MAXIMUM
COOLING ON AND OFF

E265283

Press the button to activate the
selection screen.

Press the button.

Note:

When you switch maximum cooling

off, air conditioning remains on.

Note:

In certain conditions, for example,

cold weather, maximum cooling may not
activate or could run slow when switched
on. This helps reduce power consumption
from the battery.

SWITCHING THE HEATED
REAR WINDOW ON AND OFF

Press the button to clear the rear
window of thin ice and fog. The
heated rear window turns off

after a short period of time.

Note:

Do not use harsh chemicals, razor

blades or other sharp objects to clean or
remove decals from the inside of the heated
rear window as this could cause damage to
the heated rear window grid lines not
covered by the vehicle Warranty.

Note:

The engine must be running or your

vehicle must be ready to drive to switch the
system on.

SETTING THE BLOWER MOTOR
SPEED

E408927

Press the button on the
touchscreen to set the blower
motor speed.

Slide the control to set the blower motor
speed.

Note:

You can press

to set the blower

motor speed.

SWITCHING THE HEATED
MIRRORS ON AND OFF

(IF

EQUIPPED)

When you switch the heated rear window
on, the heated exterior mirrors turn on.
See

Switching the Heated Rear Window

On and Off

(page 120).

Note:

Do not remove ice from the mirrors

with a scraper or adjust the mirror glass
when it is frozen in place.

Note:

Do not clean the mirror housing or

glass with harsh abrasives, fuel or other
petroleum-based cleaning products. The
vehicle warranty may not cover damage
caused to the mirror housing or glass.

Note:

The engine must be running or your

vehicle must be ready to drive to switch the
system on.

SETTING THE TEMPERATURE

Press the temperature controls on either
side of the climate control to set the
temperature for that side.

E408928

Slide the control to set the
temperature.

Note:

You can press

to set the

temperature.

120

Climate Control - Vehicles With: Dual Automatic Temperature

Control (DATC)

DIRECTING THE FLOW OF AIR

Directing Air to the Windshield Air
Vents

E265283

Press the button to activate the
selection screen.

Press the button on the
touchscreen.

Directing Air to the Instrument
Panel Air Vents

E265283

Press the button to activate the
selection screen.

E244097

Press the button on the
touchscreen.

Directing Air to the Footwell Air
Vents

E265283

Press the button to activate the
selection screen.

E244098

Press the button on the
touchscreen.

AUTO MODE

SWITCHING AUTO MODE ON AND
OFF

Press the button to switch auto
mode on. Repeatedly press the
button to adjust auto mode.

Adjust the blower motor control or air
distribution control to switch auto mode
off.

AUTO MODE INDICATORS

The indicators are on the Auto Mode
button.

Description

Auto Mode Indicator

Status

The blower motor speed is reduced. Use this setting to
minimize the amount of noise from the blower motor. This
setting increases the time taken to cool the interior.

One indicator illumin-
ated.

The blower motor speed is moderate.

Two indicators illumin-
ated.

The blower motor speed is increased. Use this setting to
reduce the time taken to cool the interior. This setting
increases the amount of noise from the blower motor.

Three indicators illumin-
ated.

121

Climate Control - Vehicles With: Dual Automatic Temperature

Control (DATC)

SWITCHING DUAL MODE ON AND
OFF

E265283

Press the button to activate the
selection screen.

E265280

Press the button.

Note:

When dual mode is off, setting the

temperature using the driver side controls,
sets the temperature for both sides.

Note:

Setting the temperature using the

passenger side controls, sets the passenger
temperature and switches dual mode on.

CLIMATE CONTROL HINTS

General Hints

•

Prolonged use of recirculated air may
cause the windows to fog up.

•

You may feel a small amount of air
from the footwell air vents regardless
of the air distribution setting.

•

To reduce humidity build-up inside your
vehicle, do not drive with the system
switched off or with recirculated air
always switched on.

•

Do not place objects under the front
seats as this may interfere with the
airflow to the rear seats.

•

Remove any snow, ice or leaves from
the air intake area at the base of the
windshield.

•

To improve the time to reach a
comfortable temperature in hot
weather, drive with the windows open
until you feel cold air through the air
vents.

Automatic Climate Control

•

Adjusting the settings when your
vehicle interior is extremely hot or cold
is not necessary. Automatic mode is
best recommended to maintain set
temperature.

•

The system adjusts to heat or cool the
interior to the temperature you select
as quickly as possible.

•

For the system to function efficiently,
the instrument panel and side air vents
should be fully open.

•

If you press

AUTO

during cold outside

temperatures, the system directs air
flow to the windshield and side window
air vents.In addition, the blower motor
may run at a slower speed until the
engine warms up.

•

If you press

AUTO

during hot

temperatures and the inside of the
vehicle is hot, the system uses
recirculated air to maximize interior
cooling. Blower motor speed may also
reduce until the air cools.

Quickly Heating the Interior

Press

AUTO

2. Adjust the temperature function to the

setting you prefer.

Recommended Settings for
Heating

Press

AUTO

2. Adjust the temperature function to the

setting you prefer. Use 72°F (22°C) as
a starting point, then adjust the setting
as necessary.

Quickly Cooling the Interior

Press

MAX A/C

2. Drive with the windows open for a short

period of time.

122

Climate Control - Vehicles With: Dual Automatic Temperature

Control (DATC)

IDENTIFYING THE CLIMATE
CONTROL UNIT

E372889

Note:

Depending on your vehicle options,

the controls may look different from what
you see here.

SWITCHING CLIMATE
CONTROL ON AND OFF

E265283

Press the button to activate the
selection screen.

Press the button.

SWITCHING RECIRCULATED
AIR ON AND OFF

E265283

Press the button to activate the
selection screen.

Press the button to recirculate
air currently in the passenger
compartment.

Note:

Recirculated air may turn off

SWITCHING AIR
CONDITIONING ON AND OFF

Press the button.

Note:

Under certain conditions, the air

conditioning compressor could continue to
operate after you switch air conditioning off.

Note:

To keep the system and its

components fully functional, switch air
conditioning on and let your vehicle idle at
least once per month for a minimum of two
minutes.

SWITCHING DEFROST ON AND
OFF

E265283

Press the button to activate the
selection screen.

Press the button on the
touchscreen to switch the
windshield air vents on.

E244097

Make sure that the instrument
panel air vents are switched off.

E244098

Make sure that the footwell air
vents are switched off.

SWITCHING MAXIMUM
DEFROST ON AND OFF

Press the button on the
touchscreen.

Air flows through the windshield air vents,
and the blower motor adjusts to the
highest speed.

You can also use this setting to defog and
clear the windshield of a thin covering of
ice.

124

Climate Control - Vehicles With: Electronic Automatic Temperature

Control (EATC)

Note:

You can also press the button on the

instrument panel to switch the maximum
defrost on or off.

Note:

To prevent window fogging, you

cannot select recirculated air when
maximum defrost is on.

Note:

The heated rear window and air

conditioning also turn on when you select
maximum defrost.

SWITCHING MAXIMUM
COOLING ON AND OFF

E265283

Press the button to activate the
selection screen.

Press the button.

Note:

When you switch maximum cooling

off, air conditioning remains on.

Note:

In certain conditions, for example,

cold weather, maximum cooling may not
activate or could run slow when switched
on. This helps reduce power consumption
from the battery.

SWITCHING THE HEATED
REAR WINDOW ON AND OFF

Press the button to clear the rear
window of thin ice and fog. The
heated rear window turns off

after a short period of time.

Note:

Do not use harsh chemicals, razor

blades or other sharp objects to clean or
remove decals from the inside of the heated
rear window as this could cause damage to
the heated rear window grid lines not
covered by the vehicle Warranty.

Note:

The engine must be running or your

vehicle must be ready to drive to switch the
system on.

SETTING THE BLOWER MOTOR
SPEED

E408927

Slide the control to set the
blower motor speed.

Note:

You can press

to set the blower

motor speed.

SWITCHING THE HEATED
MIRRORS ON AND OFF

When you switch the heated rear window
on, the heated exterior mirrors turn on.
See

Switching the Heated Rear Window

On and Off

(page 120).

Note:

Do not remove ice from the mirrors

with a scraper or adjust the mirror glass
when it is frozen in place.

Note:

Do not clean the mirror housing or

glass with harsh abrasives, fuel or other
petroleum-based cleaning products. The
vehicle warranty may not cover damage
caused to the mirror housing or glass.

Note:

The engine must be running or your

vehicle must be ready to drive to switch the
system on.

SETTING THE TEMPERATURE

E408928

Slide the control to set the
temperature.

Note:

You can press

to set the

temperature.

DIRECTING THE FLOW OF AIR

Directing Air to the Windshield Air
Vents

E265283

Press the button to activate the
selection screen.

125

Climate Control - Vehicles With: Electronic Automatic Temperature

Control (EATC)

Press the button on the
touchscreen.

Directing Air to the Instrument
Panel Air Vents

E265283

Press the button to activate the
selection screen.

E244097

Press the button on the
touchscreen.

Directing Air to the Footwell Air
Vents

E265283

Press the button to activate the
selection screen.

E244098

Press the button on the
touchscreen.

AUTO MODE

SWITCHING AUTO MODE ON AND
OFF

Press the button to switch auto
mode on. Repeatedly press the
button to adjust auto mode.

Adjust the blower motor control or air
distribution control to switch auto mode
off.

AUTO MODE INDICATORS

The indicators are on the Auto Mode
button.

Description

Auto Mode Indicator

Status

The blower motor speed is reduced. Use this setting to
minimize the amount of noise from the blower motor. This
setting increases the time taken to cool the interior.

One indicator illumin-
ated.

The blower motor speed is moderate.

Two indicators illumin-
ated.

The blower motor speed is increased. Use this setting to
reduce the time taken to cool the interior. This setting
increases the amount of noise from the blower motor.

Three indicators illumin-
ated.

CLIMATE CONTROL HINTS

General Hints

•

Prolonged use of recirculated air may
cause the windows to fog up.

•

You may feel a small amount of air
from the footwell air vents regardless
of the air distribution setting.

•

To reduce humidity build-up inside your
vehicle, do not drive with the system
switched off or with recirculated air
always switched on.

•

Do not place objects under the front
seats as this may interfere with the
airflow to the rear seats.

126

Climate Control - Vehicles With: Electronic Automatic Temperature

Control (EATC)

•

Remove any snow, ice or leaves from
the air intake area at the base of the
windshield.

•

To improve the time to reach a
comfortable temperature in hot
weather, drive with the windows open
until you feel cold air through the air
vents.

Automatic Climate Control

•

Adjusting the settings when your
vehicle interior is extremely hot or cold
is not necessary. Automatic mode is
best recommended to maintain set
temperature.

•

The system adjusts to heat or cool the
interior to the temperature you select
as quickly as possible.

•

For the system to function efficiently,
the instrument panel and side air vents
should be fully open.

•

If you press

AUTO

during cold outside

temperatures, the system directs air
flow to the windshield and side window
air vents.In addition, the blower motor
may run at a slower speed until the
engine warms up.

•

If you press

AUTO

during hot

temperatures and the inside of the
vehicle is hot, the system uses
recirculated air to maximize interior
cooling. Blower motor speed may also
reduce until the air cools.

Quickly Heating the Interior

Press

AUTO

2. Adjust the temperature function to the

setting you prefer.

Recommended Settings for
Heating

Press

AUTO

2. Adjust the temperature function to the

setting you prefer. Use 72°F (22°C) as
a starting point, then adjust the setting
as necessary.

Quickly Cooling the Interior

Press

MAX A/C

2. Drive with the windows open for a short

period of time.

Recommended Settings for
Cooling

Press

AUTO

2. Adjust the temperature function to the

setting you prefer. Use 72°F (22°C) as
a starting point, then adjust the setting
as necessary.

Defogging the Side Windows in
Cold Weather

Press and release defrost or maximum
defrost.

2. Adjust the temperature control to the

setting you prefer. Use 72°F (22°C) as
a starting point, then adjust the setting
as necessary.

127

Climate Control - Vehicles With: Electronic Automatic Temperature

Control (EATC)

WHAT IS THE CABIN AIR
FILTER

The cabin air filter improves the quality of
air in your vehicle by trapping dust, pollen
and other particles.

LOCATING THE CABIN AIR
FILTER

The cabin air filter is behind the glovebox.

Note:

The filter access door is above the

passenger footwell under the instrument
panel.

REPLACING THE CABIN AIR
FILTER

Replace the filter at regular intervals. See

Scheduled Maintenance

(page 433).

Note:

Make sure you have a cabin air filter

installed at all times. This prevents foreign
objects from entering the system. Running
the system without a filter in place could
result in degradation or damage to the
system.

Note:

Using an aftermarket cabin air filter

could reduce cabin air filtration and climate
control performance.

128

Interior Air Quality

FRONT SEAT PRECAUTIONS

WARNING:

Sitting improperly, out

of position or with the seatback reclined
too far can take weight off the seat
cushion and affect the decision of the
passenger sensing system, resulting in
serious injury or death in the event of a
crash. Always sit upright against your
seat back, with your feet on the floor.

WARNING:

Do not recline the seat

backrest too far as this can cause the
occupant to slide under the seatbelt,
resulting in personal injury in the event
of a crash.

WARNING:

Do not place objects

higher than the top of the seat backrest.
Failure to follow this instruction could
result in personal injury or death in the
event of a sudden stop or crash.

WARNING:

Do not adjust the driver

seat or seat backrest when your vehicle
is moving. This may result in sudden seat
movement, causing the loss of control
of your vehicle.

SITTING IN THE CORRECT
POSITION

E68595

When you use them properly, the seat,
head restraint, seatbelt and airbags will
provide optimum protection in the event
of a crash.

We recommend that you follow these
guidelines:
•

Sit in an upright position with the base
of your spine as far back as possible.

•

Do not recline the seat backrest so that
your torso is more than 30 degrees
from the upright position.

•

Adjust the head restraint so that the
top of it is level with the top of your
head and as far forward as possible.
Make sure that you remain
comfortable.

•

Keep sufficient distance between
yourself and the steering wheel. We
recommend a minimum of 10 in
(25 cm) between your breastbone and
the airbag cover.

•

Hold the steering wheel with your arms
slightly bent.

129

Front Seats

•

Bend your legs slightly so that you can
press the pedals fully.

•

Position the shoulder strap of the
seatbelt over the center of your
shoulder and position the lap strap
tightly across your hips.

Make sure that your driving position is
comfortable and that you can maintain full
control of your vehicle.

MANUAL SEATS

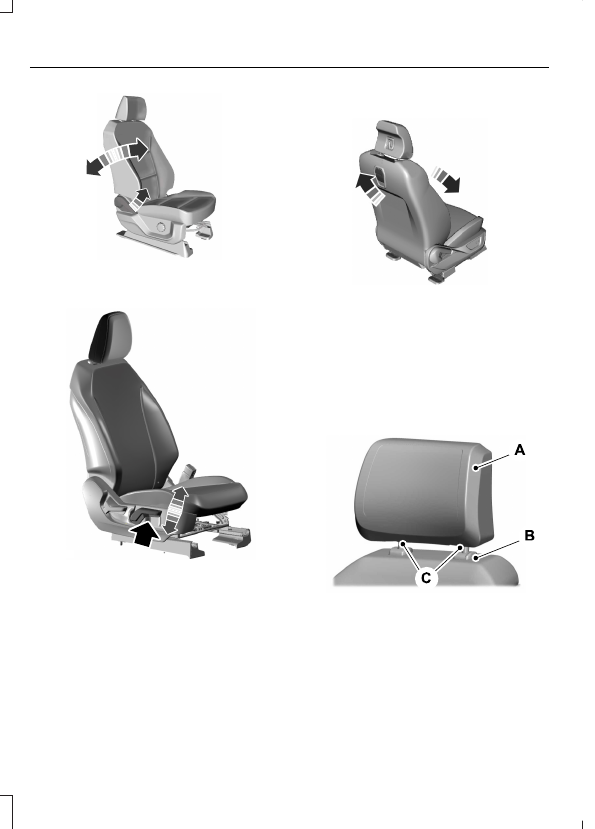

HEAD RESTRAINT COMPONENTS

E396321

The head restraints consist of:

An energy absorbing head
restraint.

Guide sleeve adjust and release
button.

Two steel stems.

ADJUSTING THE HEAD
RESTRAINT

WARNING:

Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk
of neck injury in the event of a crash. Do
not adjust the head restraint when your
vehicle is moving.

WARNING:

The head restraint is a

safety device. Whenever possible it
should be installed and properly
adjusted when the seat is occupied.
Failure to adjust the head restraint
properly could reduce its effectiveness
during certain impacts.

WARNING:

Adjust the head

restraints for all passengers before you
drive your vehicle. This will help minimize
the risk of neck injury in the event of a
crash. Do not adjust the head restraints
when your vehicle is moving.

Note:

Adjust the seat backrest to an upright

driving position before adjusting the head
restraint. Adjust the head restraint so that
the top of it is level with the top of your head
and as far forward as possible. Make sure
that you remain comfortable. If you are
extremely tall, adjust the head restraint to
its highest position.

Pull the head restraint up to raise it.

To lower the head restraint:

Press and hold the adjust and release
button.

2. Push the head restraint down.

130

Front Seats

E327919

For vehicles with tilting head restraints:

Adjust the seat backrest to an upright
driving or riding position.

2. Pivot the head restraint forward toward

your head to the preferred position.

After the head restraint reaches the
forward-most tilt position, pivot it forward
again to release it to the rearward, untilted
position.

Note:

Do not attempt to force the head

restraint backward after it is tilted. Instead,
continue tilting it forward until the head
restraint releases to the upright position.

REMOVING THE HEAD RESTRAINT

Pull up the head restraint until it
reaches its highest position.

2. Press and hold the adjust and release

button.

3. Pull up the head restraint.

INSTALLING THE HEAD
RESTRAINT

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

MOVING THE SEAT BACKWARD
AND FORWARD

WARNING:

Make sure the seat fully

locks into place by rocking it backward
and forward. Not securing the seat into
the locked position can be dangerous in
a crash and could cause serious personal
injury or death.

E308316

ADJUSTING THE SEAT BACKREST

WARNING:

Do not place cargo or

any objects behind the seatback before
returning it to the original position.

WARNING:

Reclining the seatback

can cause an occupant to slide under the
seat's seatbelt, resulting in severe
personal injuries in the event of a crash.

131

Front Seats

ADJUSTING THE HEAD
RESTRAINT - VEHICLES WITH:
FRONT 4-WAY HEAD RESTRAINTS

WARNING:

Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk
of neck injury in the event of a crash. Do
not adjust the head restraint when your
vehicle is moving.

WARNING:

The head restraint is a

WARNING:

Adjust the head

restraints for all passengers before you
drive your vehicle. This will help minimize
the risk of neck injury in the event of a
crash. Do not adjust the head restraints
when your vehicle is moving.

To raise the head restraint, pull the head
restraint up.

To lower the head restraint:

Press and hold the adjust and release
button.

2. Push the head restraint down.

To tilt the head restraint:

E327919

Adjust the seat backrest to an upright
driving or riding position.

2. Pivot the head restraint forward toward

your head to the preferred position.

After the head restraint reaches the
forward-most tilt position, pivot it forward
again to release it to the rearward, untilted
position.

Note:

Do not attempt to force the head

restraint backward after it is tilted. Instead,
continue tilting it forward until the head
restraint releases to the upright position.

ADJUSTING THE HEAD
RESTRAINT - VEHICLES WITH:
FRONT FIXED HEAD RESTRAINTS

E174407

The non-adjustable head restraints consist
of a trimmed foam covering over the upper
structure of the seat backrest.

133

Front Seats

Properly adjust the seat backrest to an
upright driving or riding position, so that
the head restraint is positioned as close as
possible to the back of your head.

REMOVING THE HEAD RESTRAINT

Pull up the head restraint until it
reaches its highest position.

2. Press and hold the adjust and unlock

button.

3. Pull up the head restraint.

INSTALLING THE HEAD
RESTRAINT

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

MOVING THE SEAT BACKWARD
AND FORWARD

E384940

ADJUSTING THE SEAT BACKREST

WARNING:

Do not place cargo or

any objects behind the seatback before
returning it to the original position.

E384941

ADJUSTING THE SEAT HEIGHT

E384942

ADJUSTING THE LUMBAR
SUPPORT

E384943

134

Front Seats

HEATED SEATS

(IF EQUIPPED)

HEATED SEAT PRECAUTIONS

WARNING:

Use caution when using

the heated seat if you are unable to feel
pain to your skin because of advanced
age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use,
exhaustion or other physical conditions.
The heated seat could cause burns even
at low temperatures, especially if used
for long periods of time. Failure to follow
this instruction could result in personal
injury.

WARNING:

Do not poke sharp

objects into the seat cushion or seat
backrest. This could damage the heated
seat element and cause it to overheat.
Failure to follow this instruction could
result in personal injury.

WARNING:

Do not place anything

on the seat that blocks the heat, for
example a seat cover or a cushion. This
could cause the seat to overheat. Failure
to follow this instruction could result in
personal injury.

Do not:
•

Place heavy objects on the seat.

•

Operate the heated seat if water or any
other liquid spills on the seat. Allow the
seat to dry.

SWITCHING THE HEATED SEATS
ON AND OFF

The vehicle must be running to use this
feature.

E374074

Press this symbol on the
touchscreen to switch on the
heated seats.

Select your preferred heat level or off. You
can also slide the menu bar up to control
the heat intensity.

More indicator lights indicate the warmer
temperature of the seat.

Note:

The heated seats turn on during a

remote start if they are enabled.

Note:

The heated seats may turn on when

you start your vehicle if they were on when
you previously switched your vehicle off.

Note:

When you switch on the auto setting,

the heated seats turn on to match your
climate control setting.

VENTILATED SEATS

(IF EQUIPPED)

VENTILATED SEAT PRECAUTIONS

Do not:
•

Spill liquid on the front seats. This may
cause the air vent holes to become
blocked and not work properly.

•

Place cargo or objects under the seats.
They may block the air intake causing
the air vents to not work properly.

SWITCHING THE VENTILATED
SEATS ON AND OFF

The vehicle must be running to use this
feature.

E374075

Press this symbol on the
touchscreen to switch on the
ventilated seats.

Select your preferred fan speed or off. You
can also slide the menu bar up to control
the fan speed.

More indicator lights indicate higher fan
speeds.

Note:

The ventilated seats turn on during

a remote start if they were on when you
previously switched your vehicle off.

135

Front Seats

WHAT IS THE REAR
OCCUPANT ALERT SYSTEM

The rear occupant alert system monitors
the vehicle conditions and notifies you to
check for rear seat occupants when you
switch the ignition off. The notifications
are in the form of warnings inside the
vehicle.

HOW DOES THE REAR
OCCUPANT ALERT SYSTEM
WORK

The system monitors the activity of turning
the ignition on and off to indicate the
potential presence of an occupant in the
rear seat.

A message displays in the touchscreen and
an audible warning sounds when you
switch the ignition off.

REAR OCCUPANT ALERT
SYSTEM PRECAUTIONS

WARNING:

On hot days, the

temperature inside the vehicle can rise
very quickly. Exposure of people or
animals to these high temperatures for
even a short time can cause death or
serious heat related injuries, including
brain damage. Small children are
particularly at risk.

WARNING:

Do not leave children

or pets unattended in your vehicle.
Failure to follow this instruction could
result in personal injury or death.

REAR OCCUPANT ALERT
SYSTEM LIMITATIONS

The system does not detect the presence
of objects or passengers in the rear seat.
It monitors the activity of turning the
ignition on and off.

Note:

It is possible to receive an alert when

there is no rear seat occupant, but alert
conditions are met.

REAR OCCUPANT ALERT
SYSTEM SETTINGS

Press

Settings

on the touchscreen.

2. Press

Vehicle

3. Switch

Rear Occupant Alert

on or off.

Note:

The default setting is ON.

Note:

Performing a factory reset causes the

system to switch on again.

Semiannual Reminder

When you switch the system off, a
message appears every six months as a
reminder that the system is off. You can
switch the system back on or leave it off.

138

Rear Occupant Alert System

HOW DOES THE MEMORY
FUNCTION WORK

The memory function recalls the position
of these features:
•

Driver seat.

•

Power mirrors.

MEMORY FUNCTION
PRECAUTIONS

WARNING:

Before activating the

memory seat, make sure that the area
immediately surrounding the seat is clear
of obstructions and that all occupants
are clear of moving parts.

WARNING:

Do not use the memory

function when your vehicle is moving.

LOCATING THE MEMORY
FUNCTION BUTTONS

E331901

The memory function buttons are on the
driver door.

SAVING A PRESET POSITION

Switch the ignition on.

2. Adjust the memory features to your

preferred position.

3. Press and hold the preferred preset

button until you hear a single tone.

A confirmation message appears in the
information cluster display.

You can save up to three preset memory
positions at any time.

RECALLING A PRESET
POSITION

Press and release a preset button.

Note:

You can only recall a preset memory

position when the ignition is off, or when you
place the transmission in park (P) or neutral
(N) if the ignition is on and the vehicle is not
moving.

Note:

Pressing any of the memory feature

controls during a memory recall cancels the
operation.

You can also recall a preset memory
position by:
•

Pressing the unlock button on your
remote control if you linked it to a
preset position.

•

Unlocking the intelligent driver door
handle if a linked remote control is
present.

Note:

Using a linked remote control to

recall your memory position when the
ignition is off moves the seat and steering
column to the easy entry position.

Linking a Preset Position to your
Remote Control

You can save preset memory positions for
up to three remote controls.

140

Memory Function

(If Equipped)

GARAGE DOOR OPENER
INTRODUCTION

HomeLink Wireless Control
System

The universal garage door opener replaces
the common handheld garage door opener
with a three-button transmitter integrated
into the driver-side sun visor.

E188211

How Does The Garage Door Opener
Work

The system includes two primary features,
a garage door opener and a platform for
remote activation of devices within the
home. You can program garage doors as
well as entry gate operators, security
systems, entry door locks and home or
office lighting.

Additional assistance can be found online
at

www.homelink.com/Ford

or by calling

the toll-free help line at 1-800-355-3515.

Garage Door Opener Limitations

Canadian radio-frequency laws require
transmitter signals to time out, or quit,
after several seconds – which may not be
long enough for HomeLink to pick up the
signal. U.S. gate operators time-out in the
same manner.

GARAGE DOOR OPENER
PRECAUTIONS AND
FREQUENCIES

Garage Door Opener Precautions

WARNING:

Do not use the system

with any garage door opener that does
not have the safety stop and reverse
feature as required by U.S. Federal
Safety Standards (this includes any
garage door opener manufactured
before April 1, 1982). A garage door
opener which cannot detect an object,
signaling the door to stop and reverse,
does not meet current federal safety
standards. Using a garage door opener
without these features increases the risk
of serious injury or death.

FCC and RSS-210 Industry Canada
Compliance

WARNING:

Changes or

modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.

This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.

142

Garage Door Opener

(If Equipped)

This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment. End Users must
follow the specific operating instructions
for satisfying RF exposure compliance. This
transmitter must be at least 8 in (20 cm)
from the user and must not be co-located
or operating in conjunction with any other
antenna or transmitter.

PROGRAMMING THE GARAGE
DOOR OPENER

To clear all stored codes in the garage door
opener in your vehicle, use the

clear

function. To override one button, use the

reprogram

function.

Note:

Make sure that the garage door and

security device are free from obstruction
when you are programming. Do not program
the system with the vehicle in the garage.

Clearing the Garage Door Opener

E188213

To clear all stored codes in the garage door
opener in the vehicle:

Press and hold the outer two function
buttons simultaneously for
approximately 10 seconds until the
indicator above the buttons flashes
rapidly.

2. When the indicator flashes, release the

buttons.

Note:

This clears all stored codes. You

cannot erase individual buttons.

Note:

You can program a maximum of

three devices. To change or replace any of
the three devices after they have been
initially programmed, you must either clear
all codes, or reprogram each individual
button.

Note:

We recommend that upon the sale

or lease termination of your vehicle, you
erase the programmed function buttons for
security reasons.

Reprogramming the Garage Door
Opener

If a button on your garage door opener has
already been programmed, you can
override it. To program a device to a
previously trained button:

Press and hold the desired button for
approximately 20 seconds until the
indicator begins to flash.

2. Without releasing the button, proceed

to Step 3 of

Programming the

Garage Door Opener to your
Handheld Transmitter

Programming the Garage Door
Opener to your Handheld
Transmitter

Note:

The programming steps below

assume you are programming a HomeLink
that was not previously programmed. If your
HomeLink was previously programmed, you
may need to

clear

reprogram

your

HomeLink buttons.

Note:

Put a new battery in the handheld

transmitter. This allows for quicker training
and accurate transmission of the
radio-frequency signal.

Note:

Make sure that the garage door and

security device are free from obstruction
when you are programming. Do not program
the system with the vehicle in the garage.

143

Garage Door Opener

(If Equipped)

E188213

To program your in-vehicle HomeLink
function button with your handheld
transmitter:

With your vehicle parked outside of the
garage, switch your vehicle on, but do
not start your vehicle.

2. Press and release one of the three

HomeLink function buttons that you
would like to program.

Note:

The indicator should begin to flash.

If the indicator does not flash, press and
hold the function button for 20 seconds until
the indicator begins to flash.

3. Hold your handheld garage door

transmitter 1–3 in (2–8 cm) away from
the HomeLink button you want to
program.

4. Press and hold the handheld

transmitter button you want to
program while watching the indicator
on HomeLink. Continue to hold the
handheld button until the HomeLink
indicator flashes rapidly or is
continuously on.

Note:

You may need to use a different

method if you live in Canada or have
difficulties programming your gate operator
or garage door opener.

5. Press and hold the HomeLink button

you programmed for two seconds, then
release. You may need to do this twice
to activate the door.

Note:

If the indicator stays on, the

programming is complete.

Note:

If the HomeLink indicator flashes

rapidly, repeat Step 5.

Note:

If your device still does not operate,

you must program your garage door.

6. To program additional buttons, repeat

Steps 1–4.

Note:

Make sure you keep the original

remote control transmitter for use in other
vehicles as well as for future system
programming.

Programming the Garage Door
Opener to your Garage Door
Opener Motor

Note:

Make sure that the garage door and

security device are free from obstruction
when you are programming. Do not program
the system with the vehicle in the garage.

E142659

Press the learn button on the garage
door opener motor and then you have
30 seconds to complete the next two
steps.

2. Return to your vehicle.

144

Garage Door Opener

(If Equipped)

E188212

3. Press and hold one of the three

HomeLink function buttons you want
to program for two seconds, then
release.

4. Repeat Step 3. Depending on your

brand of garage door opener, you may
need to repeat this sequence a third
time.

Additional assistance can be found online
at

www.homelink.com/Ford

or by calling

the toll-free help line at 1-800-355-3515.

Programming the Garage Door
Opener to your Gate Opener Motor

Gate Operator / Canadian
Programming

Canadian radio-frequency laws require
transmitter signals to time-out (or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink to pick up the signal during
programming. Similar to this Canadian law,
some U.S. gate operators are designed to
time-out in the same manner.

Note:

If programming a garage door opener

or gate operator, it is advised that you
unplug the device during the

cycling

process

to prevent possible overheating.

Press and release your handheld
transmitter,

every two seconds

, until

the HomeLink indicator flashes rapidly
or is continuously on.

2. Release the handheld transmitter

button.

3. Press and hold the HomeLink function

button you want to program for two
seconds, then release. You may need
to do this twice to activate the door.

Note:

If the indicator stays on, the

programming is complete.

Note:

If the HomeLink indicator flashes

rapidly, repeat Step 3.

4. To program additional buttons, repeat

Steps 1–4.

Additional assistance can be found online
at

www.homelink.com/Ford

or by calling

the toll-free help line at 1-800-355-3515.

GARAGE DOOR OPENER
ADDITIONAL ASSISTANCE

Video Setup Instructions

Universal Garage Door Opener: HomeLink

Universal Garage Door Opener: HomeLink
for Genie Intellicode 2

Universal Garage Door Opener Homelink for
Genie Intellicode

Additional assistance can be found online
at

www.homelink.com/Ford

or by calling

the toll-free help line at 1-800-355-3515.

145

Garage Door Opener

(If Equipped)

LOCATING THE USB PORTS

Data Transfer USB Ports

E250655

The USB ports could be in the following
locations:

•

On the lower instrument panel.

•

Inside the center console.

Note:

These USB ports can also charge

devices.

Note:

Not all USB ports in your vehicle have

data transfer capabilities.

Note:

We recommend using only USB-IF

certified cables and adapters. Non-certified
cables and adapters may not work.

Charge Only USB Ports

E263583

The USB ports could be in the following
locations:

•

On the lower instrument panel.

•

Inside the center console.

•

On the windshield, behind the rear view
mirror.

E361781

PLAYING MEDIA USING THE
USB PORT

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

Connect your device to a data transfer USB
port.

E100027

Press the audio button on the
home screen.

Select

Sources

Select the USB option.

Press to play a track. Press again
to pause the track.

Press to skip to the next track.

Press and hold to fast forward
through the track.

Press once to return to the
beginning of a track. Repeatedly
press to return to previous

tracks.

Press and hold to fast rewind.

CHARGING A DEVICE

Connect your device to the USB port.

146

USB Ports

WHAT IS THE POWER OUTLET

The power outlet can power devices using
a 12 V outlet adapter.

POWER OUTLET
PRECAUTIONS

When you switch the vehicle on, you can
use the socket to power 12 V appliances
with a stable current rating of 15 A. Do not
use the power point over the vehicle
capacity of 12 V DC 180 watts or a fuse
could blow. Do not plug in any device that
supplies power to the vehicle through the
power points. This could result in damage
to vehicle systems. Do not hang any
accessory from the accessory plug. Always
keep the power point caps closed when
not in use. Do not insert objects other than
an accessory plug into the power point.

To prevent the battery from running out of
charge:
•

Do not use the power point longer than
necessary when the vehicle is off.

•

Do not leave devices plugged in
overnight or when you park your vehicle
for extended periods.

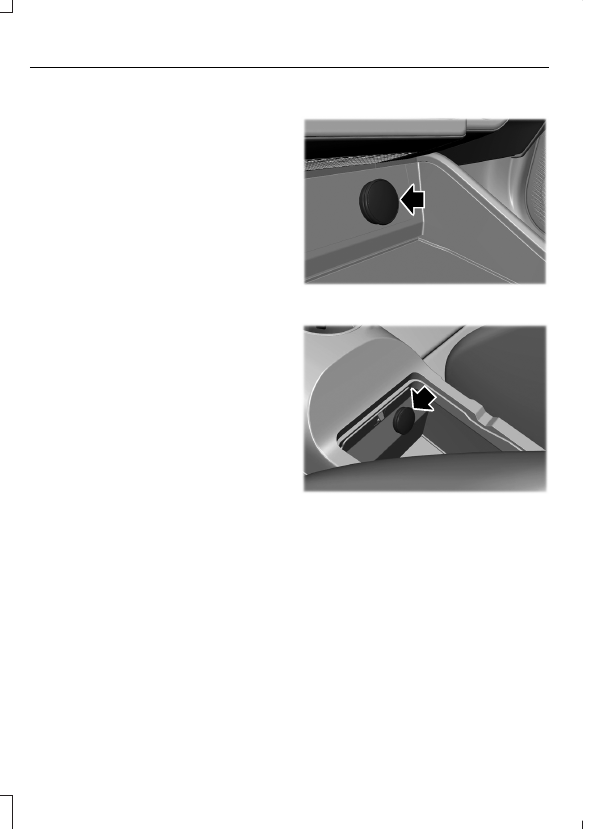

LOCATING THE POWER
OUTLETS

The power outlets are located in the media
bin below the instrument panel and inside
the center console bin.

Below the Instrument Panel

E395979

Inside the Center Console

E395978

148

Power Outlet

WHAT IS THE WIRELESS
ACCESSORY CHARGER

The wireless accessory charger allows you
to charge one compatible Qi wireless
charging device on the charging area.

WIRELESS ACCESSORY
CHARGER PRECAUTIONS

WARNING:

Wireless charging

devices can affect the operation of
implanted medical devices, including
cardiac pacemakers. If you have any
implanted medical devices, we
recommend that you consult with your
physician.

WARNING:

Remove all metal

objects like coins and keys from the
charging surface and remove any metal
objects attached to your mobile phone
before placing the device on the charging
surface. Some mobile devices or cases
may attract metal objects. Metal objects
on the charging surface or attached to
the phone may become hot while
charging is active. If an object is left on
or near the charging surface or attached
to the phone while the device is charging,
let the objects cool before removing to
prevent personal injury.

Keep the charging area clean and remove
foreign objects prior to charging a device.

Do not place items with a magnetic strip
or radio-frequency identification chip, for
example passports, parking tickets,
transportation passes or credit cards, near
the charging area when charging a device.
Damage could occur to the magnetic strip
or radio-frequency identification chip.

Do not place metal objects, for example
remote controls, coins and candy
wrappers, on or near the charging area
when charging a device. Metal objects may
heat up and degrade the charging
performance, in addition to causing
interruptions in charging.

Charging could be interrupted, degraded,
or could stop if any of the following occur:

•

The system detects a foreign object.

•

The device is misaligned on the
charging area.

•

The device moves on the active
charging area when the vehicle is in
motion.

•

The vehicle ambient temperature is too
high.

•

You attempt to charge a non-Qi
compatible device on the wireless
charger.

Note:

During charging, the device and the

charger could heat up, this is normal. If the
battery gets hotter than usual, the device
may stop charging.

LOCATING THE WIRELESS
ACCESSORY CHARGER

E297549

The charging area is in the center
console media bin below the
instrument panel.

CHARGING A WIRELESS
DEVICE

Place the device on the center of the
charging surface with the charging side
down. The charging stops after your device
reaches a full charge.

You can use the charger when the vehicle
is in accessory mode, when the vehicle is
running or when the touchscreen is on.

149

Wireless Accessory Charger

Ford Mustang (2024 year). Manual in english - page 4
