Washer Fluid Specification

(page

377).

WIPERS AND WASHERS –
TROUBLESHOOTING

WIPERS AND WASHERS –
WARNING LAMPS

E132353

Illuminates when the windshield
washer fluid is low.

WIPERS AND WASHERS –
FREQUENTLY ASKED QUESTIONS

Why are there streaks and smears
on the windshield?

•

The wiper blades could be dirty, worn
or damaged. Check the wiper blades.
See

Checking the Wiper Blades

(page 92). If the wiper blades are dirty,
clean them with washer fluid or water
applied with a soft sponge or cloth. If
the wiper blades are worn or damaged,
install new ones. See

Replacing the

Front Wiper Blades

(page 92).

Wipers and Washers

EXTERIOR LIGHTING
CONTROL

E327629

Lamps off.

Parking lamps on.

Autolamps on.

Headlamps on.

Rotate the control to make a selection.

Note:

The lighting control defaults to

autolamps every time you switch your
vehicle on.

HEADLAMPS

USING THE HIGH BEAM
HEADLAMPS

E328253

E67019

Push the lever away from you to
switch the high beams on.

Push the lever forward again or pull the
lever toward you to switch the high beams
off.

Slightly pull the lever toward you and
release it to flash the headlamps.

Note:

Continuous activation only with

headlamps on.

SWITCHING HEADLAMP EXIT
DELAY ON AND OFF

To switch headlamp exit delay on, pull the
turn signal lever toward you after switching
your vehicle off.

To switch headlamp exit delay off, pull the
turn signal lever toward you again or switch
your vehicle on.

Note:

The headlamps turn off after three

minutes with any door open or 30 seconds
after the last door closes.

HEADLAMP INDICATORS

Lamps On

E71341

Illuminates when you switch the
low beam headlamps or the
parking lamps on.

Headlamp High Beam

E67019

Illuminates when you switch the
high beam headlamps on.

Exterior Lighting

HEADLAMPS –
TROUBLESHOOTING

HEADLAMPS – FREQUENTLY
ASKED QUESTIONS

Why is there condensation in the
headlamps?

•

Headlamps have vents to
accommodate normal changes in air
pressure. Condensation can be a
natural by-product of this design.
When moist air enters the lamp
assembly through the vents, there is a
possibility that condensation can occur
when the temperature is cold. When
normal condensation occurs, a fine
mist can form on the interior of the
lens. The fine mist eventually clears
and exits through the vents during
normal operation.

How much condensation is
acceptable?

•

The presence of a fine mist, for
example no streaks, drip marks or large
droplets. A fine mist covers less than
50% of the lens.

How long does it take for the
acceptable condensation to clear?

•

Clearing time can take as long as 48
hours under dry weather conditions.

How much condensation is
unacceptable?

•

A water puddle inside the lamp.
Streaks, drip marks or large droplets
present on the interior of the lens.

What should I do if unacceptable
condensation is present?

•

Have your vehicle checked as soon as
possible.

Why do my headlamps turn off
when I have them switched on
when I switch my vehicle off?

•

The battery saver turns the headlamps
off after a short period of time after you
switch your vehicle off.

AUTOLAMPS

WHAT ARE AUTOLAMPS

WARNING:

The system does not

relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the headlamps on in low visibility
conditions, for example daytime fog.

Autolamps turn the headlamps on in low
light situations or when the windshield
wipers operate.

AUTOLAMP SETTINGS

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Lighting

4. Press

Autolamp Delay

5. Press a setting.

Exterior Lighting

EXTERIOR LAMPS

USING THE TURN SIGNAL LAMPS

E242676

E67018

Push the lever up or down to
switch the turn signal lamps on.

Set the lever to the middle position to
switch the turn signal lamps off.

Note:

Tap the lever up or down to make the

turn signal lamps flash three times.

Turn Signal Lamp Indicator

E67018

It flashes when you switch the
turn signal lamps on.

Note:

An increase in the rate of flashing

warns of a failed turn signal lamp.

SWITCHING THE DAYTIME
RUNNING LAMPS ON AND OFF -
VEHICLES WITH: CONFIGURABLE
DAYTIME RUNNING LAMPS

WARNING:

The daytime running

lamps system does not activate the rear
lamps and may not provide adequate
lighting during low visibility driving
conditions. Make sure you switch the
headlamps on, as appropriate, during all
low visibility conditions. Failure to do so
may result in a crash.

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Lighting

4. Switch

Daytime Running Lights

on or

off.

The daytime running lamps turn on when
all of the following occur:
•

You switch the system on.

•

You switch your vehicle on.

•

The transmission is not in park (P) for
vehicles with automatic transmissions
or you release the parking brake for
vehicles with manual transmissions.

•

The lighting control is in the autolamps
position.

•

The headlamps are off.

Note:

Other lighting control positions do

not turn on the daytime running lamps.

Exterior Lighting

SWITCHING THE DAYTIME
RUNNING LAMPS ON AND OFF -
VEHICLES WITH: DAYTIME
RUNNING LAMPS (DRL)

(If Equipped)

WARNING:

The daytime running

Daytime running lamps are always on
unless you switch on the headlamps or
your vehicle is in park (P).

SWITCHING WELCOME LIGHTING
ON AND OFF

Welcome lighting turns on the exterior
lamps when you approach your vehicle
with an authenticated device.

Press

Settings

on the touchscreen.

2. Press

Vehicle

3. Press

Lighting

4. Switch

Welcome Lighting

on or off.

Note:

Welcome lighting still displays when

you use your remote control to unlock your
vehicle.

EXTERIOR LAMP INDICATORS

Turn Signal Lamp

E67018

It flashes when you switch the
turn signal lamps on.

Note:

An increase in the rate of flashing

warns of a failed turn signal lamp.

EXTERIOR LAMPS ON AUDIBLE
WARNING

Sounds when you open the driver door and
the exterior lamps are on.

AUTOMATIC HIGH BEAM
CONTROL

HOW DOES AUTOMATIC HIGH
BEAM CONTROL WORK

Automatic high beam control turns the
high beams on if it is dark enough and no
other traffic is present. If it detects an
approaching vehicle’s headlamps or tail
lamps, or street lighting ahead, the system
turns the high beams off.

A camera sensor, centrally mounted
behind the windshield of your vehicle,
continuously monitors conditions to turn
the high beams on and off.

Exterior Lighting

E327596

Without automatic high beam
control.

With automatic high beam
control.

AUTOMATIC HIGH BEAM
CONTROL PRECAUTIONS

WARNING:

The system does not

relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the high beams on or off.

WARNING:

The system may not

switch the high beams off if the lights of
oncoming vehicles are hidden by
obstacles, for example guard rails.

WARNING:

You may need to

override the system when approaching
other road users.

WARNING:

In situations with poor

visibility, such as fog, heavy rain or other
inclement weather, you may need to
override or completely switch off the
system.

AUTOMATIC HIGH BEAM
CONTROL REQUIREMENTS

The system turns the high beams on if all
of the following occur:
•

You switch the system on.

•

You set the lighting control to the
autolamps position.

•

The ambient light level is low enough
that you require high beams.

•

There is no traffic in front of your
vehicle.

•

The vehicle speed is greater than
approximately 25 mph (40 km/h).

AUTOMATIC HIGH BEAM
CONTROL LIMITATIONS

The system turns the high beams off if any
of the following occur:
•

You switch the system off.

•

You set the lighting control to any
position except autolamps.

•

The ambient light level is high enough
that you do not require high beams.

•

The system detects an approaching
vehicle's headlamps or a leading
vehicle's tail lamps.

Exterior Lighting

•

The system detects severe rain, snow
or fog.

•

The system detects street lighting.

•

The camera has reduced visibility.

•

The vehicle speed falls below
approximately 19 mph (30 km/h).

SWITCHING AUTOMATIC HIGH
BEAM CONTROL ON AND OFF

Press

Settings

on the touchscreen.

2. Press

Vehicle

3. Press

Lighting

4. Switch

Auto High Beam

on or off.

AUTOMATIC HIGH BEAM
CONTROL INDICATORS

E146105

Illuminates to confirm when the
system is ready to assist.

OVERRIDING AUTOMATIC HIGH
BEAM CONTROL

E248603

Push the lever away from you to switch
the high beams on.

Push the lever away from you again to
switch the high beams off.

Push the lever away from you for a third
time to switch automatic high beam
control back on.

AUTOMATIC HIGH BEAM CONTROL – TROUBLESHOOTING

AUTOMATIC HIGH BEAM CONTROL – INFORMATION MESSAGES

Details

Message

The camera has reduced visibility. Clean the windshield. If
the message continues to appear, have your vehicle checked
as soon as possible.

Front Camera Low Visib-
ility Clean Screen

The camera has malfunctioned. Wait a short period of time
for the camera to cool down. If the message continues to
appear, have your vehicle checked as soon as possible.

Front Camera Tempor-
arily Not Available

The camera has malfunctioned. Have your vehicle checked
as soon as possible.

Front Camera Malfunc-
tion Service Required

100

Exterior Lighting

SWITCHING ALL OF THE
INTERIOR LAMPS ON AND OFF

Switching All of the Interior Lamps
On

E259649

Press the button on the
overhead console toward the
icon.

Switching All of the Interior Lamps
Off

Press the button on the
overhead console toward the
icon.

SWITCHING THE FRONT
INTERIOR LAMPS ON AND OFF

E249791

Press the edge of the lamp lens.

INTERIOR LAMP FUNCTION

WHAT IS THE INTERIOR LAMP
FUNCTION

The interior lamp function switches the
courtesy and door lamps on or off.

SWITCHING THE INTERIOR LAMP
FUNCTION ON AND OFF

The switch is on the overhead console.

E299443

Set the switch to the middle position.

When you switch the interior lamp function
on, the interior lamps turn on if:

•

You open a door.

•

You press the unlock button on the
remote control.

•

You switch the ignition off.

ADJUSTING THE INSTRUMENT
PANEL LIGHTING
BRIGHTNESS

The instrument lighting dimmer buttons
are on the lighting control.

E291299

E296433

Repeatedly press one of the
buttons to adjust the brightness.

AMBIENT LIGHTING

(IF EQUIPPED)

SWITCHING AMBIENT LIGHTING
ON AND OFF

From the My Mustang menu, press

MyColor

. See

My Mustang Overview

(page 401).

2. Press

Ambient Light

3. Use the arrows to select a color and

brightness.

101

Interior Lighting

OPENING AND CLOSING THE
WINDOWS - CONVERTIBLE

WARNING:

Do not leave children

or pets unattended in your vehicle and
do not let children play with the power
windows. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

When closing the

power windows, verify that they are free
of obstructions and make sure children
and pets are not in the proximity of the
window openings. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

If an obstruction is

detected, release the switch and reverse
the window immediately. Failure to
follow this instruction could result in
personal injury or death.

WARNING:

Do not leave a key or

remote control unattended in the vehicle.
Children or pets could operate the power
windows and could become trapped in
a closing window. Failure to follow this
instruction could result in personal injury
or death.

E180087

Press the window control switch to open
the window. Lift the window control
switch to close the window.

Note:

The power windows operate with the

ignition on, and for several minutes after you
switch the ignition off or until you open a
front door.

Note:

Use the single control to open and

close both rear windows.

To reduce wind noise or pulsing noise when
one window is open, slightly open the
opposite window.

One-Touch Open

Fully press the window control switch and
release it. Press again or lift it to stop the
window.

One-Touch Close

Fully lift the window control switch and
release it. Press again or lift it to stop the
window.

Resetting One-Touch Close

Carry out all steps within 30 seconds of
starting the sequence.

Press and hold the window control
switch until the window is fully open.

2. Lift and hold the window control switch

until the window is fully closed. The
glass auto retracts.

3. Once auto retract is completed, lift and

hold the window control switch until
the window is fully closed. Hold the
window control switch for a few
seconds.

Note:

Repeat the procedure if the window

does not close when you use one-touch.

103

Windows

OPENING AND CLOSING THE
WINDOWS - COUPE

WARNING:

Do not leave children

or pets unattended in your vehicle and
do not let children play with the power
windows. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

When closing the

WARNING:

If an obstruction is

detected, release the switch and reverse
the window immediately. Failure to
follow this instruction could result in
personal injury or death.

WARNING:

Do not leave a key or

Press the window control switch
to open the window. Lift the
window control switch to close

the window.

Note:

The power windows operate with the

ignition on, and for several minutes after you
switch the ignition off or until you open a
front door.

To reduce wind noise or pulsing noise when
one window is open, slightly open the
opposite window.

One-Touch Open

Fully press the window control switch and
release it. Press again or lift it to stop the
window.

One-Touch Close

Fully lift the window control switch and
release it. Press again or lift it to stop the
window.

Resetting One-Touch Close

Carry out all steps within 30 seconds of
starting the sequence.

Press and hold the window control
switch until the window is fully open.

2. Lift and hold the window control switch

until the window is fully closed. The
glass auto retracts.

3. Once auto retract is completed, lift and

hold the window control switch until
the window is fully closed. Hold the
window control switch for a few
seconds.

Note:

Repeat the procedure if the window

does not close when you use one-touch.

GLOBAL OPENING

WHAT IS GLOBAL OPENING

You can use the remote control to open
the windows with the ignition off.

USING GLOBAL OPENING

Press and release the unlock button on
the remote control.

2. Press and hold the unlock button on

the remote control.

3. Release the button when the windows

start to open.

104

Windows

Press the lock or the unlock button on the
remote control to stop global opening.

Note:

You can use global opening for a

short period of time when you unlock your
vehicle using the remote control.

SWITCHING GLOBAL OPENING ON
AND OFF

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Windows

4. Switch

Remote Open

on or off.

WINDOW BOUNCE-BACK

WHAT IS WINDOW BOUNCE-BACK

The window stops and reverses if it detects
an obstruction when closing.

OVERRIDING WINDOW BOUNCE-
BACK

WARNING:

If you override

bounce-back, the window does not
reverse if it detects an obstacle. Take
care when closing the windows to avoid
personal injury or damage to your
vehicle.

Close the window until it reaches the
point of resistance and let it reverse.

2. Lift and hold the window control switch

within two seconds to override
bounce-back and close the window.
Bounce-back is now disabled and you
can close the window manually.

Note:

The window goes past the point of

resistance and you can fully close it.

Note:

If the window does not close, have

your vehicle checked as soon as possible.

105

Windows

INTERIOR MIRROR
PRECAUTIONS

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

Note:

Do not clean the mirror housing or

glass with harsh abrasives, fuel or other
petroleum-based cleaning products.

AUTO-DIMMING INTERIOR
MIRROR

(IF EQUIPPED)

WHAT IS THE AUTO-DIMMING
INTERIOR MIRROR

The mirror dims to reduce the effect of
bright light from behind. It returns to
normal when the bright light from behind
is no longer present or if you shift into
reverse (R).

AUTO-DIMMING INTERIOR
MIRROR LIMITATIONS

Do not block the sensors on the front and
back of the mirror.

Note:

A rear center passenger or raised rear

center head restraint could prevent light
from reaching the sensor.

106

Interior Mirror

ADJUSTING THE EXTERIOR
MIRRORS

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

E375555

Left-hand mirror.

Right-hand mirror.

Adjustment control.

To adjust the mirrors, switch your vehicle
on, with the push button start in accessory
mode or your vehicle running.

Select the mirror you want to adjust.
The control light turns on.

2. Use the adjustment control to adjust

the position of the mirror.

3. Press the mirror control again. The

control light turns off.

FOLDING THE EXTERIOR
MIRRORS

WARNING:

Objects in the mirror

are closer than they appear.

Push the mirror toward the door window
glass. Make sure that you fully engage the
mirror in its support when returning it to its
original position.

Memory Mirrors

You can save and recall the mirror
positions through the memory function.
See

Saving a Preset Position

(page 140).

Directional Indicator Mirrors

When your vehicle is running, the
forward-facing portion of the appropriate
mirror housing blinks when you switch on
the turn signal.

Puddle Lamps

The puddle lamps turn on when you
approach your vehicle with a remote
control or phone. If your vehicle has
auto-folding mirrors, the puddle lamps are
only on if the mirrors are unfolded and turn
off when the mirrors fold.

AUTO-DIMMING EXTERIOR
MIRROR

(IF EQUIPPED)

WHAT IS THE AUTO-DIMMING
EXTERIOR MIRROR

The driver exterior mirror dims when the
interior auto-dimming mirror turns on.

107

Exterior Mirrors

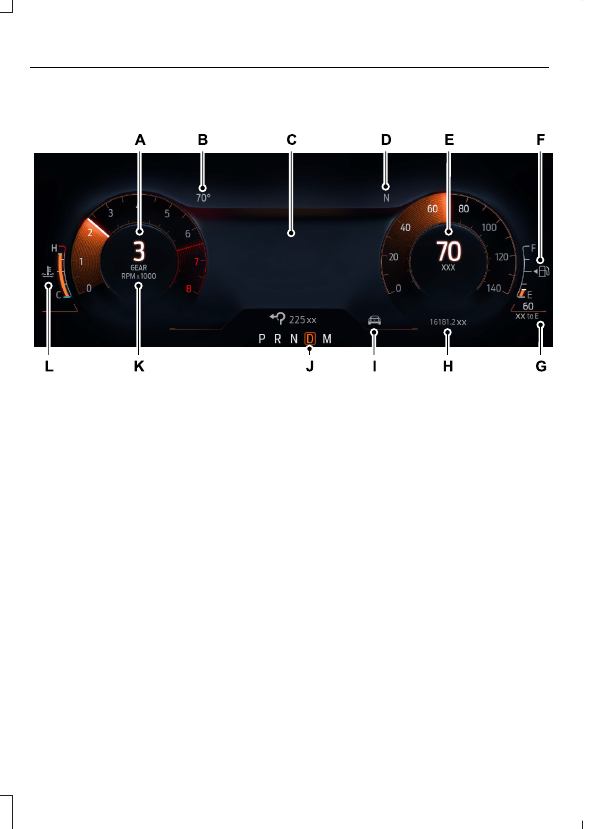

INSTRUMENT CLUSTER OVERVIEW

E375407

Gear indicator.

Outside air temperature.

Information on demand area.

Compass.

Speedometer.

Fuel gauge.

Distance to empty.

Odometer.

Drive mode indicator.

Transmission position indicator.

Tachometer.

Engine coolant temperature.

TACHOMETER

Indicates the engine speed.

SPEEDOMETER

Indicates the vehicle speed.

108

Instrument Cluster

Secondary Speedometer

You can select a secondary speedometer
that displays other measurement units.

Note:

When only the primary speedometer

is shown, the units are the same as the trip
distance units selected. See

Changing the

Measurement Unit

(page 115).

FUEL GAUGE

WHAT IS THE FUEL GAUGE

Indicates approximately how much fuel is
in the fuel tank.

FUEL GAUGE LIMITATIONS

The fuel gauge may not provide an
accurate reading when your vehicle is on
an incline.

LOCATING THE FUEL FILLER
DOOR

The arrow adjacent to the fuel pump
symbol indicates on which side of your
vehicle the fuel filler door is located.

WHAT IS THE LOW FUEL
REMINDER

A low fuel level reminder displays and
sounds when the distance to empty
reaches 50 mi (80 km), 25 mi (40 km),
10 mi (20 km) and 0 mi (0 km).

Note:

The low fuel reminder can appear at

different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

WHAT IS DISTANCE TO EMPTY

Indicates the approximate distance your
vehicle can travel on the fuel remaining in
the tank. Changes in driving pattern can
cause the value to not only decrease but
also increase or stay constant for periods
of time.

ENGINE COOLANT
TEMPERATURE GAUGE

Indicates the engine coolant temperature.

WHAT ARE THE INSTRUMENT
CLUSTER WARNING LAMPS

Warning lamps alert you to a vehicle
condition that could become serious.
Some lamps illuminate when you start
your vehicle to make sure they work. If any
lamps remain on after starting your vehicle,
refer to the respective system warning
lamp for further information.

INSTRUMENT CLUSTER
WARNING LAMPS

Anti-Lock Brake System

E67020

If it illuminates when you are
driving, this indicates a
malfunction. Your vehicle

continues to have normal braking without
the anti-lock brake system function. Have
your vehicle checked as soon as possible.
See

Anti-Lock Braking System

(page

181).

Battery

E67021

It illuminates when you switch
the ignition on.

109

Instrument Cluster

If it illuminates when the engine is running,
this indicates your vehicle requires service.
Have your vehicle checked as soon as
possible.

Brake System

E270480

E67024

Illuminates when you apply the
parking brake and the ignition is
on. If it illuminates when your
vehicle is moving, make sure the
parking brake is released. If the
parking brake is released, this

indicates low brake fluid level or the brake
system requires service. Have your vehicle
checked as soon as possible.

Note:

Indicators may vary depending on

region.

Door Ajar

It illuminates when you switch
the ignition on and remains on if
any door is open.

Electric Parking Brake

E146190

E67024

It illuminates or flashes when the
electric parking brake requires
service.

Note:

Indicators may vary depending on

region.

Driver Alert

E387606

Illuminates when you switch the
driver alert off.

Engine Coolant Temperature

E103308

If it illuminates, safely stop your
vehicle and switch the vehicle
off.

Fasten Seatbelt

E71880

It illuminates and a tone sounds
until you fasten the seatbelts.

Front Airbag

E67017

Starting and Stopping the Engine

Airbags

(page 60).

Frost Warning Lamp

WARNING:

Even if the temperature

rises to above 39°F (4°C) there is no
guarantee that the road is free of hazards
caused by inclement weather.

It illuminates when the outside
air temperature is 39°F (4°C) or
below.

Hood Ajar

E159324

Illuminates when the ignition is
on and you do not have the hood
completely closed.

Low Beam Malfunction

E181350

Illuminates when there is a
malfunction with the low beam
headlamp bulb.

Low Fuel Level

It illuminates when the fuel level
is low.

110

Instrument Cluster

Low Tire Pressure

E139232

It illuminates when your tire
pressure is low. If illuminated,
check your tire pressure as soon

as possible. If it begins to flash at anytime,
have the system checked as soon as
possible.

Low Washer Fluid Level

E132353

It illuminates when the washer
fluid is low.

Malfunction Indicator Lamp

E67028

Illuminates when the ignition is
on and the engine is off, this is
normal. If it illuminates when the

engine is on this indicates the emission
control system requires service. If it flashes,
have your vehicle checked immediately.
See

– Warning Lamps

(page 159).

Oil Pressure

E67022

It illuminates when the engine
oil pressure is low.

Powertrain Malfunction

Illuminates when the powertrain
or four-wheel drive require
service. Have the system

checked as soon as possible.

Trunk Ajar

E159323

Illuminates when the ignition is
on and you do not have the trunk
completely closed.

WHAT ARE THE INSTRUMENT
CLUSTER INDICATORS

Indicators notify you of various features
that are active on your vehicle.

INSTRUMENT CLUSTER
INDICATORS

Adaptive Cruise Control

E144524

Adaptive Cruise Control

(page 210).

Automatic High Beam

E146105

Auto Hold

Auto Hold Active

E323448

Auto Hold

(page 195).

Auto Hold Unavailable

E323449

Auto Hold

(page 195).

Auto-Start-Stop

E121377

Blind Spot Monitor

E323542

Blind Spot Information

System

(page 239).

111

Instrument Cluster

Cruise Control

E332905

Cruise Control

(page 208).

Drift Brake

E380329

Illuminates when you switch the
drift brake on.

Front Fog Lamp

High Beam

E67019

Hill Start Assist

E387607

Illuminates when the system is
not available.

Lamps On

E71341

Exterior Lighting Control

(page 95).

Lane Centering

E297977

Lane Centering

(page 218).

Lane Keeping System

E308131

Lane Keeping System

(page 232).

Launch Control

Launch Control Ready

E375124

Launch Control Active

E375125

Launch Control Not Ready

E379192

Launch Control Ready With Traction
Control Off

E379193

Launch Control Active With Traction
Control Off

E379194

Launch Control Not Ready With
Traction Control Off

E379195

Over Speed Warning

E280486

It illuminates if the vehicle speed
exceeds the over speed
threshold.

Over speed thresholds vary depending on
region.

112

Instrument Cluster

Reverse Brake Assist

E293490

Stability Control and Traction
Control

E138639

E130458

Shift Indicator

Illuminates to inform you that
shifting to a higher gear as
indicated may give better fuel
economy and lower CO2

emissions. It does not illuminate during
periods of high acceleration, braking or
when you press the clutch pedal.

Turn Signal Lamps

E67018
