Ford Mustang (2024 year). Manual in english

E263583

Displays on the status bar when
wireless charging is in progress.

E372644

Displays on the status bar when
wireless charging has been
interrupted.

Note:

The charging performance may be

affected if your device is in a case. It may be
necessary to remove the case to wirelessly
charge your device.

Note:

Software and firmware updates may

affect device compatibility, including the
use of unofficial software or firmware. You
should verify charging functionality with your
specific devices in-vehicle.

150

Wireless Accessory Charger

CUP HOLDERS

CUP HOLDER PRECAUTIONS

WARNING:

Use caution when

stowing items or hot drinks in the cup
holders. Items could become loose or
spill during hard braking, acceleration or
crashes. Failure to follow this instruction
could result in personal injury.

GLOVE COMPARTMENT

OPENING THE GLOVE
COMPARTMENT

E375577

Pull the latch to the left to open the glove
compartment.

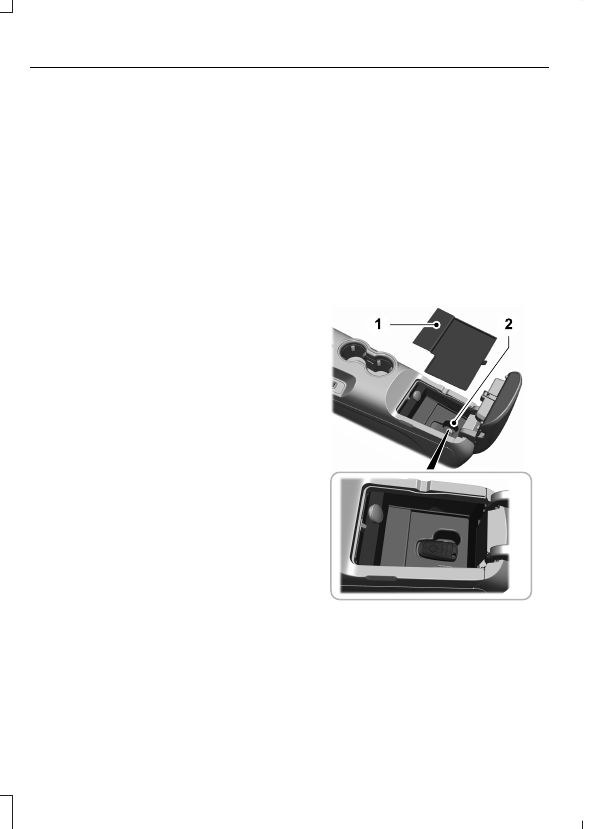

CENTER CONSOLE

OPENING THE CENTER CONSOLE

E375578

Lift the latch to open the center console.

LOCKING THE CENTER CONSOLE

(If Equipped)

E375579

The center console locks when you
electronically lock the doors. The center
console unlocks when you use the remote
control to unlock the driver door.

151

Storage

Note:

You cannot lock the center console

when the vehicle is on.

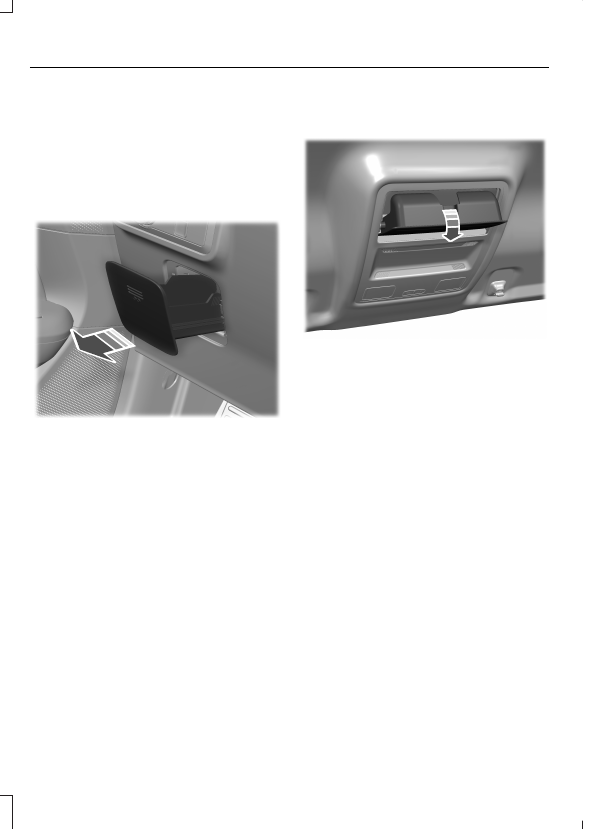

GLASSES HOLDER

LOCATING THE GLASSES HOLDER
- CONVERTIBLE

E375580

Press near the center of the door to open
it. Pull out the tray.

LOCATING THE GLASSES HOLDER
- COUPE

E375581

The glasses holder is in the overhead
console.

Press near the rear edge of the door to
open it.

152

Storage

STARTING AND STOPPING
THE ENGINE – PRECAUTIONS

WARNING:

Extended idling at high

engine speeds can produce very high
temperatures in the engine and exhaust
system, creating the risk of fire or other
damage.

WARNING:

Do not park, idle or

drive your vehicle on dry grass or other
dry ground cover. The emission system
heats up the engine compartment and
exhaust system, creating the risk of fire.

WARNING:

Do not start the engine

in a closed garage or in other enclosed
areas. Exhaust fumes are toxic. Always
open the garage door before you start
the engine. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

Do not use starting

fluid, for example ether, in the air intake
system. Such fluid could cause
immediate explosive damage to the
engine and possible personal injury.

WARNING:

Exhaust leaks may

result in entry of harmful and potentially
lethal fumes into the passenger
compartment. If you smell exhaust
fumes inside your vehicle, have your
vehicle inspected immediately. Do not
drive if you smell exhaust fumes.

The powertrain control system meets all
Canadian interference-causing equipment
standard requirements regulating the
impulse electrical field or radio noise.

Note:

If you use your vehicle regularly above

the altitude of 5,000 ft (1,524 m) and under
the temperature of -4.0°F (-20°C), it is
recommended to use the alternative engine
oil. See

Capacities and Specifications

(page 363).

If you stop your vehicle and leave the
engine idling for long periods, we
recommend that you do one of the
following:
•

Open the windows at least 1 in
(2.5 cm).

•

Set your climate control to outside air.

PUSH BUTTON IGNITION
SWITCH

E340581

Switching the Ignition Off

When the ignition is on or in accessory
mode, press the push button ignition
switch once without your foot on the brake
pedal.

Switching the Ignition to
Accessory Mode

When the ignition is off, press the push
button ignition switch once without your
foot on the brake pedal.

153

Starting and Stopping the Engine

All electrical circuits and accessories are
operational and the warning lamps and
indicators illuminate.

Note:

Your vehicle has a battery saver

feature that shuts your vehicle off when it
detects a certain amount of battery drain,
or after about 30 minutes of inactivity in
accessory mode.

Note:

The system may not function if the

remote control is close to metal objects or
electronic devices, for example keys or a cell
phone.

Note:

You need a valid key inside your

vehicle to switch the ignition on and start
the engine.

STARTING THE ENGINE

STARTING A GASOLINE ENGINE -
MANUAL TRANSMISSION

Before starting your vehicle, check the
following:
•

Make sure the headlamps and
electrical accessories are off.

•

Make sure the parking brake is on.

•

Make sure the transmission is in
neutral.

Fully press the clutch pedal.

Note:

Do not touch the accelerator pedal.

E340581

2. Press the push button ignition switch.

Note:

The engine may continue cranking

for up to 15 seconds or until it starts.

Note:

The engine takes longer to start at

lower temperatures. It may crank for several
seconds when very cold.

STARTING A GASOLINE ENGINE -
AUTOMATIC TRANSMISSION

Before starting your vehicle, check the
following:
•

Make sure that the headlamps and
electrical accessories are off.

•

Make sure that the parking brake is on.

•

Make sure that the transmission is in
park (P).

Fully press the brake pedal.

Note:

Do not touch the accelerator pedal.

E340581

2. Press the push button ignition switch.

Note:

The engine may continue cranking

for up to 15 seconds or until it starts.

Note:

The engine takes longer to start at

lower temperatures. It may crank for several
seconds when very cold.

154

Starting and Stopping the Engine

RESTARTING THE ENGINE AFTER
STOPPING IT

The system allows you to start the engine
within 20 seconds of switching it off, even
if it does not detect a valid passive key.

Within 20 seconds of switching the engine
off, fully press the brake or clutch pedal
and press the push button ignition switch.
After 20 seconds, you can no longer start
the engine if the system does not detect a
valid passive key.

When you start the engine, it remains
running until you press the push button
ignition switch, even if your vehicle does
not detect a valid passive key. If you open
and close a door when the engine is
running, the system searches for a valid
passive key.

ENGINE BLOCK HEATER

(IF

EQUIPPED)

ENGINE BLOCK HEATER
PRECAUTIONS

WARNING:

Failure to follow engine

block heater instructions could result in
property damage or serious personal
injury.

WARNING:

Do not use your heater

with ungrounded electrical systems or
two-pronged adapters. There is a risk of
electrical shock.

WARNING:

Do not fully close the

hood, or allow it to drop under its own
weight when using the engine block
heater. This could damage the power
cable and may cause an electrical short
resulting in fire, injury and property
damage.

We recommend that you do the following
for a safe and correct operation:
•

Use a 16-gauge outdoor extension cord
that is product certified by
Underwriter’s Laboratory (UL) or
Canadian Standards Association
(CSA). This extension cord must be
suitable for use outdoors, in cold
temperatures, and be clearly marked
Suitable for Use with Outdoor
Appliances. Do not use an indoor
extension cord outdoors. This could
result in an electric shock or become a
fire hazard.

•

Use as short an extension cord as
possible.

•

Do not use multiple extension cords.

•

Make sure that when in operation, the
extension cord plug and heater cord
plug connections are free and clear of
water. This could cause an electric
shock or fire.

•

If the block heater cord is under the
hood, do not remove the wiring from
its original location. Do not close the
hood on the extension wiring.

•

Make sure your vehicle is parked in a
clean area, clear of combustibles.

•

Make sure the heater, heater cord and
extension cord are firmly connected.

•

Check for heat anywhere in the
electrical hookup once the system has
been operating for about 30 minutes.

•

Make sure the system is unplugged and
properly stowed before starting and
driving your vehicle. Make sure the
protective cover seals the prongs of the
block heater cord plug when not in use.

•

Make sure the heater system is
checked for proper operation before
winter.

155

Starting and Stopping the Engine

HOW DOES THE ENGINE BLOCK
HEATER WORK

The engine block heater warms the engine
coolant. This allows the climate control
system to quickly respond. The equipment
includes a heater element installed in the
engine block and a wire harness. You can
connect the system to a grounded 110 volt
AC electrical source.

Note:

The engine block heater is most

effective when outdoor temperatures are
below 0°F (-18°C). We recommend the use
of engine block heater to improve engine
cold start performance.

USING THE ENGINE BLOCK
HEATER

Make sure the receptacle terminals are
clean and dry prior to use. Clean them with
a dry cloth if necessary.

The heater uses 0.4 to 1.0 kilowatt-hours
of energy per hour of use. The system does
not have a thermostat. It achieves
maximum temperature after
approximately three hours of operation.
Using the heater longer than three hours
does not improve system performance and
unnecessarily uses electricity.

STOPPING THE ENGINE

STOPPING THE ENGINE WHEN
YOUR VEHICLE IS STATIONARY -
MANUAL TRANSMISSION

Shift into neutral.

2. Apply the parking brake.

3. Wait until the engine reaches idle

speed.

E340581

4. Press the push button ignition switch.

STOPPING THE ENGINE WHEN
YOUR VEHICLE IS STATIONARY -
AUTOMATIC TRANSMISSION

Shift into park (P).

2. Apply the parking brake.

3. Wait until the engine reaches idle

speed.

E340581

4. Press the push button ignition switch.

156

Starting and Stopping the Engine

STOPPING THE ENGINE WHEN
YOUR VEHICLE IS MOVING -
MANUAL TRANSMISSION

WARNING:

Switching off the

engine when your vehicle is still moving
results in a significant decrease in
braking assistance. Higher effort is
required to apply the brakes and to stop
your vehicle. A significant decrease in
steering assistance could also occur. The
steering does not lock, but higher effort
could be required to steer your vehicle.
When you switch the ignition off, some
electrical circuits, for example airbags,
also turn off. If you unintentionally switch
the ignition off, shift into neutral (N) and
restart the engine.

E340581

Press and hold the push button ignition
switch until the engine stops, or press
it three times within two seconds.

2. Shift into neutral and use the brakes to

bring your vehicle to a safe stop.

3. Apply the parking brake.

STOPPING THE ENGINE WHEN
YOUR VEHICLE IS MOVING -
AUTOMATIC TRANSMISSION

WARNING:

Switching off the

E340581

Press and hold the push button ignition
switch until the engine stops, or press
it three times within two seconds.

2. Shift into neutral (N) and use the

brakes to bring your vehicle to a safe
stop.

3. Shift into park (P).

4. Apply the parking brake.

157

Starting and Stopping the Engine

AUTOMATIC ENGINE STOP

WHAT IS AUTOMATIC ENGINE
STOP

Automatic engine stop switches the engine
off if it has been idling for an extended
period to help you save fuel.

HOW DOES AUTOMATIC ENGINE
STOP WORK

Automatic engine stop turns the engine
off. The ignition also turns off to save
battery power. Before the engine shuts
down, a message appears in the
instrument cluster display showing a timer
counting down. If you do not intervene
within 30 seconds, the engine shuts down.
Another message appears in the
instrument cluster display to inform you
that the engine has shut down to save fuel.
Start your vehicle as you normally do.

SWITCHING AUTOMATIC ENGINE
STOP ON AND OFF

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Switch

30min Max Idle

on or off.

Note:

You cannot permanently switch off

the automatic shutdown. If you switch it off,
it turns on each time you switch the ignition
on.

OVERRIDING AUTOMATIC ENGINE
STOP

Note:

You cannot permanently switch off

the automatic engine stop feature. When
you switch it off temporarily, it turns on at
the next ignition cycle.

You can stop the engine shutdown, or reset
the timer, at any point before the
30-second countdown has expired by
doing any of the following:
•

Pressing the brake pedal or accelerator
pedal.

•

Pressing the

RESET

button

during the countdown.

ACCESSING THE PASSIVE KEY
BACKUP POSITION

If you are unable to start the engine, do the
following:

E386267

Open the center console storage
compartment lid.

2. Remove the plastic mat from the

console floor.

3. With the buttons facing upward and

the unlock button facing the front of
your vehicle, place the passive key into
the backup slot.

158

Starting and Stopping the Engine

4. With the key in this position, press the

brake pedal then press the push button
ignition switch to switch the ignition on
and start your vehicle.

STARTING AND STOPPING
THE ENGINE –
TROUBLESHOOTING

STARTING AND STOPPING THE
ENGINE – WARNING LAMPS

Malfunction Indicator Lamp

E67028

If it illuminates when the engine
is running, the on-board
diagnostics system is detecting

a malfunction of the vehicle emission
control system.

If it flashes, engine misfire could be
occurring. Increased exhaust gas
temperatures could damage the catalytic
converter or other vehicle components.
Avoid heavy acceleration and deceleration,
and have your vehicle checked as soon as
possible.

Powertrain Warning Lamp

If it illuminates when the engine
is running, this indicates a
powertrain fault. If it flashes

when you are driving, immediately reduce
the vehicle speed. Avoid heavy
acceleration and deceleration, and have
your vehicle checked as soon as possible.

If both lamps illuminate when the engine
is running, stop your vehicle as soon as it
is safe to do so. Continuing to drive your
vehicle could cause reduced power or the
engine to stop. Switch the ignition off and
attempt to restart the engine. Have your
vehicle checked as soon as possible.

STARTING AND STOPPING THE ENGINE – INFORMATION MESSAGES

Action

Message

Displays if you exceed the starting time limit. You cannot
attempt to start the engine for 15 minutes. If you cannot start
the engine after 15 minutes passes, have your vehicle imme-
diately checked.

Cranking Time Exceeded

Displays if you are unable to start your vehicle with a correctly
coded key. The system has detected a fault that requires
service. Have your vehicle checked as soon as possible.

Starting System Fault

Displays if the system does not detect a valid passive key.

No Key Detected

159

Starting and Stopping the Engine

STARTING AND STOPPING THE
ENGINE – FREQUENTLY ASKED
QUESTIONS

Why is the engine idle speed high when
I am starting the engine?

The speed at which the engine idles
immediately after starting is optimized
to minimize vehicle emissions and
maximize cabin comfort and fuel
economy.

Why does the engine not crank?

You can only attempt to start the
engine for a limited amount of time
before the starting system temporarily
disables. If you exceed the starting
time limit, a message may appear and
you cannot attempt to start the engine
for at least 15 minutes.

Why do I experience different driving
characteristics?

If you disconnect the battery, your
vehicle may exhibit some unusual
driving characteristics for about 5 mi
(8 km) after you reconnect it. This is
because the engine management
system must realign itself with the
engine. You can disregard any unusual
driving characteristics during this
period.

Why can I not start the engine?

If you cannot start the engine after
three attempts, wait 10 seconds and
do the following:

Fully press the brake pedal or the
clutch pedal.

Note:

Make sure the parking brake is

applied.

Note:

Make sure the transmission is in park

(P) or neutral (N).

2. Fully press the accelerator pedal and

hold it there.

3. Press the push button ignition switch.

Note:

The engine cranks for a short period

of time and then it stops.

4. Release the accelerator pedal.

E340581

5. Press the push button ignition switch.

Why does the system not detect a
passive key?

If the system does not detect a passive
key and you are unable to start the
engine, insert the passive key into the
backup position and press the push
button ignition switch to start the
engine. See

Accessing the Passive

Key Backup Position

(page 158).

160

Starting and Stopping the Engine

WHAT IS AUTO-START-STOP

The system is designed to help reduce fuel
consumption and CO

emissions by

stopping the engine when it is idling, for
example at traffic lights.

AUTO-START-STOP
PRECAUTIONS - MANUAL
TRANSMISSION

WARNING:

Apply the parking

brake, shift into neutral, switch the
ignition off and remove the key before
you leave your vehicle. Failure to follow
this instruction could result in personal
injury or death.

WARNING:

Apply the parking

brake, shift into neutral, switch the
ignition off and remove the key before
you open the hood or have any service
or repair work completed. If you do not
switch the ignition off, the engine could
restart at any time. Failure to follow this
instruction could result in personal injury
or death.

AUTO-START-STOP
PRECAUTIONS - AUTOMATIC
TRANSMISSION

WARNING:

Apply the parking

brake, shift into park (P), switch the
ignition off and remove the key before
you leave your vehicle. Failure to follow
this instruction could result in personal
injury or death.

WARNING:

Apply the parking

brake, shift into park (P), switch the
ignition off and remove the key before
you open the hood or have any service
or repair work completed. If you do not
switch the ignition off, the engine could
restart at any time. Failure to follow this
instruction could result in personal injury
or death.

SWITCHING AUTO-START-
STOP ON AND OFF

The system turns on when you switch the
ignition on.

E121377

Press the button to switch the
system off.

Note:

OFF

illuminates in the switch.

Note:

Deactivating the system using the

button lasts only one key cycle.

Press the button again to switch the
system back on.

Note:

The system turns off if it detects a

malfunction. If the system malfunctions,
have your vehicle checked as soon as
possible.

STOPPING THE ENGINE -
MANUAL TRANSMISSION

Stop your vehicle.

2. Shift into neutral.

3. Release the clutch pedal and the

accelerator pedal.

Note:

To obtain maximum benefit from the

system, shift into neutral and release the
clutch pedal whenever you stop your vehicle
for more than three seconds.

Note:

Power assist steering turns off when

the engine stops.

161

Auto-Start-Stop

STOPPING THE ENGINE -
AUTOMATIC TRANSMISSION

Stop your vehicle, keep your foot on the
brake pedal and the transmission in drive
(D).

RESTARTING THE ENGINE -
MANUAL TRANSMISSION

Press the clutch pedal.

A message appears in the instrument
cluster display if the system requires you
to take action.

Action

Condition

Message

Press the accelerator pedal,
brake pedal or clutch pedal
to restart the engine.

The system needs to restart
the engine but requires your
confirmation.

Auto StartStop Press a
Pedal to Start Engine

Shift into neutral to restart
the engine.

The system needs to restart
the engine but cannot
because the transmission is
in gear.

Auto StartStop Select
Neutral To Start Engine

162

Auto-Start-Stop

RESTARTING THE ENGINE -
AUTOMATIC TRANSMISSION

Release the brake pedal or press the
accelerator pedal.

A message appears in the instrument
cluster display if the system requires you
to take action.

AUTO-START-STOP
INDICATORS

WARNING:

The system may

require the engine to automatically
restart when the auto-start-stop
indicator illuminates green or flashes
amber. Failure to follow this instruction
could result in personal injury.

E121377

The Auto-Start-Stop indicator
illuminates green when the
engine stops. It flashes amber

and a message appears when you need to
take action.

E146361

The Auto-Start-Stop indicator
illuminates gray with a
strikethrough when the system

is not available.

Note:

You can display the reason why the

system is not available in the information
display.

AUTO-START-STOP – TROUBLESHOOTING

AUTO-START-STOP – INFORMATION MESSAGES - MANUAL
TRANSMISSION

Action

Condition

Message

Restart the engine yourself.

The system is not func-
tioning.

Auto StartStop Manual
Restart Required

163

Auto-Start-Stop

AUTO-START-STOP –
INFORMATION MESSAGES -
AUTOMATIC TRANSMISSION

A message appears in the instrument
cluster display if the system requires you
to take action.

Action

Condition

Message

Press the brake pedal to
restart the engine.

The system needs to restart
the engine but requires your
confirmation.

Auto StartStop Press Brake
to Start Engine

Press the brake pedal or the
accelerator pedal to restart
the engine.

The system needs to restart
the engine but requires your
confirmation.

Auto StartStop Press a
Pedal to Start Engine

164

Auto-Start-Stop

AUTO-START-STOP –
FREQUENTLY ASKED QUESTIONS

Why does the engine not always
stop when I expect it to?

The system is designed to work in a way
that complements other vehicle systems,
allowing them to operate at optimum
performance.

The system does not stop the engine if:
•

The driver door is open.

•

Your vehicle is at high altitude.

•

The heated windshield is on.

•

The engine is warming up.

•

The outside temperature is too low or
too high.

•

The battery charge is low.

•

The battery temperature is outside the
optimal operating range.

•

The engine is required to run to
maintain interior climate and reduce
fogging.

Why does the engine sometimes
restart when I do not expect it to?

The system is designed to work in a way
that complements other vehicle systems,
allowing them to operate at optimum
performance.

The system restarts the engine if:
•

You switch the heated windshield on.

•

You switch maximum defrost on.

•

Your vehicle starts to roll downhill in
neutral.

•

The engine is required to run to
maintain adequate brake system
assistance.

•

The engine is required to run to
maintain interior climate and reduce
fogging.

Can I permanently switch the
system off?

No. The system plays an important role in
reducing the fuel consumption and the CO

emissions.

Will the frequent engine starts
cause parts to wear out?

Your vehicle has an enhanced battery and
starter motor that are designed for the
increased number of engine starts.

165

Auto-Start-Stop

FUEL AND REFUELING
PRECAUTIONS

WARNING:

Fuels can cause serious

injury or death if misused or mishandled.

WARNING:

Fuel may contain

benzene, which is a cancer-causing
agent.

WARNING:

Read and follow all the

instructions on the pump island.

Follow these guidelines when refueling:
•

Extinguish all smoking materials and
any open flames before refueling your
vehicle.

•

Switch the engine off before refueling.

•

Automotive fuels can be harmful or
fatal if swallowed. Fuel is highly toxic
and if swallowed can cause death or
permanent injury. If fuel is swallowed
immediately call a physician, even if no
symptoms are immediately apparent.
The toxic effects of fuel may not be
apparent for hours.

•

Avoid inhaling fuel vapors. Inhaling fuel
vapor can lead to eye and respiratory
tract irritation. In severe cases,
excessive or prolonged breathing of
fuel vapor can cause serious illness and
permanent injury.

•

Avoid getting fuel in your eyes. If you
splash fuel in your eyes, immediately
remove contact lenses, if worn, flush
with water for 15 minutes and seek
medical attention. Failure to seek
proper medical attention could lead to
permanent injury.

•

Fuels can be harmful if absorbed
through the skin. If you splash fuel on
your skin, clothing or both, promptly
remove contaminated clothing and
thoroughly wash your skin with soap
and water. Repeated or prolonged skin
contact causes skin irritation.

•

Be particularly careful if you are taking
Antabuse or other forms of Disulfiram
for the treatment of alcoholism.
Breathing fuel vapors could cause an
adverse reaction, serious personal
injury or sickness. Immediately call a
physician if you experience any adverse
reactions.

FUEL QUALITY

SELECTING THE CORRECT FUEL

E161513

Your vehicle operates on regular unleaded
gasoline with a minimum pump (R+M)/2
octane rating of 87.

Some fuel stations, particularly those in
high altitude areas, offer fuels posted as
regular unleaded gasoline with an octane
rating below 87. The use of these fuels
could result in engine damage that will not
be covered by the vehicle Warranty.

166

Fuel and Refueling

For best overall vehicle and engine
performance, premium fuel with an octane
rating of 91 or higher is recommended. The
performance gained by using premium fuel
is most noticeable in hot weather as well
as other conditions, for example when
towing a trailer. See

Towing a Trailer

(page 271).

Do not be concerned if the engine
sometimes knocks lightly. However, if the
engine knocks heavily while using fuel with
the recommended octane rating, contact
an authorized dealer to prevent any engine
damage.

We recommend Top Tier detergent
gasolines, where available to help minimize
engine deposits and maintain optimal
vehicle and engine performance.

For additional information, visit

www.toptiergas.com

Note:

Use of any fuel for which the vehicle

was not designed can impair the emission
control system, cause loss of vehicle
performance, and cause damage to the
engine which may not be covered by the
vehicle Warranty.

Do not use:
•

Diesel fuel.

•

Fuels containing kerosene or paraffin.

•

Fuel containing more than 15% ethanol
or E85 fuel.

•

Fuels containing methanol.

•

Fuels containing metallic-based
additives, including manganese-based
compounds.

•

Fuels containing the octane booster
additive, methylcyclopentadienyl
manganese tricarbonyl (MMT).

•

Leaded fuel, using leaded fuel is
prohibited by law.

The use of fuels with metallic compounds
such as methylcyclopentadienyl
manganese tricarbonyl, which is a
manganese-based fuel additive, will impair
engine performance and affect the
emission control system.

LOCATING THE FUEL FILLER
FUNNEL

The fuel filler funnel is under the luggage
compartment floor covering.

RUNNING OUT OF FUEL

FILLING A PORTABLE FUEL
CONTAINER

WARNING:

Flow of fuel through a

fuel pump nozzle can produce static
electricity. This can cause a fire if you are
filling an ungrounded fuel container.

Use the following guidelines to avoid
electrostatic charge build-up, which can
produce a spark, when filling an
ungrounded fuel container:
•

Only use an approved fuel container to
transfer fuel to your vehicle. Place the
container on the ground when filling it.

•

Do not fill a fuel container when it is
inside your vehicle (including the cargo
area).

•

Keep the fuel pump nozzle in contact
with the fuel container when filling it.

•

Do not use a device that holds the fuel
pump nozzle lever in the fill position.

167

Fuel and Refueling

ADDING FUEL FROM A PORTABLE
FUEL CONTAINER

WARNING:

Do not insert the nozzle

of a fuel container or an aftermarket
funnel into the fuel filler neck. This may
damage the fuel system filler neck or its
seal and cause fuel to run onto the
ground.

WARNING:

Do not pry open the

fuel tank filler valve. This could damage
the fuel system. Failure to follow this
instruction could result in fire, personal
injury or death.

WARNING:

Do not dispose of fuel

in the household refuse or the public
sewage system. Use an authorized waste
disposal facility.

When refueling the vehicle fuel tank from
a fuel container, use the fuel filler funnel
included with your vehicle. See

Locating

the Fuel Filler Funnel

(page 167).

Note:

Do not use aftermarket funnels as

they may not work with the capless fuel
system and can damage it.

When refueling the vehicle fuel tank from
a fuel container, do the following:

Fully open the fuel filler door.

E157452

2. Fully insert the fuel filler funnel into the

fuel filler inlet.

3. Add fuel to your vehicle from the fuel

container.

4. Remove the fuel filler funnel.

5. Fully close the fuel filler door.

6. Clean the fuel filler funnel and place it

back in your vehicle or correctly dispose
of it.

Note:

If your vehicle runs out of fuel add a

minimum of 1.3 gal (5 L) of fuel to restart
the engine.

Note:

You may need to switch the ignition

from off to on several times after refueling
to allow the fuel system to pump the fuel
from the tank to the engine. When
restarting, cranking time takes a few
seconds longer than normal.

Note:

Extra funnels can be purchased from

an authorized dealer if you choose to
dispose of the funnel.

168

Fuel and Refueling

REFUELING

REFUELING SYSTEM OVERVIEW

E384542

Fuel filler door.

Fuel filler inlet.

Fuel tank filler pipe.

REFUELING YOUR VEHICLE

WARNING:

When refueling always

shut the engine off and never allow
sparks or open flames near the fuel tank
filler valve. Never smoke or use a cell
phone while refueling. Fuel vapor is
extremely hazardous under certain
conditions. Avoid inhaling excess fumes.

WARNING:

Fuel vapor burns

violently and a fuel fire can cause severe
injuries.

WARNING:

The fuel system may

be under pressure. If you hear a hissing
sound near the fuel filler inlet, do not
refuel until the sound stops. Otherwise,
fuel may spray out, which could cause
serious personal injury.

WARNING:

Keep children away

from the fuel pump. Never let children
pump fuel.

WARNING:

Do not pry open the

fuel tank filler valve. This could damage
the fuel system. Failure to follow this
instruction could result in fire, personal
injury or death.

WARNING:

Stay outside your

vehicle and do not leave the fuel pump
unattended when refueling your vehicle.

WARNING:

Do not remove the fuel

pump nozzle from its fully inserted
position when refueling.

WARNING:

Stop refueling when

the fuel pump nozzle automatically
shuts off for the first time. Failure to
follow this will fill the expansion space
in the fuel tank and could lead to fuel
overflowing.

WARNING:

Do not overfill the fuel

tank. The pressure in an overfilled tank
may cause leakage and lead to fuel spray
and fire.

WARNING:

Wait at least five

seconds before removing the fuel pump
nozzle to allow any residual fuel to drain
into the fuel tank.

Fully open the fuel filler door.

2. Select the correct fuel pump nozzle for

your vehicle.

169

Fuel and Refueling

E139202

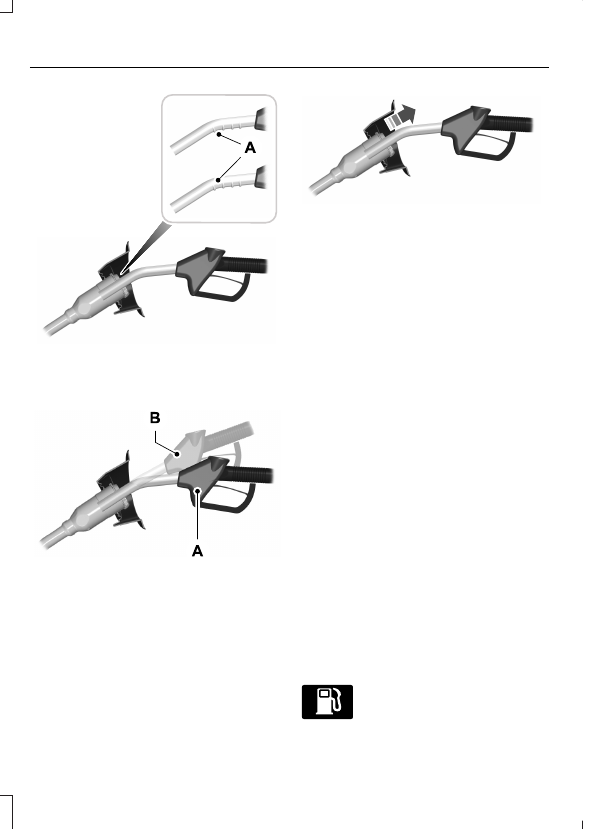

3. Insert the fuel pump nozzle up to the

first notch. Keep the fuel pump nozzle
resting on the fuel tank filler pipe.

E327438

4. Hold the fuel pump nozzle in position

A when refueling. Holding the fuel
pump nozzle in position B can affect
the flow of fuel and shut off the fuel
pump nozzle before the fuel tank is full.

E119081

5. When the pump shuts off, wait five

seconds, then raise the fuel pump
nozzle and slowly remove it.

6. Fully close the fuel filler door.

Note:

Do not attempt to start the engine

if you have filled the fuel tank with incorrect
fuel. Incorrect fuel use could cause damage
not covered by the vehicle Warranty. Have
your vehicle immediately checked.

FUEL TANK CAPACITY

Advertised Capacity

The advertised capacity is the maximum
amount of fuel that you can add to the fuel
tank after running out of fuel. Included in
the advertised capacity is an empty
reserve. The empty reserve is an
unspecified amount of fuel that remains
in the fuel tank when the fuel gauge
indicates empty.

Note:

The amount of fuel in the empty

reserve varies and should not be relied upon
to increase driving range.

FUEL AND REFUELING –
TROUBLESHOOTING

FUEL AND REFUELING –
WARNING LAMPS

If it illuminates when you are
driving, refuel as soon as
possible.

170

Fuel and Refueling

FUEL AND REFUELING –
INFORMATION MESSAGES

Refueling System Warning

If the fuel tank filler valve does not fully
close, a message could appear in the
instrument cluster display.

Message

Check Fuel Fill Inlet

If the message appears, do the following:

Stop your vehicle as soon as it is safe
to do so and switch the engine off.

2. Shift into park (P) or neutral (N).

3. Apply the parking brake.

4. Fully open the fuel filler door.

5. Check the fuel tank filler valve for any

debris that may be restricting its
movement.

6. Remove any debris from the fuel tank

filler valve.

Fully insert a fuel pump nozzle or the
fuel filler funnel provided with your
vehicle into the fuel filler pipe. See

Locating the Fuel Filler Funnel

(page 167). This action should dislodge
any debris that may be preventing the
fuel tank filler valve from fully closing.

8. Remove the fuel pump nozzle or fuel

filler funnel from the fuel filler pipe.

9. Fully close the fuel filler door.

Note:

The message may not immediately

reset. If the message continues to appear
and a warning lamp illuminates, have your
vehicle checked as soon as possible.

171

Fuel and Refueling

WHAT IS THE CATALYTIC
CONVERTER

The catalytic converter is part of your
vehicle's emissions system and filters
harmful pollutants from the exhaust gas.

CATALYTIC CONVERTER
PRECAUTIONS

WARNING:

Do not park, idle or

drive your vehicle on dry grass or other
dry ground cover. The emission system
heats up the engine compartment and
exhaust system, creating the risk of fire.

WARNING:

The normal operating

temperature of the exhaust system is
very high. Never work around or attempt
to repair any part of the exhaust system
until it has cooled. Use special care when
working around the catalytic converter.
The catalytic converter heats up to a very
high temperature after only a short
period of engine operation and stays hot
after the engine is switched off.

WARNING:

Exhaust leaks may

To avoid damaging the catalytic converter:
•

Do not crank the engine for more than
10 seconds at a time.

•

Do not run the engine with a spark plug
lead disconnected.

•

Do not push-start or tow-start your
vehicle. Use booster cables. See

Jump

Starting the Vehicle

(page 280).

•

Use the correct fuel. See

Fuel Quality

(page 166).

•

Do not switch the ignition off when your
vehicle is moving.

•

Avoid running out of fuel.

•

Have the items listed in scheduled
maintenance information performed
according to the specified schedule.

Note:

Do not make any unauthorized

changes to your vehicle or engine. By law,
vehicle owners and anyone who
manufactures, repairs, or services a fleet of
vehicles are not permitted to intentionally
remove an emission control device or
prevent it from working.

CATALYTIC CONVERTER –
TROUBLESHOOTING

CATALYTIC CONVERTER –
WARNING LAMPS

Your vehicle has an on-board diagnostics
system that monitors the emission control
system. If any of the following warning
lamps illuminate, this may indicate that
the on-board diagnostics system has
detected an emission control system
malfunction.

E103308

E67021

E67028

Continuing to drive your vehicle may cause
reduced power or the engine to stop.
Failure to respond to a warning lamp may
cause damage that your vehicle Warranty
may not cover. Have your vehicle checked
as soon as possible.

172

Catalytic Converter

MANUAL TRANSMISSION
PRECAUTIONS

Do not rest your hand on the gearshift lever
or use the gearshift lever to hang and
support objects. This could cause damage
to the transmission not covered by the
vehicle warranty.

Do not rest your foot on the clutch pedal
or use the clutch pedal to keep your vehicle
stationary when waiting on a hill. This
could cause damage to the clutch not
covered by the vehicle warranty.

Failure to fully press the clutch pedal could
cause increased shift efforts, or premature
transmission wear to components or
damage to the transmission.

If any gear is not fully engaged, fully press
the clutch pedal and shift into neutral.
Release the clutch pedal for a moment,
fully press the clutch pedal again and shift
into desired gear.

SHIFTING INTO REVERSE

Do not shift into reverse when your vehicle
is moving. This could cause damage to the
transmission not covered by the vehicle
Warranty.

Fully press the brake pedal.

2. Fully press the clutch pedal and shift

into neutral.

E99067

3. Raise the collar and shift into reverse.

CHECKING THE MANUAL
TRANSMISSION FLUID LEVEL

E360040

Transmission fluid fill level is 0.12 in
(3 mm) from the oil fill plug.

173

Manual Transmission

(If Equipped)

CHECKING THE CLUTCH FLUID
LEVEL

The clutch and brake systems share the
same fluid reservoir. See

Checking the

Brake Fluid

(page 182).

MANUAL TRANSMISSION
FLUID CAPACITY AND
SPECIFICATION

See

Manual Transmission Fluid

Capacity and Specification

(page 378).

CLUTCH FLUID CAPACITY AND
SPECIFICATION

See

Capacities and Specifications

(page 363).

174

Manual Transmission

(If Equipped)

AUTOMATIC TRANSMISSION
PRECAUTIONS

WARNING:

When your vehicle is

stationary, keep the brake pedal fully
pressed when shifting gears. Failure to
follow this instruction could result in
personal injury, death or property
damage.

WARNING:

Do not apply the brake

pedal and accelerator pedal
simultaneously. Applying both pedals
simultaneously for more than a few
seconds limits vehicle performance,
which may result in difficulty maintaining
speed in traffic and could lead to serious
injury.

WARNING:

Apply the parking

brake, shift into park (P), switch the
vehicle off and remove the key or remote
control before you leave your vehicle.
Failure to follow this instruction could
result in personal injury or death.

AUTOMATIC TRANSMISSION
POSITIONS

PARK (P)

WARNING:

Shift into park (P) only

when your vehicle is stationary.

In park (P) power is not transmitted to the
driven wheels.

Note:

A tone sounds if you attempt to exit

your vehicle without the vehicle in park (P).

Note:

Your vehicle may not shift out of park

(P) if the 12 V battery has run out of charge.

Note:

Your vehicle may not shift out of park

(P) if a fuse is blown.

Note:

Your vehicle may not shift out of park

(P) unless the key or remote control is inside
your vehicle.

Note:

The electronic parking brake could

apply when you power your vehicle on with
the selector in park (P).

Note:

The electronic parking brake could

apply if you shift to park (P) without fully
pressing the brake pedal.

Note:

The electronic parking brake could

apply if you shift to park (P) on a slope.

Note:

Do not manually release the parking

brake when the selector is in park (P). See

Automatically Releasing the Electric
Parking Brake

(page 188).

REVERSE (R)

WARNING:

Shift into reverse (R)

only when your vehicle is stationary.

In reverse (R) power is transmitted to the
driven wheels.

NEUTRAL (N)

WARNING:

In neutral (N) your

vehicle is free to roll.

In neutral (N) power is not transmitted to
the driven wheels.

DRIVE (D)

In drive (D) power is transmitted to the
driven wheels.

175

Automatic Transmission

LOW (L) - VEHICLES WITHOUT:
PADDLE SHIFTERS

In low (L) your vehicle decelerates more
noticeably than in drive (D) when the
accelerator pedal is released.

Note:

We recommend using this mode for

driving on hilly or mountainous roads or
when towing a trailer. See

Towing a Trailer

(page 271).

MANUAL (M) - VEHICLES WITH:
PADDLE SHIFTERS

In manual (M) you can select a specific
gear. See

Manually Shifting Gears

(page

177).

Note:

We recommend using this mode for

driving on hilly or mountainous roads or
when towing a trailer. See

Towing a Trailer

(page 271).

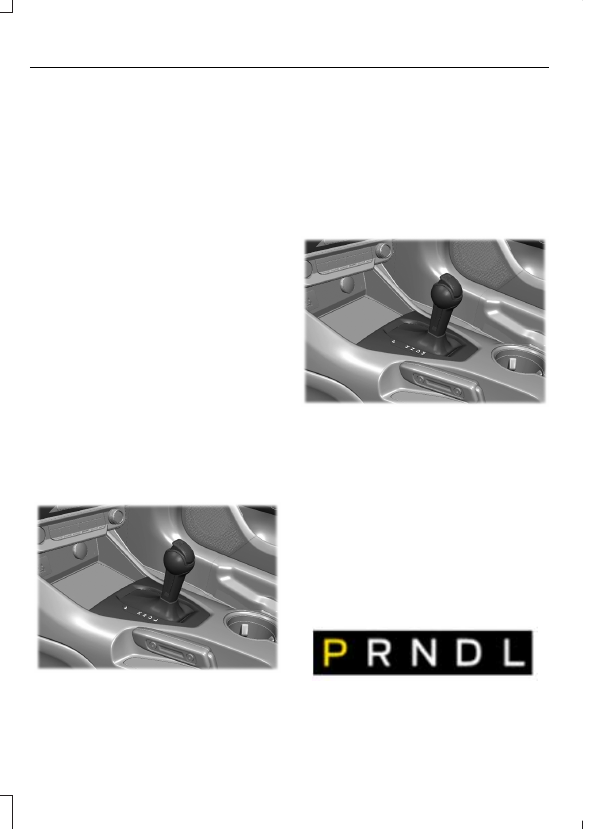

SHIFTING YOUR VEHICLE INTO
GEAR - VEHICLES WITHOUT:
PADDLE SHIFTERS

The transmission selector lever is on the
center console.

E379771

Press and hold the brake pedal.

2. Press the button on the transmission

selector lever.

3. Move the transmission selector lever

to select a position.

SHIFTING YOUR VEHICLE INTO
GEAR - VEHICLES WITH:
PADDLE SHIFTERS

The transmission selector lever is on the
center console.

E373789

Press and hold the brake pedal.

2. Press the button on the transmission

selector lever.

3. Move the transmission selector lever

to select a position.

AUTOMATIC TRANSMISSION
POSITION INDICATORS -
VEHICLES WITHOUT: PADDLE
SHIFTERS

E341619

176

Automatic Transmission

The instrument cluster displays the current
position.

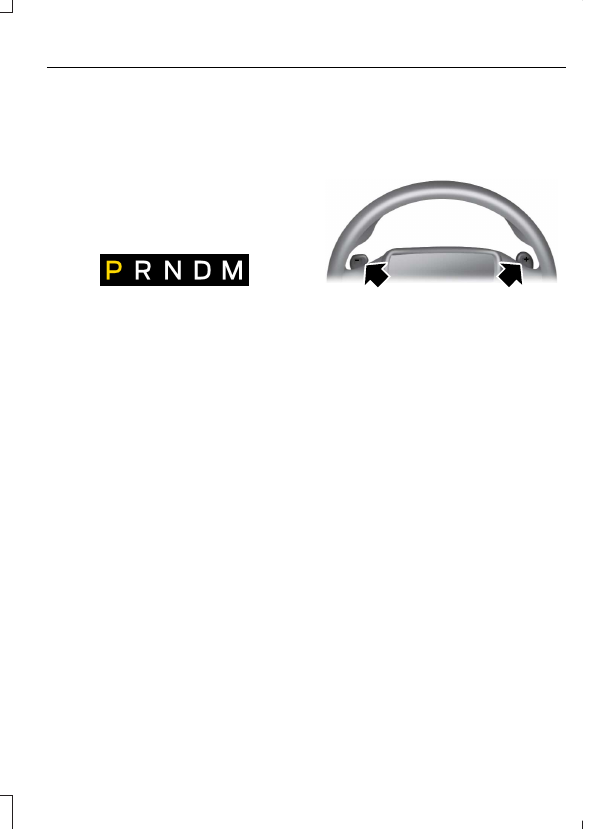

AUTOMATIC TRANSMISSION
POSITION INDICATORS -
VEHICLES WITH: PADDLE
SHIFTERS

The instrument cluster displays the current
position.

E317778

Note:

The position could illuminate on the

selector.

AUTOMATIC TRANSMISSION
AUDIBLE WARNINGS

Transmission Not in Park (P)
Audible Warning

Sounds if any of the following occur:
•

You switch your vehicle off before
shifting into park (P).

•

You open the driver door before shifting
into park (P).

MANUALLY SHIFTING GEARS

SHIFTING USING THE PADDLE
SHIFTERS

(If Equipped)

The instrument cluster displays the current
gear. The current gear flashes when your
vehicle cannot shift into the requested
gear. Your vehicle will not shift if the
requested gear raises or lowers the engine
speed beyond the limit.

Your vehicle could shift when you fully
press the accelerator or brake pedal.

Note:

Prolonged driving with high engine

speed could cause vehicle damage not
covered by the vehicle warranty.

Note:

Drive modes could affect when the

vehicle shifts into the requested gear.

E144821

Manually Shifting Gears in Drive (D)

Use this feature to temporarily change
gears.

Note:

We recommend using this feature for

engine braking or driving on hilly or
mountainous roads.

•

Pull any paddle to switch the feature
on.

•

Pull the right (+) paddle to upshift.

•

Pull the left (-) paddle to downshift.

•

Hold the (+) paddle for a few seconds
to switch the feature off.

Note:

The feature switches off after a short

period of time if you do not pull either
paddle.

Manually Shifting Gears in Manual (M)

Use this feature to select a specific gear.

Note:

We recommend using this feature for

engine braking, driving on hilly or
mountainous roads, or when towing a trailer.
See

Towing a Trailer

(page 271).

•

Pull any paddle to switch the feature
on.

•

Pull the right (+) paddle to upshift.

177

Automatic Transmission

•

Pull the left (-) paddle to downshift.

•

Shift to drive (D) to switch the feature
off.

BRAKE SHIFT INTERLOCK

WHAT IS BRAKE SHIFT
INTERLOCK

Brake shift interlock allows you to shift
your vehicle out of park (P) in the event of
an electrical malfunction or emergency.

BRAKE SHIFT INTERLOCK
PRECAUTIONS

WARNING:

Do not drive your

vehicle until you verify that the
stoplamps are working.

WARNING:

When doing this

procedure, you need to take the
transmission out of park (P) which
means your vehicle can roll freely. To
avoid unwanted vehicle movement,
apply the parking brake prior to doing
this procedure. Use wheel chocks if
appropriate.

WARNING:

If the parking brake is

fully released, but the brake warning
lamp remains illuminated, the brakes
may not be working properly. Have your
vehicle checked as soon as possible.

USING BRAKE SHIFT INTERLOCK

Set the parking brake.

2. Insert a screwdriver between the shifter

boot material and trim ring to access
the retainer tabs from the top panel
trim ring.

E373897

3. Lift the shifter boot upward.

E373790

4. Locate the release lever on the front

side of the transmission selector lever.

5. Using a screwdriver, move the release

lever back toward the front of the
transmission selector lever.

178

Automatic Transmission

BRAKE PRECAUTIONS

Wet brakes result in reduced braking
efficiency. Gently press the brake pedal a
few times when leaving a car wash or
driving from standing water to dry the
brakes.

Note:

Depending on applicable laws and

regulations in the country where your vehicle
was originally built, the stoplamps could
flash during heavy braking. The hazard
warning flashers could also turn on when
your vehicle comes to a stop.

ANTI-LOCK BRAKING SYSTEM

ANTI-LOCK BRAKING SYSTEM
LIMITATIONS

The anti-lock braking system does not
eliminate the risk of crash when:
•

You drive too closely to the vehicle in
front of you.

•

Your vehicle is hydroplaning.

•

You take corners too fast.

•

The road surface is poor.

Note:

If the system activates, the brake

pedal could pulse and travel further.
Maintain pressure on the brake pedal.

ANTI-LOCK BRAKING SYSTEM
INDICATORS

This system helps you maintain steering
control during emergency stops by keeping
the brakes from locking.

E67020

If the warning lamp illuminates
when you are driving, this
indicates a malfunction. Your

vehicle continues to have normal braking
without the anti-lock brake system
function. Have your vehicle checked as
soon as possible.

The warning lamp also momentarily
illuminates when you switch the ignition
on to confirm the lamp is functional. If it
does not illuminate when you switch the
ignition on, or begins to flash at any time,
have the system checked by an authorized
dealer.

E270480

E67024

The warning lamp illuminates
when you engage the parking
brake and the ignition is on.

If it illuminates when your vehicle
is moving, make sure the parking
brake is disengaged. If the

parking brake is disengaged, this indicates
low brake fluid level or a brake system
fault. Have your vehicle checked as soon
as possible.

BRAKE OVER ACCELERATOR

In the event the accelerator pedal
becomes stuck or entrapped, apply steady
and firm pressure to the brake pedal to
slow the vehicle and reduce engine power.
If you experience this condition, apply the
brakes and bring your vehicle to a safe
stop. Move the transmission to park (P),
switch the engine off and apply the parking
brake. Inspect the accelerator pedal for
any interference. If none are found and the
condition persists, have your vehicle towed
to the nearest authorized dealer.

Note:

Brake over accelerator will not

function in Drag and Track modes.

181

Brakes

Ford Mustang (2024 year). Manual in english - page 5
