Grounding Type

Neutral Floating

The neutral of the inverter generator is
isolated from system ground.

Note:

If additional grounding measures are

required, consult with a qualified electrician.

ONBOARD GENERATOR
PRECAUTIONS - VEHICLES
WITH: 2.4KW/7.2KW

WARNING:

Do not connect any

vehicle power outlets to any premises.
This can create a backfeed to utility lines.
Failure to follow this instruction could
result in property damage, fire, electrical
shock or death.

WARNING:

Do not keep electrical

devices plugged into the power outlet
whenever the device is not in use. The
outlet provides power when the vehicle
is on. Failure to follow this instruction
could result in personal injury.

WARNING:

Do not start the engine

in a closed garage or in other enclosed
areas. Exhaust fumes are toxic. Always
open the garage door before you start
the engine. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

Exhaust leaks may

result in entry of harmful and potentially
lethal fumes into the passenger
compartment. If you smell exhaust
fumes inside your vehicle, have your
vehicle inspected immediately. Do not
drive if you smell exhaust fumes.

WARNING:

The vehicle's engine

runs while the generator is switched on.
Running engines emit carbon monoxide.
Only use the generator when the vehicle
is outdoors. Failure to follow this
instruction could result in personal injury
or death.

When you switch the power outlets on, the
vehicle power down timer is disabled and
the vehicle continues to be powered on.

Note:

We recommend using UL approved

devices for use with the power outlet.

Note:

Make sure that plugged in devices do

not exceed the ratings displayed on the
outlet covers.

Note:

Unplug electrical devices from the

power outlet when they are not switched
on.

Note:

Make sure there is no damage to the

outlets before driving your vehicle.

Note:

Power could be limited during

extreme hot or cold temperatures to
optimize system performance.

Note:

Close all outlet covers when not in

use.

Note:

The gasoline engine may start and

stop to provide power when the outlet is
switched on.

Note:

Make sure that objects are not

blocking the inverter inlet and exhaust near
the rear underseat storage compartment.

Note:

The climate control system may turn

on and power may be limited during extreme
hot or cold temperatures to optimize system
performance.

Note:

When the outlet is switched on and

the vehicle is in park (P) the engine turns off
30 minutes after the low fuel warning is
displayed. After the vehicle is turned off,
generator mode only operates while driving
or until the vehicle is refueled.

221

Onboard Generator

(If Equipped)

Grounding Type

Neutral Floating

The neutral of the inverter generator is
isolated from system ground.

Neutral Bonded

The neutral of the inverter generator is
bonded to system ground. Connecting
loads that also have neutral bonded to
ground causes the ground fault detection
to trip.

Note:

If additional grounding measures are

required, consult with a qualified electrician.

LOCATING THE OUTLETS

The power outlets are in the cabin and bed
of the vehicle.

Bed Outlet

E369445

Note:

The outlet may be on the left or

right-hand side of the bed depending on the
vehicle.

Instrument Panel Outlet

E337927

Rear Center Console Outlet

E337926

ONBOARD GENERATOR
INDICATORS

Power Outlet Status Indicator

The power outlet indicator illuminates to
let you know the status of the system.

222

Onboard Generator

(If Equipped)

Description

Indicator Status

The power point is

working and the

vehicle is on.

The power point is
off and the vehicle

is off.

Off

The power point is

in fault mode.

Flashing

Fault Mode

The power outlet temporarily turns off
power if the device exceeds the watt limit.

Unplug your device.

2. Switch your vehicle off to let the

system cool and reset the fault mode.

3. Switch your vehicle back on, but do not

plug your device back in.

4. With your vehicle on, make sure the

indicator light remains on.

5. Make sure your device does not exceed

the power limits and then plug in your
device.

Note:

If a fault occurs again, your device

may exceed the capacity available from the
power outlet.

Generator Mode Power Indicator

E362360

The generator mode power indicator
displays the currently used power and total
available power level on the touchscreen.
When Generator Mode is switched off the
indicator displays a reduced available
power level. When generator mode is
switched on the indicator displays the full
available power.

Note:

Additional indicators may be

available based on vehicle configuration.

Note:

Make sure that plugged in devices do

not exceed the available power displayed
on the power mode indicator.

Note:

Maximum power may be reduced

when the vehicle is in drive (D).

SWITCHING THE OUTLETS ON
AND OFF

Using the Center Display Screen

Switch the vehicle on.

2. Press

Features

on the touchscreen.

3. Press

Pro Power Onboard

Using the Bed Controls

E337175

Press the button to switch the power
outlet on and off.

223

Onboard Generator

(If Equipped)

WHAT IS UTILITY IDLE MODE -
VEHICLES WITH: FLIP KEY

Utility idle mode allows you to remove the
key from the ignition and keep the vehicle
and bed power point running.

SWITCHING UTILITY IDLE
MODE ON AND OFF

Switching Utility Idle On

Start the vehicle. See

Starting and

Stopping the Engine

(page 236).

2. Press

Features

on the touchscreen.

3. Press

Pro Power Onboard

4. Press

Generator Mode

5. Press

Utility Idle

6. Press the brake pedal once.

Turn the key to position

8. Remove the key from the ignition.

Switching Utility Idle Off using the
Key

Insert the key into the ignition.

2. Turn the key to position

III

Switching Utility Idle Off using the
Center Display Screen

Start the vehicle. See

Starting and

Stopping the Engine

(page 236).

2. Press

Features

on the touchscreen.

3. Press

Pro Power Onboard

4. Press

Generator Mode

5. Press

Utility Idle

6. Press

Turn Vehicle Off

WHAT IS GENERATOR MODE

Generator mode uses the vehicle engine
to increase power to the bed power outlets
up to the rating listed on the power outlet
label.

SWITCHING GENERATOR
MODE ON AND OFF

Using the Center Display Screen

Start the vehicle. See

Starting and

Stopping the Engine

(page 236).

2. Press

Features

on the touchscreen.

3. Press

Pro Power Onboard

4. Press Generator Mode.

Using the Instrument Panel

E311311

Press the button to switch
between off, low power mode
and generator mode.

Note:

When the generator mode is off and

the vehicle is on, you can power the devices
up to 400W in the cabin through the low
power mode.

RESETTING GROUND FAULT
DETECTION

After disconnecting all electrical loads the
ground fault can be reset using the
switches on the power point, on the
instrument panel or on the touchscreen.

Use the controls on the touchscreen to test
the ground fault detection circuit.

224

Onboard Generator

(If Equipped)

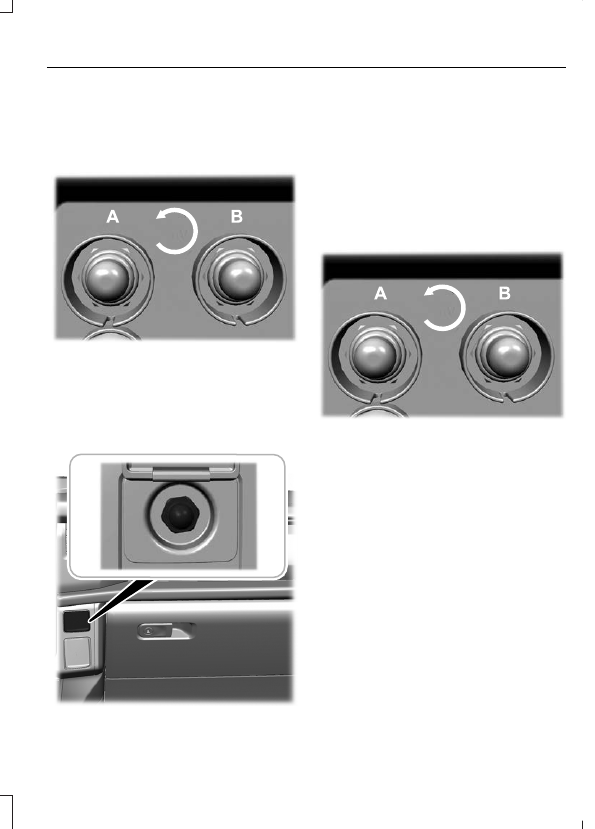

RESETTING THE CIRCUIT
BREAKER - VEHICLES WITH:
9.6KW

Bed Circuit Breaker

E337774

To reset the circuit breaker to the on
position after it has tripped, press the
button on the upper right area of the bed
outlet. There are two circuit breaker
buttons that correspond to the A and B
outlets.

Instrument Panel Breaker

E384653

To reset the interior circuit breaker to the
on position after it has tripped, press the
button on the instrument panel.

Note:

In certain conditions the breakers

may trip without notification.

RESETTING THE CIRCUIT
BREAKER - VEHICLES WITH:
7.2KW

E337774

Note:

In certain conditions the breaker may

trip without notification.

225

Onboard Generator

(If Equipped)

ONBOARD GENERATOR – TROUBLESHOOTING

ONBOARD GENERATOR – INFORMATION MESSAGES

Description

Message

Make sure that plugged in devices do not

exceed the available power displayed.

Devices could exceed the power rating

shown the device label when plugged in.

Unplug the device and switch the vehicle

on and off to reset the system.

Item(s) plugged in exceeded the system's

maximum capacity. Try unplugging one or

more items and reset. See owner's manual

for details.

Power could be limited during extreme hot

or cold temperatures to optimize the

performance of the system.

Generator system is outside its operating

temperature and capability is reduced. See

owner's manual for details.

Do not plug in any device that supplies

power to the vehicle through the power

outlets. This could result in damage to

vehicle systems.

Another power source is trying to supply

power to your vehicle's AC outlets. Discon-

nect vehicle from that power source. See

owner's manual for details.

The power outlet is in fault mode. Make

sure that all devices are unplugged from

the system. Use the controls on the touch-

screen to reset the system. Switch your

vehicle on and off if the touchscreen

controls are unable to reset the system. See

an authorized dealer if these steps do not

fix the fault.

This button tests outlets for proper opera-

tion of ground fault detection. In a

successful test, Pro Power Onboard detects
the ground fault and turns off. See owner’s

manual for details.

226

Onboard Generator

(If Equipped)

ONBOARD GENERATOR –
FREQUENTLY ASKED QUESTIONS
- VEHICLES WITH: 2KW/2.4KW

Why is there a warning about
something being plugged into the
bed power outlet when I do not
have anything plugged in?

•

One or more of the bed power outlet
covers could be ajar or broken. Make
sure the generator is off and check the
outlet covers. Select OK on the
instrument cluster display to
acknowledge the warning.

Why can I not shift my vehicle out
of park (P)?

•

Make sure the bed power outlet covers
are closed and not damaged. Press OK
on the instrument cluster display to
acknowledge the warning to be able
to shift out of park (P).

What do I do when my instrument
cluster display is malfunctioning
and I cannot acknowledge the
warning to put the vehicle in drive
(D).

•

Power the vehicle off and make sure
nothing is plugged into the bed power
outlets and all outlet covers are closed.
Start the vehicle and select OK on the
instrument cluster display to
acknowledge the warning. Have your
vehicle serviced soon.

ONBOARD GENERATOR –
FREQUENTLY ASKED QUESTIONS
- VEHICLES WITH: 7.2KW

Why is there a warning about
something being plugged into the
bed power outlet when I do not
have anything plugged in?

•

One or more of the bed power outlet
covers could be ajar or broken. Make
sure the generator is off and check the
outlet covers. Select OK on the
instrument cluster display to
acknowledge the warning.

Why can I not shift my vehicle out
of park (P)?

•

Make sure the bed power outlet covers
are closed and not damaged. Press OK
on the instrument cluster display to
acknowledge the warning to be able
to shift out of park (P).

What do I do when my instrument
cluster display is malfunctioning
and I cannot acknowledge the
warning to put the vehicle in drive
(D).

•

Why is the power outlet not
working?

•

In certain conditions, the circuit breaker
can trip without notification. The circuit
breaker may need to be reset. See

Resetting the Circuit Breaker

(page

225).

227

Onboard Generator

(If Equipped)

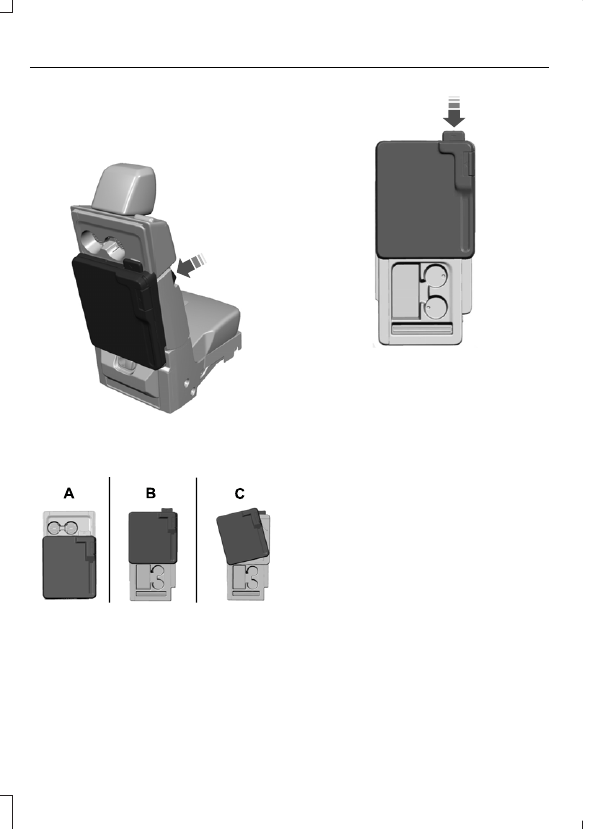

USING THE CENTER CONSOLE
WORK SURFACE - VEHICLES
WITH: COLUMN SHIFT

E313248

Push the lever on the side of the seat and
fold the seat down.

There are three different positions:

E408333

Home position.

Forward position.

Rotated position.

E327628

Push the latch down on the top of the work
surface to move it to the forward position.
There are 11 lockable positions.

228

Center Console Work Surface

(If Equipped)

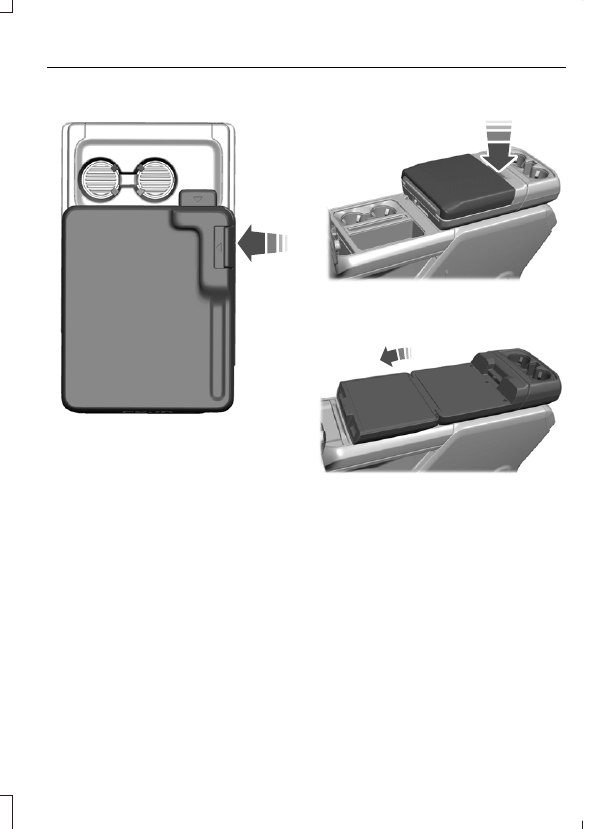

E331800

Push the latch on the side of the work
surface to rotate it toward the driver. It
rotates into 11 lockable positions in 5°
increments.

Note:

The work surface must be in the

home position when driving your vehicle.

Note:

Do not drive with the work surface

rotated. This could interfere with steering
your vehicle.

Note:

Do not adjust the steering column

with a rotated work surface.

Note:

Do not raise the seat when the work

surface is in the forward or rotated positions
to avoid damaging it.

Note:

To avoid damaging the work surface,

do not use it as a handle when entering or
exiting the vehicle.

Floor Console

(If Equipped)

E346160

Press the button to release the folding
surface.

E327043

2. Open the work surface. Fold the work

surface to close.

USING THE CENTER CONSOLE
WORK SURFACE - VEHICLES
WITH: CONSOLE SHIFT

To use the center console work surface,
stow the selector lever. See

Shifting Your

Vehicle Into Gear

(page 264).

229

Center Console Work Surface

(If Equipped)

E327042

Press the button to release the folding
surface.

E327043

2. Open the work surface. Fold the work

surface to close.

CENTER CONSOLE WORK SURFACE – TROUBLESHOOTING

CENTER CONSOLE WORK SURFACE – INFORMATION MESSAGES -
VEHICLES WITH: COLUMN SHIFT

Details

Message

Displays when the work surface is not

stowed and the vehicle is moving.

Stow work surface before driving

230

Center Console Work Surface

(If Equipped)

WHAT IS THE WIRELESS
ACCESSORY CHARGER

The wireless accessory charger allows you
to charge one compatible Qi wireless
charging device on the charging area.

WIRELESS ACCESSORY
CHARGER PRECAUTIONS

WARNING:

Wireless charging

devices can affect the operation of
implanted medical devices, including
cardiac pacemakers. If you have any
implanted medical devices, we
recommend that you consult with your
physician.

WARNING:

Remove all metal

objects like coins and keys from the
charging surface and remove any metal
objects attached to your mobile phone
before placing the device on the charging
surface. Some mobile devices or cases
may attract metal objects. Metal objects
on the charging surface or attached to
the phone may become hot while
charging is active. If an object is left on
or near the charging surface or attached
to the phone while the device is charging,
let the objects cool before removing to
prevent personal injury.

Keep the charging area clean and remove
foreign objects prior to charging a device.

Do not place items with a magnetic strip
or radio-frequency identification chip, for
example passports, parking tickets,
transportation passes or credit cards, near
the charging area when charging a device.
Damage could occur to the magnetic strip
or radio-frequency identification chip.

Do not place metal objects, for example
remote controls, coins and candy
wrappers, on or near the charging area
when charging a device. Metal objects may
heat up and degrade the charging
performance, in addition to causing
interruptions in charging.

Charging could be interrupted, degraded,
or could stop if any of the following occur:

•

The system detects a foreign object.

•

The device is misaligned on the
charging area.

•

The device moves on the active
charging area when the vehicle is in
motion.

•

The vehicle ambient temperature is too
high.

•

You attempt to charge a non-Qi
compatible device on the wireless
charger.

Note:

During charging, the device and the

charger could heat up, this is normal. If the
battery gets hotter than usual, the device
may stop charging.

LOCATING THE WIRELESS
ACCESSORY CHARGER

E297549

The charging area is on the
center console or in the media
bin below the instrument panel.

CHARGING A WIRELESS
DEVICE

Place the device on the center of the
charging surface with the charging side
down. The charging stops after your device
reaches a full charge.

You can use the charger when the vehicle
is in accessory mode, when the vehicle is
running or when the touchscreen is on.

231

Wireless Accessory Charger

(If Equipped)

CUP HOLDERS

CUP HOLDER PRECAUTIONS

WARNING:

Use caution when

stowing items or hot drinks in the cup
holders. Items could become loose or
spill during hard braking, acceleration or
crashes. Failure to follow this instruction
could result in personal injury.

GLOVE COMPARTMENT

OPENING THE GLOVE
COMPARTMENT

Upper Glove Compartment

E310219

Push the button on the instrument panel
to open.

Upper Glove Compartment

(If

Equipped)

E377981

The glove compartment is on the
instrument panel.

Lower Glove Compartment

E310218

Pull the latch to the left to open.

LOCKING THE GLOVE
COMPARTMENT

You can lock lower glove compartment
using the key.

233

Storage

E351063

Unlock.

Lock.

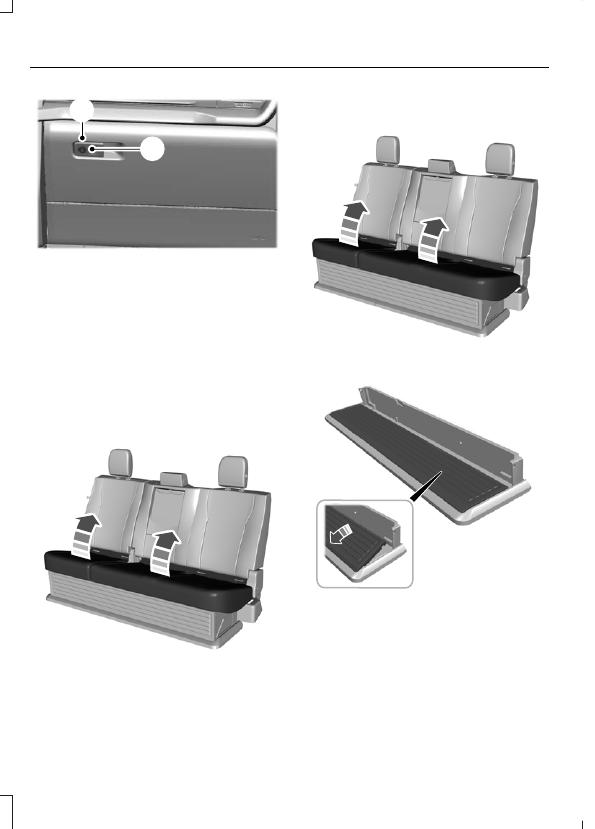

UNDER SEAT STORAGE

LOCATING THE UNDER SEAT
STORAGE COMPARTMENT -
CREW CAB/SUPERCAB

Rear Under Seat Storage

E229819

Lift the rear seat to access the under seat
storage bin.

Locking the Rear Under Seat
Storage

E229819

Lift the rear seat to access the under
seat storage bin.

E375018

2. Lift the front panel to expand the

storage bin.

234

Storage

E375019

3. Lock the front and side panels in an

open position.

E375020

4. To collapse, unlatch the side panels

and storage divider, push down to the
stowed position and fold in the side
and front panels.

Note:

Make sure the storage divider is not

locked into place when collapsing. Unlatch
the sliding latch to release the storage
divider and swing to the stowed position
against the front panel.

E224956

The locking key is in the remote control.
Turn the key to lock or unlock the cushion.

GLASSES HOLDER

LOCATING THE GLASSES HOLDER

E306967

The glasses holder is in the overhead
console.

Press near the rear edge of the door to
open it.

235

Storage

STARTING AND STOPPING
THE ENGINE – PRECAUTIONS

WARNING:

Extended idling at high

engine speeds can produce very high
temperatures in the engine and exhaust
system, creating the risk of fire or other
damage.

WARNING:

Do not park, idle or

drive your vehicle on dry grass or other
dry ground cover. The emission system
heats up the engine compartment and
exhaust system, creating the risk of fire.

WARNING:

Do not start the engine

WARNING:

Do not use starting

fluid, for example ether, in the air intake
system. Such fluid could cause
immediate explosive damage to the
engine and possible personal injury.

WARNING:

Exhaust leaks may

The powertrain control system meets all
Canadian interference-causing equipment
standard requirements regulating the
impulse electrical field or radio noise.

Note:

If you use your vehicle regularly above

the altitude of 5,000 ft (1,524 m) and under
the temperature of -4.0°F (-20°C), it is
recommended to use the alternative engine
oil. See

Capacities and Specifications

(page 578).

If you stop your vehicle and leave the
engine idling for long periods, we
recommend that you do one of the
following:
•

Open the windows at least 1 in
(2.5 cm).

•

Set your climate control to outside air.

IGNITION SWITCH

E252522

///

Switching the Ignition Off

Turn the key to position

Switching the Ignition to
Accessory Mode

Turn the key to position

. Electrical

accessories, for example the radio, operate
without the engine running.

236

Starting and Stopping the Engine

Switching the Ignition On

Turn the key to position

. All electrical

circuits and accessories are operational
and the warning lamps and indicators
illuminate.

PUSH BUTTON IGNITION
SWITCH

(IF EQUIPPED)

E321258

Switching the Ignition Off

When the ignition is on or in accessory
mode, press the push button ignition
switch once without your foot on the brake
pedal.

Switching the Ignition to
Accessory Mode

When the ignition is off, press the push
button ignition switch once without your
foot on the brake pedal.

All electrical circuits and accessories are
operational and the warning lamps and
indicators illuminate.

Note:

Your vehicle has a battery saver

feature that shuts your vehicle off when it
detects a certain amount of battery drain,
or after approximately 30 minutes of
inactivity in accessory mode.

Note:

The system may not function if the

remote control is close to metal objects or
electronic devices, for example keys or a cell
phone.

Note:

You need a valid key inside your

vehicle to switch the ignition on and start
the engine.

STARTING THE ENGINE

STARTING A GASOLINE ENGINE -
VEHICLES WITHOUT: PUSH
BUTTON START

Before starting your vehicle, check the
following:
•

Make sure that the headlamps and
electrical accessories are off.

•

Make sure that the parking brake is on.

•

Make sure that the transmission is in
park (P).

Fully press the brake pedal.

Note:

Do not touch the accelerator pedal.

E322354

2. Turn the key to position

III

Note:

The engine may continue cranking

for up to 15 seconds or until it starts.

Note:

The engine takes longer to start at

lower temperatures. It may crank for several
seconds when very cold.

STARTING A GASOLINE ENGINE -
VEHICLES WITH: PUSH BUTTON
START

Before starting your vehicle, check the
following:
•

Make sure that the headlamps and
electrical accessories are off.

•

Make sure that the parking brake is on.

•

Make sure that the transmission is in
park (P).

Fully press the brake pedal.

Note:

Do not touch the accelerator pedal.

237

Starting and Stopping the Engine

E357998

2. Press the push button ignition switch.

Note:

The engine may continue cranking

for up to 15 seconds or until it starts.

Note:

The engine takes longer to start at

lower temperatures. It may crank for several
seconds when very cold.

STARTING A HYBRID ELECTRIC
VEHICLE SYSTEM - VEHICLES
WITHOUT: PUSH BUTTON START

Before starting your vehicle, check the
following:
•

The headlamps and electrical
accessories are off.

•

The parking brake is on.

•

The transmission is in park (P).

Press the brake pedal.

Note:

Do not touch the accelerator pedal.

E322354

2. Turn the key to position

III

E354490

When you start your vehicle, a
green indicator illuminates in the
instrument cluster letting you

know that your vehicle is ready for driving.
Since your vehicle is equipped with a silent
key start, the engine may not start when
your vehicle starts.

When the engine starts for the first time,
the idle speed increases to help warm up
the engine. If the idle speed does not slow
down, have your vehicle checked by an
authorized dealer.

STARTING A HYBRID ELECTRIC
VEHICLE SYSTEM - VEHICLES
WITH: PUSH BUTTON START

Before starting your vehicle, check the
following:
•

Make sure the headlamps and
electrical accessories are off.

•

Make sure the parking brake is on.

•

Make sure the transmission is in park
(P).

Note:

Do not touch the accelerator pedal.

Fully press the brake pedal.

E357998

2. Press the push button ignition switch.

E354490

When you start your vehicle, a
green indicator light appears in
the instrument cluster letting you

know that your vehicle is ready for driving.
Since your vehicle is equipped with a silent
key start, the engine may not start when
your vehicle starts.

When the engine starts for the first time
on your drive, the idle speed increases, this
helps to warm up the engine. If the engine
idle speed does not slow down, have your
vehicle checked by an authorized dealer.

The system does not function if:
•

The passive key frequencies are
jammed.

•

The key battery has no charge.

238

Starting and Stopping the Engine

RESTARTING THE ENGINE AFTER
STOPPING IT - VEHICLES WITH:
PUSH BUTTON START

The system allows you to start the engine
within 10 seconds of switching it off, even
if it does not detect a valid passive key.

Within 10 seconds of switching the engine
off, fully press the brake pedal and press
the push button ignition switch. After 10
seconds, you can no longer start the engine
if the system does not detect a valid
passive key.

When you start the engine, it remains
running until you press the push button
ignition switch, even if your vehicle does
not detect a valid passive key. If you open
and close a door when the engine is
running, the system searches for a valid
passive key.

ENGINE BLOCK HEATER

(IF

EQUIPPED)

ENGINE BLOCK HEATER
PRECAUTIONS

WARNING:

Failure to follow engine

block heater instructions could result in
property damage or serious personal
injury.

WARNING:

Do not use your heater

with ungrounded electrical systems or
two-pronged adapters. There is a risk of
electrical shock.

WARNING:

Do not fully close the

hood, or allow it to drop under its own
weight when using the engine block
heater. This could damage the power
cable and may cause an electrical short
resulting in fire, injury and property
damage.

We recommend that you do the following
for a safe and correct operation:
•

Use a 16-gauge outdoor extension cord
that is product certified by
Underwriter’s Laboratory (UL) or
Canadian Standards Association
(CSA). This extension cord must be
suitable for use outdoors, in cold
temperatures, and be clearly marked
Suitable for Use with Outdoor
Appliances. Do not use an indoor
extension cord outdoors. This could
result in an electric shock or become a
fire hazard.

•

Use as short an extension cord as
possible.

•

Do not use multiple extension cords.

•

Make sure that when in operation, the
extension cord plug and engine block
heater cord plug connections are free
and clear of water. This could cause an
electric shock or fire.

•

If the engine block heater cord is under
the hood, do not remove the wiring
from its original location. Do not close
the hood on the extension wiring.

•

Park your vehicle in a clean area, clear
of combustible materials.

•

Firmly connect the engine block heater
cord and the extension cord.

•

Check the extension cord for heat
anywhere when the system has been
operating for approximately 30
minutes.

•

Unplug and properly stow the system
before starting and driving your vehicle.
The protective cover seals the
terminals of the engine block heater
cord plug when not in use.

•

Check the engine block heater system
for proper operation before winter.

239

Starting and Stopping the Engine

HOW DOES THE ENGINE BLOCK
HEATER WORK

The engine block heater warms the engine
coolant. This allows the climate control
system to quickly respond. The equipment
includes a heater element installed in the
engine block and a wire harness. You can
connect the system to a grounded 110 volt
AC electrical source.

Note:

The engine block heater is most

effective when outdoor temperatures are
below 0°F (-18°C). We recommend the use
of engine block heater to improve engine
cold start performance.

USING THE ENGINE BLOCK
HEATER

Make sure the receptacle terminals are
clean and dry prior to use. Clean them with
a dry cloth if necessary.

The heater uses 0.4 to 1.0 kilowatt-hours
of energy per hour of use. The system does
not have a thermostat. It achieves
maximum temperature after
approximately three hours of operation.
Using the engine block heater longer than
three hours does not improve system
performance and unnecessarily uses
electricity.

STOPPING THE ENGINE

STOPPING THE ENGINE WHEN
YOUR VEHICLE IS STATIONARY -
VEHICLES WITHOUT: PUSH
BUTTON START

Shift into park (P).

2. Apply the parking brake.

3. Wait until the engine reaches idle

speed.

E322405

4. Turn the key to position

STOPPING THE ENGINE WHEN
YOUR VEHICLE IS STATIONARY -
VEHICLES WITH: PUSH BUTTON
START

Shift into park (P).

2. Apply the parking brake.

3. Wait until the engine reaches idle

speed.

E357998

4. Press the push button ignition switch.

STOPPING THE ENGINE WHEN
YOUR VEHICLE IS MOVING -
VEHICLES WITHOUT: PUSH
BUTTON START

WARNING:

Switching off the

240

Starting and Stopping the Engine

could be required to steer your vehicle.
When you switch the ignition off, some
electrical circuits, for example airbags,
also turn off. If you unintentionally switch
the ignition off, shift into neutral (N) and
restart the engine.

E322405

Turn the key to position

2. Shift into neutral and use the brakes to

bring your vehicle to a safe stop.

3. Shift into park (P).

4. Apply the parking brake.

STOPPING THE ENGINE WHEN
YOUR VEHICLE IS MOVING -
VEHICLES WITH: PUSH BUTTON
START

WARNING:

Switching off the

engine when your vehicle is still moving
results in a significant decrease in
braking assistance. Higher effort is
required to apply the brakes and to stop
your vehicle. A significant decrease in
steering assistance could also occur. The
steering does not lock, but higher effort
could be required to steer your vehicle.
When you switch the ignition off, some
electrical circuits, for example airbags,
also turn off. If you unintentionally switch
the ignition off, shift into neutral (N) and
restart the engine.

E357998

Press and hold the push button ignition
switch until the engine stops, or press
it three times within two seconds.

2. Shift into neutral and use the brakes to

bring your vehicle to a safe stop.

3. Shift into park (P).

4. Apply the parking brake.

POLICE ENGINE IDLE - POLICE
RESPONDER

WHAT IS POLICE ENGINE IDLE

This allows you to leave the engine running
and prevents your vehicle from
unauthorized use when you are outside of
your vehicle.

HOW DOES POLICE ENGINE IDLE
WORK

When you remove the key from the ignition,
the engine remains idling.

Switching the System On

E227967

241

Starting and Stopping the Engine

With your vehicle running and the
transmission in park (P), press the
police idle button on the instrument
panel. See

Instrument Cluster

Indicators

(page 170). An indicator

lamp illuminates to confirm the system
is on.

2. Switch the ignition off and remove the

key.

When the system is on:
•

The power window switches turn off
and the windows remain in their current
state.

•

The interior liftgate unlock button is
disabled and will not unlock the rear
liftgate.

Note:

When the system is on, you can use

the key blade or the remote control to lock
and unlock your vehicle.

Switching the System Off

•

To disable Police Idle and keep the
engine running, insert key and turn to
the run position.

•

To disable Police Idle and turn the
engine off, press the police idle button
on the instrument panel.

Note:

If you switch the system off before

switching the ignition to the run position,
your vehicle shuts down.

AUTOMATIC ENGINE STOP -
VEHICLES WITH: KEYLESS
ENTRY AND PUSH BUTTON
START

WHAT IS AUTOMATIC ENGINE
STOP

Automatic engine stop is a feature that
switches the engine off if it has been idling
for an extended period to help you save
fuel.

HOW DOES AUTOMATIC ENGINE
STOP WORK

Automatic engine stop turns the engine
off. The ignition also turns off in order to
save battery power. Before the engine
shuts down, a message appears in the
information display showing a timer
counting down. If you do not intervene
within 30 seconds, the engine shuts down.
Another message appears in the
information display to inform you that the
engine has shut down in order to save fuel.
Start your vehicle as you normally do.

SWITCHING AUTOMATIC ENGINE
STOP ON AND OFF

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Switch

30min Max Idle

on or off.

Note:

You cannot permanently switch off

the automatic shutdown. If you switch it off,
it turns on each time you switch the ignition
on.

OVERRIDING AUTOMATIC ENGINE
STOP

You can stop the engine shutdown, or reset
the timer, at any point before the
30-second countdown has expired by
doing any of the following:
•

Pressing the brake pedal or accelerator
pedal.

•

Pressing the

RESET

button

during the countdown.

Note:

You cannot permanently switch off

the automatic engine shutdown feature.
When you switch it off temporarily, it turns
on at the next ignition cycle.

242

Starting and Stopping the Engine

ACCESSING THE PASSIVE KEY
BACKUP POSITION -
VEHICLES WITH: KEYLESS
ENTRY AND PUSH BUTTON
START

If you are unable to start your vehicle,
locate the backup slot in one of two
positions:

Vehicles with a center console:

E312216

Remove the mat from the center
console cup holder.

2. Place the remote control in the backup

slot with the buttons facing toward the
rear of the vehicle.

3. Press the brake pedal.
4. Press the push button ignition switch

to start the vehicle.

Vehicles without a center console:

E269950

Raise the center console storage lid.

2. Place the remote control in the backup

slot with the buttons facing toward the
rear of the vehicle.

3. Press the brake pedal.
4. Press the push button ignition switch

to start the vehicle.

STARTING AND STOPPING
THE ENGINE –
TROUBLESHOOTING

STARTING AND STOPPING THE
ENGINE – WARNING LAMPS

Malfunction Indicator Lamp

E67028

If it illuminates when the engine
is running, the on-board
diagnostics system is detecting

a malfunction of the vehicle emission
control system.

If it flashes, engine misfire could be
occurring. Increased exhaust gas
temperatures could damage the catalytic
converter or other vehicle components.
Avoid heavy acceleration and deceleration,
and have your vehicle checked as soon as
possible.

243

Starting and Stopping the Engine

Powertrain Warning Lamp

If it illuminates when the engine
is running, this indicates a
powertrain or four-wheel drive

fault. If it flashes when you are driving,
immediately reduce the vehicle speed.
Avoid heavy acceleration and deceleration,
and have your vehicle checked as soon as

possible.

If both lamps illuminate when the engine
is running, stop your vehicle as soon as it
is safe to do so. Continuing to drive your
vehicle could cause reduced power or the
engine to stop. Switch the ignition off and
attempt to restart the engine. Have your
vehicle checked as soon as possible.

STARTING AND STOPPING THE ENGINE – INFORMATION MESSAGES

Action

Message

Displays if you exceed the starting time limit. You cannot
attempt to start the engine for 15 minutes. If you cannot start
the engine after 15 minutes passes, have your vehicle imme-
diately checked.

Cranking Time Exceeded

Displays if you are unable to start your vehicle with a correctly
coded key. The system has detected a fault that requires
service. Have your vehicle checked as soon as possible.

Starting System Fault

Displays if the system does not detect a valid passive key.

No Key Detected

244

Starting and Stopping the Engine

STARTING AND STOPPING THE
ENGINE – FREQUENTLY ASKED
QUESTIONS - VEHICLES
WITHOUT: PUSH BUTTON START

Why is the engine idle speed high
when I am starting the engine?

•

The speed at which the engine idles
immediately after starting is optimized
to minimize vehicle emissions and
maximize cabin comfort and fuel
economy.

Why does the engine not crank?

•

You can only attempt to start the
engine for a limited amount of time
before the starting system temporarily
disables. If you exceed the starting time
limit, a message may appear and you
cannot attempt to start the engine for
at least 15 minutes.

Why do I experience different
driving characteristics?

•

If you disconnect the battery, your
vehicle may exhibit some unusual
driving characteristics for
approximately 5 mi (8 km) after you
reconnect it. This is because the engine
management system must realign
itself with the engine. You can
disregard any unusual driving
characteristics during this period.

Why can I not start the engine?

If you cannot start the engine after 3
attempts, wait 10 seconds and do the
following:

Fully press the brake pedal or the
clutch pedal.

Note:

Make sure that the parking brake is

applied.

Note:

Make sure that the transmission is in

park (P) or neutral (N).

2. Fully press the accelerator pedal and

hold it there.

E322354

3. Turn the key to position

III

and wait

until the engine stops cranking.

4. Release the accelerator pedal.
5. Turn the key to position

III

STARTING AND STOPPING THE
ENGINE – FREQUENTLY ASKED
QUESTIONS - VEHICLES WITH:
PUSH BUTTON START

Why is the engine speed high when
I am starting the engine?

•

The speed at which the engine idles
immediately after starting is optimized
to minimize vehicle emissions and
maximize cabin comfort and fuel
economy.

Why does the engine not crank?

•

245

Starting and Stopping the Engine

Why do I experience different
driving characteristics?

•

If you disconnect the battery, your
vehicle may exhibit some unusual
driving characteristics for
approximately 5.0 mi (8 km) after you
reconnect it. This is because the engine
management system must realign
itself with the engine. You can
disregard any unusual driving
characteristics during this period.

Why can I not start the engine?

If you cannot start the engine after 3
attempts, wait 10 seconds and do the
following:

Fully press the brake pedal or the
clutch pedal.

Note:

Make sure that the parking brake is

applied.

Note:

Make sure that the transmission is in

park (P) or neutral (N).

2. Fully press the accelerator pedal and

hold it there.

3. Press the push button ignition switch.

Note:

The engine cranks for a short period

of time and then it stops.

4. Release the accelerator pedal.

E357998

5. Press the push button ignition switch.

Why does the system not detect a
passive key?

•

If the system does not detect a passive
key and you are unable to start the
engine, insert the passive key into the
backup position and press the push
button ignition switch to start the
engine. See

Accessing the Passive

Key Backup Position

(page 243).

246

Starting and Stopping the Engine

A hybrid vehicle has an electric motor and
a high voltage battery combined with a
gasoline engine. The hybrid vehicle
combines electric and gasoline propulsion
to provide optimal performance and
improved efficiency.

Hybrid Electric Vehicle Driving
Characteristics

The gasoline engine starts and stops to
provide power when required and to save
fuel when not needed. When coasting at
low speeds, coming to a stop or standing,
the gas engine normally shuts down and
your vehicle operates in electric-only
mode.

Conditions that may cause the gasoline
engine to start or remain running include:

•

Considerable vehicle acceleration.

•

Driving uphill.

•

The high voltage battery charge level
is low.

•

Heating or cooling the vehicle interior
in high or low outside temperatures.

•

The gasoline engine is below normal
operating temperature.

•

Towing a trailer.

•

Certain selectable drive modes could
cause the engine to run. See

Selecting

a Drive Mode

(page 372). Use of the

paddle shifters while in drive (D) could
cause the engine to run. See

Manually

Shifting Gears

(page 268).

Your hybrid vehicle also comes with
standard hydraulic braking and
regenerative braking. Regenerative braking
is performed by your transmission and
captures brake energy and stores it in the
high voltage battery.

You could also notice that your engine
continues to run instead of shutting off
during extended downhill driving. The
engine stays on during this engine braking
but is not using any fuel.

You could also hear a slight whine or
whistle when operating your vehicle. This
is the normal operation of the electric
motor in the hybrid system.

Hybrid Electric Vehicle Indicators

E293827

When you start your vehicle, a
green READY indicator light
appears in the instrument cluster

letting you know that your vehicle is ready
for driving.

The engine may not start because your
vehicle has a silent key start feature. This
fuel saving feature allows your vehicle to
be ready to drive without requiring the gas
engine to be running.

The indicator remains on when your vehicle
is on, whether the engine is running or not,
to indicate your vehicle is capable of
movement using the electric motor, gas
engine or both.

Typically, the engine does not start unless
the vehicle is cold, a climate control
change is requested or you press the
accelerator pedal.

Hybrid Electric Vehicle
Information – Frequently Asked
Questions

What should I do if the vehicle runs out
of fuel and the high voltage battery is
out of charge?

•

Refuel and start your vehicle normally.
The engine will recharge the high
voltage battery.

247

Hybrid Electric Vehicle Information

Why does the engine sometimes start
at key-on?

•

The vehicle's computer determines if
an engine start is required at key-on. It
starts the engine when necessary for
cabin heating, windshield defrost, if the
high voltage battery is low, or if the
outside temperature is low.

Can I put E15 or E85 in my vehicle, and
how will it affect my fuel economy?

•

Your hybrid vehicle can use E15 (15%
ethanol, 85% gasoline) fuel, but you
may notice slightly reduced fuel
economy because ethanol contains
less energy per gallon than gasoline.
Your hybrid vehicle is not designed to
use E85 (85% ethanol).

Why does it take a long time before the
engine shuts down?

•

There are several reasons the engine
stays on for an extended amount of
time when you first start it. One
common reason is to make sure that
the emissions components are warm
enough to minimize tailpipe emission.
As the climate gets cooler, the
engine-on time is extended.

Why does my engine stay on when it is
extremely cold outside?

•

In order to make sure that the climate
control system can begin heating the
cabin or defrosting the windshield as
soon as a driver requests it, the engine
coolant temperature has to be kept
sufficiently hot. Keeping the engine on
is required to maintain the correct
coolant temperature.

ECO IDLE

ECO Idle runs the engine more efficiently
to increase fuel efficiency and engine off
time while the vehicle is in park (P). This
extends the use of the high voltage battery
while stationary.

Note:

Engine speed increases above normal

idle while charging the battery in ECO Idle.
Engine sound and vibration could be more
noticeable.

Switching ECO Idle On and Off

To switch ECO Idle on and off use the
touchscreen:

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Switch

ECO Idle

on or off.

Note:

Your vehicle must be in park (P) and

the ignition in running state for ECO Idle to
be available.

Eco Idle – Frequently Asked
Questions

I followed the activation steps, and
nothing happened. Is this correct?

•

The increased engine idle speed of ECO
Idle starts only when the engine is
charging the high voltage battery.

Why is the engine idling so loudly?

•

The engine is running at higher idle
speeds to charge the high voltage
battery. This is normal operation.

248

Hybrid Electric Vehicle Information

WHAT IS AUTO-START-STOP

The system is designed to help reduce fuel
consumption and CO

emissions by

stopping the engine when it is idling, for
example at traffic lights.

AUTO-START-STOP
PRECAUTIONS

WARNING:

Apply the parking

brake, shift into park (P), switch the
ignition off and remove the key before
you leave your vehicle. Failure to follow
this instruction could result in personal
injury or death.

WARNING:

Apply the parking

brake, shift into park (P), switch the
ignition off and remove the key before
you open the hood or have any service
or repair work completed. If you do not
switch the ignition off, the engine could
restart at any time. Failure to follow this
instruction could result in personal injury
or death.

SWITCHING AUTO-START-
STOP ON AND OFF

The system turns on when you switch the
ignition on.

E121377

Press the button to switch the
system off.

Note:

OFF

illuminates in the switch.

Note:

Deactivating the system using the

button lasts only one key cycle.

Press the button again to switch the
system back on.

Note:

The system turns off if it detects a

malfunction. If the system malfunctions,
have your vehicle checked as soon as
possible.

STOPPING THE ENGINE

Stop your vehicle, keep your foot on the
brake pedal and the transmission in drive
(D).

RESTARTING THE ENGINE

Release the brake pedal or press the
accelerator pedal.

A message appears in the instrument
cluster display if the system requires you
to take action.

AUTO-START-STOP
INDICATORS

WARNING:

The system may

require the engine to automatically
restart when the auto-start-stop
indicator illuminates green or flashes
amber. Failure to follow this instruction
could result in personal injury.

E121377

The auto-start-stop indicator
illuminates green when the
engine stops. It flashes amber

and a message appears when you need to
take action.

E146361

The auto-start-stop indicator
illuminates gray with a
strikethrough when the system

is not available.

249

Auto-Start-Stop

(If Equipped)

AUTO-START-STOP –
TROUBLESHOOTING

AUTO-START-STOP –
INFORMATION MESSAGES

A message appears in the instrument
cluster display if the system requires you
to take action.

Action

Condition

Message

Press the brake pedal to
restart the engine.

The system needs to restart
the engine but requires your
confirmation.

Auto StartStop Press Brake
to Start Engine

Press the brake pedal or the
accelerator pedal to restart
the engine.

The system needs to restart
the engine but requires your
confirmation.

Auto StartStop Press a
Pedal to Start Engine

250

Auto-Start-Stop

(If Equipped)

AUTO-START-STOP –
FREQUENTLY ASKED QUESTIONS

Why does the engine not always
stop when I expect it to?

The system is designed to work in a way
that complements other vehicle systems,
allowing them to operate at optimum
performance.

The system does not stop the engine if:
•

The driver door is open.

•

Your vehicle is at high altitude.

•

The heated windshield is on.

•

The engine is warming up.

•

The outside temperature is too low or
too high.

•

The battery charge is low.

•

The battery temperature is outside the
optimal operating range.

•

The engine is required to run to
maintain interior climate and reduce
fogging.

Why does the engine sometimes
restart when I do not expect it to?

The system is designed to work in a way
that complements other vehicle systems,
allowing them to operate at optimum
performance.

The system restarts the engine if:
•

You switch the heated windshield on.

•

You switch maximum defrost on.

•

Your vehicle starts to roll downhill in
neutral.

•

The engine is required to run to
maintain adequate brake system
assistance.

•

The engine is required to run to
maintain interior climate and reduce
fogging.

Can I permanently switch the
system off?

No. The system plays an important role in
reducing the fuel consumption and the CO

emissions.

Will the frequent engine starts
cause parts to wear out?

Your vehicle has an enhanced battery and
starter motor that are designed for the
increased number of engine starts.

251

Auto-Start-Stop

(If Equipped)

FUEL AND REFUELING
PRECAUTIONS

WARNING:

Fuels can cause serious

injury or death if misused or mishandled.

WARNING:

Fuel may contain

benzene, which is a cancer-causing
agent.

WARNING:

Read and follow all the

instructions on the pump island.

WARNING:

When refueling always

shut the engine off and never allow
sparks or open flames near the fuel tank
filler valve. Never smoke or use a cell
phone while refueling. Fuel vapor is
extremely hazardous under certain
conditions. Avoid inhaling excess fumes.

Follow these guidelines when refueling:
•

Extinguish all smoking materials and
any open flames before refueling your
vehicle.

•

Switch the engine off before refueling.

•

Automotive fuels can be harmful or
fatal if swallowed. Fuel is highly toxic
and if swallowed can cause death or
permanent injury. If fuel is swallowed
immediately call a physician, even if no
symptoms are immediately apparent.
The toxic effects of fuel may not be
apparent for hours.

•

Avoid inhaling fuel vapors. Inhaling fuel
vapor can lead to eye and respiratory
tract irritation. In severe cases,
excessive or prolonged breathing of
fuel vapor can cause serious illness and
permanent injury.

•

Avoid getting fuel in your eyes. If you
splash fuel in your eyes, immediately
remove contact lenses, if worn, flush
with water for 15 minutes and seek
medical attention. Failure to seek
proper medical attention could lead to
permanent injury.

•

Fuels can be harmful if absorbed
through the skin. If you splash fuel on
your skin, clothing or both, promptly
remove contaminated clothing and
thoroughly wash your skin with soap
and water. Repeated or prolonged skin
contact causes skin irritation.

•

Be particularly careful if you are taking
Antabuse or other forms of Disulfiram
for the treatment of alcoholism.
Breathing fuel vapors could cause an
adverse reaction, serious personal
injury or sickness. Immediately call a
physician if you experience any adverse
reactions.

FUEL QUALITY

SELECTING THE CORRECT FUEL -
GASOLINE

E161513

Your vehicle operates on regular unleaded
gasoline with a minimum pump (R+M)/2
octane rating of 87.

252

Fuel and Refueling

Ford F-150 (2024 year). Manual in english - page 7
