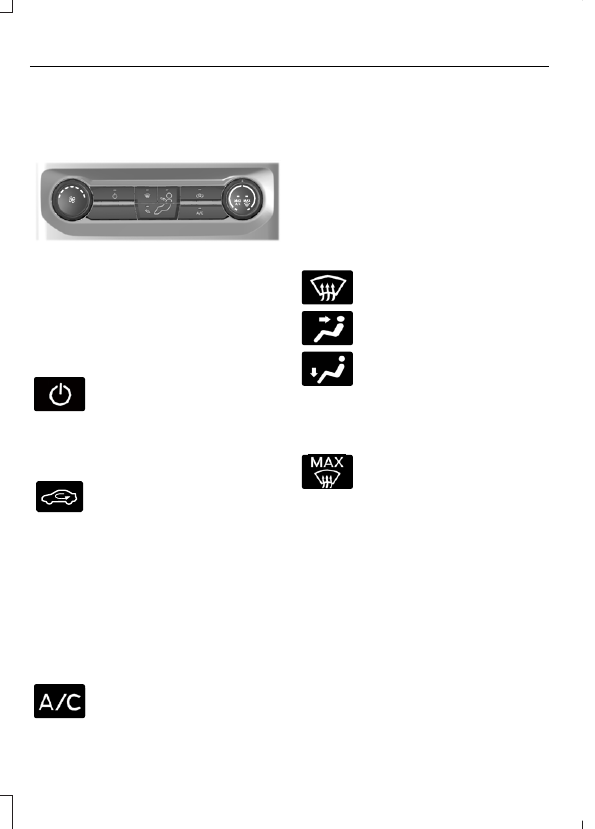

IDENTIFYING THE CLIMATE
CONTROL UNIT

E308141

Depending on your vehicle options, the
controls could look different than what you
see here.

SWITCHING CLIMATE
CONTROL ON AND OFF

Press the button.

SWITCHING RECIRCULATED
AIR ON AND OFF

Press the button to recirculate
air currently in the passenger
compartment.

Note:

Recirculated air may turn off

automatically, or prevent you from switching
on in all air flow modes except MAX A/C to
reduce the risk of fogging. Recirculation may
also turn on and off automatically in various
air distribution control combinations to
improve heating or cooling efficiency.

SWITCHING AIR
CONDITIONING ON AND OFF

Press the button.

Note:

Under certain conditions, the air

conditioning compressor could continue to
operate after you switch air conditioning off.

Note:

To keep the system and its

components fully functional, switch air
conditioning on and let your vehicle idle at
least once per month for a minimum of two
minutes.

SWITCHING DEFROST ON AND
OFF

Press the button to switch the
windshield air vents on.

E244097

Make sure that the instrument
panel air vents are switched off.

E244098

Make sure that the footwell air
vents are switched off.

SWITCHING MAXIMUM
DEFROST ON AND OFF

Turn the temperature control
clockwise past the highest
setting to maximize defrosting.

Note:

The temperature control springs back

to the highest setting.

Air flows through the windshield air vents,
and the blower motor adjusts to the
highest speed.

Note:

To prevent window fogging, you

cannot select recirculated air when
maximum defrost is on.

Note:

The heated rear window also turns

on when you select maximum defrost.

190

Climate Control - Vehicles With: Manual Temperature Control

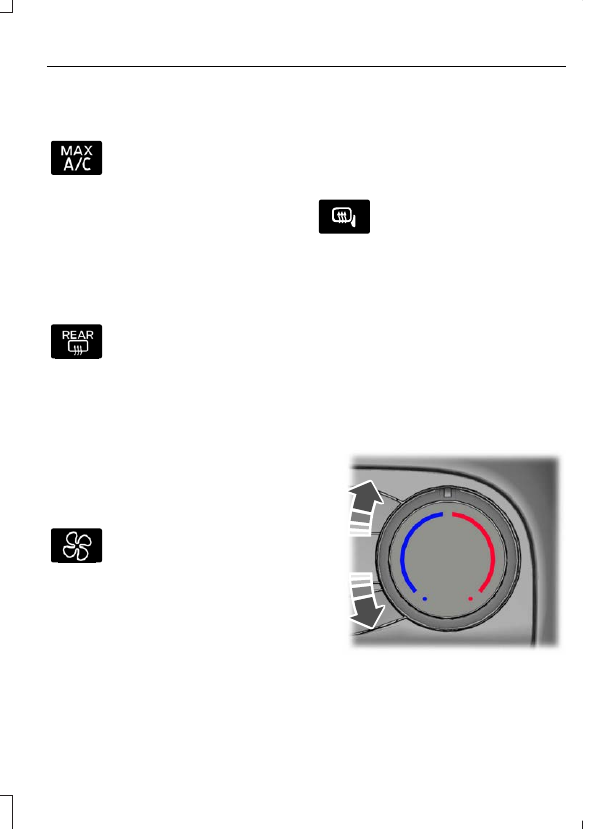

SWITCHING MAXIMUM
COOLING ON AND OFF

Turn the temperature control
counterclockwise past the
lowest setting to maximize

cooling.

Note:

The temperature control springs back

to the lowest setting.

Note:

When you switch maximum cooling

off, air conditioning remains on.

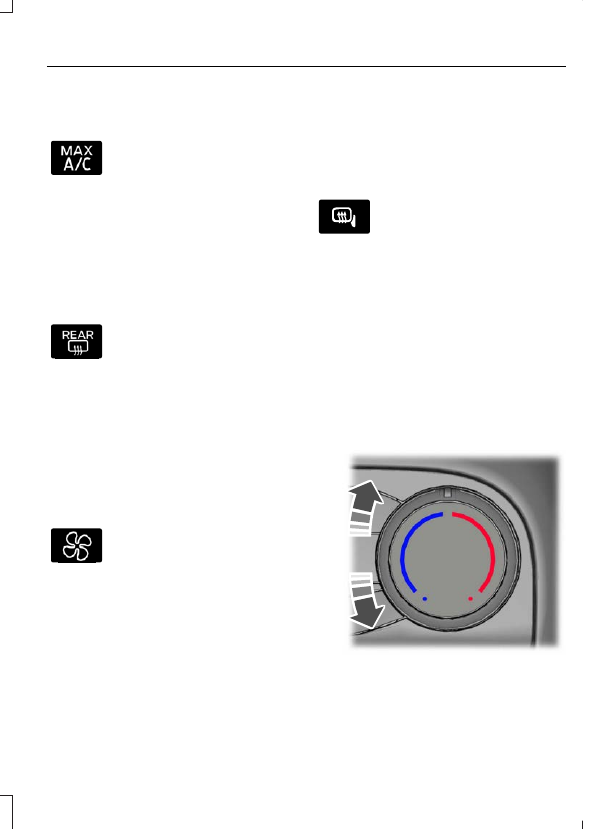

SWITCHING THE HEATED
REAR WINDOW ON AND OFF

Press the button to clear the rear
window of thin ice and fog. The
heated rear window turns off

after a short period of time.

Note:

Do not use harsh chemicals, razor

blades or other sharp objects to clean or
remove decals from the inside of the heated
rear window as this could cause damage to
the heated rear window grid lines not
covered by the vehicle Warranty.

SETTING THE BLOWER MOTOR
SPEED

Note:

Lights on the control illuminate to

indicate the blower motor speed.

Note:

When you switch the blower motor

off, air conditioning turns off and the
windows could fog up.

SWITCHING THE HEATED
MIRRORS ON AND OFF

When you switch the heated rear window
on, the heated exterior mirrors turn on.
See

Switching the Heated Rear Window

On and Off

(page 191).

E266189

You can also turn on and off the
heated exterior mirrors using the
mirror defrost button.

Note:

Do not remove ice from the mirrors

with a scraper or adjust the mirror glass
when it is frozen in place.

Note:

Do not clean the mirror housing or

glass with harsh abrasives, fuel or other
petroleum-based cleaning products. The
vehicle warranty may not cover damage
caused to the mirror housing or glass.

Note:

The engine must be running or your

vehicle must be ready to drive to switch the
system on.

SETTING THE TEMPERATURE

E244106

Turn the temperature control
counterclockwise for cooler temperature
settings.

191

Climate Control - Vehicles With: Manual Temperature Control

Turn the temperature control clockwise
for warmer temperature settings.

DIRECTING THE FLOW OF AIR

Directing Air to the Windshield Air
Vents

Press the button.

Directing Air to the Instrument
Panel Air Vents

E244097

Press the button.

Directing Air to the Footwell Air
Vents

E244098

Press the button.

CLIMATE CONTROL HINTS

General Hints

•

Prolonged use of recirculated air may
cause the windows to fog up.

•

You may feel a small amount of air
from the footwell air vents regardless
of the air distribution setting.

•

To reduce humidity build-up inside your
vehicle, do not drive with the system
switched off or with recirculated air
always switched on.

•

Do not place objects under the front
seats as this may interfere with the
airflow to the rear seats.

•

Remove any snow, ice or leaves from
the air intake area at the base of the
windshield.

•

To improve the time to reach a
comfortable temperature in hot
weather, drive with the windows open
until you feel cold air through the air
vents.

Quickly Heating the Interior

Adjust the blower motor speed to the
highest speed setting.

2. Adjust the temperature control to the

highest setting.

3. Direct air to the footwell air vents.

Recommended Settings for
Heating

Adjust the blower motor speed to the
center setting.

2. Adjust the temperature control to the

midway point of the hot settings.

3. Direct air to the footwell air vents.

Quickly Cooling the Interior

Press

MAX A/C

2. Drive with the windows open for a short

period of time.

Recommended Settings for
Cooling

Adjust the blower motor speed to the
center setting.

2. Adjust the temperature control to the

midway point of the cold settings.

3. Direct air to the instrument panel air

vents.

Defogging the Side Windows in
Cold Weather

Direct air to the instrument panel and
windshield air vents.

192

Climate Control - Vehicles With: Manual Temperature Control

WHAT IS THE CABIN AIR
FILTER

The cabin air filter improves the quality of
air in your vehicle by trapping dust, pollen
and other particles.

REPLACING THE CABIN AIR
FILTER

Replace the filter at regular intervals.

The cabin air filter is behind the glove
compartment.

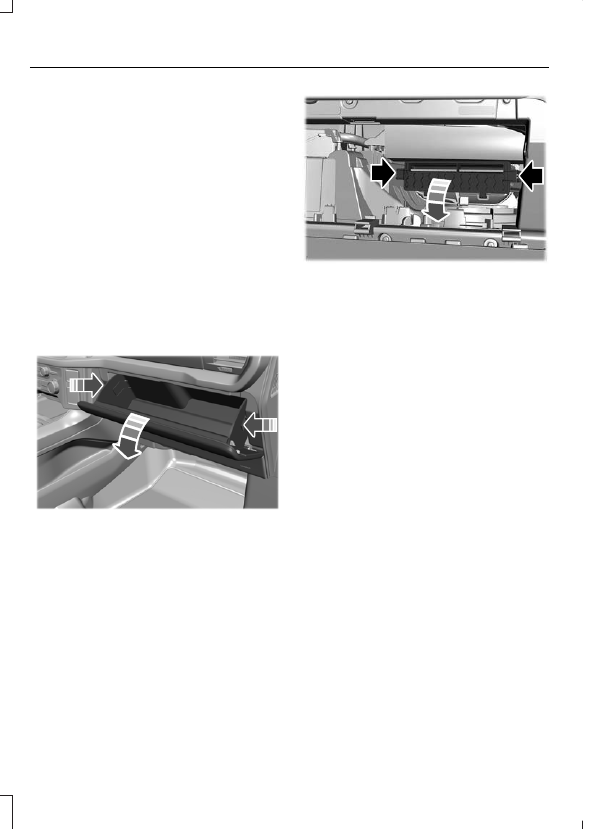

To remove the lower glove compartment
and access the filter:

Open the glove compartment.

E311296

2. Press the tab on each side.

3. Fully lower the glove compartment.

4. Pull the glove compartment toward

you.

5. Unclip both sides of the filter door and

swing door down to access filter .

E371239

6. Remove the old filter and replace with

a new filter.

194

Interior Air Quality

FRONT SEAT PRECAUTIONS

WARNING:

Sitting improperly, out

of position or with the seatback reclined
too far can take weight off the seat
cushion and affect the decision of the
passenger sensing system, resulting in
serious injury or death in the event of a
crash. Always sit upright against your
seat back, with your feet on the floor.

WARNING:

Do not recline the seat

backrest too far as this can cause the
occupant to slide under the seatbelt,
resulting in personal injury in the event
of a crash.

WARNING:

Do not place objects

higher than the top of the seat backrest.
Failure to follow this instruction could
result in personal injury or death in the
event of a sudden stop or crash.

WARNING:

Do not adjust the driver

seat or seat backrest when your vehicle
is moving. This may result in sudden seat
movement, causing the loss of control
of your vehicle.

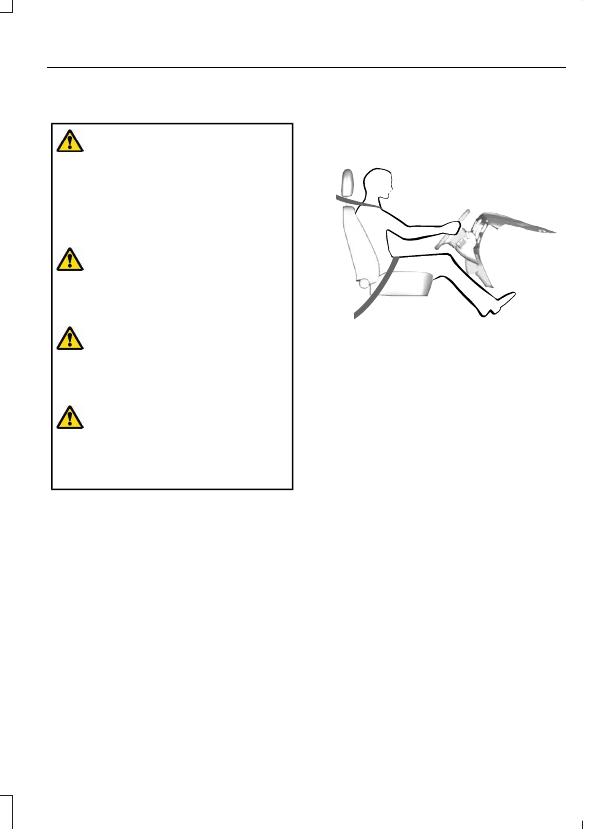

SITTING IN THE CORRECT
POSITION

E68595

When you use them properly, the seat,
head restraint, seatbelt and airbags will
provide optimum protection in the event
of a crash.

We recommend that you follow these
guidelines:
•

Sit in an upright position with the base
of your spine as far back as possible.

•

Do not recline the seat backrest so that
your torso is more than 30 degrees
from the upright position.

•

Adjust the head restraint so that the
top of it is level with the top of your
head and as far forward as possible.
Make sure that you remain
comfortable.

•

Keep sufficient distance between
yourself and the steering wheel. We
recommend a minimum of 10 in
(25 cm) between your breastbone and
the airbag cover.

•

Hold the steering wheel with your arms
slightly bent.

195

Front Seats

•

Bend your legs slightly so that you can
press the pedals fully.

•

Position the shoulder strap of the
seatbelt over the center of your
shoulder and position the lap strap
tightly across your hips.

Make sure that your driving position is
comfortable and that you can maintain full
control of your vehicle.

MANUAL SEATS

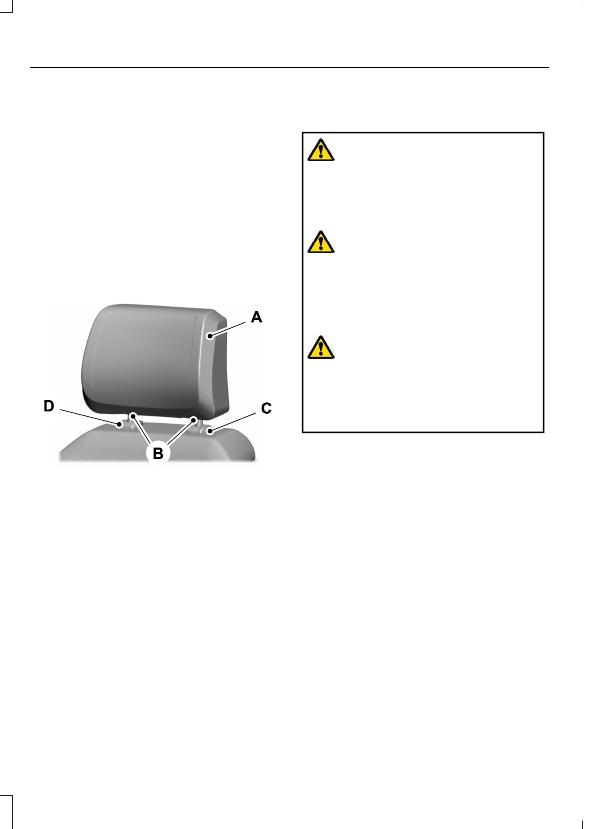

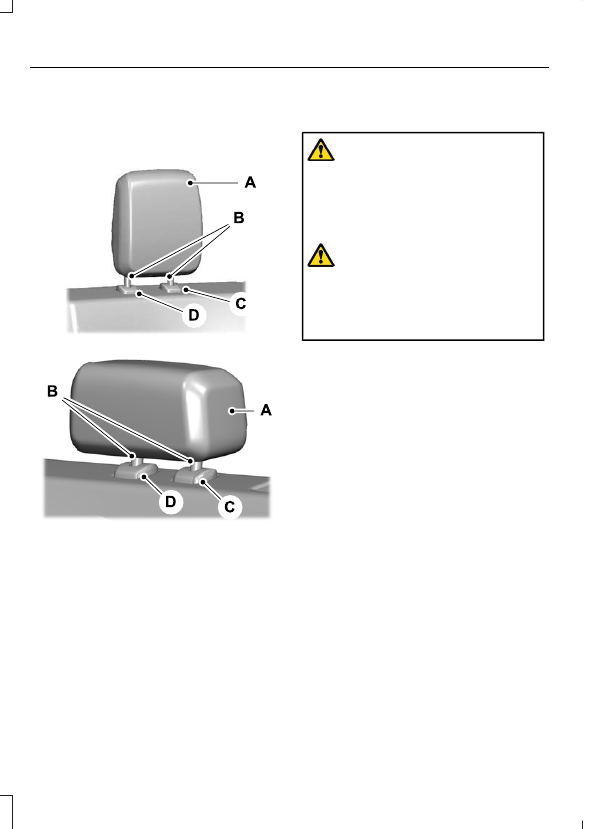

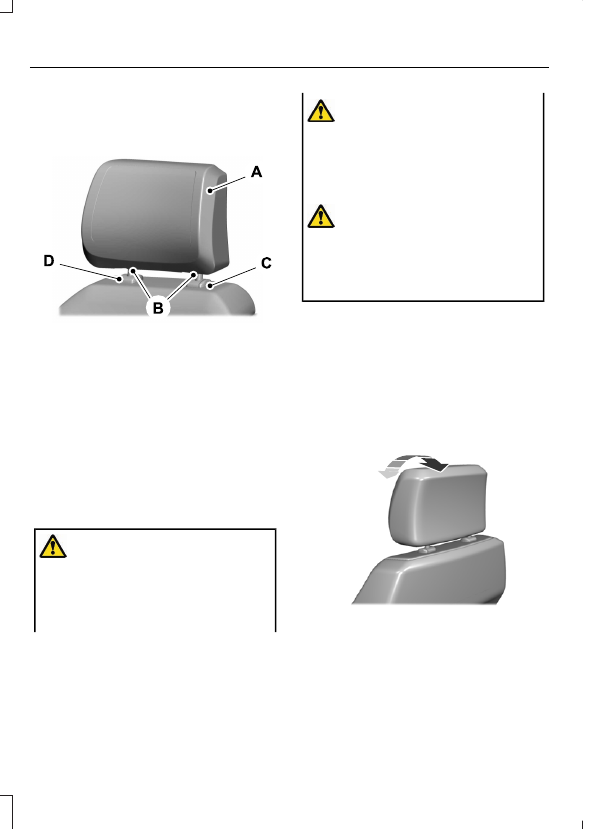

HEAD RESTRAINT COMPONENTS

E327921

The head restraints consist of:

An energy absorbing head
restraint.

Two steel stems.

Guide sleeve adjust and release
button.

Guide sleeve unlock and remove
button (If equipped).

ADJUSTING THE HEAD
RESTRAINT

WARNING:

Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk
of neck injury in the event of a crash. Do
not adjust the head restraint when your
vehicle is moving.

WARNING:

The head restraint is a

safety device. Whenever possible it
should be installed and properly
adjusted when the seat is occupied.
Failure to adjust the head restraint
properly could reduce its effectiveness
during certain impacts.

WARNING:

Adjust the head

restraints for all passengers before you
drive your vehicle. This will help minimize
the risk of neck injury in the event of a
crash. Do not adjust the head restraints
when your vehicle is moving.

Note:

Adjust the seat backrest to an upright

driving position before adjusting the head
restraint. Adjust the head restraint so that
the top of it is level with the top of your head
and as far forward as possible. Make sure
that you remain comfortable. If you are
extremely tall, adjust the head restraint to
its highest position.

Pull the head restraint up to raise it.

To lower the head restraint:

Press and hold the adjust and release
button.

2. Push the head restraint down.

196

Front Seats

REMOVING THE HEAD RESTRAINT

Pull up the head restraint until it
reaches its highest position.

2. Press and hold the adjust and release

button and the unlock and remove
button.

3. Pull up the head restraint.

INSTALLING THE HEAD
RESTRAINT

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

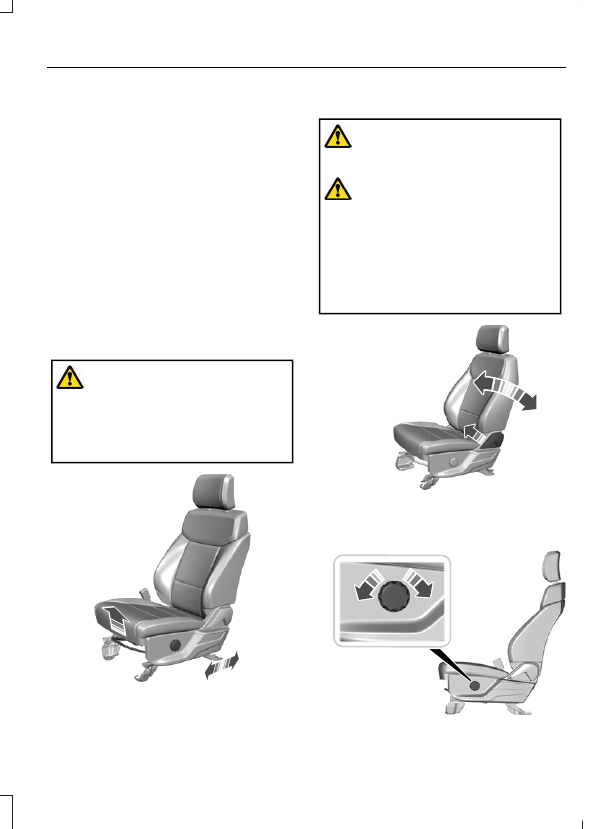

MOVING THE SEAT BACKWARD
AND FORWARD

WARNING:

Make sure the seat fully

locks into place by rocking it backward
and forward. Not securing the seat into
the locked position can be dangerous in
a crash and could cause serious personal
injury or death.

E308316

ADJUSTING THE SEAT BACKREST

WARNING:

Always drive and ride

with your seatback upright and the lap
belt snug and low across the hips.

WARNING:

Do not place cargo or

any objects behind the seat backrest
before returning it to the original position.
Pull on the seat backrest to make sure
that it has fully latched after returning
the seat backrest to its original position.
An unlatched seat may become
dangerous if you stop suddenly or have
a crash.

E327922

ADJUSTING THE LUMBAR
SUPPORT

E308334

197

Front Seats

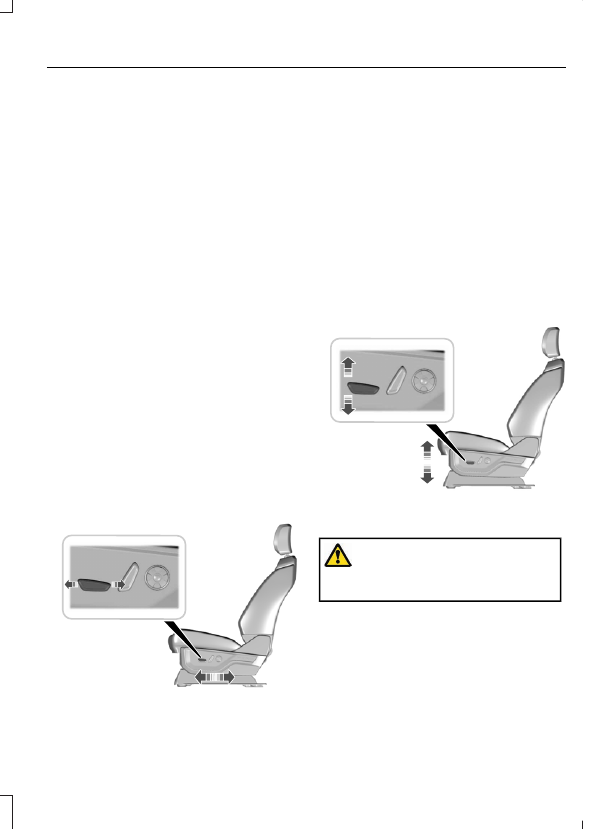

POWER SEATS

(IF EQUIPPED)

HEAD RESTRAINT COMPONENTS

E327921

The head restraints consist of:

An energy absorbing head
restraint.

Two steel stems.

Guide sleeve adjust and release
button.

Guide sleeve unlock and remove
button (If equipped).

ADJUSTING THE HEAD
RESTRAINT

WARNING:

Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk
of neck injury in the event of a crash. Do
not adjust the head restraint when your
vehicle is moving.

WARNING:

The head restraint is a

WARNING:

Adjust the head

restraints for all passengers before you
drive your vehicle. This will help minimize
the risk of neck injury in the event of a
crash. Do not adjust the head restraints
when your vehicle is moving.

To raise the head restraint, pull the head
restraint up.

To lower the head restraint:

Press and hold the adjust and release
button.

2. Push the head restraint down.

Tilting the Head Restraint

(If Equipped)

E327919

Adjust the seat backrest to an upright
driving or riding position.

2. Pivot the head restraint forward toward

your head to the preferred position.

198

Front Seats

After the head restraint reaches the
forward-most tilt position, pivot it forward
again to release it to the rearward, untilted
position.

Note:

Do not attempt to force the head

restraint backward after it is tilted. Instead,
continue tilting it forward until the head
restraint releases to the upright position.

REMOVING THE HEAD RESTRAINT

Pull up the head restraint until it
reaches its highest position.

2. Press and hold the adjust and release

button and the unlock and remove
button.

3. Pull up the head restraint.

Note:

You cannot remove head restraints

that have audio system speakers.

INSTALLING THE HEAD
RESTRAINT

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

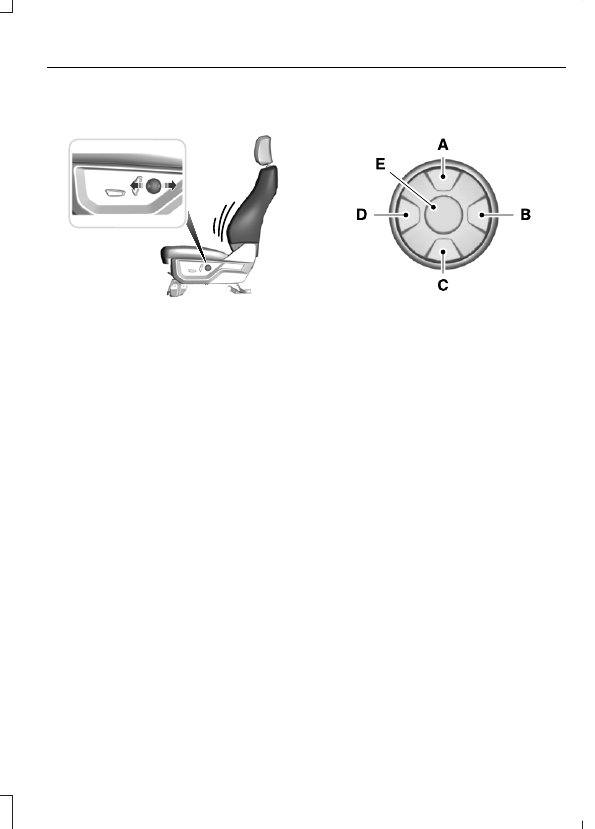

MOVING THE SEAT BACKWARD
AND FORWARD

E308339

If the seat stops prior to reaching the end
of the travel position, or an obstruction
occurs, a new stopping position is learned.

To reset the stopping position:

Remove any obstruction.

2. Press and hold the control until the

seat stops moving.

3. Press and hold the control again until

the seat stops.

4. Continue holding the control for a few

seconds. The new position is learned.

ADJUSTING THE SEAT CUSHION

(If Equipped)

E308336

ADJUSTING THE SEAT BACKREST

WARNING:

Always drive and ride

with your seatback upright and the lap
belt snug and low across the hips.

199

Front Seats

E308338

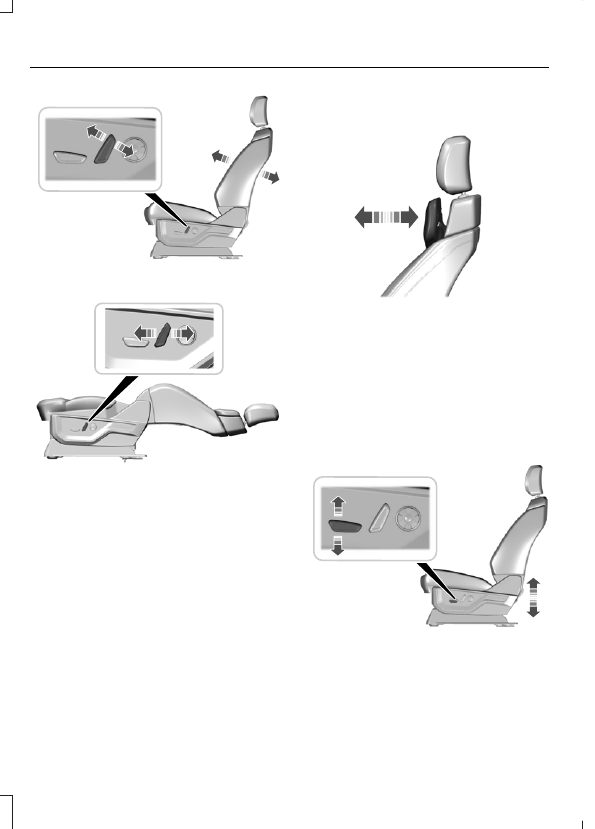

Adjusting the Seat Flat

(If Equipped)

E306956

This feature allows the occupant to find a
comfortable position to rest when the
vehicle is not moving.

Note:

Before adjusting the seat backrest

fully flat, place the rear seat cushion into
the upright position and remove any objects
that could obstruct the movement of the
flat seat. See

Folding the Seats

(page 204).

As the seat folds flat, the cushion adjusts
to support the hips and lower back. For
additional support, you can also adjust the
upper seat backrest.

If you fully recline the passenger seat and
the vehicle is moving, a message appears
on the instrument cluster and a tone
sounds. To switch the warning off, return
the seat to an upright position.

Adjusting the Upper Seat Backrest

(If Equipped)

E311333

The front upper seat backrest tilts for extra
comfort. To tilt the upper seat backrest,
pivot the upper seat backrest toward your
shoulders.

After the upper seat backrest reaches the
forward-most tilt position, pivot it forward
again to release it to the rearward, untilted
position.

ADJUSTING THE SEAT HEIGHT

E308337

200

Front Seats

ADJUSTING THE LUMBAR
SUPPORT

E327927

MASSAGE SEATS

(IF EQUIPPED)

MASSAGE SEAT LIMITATIONS

The vehicle must be running or be in
accessory mode to activate the seats.

The passenger side massage is available
if the occupant meets the seat sensor
weight requirements.

Allow a few seconds for any selection to
activate. Selecting a different adjustment
cancels the current one in progress. When
the seat backrest and cushion are both
active, the massage alternates between
zones.

ADJUSTING THE MASSAGE SEAT
SETTINGS

E156301

Select the previous massage
pattern or lumbar area.

Decrease the massage or lumbar
Intensity.

Select the next massage pattern
or lumbar area.

Increase the massage or lumbar
Intensity.

Select the massage or lumbar
mode.

You can also adjust this feature through
the touchscreen.

201

Front Seats

HEATED SEATS

(IF EQUIPPED)

HEATED SEAT PRECAUTIONS

WARNING:

Use caution when using

the heated seat if you are unable to feel
pain to your skin because of advanced
age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use,
exhaustion or other physical conditions.
The heated seat could cause burns even
at low temperatures, especially if used
for long periods of time. Failure to follow
this instruction could result in personal
injury.

WARNING:

Do not poke sharp

objects into the seat cushion or seat
backrest. This could damage the heated
seat element and cause it to overheat.
Failure to follow this instruction could
result in personal injury.

WARNING:

Do not place anything

on the seat that blocks the heat, for
example a seat cover or a cushion. This
could cause the seat to overheat. Failure
to follow this instruction could result in
personal injury.

Do not:
•

Place heavy objects on the seat.

•

Operate the heated seat if water or any
other liquid spills on the seat. Allow the
seat to dry.

SWITCHING THE HEATED SEATS
ON AND OFF

The vehicle must be running to use this
feature.

E146322

Press the heated seat symbol on the
climate controls or touchscreen to cycle
through the various heat settings and off.
Rotate the knob to control the heat
intensity. The more indicators that display,
the warmer the temperature of the seat.

Note:

The heated seats may remain on

after you remote start your vehicle, based
on your remote start settings. The heated
seats may also turn on when you start your
vehicle if they were on when you switched
your vehicle off.

Select Auto to heat your seat based on
your climate control settings, humidity and
air temperature

VENTILATED SEATS

(IF EQUIPPED)

VENTILATED SEAT PRECAUTIONS

Do not:
•

Spill liquid on the front seats. This may
cause the air vent holes to become
blocked and not work properly.

•

Place cargo or objects under the seats.
They may block the air intake causing
the air vents to not work properly.

SWITCHING THE VENTILATED
SEATS ON AND OFF

The vehicle must be running to use this
feature.

202

Front Seats

E368423

Press this symbol on the climate controls
or the touchscreen to cycle through the
various ventilation settings and off. Rotate
the knob to control the fan speed. More
indicator lights indicate higher fan speeds.

Note:

When you switch the climate control

fan speed and the ventilated seats to their
maximum settings, the ventilated seats
provide increased cooling.

If the engine falls below 350 RPM while
the ventilated seats are on, the feature
turns itself off unless the vehicle is in
Auto-Start-Stop mode. You may need to
reactivate the ventilated seats.

Note:

The ventilated seats may remain on

after you remote start your vehicle, based
on your remote start settings. The ventilated
seats may also turn on when you start your
vehicle if they were on when you switched
your vehicle off.

Select Auto to ventilate your seat based
on your climate control settings, humidity
and air temperature

203

Front Seats

MANUAL SEATS

HEAD RESTRAINT COMPONENTS

Rear Seat Outermost Head Restraints

E308301

Rear Seat Center Head Restraint

E308306

The head restraints consist of:

An energy absorbing head
restraint.

Two steel stems.

Guide sleeve adjust and release
button.

Guide sleeve unlock and remove
button (If equipped).

ADJUSTING THE HEAD
RESTRAINT

WARNING:

The head restraint is a

WARNING:

Adjust the head

restraints for all passengers before you
drive your vehicle. This will help minimize
the risk of neck injury in the event of a
crash. Do not adjust the head restraints
when your vehicle is moving.

Pull the head restraint up to raise it.

To lower the head restraint:

Press and hold the adjust and release
button.

2. Push the head restraint down.

REMOVING THE HEAD RESTRAINT

Pull up the head restraint until it
reaches its highest position.

2. Press and hold the adjust and release

button and the unlock and remove
button.

3. Pull up the head restraint.

INSTALLING THE HEAD
RESTRAINT

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

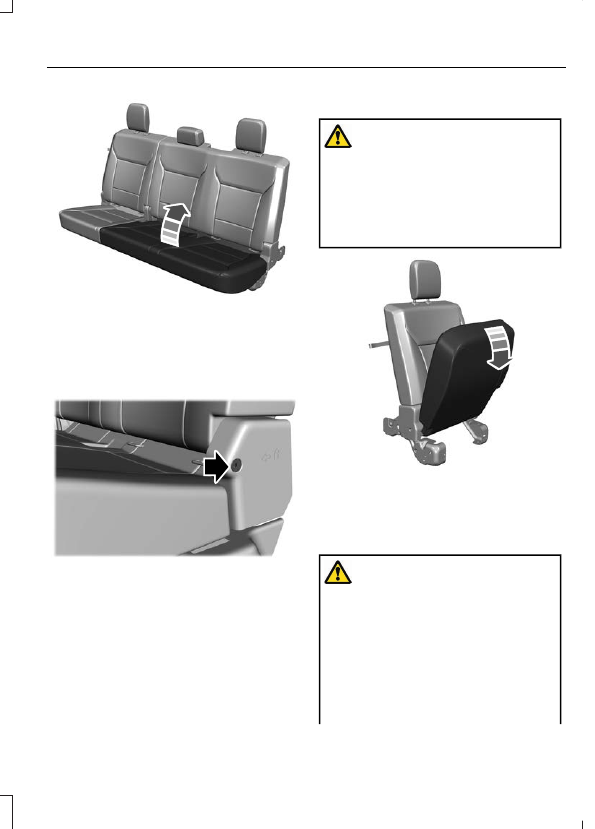

FOLDING THE SEATS

You can flip each seat cushion up into a
vertical storage position.

204

Rear Seats - Crew Cab/SuperCab

E371553

Rotate the seat up until it locks in place.

Locking the Cushion

(If Equipped)

The locking key is in the remote control.
See

Removing the Key Blade

(page 94).

E224956

Turn the key to lock or unlock.

UNFOLDING THE SEATS

WARNING:

Make sure that cargo

and other objects are not trapped under
the seat cushion and that you return the
seat cushion to the full-down position.
Failure to do so may prevent the seat
from operating properly, which could
increase the risk of serious injury in a
crash.

E371554

HEATED SEATS

(IF EQUIPPED)

HEATED SEAT PRECAUTIONS

WARNING:

Use caution when using

205

Rear Seats - Crew Cab/SuperCab

WARNING:

Do not poke sharp

objects into the seat cushion or seat
backrest. This could damage the heated
seat element and cause it to overheat.
Failure to follow this instruction could
result in personal injury.

WARNING:

Do not place anything

on the seat that blocks the heat, for
example a seat cover or a cushion. This
could cause the seat to overheat. Failure
to follow this instruction could result in
personal injury.

Do not:
•

Place heavy objects on the seat.

•

Operate the heated seat if water or any
other liquid spills on the seat. Allow the
seat to dry.

SWITCHING THE HEATED SEATS
ON AND OFF

The vehicle must be running to use this
feature.

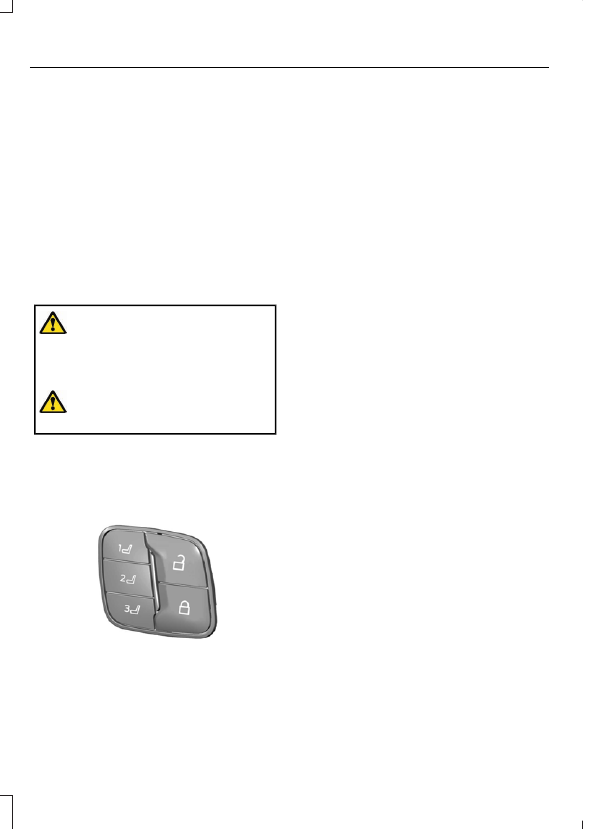

The rear seat heat controls are on the rear
of the center console.

E146322

Press the heated seat symbol to cycle
through the various heat settings and off.
More indicator lights indicate warmer
settings.

The heated seats turn off when you switch
off the vehicle.

206

Rear Seats - Crew Cab/SuperCab

WHAT IS THE REAR
OCCUPANT ALERT SYSTEM

The rear occupant alert system monitors
vehicle conditions and notifies you to check
for rear seat occupants when you switch
the ignition off. The notifications can be in
the form of warnings inside the vehicle and
sounding of the horn if activated for a short
period of time.

HOW DOES THE REAR
OCCUPANT ALERT SYSTEM
WORK

The system monitors the activity of the
buckle on the rear seatbelt and the
opening and closing of the rear doors to
indicate the potential presence of an
occupant in the rear seat.

When

Child Seat Installed

is selected, the

system monitors only the opening and
closing of the rear doors to indicate the
potential presence of an occupant in the
rear seat.

When

Child Seat Installed

is not selected,

the system monitors the rear seatbelt
buckle activity and the opening and closing
of the rear doors to indicate the potential
presence of an occupant in the rear seat.

A message displays in the touchscreen and
an audible warning sounds when you
switch the ignition off after any of the
following conditions have been met:
•

A rear door is opened or closed while
the ignition is on.

•

You switch the ignition on within 15
minutes of a rear door opening and
closing.

•

You switch the ignition on within 15
minutes of the alert having displayed
or sounded.

If you do not open a rear door within a short
period of time of the message appearing
in the center display, the first audible
warning sounding and driver door open to
close, the horn sounds for a short period
of time.

Note:

Horn sounds only when the

Rear

Occupant Alert

is set to

Alert & Horn

. If

you change the setting, then there is no horn
sound.

REAR OCCUPANT ALERT
SYSTEM PRECAUTIONS

WARNING:

On hot days, the

temperature inside the vehicle can rise
very quickly. Exposure of people or
animals to these high temperatures for
even a short time can cause death or
serious heat related injuries, including
brain damage. Small children are
particularly at risk.

WARNING:

Do not leave children

or pets unattended in your vehicle.
Failure to follow this instruction could
result in personal injury or death.

REAR OCCUPANT ALERT
SYSTEM LIMITATIONS

The system does not detect the presence
of objects or passengers in the rear seat.
It monitors the activity of the buckle on the
rear seatbelt and the opening and closing
of the rear doors.

Note:

It is possible to receive an alert when

there is no rear seat occupant, but alert
conditions are met.

207

Rear Occupant Alert System

(If Equipped)

Note:

It is possible to receive no alert when

there is an occupant in the rear seat, if alert
conditions are not met. For example, if a rear
seat occupant does not enter the vehicle
through a rear door.

REAR OCCUPANT ALERT
SYSTEM SETTINGS

Press

Settings

on the touchscreen.

2. Press

Vehicle

3. Press

Rear Occupant Alert

4. Select

Alert & Horn

Alert Only

Off

Note:

The default setting is

Alert Only

Note:

If you choose

Alert Only

, the horn

does not sound even when the alert
conditions are met.

Note:

Performing a vehicle system reset

causes the system to switch on again.

Switching

Child Seat Installed

and Off

When the system is switched on, it
monitors the opening and closing of the
rear doors to indicate the potential
presence of an occupant in the rear seat.

Press

Settings

on the touchscreen.

2. Press

Vehicle

3. Press

Rear Occupant Alert

4. Switch

Child Seat Installed

on or off.

Note:

The default setting is on.

Switch the system on when the child
restraint is mounted on any of the
following:
•

Forward facing seat.

•

Rear facing seat.

•

Toddler in a latch system baby seat.

Switch the system off when the child is
using any of the following:
•

Seatbelt.

•

Booster seat.

Semiannual Reminder

When you switch the system off, a
message appears every six months as a
reminder that the system is off. You can
switch the system back on or leave it off.

REAR OCCUPANT ALERT
SYSTEM INDICATORS

E418304

Message

Check rear seats for occupants.

Displays when you switch your vehicle off
after the alert conditions are met.

The message displays for a short period of
time. Press

Close

to acknowledge and

remove the message.

Note:

Depending on your SYNC version, the

graphic may look different from what you
see here.

208

Rear Occupant Alert System

(If Equipped)

WHAT IS THE MEMORY
FUNCTION

The memory function recalls the position
of these features:

•

Driver seat.

•

Power mirrors.

•

Optional power steering column.

•

Optional power adjustable pedals.

MEMORY FUNCTION
PRECAUTIONS

WARNING:

Before activating the

memory seat, make sure that the area
immediately surrounding the seat is clear
of obstructions and that all occupants
are clear of moving parts.

WARNING:

Do not use the memory

function when your vehicle is moving.

LOCATING THE MEMORY
FUNCTION BUTTONS

E332006

The memory function buttons are on the
driver door.

SAVING A PRESET POSITION

Adjust the memory features to your
preferred position.

2. Press and hold the preferred preset

button until you hear a single tone.

A confirmation message appears in the
information display.

You can save up to three preset memory
positions at any time.

RECALLING A PRESET
POSITION

Press and release a preset button.

Note:

You can recall a preset memory

position when the ignition is off, or when you
place the transmission in park (P) or neutral
(N) if the ignition is on and the vehicle is not
moving.

Note:

Pressing any of the preset buttons or

any memory feature control during a
memory recall cancels the operation.

You can also recall a preset memory
position by:
•

Pressing the unlock button on your
remote control if you linked it to a
preset position.

•

Unlocking the intelligent driver door
handle if a linked remote control is
present.

Using a linked remote control to recall your
memory position when the ignition is off
moves the seat and steering column to the
easy entry position.

Linking a Preset Position to Your
Remote Control or Passive Key

See

Linking or Unlinking a Personal

Profile

(page 645).

210

Memory Function

(If Equipped)

GARAGE DOOR OPENER
INTRODUCTION

HomeLink Wireless Control
System

The universal garage door opener replaces
the common handheld garage door opener
with a three-button transmitter integrated
into the driver-side sun visor.

E188211

How Does The Garage Door Opener
Work

The system includes two primary features,
a garage door opener and a platform for
remote activation of devices within the
home. You can program garage doors as
well as entry gate operators, security
systems, entry door locks and home or
office lighting.

Additional assistance can be found online
at

www.homelink.com/Ford

or by calling

the toll-free help line at 1-800-355-3515.

Garage Door Opener Limitations

Canadian radio-frequency laws require
transmitter signals to time out, or quit,
after several seconds – which may not be
long enough for HomeLink to pick up the
signal. U.S. gate operators time-out in the
same manner.

GARAGE DOOR OPENER
PRECAUTIONS AND
FREQUENCIES

Garage Door Opener Precautions

WARNING:

Do not use the system

with any garage door opener that does
not have the safety stop and reverse
feature as required by U.S. Federal
Safety Standards (this includes any
garage door opener manufactured
before April 1, 1982). A garage door
opener which cannot detect an object,
signaling the door to stop and reverse,
does not meet current federal safety
standards. Using a garage door opener
without these features increases the risk
of serious injury or death.

FCC and RSS-210 Industry Canada
Compliance

WARNING:

Changes or

modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.

This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.

211

Garage Door Opener

(If Equipped)

This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment. End Users must
follow the specific operating instructions
for satisfying RF exposure compliance. This
transmitter must be at least 8 in (20 cm)
from the user and must not be co-located
or operating in conjunction with any other
antenna or transmitter.

PROGRAMMING THE GARAGE
DOOR OPENER

To clear all stored codes in the garage door
opener in your vehicle, use the

clear

function. To override one button, use the

reprogram

function.

Note:

Make sure that the garage door and

security device are free from obstruction
when you are programming. Do not program
the system with the vehicle in the garage.

Clearing the Garage Door Opener

E188213

To clear all stored codes in the garage door
opener in the vehicle:

Press and hold the outer two function
buttons simultaneously for
approximately 10 seconds until the
indicator above the buttons flashes
rapidly.

2. When the indicator flashes, release the

buttons.

Note:

This clears all stored codes. You

cannot erase individual buttons.

Note:

You can program a maximum of

three devices. To change or replace any of
the three devices after they have been
initially programmed, you must either clear
all codes, or reprogram each individual
button.

Note:

We recommend that upon the sale

or lease termination of your vehicle, you
erase the programmed function buttons for
security reasons.

Reprogramming the Garage Door
Opener

If a button on your garage door opener has
already been programmed, you can
override it. To program a device to a
previously trained button:

Press and hold the desired button for
approximately 20 seconds until the
indicator begins to flash.

2. Without releasing the button, proceed

to Step 3 of

Programming the

Garage Door Opener to your
Handheld Transmitter

Programming the Garage Door
Opener to your Handheld
Transmitter

Note:

The programming steps below

assume you are programming a HomeLink
that was not previously programmed. If your
HomeLink was previously programmed, you
may need to

clear

reprogram

your

HomeLink buttons.

Note:

Put a new battery in the handheld

transmitter. This allows for quicker training
and accurate transmission of the
radio-frequency signal.

Note:

Make sure that the garage door and

security device are free from obstruction
when you are programming. Do not program
the system with the vehicle in the garage.

212

Garage Door Opener

(If Equipped)

E188213

To program your in-vehicle HomeLink
function button with your handheld
transmitter:

With your vehicle parked outside of the
garage, switch your vehicle on, but do
not start your vehicle.

2. Press and release one of the three

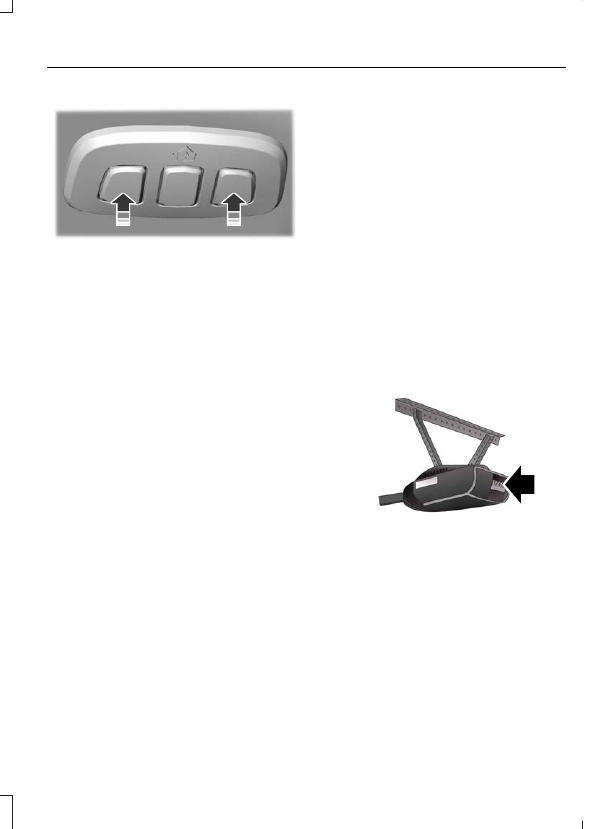

HomeLink function buttons that you
would like to program.

Note:

The indicator should begin to flash.

If the indicator does not flash, press and
hold the function button for 20 seconds until
the indicator begins to flash.

3. Hold your handheld garage door

transmitter 1–3 in (2–8 cm) away from
the HomeLink button you want to
program.

4. Press and hold the handheld

transmitter button you want to
program while watching the indicator
on HomeLink. Continue to hold the
handheld button until the HomeLink
indicator flashes rapidly or is
continuously on.

Note:

You may need to use a different

method if you live in Canada or have
difficulties programming your gate operator
or garage door opener.

5. Press and hold the HomeLink button

you programmed for two seconds, then
release. You may need to do this twice
to activate the door.

Note:

If the indicator stays on, the

programming is complete.

Note:

If the HomeLink indicator flashes

rapidly, repeat Step 5.

Note:

If your device still does not operate,

you must program your garage door.

6. To program additional buttons, repeat

Steps 1–4.

Note:

Make sure you keep the original

remote control transmitter for use in other
vehicles as well as for future system
programming.

Programming the Garage Door
Opener to your Garage Door
Opener Motor

Note:

Make sure that the garage door and

security device are free from obstruction
when you are programming. Do not program
the system with the vehicle in the garage.

E142659

Press the learn button on the garage
door opener motor and then you have
30 seconds to complete the next two
steps.

2. Return to your vehicle.

213

Garage Door Opener

(If Equipped)

E188212

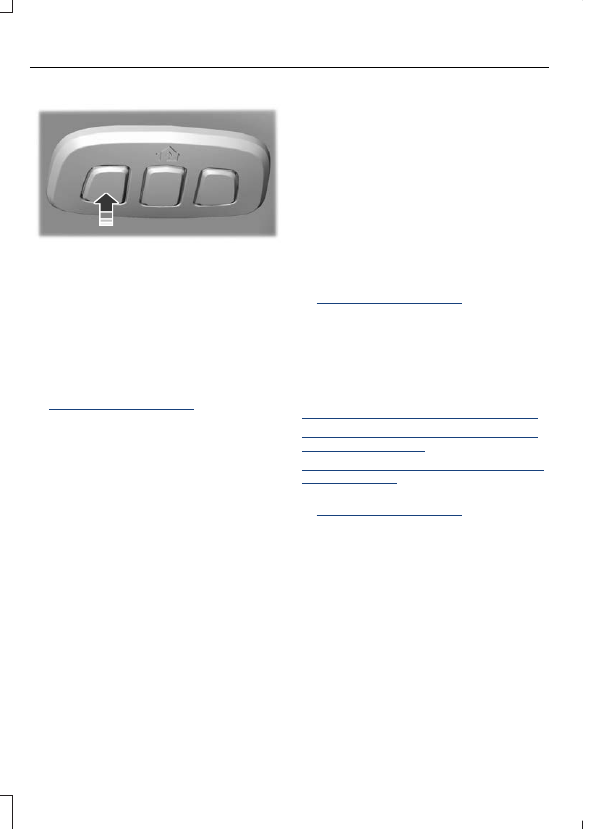

3. Press and hold one of the three

HomeLink function buttons you want
to program for two seconds, then
release.

4. Repeat Step 3. Depending on your

brand of garage door opener, you may
need to repeat this sequence a third
time.

Additional assistance can be found online
at

www.homelink.com/Ford

or by calling

the toll-free help line at 1-800-355-3515.

Programming the Garage Door
Opener to your Gate Opener Motor

Gate Operator / Canadian
Programming

Canadian radio-frequency laws require
transmitter signals to time-out (or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink to pick up the signal during
programming. Similar to this Canadian law,
some U.S. gate operators are designed to
time-out in the same manner.

Note:

If programming a garage door opener

or gate operator, it is advised that you
unplug the device during the

cycling

process

to prevent possible overheating.

Press and release your handheld
transmitter,

every two seconds

, until

the HomeLink indicator flashes rapidly
or is continuously on.

2. Release the handheld transmitter

button.

3. Press and hold the HomeLink function

button you want to program for two
seconds, then release. You may need
to do this twice to activate the door.

Note:

If the indicator stays on, the

programming is complete.

Note:

If the HomeLink indicator flashes

rapidly, repeat Step 3.

4. To program additional buttons, repeat

Steps 1–4.

Additional assistance can be found online
at

www.homelink.com/Ford

or by calling

the toll-free help line at 1-800-355-3515.

GARAGE DOOR OPENER
ADDITIONAL ASSISTANCE

Video Setup Instructions

Universal Garage Door Opener: HomeLink

Universal Garage Door Opener: HomeLink
for Genie Intellicode 2

Universal Garage Door Opener Homelink for
Genie Intellicode

Additional assistance can be found online
at

www.homelink.com/Ford

or by calling

the toll-free help line at 1-800-355-3515.

214

Garage Door Opener

(If Equipped)

LOCATING THE USB PORTS

Data Transfer USB Ports

E250655

The USB ports could be in the following
locations:

•

On the lower instrument panel.

•

Inside the center console.

Note:

These USB ports can also charge

devices.

Note:

Not all USB ports in your vehicle have

data transfer capabilities.

Note:

We recommend using only USB-IF

certified cables and adapters. Non-certified
cables and adapters may not work.

Charge Only USB Ports

E263583

The USB ports could be in the following
locations:

•

On the lower instrument panel.

•

On the upper instrument panel.

•

Inside the media bin.

•

Inside the center console.

•

On the rear of the center console.

•

Behind the first row seats.

•

In the cargo area.

LOCATING THE USB PORTS -
RAPTOR

Data Transfer USB Ports

E250655

The USB Ports could be in the following
locations:

•

Inside the media bin.

•

Inside the center console.

Note:

These USB ports can also charge

devices.

Note:

Not all USB ports in your vehicle have

data transfer capabilities.

Note:

We recommend using only USB-IF

certified cables and adapters. Non-certified
cables and adapters may not work.

Charge Only USB Ports

E263583

The USB ports could be in the following
locations:

•

On the lower instrument panel.

•

On the upper instrument panel.

•

Inside the media bin.

•

Inside the center console.

•

On the rear of the center console.

•

In the cargo area.

PLAYING MEDIA USING THE
USB PORT

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

215

USB Ports

Connect your device to a data transfer USB
port.

E100027

Press the audio button on the
feature bar.

Select

Sources

Select the USB option.

Press to play a track. Press again
to pause the track.

Press to skip to the next track.

Press and hold to fast forward
through the track.

Press once to return to the
beginning of a track. Repeatedly
press to return to previous

tracks.

Press and hold to fast rewind.

CHARGING A DEVICE

Connect your device to the USB port.

Data Transfer USB Ports

E250655

You can charge your device through the
data transfer USB port when SYNC is on.

Charge Only USB Ports

E263583

You can charge your device through the
charge only USB port when the vehicle is
in accessory mode or when the vehicle is
running.

216

USB Ports

WHAT IS THE POWER OUTLET

The power outlet can power devices that
require up to the rating on the outlet cover.

Note:

The total power delivered is divided

if more than one outlet is used.

POWER OUTLET
PRECAUTIONS

WARNING:

Do not use an

extension cord or connect multiple
devices to the power outlet. Doing so
could result in overloading the power
outlet. Failure to follow this instruction
could result in fire, personal injury or
property damage.

WARNING:

Do not keep electrical

devices plugged into the power outlet
whenever the device is not in use. The
outlet provides power when the vehicle
is on. Failure to follow this instruction
could result in personal injury.

POWER OUTLET LIMITATIONS

You should not use the power outlet for
these types of electric devices:
•

Cathode ray tube type televisions.

•

Motor loads, such as vacuum cleaners,
electric saws or other electric power
tools and compressor-driven
refrigerators.

•

Measuring devices which process
precise data, such as medical
equipment or measuring equipment.

•

Other appliances requiring an
extremely stable power supply, such
as microcomputer-controlled electric
blankets or touch sensor lamps.

Note:

Some devices may exceed the power

rating on the device label when they are
initially plugged-in and may require you to
press the device power button more than
one time in order to allow a soft start. After
multiple attempts, if the device remains off,
please consider that your device may require
more than the available power.

Note:

The power outlet provides full

available power when the vehicle is in park
(P). Power availability may be reduced
when the vehicle is in drive (D). If more than
one outlet is available in the vehicle, power
is divided between the outlets that are in
use at the same time.

LOCATING THE POWER
OUTLETS

The power outlet may be located on the
instrument panel, the rear of the center
console or in the bed.

Instrument Panel

E337927

217

Power Outlet - Vehicles With: 110-120V 400W Pickup Bed Power

Outlet/120V Power Outlet

Rear of the Center Console

E337926

Bed

E338700

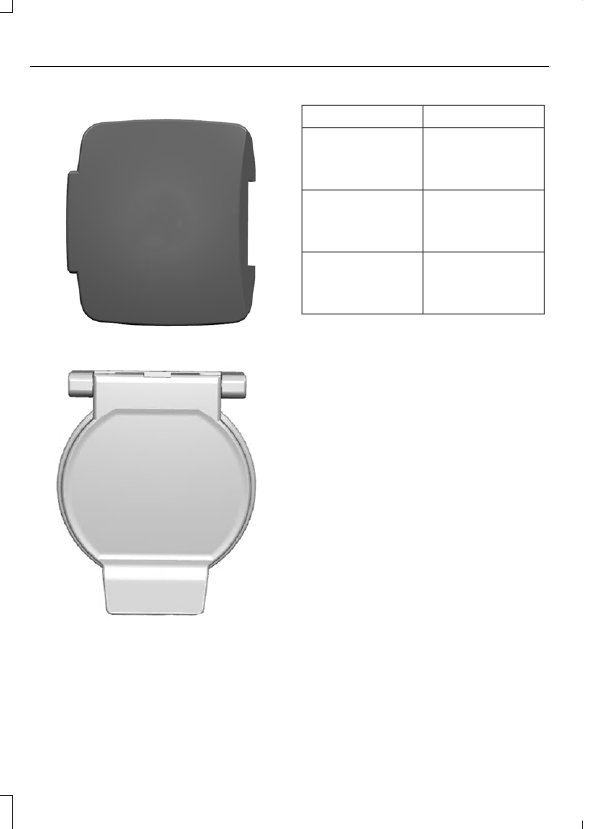

POWER OUTLET INDICATORS

The power outlet indicator illuminates to
let you know the status of the system.

Description

Indicator Status

When the indicator

light is on, the

outlet is providing

power.

When the indicator

light is off, there is

no power to the

outlet.

Off

When the indicator
light is flashing, the

outlet is in a fault

mode.

Flashing

Fault mode

The power outlet temporarily turns off
power if the device exceeds the watt limit.

Unplug your device.

2. Switch your vehicle off to let the

system cool and reset the fault mode.

3. Switch your vehicle back on, but do not

plug your device back in.

4. With your vehicle on, make sure the

indicator light remains on.

5. Make sure your device does not exceed

the power limits and then plug in your
device.

Note:

If a fault occurs again, your device

may exceed the capacity available from the
power outlet.

218

Power Outlet - Vehicles With: 110-120V 400W Pickup Bed Power

Outlet/120V Power Outlet

WHAT IS THE POWER OUTLET

The power outlet can power devices using
a 12 V outlet adapter.

POWER OUTLET
PRECAUTIONS

WARNING:

Do not plug optional

electrical accessories into the cigar
lighter socket. Incorrect use of the cigar
lighter can cause damage not covered
by the vehicle warranty, and can result
in fire or serious injury.

When you switch the vehicle on, you can
use the socket to power 12 V appliances
with a maximum current rating of 20 A. Do
not use the power point over the vehicle
capacity of 12 V DC 240 W or a fuse could
blow. Do not plug in any device that
supplies power to the vehicle through the
power points. This could result in damage
to vehicle systems. Do not hang any
accessory from the accessory plug. Always
keep the power point caps closed when
not in use. Do not insert objects other than
an accessory plug into the power point.

To prevent the battery from running out of
charge:
•

Do not use the power point longer than
necessary when the vehicle is off.

•

Do not leave devices plugged in
overnight or when you park your vehicle
for extended periods.

LOCATING THE POWER
OUTLETS

Power outlets are in the following
locations:
•

On the instrument panel.

•

Inside the center console.

•

On the rear of the center console.

219

Power Outlet - Vehicles With: 12V Power Outlet

WHAT IS THE ONBOARD
GENERATOR

The vehicle functions as a portable
generator and can power devices that
require up to the rating listed on the power
outlet label.

ONBOARD GENERATOR
PRECAUTIONS - VEHICLES
WITH: 2KW

WARNING:

Do not connect any

vehicle power outlets to any premises.
This can create a backfeed to utility lines.
Failure to follow this instruction could
result in property damage, fire, electrical
shock or death.

WARNING:

Do not keep electrical

devices plugged into the power outlet
whenever the device is not in use. The
outlet provides power when the vehicle
is on. Failure to follow this instruction
could result in personal injury.

WARNING:

Do not start the engine

in a closed garage or in other enclosed
areas. Exhaust fumes are toxic. Always
open the garage door before you start
the engine. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

Exhaust leaks may

result in entry of harmful and potentially
lethal fumes into the passenger
compartment. If you smell exhaust
fumes inside your vehicle, have your
vehicle inspected immediately. Do not
drive if you smell exhaust fumes.

WARNING:

The vehicle's engine

runs while the generator is switched on.
Running engines emit carbon monoxide.
Only use the generator when the vehicle
is outdoors. Failure to follow this
instruction could result in personal injury
or death.

When you switch the power outlets on, the
vehicle power down timer is disabled and
the vehicle continues to be powered on.

Note:

We recommend using UL approved

devices for use with the power outlet.

Note:

Make sure that plugged in devices do

not exceed the ratings displayed on the
outlet covers.

Note:

Unplug electrical devices from the

power outlet when they are not switched
on.

Note:

Make sure there is no damage to the

outlets before driving your vehicle.

Note:

Power could be limited during

extreme hot or cold temperatures to
optimize system performance.

Note:

Close all outlet covers when not in

use.

Note:

Automatic engine stop is disabled

and the gasoline engine will continue to idle
when the outlet is switched on.

Note:

Make sure that objects are not

blocking the inverter inlet and exhaust near
the rear underseat storage compartment.

Note:

The climate control system may turn

on and power may be limited during extreme
hot or cold temperatures to optimize system
performance.

Note:

When the outlet is switched on and

the vehicle is in park (P) the engine turns off
30 minutes after the low fuel warning is
displayed. After the vehicle is turned off,
generator mode only operates while driving
or until the vehicle is refueled.

220

Onboard Generator

(If Equipped)

Ford F-150 (2024 year). Manual in english - page 6
