Ford F-150 (2024 year). Manual in english

Some fuel stations, particularly those in
high altitude areas, offer fuels posted as
regular unleaded gasoline with an octane
rating below 87. The use of these fuels
could result in engine damage that will not
be covered by the vehicle Warranty.

For best overall vehicle and engine
performance, premium fuel with an octane
rating of 91 or higher is recommended. The
performance gained by using premium fuel
is most noticeable in hot weather as well
as other conditions, for example when
towing a trailer. See

Towing a Trailer

(page 424).

Do not be concerned if the engine
sometimes knocks lightly. However, if the
engine knocks heavily while using fuel with
the recommended octane rating, contact
an authorized dealer to prevent any engine
damage.

We recommend Top Tier detergent
gasolines, where available to help minimize
engine deposits and maintain optimal
vehicle and engine performance.

For additional information, visit

www.toptiergas.com

Note:

Use of any fuel for which the vehicle

was not designed can impair the emission
control system, cause loss of vehicle
performance, and cause damage to the
engine which may not be covered by the
vehicle Warranty.

Do not use:
•

Diesel fuel.

•

Fuels containing kerosene or paraffin.

•

Fuel containing more than 15% ethanol
or E85 fuel.

•

Fuels containing methanol.

•

Fuels containing metallic-based
additives, including manganese-based
compounds.

•

Fuels containing the octane booster
additive, methylcyclopentadienyl
manganese tricarbonyl (MMT).

•

Leaded fuel, using leaded fuel is
prohibited by law.

The use of fuels with metallic compounds
such as methylcyclopentadienyl
manganese tricarbonyl, which is a
manganese-based fuel additive, will impair
engine performance and affect the
emission control system.

LOCATING THE FUEL FILLER
FUNNEL

Regular Cab

The fuel filler funnel is behind the
right-hand front seat.

Super Cab/Crew Cab

The fuel filler funnel is under the second
row right-hand rear seat.

RUNNING OUT OF FUEL

FILLING A PORTABLE FUEL
CONTAINER

WARNING:

Flow of fuel through a

fuel pump nozzle can produce static
electricity. This can cause a fire if you are
filling an ungrounded fuel container.

253

Fuel and Refueling

Use the following guidelines to avoid
electrostatic charge build-up, which can
produce a spark, when filling an
ungrounded fuel container:
•

Only use an approved fuel container to
transfer fuel to your vehicle. Place the
container on the ground when filling it.

•

Do not fill a fuel container when it is
inside your vehicle (including the cargo
area).

•

Keep the fuel pump nozzle in contact
with the fuel container when filling it.

•

Do not use a device that holds the fuel
pump nozzle lever in the fill position.

ADDING FUEL FROM A PORTABLE
FUEL CONTAINER

WARNING:

Do not insert the nozzle

of a fuel container or an aftermarket
funnel into the fuel filler neck. This may
damage the fuel system filler neck or its
seal and cause fuel to run onto the
ground.

WARNING:

Do not pry open the

fuel tank filler valve. This could damage
the fuel system. Failure to follow this
instruction could result in fire, personal
injury or death.

WARNING:

Do not dispose of fuel

in the household refuse or the public
sewage system. Use an authorized waste
disposal facility.

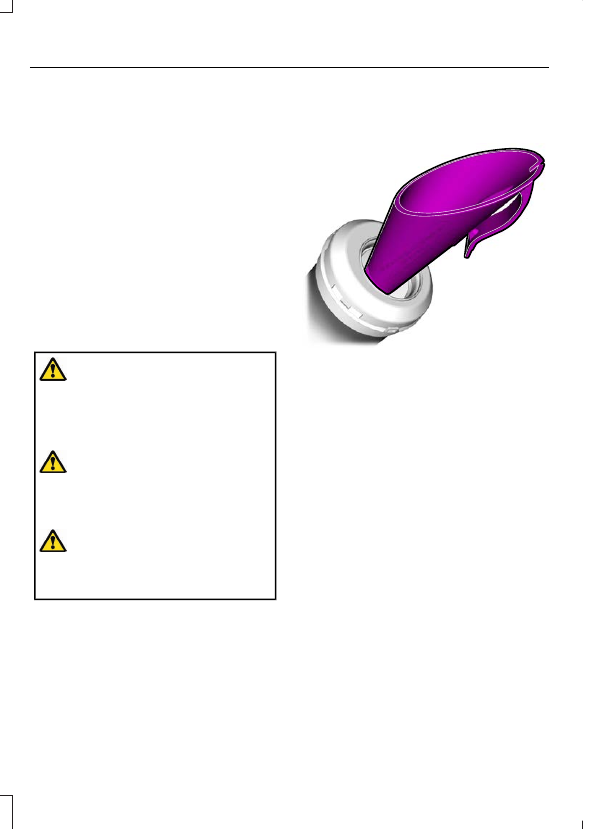

When refueling the vehicle fuel tank from
a fuel container, use the fuel filler funnel
included with your vehicle. See

Locating

the Fuel Filler Funnel

(page 253).

Note:

Do not use aftermarket funnels as

they may not work with the capless fuel
system and can damage it.

When refueling the vehicle fuel tank from
a fuel container, do the following:

Fully open the fuel filler door.

E157452

2. Fully insert the fuel filler funnel into the

fuel filler inlet.

3. Add fuel to your vehicle from the fuel

container.

4. Remove the fuel filler funnel.

5. Fully close the fuel filler door.

6. Clean the fuel filler funnel and place it

back in your vehicle or correctly dispose
of it.

Note:

If your vehicle runs out of fuel add a

minimum of 1.3 gal (5 L) of fuel to restart
the engine.

Note:

You may need to switch the ignition

from off to on several times after refueling
to allow the fuel system to pump the fuel
from the tank to the engine. When
restarting, cranking time takes a few
seconds longer than normal.

Note:

Extra funnels can be purchased from

an authorized dealer if you choose to
dispose of the funnel.

254

Fuel and Refueling

REFUELING

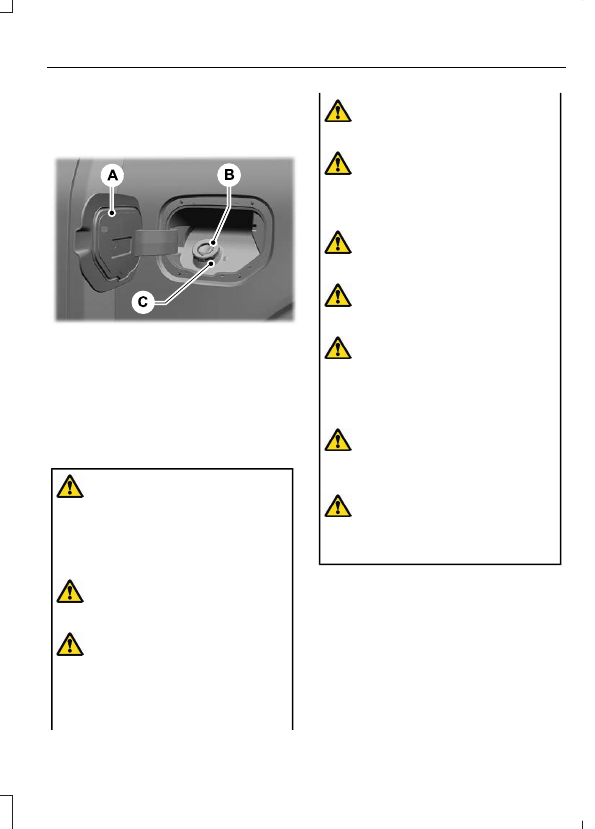

REFUELING SYSTEM OVERVIEW

E383474

Fuel filler door.

Fuel filler inlet.

Fuel tank filler pipe.

REFUELING YOUR VEHICLE -
EXCLUDING: HYBRID ELECTRIC
VEHICLE (HEV)

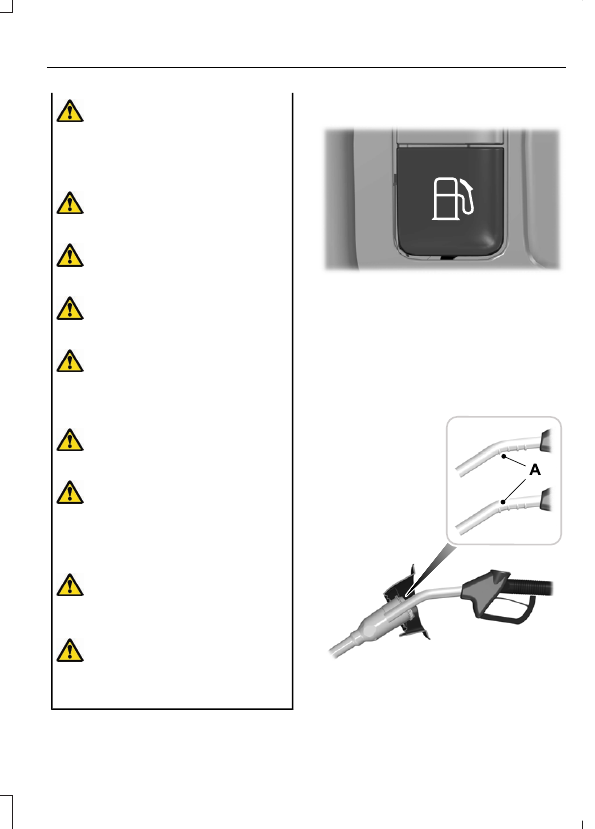

WARNING:

When refueling always

shut the engine off and never allow
sparks or open flames near the fuel tank
filler valve. Never smoke or use a cell
phone while refueling. Fuel vapor is
extremely hazardous under certain
conditions. Avoid inhaling excess fumes.

WARNING:

Fuel vapor burns

violently and a fuel fire can cause severe
injuries.

WARNING:

The fuel system may

be under pressure. If you hear a hissing
sound near the fuel filler inlet, do not
refuel until the sound stops. Otherwise,
fuel may spray out, which could cause
serious personal injury.

WARNING:

Keep children away

from the fuel pump. Never let children
pump fuel.

WARNING:

Do not pry open the

fuel tank filler valve. This could damage
the fuel system. Failure to follow this
instruction could result in fire, personal
injury or death.

WARNING:

Stay outside your

vehicle and do not leave the fuel pump
unattended when refueling your vehicle.

WARNING:

Do not remove the fuel

pump nozzle from its fully inserted
position when refueling.

WARNING:

Stop refueling when

the fuel pump nozzle automatically
shuts off for the first time. Failure to
follow this will fill the expansion space
in the fuel tank and could lead to fuel
overflowing.

WARNING:

Do not overfill the fuel

tank. The pressure in an overfilled tank
may cause leakage and lead to fuel spray
and fire.

WARNING:

Wait at least five

seconds before removing the fuel pump
nozzle to allow any residual fuel to drain
into the fuel tank.

Fully open the fuel filler door.

2. Select the correct fuel pump nozzle for

your vehicle.

255

Fuel and Refueling

E139202

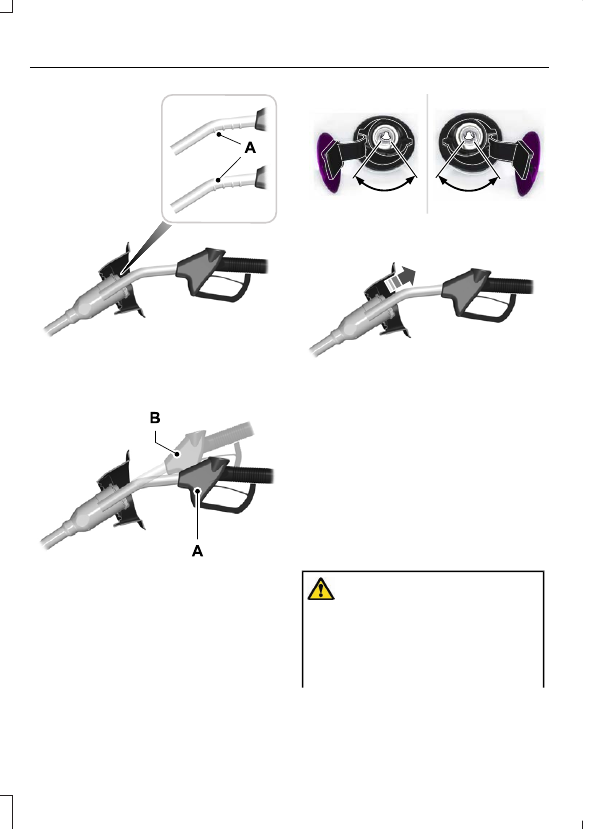

3. Insert the fuel pump nozzle up to the

first notch. Keep the fuel pump nozzle
resting on the fuel tank filler pipe.

E327438

4. Hold the fuel pump nozzle in position

A when refueling. Holding the fuel
pump nozzle in position B can affect
the flow of fuel and shut off the fuel
pump nozzle before the fuel tank is full.

E358906

5. Operate the fuel pump nozzle within

the area shown.

E119081

6. When the pump shuts off, wait five

seconds, then raise the fuel pump
nozzle and slowly remove it.

Fully close the fuel filler door.

Note:

Do not attempt to start the engine

if you have filled the fuel tank with incorrect
fuel. Incorrect fuel use could cause damage
not covered by the vehicle Warranty. Have
your vehicle immediately checked.

REFUELING YOUR VEHICLE -
HYBRID ELECTRIC VEHICLE (HEV)

WARNING:

When refueling always

256

Fuel and Refueling

WARNING:

The fuel system may

be under pressure. If you hear a hissing
sound near the fuel filler inlet, do not
refuel until the sound stops. Otherwise,
fuel may spray out, which could cause
serious personal injury.

WARNING:

Fuel vapor burns

violently and a fuel fire can cause severe
injuries.

WARNING:

Keep children away

from the fuel pump. Never let children
pump fuel.

WARNING:

Stay outside your

vehicle and do not leave the fuel pump
unattended when refueling your vehicle.

WARNING:

Do not pry open the

fuel tank filler valve. This could damage
the fuel system. Failure to follow this
instruction could result in fire, personal
injury or death.

WARNING:

Do not remove the fuel

pump nozzle from its fully inserted
position when refueling.

WARNING:

Stop refueling when

the fuel pump nozzle automatically
shuts off for the first time. Failure to
follow this will fill the expansion space
in the fuel tank and could lead to fuel
overflowing.

WARNING:

Do not overfill the fuel

tank. The pressure in an overfilled tank
may cause leakage and lead to fuel spray
and fire.

WARNING:

Wait at least five

seconds before removing the fuel pump
nozzle to allow any residual fuel to drain
into the fuel tank.

When you stop your vehicle, shift into
park (P) and switch the ignition off.

E293006

2. Press the button on the left side of the

instrument panel next to the headlamp
switch to open the fuel filler door. The
fuel filler door can take up to 15
seconds to open before you can insert
a fuel filler nozzle.

3. Select the correct fuel pump nozzle for

your vehicle.

E139202

4. Insert the fuel pump nozzle up to the

first notch. Keep the fuel pump nozzle
resting on the fuel tank filler pipe.

257

Fuel and Refueling

E327438

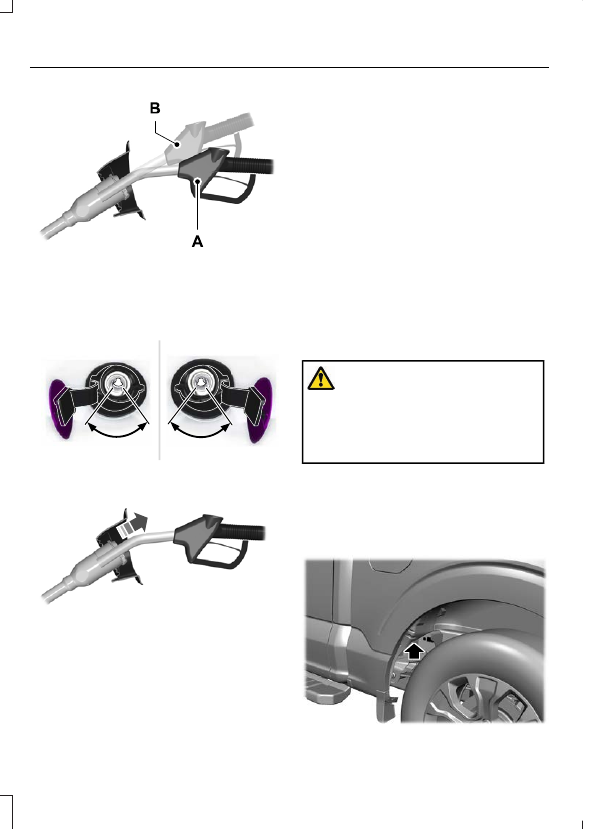

5. Hold the fuel pump nozzle in position

A when refueling. Holding the fuel
pump nozzle in position B can affect
the flow of fuel and shut off the fuel
pump nozzle before the fuel tank is full.

E358906

6. Operate the fuel pump nozzle within

the area shown.

E119081

When the pump shuts off, wait 5
seconds, then raise the fuel pump
nozzle and slowly remove it.

8. Fully close the fuel filler door.

Note:

To close the fuel filler door, press the

center rear edge of the fuel filler door and
then release.

Complete the refueling process within 20
minutes. If 20 minutes elapses, press the
button on the left side of the instrument
panel again. Fuel pump nozzle automatic
shut off could occur if you do not press the
button on the left side instrument panel.

Note:

Do not attempt to start the engine

if you have filled the fuel tank with incorrect
fuel. Incorrect fuel use could cause damage
not covered by the vehicle Warranty. Have
your vehicle immediately checked.

MANUALLY OPENING THE FUEL
FILLER DOOR - HYBRID ELECTRIC
VEHICLE (HEV)

WARNING:

The fuel system may

be under pressure. If you hear a hissing
sound near the fuel filler inlet, do not
refuel until the sound stops. Otherwise,
fuel may spray out, which could cause
serious personal injury.

Note:

The transmission must be in park (P)

or neutral (N).

When using the manual override lever do
the following:

Switch the ignition on.

E374572

258

Fuel and Refueling

Note:

Pull the cable under the rear fender

to manually release the fuel filler door.

2. Pull the manual override lever.

3. Switch the ignition off.

4. Complete the refueling process within

20 minutes.

Note:

Only follow this procedure if the fuel

filler door fails to open. If the problem
remains, have your vehicle checked as soon
as possible.

FUEL TANK CAPACITY

Advertised Capacity

The advertised capacity is the maximum
amount of fuel that you can add to the fuel
tank when the fuel gauge indicates empty.

In addition, the fuel tank contains an empty
reserve. The empty reserve is an
unspecified amount of fuel that remains
in the fuel tank when the fuel gauge
indicates empty.

Note:

The amount of fuel in the empty

reserve varies and should not be relied upon
to increase driving range.

FUEL AND REFUELING –
TROUBLESHOOTING

FUEL AND REFUELING –
WARNING LAMPS

If it illuminates when you are
driving, refuel as soon as
possible.

FUEL AND REFUELING – INFORMATION MESSAGES - EXCLUDING:
HYBRID ELECTRIC VEHICLE (HEV)

Action

Message

An early reminder of a low fuel condition. Refill your vehicle.

Fuel Level Low

Check to make sure the fuel fill inlet is fully closed.

Check Fuel Fill Inlet

259

Fuel and Refueling

FUEL AND REFUELING – INFORMATION MESSAGES - HYBRID ELECTRIC
VEHICLE (HEV)

Action

Message

An early reminder of a low fuel condition.

Fuel Level Low

The fuel fill inlet may not be properly closed.

Check Fuel Fill Inlet

The information message appears while the fuel system is
depressurizing with the fuel filler door closed. Wait for the fuel
system to depressurize and for the fuel filler door to unlatch.

Please wait for fuel door

to open

The information message appears when the fuel system has
depressurized and opened the fuel filler door. Fully open the
fuel filler door to refuel and fully close the fuel filler door when
refueling is complete.

Fuel Door Open

Your vehicle is equipped with a sealed fuel system that
requires the fuel filler door to be fully closed after refueling.
This warning message appears when the fuel filler door is ajar.
Please fully close the fuel filler door to avoid a "Check Engine"
Light.

Fuel door ajar Close fully

to avoid Check engine

light

If you see this message and a "Check Engine" lamp illumin-
ates, please fully close the fuel filler door. The "Check Engine"
Light should clear within five seconds. If the "Check Engine"
light persists, please see your dealer.

The information message appears when the fuel system fails
to depressurize, or the fuel filler door fails to open. You could
have to use the fuel filler door manual override lever when
opening the fuel door.

Refuel Error See Manual

260

Fuel and Refueling

WHAT IS THE CATALYTIC
CONVERTER

The catalytic converter is part of your
vehicle's emissions system and filters
harmful pollutants from the exhaust gas.

CATALYTIC CONVERTER
PRECAUTIONS

WARNING:

Do not park, idle or

drive your vehicle on dry grass or other
dry ground cover. The emission system
heats up the engine compartment and
exhaust system, creating the risk of fire.

WARNING:

The normal operating

temperature of the exhaust system is
very high. Never work around or attempt
to repair any part of the exhaust system
until it has cooled. Use special care when
working around the catalytic converter.
The catalytic converter heats up to a very
high temperature after only a short
period of engine operation and stays hot
after the engine is switched off.

WARNING:

Exhaust leaks may

result in entry of harmful and potentially
lethal fumes into the passenger
compartment. If you smell exhaust
fumes inside your vehicle, have your
vehicle inspected immediately. Do not
drive if you smell exhaust fumes.

To avoid damaging the catalytic converter:
•

Do not crank the engine for more than
10 seconds at a time.

•

Do not run the engine with a spark plug
lead disconnected.

•

Do not push-start or tow-start your
vehicle. Use booster cables. See

Jump

Starting the Vehicle

(page 482).

•

Use the correct fuel. See

Fuel and

Refueling

(page 252).

•

Do not switch the ignition off when your
vehicle is moving.

•

Avoid running out of fuel.

•

Have the items listed in scheduled
maintenance information performed
according to the specified schedule.

Note:

Do not make any unauthorized

changes to your vehicle or engine. By law,
vehicle owners and anyone who
manufactures, repairs, or services a fleet of
vehicles are not permitted to intentionally
remove an emission control device or
prevent it from working.

CATALYTIC CONVERTER –
TROUBLESHOOTING

CATALYTIC CONVERTER –
WARNING LAMPS

Your vehicle has an on-board diagnostics
system that monitors the emission control
system. If any of the following warning
lamps illuminate, this may indicate that
the on-board diagnostics system has
detected an emission control system
malfunction.

E103308

E67021

E67028

Continuing to drive your vehicle may cause
reduced power or the engine to stop.
Failure to respond to a warning lamp may
cause damage that your vehicle Warranty
may not cover. Have your vehicle checked
as soon as possible.

261

Catalytic Converter

WHAT IS THE HIGH VOLTAGE
BATTERY

The high voltage battery is a highly
sophisticated lithium-ion battery system,
used to store electrified propulsion energy
to power the vehicle.

HIGH VOLTAGE BATTERY
PRECAUTIONS

WARNING:

This battery pack

should only be serviced by an authorized
electric vehicle technician. Improper
handling can result in personal injury or
death.

WARNING:

Apply the parking

brake, shift into park (P), switch the
ignition off and remove the key before
you open the hood or have any service
or repair work completed. If you do not
switch the ignition off, the engine could
restart at any time. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

Do not touch the

electronic ignition system parts after you
have switched the ignition on or when
the engine is running. The system
operates at high voltage. Failure to
adhere to this warning could result in
serious personal injury or death.

WARNING:

Keep your hands and

clothing clear of the engine cooling fan.

262

High Voltage Battery - Hybrid Electric Vehicle (HEV)

AUTOMATIC TRANSMISSION
POSITIONS

AUTOMATIC TRANSMISSION
PRECAUTIONS

WARNING:

Apply the parking

brake, shift into park (P), switch the
vehicle off and remove the key or remote
control before you leave your vehicle.
Failure to follow this instruction could
result in personal injury or death.

WARNING:

When your vehicle is

stationary, keep the brake pedal fully
pressed when shifting gears. Failure to
follow this instruction could result in
personal injury, death or property
damage.

WARNING:

Do not apply the brake

pedal and accelerator pedal
simultaneously. Applying both pedals
simultaneously for more than a few
seconds limits vehicle performance,
which may result in difficulty maintaining
speed in traffic and could lead to serious
injury.

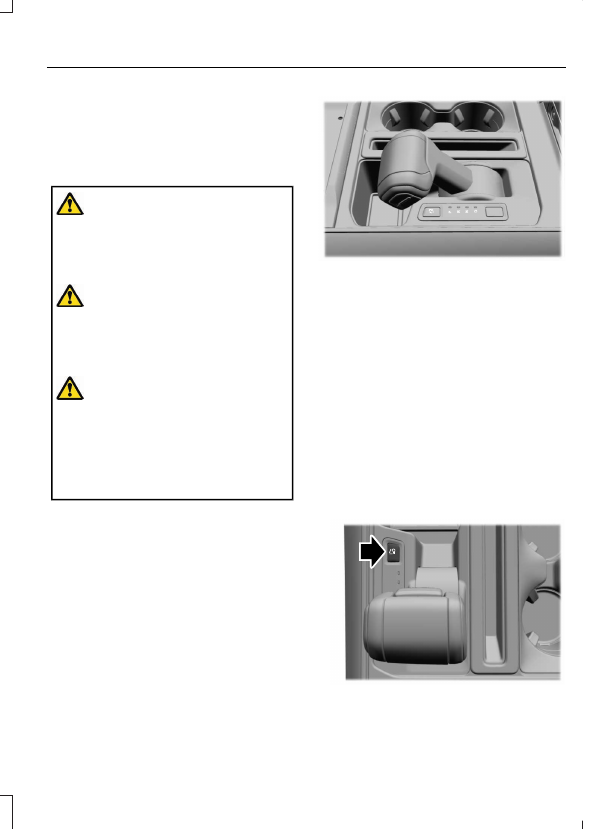

SHIFTING YOUR VEHICLE INTO
GEAR - EXCLUDING: RAPTOR/
POLICE

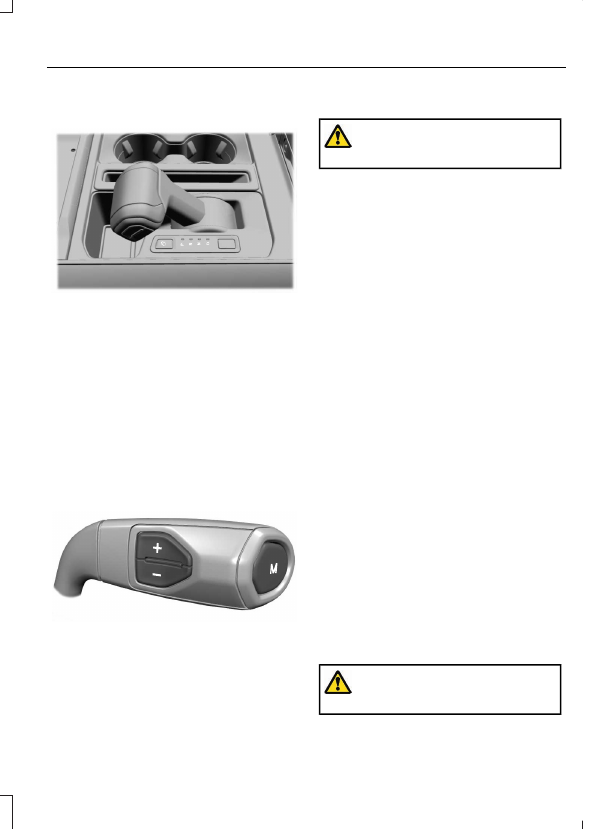

Console Shifter

The selector is on the center console.

E311503

Press and hold the brake pedal.

2. Press and hold the button on the

selector lever to move to a selected
position.

Note:

The position illuminates on the

selector.

3. Press the manual (M) button when

your vehicle is in drive (D) to enter or
exit mode.

Stowing the Selector Lever

Press the stow button to fold the selector
flat when your vehicle is in park (P).

The stow function allows the shifter to lay
flat in the console, enabling the use of the
working surface tray.

E311505

Press the stow button again to release the
selector to the park (P) position.

263

Automatic Transmission

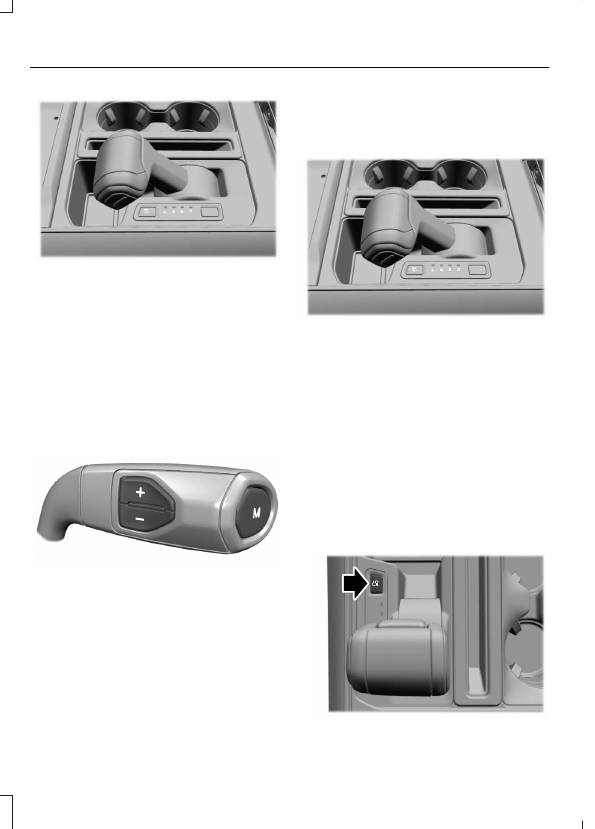

E311503

Note:

Do not store objects in the stow bin.

Note:

If your vehicle is unable to reach the

stow position, when requested, the selector
returns to the park (P) position. Make sure
the mat inside the stow bin is flat and does
not block the way of the selector. Attempt
to stow the selector again.

Column Shifter

The selector is on the steering column.

E327267

Press and hold the brake pedal.

2. Move the lever to select a position.

3. Press the manual (M) button when

your vehicle is in drive (D) to enter or
exit mode.

SHIFTING YOUR VEHICLE INTO
GEAR - RAPTOR

The selector is on the center console.

E311503

Press and hold the brake pedal.

2. Move the lever to select a position.

Note:

The position illuminates on the

selector.

3. Press the manual (M) button when

your vehicle is in drive (D) to enter or
exit mode.

Stowing the Selector Lever

Press the stow button to fold the selector
flat when your vehicle is in park (P).

The stow function allows the shifter to lay
flat in the console, enabling the use of the
working surface tray.

E311505

264

Automatic Transmission

Press the stow button again to release the
selector to the park (P) position.

E311503

Note:

Do not store objects in the stow bin.

Note:

If your vehicle is unable to reach the

SHIFTING YOUR VEHICLE INTO
GEAR - POLICE

The selector is on the steering column.

E327267

Press and hold the brake pedal.

2. Move the lever to select a position.

3. Press the manual (M) button when

your vehicle is in drive (D) to enter or
exit mode.

PARK (P)

WARNING:

Shift into park (P) only

when your vehicle is stationary.

In park (P) power is not transmitted to the
driven wheels.

Note:

A tone sounds if you attempt to exit

your vehicle without the vehicle in park (P).

Note:

Your vehicle may not shift out of park

(P) if the 12 V battery has run out of charge.

Note:

Your vehicle may not shift out of park

(P) if a fuse is blown.

Note:

Your vehicle may not shift out of park

(P) unless the key or remote control is inside
your vehicle.

Note:

The electronic parking brake could

apply when you power your vehicle on with
the selector in park (P).

Note:

The electronic parking brake could

apply if you shift to park (P) without fully
pressing the brake pedal.

Note:

The electronic parking brake could

apply if you shift to park (P) on a slope.

Note:

Do not manually release the parking

brake when the selector is in park (P). See

Automatically Releasing the Electric
Parking Brake

(page 294).

Note:

Your vehicle could shift into park (P)

if you attempt to exit your vehicle without
the vehicle in park (P). See

Automatic

Return to Park (P)

(page 270).

Note:

A tone could sound when you select

park (P).

REVERSE (R)

WARNING:

Shift into reverse (R)

only when your vehicle is stationary.

265

Automatic Transmission

In reverse (R) power is transmitted to the
driven wheels.

NEUTRAL (N)

WARNING:

In neutral (N) your

vehicle is free to roll.

In neutral (N) power is not transmitted to
the driven wheels.

DRIVE (D)

In drive (D) power is transmitted to the
driven wheels.

MANUAL (M)

In manual (M) you can select a specific
gear.

Note:

We recommend using this mode for

driving on hilly or mountainous roads or
when towing a trailer. See

Towing a Trailer

(page 424).

PERFORMANCE SHIFT
INDICATORS - RAPTOR

The performance shift indicator allows you
to set the point you want to be alerted to
shift gears. You are notified through visual
alerts when the set shift point has been
reached.

From the main menu, press

Settings

2. Press performance shift indicator.

From the menu, you can:

•

Turn the performance shift indicator
on.

•

Set a shift point within the allowable
RPM range in increments of 100.

Note:

The graphic can appear in either the

instrument cluster display or the head up
display, not both. Follow the instructions
below to view the performance shift
indicator graphic.

Using the Performance Shift
Indicator in the Head Up Display

On the main menu, go to the head up
display section and turn head up
display on.

2. While in the head up display menu,

select the HUD On and choose the
BAJA HUD drive mode layout. The
performance shift indicator graphic is
displayed.

Note:

You can also select the automatic

head up display drive mode layout on the
head up display menu and rotate to the Baja
drive mode on the selectable drive mode
switch.

Using the Performance Shift

Indicator in the Instrument Cluster
Display

On the main menu, go to My View Menu
and add performance view. Go to the
head up display section and make sure
that the head up display is not in baja
drive mode layout or on automatic
drive mode layout with Baja selectable
drive mode switched on.

2. Press BACK and scroll down until you

reach performance view and select OK.

The performance shift indicator graphic is
displayed on the instrument cluster.

Note:

This feature is best used when

manually shifting gears. You use the paddle
shifters to shift gears when the set shift
point is reached.

266

Automatic Transmission

MANUALLY SHIFTING GEARS
- EXCLUDING: RAPTOR/
POLICE

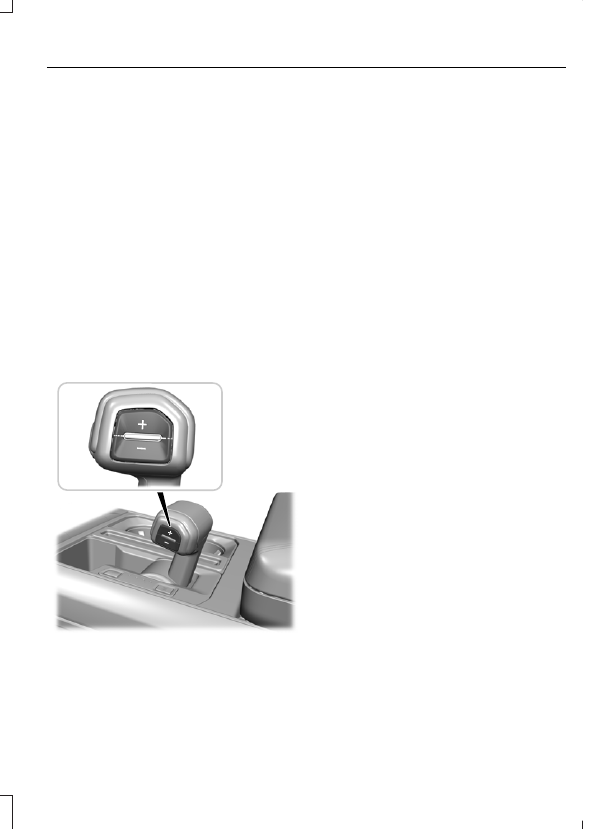

Center Console Shifter

The instrument cluster displays the current
gear. The current gear flashes when your
vehicle cannot shift into the requested
gear. Your vehicle will not shift if the
requested gear raises or lowers the engine
speed beyond the limit.

Your vehicle may shift when you fully press
the accelerator or brake pedal.

Note:

Prolonged driving with high engine

speed could cause vehicle damage not
covered by the vehicle warranty.

Note:

Drive modes could affect when the

vehicle shifts into the requested gear.

E311242

Manually Shifting Gears in Manual (M)

Use this feature to select a specific gear.

Note:

We recommend using this feature for

engine braking, driving on hilly or
mountainous roads, or when towing a trailer.
See

Towing a Trailer

(page 424).

•

Press any button to switch the feature
on.

•

Press the upper (+) button to upshift.

•

Press the lower (-) button to
downshift.

•

Shift to drive (D) to switch the feature
off.

Progressive Range Selection in Drive
(D)

Use this feature to prevent your vehicle
from automatically shifting to high gears.
The instrument cluster displays the current
gear and the highest gear available.

Note:

Your vehicle automatically shifts

within the gear range you select.

Note:

We recommend using this feature for

engine braking, driving on hilly or
mountainous roads, or when towing a trailer.
See

Towing a Trailer

(page 424).

•

Press the lower (-) button to switch
the feature on.

•

Press the lower (-) button to disable
the next highest gear.

•

Hold the upper (+) button for a few
seconds to switch the feature off.

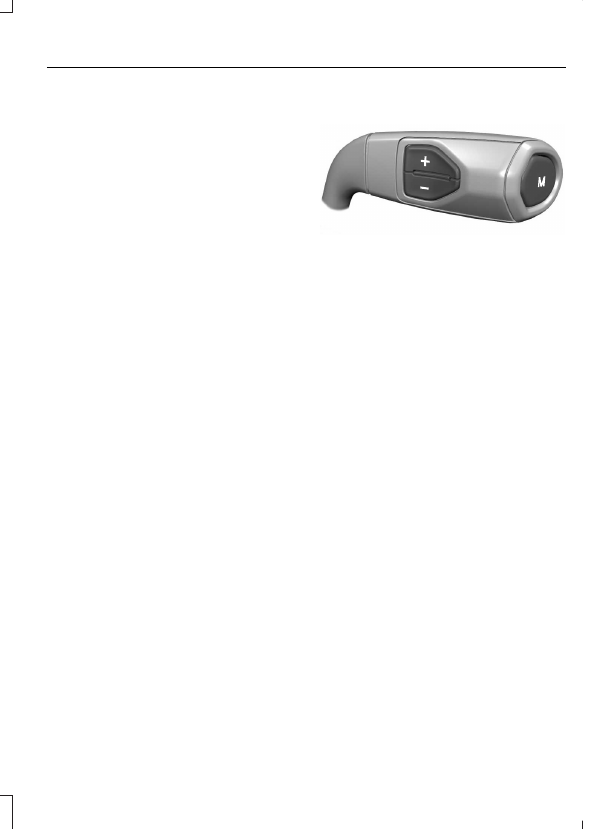

Column Shifter

Your vehicle could shift when you fully
press the accelerator or brake pedal.

Note:

Prolonged driving with high engine

speed could cause vehicle damage not
covered by the vehicle warranty.

267

Automatic Transmission

Note:

Drive modes could affect when the

vehicle shifts into the requested gear.

E327267

Manually Shifting Gears in Manual (M)

Use this feature to select a specific gear.

Note:

We recommend using this feature for

engine braking, driving on hilly or
mountainous roads, or when towing a trailer.
See

Towing a Trailer

(page 424).

•

Press any button to switch the feature
on.

•

Press the upper (+) button to upshift.

•

Press the lower (-) button to
downshift.

•

Shift to drive (D) to switch the feature
off.

Progressive Range Selection in Drive
(D)

Use this feature to prevent your vehicle
from automatically shifting to high gears.
The instrument cluster displays the current
gear and the highest gear available.

Note:

Your vehicle automatically shifts

within the gear range you select.

Note:

We recommend using this feature for

engine braking, driving on hilly or
mountainous roads, or when towing a trailer.
See

Towing a Trailer

(page 424).

•

Press the lower (-) button to switch
the feature on.

•

Press the lower (-) button to disable
the next highest gear.

•

Hold the upper (+) button for a few
seconds to switch the feature off.

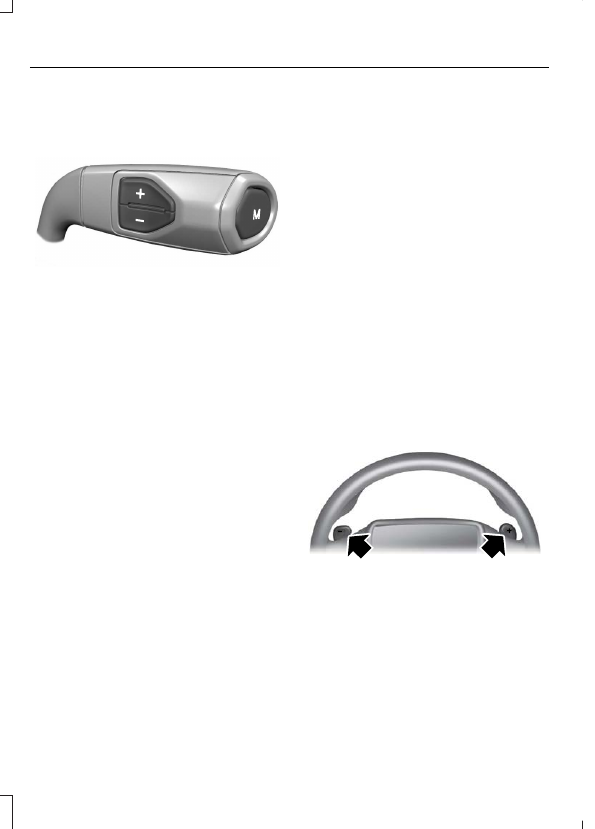

MANUALLY SHIFTING GEARS
- RAPTOR

Your vehicle could shift when you fully
press the accelerator or brake pedal.

Note:

Prolonged driving with high engine

speed could cause vehicle damage not
covered by the vehicle warranty.

Note:

Drive modes could affect when the

vehicle shifts into the requested gear.

E144821

Manually Shifting Gears in Drive (D)

Use this feature to temporarily change
gears.

Note:

We recommend using this feature for

engine braking or driving on hilly or
mountainous roads.

•

Pull any paddle to switch the feature
on.

•

Pull the right (+) paddle to upshift.

268

Automatic Transmission

•

Pull the left (-) paddle to downshift.

•

Hold the (+) paddle for a few seconds
to switch the feature off.

Note:

The feature switches off after a short

period of time if you do not pull either
paddle.

Manually Shifting Gears in Manual (M)

Use this feature to select a specific gear.

Note:

We recommend using this feature for

engine braking, driving on hilly or
mountainous roads, or when towing a trailer.
See

Towing a Trailer

(page 424).

•

Pull any paddle to switch the feature
on.

•

Pull the right (+) paddle to upshift.

•

Pull the left (-) paddle to downshift.

•

Shift to drive (D) to switch the feature
off.

MANUALLY SHIFTING GEARS
- POLICE

Your vehicle may shift when you fully press
the accelerator or brake pedal.

Note:

Prolonged driving with high engine

speed could cause vehicle damage not
covered by the vehicle warranty.

Note:

Drive modes could affect when the

vehicle shifts into the requested gear.

E327267

Manually Shifting Gears in Manual (M)

Use this feature to select a specific gear.

Note:

We recommend using this feature for

engine braking, driving on hilly or
mountainous roads, or when towing a trailer.
See

Towing a Trailer

(page 424).

•

Shift to manual (M) to switch the
feature on.

•

Press the upper (+) button to upshift.

•

Press the lower (-) button to
downshift.

•

Shift to drive (D) to switch the feature
off.

TEMPORARY NEUTRAL MODE

How Does Temporary Neutral
Mode Work

Use this mode to keep your vehicle in
neutral (N), for a limited time, when you
exit your vehicle or switch your vehicle off.
For example, if you exit your vehicle before
an automatic car wash.

Note:

You do not need to use this mode at

an automatic car wash if you stay in your
vehicle with power on.

Note:

Do not tow your vehicle in this mode.

269

Automatic Transmission

Note:

Automatic return to park (P) is

delayed when your vehicle is in this mode.
See

Automatic Return to Park (P)

(page

270).

Temporary Neutral Mode
Limitations

Your vehicle could shift to park (P) after
30 minutes, or when the vehicle battery
charge level is low. Prolonged use of this
mode can cause the 12 V battery to run out
of charge.

This mode could be unavailable if your
vehicle is below operating temperature.
Warm up your vehicle and attempt the
procedure again.

Do not tow your vehicle in this mode.
Failure to follow these instructions could
result in vehicle damage not covered by
the vehicle warranty.

Entering Temporary Neutral Mode

Bring your vehicle to a complete stop.

2. Press and hold the brake pedal.

3. Power your vehicle on.

4. Shift into neutral (N).

Note:

An instructional message appears.

5. Press the manual (M) button.

Note:

A confirmation message appears

when your vehicle enters the mode.

6. Release the brake pedal.

Note:

Your vehicle is free to roll.

Switch your vehicle off.

Note:

Do not tow your vehicle in this mode.

Note:

The neutral (N) indicator on the

transmission selector may flash in this
mode.

Exiting Temporary Neutral Mode

Press the brake pedal.

2. Shift into park (P), or power your

vehicle on and shift into drive (D) or
reverse (R).

AUTOMATIC RETURN TO
PARK (P)

How Does Automatic Return to
Park (P) Work

Your vehicle shifts into park (P) if you
attempt to exit your vehicle without the
vehicle in park (P).

Your vehicle shifts into park (P) when your
vehicle is stationary and any of the
following occur:
•

You switch the vehicle off.

•

You open the driver door with the driver
seatbelt unfastened.

•

You unfasten the driver seatbelt when
the driver door is open.

Note:

Do not use automatic return to park

(P) when your vehicle is moving, except in
an emergency. See

Starting and Stopping

the Engine

(page 236).

Automatic Return to Park (P)
Limitations

Automatic return to park (P) may not work
if any of the following occur:

•

The driver door ajar sensor is
malfunctioning.

•

The driver seatbelt sensor is
malfunctioning.

See an authorized dealer if any of the
following occur:

•

Seatbelt indicator illuminates or tone
sounds with the driver seatbelt
fastened.

•

Door ajar indicator does not illuminate
with the driver door open.

270

Automatic Transmission

•

Door ajar indicator illuminates with the
driver door closed.

•

Transmission not in park message
appears, with the driver door closed,
after you shift out of park (P).

SHIFTING YOUR IMMOBILE
VEHICLE OUT OF PARK (P)

WARNING:

When doing this

procedure, you need to take your vehicle
out of park (P) which means your vehicle
can roll freely. To avoid unwanted
vehicle movement, apply the parking
brake prior to doing this procedure. Use
wheels chocks if appropriate.

WARNING:

Do not drive your

vehicle until you verify that the
stoplamps are working.

Use this procedure to shift your vehicle out
of park (P) in the event of an electrical
malfunction or emergency.

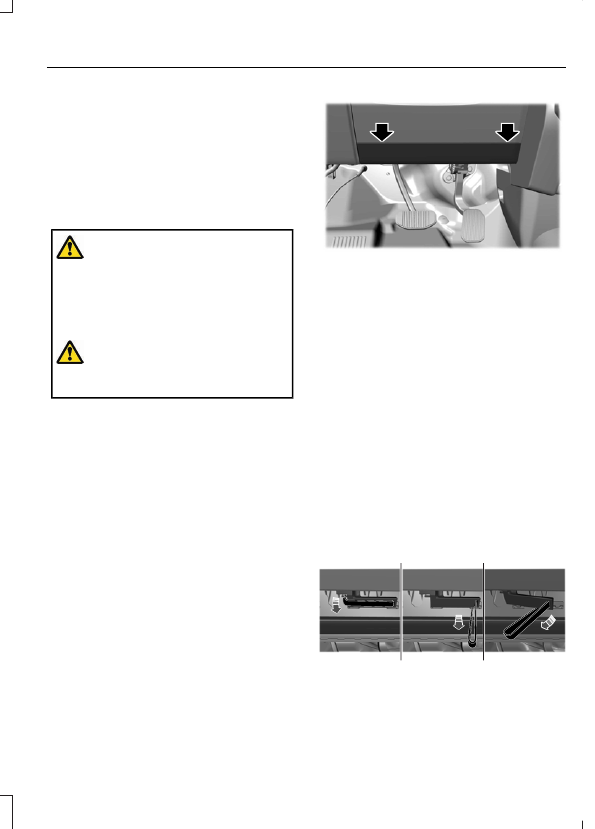

Activating the Manual Park
Release Cable

Apply the parking brake.

Note:

If the 12V battery has run out of

charge, use an external power source to
apply the parking brake.

2. Remove the access cover located

under the steering wheel using a plastic
wedge or pry tool.

Note:

Do not pull the tether.

E336473

3. Sit in the driver seat.

4. Power your vehicle on without your

foot on the brake pedal.

Note:

Do not attempt this procedure when

the engine is running. Failure to follow this
instruction could result in vehicle damage
not covered by the vehicle warranty.

5. Press and hold the brake pedal.

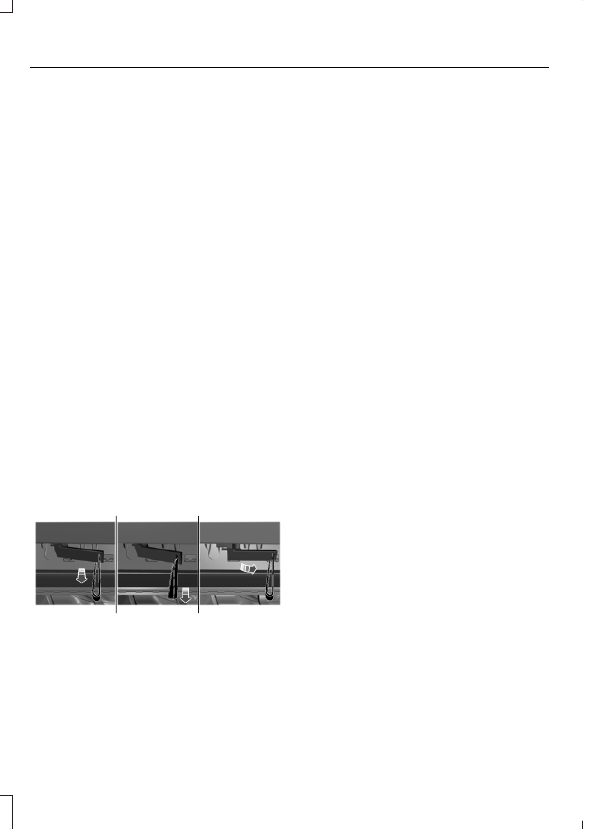

6. Pull the tether towards you until the

lever engages.

Note:

Do not use excessive force. Failure to

follow this instruction could result in vehicle
damage not covered by the vehicle
warranty.

Note:

A message appears when your

vehicle is out of park (P). If you do not
receive a message attempt the procedure
again.

Note:

A warning lamp could illuminate.

E315156

Release the parking brake.

8. Release the brake pedal.

Note:

Your vehicle is free to roll.

271

Automatic Transmission

9. Turn off the ignition.

10.

Disconnect the negative battery cable
from the 12V battery as soon as it is
safe to do so. Note: If your vehicle
detects wheel speed when the 12V
battery is connected, the electronic
parking brake could apply.

Returning Your Vehicle to Normal
Mode

Connect the negative battery cable to
the 12V battery as soon as it is safe to
do so.

Note:

If your vehicle detects wheel speed

when the 12V battery is connected, the
electronic parking brake could apply.

2. Apply the parking brake.

Note:

If the 12V battery has run out of

charge, use an external power source to
apply the parking brake.

3. Sit in the driver seat.

4. Press and hold the brake pedal.

Note:

Do not start your vehicle.

5. Pull the tether towards you until you

feel a hard stop. Maintain tension. Pull
the tether towards the floor until you
feel a hard stop. Release tension and
return tether to the stowed position.

E315157

6. Start your vehicle.

Confirm the instrument cluster displays
park (P).

Note:

If the instrument cluster does not

display park (P), the warning lamp remains
illuminated, or a message persists contact
an authorized dealer for service.

8. Switch your vehicle off.

9. Release the brake pedal.

10.

Install the access cover.

AUTOMATIC TRANSMISSION
AUDIBLE WARNINGS

Transmission Not In Park (P)
Audible Warning

Sounds if you open the driver door before
shifting into park (P).

272

Automatic Transmission

HOW DOES FOUR-WHEEL
DRIVE WORK - EXCLUDING:
RAPTOR

Using the Electronic Shift On the
Fly System

(If Equipped)

This four-wheel drive system utilizes a
2-speed Electronic Shift On the Fly (ESOF)
transfer case which is also known as a
part-time system. This system offers the
driver two-wheel drive high, four-wheel
drive high, and four-wheel drive low as
available modes of operation. When either
four-wheel drive high or four-wheel drive
low are selected, the system provides
mechanically locked four-wheel drive
power to both the front and rear wheels
for use in off-road or slippery conditions
such as deep snow, sand or mud. Selecting
four-wheel drive low also provides
additional gearing for increased torque
multiplication for conditions like deep
sand, steep slopes, or pulling heavy
objects. Additionally, the system is capable
of recreational flat towing by putting the
transfer case into neutral (N). See

Recreationally Towing Your Vehicle

(page 488).

There is further information on driving in
unique driving conditions. See

Driving

Hints

(page 477).

Using the 2-Speed Automatic
Four-Wheel Drive System

(If Equipped)

the front wheels for optimum performance
for all on-road conditions. Depending on
vehicle configuration or options, when
either four-wheel drive high or four-wheel
drive low are selected, the system provides
electronically or mechanically locked
power to the front and rear wheels for use
in off-road or slippery conditions such as
deep snow, sand or mud. Selecting
four-wheel drive low also provides
additional gearing for increased torque
multiplication for conditions like deep
sand, steep slopes, or pulling heavy
objects. Additionally, the system is capable
of recreational flat towing by putting the
transfer case into neutral (N). See

Recreationally Towing Your Vehicle

(page 488).

There is further information on driving in
unique driving conditions. See

Driving

Hints

(page 477).

HOW DOES FOUR-WHEEL
DRIVE WORK - RAPTOR

The 2-speed automatic four-wheel drive
system utilizes an electronically controlled
on-demand 2-speed transfer case. This
system monitors various vehicle sensory
inputs to provide an increased level of
performance. This system offers the driver
two-wheel drive high, four-wheel drive
auto, four-wheel drive high, and four-wheel
drive low as available modes of operation.
When four-wheel drive auto is selected,
the system continuously varies power to
the front wheels for optimum performance
for all on-road conditions. When either
four-wheel drive high or four-wheel drive
low are selected, the system provides
mechanically locked power to the front
and rear wheels for use in off-road or
slippery conditions such as deep snow,
sand or mud. Selecting four-wheel drive
low also provides additional gearing for
increased torque multiplication for

273

Four-Wheel Drive

(If Equipped)

conditions like deep sand, steep slopes, or
pulling heavy objects. Additionally, the
system is capable of recreational flat
towing by putting the transfer case into
neutral (N). See

Recreationally Towing

Your Vehicle

(page 488).

There is further information on driving in
unique driving conditions. See

Driving

Hints

(page 477).

FOUR-WHEEL DRIVE
PRECAUTIONS

WARNING:

Vehicles with a higher

center of gravity (utility and four-wheel
drive vehicles) handle differently than
vehicles with a lower center of gravity
(passenger cars). Avoid sharp turns,
excessive speed and abrupt steering in
these vehicles. Failure to drive cautiously
increases the risk of losing control of your
vehicle, vehicle rollover, personal injury
and death.

WARNING:

Do not become

overconfident in the ability of four-wheel
drive vehicles. Although a four-wheel
drive vehicle may accelerate better than
a two-wheel drive vehicle in low traction
situations, it won't stop any faster than
two-wheel drive vehicles. Always drive
at a safe speed.

Truck and utility vehicles can differ from
some other vehicles. Your vehicle could be
higher to allow it to travel over rough
terrain without getting stuck or damaging
underbody components. The differences
that make your vehicle so versatile also
make it handle differently than an ordinary
passenger car. Always maintain steering
wheel control, especially in rough terrain.
Since sudden changes in terrain can result
in abrupt steering wheel motion, make sure
you grip the steering wheel from the

outside. Do not grip the spokes. Drive
cautiously to avoid vehicle damage from
concealed objects such as rocks and
stumps. Drive slower in strong crosswinds
which can affect the normal steering
characteristics of your vehicle. Be
extremely careful when driving on
pavement made slippery by loose sand,
water, gravel, snow or ice.

Note:

Do not use four-wheel drive high or

four-wheel drive low mode on dry, hard
surfaced roads. Doing so can produce
excessive noise, increase tire wear and can
damage drive components.

FOUR-WHEEL DRIVE
LIMITATIONS

Operating Four-Wheel Drive with
a Spare or Mismatched Tires

(If

Equipped)

On four-wheel drive vehicles, the size of
the spare tire can affect the four-wheel
drive system. If there is a significant
difference between the size of the spare
tire and the remaining tires, you could have
limited four-wheel drive functionality.
When driving with the full-size dissimilar
spare wheel and tire assembly, we
recommend that you do not:

•

Exceed 50 mph (80 km/h) with a
four-wheel drive mode turned on.

•

Turn on a four-wheel drive mode
unless the vehicle is stationary.

•

Use a four-wheel drive mode on dry
pavement.

Driving with the full-size dissimilar spare
wheel and tire assembly can limit
four-wheel drive functionality, especially
when driving in a mechanically locked
four-wheel drive mode. You can experience
the following:

274

Four-Wheel Drive

(If Equipped)

•

Additional noise from the transfer case
or other drive components.

•

Difficulty shifting out of a mechanically
locked four-wheel drive mode.

Use of a dissimilar spare wheel and tire
assembly can lead to impairment of the
following:

•

Comfort and noise.

•

Winter weather driving capability.

•

Wet driving capability.

•

Four-wheel drive capability.

Mechanical Shift Blocking

On four-wheel drive vehicles with a
mechanically locked four-wheel drive high
mode, the transfer case distributes torque
to the front wheels by mechanically
interlocking the front and rear driveshafts
together. Various external factors can
affect shifting performance of this type of
system including, but not limited to:

•

Vehicle acceleration.

•

Dissimilar tire sizes.

•

Steering input.

If the system detects a mechanical shift
blockage at speed after you select
two-wheel drive high, the message "4x4
Unable to Disengage See Manual", could
display momentarily. If this message
displays, one or more of the following
actions can relieve the mechanical shift
block:

•

Momentary acceleration.

•

Momentary braking.

•

Bringing the vehicle to a stop.

•

Shifting the transmission to neutral and
back to drive.

•

Shifting the transmission to reverse
and back to drive.

•

Driving the vehicle around a tight turn
at a slow speed.

SELECTING A FOUR-WHEEL
DRIVE MODE - EXCLUDING:
RAPTOR

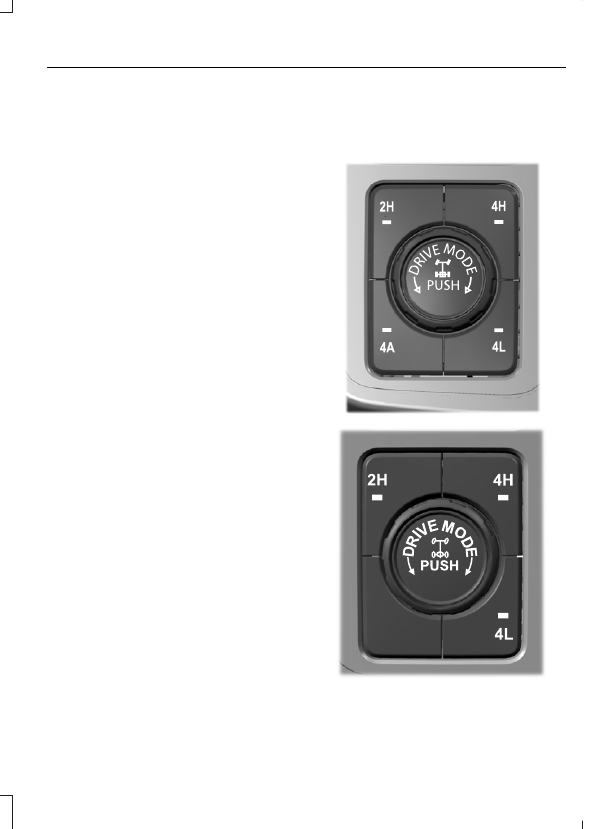

E308146

E323655

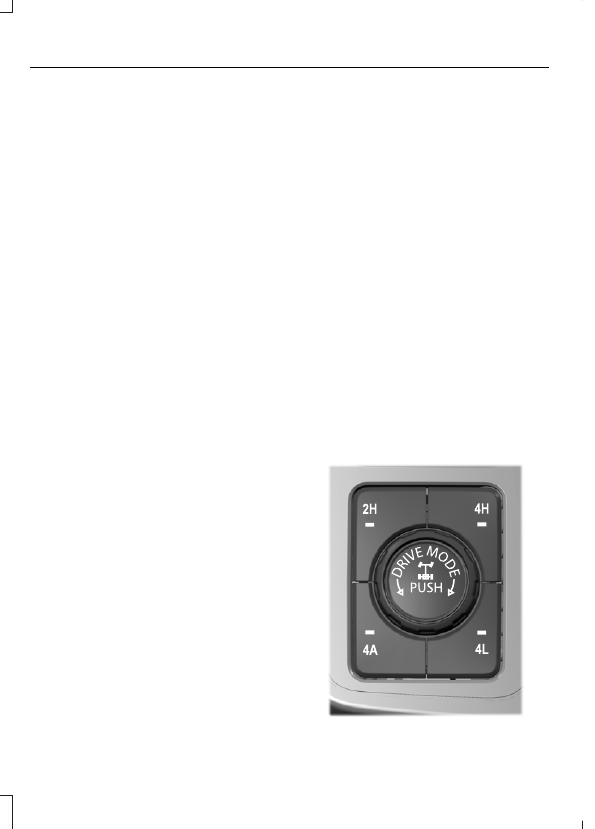

The four-wheel drive mode control is on
the instrument panel.

275

Four-Wheel Drive

(If Equipped)

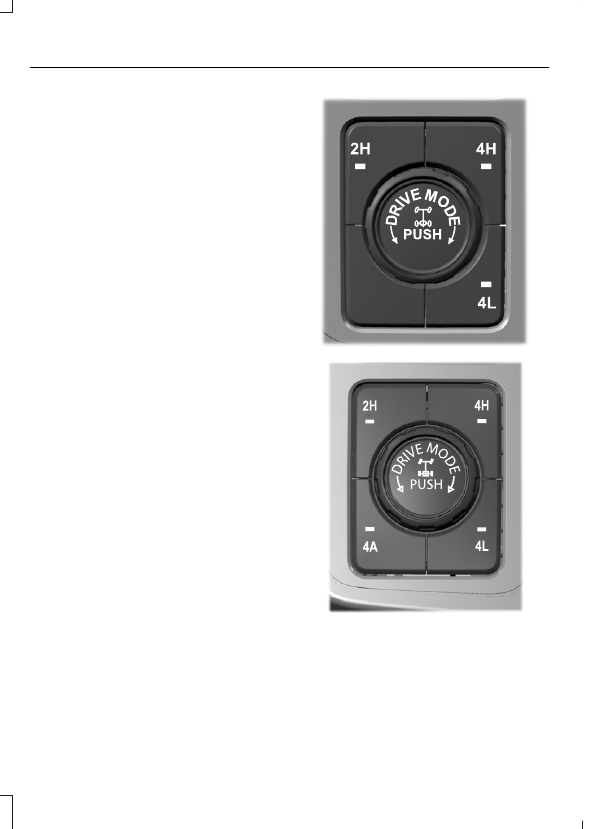

To select a four-wheel drive mode, press
the four-wheel drive mode control button
of the desired mode. You can select
two-wheel drive high (2H), four-wheel
drive high (4H), or if your vehicle has
four-wheel drive auto (4A) at a stop or
while driving. Once the shift is complete,
the instrument cluster display will then
display the selected four-wheel drive
mode. While shifts are in progress, the
lights on the four-wheel drive control
switch can flash and you could see
messages in the instrument cluster display
indicating that a shift is in progress or to
release the accelerator pedal to improve
shift performance.

Note:

Momentarily releasing the accelerator

pedal while a shift in progress message
displays improves engagement or
disengagement performance.

Note:

Do not perform this operation when

cruise control or trail control is selected and
active. The system may not shift as
expected.

Note:

Do not perform this operation if the

rear wheels are slipping or while applying
the accelerator pedal.

Note:

You could hear some noise as the

system shifts or engages which is normal.

If the system detects a fault, a warning
message appears in the instrument cluster
display. See

Four-Wheel Drive –

Information Messages

(page 279).

Shifting to or from Four-Wheel
Drive Low (4L)

To select or exit four-wheel drive low (4L):

Bring your vehicle to a speed of 3 mph
(5 km/h) or less.

2. Place the transmission in neutral (N)

3. Press the desired four-wheel drive

button on the four-wheel drive mode
control switch.

The instrument cluster display will display
a message indicating a four-wheel drive
shift is in progress. If any of the above shift
conditions are not present, the shift will
not occur and the instrument cluster
display will display information guiding the
driver through the proper shifting
procedures. If there is a transfer case tooth
blockage a message will display in the
instrument cluster display. To alleviate this
condition, place the transmission in a
forward gear, move your vehicle forward
approximately 5 ft (1.5 m), and shift the
transmission back to neutral (N) to allow
the transfer case to complete the range
shift.

Note:

You could hear some noise as the

system shifts or engages which is normal.

If the system detects a fault, a warning
message appears in the instrument cluster
display. See

Four-Wheel Drive –

Information Messages

(page 279).

SELECTING A FOUR-WHEEL
DRIVE MODE - RAPTOR

E308146

276

Four-Wheel Drive

(If Equipped)

The four-wheel drive mode control is on
the instrument panel.

To select a four-wheel drive mode, press
the four-wheel drive mode control button
of the desired mode. You can select
two-wheel drive high (2H), four-wheel
drive high (4H), or four-wheel drive auto
(4A) at a stop or while driving. Once the
shift is complete, the instrument cluster
display will then display the selected
four-wheel drive mode. While shifts are in
progress, the lights on the four-wheel drive
control switch can flash and you could see
messages in the instrument cluster display
indicating that a shift is in progress or to
release the accelerator pedal to improve
shift performance.

Note:

Momentarily releasing the accelerator

pedal when a shift in progress message
displays improves engagement and
disengagement performance.

Note:

Do not perform this operation when

you have cruise control or trail control
selected and active. The system may not
shift as expected.

Note:

Do not perform this operation if the

rear wheels are slipping or while applying
the accelerator pedal.

Note:

You could hear some noise as the

system shifts or engages, which is normal.

If the system detects a fault, a warning
message appears in the instrument cluster
display. See

Four-Wheel Drive –

Information Messages

(page 279).

Shifting to or from Four-Wheel
Drive Low (4L)

To select or exit four-wheel drive low (4L):

Bring your vehicle to a speed of 3 mph
(5 km/h) or less.

2. Place the transmission in neutral (N).

3. Press the desired four-wheel drive

button on the four-wheel drive mode
control switch.

The instrument cluster display will display
a message indicating a four-wheel drive
shift is in progress. If any of the above shift
conditions are not present, the shift does
not occur and the instrument cluster
display will display information guiding the
driver through the proper shifting
procedures. If there is a transfer case tooth
blockage, a message displays in the
instrument cluster display. To alleviate this
condition, place the transmission in a
forward gear, move your vehicle forward
approximately 5 ft (1.5 m), and shift the
transmission back to neutral (N) to allow
the transfer case to complete the range
shift.

Note:

You could hear some noise as the

system shifts or engages, which is normal.

If the system detects a fault, a warning
message appears in the instrument cluster
display. See

Four-Wheel Drive –

Information Messages

(page 279).

FOUR-WHEEL DRIVE MODES

TWO-WHEEL DRIVE HIGH

Two-wheel drive high is for general
on-road driving. Power is sent to the rear
wheels only.

Note:

Two-wheel drive high can turn on or

off based on Drive Mode selection See

Drive

Mode Control

(page 372).

277

Four-Wheel Drive

(If Equipped)

FOUR-WHEEL DRIVE AUTO

(If

Equipped)

Four-wheel drive auto provides
electronically controlled four-wheel drive
power to both the front and rear wheels,
as required, for increased traction in varying
on-road conditions. The four-wheel drive
auto tuning varies based on selected Drive
Mode. See

Selecting a Drive Mode

(page

372).

Note:

Four-wheel drive auto can turn on or

off automatically based on Drive Mode
selection. See

Selecting a Drive Mode

(page 372).

FOUR-WHEEL DRIVE HIGH -
EXCLUDING: RAPTOR

Depending on vehicle configuration or
options, four-wheel drive high provides
electronically or mechanically locked
four-wheel drive power to both the front
and rear wheels for use in off-road or
winter conditions such as deep snow, sand
or mud. This mode is not for use on dry
pavement.

Note:

Four-wheel drive high can turn on or

off automatically based on Drive Mode
selection. See

Selecting a Drive Mode

(page 365).

FOUR-WHEEL DRIVE HIGH -
RAPTOR

Four-wheel drive high provides
mechanically locked four-wheel drive
power to both the front and rear wheels
for use in off-road or winter conditions
such as deep snow, sand or mud. This
mode is not for use on dry pavement.

Note:

Four-wheel drive high can turn on or

off automatically based on Drive Mode
selection. See

Selecting a Drive Mode

(page 372).

FOUR-WHEEL DRIVE LOW -
EXCLUDING: RAPTOR

Depending on vehicle configuration or
options, four-wheel drive low provides
electronically or mechanically locked
four-wheel drive power to both the front
and rear wheels for use on low traction
surfaces, but does so with additional
gearing for increased torque multiplication.
This mode is only for off-road conditions
such as deep sand, steep slopes, or pulling
heavy objects.

Note:

Four-wheel drive low can turn on or

off automatically based on drive mode
selection. See

Selecting a Drive Mode

(page 365).

FOUR-WHEEL DRIVE LOW -
RAPTOR

Four-Wheel Drive Low provides
mechanically locked four-wheel drive
power to both the front and rear wheels
for use on low traction surfaces, but does
so with additional gearing for increased
torque multiplication. The intent of this
mode is only for off-road conditions such
as deep sand, steep slopes, or pulling
heavy objects.

Note:

Four-wheel drive low can turn on or

off automatically based on drive mode
selection. See

Selecting a Drive Mode

(page 372).

FOUR-WHEEL DRIVE
INDICATORS

Two-wheel Drive High

E181778

Momentarily illuminates when
two-wheel drive high is selected.

278

Four-Wheel Drive

(If Equipped)

Four-wheel Drive Auto

(If Equipped)

E181781

Continuously illuminates when
four-wheel drive auto is selected.

Four-wheel Drive High

E181779

Continuously illuminates when
four-wheel drive high is selected.

Four-wheel Drive Low

E181780

Continuously illuminates when
four-wheel drive low is selected.

FOUR-WHEEL DRIVE –
TROUBLESHOOTING

FOUR-WHEEL DRIVE – WARNING
LAMPS

Illuminates when a four-wheel
drive or power train fault is
present.

Note:

When a system fault is present, the

system can typically remain in whichever
mode was selected prior to the fault
condition occurring. It does not default to
two-wheel drive in all circumstances. When
this warning is displayed, have your vehicle
serviced by an authorized dealer.

FOUR-WHEEL DRIVE – INFORMATION MESSAGES - EXCLUDING:
RAPTOR

Action

Message

A four-wheel drive system fault is present.

Have your vehicle checked as soon as

possible.

Check 4x4

The four-wheel drive system is making a

shift.

4x4 Shift in Progress

Displays when you attempt to switch to

four-wheel drive low mode and you do not

shift the transmission to neutral (N).

For 4x4 LOW Shift to N

Displays when you attempt to switch to

four-wheel drive low mode and your

vehicle's speed is greater than 3 mph

(5 km/h).

For 4x4 LOW Slow to 3 MPH

For 4x4 LOW Slow to 5 km/h

Displays when you attempt to switch from
four-wheel drive low mode and you do not

shift the transmission to neutral (N).

To Exit 4x4 LOW Shift to N

Displays when you attempt to switch from

four-wheel drive low mode and your

vehicle's speed is greater than 3 mph

(5 km/h).

To Exit 4x4 LOW Slow to 3 MPH

To Exit 4x4 LOW Slow to 5 km/h

279

Four-Wheel Drive

(If Equipped)

Action

Message

Displays when there is a transfer case gear

tooth blockage while shifting to or from

four-wheel drive low mode or to the neutral

state. Place the transmission in a forward

gear, move your vehicle forward approxim-
ately 5 ft (1.5 m), and shift the transmission

back to neutral (N) to allow the transfer

case to complete the range shift.

Shift Delayed Drive Forward

Displays when the four-wheel system

detects elevated system temperature and

temporarily stops providing power to the

front wheels. The system automatically

resumes normal function when the system

temperature returns to normal.

4x4 Temporarily Disabled

Displays when the four-wheel drive system

detects a mechanical shift block when

shifting out of four-wheel drive high. See

Four-Wheel Drive Limitations

(page 274).

4x4 Unable to Disengage. See Manual

Displays when the four-wheel drive system

resumes normal function.

4x4 Restored

Displays when the four-wheel drive system
detects driving condition which temporarily

require greater four-wheel drive perform-
ance. The system automatically resumes

normal function after the system no longer

detects these driving conditions.

4X4 Temporarily Locked

Displays when the system requires an

additional transmission shift to neutral (N)

to complete a transfer case shift.

Shift to Neutral

Displays when you command a four-wheel

drive shift during conditions which are

potentially harmful to the driveline

components

To Engage 4x4 Slow to 3 MPH

To Engage 4x4 Slow to 5 km/h

Displays when the four-wheel drive system

requests that you release the accelerator

pedal to complete a four-wheel drive shift.
See

Selecting a Four-Wheel Drive Mode

(page 275).

To Engage 4x4 Release Accelerator Pedal

280

Four-Wheel Drive

(If Equipped)

FOUR-WHEEL DRIVE – INFORMATION MESSAGES - RAPTOR

Action

Message

A four-wheel drive system fault is present.

Have your vehicle checked as soon as

possible.

Check 4x4

The four-wheel drive system is making a

shift.

4x4 Shift in Progress

Displays when you attempt to switch to

four-wheel drive low mode and you do not

shift the transmission to neutral (N).

For 4x4 LOW Shift to N

Displays when you attempt to switch to

four-wheel drive low mode and your

vehicle's speed is greater than 3 mph

(5 km/h).

For 4x4 LOW Slow to 3 MPH

For 4x4 LOW Slow to 5 km/h

Displays when you attempt to switch from
four-wheel drive low mode and you do not

shift the transmission to neutral (N).

To Exit 4x4 LOW Shift to N

Displays when you attempt to switch from

four-wheel drive low mode and your

vehicle's speed is greater than 3 mph

(5 km/h).

To Exit 4x4 LOW Slow to 3 MPH

To Exit 4x4 LOW Slow to 5 km/h

Displays when there is a transfer case gear

tooth blockage while shifting to or from

four-wheel drive low mode or to the neutral

state. Place the transmission in a forward

gear, move your vehicle forward approxim-
ately 5 ft (1.5 m), and shift the transmission

back to neutral (N) to allow the transfer

case to complete the range shift.

Shift Delayed Drive Forward

Displays when the four-wheel drive system

detects a mechanical shift block when

shifting out of four-wheel drive high. See

Four-Wheel Drive Limitations

(page 274).

4x4 Unable to Disengage. See Manual

Displays when the four-wheel drive system

resumes normal function.

4x4 Restored

281

Four-Wheel Drive

(If Equipped)

Action

Message

Displays when the four-wheel drive system

detects driving conditions which tempor-

arily require greater four-wheel drive

performance. The system automatically

resumes normal function after the system

no longer detects these driving conditions.

4X4 Temporarily Locked

Displays when the system requires an

additional transmission shift to neutral (N)

to complete a transfer case shift.

Shift to Neutral

Displays when you command a four-wheel

drive shift during conditions which are

potentially harmful to the driveline

components.

To Engage 4x4 Slow to 3 MPH

To Engage 4x4 Slow to 5 km/h

Displays when the four-wheel drive system

requests that you release the accelerator

pedal to complete a four-wheel drive shift.
See

Selecting a Four-Wheel Drive Mode

(page 275).

To Engage 4x4 Release Accelerator Pedal

282

Four-Wheel Drive

(If Equipped)

WHAT IS THE ELECTRONIC
LOCKING DIFFERENTIAL

The electronic locking differential is a
device housed in the rear axle, and can
provide additional traction when needed.

HOW DOES THE ELECTRONIC
LOCKING DIFFERENTIAL
WORK - EXCLUDING: RAPTOR

You can activate the differential
electronically and shift it on the fly within
the operating speed range. The electronic
differential disengages when the vehicle
speed exceeds a set value, and reengages
when the vehicle speed goes below a set
value. See

Switching the Electronic

Locking Differential On and Off

(page

284). It also engages based on certain
selected drive modes. See

Selecting a

Drive Mode

(page 365). The electronic

locking differential is for use in mud, rocks,
sand, or any off-road condition where you
need maximum traction.

Note:

The electronic locking differential can

activate or deactivate automatically based
on speed, four-wheel drive mode, and drive
mode selection. See

Switching the

Electronic Locking Differential On and
Off

(page 284).

Note:

The electronic locking differential is

for off-road use only and is not for use on
dry pavement. Using the electronic locking
differential on dry pavement results in
increased tire wear, noise and vibration.

Note:

Do not perform this operation when

cruise control or trail control are selected
and active. The system may not engage as
expected.

HOW DOES THE ELECTRONIC
LOCKING DIFFERENTIAL
WORK - RAPTOR

You can activate the differential
electronically and shift it on the fly within
the operating speed range. The electronic
differential disengages when the vehicle
speed exceeds a set value and it reengages
when the vehicle speed goes below a set
value depending on drive mode. See

Switching the Electronic Locking
Differential On and Off

(page 284). The

electronic locking differential is for use in
mud, rocks, sand, or any off-road condition
where you need maximum traction.

Note:

The electronic locking differential can

activate or deactivate automatically based
on speed, four-wheel drive mode, and drive
mode selection. See

Switching the

Electronic Locking Differential On and
Off

(page 284).

Note:

The electronic locking differential is

for off-road use only and is not for use on
dry pavement. Using the electronic locking
differential on dry pavement results in
increased tire wear, noise and vibration.

Note:

The electronic locking differential is

not available in 2H.

Note:

Do not perform this operation when

cruise control or trail control are selected
and active. The system may not engage as
expected.

283

Electronic Locking Differential

(If Equipped)

ELECTRONIC LOCKING
DIFFERENTIAL PRECAUTIONS

Operating the Electronic Locking
Differential with a Spare or
Mismatched Tires

On vehicles with an electronic locking
differential, the size of the spare tire can
affect performance of the system. If there
is a significant difference between the two
rear tires, you may have limited electronic
locking differential functionality. If the
system has difficulty disengaging, release
the accelerator pedal and turn the steering
wheel in the opposite direction when
rolling. We recommend engaging and
disengaging the electronic locking
differential at a stop when you mount a
spare on the rear axle.

SWITCHING THE ELECTRONIC
LOCKING DIFFERENTIAL ON
AND OFF - EXCLUDING:
RAPTOR

The button to activate and deactivate the
electronic locking differential is in the
center of the drive mode rotary switch.

E323655

E308146

To manually activate or deactivate the
electronic locking differential, press the
electronic locking differential button.

284

Electronic Locking Differential

(If Equipped)

Ford F-150 (2024 year). Manual in english - page 8
