Ford Explorer (2024 year). Manual in english

E292547

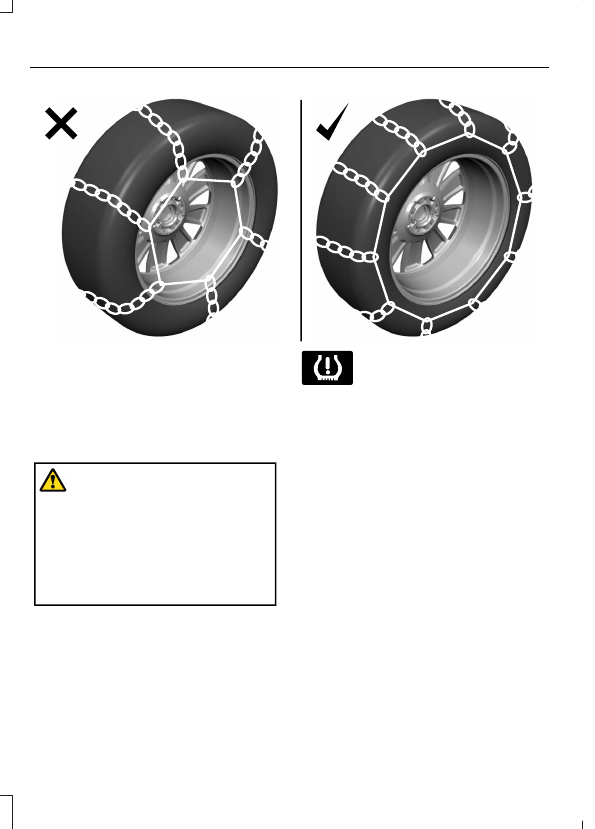

If you have any questions regarding snow
chains, please contact your authorized
dealer.

TIRE PRESSURE MONITORING
SYSTEM

WARNING:

The tire pressure

monitoring system is not a substitute for
manually checking tire pressures. You
should periodically check tire pressures
using a pressure gauge. Failure to
correctly maintain tire pressures could
increase the risk of tire failure, loss of
control, vehicle rollover and personal
injury.

Note:

You should only use tire sealants in

roadside emergencies as they could cause
damage to the tire pressure monitoring
system sensor.

Note:

If the tire pressure monitoring system

sensor becomes damaged, it will not
function.

E139232

Each tire, including the spare (if
provided), should be checked
monthly when cold and inflated

to the inflation pressure recommended by
the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If
your vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label, you
should determine the proper tire inflation
pressure for those tires).

As an added safety feature, your vehicle
has been equipped with a Tire Pressure
Monitoring System (TPMS) that
illuminates a low tire pressure telltale
when one or more of your tires is
significantly under-inflated. Accordingly,
when the low tire pressure telltale
illuminates, you should stop and check
your tires as soon as possible, and inflate
them to the proper pressure. Driving on a
significantly under-inflated tire causes the
tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency
and tire tread life, and could affect the
vehicle’s handling and stopping ability.

266

Wheels and Tires

Please note that the TPMS is not a
substitute for proper tire maintenance, and
it is the driver’s responsibility to maintain
correct tire pressure, even if under-inflation
has not reached the level to trigger
illumination of the TPMS low tire pressure
telltale.

Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is
combined with the low tire pressure
telltale. When the system detects a
malfunction, the telltale will flash for
approximately one minute and then remain
continuously illuminated. This sequence
will continue upon subsequent vehicle
start-ups as long as the malfunction exists.

When the malfunction indicator is
illuminated, the system will not be able to
detect or signal low tire pressure as
intended. TPMS malfunctions could occur
for a variety of reasons, including the
installation of replacement or alternate
tires or wheels on the vehicle that prevent
the TPMS from functioning properly.
Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.

This device complies with Part 15 of the
FCC Rules and with License exempt RSS
Standards of Industry Canada. Operation
is subject to the following two conditions:

This device will not cause harmful
interference, and

2. This device must accept any

interference received, including
interference that could cause
undesired operation.

Note:

Changes or modifications not

expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term "IC:" before the radio certification
number only signifies that Industry Canada
technical specifications were met.

Changing Tires With a Tire
Pressure Monitoring System

E142549

Note:

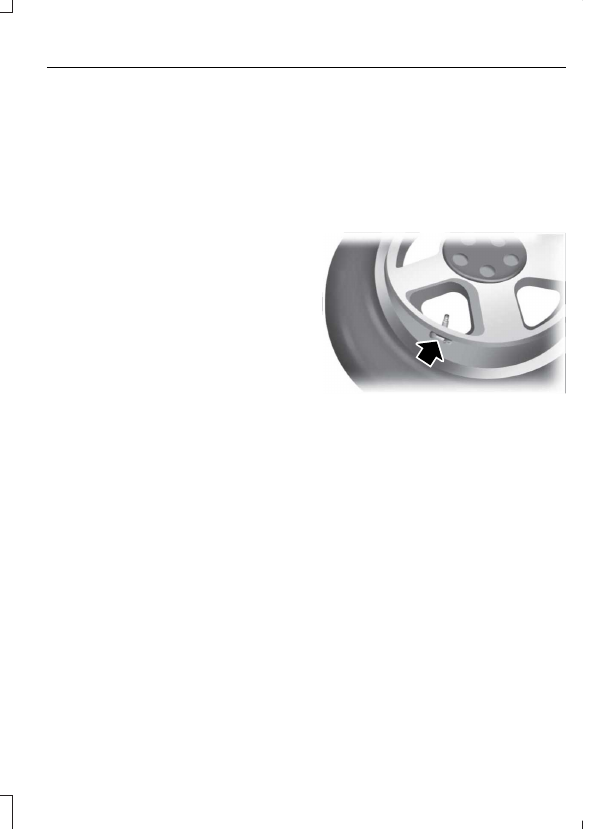

Each road tire is equipped with a tire

pressure sensor located inside the wheel
and tire assembly cavity. The pressure
sensor is attached to the valve stem. The
pressure sensor is covered by the tire and is
not visible unless the tire is removed. Take
care when changing the tire to avoid
damaging the sensor.

You should always have your tires serviced
by an authorized dealer.

Check the tire pressure periodically (at
least monthly) using an accurate tire
gauge. See

When Inflating Your Tires

this chapter.

267

Wheels and Tires

Understanding Your Tire Pressure
Monitoring System

E250820

The tire pressure monitoring system
measures pressure in your road tires and
sends the tire pressure readings to your
vehicle. You can view the tire pressure
readings through the information display.
See

General Information

(page 84). The

low tire pressure warning light will turn on
if the tire pressure is significantly low. Once
the light is illuminated, your tires are
under-inflated and need to be inflated to
the manufacturer’s recommended tire
pressure. Even if the light turns on and a
short time later turns off, your tire pressure
still needs to be checked.

When Your Temporary Spare Tire is
Installed

When one of your road tires needs to be
replaced with the temporary spare, the
system will continue to identify an issue to
remind you that the damaged road wheel
and tire assembly needs to be repaired and
put back on your vehicle.

Some limited All Wheel Drive (AWD)
traction may be provided if a temporary
spare is installed on one of the front
wheels. If you are in driving conditions
where limited All Wheel Drive (AWD)
traction is needed while a temporary is
installed, it is recommended the temporary
spare be installed on the front axle.

To restore the full function of the tire
pressure monitoring system, have the
damaged road wheel and tire assembly
repaired and remounted on your vehicle.

When You Believe Your System is Not
Operating Properly

The main function of the tire pressure
monitoring system is to warn you when
your tires need air. It can also warn you in
the event the system is no longer capable
of functioning as intended. See the
following chart for information concerning
your tire pressure monitoring system:

268

Wheels and Tires

Customer action required

Possible cause

Low tire pressure

warning light

Make sure tires are at the proper pres-
sure. See Inflating your tires in this
chapter. After inflating your tires to the
manufacturer’s recommended pressure
as shown on the Tire Label (located on
the edge of driver’s door or the B-Pillar),
the vehicle must be driven for at least
two minutes over 20 mph (32 km/h)
before the light turns off.

Tire(s) under-inflated

Solid warning light

Repair the damaged road wheel and tire
assembly and reinstall it on the vehicle
to restore system function. For a
description on how the system functions,
see

When Your Temporary Spare Tire

is Installed

in this section.

Spare tire in use

If the tires are properly inflated and the
spare tire is not in use but the light
remains on, contact your authorized
dealer as soon as possible.

TPMS malfunction

On vehicles with different front and rear
tire pressures, the system must be
retrained following every tire rotation.
See

Tire Pressure Monitoring System

Reset

procedure later in this section.

Tire rotation without

sensor training

Repair the damaged road wheel and tire
assembly and reinstall it on the vehicle
to restore system function. For a
description on how the system functions,
see

When Your Temporary Spare Tire

is Installed

in this section.

Spare tire in use

Flashing warning

light

If the tires are properly inflated and the
spare tire is not in use but the light
remains on, contact your authorized
dealer as soon as possible.

TPMS malfunction

269

Wheels and Tires

When Inflating Your Tires

WARNING:

Do not use the tire

pressure displayed in the information
display as a tire pressure gauge. Failure
to follow this instruction could result in
personal injury or death.

When putting air into your tires (such as at
a gas station or in your garage), the tire
pressure monitoring system will not
respond immediately to the air added to
your tires.

It could take up to two minutes of driving
over 20 mph (32 km/h) for the light to turn
off after you have filled your tires to the
recommended inflation pressure.

How Temperature Affects Your Tire
Pressure

The tire pressure monitoring system
monitors tire pressure in each pneumatic
tire. While driving in a normal manner, a
typical passenger tire inflation pressure
could increase about 2–4 psi (14–28 kPa)
from a cold start situation. If the vehicle is
stationary overnight with the outside
temperature significantly lower than the
daytime temperature, the tire pressure
could decrease about 3 psi (21 kPa) for a
drop of 30°F (17°C) in ambient
temperature. This lower pressure value
could be detected by the tire pressure
monitoring system as being significantly
lower than the recommended inflation
pressure and activate the system warning
light for low tire pressure. If the low tire
pressure warning light is on, visually check
each tire to verify that no tire is flat. If one
or more tires are flat, repair as necessary.
Check the air pressure in the road tires. If
any tire is under-inflated, carefully drive
the vehicle to the nearest location where
air can be added to the tires. Inflate all the
tires to the recommended inflation
pressure.

Tire Pressure Monitoring System Reset
Procedure

WARNING:

To determine the

required pressure(s) for your vehicle, see
the Safety Compliance Certification
Label (on the door hinge pillar,
door-latch post or the door edge that
meets the door-latch post, next to the
driver seat) or the Tire Label on the
B-Pillar or the edge of the driver door.

Note:

You need to perform the tire pressure

monitoring system reset procedure after
each tire rotation.

To provide the vehicle's load carrying
capability, some vehicles require different
recommended tire pressures in the front
tires as compared to the rear tires. The tire
pressure monitoring system equipped on
these vehicles is designed to illuminate the
low tire pressure warning light at two
different pressures; one for the front tires
and one for the rear tires.

Since tires need to be rotated to provide
consistent performance and maximum tire
life, the tire pressure monitoring system
needs to know when the tires are rotated
to determine which set of tires are on the
front and which are on the rear. With this
information, the system can detect and
properly warn of low tire pressures.

System reset tips:

270

Wheels and Tires

•

To reduce the chances of interference
from another vehicle, perform the
system reset procedure at least 3 ft
(1 m) away from another Ford Motor
Company vehicle undergoing the
system reset procedure at the same
time.

•

Do not wait more than two minutes
between resetting each tire sensor or
the system can time-out and you have
to repeat the entire procedure on all
four wheels.

•

A double horn sounds indicating the
need to repeat the procedure.

Performing the System Reset Procedure

Read the entire procedure before
attempting.

Drive the vehicle above 20 mph
(32 km/h) for at least two minutes,
then park in a safe location where you
can easily get to all four tires and have
access to an air pump.

2. Place the ignition in the off position and

keep the key in the ignition.

3. Cycle the ignition to the on position

with the engine off.

4. Turn the hazard flashers on then off

three times. You must accomplish this
within 10 seconds. If you successfully
enter the reset mode, the horn sounds
once, the system indicator flashes and
a message shows in the information
display. If this does not occur, please
try again starting at step 2. If after
repeated attempts to enter the reset
mode, the horn does not sound, the
system indicator does not flash and no
message shows in the information
display, seek service from your
authorized dealer.

5. Train the tire pressure monitoring

system sensors in the tires using the
following system reset sequence
starting with the left front tire in the
following clockwise order: Left front -
driver side front tire, Right front -
passenger side front tire, Right rear -
passenger side rear tire, Left rear -
driver side rear tire.

6. Remove the valve cap from the valve

stem on the left front tire. Decrease the
air pressure until the horn sounds.

Note:

The single horn tone confirms that

the sensor identification code has been
learned by the module for this position. If a
double horn is heard, the reset procedure
was unsuccessful, and you must repeat it.

Remove the valve cap from the valve
stem on the right front tire. Decrease
the air pressure until the horn sounds.

8. Remove the valve cap from the valve

stem on the right rear tire. Decrease the
air pressure until the horn sounds.

9. Remove the valve cap from the valve

stem on the left rear tire. Decrease the
air pressure until the horn sounds.
Training is complete after the horn
sounds for the last tire trained, driver
side rear tire, the system indicator
stops flashing, and a message shows
in the information display.

10.

Turn the ignition off. If two short horn
beeps are heard, the reset procedure
was unsuccessful and you must
repeat it. If after repeating the
procedure and two short beeps are
heard when the ignition is turned to
off, seek assistance from your
authorized dealer.

271

Wheels and Tires

11.

Set all four tires to the recommended
air pressure as indicated on the
Safety Compliance Certification
Label, affixed to either the door hinge
pillar, door-latch post, or the door
edge that meets the door-latch post,
next to the driver seating position or
Tire Label located on the B-Pillar or
the edge of the driver door.

CHANGING A ROAD WHEEL

If you get a flat tire when driving, do not
apply the brake heavily. Instead, gradually
decrease your speed. Hold the steering
wheel firmly and slowly move to a safe
place on the side of the road.

Have a flat serviced by an authorized
dealer in order to prevent damage to the
tire pressure monitoring system sensors.
See

Tire Pressure Monitoring System

(page 266). Replace the spare tire with a
road tire as soon as possible. During
repairing or replacing of the flat tire, have
the authorized dealer inspect the tire
pressure monitoring system sensor for
damage.

Note:

You should only use tire sealants in

roadside emergencies as they may cause
damage to the tire pressure monitoring
system sensor.

Note:

The tire pressure monitoring system

indicator light illuminates when the spare
tire is in use. To restore the full function of
the monitoring system, all road wheels
equipped with tire pressure monitoring
sensors must be mounted on the vehicle.

Note:

If the tire pressure monitor sensor

becomes damaged it may not function.

Dissimilar Spare Wheel and Tire
Assembly Information

WARNING:

Failure to follow these

guidelines could result in an increased
risk of loss of vehicle control, injury or
death.

If you have a dissimilar spare wheel and
tire, then it is intended for temporary use
only. This means that if you need to use it,
you should replace it as soon as possible
with a road wheel and tire assembly that
is the same size and type as the road tires
and wheels that were originally provided
by us. If the dissimilar spare tire or wheel
is damaged, you should replace it rather
than repair it.

A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire
assembly that is different in brand, size or
appearance from the road tires and wheels
and can be one of two types:

Full-size dissimilar spare with label

on wheel:

This spare tire has a label on

the wheel that states: THIS WHEEL AND
TIRE ASSEMBLY FOR TEMPORARY USE
ONLY.

When driving with one of the dissimilar
spare tires listed above, do not:

•

Exceed 50 mph (80 km/h).

•

Load the vehicle beyond maximum
vehicle load rating listed on the Safety
Compliance Label.

•

Tow a trailer.

•

Use snow chains on the end of the
vehicle with the dissimilar spare tire.

•

Use more than one dissimilar spare tire
at a time.

•

Use commercial car washing
equipment.

•

Try to repair the dissimilar spare tire.

272

Wheels and Tires

Use of one of the dissimilar spare tires
listed above at any one wheel location can
lead to impairment of the following:
•

Handling, stability and braking
performance.

•

Comfort and noise.

•

Ground clearance and parking at curbs.

•

Winter weather driving capability.

•

Wet weather driving capability.

•

All-wheel driving capability.

Full-size dissimilar spare without

label on wheel

When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
•

Exceed 70 mph (113 km/h).

•

Use more than one dissimilar spare
wheel and tire assembly at a time.

•

Use commercial car washing
equipment.

•

Use snow chains on the end of the
vehicle with the dissimilar spare wheel
and tire assembly.

The usage of a full-size dissimilar spare
wheel and tire assembly can lead to
impairment of the following:
•

Handling, stability and braking
performance.

•

Comfort and noise.

•

Ground clearance and parking at curbs.

•

Winter weather driving capability.

•

Wet weather driving capability.

•

All-wheel driving capability.

When driving with the full-size dissimilar
spare wheel and tire assembly additional
caution should be given to:
•

Towing a trailer.

•

Driving vehicles equipped with a
camper body.

•

Driving vehicles with a load on the
cargo rack.

Drive cautiously when using a full-size
dissimilar spare wheel and tire assembly
and seek service as soon as possible.

Tire Change Procedure

WARNING:

To reduce the risk of

possible serious injury or death, do not
remove the full size spare tire from the
factory secured location. This location
is necessary to achieve police-rated
75 mph (120 km/h) rear impact
crash-test performance. Removal
increases the risk of fuel leak in
high-speed rear impacts.

WARNING:

The jack supplied with

this vehicle is only intended for changing
a flat tire in an emergency. Do not
attempt to do any other work on your
vehicle when it is supported by the jack,
as your vehicle could slip off the jack.
Failure to follow this instruction could
result in personal injury or death.

WARNING:

To help prevent your

vehicle from moving when changing a
wheel, shift the transmission into park
(P), set the parking brake and use an
appropriate block or wheel chock to
secure the wheel diagonally opposite to
the wheel being changed. For example,
when changing the front left wheel,
place an appropriate block or wheel
chock on the right rear wheel.

WARNING:

Only use the jack

provided as original equipment with your
vehicle.

WARNING:

Only use the specified

jacking points. If you use any other
locations you could damage vehicle
components, such as brake lines.

273

Wheels and Tires

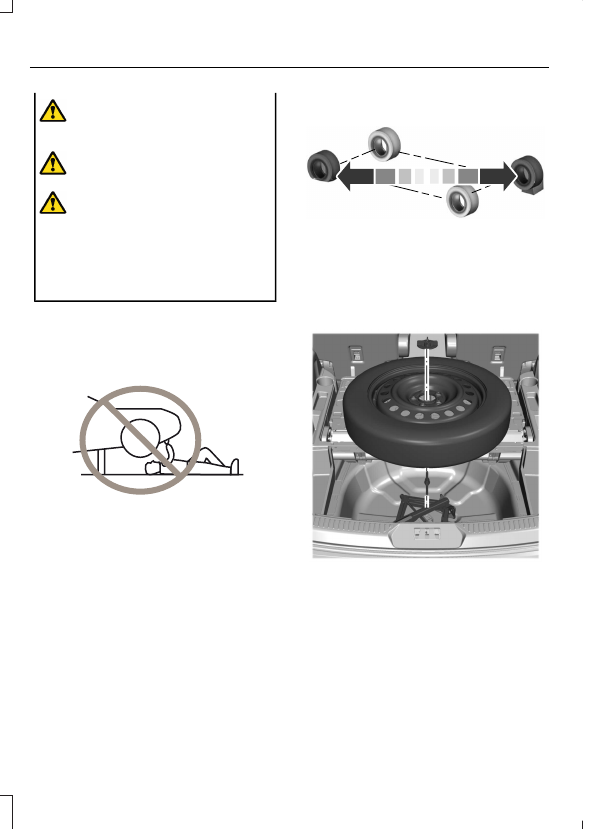

WARNING:

Never place anything

between the vehicle jack and your
vehicle.

WARNING:

Never place anything

between the vehicle jack and the ground.

WARNING:

Do not attempt to

change a tire on the side of the vehicle
close to moving traffic. Pull far enough
off the road to not obstruct the flow of
traffic and avoid the danger of being hit
when operating the jack or changing the
wheel.

Note:

Passengers should not remain in your

vehicle when the vehicle is being jacked.

Note:

Jack at the specified locations to

avoid damage to the vehicle.

E166722

Note:

No maintenance or additional

lubrication of your jack is required over the
service life of your vehicle.

Park on a level surface, set the parking
brake and switch on the hazard
flashers.

2. Apply the parking brake, place the

transmission in park (P) or reverse (R)
for manual transmission. Turn the
engine off.

E142551

3. Block the wheel diagonally opposite

the flat tire. For example, if the left
front tire is flat, block the right rear
wheel.

E288598

4. Turn the wing nut securing the spare

tire counterclockwise, remove the wing
nut.

5. Remove the spare tire, jack and wrench

from the spare tire storage
compartment under the trunk load
floor.

274

Wheels and Tires

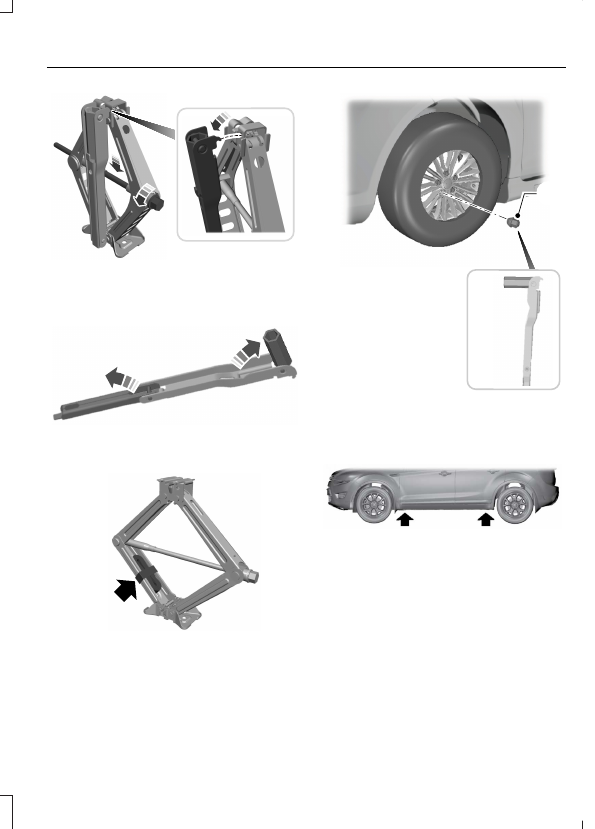

E175694

6. Turn the hex nut on the jack

counterclockwise to remove the lug
wrench from jack. This lowers the jack
and loosens the mechanical lock.

E181744

Unfold the wrench for use.

E288597

8. Remove the strap from the jack.

E181745

9. Loosen each wheel lug nut one-half

turn counterclockwise, but do not
remove them until the flat tire is raised
off the ground.

E145908

10.

Find the jacking points shown here,
small arrow-shaped marks on the
sills show the location of the jacking
points.

275

Wheels and Tires

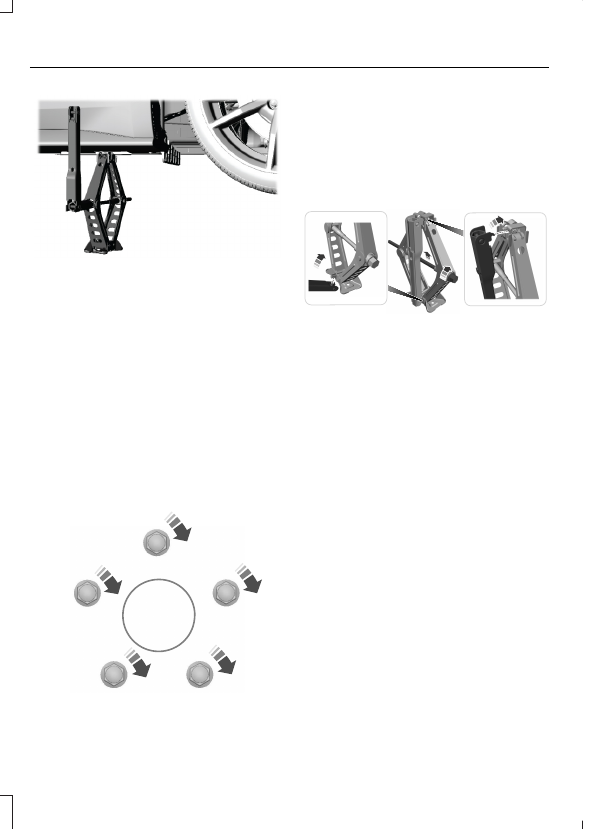

E201156

11.

Place the jack at the jacking point
next to the tire which you are
changing. Turn the lug wrench handle
clockwise until the flat tire is
completely off the ground.

12.

Remove the lug nuts with the lug
wrench.

13.

Replace the flat tire with the spare
tire, making sure the valve stem is
facing outward.

14.

Install the lug nuts snug against the
hub. Do not fully tighten the lug nuts
until the vehicle is lowered.

15.

Turn the wrench handle
counterclockwise to lower the vehicle
completely.

E306781

16.

Remove the jack and fully tighten the
lug nuts in the order shown. See

Technical Specifications

(page

277).

17.

Remove the wheel blocks.

Stowing the Jack

E176165

To store the folded wrench on the jack,
engage the bracket of the jack base
and the lug wrench pin, swing the
wrench upwards, adjust jack height
until the wrench hook engages the hole
on jack. Tighten the hex nut clockwise
by hand until secure.

2. Place the jack in the spare tire

compartment, install the wing nut and
tighten clockwise by hand until secure.

Stowing the Flat Tire

Secure the flat road wheel and tire in
the spare tire storage compartment
under the trunk load floor. Place the
flat road wheel and tire over the
stowed jack and secure with the wing
nut.

276

Wheels and Tires

TECHNICAL SPECIFICATIONS

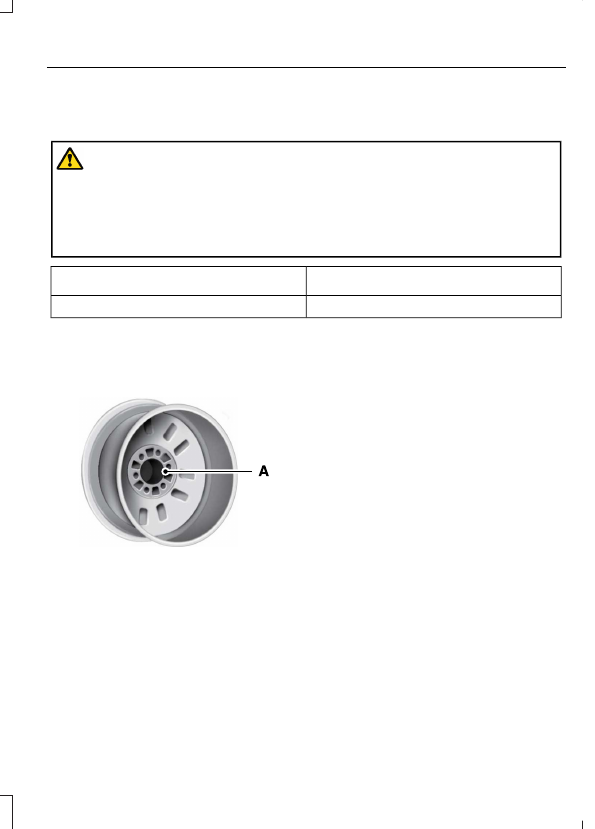

Wheel Lug Nut Torque Specifications

WARNING:

When you install a wheel, always remove any corrosion, dirt or foreign

materials present on the mounting surfaces of the wheel or the surface of the wheel
hub, brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners
that attach the rotor to the hub so they do not interfere with the mounting surfaces of
the wheel. Installing wheels without correct metal-to-metal contact at the wheel
mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while
your vehicle is in motion, resulting in loss of vehicle control, personal injury or death.

lb.ft (Nm)

Bolt Size

150 lb.ft (204 Nm)

M14 x 1.5

Torque specifications are for nut and bolt threads free of dirt and rust. Use only our

recommended replacement fasteners.

Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any
wheel disturbance, such as tire rotation, changing a flat tire or wheel removal.

E145950

Wheel pilot bore.

Inspect the wheel pilot bore and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.

277

Wheels and Tires

ENGINE SPECIFICATIONS - 3.0L

3.0L

Engine

9.5:1

Compression ratio.

180 in³ (2,956 cm³)

Displacement.

1-4-2-5-3-6

Firing order.

Coil on plug

Ignition system.

0.028–0.031 in (0.7–0.8 mm)

Spark plug gap.

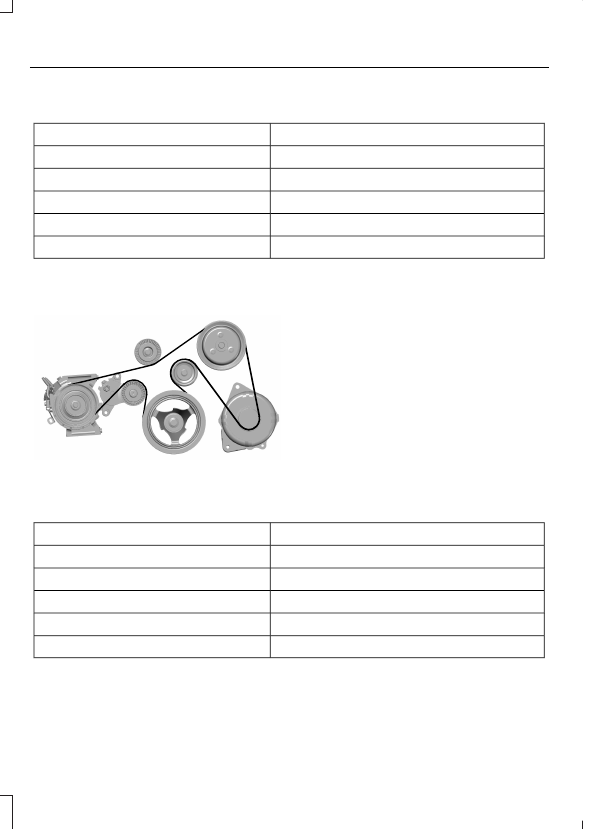

Drivebelt Routing

E297178

ENGINE SPECIFICATIONS - 3.3L, GASOLINE

3.3L

Engine

12.0:1

Compression ratio.

204 in³ (3,340 cm³)

Displacement.

1-4-2-5-3-6

Firing order.

Coil on plug

Ignition system.

0.049–0.053 in (1.25–1.35 mm)

Spark plug gap.

278

Capacities and Specifications

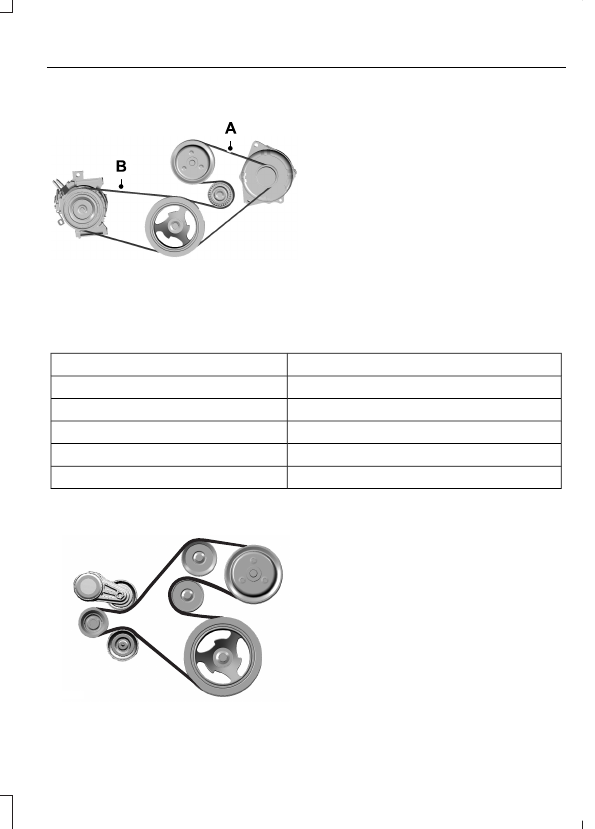

Drivebelt Routing

E288323

Long drivebelt is on second
pulley groove farthest from
engine.

Short drivebelt is on first pulley
groove closest to engine.

ENGINE SPECIFICATIONS - 3.3L, HYBRID ELECTRIC VEHICLE
(HEV)

3.3L HEV

Engine

12.0:1

Compression ratio.

204 in³ (3,340 cm³)

Displacement.

1-4-2-5-3-6

Firing order.

Coil on plug

Ignition system.

0.049–0.053 in (1.25–1.35 mm)

Spark plug gap.

Drivebelt Routing

E291364

279

Capacities and Specifications

MOTORCRAFT PARTS - 3.0L

Part Number

Component

FA-1884

Air filter.

FL-2062-A

Oil filter.

BAGM-48H6-760

Battery.

SP-594

Spark plugs.

FP-100

Cabin air filter.

WW-2616 (driver side)

Windshield wiper blade.

WW-2113 (passenger side)

WW-1110

Rear window wiper blade.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

We recommend Motorcraft replacement parts available at your authorized dealer or at
fordparts.com for scheduled maintenance. These parts engineered for your vehicle meet
or exceed our specifications. Use of other parts could impact vehicle performance,
emissions and durability. Your warranty could be void for any damage related to use of
other parts.

280

Capacities and Specifications

MOTORCRAFT PARTS - 3.3L

Part Number

Component

FA-1947

Air filter.

FL-500-S

Oil filter.

BAGM-48H6-760

Battery.

SP-520

Spark plugs.

FP-97

Cabin air filter.

WW-2616 (driver side)

Windshield wiper blade.

WW-2113 (passenger side)

WW-1110

Rear window wiper blade.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

281

Capacities and Specifications

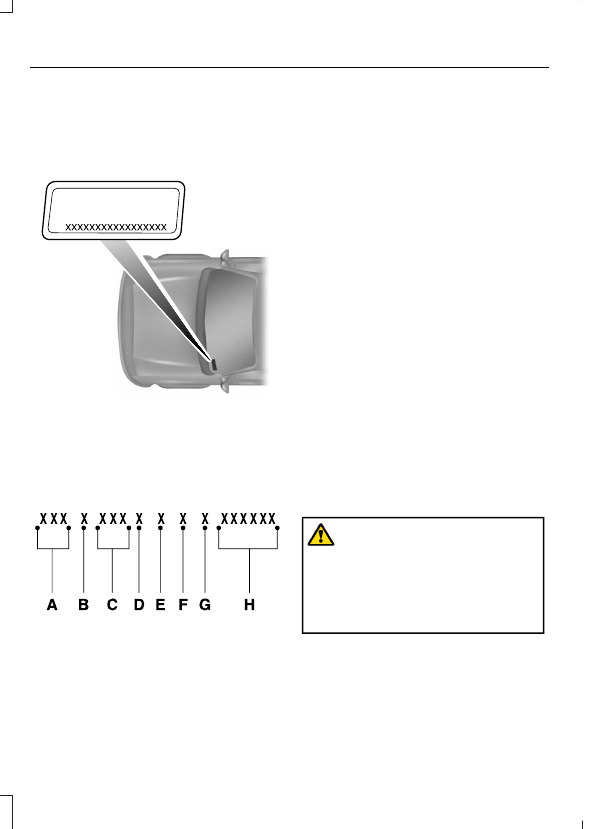

VEHICLE IDENTIFICATION
NUMBER

The vehicle identification number is on the
left-hand side of the instrument panel.

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier.

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations.

Make, vehicle line, series, body
type.

Engine type.

Check digit.

Model year.

Assembly plant.

Production sequence number.

CAPACITIES AND
SPECIFICATIONS - 3.0L

Use oil and fluid that meets the defined
specification and viscosity grade.

If you do not use oil and fluid that meets
the defined specification and viscosity
grade, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Reduced brake performance.

Air Conditioning System

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system
can cause personal injury.

282

Capacities and Specifications

Capacities

Refrigerant Oil

Refrigerant

Variant

3.04 fl oz (90 ml)

24 oz (0.68 kg)

Without auxiliary A/C.

5.41 fl oz (160 ml)

35 oz (0.99 kg)

With auxiliary A/C.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

Automatic Transmission

Note:

Only use MERCON® ULV

transmission fluid for automatic
transmissions that require MERCON® ULV
transmission fluid. The use of any other fluid
could cause transmission damage.

Capacities

Quantity

Variant

14.3 qt (13.5 L)

All.

Approximate dry fill capacity. Actual amount could vary during fluid changes.

283

Capacities and Specifications

Materials

Specification

Name

WSS-M2C949-A,

Motorcraft® MERCON® ULV Automatic Transmis-
sion Fluid(U.S.)
Motorcraft® MERCON® ULV Automatic Transmis-
sion Fluid / MERCON® ULV huile pour boîtes auto-
matique Motorcraft®(Canada)
XT-12-QULV(U.S. & Canada)

Engine Coolant

Capacities

Quantity

Variant

15.5 qt (14.7 L)

Without auxiliary heater.

18.0 qt (17 L)

With auxiliary heater.

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/
Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant
/ Antigel/liquide de refroidissement prédilué jaune
Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

284

Capacities and Specifications

Engine Oil

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

We recommend Motorcraft® motor oil for
your vehicle. If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline
engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Motor Oil / Huile moteur
SAE 5W-30 Motorcraft®(Canada)
XO-5W30-Q1SP, XO-5W30-Q1FS(U.S.)
CXO-5W30-LSP6, CXO-5W30-LFS6(Canada)

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30

285

Capacities and Specifications

E240523

Note:

If you use your vehicle regularly above

the altitude of 5,000 ft (1,524 m) and under
the temperature of -4.0°F (-20°C), it is
recommended to use the alternative engine
oil.

Fuel Tank

Capacities

Quantity

Variant

20.2 gal (76.5 L)

All.

Grease

Materials

Specification

Name

ESA-M1C75-B

Motorcraft® Premium Long-Life Grease(U.S.)
Motorcraft® Premium Long-Life Grease / Graisse
longue durée de qualité première Motor-
craft®(Canada)
XG-1-E1(U.S. & Canada)

ESB-M1C93-B

Motorcraft® Multi-Purpose Grease Spray(U.S.)
Motorcraft® Multi-Purpose Grease Spray / Graisse
tout usage en aérosol Motorcraft®(Canada)
XL-5-A(U.S. & Canada)

286

Capacities and Specifications

Hydraulic Brake System

Materials

Specification

Name

WSS-M6C65-A2

Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid(U.S.)
Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid / Liquide de frein automobile
haute performance DOT 4 LV Motorcraft®(Canada)
PM-20(U.S. & Canada)

Note:

We recommend using DOT 4 Low

Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid could cause reduced brake
performance and not meet our performance
standards. Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials could result in
brake system damage and possible failure.

Locks

Materials

Specification

Name

Motorcraft® Penetrating and Lock Lubricant(U.S.)
Motorcraft® Penetrating and Lock Lubricant /
Lubrifiant pénétrant et de serrure Motor-
craft®(Canada)
XL-1(U.S. & Canada)

Transfer Case

Capacities

Quantity

Variant

1.1 qt (1 L)

All.

287

Capacities and Specifications

Materials

Specification

Name

WSS-M2C938-A

Motorcraft® MERCON® LV Automatic Transmission
Fluid(U.S.)
Motorcraft® MERCON® LV Automatic Transmission
Fluid / Huile pour boîte automatique MERCON® LV
Motorcraft®(Canada)
XT-10-QLVC(U.S.)
CXT-10-LV6(Canada)

Front Axle

Capacities

Quantity

Variant

0.6 qt (0.6 L)

All.

Materials

Specification

Name

WSL-M2C192-A

Motorcraft® SAE 75W-140 Synthetic Rear Axle
Lubricant(U.S.)
Motorcraft® SAE 75W-140 Synthetic Rear Axle
Lubricant / Lubrifiant synthétique pour pont arrière
SAE 75W-140 Motorcraft®(Canada)
XY-75W140-QL(U.S.)
CXY-75W140-1L(Canada)

Rear Axle

Capacities

Quantity

Variant

1.9 qt (1.8 L)

All.

288

Capacities and Specifications

Materials

Specification

Name

WSS-M2C942-A

Motorcraft® SAE 75W-85 Premium Synthetic
Hypoid Gear Lubricant(U.S.)
Motorcraft® SAE 75W-85 Premium Synthetic
Hypoid Gear Lubricant / Huile synthétique de haute
qualité pour engrenages hypoïdes SAE 75W-85
Motorcraft®(Canada)
XY-75W85-QL(U.S. & Canada)

Washer Reservoir

Capacities

Quantity

Variant

Fill as required.

All.

Materials

Specification

Name

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concen-
trate with Bitterant(U.S.)
Motorcraft® Premium Quality Windshield Washer
Fluid -35 °C / Liquide lave-glace de haute qualité -
35 °C Motorcraft®(Canada)
ZC-32-B2(U.S.)
CXC-37-M(Canada)

CAPACITIES AND
SPECIFICATIONS - 3.3L,
GASOLINE

Use oil and fluid that meets the defined
specification and viscosity grade.

If you do not use oil and fluid that meets
the defined specification and viscosity
grade, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Reduced brake performance.

289

Capacities and Specifications

Air Conditioning System

WARNING:

The air conditioning

refrigerant system contains refrigerant

under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system
can cause personal injury.

Capacities

Refrigerant Oil

Refrigerant

Variant

3.04 fl oz (90 ml)

24 oz (0.68 kg)

Without auxiliary A/C.

5.41 fl oz (160 ml)

35 oz (0.99 kg)

With auxiliary A/C.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

Automatic Transmission

Note:

Only use MERCON ULV transmission

fluid for automatic transmissions that
require MERCON ULV transmission fluid.
The use of any other fluid could cause
transmission damage.

Capacities

Quantity

Variant

14.3 qt (13.5 L)

All.

Approximate dry fill capacity. Actual amount could vary during fluid changes.

290

Capacities and Specifications

Materials

Specification

Name

WSS-M2C949-A,

Engine Coolant

Capacities

Quantity

Variant

12.9 qt (12.2 L)

Without auxiliary heater.

15.2 qt (14.4 L)

With auxiliary heater.

Materials

Specification

Name

WSS-M97B57-A2

291

Capacities and Specifications

Engine Oil

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

Materials

Specification

Name

WSS-M2C960-A1

Motorcraft® SAE 5W-20 Motor Oil(U.S.)
Motorcraft® SAE 5W-20 Motor Oil / Huile moteur
SAE 5W-20 Motorcraft®(Canada)
XO-5W20-Q1SP, XO-5W20-Q1FS(U.S.)
CXO-5W20-LSP6(Canada)

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22°F (-30°C) or below.

292

Capacities and Specifications

Materials

Specification

Name

WSS-M2C962-A1

Motorcraft® SAE 0W-20 Motor Oil(U.S.)
Motorcraft® SAE 0W-20 Motor Oil / Huile moteur
SAE 0W-20 Motorcraft®(Canada)
XO-0W20-QFS(U.S.)
CXO-0W20-LFS6(Canada)

E240522

Note:

If you use your vehicle regularly above

the altitude of 5,000 ft (1,524 m) and under
the temperature of -4.0°F (-20°C), it is
recommended to use the alternative engine
oil.

Fuel Tank

Capacities

Quantity

Variant

20.2 gal (76.5 L)

All.

Grease

293

Capacities and Specifications

Materials

Specification

Name

ESA-M1C75-B

Motorcraft® Premium Long-Life Grease(U.S.)
Motorcraft® Premium Long-Life Grease / Graisse
longue durée de qualité première Motor-
craft®(Canada)
XG-1-E1(U.S. & Canada)

ESB-M1C93-B

Motorcraft® Multi-Purpose Grease Spray(U.S.)
Motorcraft® Multi-Purpose Grease Spray / Graisse
tout usage en aérosol Motorcraft®(Canada)
XL-5-A(U.S. & Canada)

Hydraulic Brake System

Materials

Specification

Name

WSS-M6C65-A2

Note:

We recommend using DOT 4 Low

Locks

294

Capacities and Specifications

Materials

Specification

Name

Motorcraft® Penetrating and Lock Lubricant(U.S.)
Motorcraft® Penetrating and Lock Lubricant /
Lubrifiant pénétrant et de serrure Motor-
craft®(Canada)
XL-1(U.S. & Canada)

Transfer Case

Capacities

Quantity

Variant

1.1 qt (1 L)

All.

Materials

Specification

Name

WSS-M2C938-A

Front Axle

Capacities

Quantity

Variant

0.6 qt (0.6 L)

All.

295

Capacities and Specifications

Materials

Specification

Name

WSL-M2C192-A

Rear Axle

Capacities

Quantity

Variant

1.9 qt (1.8 L)

All.

Materials

Specification

Name

WSS-M2C942-A

Washer Reservoir

Capacities

Quantity

Variant

Fill as required.

All.

296

Capacities and Specifications

Materials

Specification

Name

WSS-M14P19-A

CAPACITIES AND
SPECIFICATIONS - 3.3L,
HYBRID ELECTRIC VEHICLE
(HEV)

Use oil and fluid that meets the defined
specification and viscosity grade.

If you do not use oil and fluid that meets
the defined specification and viscosity
grade, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Reduced brake performance.

Air Conditioning System

WARNING:

The air conditioning

Capacities

Refrigerant Oil

Refrigerant

Variant

5.41 fl oz (160 ml)

26 oz (0.74 kg)

Without auxiliary A/C.

8.12 fl oz (240 ml)

35 oz (0.99 kg)

With auxiliary A/C.

297

Capacities and Specifications

Ford Explorer (2024 year). Manual in english - page 9
