ENGINE OIL CAPACITY AND
SPECIFICATION - 2.7L
ECOBOOST™

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

We recommend Motorcraft® motor oil for
your vehicle. If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline
engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Synthetic Blend Motor
Oil(U.S.)
Motorcraft® SAE 5W-30 Super Premium Motor Oil
/ Huile moteur de très haute qualité SAE 5W-30
Motorcraft®(Canada)
XO-5W30-Q1SP(U.S.)
CXO-5W30-LSP6(Canada)

569

Capacities and Specifications

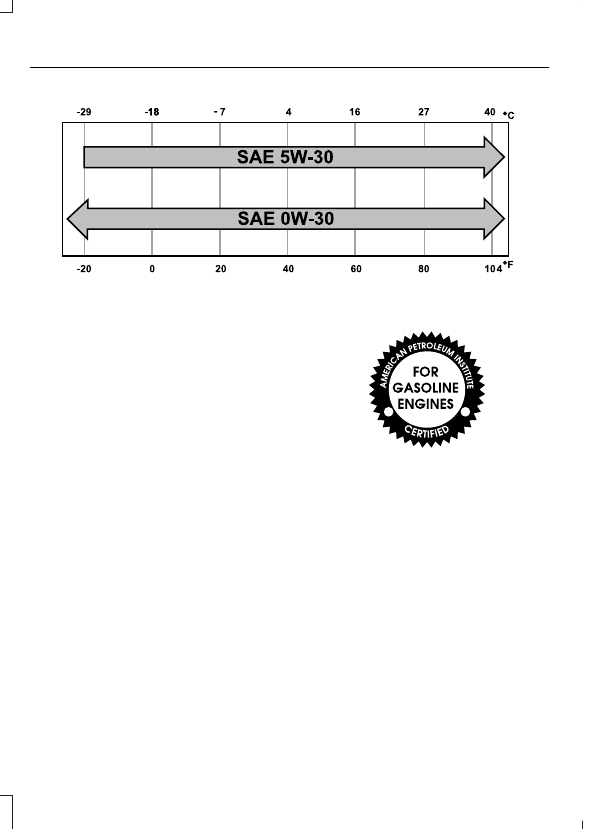

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,

use the following engine oil in climates
where the ambient temperature reaches
-22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30 - Synthetic Blend

E240523

ENGINE OIL CAPACITY AND
SPECIFICATION - 3.3L

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

570

Capacities and Specifications

We recommend Motorcraft® motor oil for
your vehicle. If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline

engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

Materials

Specification

Name

WSS-M2C960-A1

Motorcraft® SAE 5W-20 Synthetic Blend Motor
Oil(U.S.)
Motorcraft® SAE 5W-20 Super Premium Motor Oil
/ Huile moteur de très haute qualité SAE 5W-20
Motorcraft®(Canada)
XO-5W20-Q1SP(U.S.)
CXO-5W20-LSP6(Canada)

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
use the following engine oil in climates
where the ambient temperature reaches
-22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C962-A1

Motorcraft® SAE 0W-20 Full Synthetic Motor
Oil(U.S.)
(Canada)
XO-0W20-QFS(U.S.)

571

Capacities and Specifications

E240522

ENGINE OIL CAPACITY AND
SPECIFICATION - 3.5L
ECOBOOST™

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

572

Capacities and Specifications

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
use the following engine oil in climates
where the ambient temperature reaches
-22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30 - Synthetic Blend

573

Capacities and Specifications

E240523

ENGINE OIL CAPACITY AND
SPECIFICATION - 3.5L, HYBRID
ELECTRIC VEHICLE (HEV)

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

574

Capacities and Specifications

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
use the following engine oil in climates
where the ambient temperature reaches
-22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30 - Synthetic Blend

575

Capacities and Specifications

E240523

ENGINE OIL CAPACITY AND
SPECIFICATION - 5.0L

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

576

Capacities and Specifications

Capacities

Including the Oil Filter

Variant

7.75 qt (7.33 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
use the following engine oil in climates
where the ambient temperature reaches
-22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30 - Synthetic Blend

577

Capacities and Specifications

E240523

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 2.7L
ECOBOOST™

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

15.1 qt (14.3 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/
Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant
/ Antigel/liquide de refroidissement prédilué jaune
Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

578

Capacities and Specifications

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 3.3L

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

12.7 qt (12 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 3.5L
ECOBOOST™

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

14.3 qt (13.5 L)

All.

579

Capacities and Specifications

Materials

Specification

Name

WSS-M97B57-A2

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 3.5L,
HYBRID ELECTRIC VEHICLE
(HEV)

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

7.2 qt (6.8 L)

Low temperature cooling circuit.

15.3 qt (14.5 L)

High temperature cooling circuit.

Materials

Specification

Name

WSS-M97B57-A2

580

Capacities and Specifications

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 5.0L

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

13.2 qt (12.5 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

COOLING SYSTEM CAPACITY
AND SPECIFICATION -
RAPTOR, POLICE RESPONDER

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

13.7 qt (13 L)

All.

581

Capacities and Specifications

Materials

Specification

Name

WSS-M97B57-A2

FUEL TANK CAPACITY - GASOLINE, HYBRID ELECTRIC VEHICLE
(HEV)

Capacities

Quantity

Variant

30.6 gal (115.8 L)

All.

582

Capacities and Specifications

FUEL TANK CAPACITY - GASOLINE, EXCLUDING: HYBRID
ELECTRIC VEHICLE (HEV)

Capacities

Quantity

Variant

23.0 gal (87.1 L)

Regular cab.

23.0 gal (87.1 L)

Super cab.

26.0 gal (98.4 L)

Crew cab.

36.0 gal (136.3 L)

Optional.

583
