AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 2.7L
ECOBOOST™

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

2.71 fl oz (80 ml)

29 oz (0.82 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

585

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 3.3L

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

2.71 fl oz (80 ml)

29 oz (0.82 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

586

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 3.5L
ECOBOOST™

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

2.71 fl oz (80 ml)

29 oz (0.82 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

587

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 3.5L, HYBRID
ELECTRIC VEHICLE (HEV)

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

5.4 fl oz (160 ml)

26.5 oz (0.75 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C31-B2

Motorcraft® R-1234yf Refrigerant POE Oil(U.S.)
Motorcraft® R-1234yf Refrigerant POE Oil / Huile
POE pour frigorigène R-1234yf Motorcraft®(Canada)
YN-34(U.S. & Canada)

588

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 5.0L

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

2.71 fl oz (80 ml)

29 oz (0.82 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

WASHER FLUID SPECIFICATION

Capacities

Quantity

Variant

Fill as required.

All.

589

Capacities and Specifications

Materials

Specification

Name

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concen-
trate with Bitterant(U.S.)
Motorcraft® Premium Quality Windshield Washer
Fluid / Liquide lave-glace de haute qualité Motor-
craft®(Canada)
ZC-32-B2(U.S.)
CXC-37-F/M(Canada)

BRAKE FLUID SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced brake performance.

Note:

We recommend you use Dot 4 Low

Viscosity (LV) High Performance Brake Fluid
meeting WSS-M6C65-A2 specifications or
ISO 4925 Class 6 standards. If you use any
fluid other than the recommended fluid, it
could cause reduced brake performance
and not meet our performance standards.
Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials could result in
brake system damage and possible failure.

Capacities

Quantity

Variant

Fill as required.

All.

Materials

Specification

Name

WSS-M6C65-A2

Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid(U.S.)
Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid / Liquide de frein automobile
haute performance DOT 4 LV Motorcraft®(Canada)
PM-20(U.S. & Canada)

590

Capacities and Specifications

TRANSFER CASE FLUID
CAPACITY AND
SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

1.5 qt (1.4 L)

Four-wheel drive (Electronic shift on the
Fly).

1.5 qt (1.4 L)

Automatic four-wheel drive (Torque on
demand).

1.9 qt (1.8 L)

Two-speed automatic four-wheel drive
(Mechanical lock).

Materials

Specification

Name

WSS-M2C938-AMERCON® LV,

Motorcraft® MERCON® LV Automatic Transmission
Fluid(U.S.)
Motorcraft® MERCON® LV Automatic Transmission
Fluid / Huile pour boîte automatique MERCON® LV
Motorcraft®(Canada)
XT-10-QLVC(U.S.)
CXT-10-LV6(Canada)

TRANSFER CASE FLUID
CAPACITY AND
SPECIFICATION - RAPTOR

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

1.9 qt (1.8 L)

Two-speed four-high lock (Torque on
demand).

591

Capacities and Specifications

Materials

Specification

Name

WSS-M2C938-AMERCON® LV,

FRONT AXLE FLUID CAPACITY
AND SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

1.8 qt (1.7 L)

With standard front axle.

1.64 qt (1.55 L)

With Torsen limited slip front axle.

For complete refill of limited slip axles, add 4.0 fl oz (118.5 ml) of Additive Friction Modifier

XL-3 or equivalent, meeting specification EST-M2C118-A. Include this friction modifier in
the total lube volume of 1.64 qt (1.55 L).

592

Capacities and Specifications

Materials

Specification

Name

EST-M2C118-A

Motorcraft® Additive Friction Modifier(U.S.)
Motorcraft® Additive Friction Modifier / Additif
modificateur de friction Motorcraft®(Canada)
XL-3(U.S.)
CXL-3(Canada)

WSS-M2C942-A

Motorcraft® SAE 75W-85 Premium Synthetic
Hypoid Gear Lubricant(U.S.)
Motorcraft® SAE 75W-85 Premium Synthetic
Hypoid Gear Lubricant / Huile synthétique de haute
qualité pour engrenages hypoïdes SAE 75W-85
Motorcraft®(Canada)
XY-75W85-QL(U.S. & Canada)

REAR AXLE FLUID CAPACITY
AND SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

2.0–2.1 qt (1.9–2 L)

8.8 inch.

2.2–2.3 qt (2.1–2.2 L)

9.75 inch.

Materials

Specification

Name

WSS-M2C942-A

593

Capacities and Specifications

REAR AXLE FLUID CAPACITY
AND SPECIFICATION -
RAPTOR

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

2.5–2.6 qt (2.36–2.44 L)

9.75 inch.

Materials

Specification

Name

WSS-M2C942-A

REAR AXLE FLUID CAPACITY
AND SPECIFICATION - POLICE
RESPONDER

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

2.2–2.3 qt (2.1–2.2 L)

9.75 inch.

594

Capacities and Specifications

Materials

Specification

Name

WSS-M2C942-A

595

Capacities and Specifications

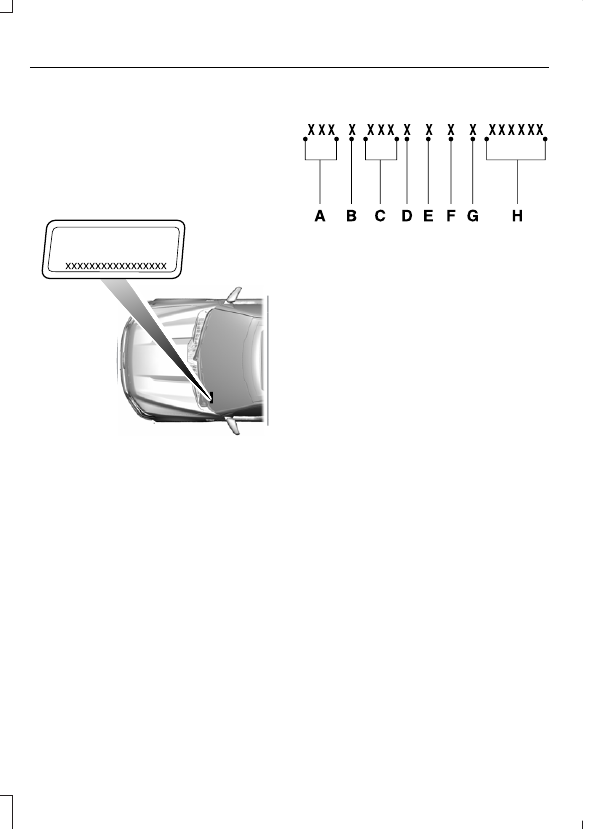

VEHICLE IDENTIFICATION
NUMBER

LOCATING THE VEHICLE
IDENTIFICATION NUMBER

The vehicle identification number is on the
left-hand side of the instrument panel.

E311767

Note:

In the illustration, XXXX is

representative of your vehicle identification
number.

VEHICLE IDENTIFICATION
NUMBER OVERVIEW

The vehicle identification number contains
the following information:

E142477

World manufacturer identifier.

Brake system, gross vehicle
weight rating, restraint devices
and their locations.

Make, vehicle line, series, body
type.

Engine or motor type.

Check digit.

Model year.

Assembly plant.

Production sequence number.

596

Vehicle Identification

WHAT IS A CONNECTED
VEHICLE

A connected vehicle has technology that
allows your vehicle to connect to a mobile
network and for you to access a range of
features. When used in conjunction with
the FordPass app, it could allow you to
monitor and control your vehicle further,
for example checking the tire pressures,
the fuel level and the vehicle location. For
additional information, refer to the local
Ford website.

CONNECTED VEHICLE
REQUIREMENTS

Connected service and related feature
functionality requires a compatible vehicle
network.

Some remote features require additional
service activation. Log in to your Ford
account for details. Some restrictions, third
party terms and message or data rates
may apply.

CONNECTED VEHICLE
LIMITATIONS

Evolving technology, cellular networks, or
regulations could affect functionality and
availability, or continued provision of some
features. These changes could even stop
some features from functioning.

CONNECTING THE VEHICLE TO
A MOBILE NETWORK

WHAT IS THE MODEM

The modem allows access to a
range of features built into your
vehicle.

ENABLING AND DISABLING THE
MODEM

Press

Settings

2. Press

Connectivity

3. Press

Connected Vehicle Features

4. Switch vehicle connectivity on or off.

CONNECTING FORDPASS TO THE
MODEM

Make sure that the modem is enabled
using the vehicle settings menu.

2. Open the FordPass app on your device

and log in.

3. Add your vehicle or select your vehicle

if already added.

4. Select the option to activate your

vehicle.

5. Make sure that the name on the screen

matches the name shown in your
FordPass account.

6. Confirm that FordPass account is

connected to the modem.

CONNECTING THE VEHICLE TO
A WI-FI NETWORK

E280315

Select the settings option on the
feature bar.

Press

Connectivity

2. Press

Manage Wi-Fi Networks

3. Switch

Wi-Fi

on.

4. Press

View Available Networks

5. Select an available Wi-Fi network.

Note:

Enter the network password to

connect to a secure network.

597

Connected Vehicle

CONNECTED VEHICLE – TROUBLESHOOTING

CONNECTED VEHICLE – FREQUENTLY ASKED QUESTIONS - VEHICLES
WITH: MODEM

Possible Cause and Resolution

Symptom

I cannot confirm the
connection of my FordPass
account to the modem.

–

Modem is not enabled.
•

Switch vehicle connectivity on.

–

Weak network signal.
•

Move your vehicle closer to a place where the
network signal is not obstructed.

598

Connected Vehicle

CONNECTED VEHICLE –
FREQUENTLY ASKED QUESTIONS
- VEHICLES WITH: SYNC 4

Why can I not confirm the
connection of my FordPass
account to the modem?

•

The modem is not enabled. Switch
vehicle connectivity on.

•

The network signal is weak. Move your
vehicle closer to a place where the
network signal is not obstructed.

Why can I not connect to a Wi-Fi
network?

•

You entered the wrong network
password. Enter the correct password.

•

The network signal is weak. Move your
vehicle closer to the Wi-Fi router or to
a place where the network signal is not
obstructed.

•

There are multiple access points in
range with the same network name.
Choose a unique name for your
network. Do not use the default name
unless it contains a unique identifier,
for example as part of the MAC
address.

Why does the Wi-Fi connection
disconnect after successful
connection?

•

The network signal is weak. Move your
vehicle closer to the Wi-Fi router or to
a place where the network signal is not
obstructed.

What can I do if I am close to a Wi-
Fi router but the network signal
strength is weak?

•

If your vehicle has a heated windshield,
position your vehicle so that the
windshield is not facing the Wi-Fi
router.

•

If your vehicle has metallic tinting on
the windows but not on the windshield,
position your vehicle so that the
windshield is facing the Wi-Fi router or
open the windows that are facing the
router.

•

If your vehicle has metallic tinting on
the windows and the windshield, open
the windows that are facing the router.

•

If your vehicle is in a garage and you
have the garage door closed, open the
garage door as it could block the signal.

Why can I not see a network I

expect to see in the list of available
networks?

•

The network is hidden. Make the
network visible and try again, or
manually add a network in the Wi-Fi
settings menu.

•

Some network security types are not
supported, for example WEP.

Why do software downloads take
too long?

•

The network signal is weak. Move your
vehicle closer to the Wi-Fi router or to
a place where the network signal is not
obstructed.

•

Wi-Fi network is in high demand or has
a slow Internet connection. Use a more
reliable Wi-Fi network.

599

Connected Vehicle

Why does the software not update
when the system seems to connect
to a Wi-Fi network and the signal
strength is excellent?

•

No software update is available at this
time.

•

Select automatic updates option in the
settings menu to enable automatic
software update or contact an
authorized dealer.

•

There could be a connection problem.
Test the network using another device.

600

Connected Vehicle

Content .. 34 35 36 37 ..
