Ford F-150 (2022 year). Manual in english - page 34

E175447

5. Block both the front and rear of the

wheel diagonally opposite the flat tire.
For example, if the left front tire is flat,
block the right rear wheel.

6. Obtain the spare tire and vehicle jack

from their storage locations.

Loosen each wheel nut on the affected
flat tire one-half turn counterclockwise,
but do not remove them.

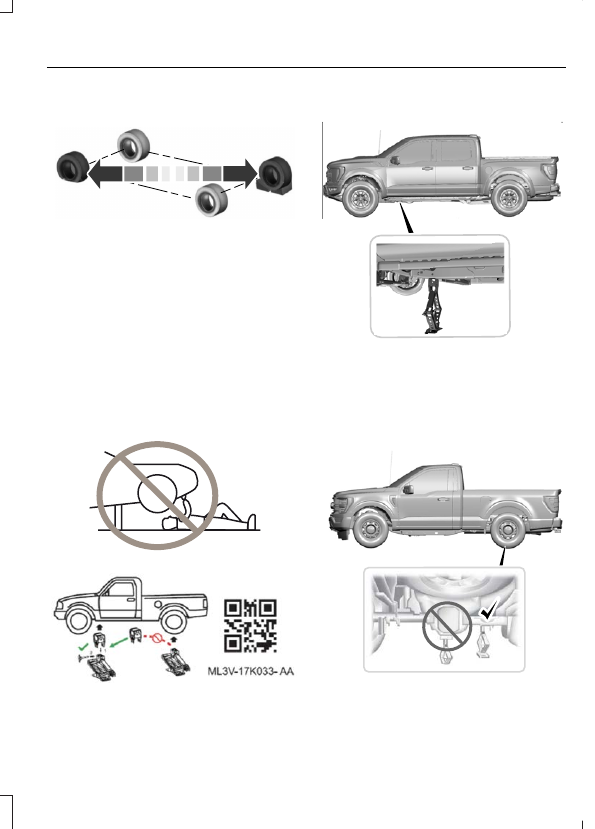

Jacking the Vehicle

E166722

E363810

Front Jacking Points

E363124

Note:

Use the frame rail as the front jacking

location point, not the control arm. There is
an arrow marked on the frame rail.

Rear Jacking Points

E323397

Note:

Jack at the specified locations to

avoid damage to the vehicle.

553

Changing a Road Wheel

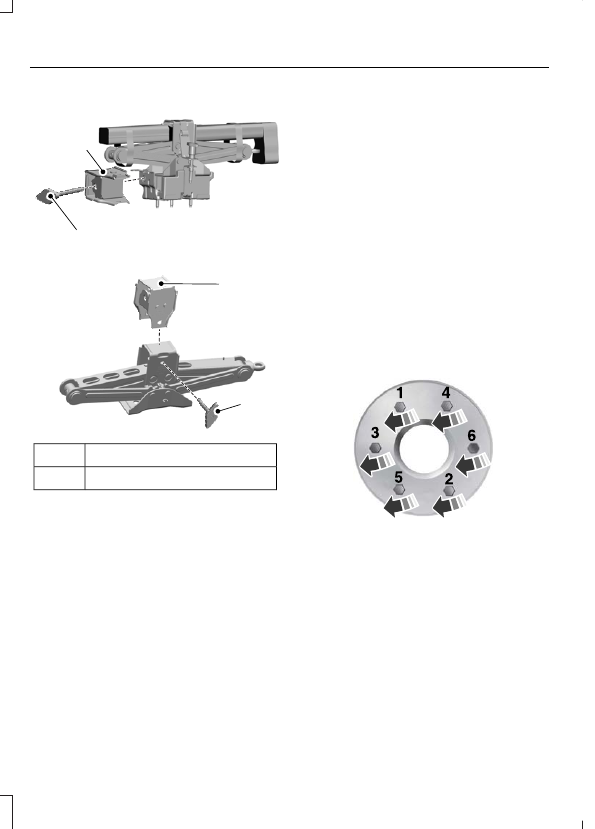

E363809

E363808

Extension Block

Wing bolt

Place the vehicle jack at the jacking
point next to the tire you are changing.

2. When jacking the vehicle to service a

front wheel/tire, remove the wing bolt
holding the extension block to the jack
stowage bracket and reuse wing bolt
to attach extension block to jacking
surface.

Note:

If servicing a rear tire position, the

extension block is not needed.

3. Reassemble the jack handle, including

the S-hook, to the lug wrench. Insert
the S-hook into the eyelet of the jack
and turn the jack handle clockwise until
the wheel is completely off the ground.

4. Remove the wheel nuts with the lug

wrench.

5. Replace the flat tire with the spare tire,

making sure the valve stem is facing
outward. Reinstall the wheel nuts until
the wheel is snug against the hub. Do
not fully tighten the wheel nuts until
you lower the wheel.

6. Lower the wheel by turning the jack

handle counterclockwise.

Remove the vehicle jack and fully
tighten the wheel nuts in the order
shown.

8. Stow the flat tire.

9. Stow the vehicle jack and lug wrench.

Make sure the jack is securely fastened
before you drive.

10.

Unblock the wheels.

E166719

Stowing the Flat or Spare Tire

Note:

Failure to follow the spare tire

stowage instructions could result in failure
of the cable or loss of the spare tire.

Lay the tire on the ground with the
valve stem facing up.

2. Slide the wheel partially under the

vehicle and install the retainer through
the wheel center. Pull on the cable to
align the components at the end of the
cable.

554

Changing a Road Wheel

3. Turn the jack handle clockwise until

you raise the tire to its stowed position
underneath the vehicle. The effort to
turn the jack handle increases
significantly and the spare tire carrier
ratchets or slips when you raise the tire
to the maximum tightness. Tighten to
the point where the ratchet or slip
occurs a minimum of three times, as
indicated by an audible click each time.
The spare tire carrier does not allow
you to overtighten. If the spare tire
carrier ratchets or slips with little effort,
have your vehicle checked as soon as
possible.

4. Check that the tire lies flat against the

frame and you properly tighten it. Try
to push or pull, then turn the tire to be
sure it does not move. Loosen and
retighten, if necessary. Failure to
properly stow the spare tire could
result in failure of the winch cable and
loss of the tire.

5. Repeat this tightness check procedure

when servicing the spare tire pressure,
every six months, as per your scheduled
maintenance information, or at any
time that the spare tire gets disturbed
through service of other components.

6. If removed, install the spare tire lock

into the bumper drive tube with the
spare tire lock key and jack handle.

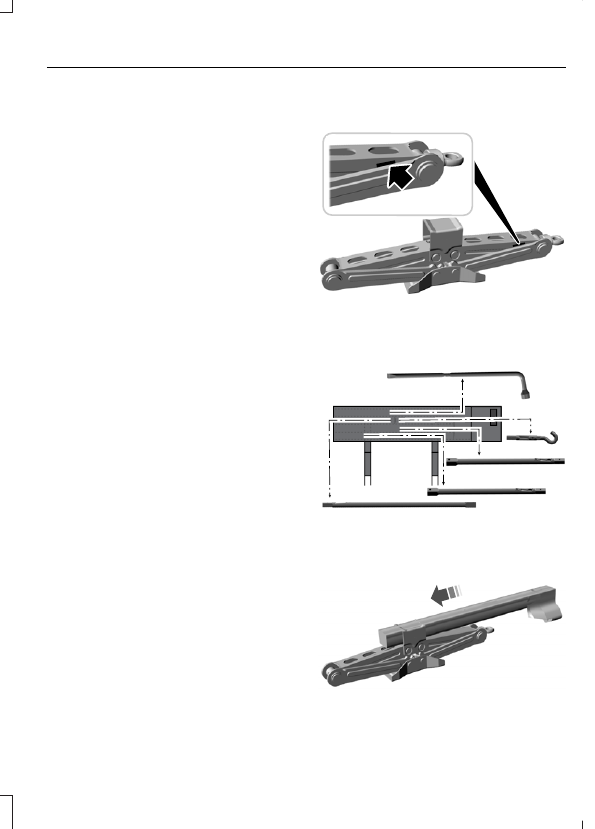

Stowing the Vehicle Jack and Tool
Bag

E323394

Turn the lead screw eyelet to adjust
the jack up or down until the stowage
markings on the upper channel align
with the lower channel.

E323393

2. Place the tools inside of the tool bag.

E327653

555

Changing a Road Wheel

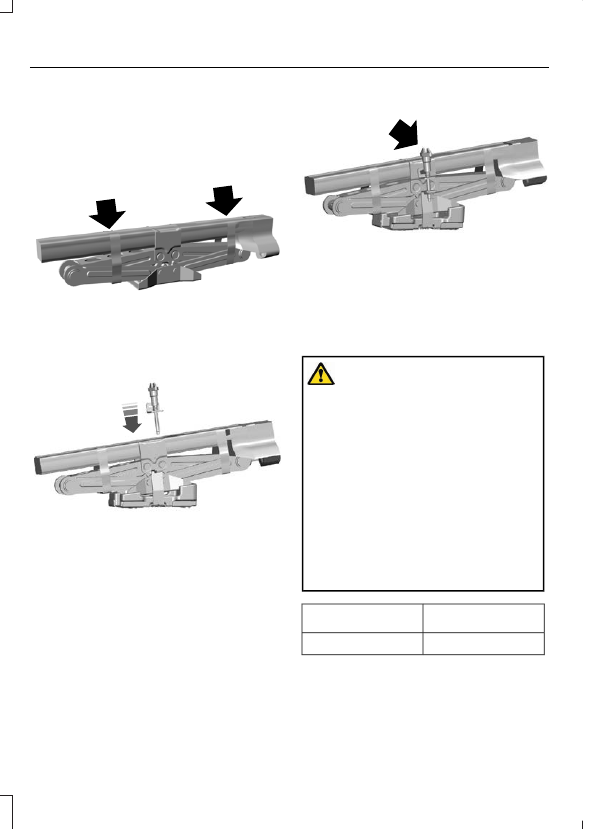

3. Install the tool bag through the vehicle

jack load rest.

4. Restow the extension block and wing

bolt to the jack bracket.

E323386

5. Secure the jack tool bag straps around

the vehicle jack.

E327654

6. Place the jack and tool bag back onto

the jack bracket.

E323384

Turn the wing bolt on the jack bracket
clockwise until you secure the jack and
tools to the jack bracket.

WHEEL NUTS

WARNING:

When you install a

wheel, always remove any corrosion, dirt
or foreign materials present on the
mounting surfaces of the wheel or the
surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Make
sure to secure any fasteners that attach
the rotor to the hub so they do not
interfere with the mounting surfaces of
the wheel. Installing wheels without
correct metal-to-metal contact at the
wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to
come off while your vehicle is in motion,
resulting in loss of vehicle control,
personal injury or death.

lb.ft (Nm)

Bolt Size

150 lb.ft (204 Nm)

M14 x 1.5

Torque specifications are for nut and bolt

threads free of dirt and rust. Use only our
recommended replacement wheel nuts
and or wheel bolts.

556

Changing a Road Wheel

Retighten the wheel nuts to the specified
torque within 100 mi (160 km) after any
wheel disturbance, such as tire rotation,
changing a flat tire or wheel removal.

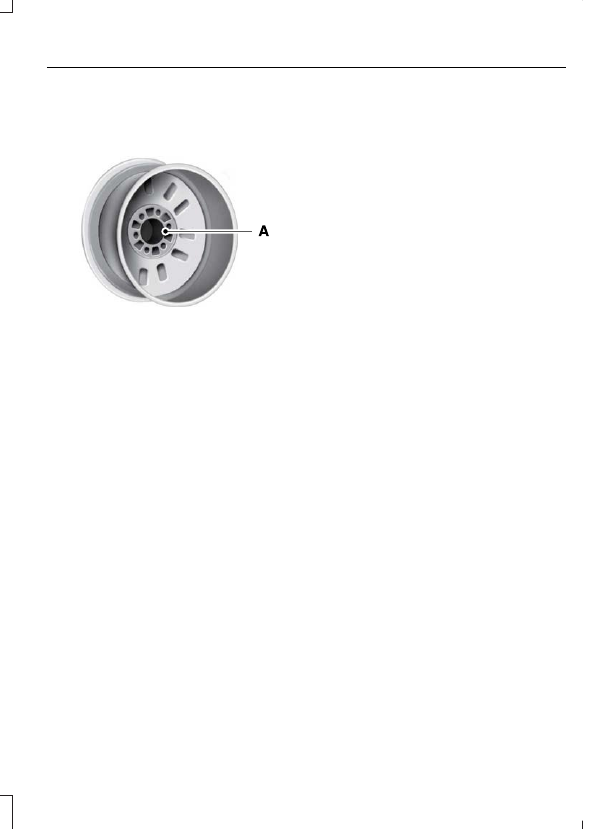

E145950

Hub pilot bore.

Inspect the wheel pilot hole and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.

557

Changing a Road Wheel

ENGINE SPECIFICATIONS - 2.7L ECOBOOST™

Specification

Engine

10.0:1

Compression ratio.

165 in³ (2,700 cm³)

Displacement.

1-4-2-5-3-6

Firing order.

Coil on plug

Ignition system.

Minimum 87 octane

Required fuel.

0.028 in (0.7 mm) - 0.031 in (0.8 mm)

Spark plug gap.

558

Capacities and Specifications

ENGINE SPECIFICATIONS - 3.3L

Specification

Engine

12:1

Compression ratio.

203.8 in³ (3,340 cm³)

Displacement.

1-4-2-5-3-6

Firing order.

Coil on plug

Ignition system.

Minimum 87 octane

Required fuel.

0.049 in (1.25 mm) - 0.053 in (1.35 mm)

Spark plug gap.

559

Capacities and Specifications

ENGINE SPECIFICATIONS - 3.5L ECOBOOST™

Specification

Engine

10.5:1

Compression ratio.

213.4 in³ (3,497 cm³)

Displacement.

1-4-2-5-3-6

Firing order.

Coil on plug

Ignition system.

Minimum 87 octane

Required fuel.

0.028 in (0.7 mm) - 0.031 in (0.8 mm)

Spark plug gap.

560

Capacities and Specifications

ENGINE SPECIFICATIONS - 3.5L, HYBRID ELECTRIC VEHICLE
(HEV)

Specification

Engine

10.5:1

Compression ratio.

213.4 in³ (3,497 cm³)

Displacement.

1-4-2-5-3-6

Firing order.

Coil on plug

Ignition system.

Minimum 87 octane

Required fuel.

0.028 in (0.7 mm) - 0.031 in (0.8 mm)

Spark plug gap.

561

Capacities and Specifications

ENGINE SPECIFICATIONS - 5.0L

Specification

Engine

12:1

Compression ratio.

307 in³ (5,038 cm³)

Displacement.

1-3-7-2-6-5-4-8

Firing order.

Coil on plug, coil near plug

Ignition system.

Minimum 87 octane

Required fuel.

0.039 in (1 mm) - 0.043 in (1.1 mm)

Spark plug gap.

562

Capacities and Specifications

MOTORCRAFT PARTS - 2.7L ECOBOOST™

Motorcraft Part Number

Component

FA-1883

Air filter element.

BAGM-48H6-760

Battery.

FP-92

Cabin air filter.

FL-2062-A

Engine oil filter.

SP-578

Spark plug.

WW-2208

Windshield wiper blade.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.

563

Capacities and Specifications

MOTORCRAFT PARTS - 3.3L

Motorcraft Part Number

Component

FA-1883

Air filter element.

BAGM-48H6-760

Battery.

FP-92

Cabin air filter.

FL-500-S

Engine oil filter.

SP-520

Spark plug.

WW-2208

Windshield wiper blade.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

564

Capacities and Specifications

MOTORCRAFT PARTS - 3.5L ECOBOOST™

Motorcraft Part Number

Component

FA-1883

Air filter element.

BAGM-48H6-760

Battery-standard.

BAGM-94RH7-800

Battery-optional.

FP-92

Cabin air filter.

FL-500-S

Engine oil filter.

SP-596

Spark plug.

WW-2208

Windshield wiper blade.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

565

Capacities and Specifications

MOTORCRAFT PARTS - 3.5L, HYBRID ELECTRIC VEHICLE (HEV)

Motorcraft Part Number

Component

FA-1883

Air filter element.

BAGM-94RH7-800

Battery-standard.

FP-92

Cabin air filter.

FL-500-S

Engine oil filter.

SP-596

Spark plug.

WW-2208

Windshield wiper blade.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

566

Capacities and Specifications

MOTORCRAFT PARTS - 5.0L

Motorcraft Part Number

Component

FA-1883

Air filter element.

BAGM-48H6-760

Battery-standard.

BAGM-94RH7-800

Battery-optional.

FP-92

Cabin air filter.

FL-500-S

Engine oil filter.

SP-588

Spark plug.

WW-2208

Windshield wiper blade.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

567

Capacities and Specifications

MOTORCRAFT PARTS - RAPTOR

Motorcraft Part Number

Component

FA-1883

Air filter element.

BAGM-94RH7-800

Battery.

FP-92

Cabin air filter.

FL-500-S

Engine oil filter.

SP-596

Spark plug.

WW-2208

Windshield wiper blade.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

568

Capacities and Specifications
