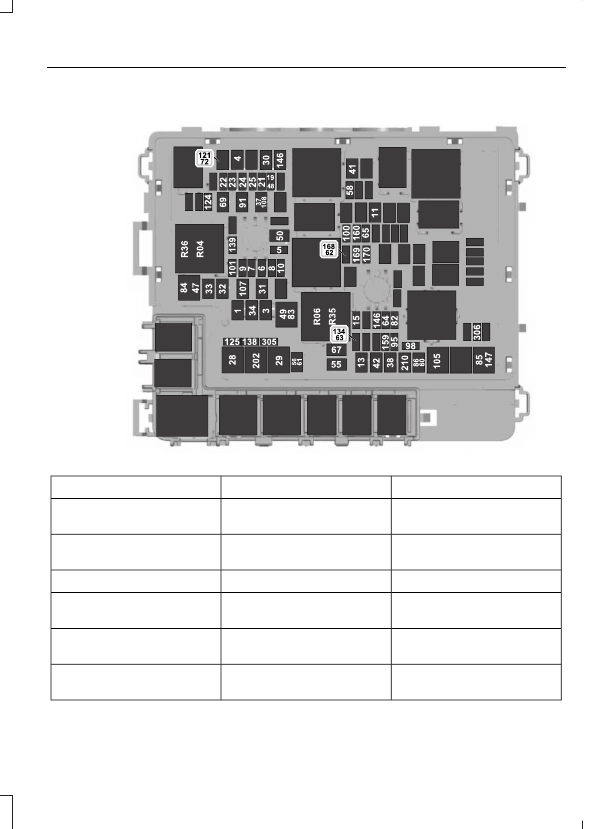

IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX

E356997

Protected Component

Rating

Item

Body control module -

battery power in feed 1.

40 A

1

Body control module -

battery power in feed 2.

40 A

3

Fuel pump.

30 A

4

Powertrain control module

coil.

5 A

5

Powertrain control module

power (gas, hybrid).

25 A

6

Powertrain control module

power.

20 A

7

473

Fuses

Protected Component

Rating

Item

Powertrain control module

power (hybrid).

20 A

8

Powertrain control module

power (gas, Raptor,

Tremor).

10 A

Powertrain control module

power (gas, hybrid).

20 A

9

Not used.

—

10

Starter motor.

30 A

11

Blower motor.

40 A

13

Horn.

25 A

15

Snowplow switch (gas).

20 A

19

Rear heated seats (gas,

hybrid).

Headlamp run/start feed.

10 A

21

Electronic power assist

steering.

10 A

22

Electric brake boost.

10 A

23

Powertrain control module

(gas, hybrid).

10 A

24

Center high-mounted stop

lamp camera.

10 A

25

Trailer camera.

2 kW inverter.

24 V alternator - run/start

feed.

Analog rear video camera.

Electric brake boost.

50 A

28

Electric brake boost.

50 A

29

Driver power seat.

40 A

30

Passenger power seat.

30 A

31

Auxiliary power point.

20 A

32

Auxiliary power point.

20 A

33

474

Fuses

Protected Component

Rating

Item

USB smart charger.

Auxiliary power point.

20 A

34

Tailgate module.

30 A

37

Climate controlled seat

module.

40 A

38

Power running boards.

Power sliding back window.

25 A

41

Trailer brake control

module.

30 A

42

Cooling fan (gas, hybrid,

Raptor, Tremor).

50 A

47

Rear heated seats (Raptor,

Tremor)

20 A

48

Cooling fan (gas, hybrid,

Raptor, Tremor).

50 A

49

Heated backlight (gas,

hybrid).

40 A

50

Trailer tow park lamps.

30 A

55

Trailer tow stop and turn

lamps (4-pin connector).

20 A

56

Trailer tow backup lamps.

10 A

58

Upfitter 1 relay (Raptor,

Tremor).

15 A

60

Upfitter 2 relay (Raptor,

Tremor).

15 A

61

Upfitter 3 relay (Raptor,

Tremor).

10 A

62

Upfitter 4 relay (Raptor,

Tremor).

10 A

63

Four-wheel drive.

25 A

64

Not used.

—

65

Transmission run/start.

20 A

67

475

Fuses

Protected Component

Rating

Item

Left-hand windshield wiper.

30 A

69

Not used (spare).

30 A

72

Four-wheel drive.

25 A

82

Not used.

—

83

Not used.

—

84

Not used.

—

85

Not used.

—

86

Trailer tow light module.

20 A

91

Powertrain control module

power (hybrid).

15 A

95

Powertrain control module

power (hybrid).

10 A

98

Coolant pumps (hybrid).

Left-hand headlamps.

15 A

100

Right-hand headlamps.

15 A

101

Active front steering.

50 A

105

Trailer tow battery charge.

30 A

107

Spot lamps (police).

15 A

108

Not used.

—

121

Rain sensor module.

5 A

124

USB smart charger.

10 A

125

Multi-contour seats relay

(gas, hybrid).

25 A

134

Tailgate release.

10 A

138

USB smart charger.

5 A

139

Traction battery control

module (hybrid).

15 A

146

Change air cooler fan relay

(Raptor, Tremor).

40 A

147

476

Fuses

Protected Component

Rating

Item

DC/DC power (hybrid).

5 A

159

Smart data link control.

10 A

160

Traction battery control

module (hybrid).

15 A

168

Motor electric cool pump

(hybrid).

10 A

169

Pedestrian alert control

module (hybrid).

10 A

170

Traction battery control

module (hybrid).

Electric motor cool pump

(hybrid).

Body control module B+.

60 A

202

Body control module start/

stop.

30 A

210

Upfitter 5 relay (Raptor,

Tremor).

5 A

305

Upfitter 6 relay (Raptor,

Tremor).

5 A

306

Protected Component

Relay Number

Electronic fan relay 1.

R04

Electronic fan relay 3.

R06

Not used.

R35

Not used.

R36

477

Fuses

BODY CONTROL MODULE
FUSE BOX

LOCATING THE BODY CONTROL
MODULE FUSE BOX

E322874

ACCESSING THE BODY CONTROL
MODULE FUSE BOX

E322804

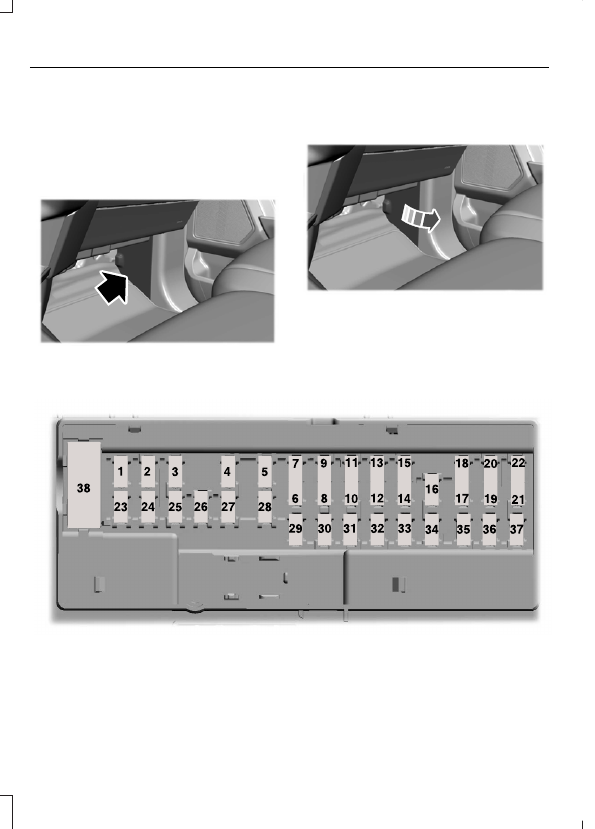

IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX

E145984

478

Fuses

Protected Component

Fuse Rating

Fuse

Loca-

tion

Not used.

—

1

Delayed accessory feed.

10 A

2

Wireless charger.

7.5 A

3

Not used.

20 A

4

Not used.

—

5

Driver power window switch.

10 A

6

Gear shift module.

10 A

7

Cell phone passport module.

5 A

8

Combined sensor module.

5 A

9

Not used.

—

10

Not used.

—

11

Enhanced central gateway.

7.5 A

12

Climate control.

Instrument cluster.

7.5 A

13

Steering column control module.

Not used (spare).

15 A

14

Integrated control panel.

15 A

15

SYNC.

Not used.

—

16

Headlamp control module.

7.5 A

17

Not used.

7.5 A

18

Headlamp switch.

5 A

19

Passive start.

5 A

20

Ignition switch.

Key inhibit solenoid.

Trailer brake switch.

5 A

21

Not used.

5 A

22

479

Fuses

Protected Component

Fuse Rating

Fuse

Loca-

tion

Driver door control module.

30 A

23

Moonroof.

30 A

24

Not used.

20 A

25

Passenger door control module.

30 A

26

Not used.

30 A

27

Amplifier.

30 A

28

12 inch display.

15 A

29

Adjustable pedals.

Not used.

5 A

30

RF receiver.

10 A

31

Driver monitor.

Terrain management switch.

Audio control module.

20 A

32

Not used.

—

33

Run/start relay.

30 A

34

400 watt inverter run/start.

5 A

35

Auto-dimming interior mirror.

15 A

36

Rear heat seat run/start.

Adaptive front steering run/start.

Heated wheel (vehicles without adaptive front steering).

Advanced driver-assistance systems.

20 A

37

Rear power windows.

30 A circuit

breaker.

38

480

Fuses

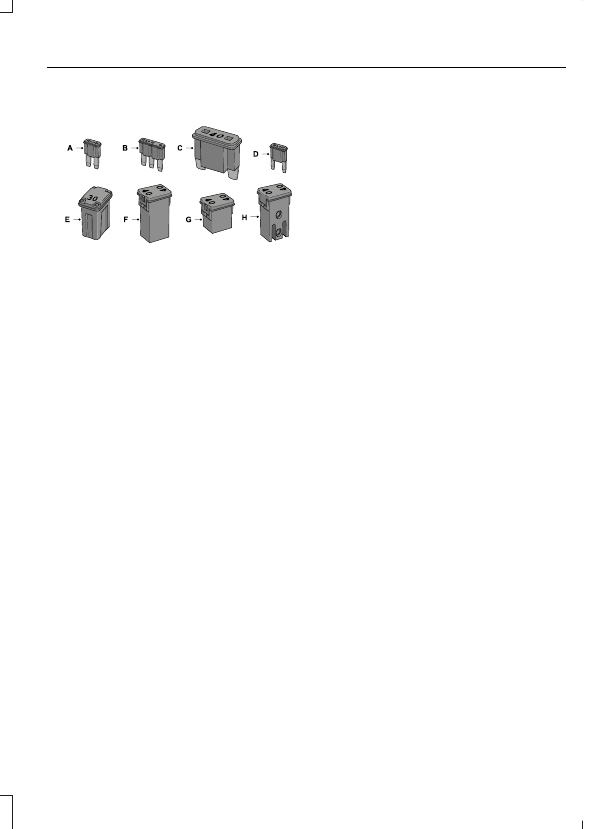

IDENTIFYING FUSE TYPES

E267379

Micro 2.

A

Micro 3.

B

Maxi.

C

Mini.

D

M Case.

E

J Case.

F

J Case Low Profile.

G

Slotted M Case.

H

FUSES – TROUBLESHOOTING

FUSES – FREQUENTLY ASKED
QUESTIONS

When do I need to check a fuse?

If electrical components in the vehicle
are not working.

When do I need to replace a fuse?

If a fuse has blown.

How do I identify a blown fuse?

You can identify a blown fuse by a
broken wire within the fuse.

481

Fuses

MAINTENANCE PRECAUTIONS

Service your vehicle regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. See

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.

•

Keep all open flames and other burning
material, such as cigarettes, away from
the battery and all fuel related parts.

•

Set the parking brake, shift the
transmission to park (P) and block the
wheels.

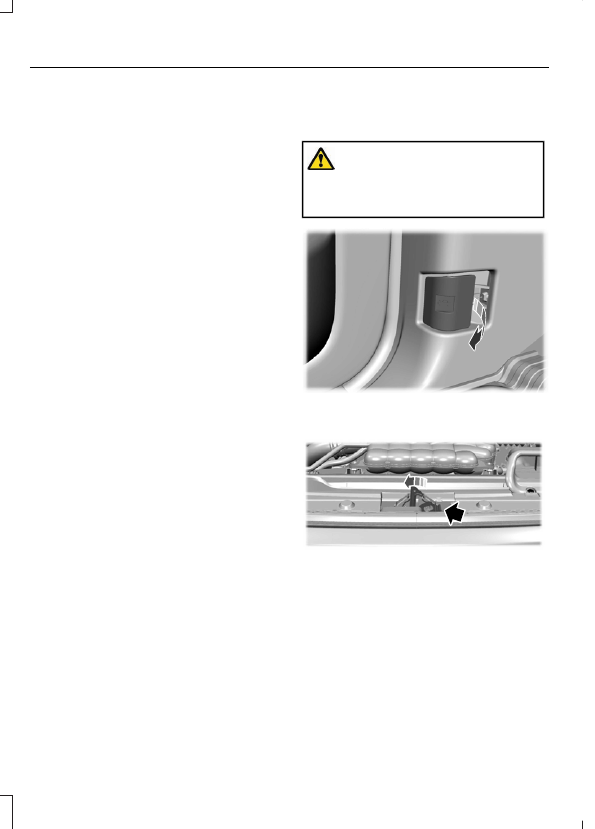

OPENING AND CLOSING THE
HOOD

WARNING:

Make sure that you fully

latch the hood before driving. Failure to
follow this instruction could result in
personal injury or death.

E337831

1.

Pull the hood release handle under the
left hand side of the instrument panel.

E338104

2. Pull the secondary release lever under

the front of the hood near the center
of your vehicle.

482

Maintenance

E338089

3. Raise the hood until the lift cylinders

hold it open.

4. To close, lower the hood and make

sure that it fully latches.

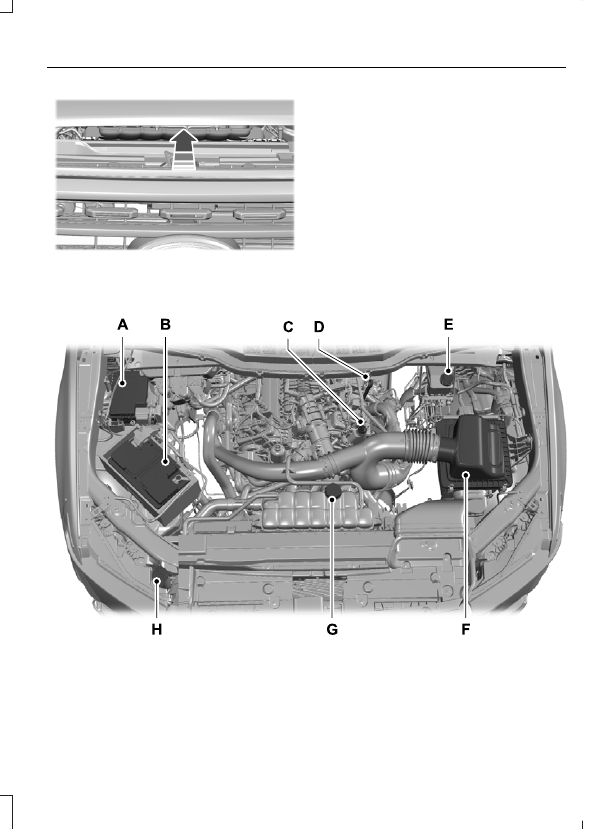

UNDER HOOD OVERVIEW - 2.7L ECOBOOST™

E337516

Engine compartment fuse box. See

A.

Battery. See

Changing the 12V Battery

B.

Engine oil filler cap. See

Checking the Engine Oil Level

C.

483

Maintenance

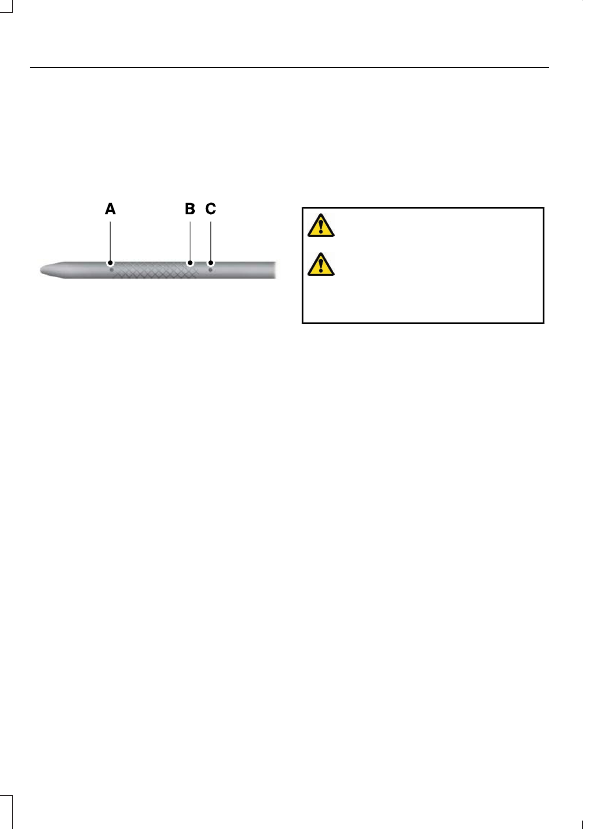

Engine oil dipstick. See

Engine Oil Dipstick Overview

D.

Brake fluid reservoir. See

Checking the Brake Fluid

E.

Air filter assembly. See

Changing the Engine Air Filter

F.

Engine coolant reservoir. See

Checking the Coolant

G.

Windshield washer fluid reservoir.

H.

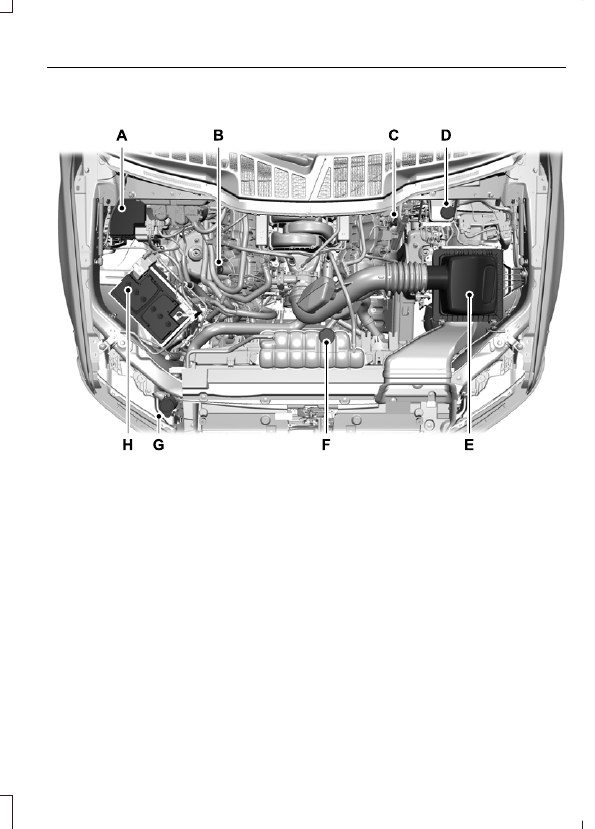

UNDER HOOD OVERVIEW - 3.3L

E337514

Engine compartment fuse box. See

A.

Battery. See

Changing the 12V Battery

B.

Engine oil filler cap. See

Checking the Engine Oil Level

C.

Engine oil dipstick. See

Engine Oil Dipstick Overview

D.

Brake fluid reservoir. See

Checking the Brake Fluid

E.

Air filter assembly. See

Changing the Engine Air Filter

F.

484

Maintenance

Engine coolant reservoir. See

Checking the Coolant

G.

Windshield washer fluid reservoir.

H.

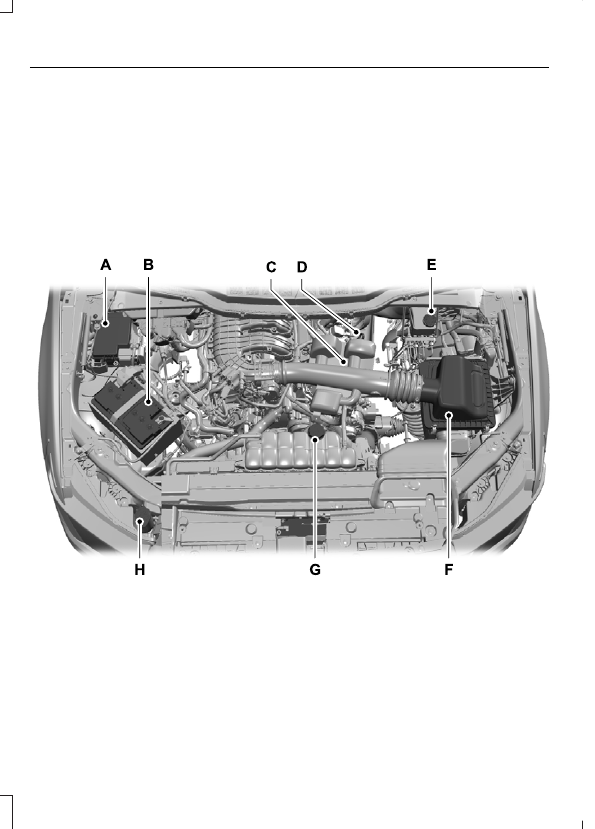

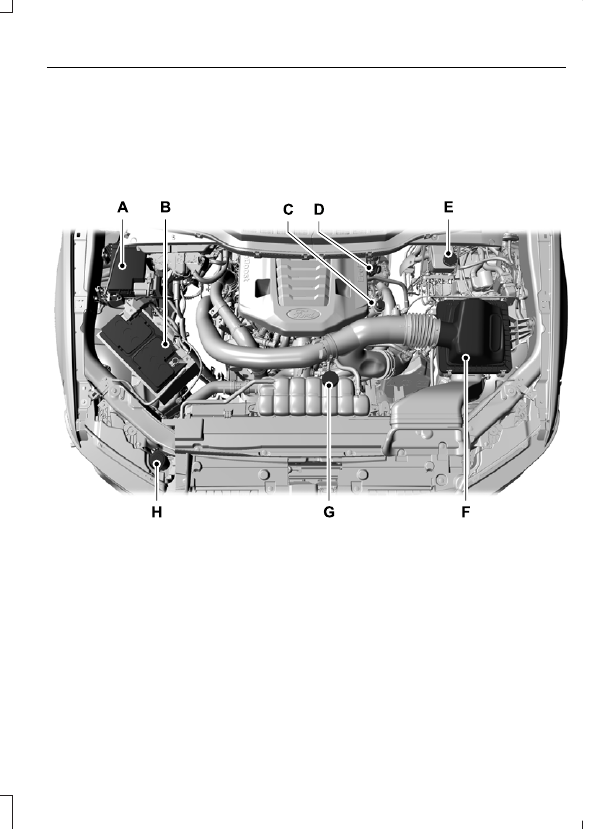

UNDER HOOD OVERVIEW - 3.5L ECOBOOST™

E313722

Engine compartment fuse box. See

A.

Battery. See

Changing the 12V Battery

B.

Engine oil filler cap. See

Checking the Engine Oil Level

C.

Engine oil dipstick. See

Engine Oil Dipstick Overview

D.

Brake fluid reservoir. See

E.

Air filter. See

Changing the Engine Air Filter

F.

Engine coolant reservoir. See

Checking the Coolant

G.

Windshield washer fluid reservoir.

H.

485

Maintenance

UNDER HOOD OVERVIEW - 3.5L, HYBRID ELECTRIC VEHICLE
(HEV)

E333718

Engine compartment fuse box. See

A.

Battery. See

Changing the 12V Battery

B.

Engine oil dipstick. See

Engine Oil Dipstick Overview

C.

Engine oil filler cap. See

Adding Engine Oil

D.

Brake fluid reservoir. See

Checking the Brake Fluid

E.

Air filter. See

Changing the Engine Air Filter

F.

Secondary coolant reservoir. See

Checking the Coolant

G.

Engine coolant reservoir. See

Checking the Coolant

H.

Windshield washer fluid reservoir.

I.

486

Maintenance

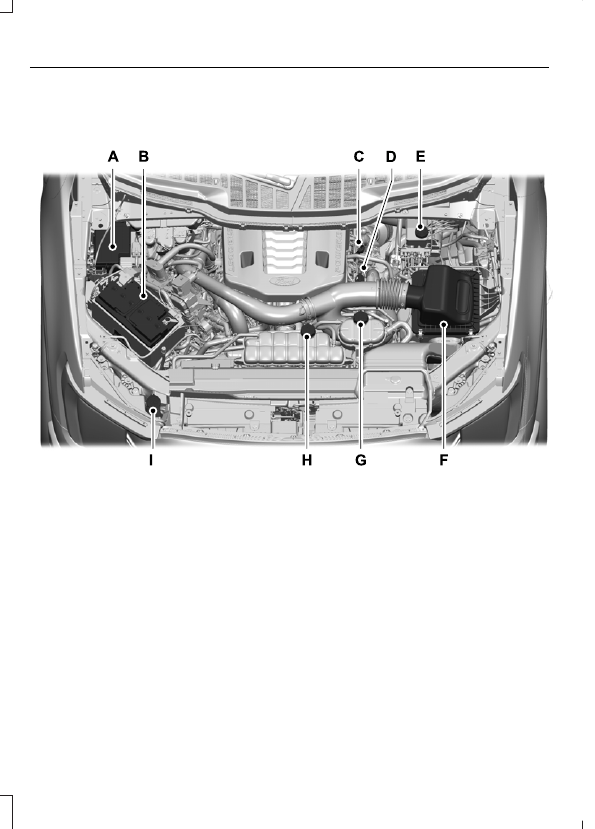

UNDER HOOD OVERVIEW - 5.0L

E346494

Engine compartment fuse box. See

Under Hood Fuse Box

A.

Engine oil filler cap. See

Engine Oil Dipstick Overview

B.

Engine oil dipstick. See

Engine Oil Dipstick Overview

C.

Brake fluid reservoir. See

Checking the Brake Fluid

D.

Air filter assembly. See

Changing the Engine Air Filter

E.

Engine coolant reservoir. See

Checking the Coolant

F.

Windshield washer fluid reservoir.

G.

Battery. See

Changing the 12V Battery

H.

487

Maintenance

ENGINE OIL

ENGINE OIL DIPSTICK OVERVIEW
- GASOLINE, HYBRID ELECTRIC
VEHICLE (HEV)

E270482

Minimum.

A

Nominal.

B

Maximum.

C

CHECKING THE ENGINE OIL LEVEL

1.

Make sure that your vehicle is on level
ground.

2. Check the oil level before starting the

engine, or switch the engine off after
warming up and wait 10 minutes for
the oil to drain into the oil pan.

3. Remove the dipstick and wipe it with

a clean, lint-free cloth.

4. Reinstall the dipstick and make sure it

is fully seated.

5. Remove the dipstick again to check the

oil level.

Note:

If the oil level is between the

maximum and minimum marks, the oil level
is acceptable. Do not add oil.

6. If the oil level is at the minimum mark,

immediately add oil.

7.

Reinstall the dipstick. Make sure it is
fully seated.

Note:

The oil consumption of new engines

reaches its normal level after approximately
3,000 mi (5,000 km).

ADDING ENGINE OIL

WARNING:

Do not remove the filler

cap when the engine is running.

WARNING:

Do not add engine oil

when the engine is hot. Failure to follow
this instruction could result in personal
injury.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that the
vehicle warranty may not cover.

1.

Clean the area surrounding the engine
oil filler cap before you remove it.

2. Remove the engine oil filler cap.

3. Add engine oil that meets our

specifications. See

4. Reinstall the engine oil filler cap. Turn

it clockwise until you feel a strong
resistance.

Note:

Do not add oil further than the

maximum mark. Oil levels above the
maximum mark may cause engine damage.

Note:

Immediately soak up any oil spillage

with an absorbent cloth.

RESETTING THE ENGINE OIL
CHANGE REMINDER - VEHICLES
WITH: 4.2 INCH SCREEN

1.

Press the Menu button on the steering
wheel to enter the information display
main menu.

2. Select

Truck Info

.

488

Maintenance

Content .. 27 28 29 30 ..
