3. Select

Oil Life

4. Select

Reset Oil Life

5. Press and hold the

button until the

system reset confirmation appears.

RESETTING THE ENGINE OIL
CHANGE REMINDER - VEHICLES
WITH: 8 INCH SCREEN/12.3 INCH
SCREEN

Depending on your cluster, there are two
paths to reset the engine oil change
reminder.

Path 1

Press the Menu button on the steering
wheel to enter the information display
main menu.

2. Select

Settings

3. Select

Vehicle Maintenance

4. Select

Oil Life

5. Press and hold the

button until the

system reset confirmation appears.

Path 2

Press the Menu button on the steering
wheel to enter the information display
main menu.

2. Select

Truck Info

3. Select

Engine Information

4. Press and hold the

button until the

system reset confirmation appears.

ENGINE OIL CAPACITY AND
SPECIFICATION

For filling information, please refer to the
Capacities and Specifications section of
your owner's manual. See

Engine Oil

Capacity and Specification

(page 489).

CHECKING THE COOLANT

When the engine is cold, check the
concentration and level of the coolant at
the intervals listed in the scheduled
maintenance information. See

Scheduled

Maintenance

(page 642).

Note:

Make sure that the coolant level is

between the minimum and maximum marks
on the coolant reservoir.

Note:

Coolant expands when it is hot. The

level may extend beyond the

MAX

mark.

If the coolant level is at or below the
minimum mark, add prediluted coolant
immediately.

Maintain coolant concentration within
48% to 50%, which equates to a freeze
point between -29°F (-34°C) and -35°F
(-37°C). Coolant concentration should be
checked using a refractometer. We do not
recommend the use of hydrometers or
coolant test strips for measuring coolant
concentration.

Adding Coolant

WARNING:

Keep your hands and

clothing clear of the cooling fan.

WARNING:

Do not remove the

coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap
with a thick cloth to prevent the
possibility of scalding and slowly remove
the cap. Failure to follow this instruction
could result in personal injury.

WARNING:

Do not add engine

coolant when the engine is on or the
cooling system is hot. Failure to follow
this instruction could result in personal
injury.

489

Maintenance

WARNING:

Do not add coolant

further than the

MAX

mark.

WARNING:

Do not put coolant in

the windshield washer reservoir. If
sprayed on the windshield, coolant could
make it difficult to see through the
windshield.

WARNING:

Do not allow the fluid

to touch your skin or eyes. If this
happens, rinse the affected areas
immediately with plenty of water and
contact your physician.

Note:

Do not use stop leak pellets, cooling

system sealants, or non-specified additives
as they can cause damage to the engine
cooling or heating systems. Resulting
component damage may not be covered by
the vehicle Warranty.

Note:

Automotive fluids are not

interchangeable.

It is very important to use prediluted
coolant approved to the correct
specification in order to avoid plugging the
small passageways in the engine cooling
system. See

Capacities and

Specifications

(page 558). Do not mix

different colors or types of coolant in your
vehicle. Mixing of engine coolants or using
an incorrect coolant may harm the engine
or cooling system components and could
void the vehicle Warranty.

Note:

If prediluted coolant is not available,

use the approved concentrated coolant
diluting it to 50/50 with deionized or
distilled water. See

Capacities and

Specifications

(page 558). Using water that

has not been deionized may contribute to
deposit formation, corrosion and plugging
of the small cooling system passageways.

To top up the coolant level do the
following:

Unscrew the cap slowly. Any pressure
escapes as you unscrew the cap.

2. Add enough prediluted coolant to

reach the correct level.

Note:

We do not recommend the use of

recycled coolant.

3. Replace the coolant reservoir cap. Turn

the cap clockwise until it contacts the
hard stop.

4. Check the coolant level in the coolant

reservoir the next few times you drive
your vehicle. If necessary, repeat step
2.

If you have to add more than 1.1 qt (1 L) of
engine coolant per month, have your
vehicle checked as soon as possible.
Operating an engine with a low level of
coolant can result in engine overheating
and possible engine damage.

In case of emergency, you can add a large
amount of water without engine coolant
in order to reach a vehicle service location.
Service your vehicle as soon as possible.

Water alone, without engine coolant, can
cause engine damage from corrosion,
overheating or freezing.

Do not use the following as a coolant
substitute, as they can cause engine
damage from overheating or freezing:
•

Alcohol.

•

Methanol.

•

Brine.

•

Any coolant mixed with alcohol or
methanol antifreeze.

Do not add extra inhibitors or additives to
the coolant. These can be harmful and
compromise the corrosion protection of
the coolant.

490

Maintenance

Severe Climates

If you drive in extremely cold climates, you
may need to increase the coolant
concentration above 50%.

Note:

A coolant concentration of 60%

provides improved freeze point protection.
Coolant concentrations above 60%
decrease the overheat protection
characteristics of the coolant and could
cause engine damage.

If you drive in extremely hot climates, you
may need to decrease the coolant
concentration to 40%.

Note:

A coolant concentration of 40%

provides improved overheat protection.
Coolant concentrations below 40%
decrease the overheat and corrosion
protection characteristics of the coolant and
could cause engine damage.

Coolant Change

WARNING:

Do not dispose of

coolant in the household refuse or the
public sewage system. Use an authorized
waste disposal facility.

Change the coolant at specific mileage
intervals. Refer to the scheduled
maintenance information. See

Normal

Scheduled Maintenance

(page 645).

Note:

Dispose of used coolant in the

appropriate manner.

Follow your community's regulations and
standards for recycling and disposing of
automotive fluids.

Fail-Safe Cooling

Fail-safe cooling allows you to temporarily
drive your vehicle before any incremental
component damage occurs. The fail-safe
distance depends on ambient
temperature, vehicle load and terrain.

How Fail-Safe Cooling Works

If the engine begins to overheat,
the coolant temperature gauge
moves toward the red zone:

A warning lamp illuminates and
a message may appear in the
information display.

If the engine reaches a preset
over-temperature condition, the engine
automatically switches to alternating
cylinder operation. Each disabled cylinder
acts as an air pump and cools the engine.

When this occurs, your vehicle still
operates, however:
•

Engine power is limited.

•

The air conditioning system turns off.

Continued operation increases the engine
temperature, causing the engine to
completely shut down. Your steering and
braking effort increases in this situation.

When the engine temperature cools, you
can re-start the engine. Have your vehicle
checked as soon as possible to minimize
engine damage.

When Fail-Safe Mode Is Activated

WARNING:

Fail-safe mode is for

use during emergencies only. Operate
your vehicle in fail-safe mode only as
long as necessary to bring your vehicle
to rest in a safe location and seek
immediate repairs. When in fail-safe
mode, your vehicle will have limited
power, will not be able to maintain
high-speed operation, and may
completely shut down without warning,
potentially losing engine power, power
steering assist, and power brake assist,
which may increase the possibility of a
crash resulting in serious injury.

491

Maintenance

WARNING:

Do not remove the

Your vehicle has limited engine power
when in the fail-safe mode, drive your
vehicle with caution. Your vehicle does not
maintain high-speed operation and the
engine could operate poorly.

Remember that the engine is capable of
automatically shutting down to prevent
engine damage. In this situation:

Pull off the road as soon as safely
possible and switch the engine off.

2. If you are a member of a roadside

assistance program, we recommend
that you contact your roadside
assistance service provider.

3. If this is not possible, wait for a short

period of time for the engine to cool.

4. Check the coolant level. If the coolant

level is at or below the minimum mark,
add prediluted coolant immediately.

5. When the engine temperature cools,

you can re-start the engine. Have your
vehicle checked as soon as possible to
minimize engine damage.

Note:

Driving your vehicle without repair

increases the chance of engine damage.

Engine Coolant Temperature
Management

(If Equipped)

WARNING:

To reduce the risk of

crash and injury, be prepared that the
vehicle speed may reduce and the
vehicle may not be able to accelerate
with full power until the coolant
temperature reduces.

If you tow a trailer with your vehicle, the
engine may temporarily reach a higher
temperature during severe operating
conditions, for example ascending a long
or steep grade in high ambient
temperatures.

At this time, you may notice the coolant
temperature gauge moves toward the red
zone and a message may appear in the
information display.

You may notice a reduction in vehicle
speed caused by reduced engine power in
order to manage the engine coolant
temperature. Your vehicle may enter this
mode if certain high-temperature and
high-load conditions take place. The
amount of speed reduction depends on
vehicle loading, grade and ambient
temperature. If this occurs, there is no
need to stop your vehicle. You can
continue to drive.

The air conditioning may automatically
turn on and off during severe operating
conditions to protect the engine from
overheating. When the coolant
temperature decreases to the normal
operating temperature, the air conditioning
turns on.

If the coolant temperature gauge moves
fully into the red zone, or if the coolant
temperature warning or service engine
soon messages appear in your information
display, do the following:

492

Maintenance

Stop your vehicle as soon as it is safe
to do so. Fully apply the parking brake,
shift into park (P) or neutral (N).

2. Leave the engine running until the

coolant temperature gauge needle
returns to the normal position. If the
temperature does not drop after
several minutes, follow the remaining
steps.

3. Switch the engine off and wait for it to

cool. Check the coolant level.

4. If the coolant level is at or below the

minimum mark, add prediluted coolant
immediately.

5. If the coolant level is normal, restart

the engine and continue.

ENGINE AIR FILTER

CHANGING THE ENGINE AIR
FILTER - GASOLINE

WARNING:

To reduce the risk of

vehicle damage and personal burn
injuries, do not start your engine with the
air cleaner removed and do not remove
it while the engine is running.

Change the air filter element at the proper
intervals. See

Scheduled Maintenance

(page 642).

When changing the air filter element, use
only the air filter element listed. See

Capacities and Specifications

(page

558).

Note:

Failure to use the correct air filter

element could result in severe engine
damage that the vehicle Warranty may not
cover.

Note:

When servicing the air cleaner, do not

allow foreign material to enter the air
induction system. The engine is susceptible
to damage from even small particles.

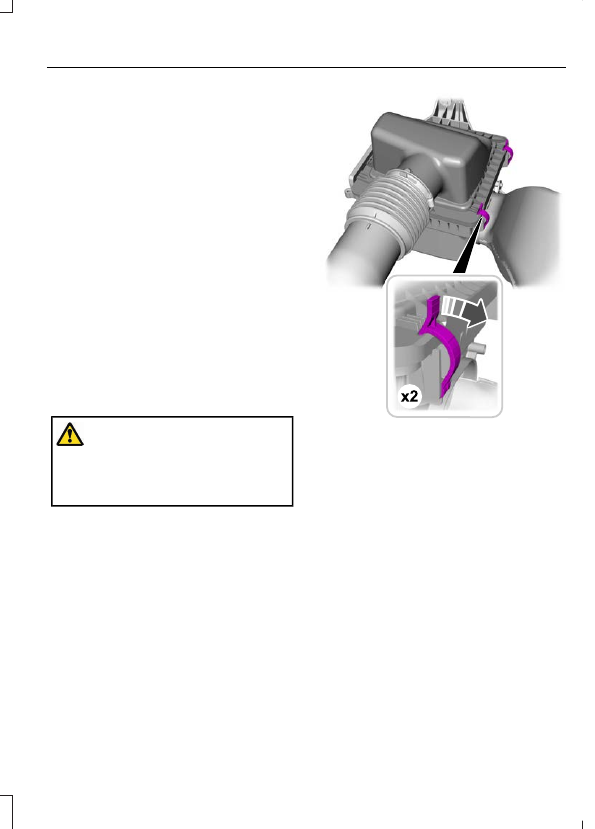

E191820

Release the clips that secure the air
filter cover to the housing.

2. Carefully lift the air filter housing cover.

3. Remove the air filter element from the

air filter housing.

4. To install, reverse the removal

procedure.

CHANGING THE FUEL FILTER
- GASOLINE

Your vehicle has a lifetime fuel filter that
integrates with the fuel tank. It does not
need regular maintenance or replacement.

493

Maintenance

CHANGING THE 12V BATTERY

WARNING:

Batteries normally

produce explosive gases which can
cause personal injury. Therefore, do not
allow flames, sparks or lighted
substances to come near the battery.
When working near the battery, always
shield your face and protect your eyes.
Always provide correct ventilation.

WARNING:

When lifting a

plastic-cased battery, excessive pressure
on the end walls could cause acid to flow
through the vent caps, resulting in
personal injury and damage to the
vehicle or battery. Lift the battery with a
battery carrier or with your hands on
opposite corners.

WARNING:

Keep batteries out of

reach of children. Batteries contain
sulfuric acid. Avoid contact with skin,
eyes or clothing. Shield your eyes when
working near the battery to protect
against possible splashing of acid
solution. In case of acid contact with skin
or eyes, flush immediately with water for
a minimum of 15 minutes and get prompt
medical attention. If acid is swallowed,
call a physician immediately.

WARNING:

Battery posts,

terminals and related accessories
contain lead and lead compounds,
chemicals known to the State of
California to cause cancer and
reproductive harm.

Wash your hands

after handling

WARNING:

This vehicle may have

more than one battery. Removing the
battery cables from only one battery
does not disconnect your vehicle
electrical system. Make sure you
disconnect the battery cables from all
batteries when disconnecting power.
Failure to do so may cause serious
personal injury or property damage.

WARNING:

For vehicles with

Auto-Start-Stop the battery requirement
is different. You must replace the battery
with one of exactly the same
specification.

The battery is in the engine compartment.
See

Under Hood Overview

(page 483).

Your vehicle has a maintenance-free
battery. It does not require additional
water during service.

If the vehicle battery has a cover and vent
hose, make sure you correctly install it after
cleaning or replacing the battery.

For longer, trouble-free operation, keep the
top of the battery clean and dry and the
battery cables tightly fastened to the
battery terminals. If any corrosion is
present on the battery or terminals, remove
the cables from the terminals and clean
with a wire brush. You can neutralize the
acid with a solution of baking soda and
water.

We recommend that you disconnect the
negative battery cable terminal from the
battery if you plan to store your vehicle for
an extended period.

Note:

If you only disconnect the negative

battery cable terminal, make sure it is
isolated or placed away from the battery
terminal to avoid unintended connection or
arcing.

494

Maintenance

If you replace the battery make sure it
matches the electrical requirements of
your vehicle.

If you disconnect or replace the battery
and your vehicle has an automatic
transmission, it must relearn its adaptive
strategy. Because of this, the transmission
may shift firmly when first driven. This is
normal operation while the transmission
fully updates its operation to optimum
shift feel.

Battery Sensor Reset

When you install a new battery, reset the
battery sensor by doing the following:

Switch the ignition on, and leave the
engine off.

Note:

Complete Steps 2 and 3 within 10

seconds.

2. Flash the high beam headlamps five

times, ending with the high beams off.

3. Press and release the brake pedal three

times.

The battery warning lamp flashes three
times to confirm that the reset is
successful.

Battery Management System

(If

Equipped)

The system monitors battery conditions
and takes actions to extend battery life. If
excessive battery drain is detected, the
system temporarily disables some
electrical systems to protect the battery.

Systems included are:
•

Heated rear window.

•

Heated seats.

•

Climate control.

•

Heated steering wheel.

•

Audio unit.

•

Navigation system.

A message may appear in the information
display to alert you that battery protection
actions are active. This message is only for
notification that an action is taking place,
and not intended to indicate an electrical
problem or that the battery requires
replacement.

After battery replacement, or in some
cases after charging the battery with an
external charger, the battery management
system requires eight hours of vehicle sleep
time to relearn the battery state of charge.
During this time, your vehicle must remain
fully locked with the ignition switched off.

Note:

Prior to relearning the battery state

of charge, the battery management system
may temporarily disable some electrical
systems.

Electrical Accessory Installation

To make sure the battery management
system works correctly, do not connect an
electrical device ground connection
directly to the battery negative post. This
can cause inaccurate measurements of
the battery condition and potential
incorrect system operation.

Note:

If you add electrical accessories or

components to the vehicle, it may adversely
affect battery performance and durability.
This may also affect the performance of
other electrical systems in the vehicle.

Remove and Reinstall the Battery

Install a battery approved for use by our
specifications. See

Capacities and

Specifications

(page 558).

To disconnect or remove the battery, do
the following:

Apply the parking brake and switch the
ignition off.

2. Switch all electrical equipment off, for

example lights and radio.

495

Maintenance

3. Wait a minimum of two minutes before

disconnecting the battery.

Note:

The engine management system has

a power hold function and remains powered
for a period of time after you switch the
ignition off. This is to allow the system to
store diagnostic and adaptive tables.
Disconnecting the battery without waiting
can cause damage not covered by the
vehicle warranty.

4. Disconnect the negative battery cable

terminal.

5. Disconnect the positive battery cable

terminal.

6. Remove the battery securing clamp.

Remove the battery.

8. To install, reverse the removal

procedure.

Note:

Before reconnecting the battery,

make sure the ignition remains switched off.

Note:

Make sure to fully tighten the battery

cables.

If you disconnect or replace the vehicle
battery, you must reset the following
features:
•

Window bounce-back. See

Opening

and Closing the Windows

(page 159).

•

Clock Settings.

•

Pre-set radio stations.

Battery Disposal

E107998

Make sure that you dispose of
old batteries in an
environmentally friendly way.

Seek advice from your local authority
about recycling old batteries.

ADJUSTING THE HEADLAMPS
- VEHICLES WITH: LED
HEADLAMPS

Vertical Aim Adjustment

We properly aim the headlamps on your
vehicle at the assembly plant. If your
vehicle has been in an accident, have your
vehicle serviced as soon as possible to
check and realign your headlamps.

Mid Series LED Headlamp Adjuster

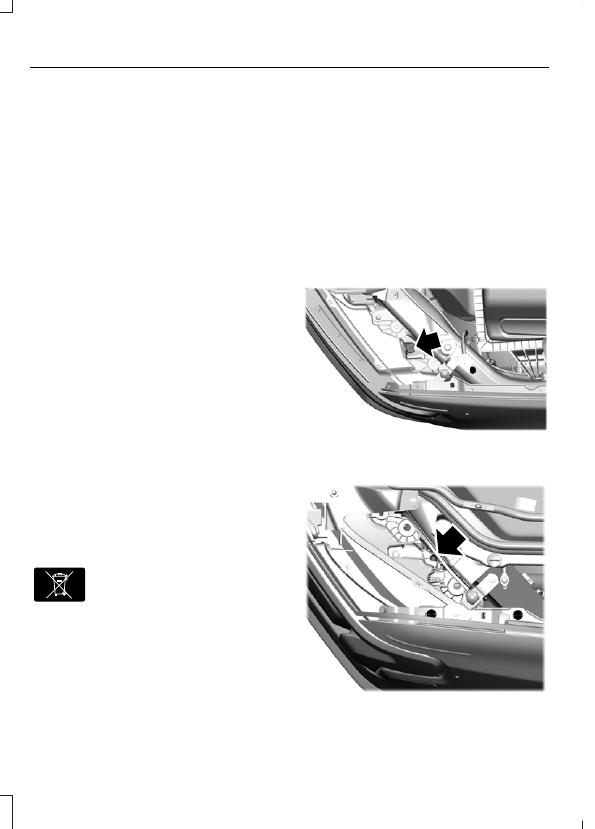

E358907

Hi Series LED Headlamp Adjuster

E359273

496

Maintenance

Headlamp Aiming Target

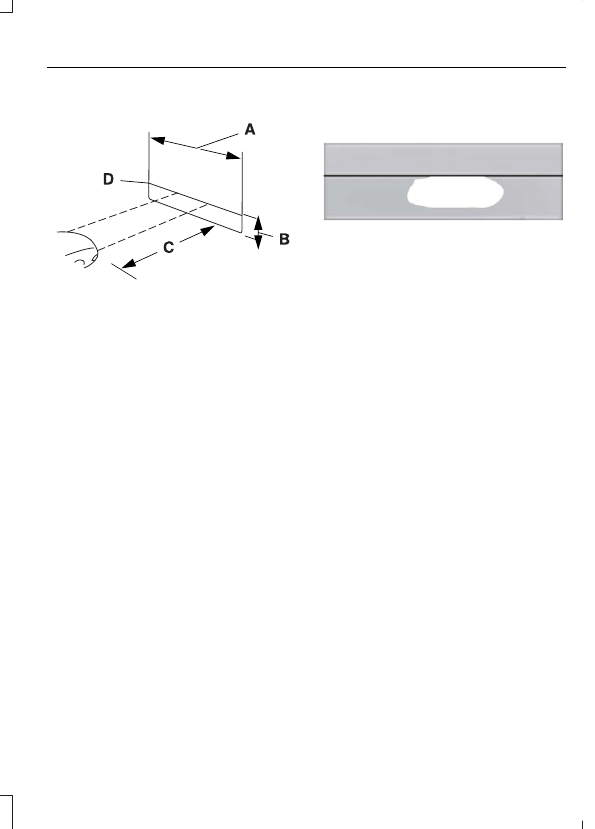

E142592

8 feet (2.4 m).

Center height of lamp to ground.

25 feet (7.6 m).

Horizontal reference line.

Park your vehicle directly in front of a
wall or screen on a level surface,
approximately 25 ft (7.6 m) away.

2. Measure the height from the center of

your headlamp, indicated by a 3
millimeter circle on the lens, to the
ground and mark an 8 ft (2.4 m)
horizontal reference line on the vertical
wall or screen at this height, a piece of
masking tape works well.

3. Switch on the low beam headlamps to

illuminate the wall or screen and open
the hood. Cover one of the headlamps
so no light hits the wall.

E167358

4. On the wall or screen, observe a light

pattern with a distinct horizontal edge
toward the right. If this edge is not at
the horizontal reference line, adjust the
beam so the edge is at the same height
as the horizontal reference line.

5. Locate the vertical adjuster on each

headlamp. Use a #2 Phillips
screwdriver to turn the adjuster either
counterclockwise or clockwise in order
to adjust the vertical aim of the
headlamp.

6. Repeat Steps 3 through 7 to adjust the

other headlamp.

Close the hood and turn off the lamps.

Horizontal Aim Adjustment

You do not need to perform horizontal aim
for this vehicle. It is not adjustable.

ADJUSTING THE HEADLAMPS
- VEHICLES WITH: HALOGEN
HEADLAMPS

Vertical Aim Adjustment

The headlamps on your vehicle are
properly aimed at the assembly plant. If
your vehicle has been in an accident,
contact an authorized dealer to check and
realign your headlamps.

497

Maintenance

Headlamp Aiming Target

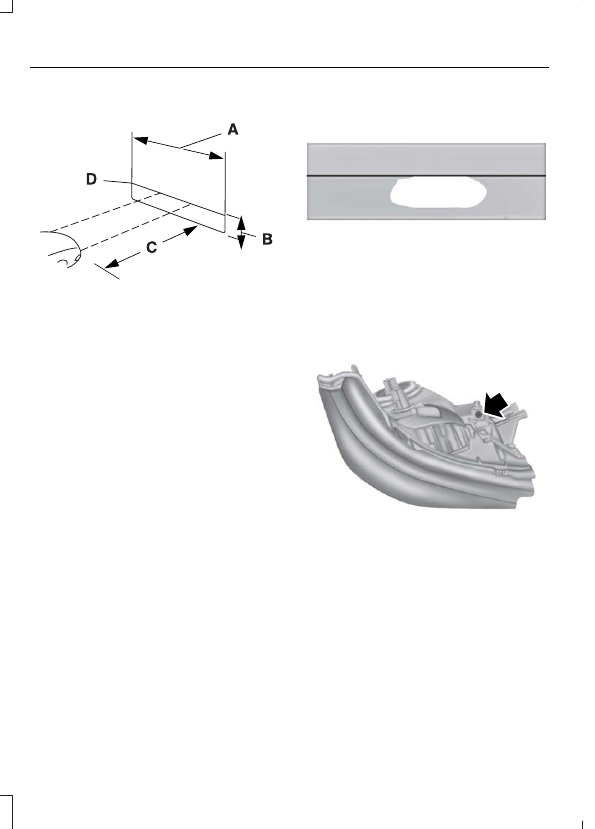

E142592

8 feet (2.4 m).

Center height of lamp to ground.

25 feet (7.6 m).

Horizontal reference line.

Park your vehicle directly in front of a
wall or screen on a level surface,
approximately 25 ft (7.6 m) away.

2. Measure the height from the center of

3. Switch on the low beam headlamps to

illuminate the wall or screen and open
the hood. Cover one of the headlamps
so no light hits the wall.

E167358

4. On the wall or screen, observe a light

pattern with a distinct horizontal edge
toward the right. If this edge is not at
the horizontal reference line, adjust the
beam so the edge is at the same height
as the horizontal reference line.

E163806

5. Locate the vertical adjuster on each

headlamp. Use a #2 Phillips
screwdriver to turn the adjuster either
counterclockwise or clockwise in order
to adjust the vertical aim of the
headlamp.

6. Repeat Steps 3 through 7 to adjust the

other headlamp.

Close the hood and turn off the lamps.

Horizontal Aim Adjustment

Horizontal aim is not required for this
vehicle and is not adjustable.

498

Maintenance

EXTERIOR BULBS

EXTERIOR BULB SPECIFICATION
CHART

Replacement bulbs are specified in the
chart below. Headlamp bulbs must be

marked with an authorized D.O.T. marking
for North America to make sure they have
the proper lamp performance, light
brightness, light pattern and safe visibility.
The correct bulbs will not damage the
lamp assembly or void the lamp assembly
warranty and will provide quality bulb
illumination time.

Power (Watt)

Specification

Lamp

912

Central high mounted stop lamp.

LED

Central high mounted cargo lamp.
Vehicles with cargo box.

LED

Daytime running lamp (XLT optional,
Lariat, Platinum, King Ranch, Limited).

H11

Daytime running lamp (XLT optional,
XL).

LED

Front turn signal and parking lamp
(XLT optional, Lariat, Platinum, King
Ranch, Limited).

21/5

4257NA

Front turn signal and parking lamp
(XLT optional, XL).

LED

Front fog lamp (XLT optional, Lariat,
Platinum, King Ranch, Limited).

9140

Front fog lamp (XL and XLT optional).

LED

Front side marker lamp (Lariat
optional, Platinum, King Ranch,
Limited).

W5W

Front side marker lamp (Lariat
optional, XL, XLT).

LED

Headlamp (XLT optional, Lariat, Plat-
inum, King Ranch, Limited).

H11

Headlamp low beam (XLT optional,
XL).

9005

Headlamp high beam (XLT optional,
XL).

W5W

License plate lamp.

499

Maintenance

Power (Watt)

Specification

Lamp

LED

Puddle lamp.

LED

Rear cargo box lamp.

WTY21W

Rear turn signal (XL optional).

21/7

WT21W/7W

Rear lamp, stop lamp (XL optional).

21/7

WT21W/7W

Rear lamp, stop lamp, rear turn signal
and rear side marker lamp (XL
optional, XLT).

WT21W

Reversing lamp (XL optional).

LED

Reversing lamp (XL optional, XLT).

LED

Side turn signal lamp.

LED

Taillamp-all functions (Lariat, Plat-
inum, King Ranch, Limited).

Note:

LED lamps are not serviceable. See an authorized dealer if they fail.

500

Maintenance

REMOVING A REAR LAMP
ASSEMBLY

Make sure the headlamps are off.

2. Open the tailgate to access the rear

lamp assemblies.

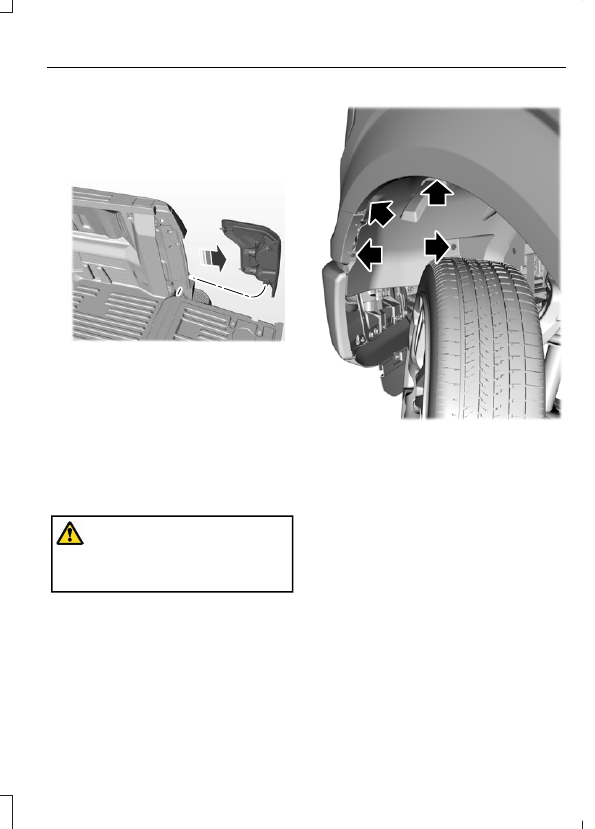

E187288

3. Remove the two bolts from the tail

lamp assembly. Then, carefully pull the
lamp assembly from the tailgate pillar
by releasing the two retaining tabs.

4. Disconnect the electrical connector

from the bulb.

5. To install, reverse the removal

procedure.

CHANGING A HEADLAMP BULB

WARNING:

Make sure the bulbs

have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.

Accessing the Halogen High Beam
and Low Beam Bulbs

Rotate the steering wheel to the
opposite side of the bulb needing
replacement.

E183762

2. Remove the screws and push pins from

the front of the wheel liner.

3. Pull the wheel liner back towards the

tire to gain access to the bulbs.

501

Maintenance

Replacing the Halogen High Beam
and Low Beam Bulbs

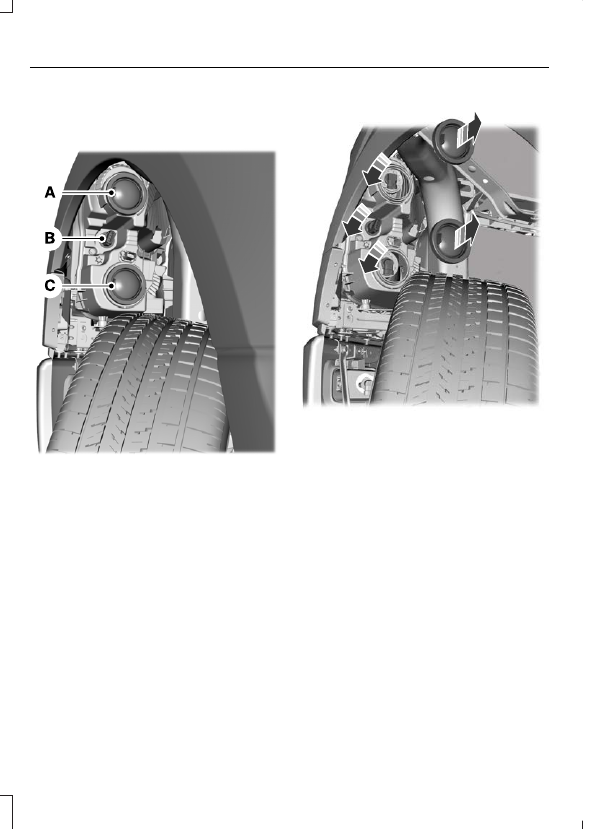

E183500

Low beam headlamp bulb.

Turn signal lamp bulb.

High beam headlamp bulb.

E183763

Make sure the headlamps are off.

2. For the high beam and low beam bulbs,

remove the rubber cap to access the
bulbs.

3. Remove the bulb holder from the lamp

assembly by turning it
counterclockwise and pulling it straight
out.

4. Disconnect the bulb from the electrical

connector.

5. To install, reverse the removal

procedure.

Note:

Handle a halogen headlamp bulb

carefully and keep out of children’s reach.
Grasp the bulb only by its plastic base and
do not touch the glass. The oil from your
hand could cause the bulb to break the next
time the headlamps are operated.

502

Maintenance

Note:

If the bulb is accidentally touched,

clean it with rubbing alcohol before
installing it.

CHANGING A FRONT TURN
SIGNAL LAMP BULB

WARNING:

Make sure the bulbs

have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.

Rotate the steering wheel to the
opposite side of the bulb needing
replacement.

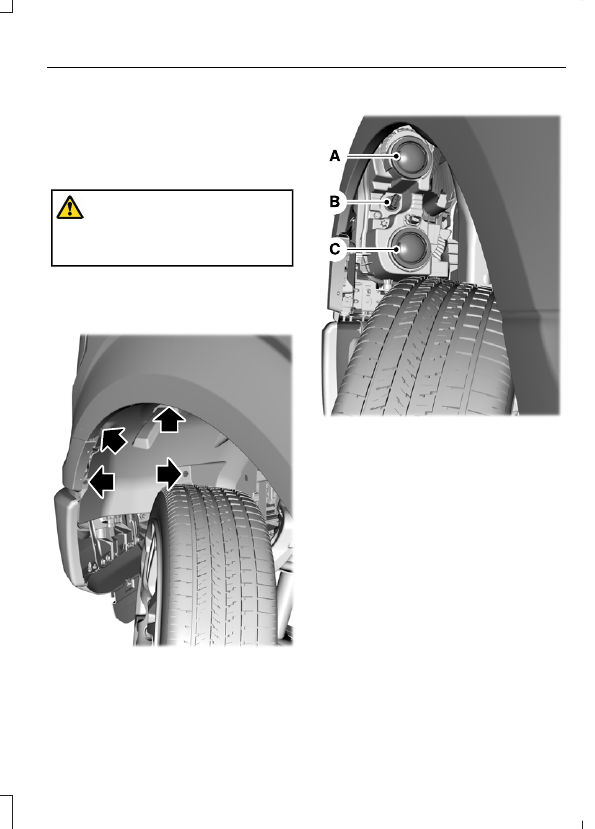

E183762

2. Remove the screws and push pins from

the front of the wheel liner.

3. Pull the wheel liner back toward the

tire to gain access to the bulb.

E183500

Low beam headlamp bulb.

Turn signal lamp bulb.

High beam headlamp bulb.

503

Maintenance

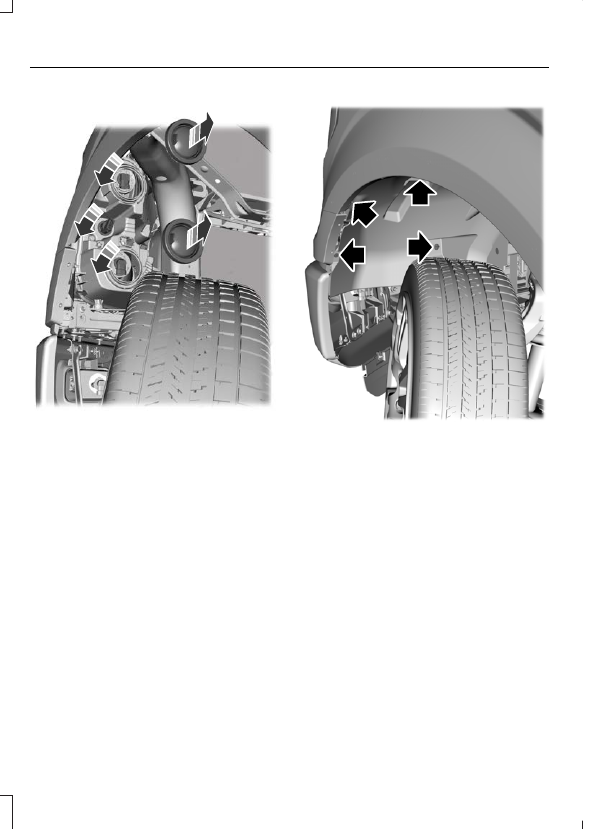

E183763

Make sure the headlamps are off.

2. Remove the bulb holder from the lamp

assembly by turning it
counterclockwise and pulling it straight
out.

3. Disconnect the bulb from the electrical

connector.

4. To install, reverse the removal

procedure.

CHANGING A FRONT SIDE
MARKER LAMP BULB

Rotate the steering wheel to the
opposite side of the bulb needing
replacement.

E183762

2. Remove the screws and push pins from

the front of the wheel liner.

3. Pull the wheel liner back toward the

tire to gain access to the bulb.

504

Maintenance

Ford F-150 (2022 year). Manual in english - page 30
