WHAT IS REVERSE BRAKING
ASSIST

The system uses sensors on the rear of
your vehicle to detect a possible collision
and applies the brakes to either reduce the
damage from impact, or to assist in
avoiding the collision.

HOW DOES REVERSE
BRAKING ASSIST WORK

Reverse Braking Assist functions when in
reverse (R) and traveling at a speed of
1–7 mph (1.5–12 km/h).

If the system detects an obstacle behind
your vehicle, it provides a warning through
the rear parking aid or cross traffic alert
system.

REVERSE BRAKING ASSIST
PRECAUTIONS

WARNING:

You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.

WARNING:

To help avoid personal

injury, always use caution when in
reverse (R) and when using the sensing
system.

WARNING:

The system may not

operate properly during severe weather
conditions, for example snow, ice, heavy
rain and spray. Always drive with due
care and attention. Failure to take care
may result in a crash.

WARNING:

Traffic control systems,

inclement weather, air brakes, external
motors and fans may affect the correct
operation of the sensing system. This
may cause reduced performance or false
alerts.

WARNING:

Some situations and

objects prevent hazard detection. For
example low or direct sunlight, inclement
weather, unconventional vehicle types,
and pedestrians. Apply the brakes when
necessary. Failure to follow this
instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING:

Do not use the system

with accessories that extend beyond the
front or rear of your vehicle, for example
a trailer hitch or bike rack. The system is
not able to make corrections for the
additional length of the accessories.

The system only applies the brakes for a
short period of time when an event occurs.
Act as soon as you notice the brakes apply
in order to remain in control of the vehicle.

Note:

Certain add-on devices around the

bumper or fascia may create false alerts.
For example, large trailer hitches, bicycle or
surfboard racks, license plate brackets,
bumper covers or any other device that may
block the normal detection zone of the
system. Remove the add-on device to
prevent false alerts.

Note:

The system does not react to small

or moving objects, particularly those close
to the ground.

Note:

The system does not operate during

hard acceleration or steering.

245

Reverse Braking Assist

Note:

If your vehicle sustains damage to

the bumper or fascia leaving it misaligned
or bent, it could alter the sensing zone
causing inaccurate measurement of
obstacles or false alerts.

Note:

Vehicle loading and suspension

changes can impact the angle of the sensors
and may change the normal detection zone
of the system resulting in inaccurate
measurement of obstacles or false alerts.

Note:

When you connect a trailer, the

system may detect the trailer and provide
an alert, or the system turns off. If the
system does not turn off, switch the system
off manually after you connect the trailer.

Note:

You may experience reduced system

performance on road surfaces that limit
deceleration. For example, roads with ice,
loose gravel, mud or sand.

SWITCHING REVERSE
BRAKING ASSIST ON AND OFF

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Switch

Reverse Brake Assist

on or off.

Note:

The system is unavailable when rear

parking aid or cross traffic alert is off.

OVERRIDING REVERSE
BRAKING ASSIST

There could be instances when
unexpected or unwanted braking occurs.
Firmly pressing the accelerator pedal or
switching the feature off overrides the
system.

REVERSE BRAKING ASSIST
INDICATORS

If the system determines that a collision
with an obstacle may occur, full braking
may apply. Bring your vehicle to a stop a
safe distance away from the obstacle.

E293490

A message and warning
indicator appear when the
system applies the brakes.

REVERSE BRAKING ASSIST – TROUBLESHOOTING

REVERSE BRAKING ASSIST – INFORMATION MESSAGES

Action

Message

Make sure that all doors, liftgate and hood

are closed. Drive the vehicle on a straight

road for a short period. Make sure the

parking aids and cross traffic alert systems
are on. If the message remains on, have the

system checked as soon as possible.

Reverse Brake Assist Not Available See

Manual

Displays when a system error has occurred.

Have your vehicle checked as soon as

possible.

Reverse Brake Assist Fault

Displays when reverse brake assist is off.

Reverse Brake Assist Off

246

Reverse Braking Assist

REVERSE BRAKING ASSIST –
FREQUENTLY ASKED QUESTIONS

Why is reverse braking assist unavailable?

•

Make sure that all doors, liftgate and
hood are closed. Drive the vehicle on a
straight road for a short period. If the
message remains, contact an
authorized dealer.

•

Make sure the cross traffic alert system
is on. See

Locating the Rear Parking

Aid Sensors

(page 258).

•

Make sure the rear parking aid system
is on. See

Switching Parking Aid On

and Off

(page 257).

•

Make sure traction control is on. See

Traction Control

(page 251).

•

The vehicle has sustained a rear end
impact. Contact an authorized dealer
to have the sensors checked for proper
coverage and operation.

•

An ABS, traction control or stability
control event may have occurred.
Reverse braking assist resumes
operation when the event is complete.

•

Make sure the rear view camera and
360 degree camera are not dirty or
obstructed. If dirty, clean the camera.
If the message still appears after
cleaning the camera, wait a short time
and the message should clear. If the
message does not clear, contact an
authorized dealer.

•

Make sure there are no blocked or
faulted sensors. See

Locating the

Rear Parking Aid Sensors

(page 258).

•

You recently had your vehicle serviced,
or the battery disconnected. Drive your
vehicle a short distance to resume
system operation.

•

Reverse braking assist does not
function when you connect a trailer.
Operation resumes when you
disconnect the trailer.

Note:

If the answers to why the system is

unavailable do not assist in returning reverse
braking assist to available, have the system
checked as soon as possible.

247

Reverse Braking Assist

WHAT IS HILL START ASSIST

Hill Start Assist makes it easier for you to
pull away when your vehicle is on a slope
without using the parking brake.

HOW DOES HILL START
ASSIST WORK

When the system activates, your vehicle
remains stationary for a few seconds after
you release the brake pedal. This gives you
time to move your foot from the brake
pedal to the accelerator pedal. The brakes
release when the engine has developed
sufficient torque to prevent your vehicle
from rolling down the slope.

HILL START ASSIST
PRECAUTIONS

WARNING:

The system does not

replace the parking brake. When you
leave your vehicle, always apply the
parking brake.

WARNING:

You must remain in

your vehicle when the system turns on.
At all times, you are responsible for
controlling your vehicle, supervising the
system and intervening, if required.
Failure to take care may result in the loss
of control of your vehicle, serious
personal injury or death.

WARNING:

The system will turn

off if a malfunction is apparent. Failure
to take care may result in the loss of
control of your vehicle, serious personal
injury or death.

HILL START ASSIST –
TROUBLESHOOTING

HILL START ASSIST –
INFORMATION MESSAGES

Action

Message

Displays when

system is not avail-

able. Have your

vehicle checked as

soon as possible.

Hill Start Assist Not

Available

248

Hill Start Assist

HOW DOES AUTO HOLD WORK

Auto Hold applies the brakes to hold your
vehicle after you stop it and release the
brake pedal. This can help when waiting
on a hill or in traffic.

SWITCHING AUTO HOLD ON
AND OFF - VEHICLES WITH:
SYNC 3 LITE, VEHICLES
WITHOUT: SYNC

WARNING:

The system does not

replace the parking brake. When you
leave your vehicle, always apply the
parking brake.

WARNING:

You must remain in

WARNING:

The system will turn

off if a malfunction is apparent. Failure
to take care may result in the loss of
control of your vehicle, serious personal
injury or death.

Close the driver door and fasten your
seatbelt before you switch the system on.

Press the button on the center
console.

Note:

The system remembers the last

setting when you start your vehicle.

Note:

Make sure you switch the system off

before using an automatic car wash.

SWITCHING AUTO HOLD ON
AND OFF - VEHICLES WITH:
SYNC 4

WARNING:

The system does not

replace the parking brake. When you
leave your vehicle, always apply the
parking brake.

WARNING:

You must remain in

WARNING:

The system will turn

off if a malfunction is apparent. Failure
to take care may result in the loss of
control of your vehicle, serious personal
injury or death.

Close the driver door and fasten your
seatbelt before you switch the system on.

Press the button on the
instrument panel.

Note:

The system remembers the last

setting when you start your vehicle.

Note:

Make sure you switch the system off

before using an automatic car wash.

USING AUTO HOLD

Bring your vehicle to a complete stop.
The auto hold active indicator
illuminates in the information display.

2. Release the brake pedal. The system

holds your vehicle at a standstill. The
auto hold active indicator remains
illuminated in the information display.

249

Auto Hold

3. Pull away in the normal manner. The

system releases the brakes and the
auto hold active indicator switches off.

Note:

The system only activates if you

apply enough brake pressure on the brake
pedal.

Note:

Under certain conditions, the system

could apply the electric parking brake. The
brake system warning lamp illuminates. The
electric parking brake releases when you
press the accelerator pedal. See

Automatically Releasing the Electric
Parking Brake

(page 242).

Note:

The system switches off if you shift

into reverse (R) and press the brake pedal.

There could be actions that can cause the
auto hold system not to work when the
following occur:
•

When you use active park assist.

•

Your vehicle is in stay in neutral mode.

•

The driver door is open.

•

You have not fastened your seatbelt.

•

You shift into reverse (R) before the
system is active.

AUTO HOLD INDICATORS

Illuminates when the system is
active. Your vehicle remains
stationary after you release the

brake pedal.

Illuminates when the system is
on but unavailable to hold your
vehicle at a standstill.

250

Auto Hold

WHAT IS TRACTION CONTROL

The traction control system helps to avoid
drive wheel spin and loss of traction.

HOW DOES TRACTION
CONTROL WORK

If your vehicle begins to slide, the system
applies the brakes to individual wheels
and, when needed, reduces power at the
same time. If the wheels spin when
accelerating on slippery or loose surfaces,
the system reduces power in order to
increase traction.

SWITCHING TRACTION
CONTROL ON AND OFF -
VEHICLES WITH: SYNC 3 LITE,
VEHICLES WITHOUT: SYNC

WARNING:

Operating your vehicle

with the traction control disabled could
lead to an increased risk of loss of vehicle
control, vehicle rollover, personal injury
and death.

The traction control system turns on each
time you switch the power on.

If your vehicle is stuck in mud or snow,
switching traction control off may be
beneficial as this allows the wheels to spin.

E313166

Press the traction control button
on the instrument panel to
switch the system off or on.

Note:

When you switch traction control off,

stability control remains partially active.

Note:

Your vehicle could have MyKey

restrictions regarding this feature. See

What

Is MyKey

(page 83).

SWITCHING TRACTION
CONTROL ON AND OFF -
VEHICLES WITH: SYNC 4

WARNING:

Operating your vehicle

with the traction control disabled could
lead to an increased risk of loss of vehicle
control, vehicle rollover, personal injury
and death.

The traction control system turns on each
time you switch the power on.

If your vehicle is stuck in mud or snow,
switching traction control off may be
beneficial as this allows the wheels to spin.

Press the menu button on the steering
wheel to enter the instrument cluster
display main menu.

2. Using the information display controls

on the steering wheel, select

Driver

Assist.

3. Switch

Traction Control

on or off.

Note:

When you switch traction control off,

stability control remains partially active.

Note:

Your vehicle could have MyKey

restrictions regarding this feature. See

What

Is MyKey

(page 83).

TRACTION CONTROL
INDICATOR

E138639

Flashes during operation.

If it does not illuminate when you
switch the ignition on, or remains

on when the engine is running, this
indicates a malfunction. Have your vehicle
checked as soon as possible.

251

Traction Control

TRACTION CONTROL –
TROUBLESHOOTING

TRACTION CONTROL – WARNING
LAMPS

E130458

It illuminates when you switch
the system off.

TRACTION CONTROL – INFORMATION MESSAGES

Details

Message

The status of the traction control system after you switched

it off.

Traction Control Off

The status of the traction control system after you switched

it on.

Traction Control On

You can switch off traction control on the steering wheel to

allow the wheels to spin. If you switched traction control off,

the system turns on when your vehicle speed is greater than

15 mph (25 km/h).

Turn Off Traction

Control To Aid in Getting

Unstuck?

252

Traction Control

WHAT IS STABILITY CONTROL

The system is designed to support stability
when your vehicle starts to slide away from
your intended path.

E72903

Without stability control.

With stability control.

HOW DOES STABILITY
CONTROL WORK

The system works by braking individual
wheels and reducing engine speed.

SWITCHING STABILITY
CONTROL ON AND OFF

WARNING:

Vehicle modifications

involving braking system, aftermarket
roof racks, suspension, steering system,
tire construction and wheel and tire size
may change the handling characteristics
of your vehicle and may adversely affect
the performance of the electronic
stability control system. In addition,
installing any stereo speakers may
interfere with and adversely affect the
electronic stability control system.
Reducing the effectiveness of the
electronic stability control system could
lead to an increased risk of loss of vehicle
control, vehicle rollover, personal injury
and death.

WARNING:

Remember that even

advanced technology cannot defy the
laws of physics. It's always possible to
lose control of a vehicle due to
inappropriate driver input for the
conditions. Aggressive driving on any
road condition can cause you to lose
control of your vehicle increasing the risk
of personal injury or property damage.
Activation of the electronic stability
control system is an indication that at
least some of the tires have exceeded
their ability to grip the road; this could
reduce the operator's ability to control
the vehicle potentially resulting in a loss
of vehicle control, vehicle rollover,
personal injury and death.

The system turns on when you switch the
power on and you cannot switch the
system off.

The system is disabled when you shift into
reverse (R).

253

Stability Control

ELECTRIC POWER STEERING

ELECTRIC POWER STEERING
PRECAUTIONS

WARNING:

The electric power

steering system has diagnostic checks
that continuously monitor the system. If
a fault is detected, a message displays
in the information display. Stop your
vehicle as soon as it is safe to do so.
Switch the vehicle off. After at least 10
seconds, switch the vehicle on and
watch the information display for a
steering system warning message. If a
steering system warning message
returns, have the system checked as
soon as possible.

WARNING:

If the system detects

an error, you may not feel a difference in
the steering, however a serious condition
may exist. Have your vehicle checked as
soon as possible. Failure to do so may
result in loss of steering control.

Adapt your speed and driving behavior
according to reduced steering assist.

Extreme continuous steering may increase
the effort to steer. This occurs to prevent
internal overheating and damage to the
steering system. If this occurs, you will not
lose the ability to steer your vehicle
manually nor will it cause damage to the
system. Normal steering and driving allows
the system to cool down and steering
assist returns to normal.

Note:

There is no fluid reservoir to check or

fill.

ELECTRIC POWER STEERING
ADAPTIVE STEERING

The adaptive steering system changes the
steering ratio with changes to vehicle
speed, optimizing the steering response in
all conditions. The system also changes
when you switch on the transmission
tow/haul feature. When you select the
tow/haul button, the adaptive steering
system reduces vehicle sensitivity to
steering inputs at higher vehicle speeds,
while maintaining the ease of parking and
maneuverability at low speeds.

Note:

The adaptive steering system

continuously monitors for faults. If the
system detects a fault, a message appears
in the information display. If a red warning
message displays, stop your vehicle as soon
as it is safe to do so. The message could
clear if the fault is no longer present. If an
adaptive steering system warning message
appears each time you start your vehicle,
have the system checked as soon as
possible.

Note:

The system has a locking device. It

remains mechanically locked at a fixed
steering ratio with the lock engaged. You
may notice a click when you turn your
vehicle on or off.

Note:

If your vehicle loses electrical power

or detects a fault when you are driving, the
system shuts down and you retain a normal
steering function with a fixed steering ratio.
During this time, it is possible that the
steering wheel could not be straight when
the vehicle is driving straight ahead. In
addition, you could notice that the steering
wheel angle required to steer your vehicle
could be different.

255

Steering

Note:

During parking maneuvers, the

adaptive steering system balances the driver
workload for various steering wheel inputs
and vehicle loading conditions. Under
extreme operating conditions the system
locking device could engage. This strategy
prevents overheating and permanent
damage to the adaptive steering system.
Typical steering and driving maneuvers
allow the system to cool and return to
normal operation.

Adaptive Learning

Adaptive learning helps correct road
irregularities and improves overall handling
and steering. It communicates with the
brake system to help operate advanced
stability control and crash avoidance
systems. Additionally, whenever you
disconnect the battery or install a new
battery, you must drive your vehicle a short
distance before the system relearns the
strategy and reactivates all systems.

STEERING –
TROUBLESHOOTING

STEERING – WARNING
INDICATORS

E223375

The adaptive steering system
indicator illuminates if the
system detects a fault during the

continuous diagnostic checks.

Note:

If a red warning message displays,

stop your vehicle as soon as it is safe to do
so.

STEERING – INFORMATION MESSAGES

Action

Message

The power steering system has detected a

condition that requires service. Have your

vehicle checked as soon as possible.

Steering Fault Service Now

The power steering system is not working.
Stop your vehicle in a safe place. Have your

vehicle checked as soon as possible.

Steering Loss Stop Safely

The power steering system has detected a

condition that requires service. Have your

vehicle checked as soon as possible.

Steering Assist Fault Service Required

The steering system has detected a condi-
tion that requires service. Have your vehicle

checked as soon as possible.

Steering Lock Malfunction Service Now

256

Steering

PARKING AID PRECAUTIONS

WARNING:

To help avoid personal

injury, always use caution when in
reverse (R) and when using the sensing
system.

WARNING:

The system may not

detect objects with surfaces that absorb
reflection. Always drive with due care
and attention. Failure to take care may
result in a crash.

WARNING:

Traffic control systems,

fluorescent lamps, inclement weather,
air brakes, external motors and fans may
affect the correct operation of the
sensing system. This may cause reduced
performance or false alerts.

WARNING:

The system may not

detect small or moving objects,
particularly those close to the ground.

WARNING:

The parking aid system

can only assist you to detect objects
when your vehicle is moving at parking
speeds. To help avoid personal injury you
must take care when using the parking
aid system.

WARNING:

The system may not

function if the sensor is blocked.

WARNING:

In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all
limit sensor performance.

WARNING:

If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

Note:

If your vehicle sustains damage

leaving the sensors misaligned, this will
cause inaccurate measurements or false
alerts.

When you connect a trailer to your vehicle,
the rear parking aid detects the trailer and
provides an alert. Disable the parking aid
when you connect a trailer to prevent the
alert.

Note:

Certain add-on devices installed

around the bumper or fascia may create
false alerts, for example, large trailer
hitches, bike or surfboard racks, license plate
brackets, bumper covers or any other device
that could block the normal detection zone
of the parking aid system. Aftermarket spare
tires or spare tire covers mounted to the rear
tailgate could cause false alerts from the
park aid system. Remove the add-on device
to prevent false alerts.

Note:

Keep the sensors free from snow, ice

and large accumulations of dirt. If the
sensors are covered, the system's accuracy
can be affected.

Do not clean the sensors with sharp
objects.

Note:

When using a programmed MyKey,

you cannot switch the parking aids off. See

MyKey™

(page 83).

SWITCHING PARKING AID ON
AND OFF - VEHICLES WITH:
SYNC 3 LITE, VEHICLES
WITHOUT: SYNC

E139213

You can turn the system on or
off by pressing the parking aid
button. If your vehicle does not

have a parking aid button, the system can
be switched off through the information
display menu or from the pop-up message
that appears once you shift the
transmission into reverse (R).

257

Parking Aids

SWITCHING PARKING AID ON
AND OFF - VEHICLES WITH:
SYNC 4

E326188

Press the parking aid button and
use the menu to turn the system
on and off.

The system can also be turned off using
the pop-up message that appears when
you are in reverse (R).

REAR PARKING AID

WHAT IS THE REAR PARKING AID

Rear parking sensors detect objects behind
your vehicle when in reverse (R).

REAR PARKING AID LIMITATIONS

There is a decreased coverage area at the
outer corners.

When using a programmed MyKey, you
cannot switch the rear parking aid off.

The rear parking aid sensors are active
when your vehicle is in reverse (R) and the
vehicle speed is less than 5 mph (8 km/h).

The sensor coverage area is up to 71 in
(180 cm) from the rear bumper.

The rear parking aid detects large objects
when you shift into reverse (R) and any of
the following occur:
•

Your vehicle is moving backward at a
low speed.

•

Your vehicle is stationary but an object
is approaching the rear of your vehicle
at a low speed.

•

Your vehicle is moving backward at a
low speed and an object is moving
towards your vehicle, for example
another vehicle at a low speed.

LOCATING THE REAR PARKING
AID SENSORS

E130178

The rear parking aid sensors are in the rear
bumper.

REAR PARKING AID AUDIBLE
WARNINGS

A warning tone sounds when your vehicle
approaches an object. As your vehicle
moves closer to an object, the rate of the
tone increases. The warning tone
continuously sounds when an object is 12 in
(30 cm) or less from the rear bumper.

If your vehicle remains stationary for a few
seconds, the audible warning turns off. If
your vehicle moves backward the tone
sounds again.

Note:

When the parking aid system sounds

a tone, the audio system could reduce the
set volume.

FRONT PARKING AID

WHAT IS THE FRONT PARKING
AID

Front parking sensors detect objects in
front of your vehicle.

258

Parking Aids

FRONT PARKING AID
LIMITATIONS

The front parking aid sensors are active
when your vehicle is in any position other
than park (P) and the vehicle speed is less
than 5 mph (8 km/h).

The sensor coverage area is up to 28 in
(70 cm) from the bumper.

If your vehicle is in reverse (R), the front
parking aid detects objects when your
vehicle is moving at a low speed or an
object is moving toward your vehicle and
provides an audio warning, for example
another vehicle at a low speed. Once your
vehicle reaches a stop, the audio warning
stops after a few seconds. Visual indication
is always active in reverse (R).

If your vehicle is in any forward gear, the
front parking aid provides audible warnings
and visual indication when your vehicle is
moving at a speed of 5 mph (8 km/h) or
below and the system detects an object
within the detection zone. Once your
vehicle reaches a stop, the visual indication
and audio warning stops after a few
seconds.

If your vehicle is in neutral (N), the front
and rear sensors provide visual indication
only when your vehicle is moving below a
speed of 5 mph (8 km/h) and obstacles
are detected inside the detection areas.
Once your vehicle stops, the visual
indication and audio warning stops after
a few seconds.

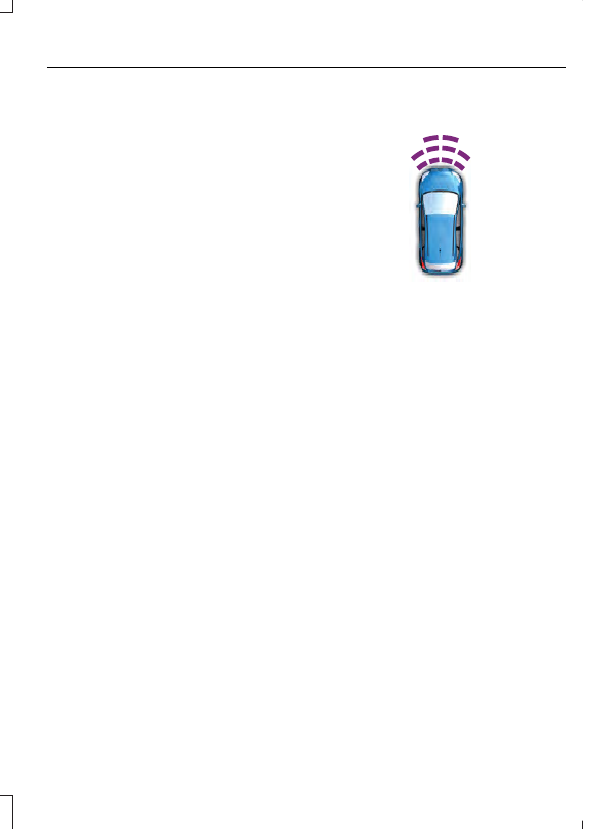

LOCATING THE FRONT PARKING
AID SENSORS

E187330

The front parking aid sensors are in the
front bumper.

FRONT PARKING AID AUDIBLE
WARNINGS

A warning tone sounds when there is an
object within 28 in (70 cm) from the front
bumper. As your vehicle moves closer to
an object, the rate of the tone increases.

The warning tone continuously sounds
when an object is 12 in (30 cm) or less from
the front bumper.

Note:

If the detected object is 12 in (30 cm)

or less from your vehicle, visual indication
remains on.

SIDE PARKING AID

WHAT IS THE SIDE PARKING AID

The front and rear outermost parking aid
sensors map objects that are near to the
sides of your vehicle.

SIDE PARKING AID LIMITATIONS

The sensor coverage is up to 24 in (60 cm)
from the sides of your vehicle.

259

Parking Aids

The side parking aid may not function if:
•

Your vehicle remains stationary for over
two minutes.

•

The anti-lock brake system activates.

•

The traction control system activates.

•

Your vehicle is in park (P).

•

The steering wheel angle information
is not available. You must drive at least
492 ft (150 m) above 19 mph
(30 km/h) to reset the steering wheel
angle information.

Note:

If you switch traction control off, the

side sensing system also turns off.

To reinitialize the system, drive the length
of your vehicle.

The side parking aid does not detect an
object that is moving toward the side of
your vehicle, for example another vehicle
moving at a low speed, if it does not pass
a front or rear parking aid sensor.

If the transmission is in reverse (R), the side
sensing system provides audible warnings.
When your vehicle is moving slowly,
obstacles are detected within 24 in
(60 cm) and are inside the driving path of
your vehicle. Once your vehicle reaches a
standstill condition, the audible warning
stops after a few seconds. Visual indication
is always present in reverse (R).

If your vehicle is in neutral (N), the side
sensing system provides visual indication
only when your vehicle is moving slowly
and there is a front or rear park aid
obstacle detected, and the side obstacle
is within 24 in (60 cm) from the side of
your vehicle. Once your vehicle reaches a
stop, the visual indication stops after a few
seconds.

If the transmission is in drive (D) or any
other forward gear, the side sensing system
provides audible and visual warnings.
When your vehicle is moving slowly,
obstacles are detected within 24 in
(60 cm) and are inside the driving path of
your vehicle. Once your vehicle reaches a
standstill condition, the audible warning
and visual indication stops after a few
seconds.

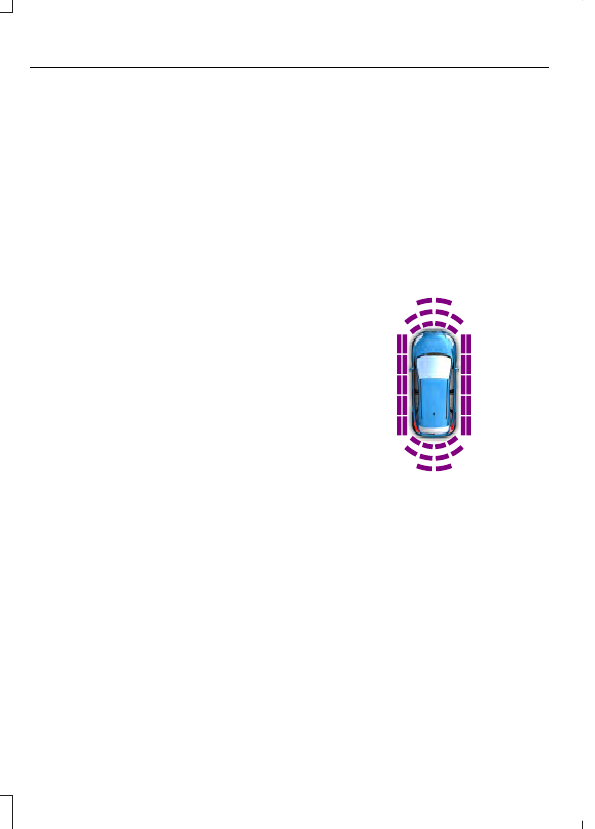

LOCATING THE SIDE PARKING AID
SENSORS

E190458

The side parking sensors are in the front
and rear bumpers.

SIDE PARKING AID AUDIBLE
WARNINGS

When the side parking aid detects an
object within the coverage area and the
driving path of your vehicle, an audible
warning sounds. As your vehicle moves
closer to the object, the rate of the tone
increases.

260

Parking Aids

Ford Transit (2022 year). Manual in english - page 15
