CHARGING YOUR VEHICLE –
FREQUENTLY ASKED QUESTIONS

Why does my vehicle not charge with
the mobile charger?

Ensure you properly connect the
connector and control box. Unplug the
charge coupler from the vehicle and
unplug the connector from the wall
outlet. Then check the connector to
be sure that the connector is
connected properly into the mobile
charger control box. If the mobile
charger is warm or in a hot
environment, try charging in a cooler
area. Try a different outlet or a
different connector if you have one
available. If the problem persists,
contact an authorized EV certified
dealer.

Why does my vehicle have a hum or fan
noise when charging?

A hum or a fan noise could be present
when charging the high voltage
battery. This is a normal operation as
your vehicle is keeping the battery cool
while charging.

Why does my information display say
that the vehicle is charged when it is
still pulling power from the charging
source?

In order to keep your battery at the
current level, a small amount of power
needs to be sourced from the wall to
power the vehicle electronics. Once
the vehicle is shut down, the vehicle
will stop drawing power.

229

Charging Your Vehicle - Electric Motor

AUTOMATIC TRANSMISSION
PRECAUTIONS

WARNING:

When your vehicle is

stationary, keep the brake pedal fully
pressed when shifting gears. Failure to
follow this instruction could result in
personal injury, death or property
damage.

WARNING:

Do not apply the brake

pedal and accelerator pedal
simultaneously. Applying both pedals
simultaneously for more than a few
seconds will limit power, which may
result in difficulty maintaining speed in
traffic and could lead to serious injury.

WARNING:

Apply the parking

brake, shift into park (P), switch the
vehicle off and remove the key or remote
control before you leave your vehicle.
Failure to follow this instruction could
result in personal injury or death.

Note:

You may not be able to shift out of

park (P) unless the intelligent access key is
inside your vehicle.

AUTOMATIC TRANSMISSION
POSITIONS

PARK (P)

WARNING:

Shift into park (P) only

when your vehicle is stationary.

In park (P), power is not transmitted to the
driven wheels.

Note:

A tone sounds if you attempt to exit

your vehicle without the transmission in park
(P).

Note:

Your vehicle may not shift out of park

(P) if the vehicle battery has run out of
charge. See

Jump Starting the Vehicle

(page 349).

Note:

You may not be able to shift out of

park (P) if a fuse is blown. See

Fuses

(page

358).

Note:

Your vehicle may not shift out of park

(P) unless the key or remote control is inside
your vehicle.

REVERSE (R)

WARNING:

Shift into reverse (R)

only when your vehicle is stationary.

In reverse (R) power is transmitted to the
driven wheels.

NEUTRAL (N)

WARNING:

In neutral (N) your

vehicle is free to roll.

In neutral (N), power is not transmitted to
the driven wheels.

DRIVE (D)

In drive (D) power is transmitted to the
driven wheels.

LOW (L)

In low (L) your vehicle holds low gears.

Note:

We recommend using this mode for

driving on hilly or mountainous roads or
when towing a trailer. See

Towing a Trailer

(page 332).

230

Automatic Transmission

SHIFTING YOUR VEHICLE INTO
GEAR - 1-SPEED AUTOMATIC
TRANSMISSION

E357776

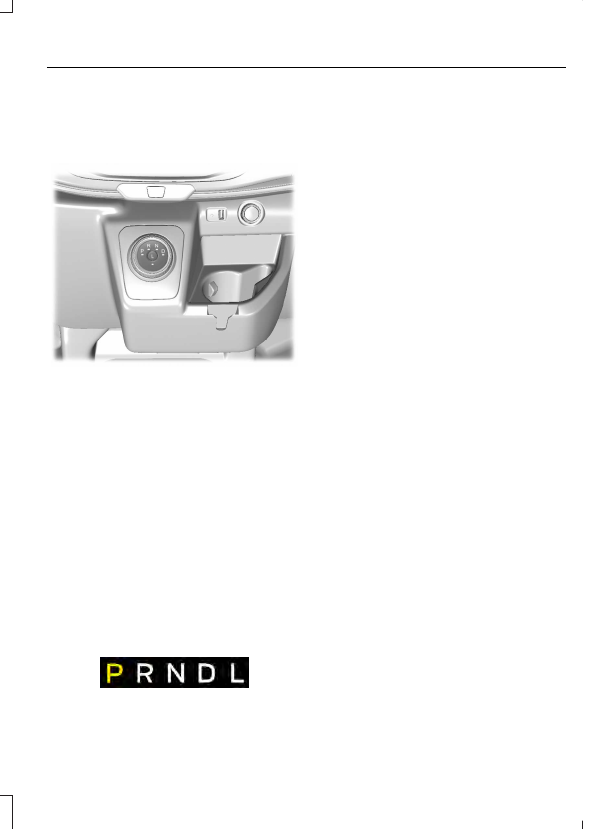

The transmission selector is on the center
console.

Press and hold the brake pedal.

2. Rotate the outer ring to select a

position.

Note:

The position illuminates on the

transmission selector.

3. Press the low (L) button when your

vehicle is in drive (D) to enter or exit
mode.

Note:

Your vehicle cannot shift from drive

(D) to park (P) with a clockwise rotation.
Your vehicle cannot shift from park (P) to
drive (D) with a counter-clockwise rotation.

AUTOMATIC TRANSMISSION
POSITION INDICATORS

E317777

The instrument cluster displays the current
position.

TEMPORARY NEUTRAL MODE
- 1-SPEED AUTOMATIC
TRANSMISSION

WHAT IS TEMPORARY NEUTRAL
MODE

This mode keeps your vehicle in neutral
(N) when you switch your vehicle off. Use
this mode at an automatic car wash if you
exit your vehicle, or switch your vehicle off.

Note:

Do not tow your vehicle in this mode.

Note:

Automatic return to park (P) is

delayed when your vehicle is in this mode.
See

How Does Automatic Return to Park

(P) Work

(page 232).

TEMPORARY NEUTRAL MODE
LIMITATIONS

Your vehicle could shift to park (P) after
30 minutes, or when the vehicle battery
charge level is low. Prolonged use of this
mode can cause the vehicle battery to run
out of charge.

Do not tow your vehicle in this mode.
Failure to follow these instructions could
result in vehicle damage not covered by
the vehicle warranty.

ENTERING TEMPORARY
NEUTRAL MODE

Power your vehicle on.

2. Bring your vehicle to a complete stop.

3. Press and hold the brake pedal.

4. Shift into neutral (N).

Note:

An instructional message appears.

5. Press the low (L) button.

Note:

A confirmation message appears

when your vehicle enters the mode.

6. Release the brake pedal.

231

Automatic Transmission

Note:

Your vehicle is free to roll.

Switch your vehicle off.

Note:

Do not tow your vehicle in this mode.

Note:

The neutral (N) indicator on the

transmission selector may flash in this
mode.

EXITING TEMPORARY NEUTRAL
MODE

Press the brake pedal.

2. Shift into park (P), or power your

vehicle on and shift into drive (D) or
reverse (R).

AUTOMATIC RETURN TO
PARK (P) - 1-SPEED
AUTOMATIC TRANSMISSION

HOW DOES AUTOMATIC RETURN
TO PARK (P) WORK

Your vehicle shifts into park (P) when your
vehicle is stationary and any of the
following occur:
•

You switch the vehicle off.

•

You unfasten the driver seatbelt and
exit the driver seat.

AUTOMATIC RETURN TO PARK
(P) LIMITATIONS

Automatic return to park could not work if
any of the following occur:
•

The driver seat sensor is
malfunctioning.

•

The driver seatbelt buckle switch is
malfunctioning.

BRAKE SHIFT INTERLOCK - 10-
SPEED AUTOMATIC
TRANSMISSION

WHAT IS BRAKE SHIFT
INTERLOCK

Brake shift interlock prevents you from
shifting out of park (P) when you have
switched the ignition on and not pressed
the brake pedal.

BRAKE SHIFT INTERLOCK
PRECAUTIONS

WARNING:

Do not drive your

vehicle until you verify that the
stoplamps are working.

WARNING:

When doing this

procedure, you need to take the
transmission out of park (P) which
means your vehicle can roll freely. To
avoid unwanted vehicle movement,
always fully apply the parking brake prior
to doing this procedure. Use wheels
chocks if appropriate.

WARNING:

If the parking brake is

fully released, but the brake warning
lamp remains illuminated, the brakes
may not be working properly. Have your
vehicle checked as soon as possible.

In the event of an electrical malfunction,
it is possible that a fuse has blown or the
stoplamps are not working. See

Identifying the Fuses in the Under Hood
Fuse Box

(page 359).

If the vehicle battery has no charge, jump
start your vehicle. See

Jump Starting the

Vehicle

(page 350).

232

Automatic Transmission

USING BRAKE SHIFT INTERLOCK

Use the brake shift interlock lever to move
the selector lever out of park (P) if you
cannot start the engine.

E182198

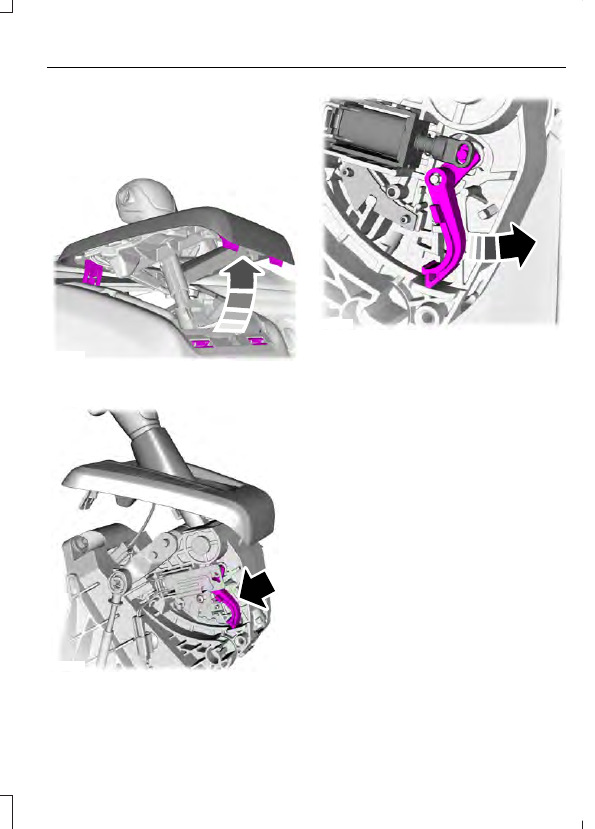

Using a flat-bladed screwdriver,
remove the panel.

E182199

2. Locate the brake shift interlock lever.

E174827

3. Push the brake shift interlock lever

toward the rear of your vehicle and
hold it there.

4. Move the selector lever from park (P)

to neutral (N).

5. Install the panel.

6. Press the brake pedal, start the engine

and release the parking brake.

AUTOMATIC TRANSMISSION
AUDIBLE WARNINGS - 1-SPEED
AUTOMATIC TRANSMISSION

Transmission Not in Park (P)
Audible Warning

Sounds when you open the driver door and
you have not moved the transmission
selector to park (P).

233

Automatic Transmission

AUTOMATIC TRANSMISSION
AUDIBLE WARNINGS - 10-
SPEED AUTOMATIC
TRANSMISSION

Transmission Not in Park (P)
Audible Warning

Sounds if any of the following occur:
•

You switch your vehicle off before
shifting into park (P).

•

You open the driver door before shifting
into park (P).

AUTOMATIC TRANSMISSION – TROUBLESHOOTING

AUTOMATIC TRANSMISSION – INFORMATION MESSAGES

Details

Message

The system has detected a fault that requires service. Have
your vehicle checked as soon as possible.

Transmission Service
Required

Displays as a reminder to shift into park (P).

Transmission Not in Park

Press the brake pedal to unlock the transmission.

Press Brake to Unlock
Gearshift Lever

234

Automatic Transmission

HOW DOES ALL-WHEEL DRIVE
WORK

The all-wheel drive system is designed to
continuously monitor and adjust power
delivery to the front and rear wheels to
optimize both traction and handling.

There is further information on driving in
unique driving conditions. See

Driving

Hints

(page 342).

ALL-WHEEL DRIVE
PRECAUTIONS

WARNING:

Do not become

overconfident in the ability of all-wheel
drive vehicles. Although an all-wheel
drive vehicle may accelerate better than
a two-wheel drive vehicle in low traction
situations, it won't stop any faster than
two-wheel drive vehicles. Always drive
at a safe speed.

•

Drive slower in strong crosswinds that
can affect the normal steering
characteristics of your vehicle.

•

When driving your vehicle on surfaces
made slippery by loose sand, water,
gravel, snow or ice, proceed with care.

ALL-WHEEL DRIVE
LIMITATIONS

The all-wheel drive system is not intended
for use with mismatched tires.

Different tire sizes between the front and
rear axles can cause system damage.

ALL-WHEEL DRIVE – TROUBLESHOOTING

ALL-WHEEL DRIVE – INFORMATION MESSAGES

Action

Message

The all-wheel drive system temporarily turns off to protect

itself from overheating.

AWD Temporarily

Disabled

The all-wheel drive system is not operating properly. If the

warning stays on or continues to come on, contact an

authorized dealer.

AWD Off

The all-wheel drive system will resume normal function.

AWD Restored

235

All-Wheel Drive

BRAKE PRECAUTIONS

WARNING:

Driving your vehicle

with the warning lamp on is dangerous.
A significant decrease in braking
performance may occur. It may take you
longer to stop your vehicle. Have your
vehicle checked as soon as possible.
Driving extended distances with the
parking brake engaged can cause brake
failure and the risk of personal injury.

Wet brakes result in reduced braking
efficiency. Gently press the brake pedal a
few times when leaving a car wash or
driving from standing water to dry the
brakes.

Note:

Depending on applicable laws and

regulations in the country for which your
vehicle was originally built, the stoplamps
could flash during heavy braking. Following
this the hazard warning flashers could also
turn on when your vehicle comes to a stop.

ANTI-LOCK BRAKING SYSTEM

ANTI-LOCK BRAKING SYSTEM
LIMITATIONS

The anti-lock braking system does not
eliminate the risk of crash when:
•

You drive too closely to the vehicle in
front of you.

•

Your vehicle is hydroplaning.

•

You take corners too fast.

•

The road surface is poor.

Note:

If the system activates, the brake

pedal could pulse and travel further.
Maintain pressure on the brake pedal.

BRAKE OVER ACCELERATOR

In the event the accelerator pedal
becomes stuck or entrapped, apply steady
and firm pressure to the brake pedal to
slow the vehicle and reduce engine power.
If you experience this condition, apply the
brakes and bring your vehicle to a safe
stop. Move the transmission to park (P),
switch the engine off and apply the parking
brake. Inspect the accelerator pedal for
any interference. If none are found and the
condition persists, have your vehicle towed
to the nearest authorized dealer.

LOCATING THE BRAKE FLUID
RESERVOIR

See

Under Hood Overview

(page 376).

CHECKING THE BRAKE FLUID

WARNING:

Do not use any fluid

other than the recommended brake fluid
as this will reduce brake efficiency. Use
of incorrect fluid could result in the loss
of vehicle control, serious personal injury
or death.

WARNING:

Only use brake fluid

from a sealed container. Contamination
with dirt, water, petroleum products or
other materials may result in brake
system damage or failure. Failure to
adhere to this warning could result in the
loss of vehicle control, serious personal
injury or death.

WARNING:

Do not allow the fluid

to touch your skin or eyes. If this
happens, rinse the affected areas
immediately with plenty of water and
contact your physician.

236

Brakes

WARNING:

The brake system

could be affected if the brake fluid level
is below the

MIN

mark or above the

MAX

mark on the brake fluid reservoir.

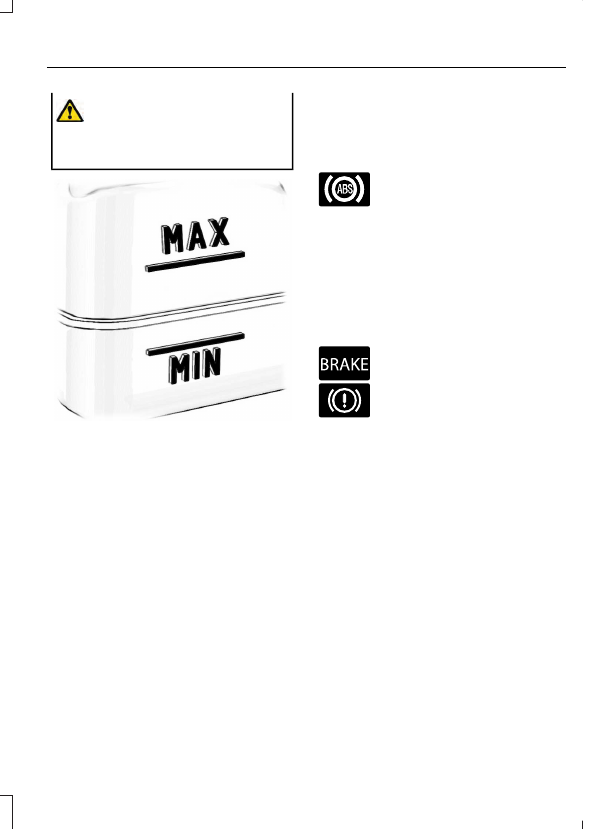

E170684

Park your vehicle on a level surface.

2. Look at the brake fluid reservoir to see

where the brake fluid level is relative
to the

MIN

and the

MAX

marks on the

reservoir.

Note:

To avoid fluid contamination, the

reservoir cap must remain in place and fully
tight, unless you are adding fluid.

Only use fluid that meets our
specifications. See

Brakes

(page 236).

BRAKE FLUID SPECIFICATION

See

Brake Fluid Specification

(page 237).

BRAKES –
TROUBLESHOOTING

BRAKES – WARNING LAMPS

If the ABS indicator illuminates
when you are driving, this
indicates a malfunction. Your

vehicle continues to have normal braking
without the anti-lock braking system
function. See an authorized dealer.

It also momentarily illuminates when you
switch the ignition on to confirm the lamp
is functional. If it does not illuminate when
you switch the ignition on, or begins to
flash at any time, have the system checked
by an authorized dealer.

E270480

The brake indicator momentarily
illuminates when you switch the
ignition on to confirm the lamp

is functional. It may also illuminate when
you apply the parking brake and the
ignition is on. If it illuminates when your
vehicle is moving, make sure the parking
brake is disengaged. If the parking brake
is disengaged, this indicates low brake fluid
level or a brake system fault. See an
authorized dealer.

BRAKES – FREQUENTLY ASKED
QUESTIONS

Is it normal for my brakes to make
noise?

Occasional brake noise is normal. If a
metal-to-metal, continuous grinding,
or continuous squeal sound is present,
the brake lining could be worn-out.
Have your vehicle checked as soon as
possible.

237

Brakes

APPLYING THE PARKING
BRAKE

WARNING:

Always fully apply the

parking brake and make sure you shift
into park (P). Failure to follow this
instruction could result in personal injury
or death.

Firmly press the brake pedal.

2. Pull the parking lever upward to its

fullest extent.

Note:

Do not press the release button while

pulling the parking brake lever upward.

Note:

If you park your vehicle on a hill and

facing uphill, shift into park (P) and turn the
steering wheel away from the curb.

Note:

If you park your vehicle on a hill and

facing downhill, shift into park (P) and turn
the steering wheel toward the curb.

RELEASING THE PARKING
BRAKE

Firmly press the brake pedal.

2. Slightly pull the parking brake lever

upward.

3. Press the release button and push the

parking brake lever downward.

PARKING BRAKE AUDIBLE
WARNING

Sounds when the parking brake is on and
your vehicle is moving.

If the warning tone continues after you
have released the parking brake, this
indicates a malfunction. Have your vehicle
checked as soon as possible.

PARKING BRAKE –
TROUBLESHOOTING

PARKING BRAKE – WARNING
LAMPS

WARNING:

If you drive extended

distances with the parking brake applied,
you could cause damage to the brake
system.

E138644

It illuminates when you engage
the parking brake and the
ignition is on.

If it illuminates when your vehicle is
moving, make sure the parking brake is
disengaged. If the parking brake is
disengaged, this indicates low brake fluid
level or a brake system fault. Have your
vehicle checked as soon as possible.

PARKING BRAKE – INFORMATION MESSAGES

Description

Message

You have not released the parking brake and your vehicle
reaches 3 mph (5 km/h). If the message continues to appear
after you have released the parking brake, have your vehicle
checked as soon as possible.

Park Brake Engaged

239

Parking Brake - Vehicles With: Conventional Mechanical

Parking Brake

APPLYING THE PARKING
BRAKE

WARNING:

Always fully apply the

parking brake and make sure you shift
into park (P). Failure to follow this
instruction could result in personal injury
or death.

Firmly press the brake pedal.

2. Pull the parking lever upward to its

fullest extent.

Note:

Do not press the release button while

pulling the parking brake lever upward.

Note:

If you park your vehicle on a hill and

facing uphill, shift into park (P) and turn the
steering wheel away from the curb.

Note:

If you park your vehicle on a hill and

facing downhill, shift into park (P) and turn
the steering wheel toward the curb.

RELEASING THE PARKING
BRAKE

Firmly press the brake pedal.

2. Pull the parking brake lever upward to

its fullest extent.

3. Press the release button and push the

parking brake lever downward.

PUSHING THE PARKING
BRAKE LEVER DOWN

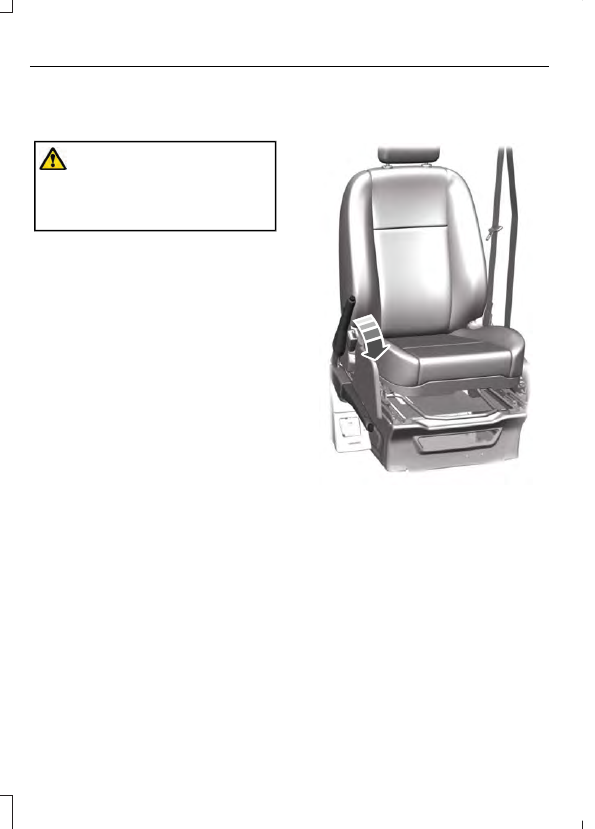

E172225

If required, you can lower the parking brake
lever to the fully down position, for
example to swivel the seat. Push the
parking brake lever downward without
pressing the release button. The parking
brake remains applied until you release it.

PARKING BRAKE AUDIBLE
WARNING

Sounds when the parking brake is on and
your vehicle is moving.

If the warning tone continues after you
have released the parking brake, this
indicates a malfunction. Have your vehicle
checked as soon as possible.

240

Parking Brake - Vehicles With: Push Down Parking Brake

PARKING BRAKE –
TROUBLESHOOTING

PARKING BRAKE – WARNING
LAMPS

WARNING:

If you drive extended

distances with the parking brake applied,
you could cause damage to the brake

system.

E138644

It illuminates when you engage
the parking brake and the
ignition is on.

PARKING BRAKE – INFORMATION MESSAGES

Description

Message

Park Brake Engaged

241

Parking Brake - Vehicles With: Push Down Parking Brake

WHAT IS THE ELECTRIC
PARKING BRAKE

The electric parking brake is used to hold
your vehicle on slopes and flat roads.

APPLYING THE ELECTRIC
PARKING BRAKE

WARNING:

Always fully apply the

parking brake and make sure you shift
into park (P). Failure to follow this
instruction could result in personal injury
or death.

WARNING:

If you drive extended

distances with the parking brake applied,
you could cause damage to the brake
system.

E267156

The switch is next to the steering
wheel on the lower part of the
instrument panel.

Pull the switch up.

The red warning lamp flashes during
operation and illuminates when the parking
brake is applied.

Note:

You can apply the electric parking

brake when the ignition is off.

Note:

The electric parking brake could

apply when you shift into park (P). See

Park

(P)

(page 230).

APPLYING THE ELECTRIC
PARKING BRAKE IN AN
EMERGENCY

You can use the electric parking brake to
slow or stop your vehicle in an emergency.

Pull the switch up and hold it.

The electric parking brake continues to
slow your vehicle down unless you release
the switch.

The red warning lamp illuminates, a tone
sounds and the stoplamps turn on when
you use the electric parking brake in an
emergency.

Note:

Do not apply the electric parking

brake when your vehicle is moving, except
in an emergency. If you repeatedly use the
electric parking brake to slow or stop your
vehicle, you could cause damage to the
brake system.

MANUALLY RELEASING THE
ELECTRIC PARKING BRAKE

Switch the ignition on.

2. Press and hold the brake pedal.

3. Push the switch down.

The red warning lamp turns off.

Pulling Away on a Hill When Towing a
Trailer

Press and hold the brake pedal.

2. Pull the switch upward and hold it.

3. Shift into gear.

4. Press the accelerator pedal until engine

has developed sufficient torque to
prevent your vehicle from rolling down
the hill.

5. Release the switch and pull away in a

normal manner.

AUTOMATICALLY RELEASING
THE ELECTRIC PARKING
BRAKE

Close the driver door.

2. Fasten the driver seatbelt.

3. Shift into gear.

242

Electric Parking Brake

4. Press the accelerator pedal and pull

away in a normal manner.

ELECTRIC PARKING BRAKE
AUDIBLE WARNING

Sounds when the parking brake is on and
your vehicle is moving. If the warning tone
continues after you have released the
parking brake, this indicates a malfunction.
Have your vehicle checked as soon as
possible.

RELEASING THE ELECTRIC
PARKING BRAKE IF THE
VEHICLE BATTERY HAS RUN
OUT OF CHARGE

WARNING:

The electric parking

brake does not operate if the vehicle
battery has run out of charge.

Connect a booster battery to the vehicle
battery to release the electric parking brake
if the vehicle battery has run out of charge.
See

Jump Starting the Vehicle

(page

350).

ELECTRIC PARKING BRAKE –
TROUBLESHOOTING

ELECTRIC PARKING BRAKE –
WARNING LAMPS

E270480

The red warning lamp
illuminates when the electronic
parking brake is applied or for a
few seconds on start up.

If it remains illuminated or
flashes when the electronic

parking brake is not applied, it indicates a
malfunction. Have your vehicle checked
as soon as possible.

ELECTRIC PARKING BRAKE – INFORMATION MESSAGES

Action

Message

The electric parking brake has malfunctioned. Have your
vehicle checked as soon as possible.

Park Brake Malfunction
Service Now

The electric parking brake has not released. Manually release
the electric parking brake. If the message continues to appear,
have your vehicle checked as soon as possible.

Park Brake Not Released

The electric parking brake has not applied. Apply the electric
parking brake. If the message continues to appear, have your
vehicle checked as soon as possible.

Park Brake Not Applied

The electric parking brake has not automatically released.
Manually release the electric parking brake.

Park Brake Use Switch to
Release

You have not pressed the brake pedal. Press the brake pedal
to release the parking brake.

To Release: Press Brake
and Switch

243

Electric Parking Brake

Action

Message

The electric parking brake has malfunctioned. Have your
vehicle checked as soon as possible.

Park Brake Limited Func-
tion Service Required

The electric parking brake has overheated. Wait for the elec-
tric parking brake to cool down.

Park Brake System Over-
heated

The electric parking brake is released.

Park Brake Off

The electric parking brake has not released. Manually release
the electric parking brake. If the message continues to appear,
have your vehicle checked as soon as possible.

Release Park Brake

The electric parking brake is applied.

Park Brake On

244

Electric Parking Brake

Ford Transit (2022 year). Manual in english - page 14
