FUEL AND REFUELING
PRECAUTIONS

WARNING:

Do not overfill the fuel

tank. The pressure in an overfilled tank
may cause leakage and lead to fuel spray
and fire.

WARNING:

The fuel system may

be under pressure. If you hear a hissing
sound near the fuel filler inlet, do not
refuel until the sound stops. Otherwise,
fuel may spray out, which could cause
serious personal injury.

WARNING:

Fuels can cause serious

injury or death if misused or mishandled.

WARNING:

Fuel may contain

benzene, which is a cancer-causing
agent.

WARNING:

When refueling always

shut the engine off and never allow
sparks or open flames near the fuel tank
filler valve. Never smoke or use a cell
phone while refueling. Fuel vapor is
extremely hazardous under certain
conditions. Avoid inhaling excess fumes.

WARNING:

Read and follow all the

instructions on the pump island.

Follow these guidelines when refueling:
•

Extinguish all smoking materials and
any open flames before refueling your
vehicle.

•

Switch the engine off before refueling.

•

Automotive fuels can be harmful or
fatal if swallowed. Fuel is highly toxic
and if swallowed can cause death or
permanent injury. If fuel is swallowed
immediately call a physician, even if no
symptoms are immediately apparent.
The toxic effects of fuel may not be
apparent for hours.

•

Avoid inhaling fuel vapors. Inhaling fuel
vapor can lead to eye and respiratory
tract irritation. In severe cases,
excessive or prolonged breathing of
fuel vapor can cause serious illness and
permanent injury.

•

Avoid getting fuel in your eyes. If you
splash fuel in your eyes, immediately
remove contact lenses, if worn, flush
with water for 15 minutes and seek
medical attention. Failure to seek
proper medical attention could lead to
permanent injury.

•

Fuels can be harmful if absorbed
through the skin. If you splash fuel on
your skin, clothing or both, promptly
remove contaminated clothing and
thoroughly wash your skin with soap
and water. Repeated or prolonged skin
contact causes skin irritation.

•

Be particularly careful if you are taking
Antabuse or other forms of Disulfiram
for the treatment of alcoholism.
Breathing fuel vapors could cause an
adverse reaction, serious personal
injury or sickness. Immediately call a
physician if you experience any adverse
reactions.

197

Fuel and Refueling

FUEL QUALITY

SELECTING THE CORRECT FUEL -
3.5L DURATEC, E85

Flex fuel vehicles have one of the following
identifiers:
•

Yellow fuel filler cap.

•

Yellow bezel around the fuel filler inlet.

•

Yellow fuel filler housing.

•

Yellow E85 label on the fuel tank filler
door.

E161513

Your vehicle is designed to operate on
regular unleaded gasoline with a minimum
pump (R+M)/2 octane rating of 87 or
regular unleaded gasoline blended with a
maximum of 85% ethanol (E85).

Some fuel stations, particularly those in
high altitude areas, offer fuels posted as
regular unleaded gasoline with an octane
rating below 87. The use of these fuels
could result in engine damage that will not
be covered by the vehicle warranty.

For best overall vehicle and engine
performance, premium fuel with an octane
rating of 91 or higher is recommended. The
performance gained by using premium fuel
is most noticeable in hot weather as well
as other conditions, for example when
towing a trailer.

Do not be concerned if the engine
sometimes knocks lightly. However, if the
engine knocks heavily while using fuel with
the recommended octane rating, contact
an authorized dealer to prevent any engine
damage.

We recommend Top Tier detergent
gasolines, where available to help minimize
engine deposits and maintain optimal
vehicle and engine performance. For
additional information, refer to
www.toptiergas.com.

Note:

Use of any fuel for which the vehicle

was not designed can impair the emission
control system, cause loss of vehicle
performance, and cause damage to the
engine which may not be covered by the
vehicle Warranty.

Do not use:
•

Diesel fuel.

•

Fuels containing kerosene or paraffin.

•

Fuels containing more than 85%
ethanol or E100 fuel.

•

Fuels containing methanol.

•

Fuels containing metallic-based
additives, including manganese-based
compounds.

•

Fuels containing the octane booster
additive, methylcyclopentadienyl
manganese tricarbonyl (MMT).

•

Leaded fuel, using leaded fuel is
prohibited by law.

The use of fuels with metallic compounds
such as methylcyclopentadienyl
manganese tricarbonyl (commonly known
as MMT), which is a manganese-based
fuel additive, will impair engine
performance and affect the emission
control system.

198

Fuel and Refueling

SELECTING THE CORRECT FUEL -
GASOLINE

E161513

Your vehicle is designed to operate on
regular unleaded gasoline with a minimum
pump (R+M)/2 octane rating of 87.

Note:

Use of any fuel for which the vehicle

was not designed can impair the emission
control system, cause loss of vehicle
performance, and cause damage to the
engine which may not be covered by the
vehicle Warranty.

Do not use:
•

Diesel fuel.

•

Fuels containing kerosene or paraffin.

•

Fuel containing more than 15% ethanol
or E85 fuel.

•

Fuels containing methanol.

•

Fuels containing metallic-based
additives, including manganese-based
compounds.

•

Fuels containing the octane booster
additive, methylcyclopentadienyl
manganese tricarbonyl (MMT).

•

Leaded fuel, using leaded fuel is
prohibited by law.

SWITCHING BETWEEN E85 AND
GASOLINE - 3.5L DURATEC

We do not recommend repeatedly
alternating between E85 and gasoline. If
you switch from using E85 to gasoline, or
from gasoline to E85, add as much fuel as
possible, at least half a tank. Drive your
vehicle immediately for a minimum of 5 mi
(8 km) to allow it to adapt to the change
in ethanol concentration. If you use E85
exclusively, we recommend that you fill
the fuel tank with regular unleaded
gasoline at each scheduled oil change.

199

Fuel and Refueling

LOCATING THE FUEL FILLER
FUNNEL

The fuel filler funnel is in the glove
compartment or in the front right-hand
side stepwell storage compartment.

RUNNING OUT OF FUEL

FILLING A PORTABLE FUEL
CONTAINER

WARNING:

Flow of fuel through a

fuel pump nozzle can produce static
electricity. This can cause a fire if you are
filling an ungrounded fuel container.

Use the following guidelines to avoid
electrostatic charge build-up, which can
produce a spark, when filling an
ungrounded fuel container:
•

Only use an approved fuel container to
transfer fuel to your vehicle. Place the
container on the ground when filling it.

•

Do not fill a fuel container when it is
inside your vehicle (including the cargo
area).

•

Keep the fuel pump nozzle in contact
with the fuel container when filling it.

•

Do not use a device that holds the fuel
pump nozzle lever in the fill position.

ADDING FUEL FROM A PORTABLE
FUEL CONTAINER

WARNING:

Do not insert the nozzle

of a fuel container or an aftermarket
funnel into the fuel filler neck. This may
damage the fuel system filler neck or its
seal and cause fuel to run onto the
ground.

WARNING:

Do not pry open the

fuel tank filler valve. This could damage
the fuel system. Failure to follow this
instruction could result in fire, personal
injury or death.

WARNING:

Do not dispose of fuel

in the household refuse or the public
sewage system. Use an authorized waste
disposal facility.

When refueling the vehicle fuel tank from
a fuel container, use the fuel filler funnel
included with your vehicle. See

Locating

the Fuel Filler Funnel

(page 200).

Note:

Do not use aftermarket funnels as

they may not work with the capless fuel
system and can damage it.

When refueling the vehicle fuel tank from
a fuel container, do the following:

Fully open the fuel filler door.

E157452

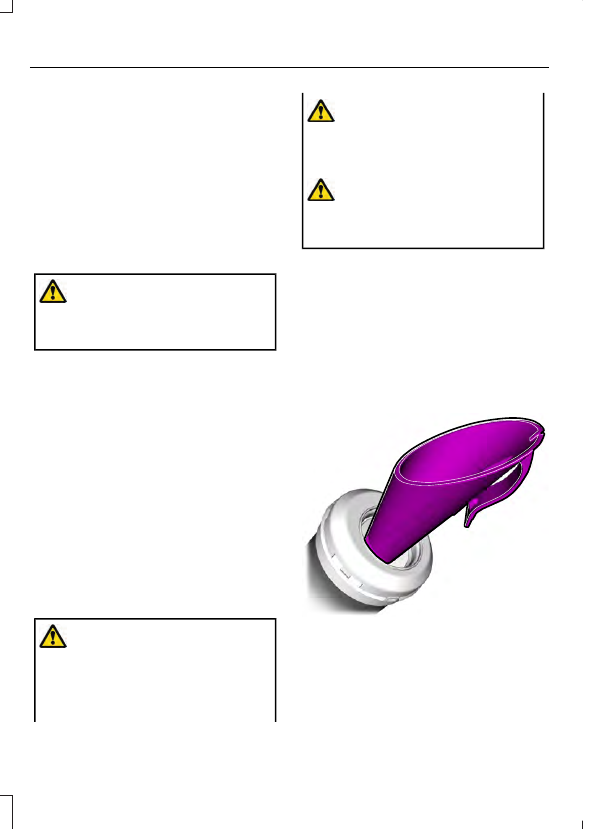

2. Fully insert the fuel filler funnel into the

fuel filler inlet.

3. Add fuel to your vehicle from the fuel

container.

4. Remove the fuel filler funnel.

5. Fully close the fuel filler door.

200

Fuel and Refueling

6. Clean the fuel filler funnel and place it

back in your vehicle or correctly dispose
of it.

Note:

If your vehicle runs out of fuel add a

minimum of 1.3 gal (5 L) of fuel to restart
the engine.

Note:

You may need to switch the ignition

from off to on several times after refueling
to allow the fuel system to pump the fuel
from the tank to the engine. When
restarting, cranking time takes a few
seconds longer than normal.

Note:

Extra funnels can be purchased from

an authorized dealer if you choose to
dispose of the funnel.

REFUELING

REFUELING SYSTEM OVERVIEW

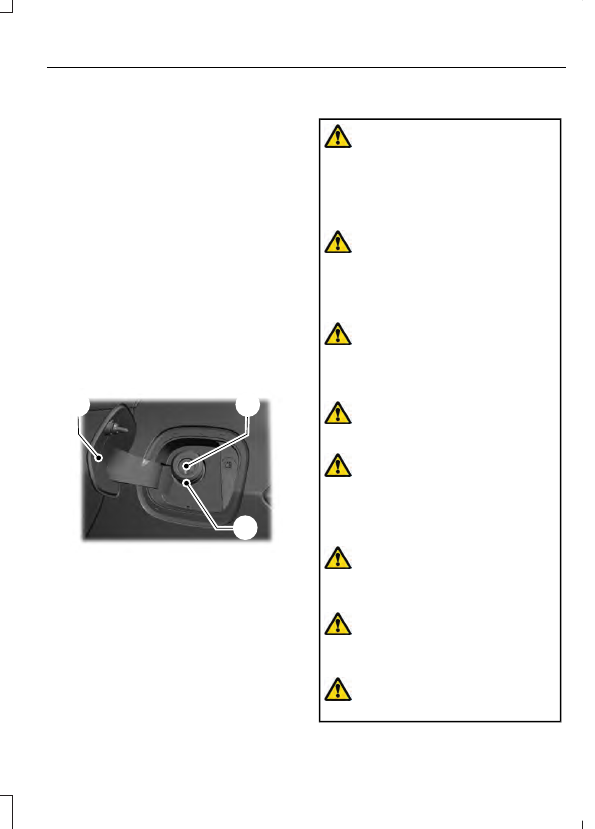

E267248

Fuel filler door.

Fuel filler inlet.

Fuel tank filler pipe.

REFUELING YOUR VEHICLE

WARNING:

When refueling always

WARNING:

The fuel system may

be under pressure. If you hear a hissing
sound near the fuel filler inlet, do not
refuel until the sound stops. Otherwise,
fuel may spray out, which could cause
serious personal injury.

WARNING:

Do not pry open the

fuel tank filler valve. This could damage
the fuel system. Failure to follow this
instruction could result in fire, personal
injury or death.

WARNING:

Do not remove the fuel

pump nozzle from its fully inserted
position when refueling.

WARNING:

Stop refueling when

the fuel pump nozzle automatically
shuts off for the first time. Failure to
follow this will fill the expansion space
in the fuel tank and could lead to fuel
overflowing.

WARNING:

Do not overfill the fuel

tank. The pressure in an overfilled tank
may cause leakage and lead to fuel spray
and fire.

WARNING:

Wait at least five

seconds before removing the fuel pump
nozzle to allow any residual fuel to drain
into the fuel tank.

WARNING:

Read and follow all the

instructions on the pump island.

201

Fuel and Refueling

Fully open the fuel filler door.

2. Select the correct fuel pump nozzle for

your vehicle.

E139202

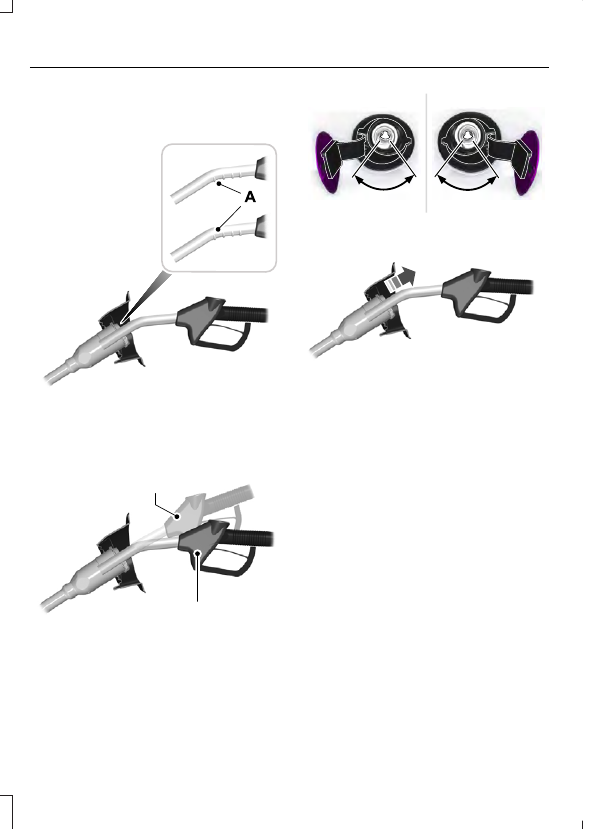

3. Insert the fuel pump nozzle up to the

first notch on the nozzle A. Keep the
fuel pump nozzle resting on the fuel
tank filler pipe.

E139203

4. Hold the fuel pump nozzle in position

B when refueling. Holding the fuel
pump nozzle in position A can affect
the flow of fuel and shut off the fuel
pump nozzle before the fuel tank is full.

E337395

5. Operate the fuel pump nozzle within

the area shown.

E119081

6. When the nozzle shuts off, wait at least

5 seconds, then slightly raise the fuel
pump nozzle and slowly remove it.

Fully close the fuel filler door.

Do not attempt to start the engine if you
have filled the fuel tank with incorrect fuel.
Incorrect fuel use could cause damage not
covered by the vehicle Warranty. Have your
vehicle immediately checked.

202

Fuel and Refueling

FUEL TANK CAPACITY - 3.5L
DURATEC

Quantity

Variant

25.1 gal (95 L)

Vehicles with

standard fuel tank.

30.5 gal (115.4 L)

Vehicles with larger

fuel tank.

FUEL TANK CAPACITY - 3.5L
ECOBOOST™

Quantity

Variant

Quantity

Variant

25.1 gal (95 L)

Vehicles with

standard fuel tank.

30.5 gal (115.4 L)

Vehicles with larger

fuel tank.

FUEL AND REFUELING –
TROUBLESHOOTING

FUEL AND REFUELING –
WARNING LAMPS

If it illuminates when you are
driving, refuel as soon as
possible.

FUEL AND REFUELING – INFORMATION MESSAGES

Action

Message

An early reminder of a low fuel condition.

Fuel Level Low

The fuel fill inlet may not be properly closed.

Check Fuel Fill Inlet

A reminder to close the fuel door. Failure to follow this
instruction can cause the check engine light to illuminate.

Fuel door ajar Close fully

to avoid ""Check

Engine"" light

There is an error in attempting to refill your vehicle.

Refuel Error See Manual

203

Fuel and Refueling

WHAT IS THE CATALYTIC
CONVERTER

The catalytic converter is part of your
vehicle's emissions system and filters
harmful pollutants from the exhaust gas.

CATALYTIC CONVERTER
PRECAUTIONS

WARNING:

Do not park, idle or

drive your vehicle on dry grass or other
dry ground cover. The emission system
heats up the engine compartment and
exhaust system, creating the risk of fire.

WARNING:

The normal operating

temperature of the exhaust system is
very high. Never work around or attempt
to repair any part of the exhaust system
until it has cooled. Use special care when
working around the catalytic converter.
The catalytic converter heats up to a very
high temperature after only a short
period of engine operation and stays hot
after the engine is switched off.

WARNING:

Exhaust leaks may

result in entry of harmful and potentially
lethal fumes into the passenger
compartment. If you smell exhaust
fumes inside your vehicle, have your
vehicle inspected immediately. Do not
drive if you smell exhaust fumes.

To avoid damaging the catalytic converter:
•

Do not crank the engine for more than
10 seconds at a time.

•

Do not run the engine with a spark plug
lead disconnected.

•

Do not push-start or tow-start your
vehicle. Use booster cables. See

Jump

Starting the Vehicle

(page 350).

•

Use the correct fuel. See

Fuel and

Refueling

(page 197).

•

Do not switch the ignition off when your
vehicle is moving.

•

Avoid running out of fuel.

•

Have the items listed in scheduled
maintenance information performed
according to the specified schedule.

Note:

Do not make any unauthorized

changes to your vehicle or engine. By law,
vehicle owners and anyone who
manufactures, repairs, or services a fleet of
vehicles are not permitted to intentionally
remove an emission control device or
prevent it from working.

CATALYTIC CONVERTER –
TROUBLESHOOTING

CATALYTIC CONVERTER –
WARNING LAMPS

Your vehicle has an on-board diagnostics
system that monitors the emission control
system. If any of the following warning
lamps illuminate, this may indicate that
the on-board diagnostics system has
detected an emission control system
malfunction.

Continuing to drive your vehicle may cause
reduced power or the engine to stop.
Failure to respond to a warning lamp may
cause damage that your vehicle Warranty
may not cover. Have your vehicle checked
as soon as possible.

204

Catalytic Converter

WHAT IS THE HIGH VOLTAGE
BATTERY

The high voltage battery is a highly
sophisticated lithium ion battery system,
used to store electrified energy to power
the vehicle.

HIGH VOLTAGE BATTERY
PRECAUTIONS

WARNING:

This battery pack

should only be serviced by an authorized
electric vehicle technician. Improper
handling can result in personal injury or
death.

WARNING:

Keep your hands and

clothing clear of the cooling fan.

Your vehicle consists of various
high-voltage components and wiring. All
of the high-voltage power flows through
specific wiring assemblies labeled as such
or covered with a solid orange convolute,
or orange striped tape, or both. Do not
come in contact with these components.

PRESERVING YOUR HIGH
VOLTAGE BATTERY

When using the battery at a low state of
charge, your vehicle could start disabling
accessory features to protect battery life.

If your vehicle reaches a 0% state of
charge, recharge your vehicle as soon as
possible.

In everyday use it is acceptable to use the
full state of charge window, however there
are a few best practices we recommend
in order to maintain the health and life of
your battery.

Overnight Charging

You can increase the longevity and
performance of your high voltage battery
by using the charge scheduling and
departure and comfort settings on your
touchscreen or in the FordPass app.

With Charge Scheduling you can improve
the high voltage battery's longevity by
delaying the start of charging and setting
a maximum charging limit. We recommend
to set your preferred charging times to start
at least 2-3 hours after your typical plug in
time. This allows the battery to cool before
charging begins. Additionally, setting the
maximum charge level to be less than
100% for everyday usage reduces strain
on the battery.

You can improve driving range and
performance by scheduling departure
times and cabin comfort level with the
Departure and Comfort features. This not
only warm or cool the cabin but also
condition the battery to ensure best driving
range and performance by the set
departure time.

DC Charging

Frequent use of DC charging could result
in reducing your battery's efficiency and
lifespan. See

What is DC Charging

(page

207).

Storage Temperature

Storing your vehicle in temperatures
between 32°F (0°C) and 113°F (45°C) is
the most beneficial for the high voltage
battery.

Plug in your vehicle at temperatures just
above the freezing point or lower to
maintain battery performance and
maximize driving range.

205

High Voltage Battery - Electric Motor

Storage State of Charge

You can increase the battery life by
maintaining your state of charge below
100%. When you park your vehicle for an
extended period of 30 days or more, we
recommend your battery be at an
approximately 50% state of charge.
Storing your vehicle's high voltage battery
at higher states of charge is less favorable
than storing at lower states of charge.

Note:

To achieve this state of charge for

storage, you can drive your vehicle down to
50% and set a charge limit for your location.
See

Setting the Charging Schedule and

Preferences

(page 222).

RECYCLING AND DISPOSING
OF THE HIGH VOLTAGE
BATTERY

Please recycle in accordance with local
regulations.

HIGH VOLTAGE BATTERY –
TROUBLESHOOTING

HIGH VOLTAGE BATTERY –
WARNING LAMPS

Illuminates when the powertrain
requires service. Have the
system checked as soon as

possible.

206

High Voltage Battery - Electric Motor

WHAT IS AC CHARGING

AC charging is the preferred method of
charging. AC charging preserves the health
of the high voltage battery for longer high
voltage battery life.

WHAT IS DC CHARGING

DC charging allows you to charge the
vehicle's high voltage battery in
significantly less time than the standard
charge method. You can charge on the go
before the battery has exhausted all of its
power, or when traveling using the trip
planner as part of your FordPass App.

For the convenience of DC charging and
time, there is a different fee structure
depending on the charging station and
network you choose.

Note:

Charge times could vary depending

on ambient air temperature, power level,
charger type, and location in which you are
charging.

Note:

The DC charging rate could be

reduced to maximize the life of the battery.

CHARGING YOUR VEHICLE
PRECAUTIONS

WARNING:

Do not allow charging

equipment to be immersed in water or
liquids. Failure to follow this warning
could result in fire, serious personal injury
or death.

WARNING:

Do not attempt to open

the charging equipment. Failure to follow
this instruction could result in personal
injury, death or property damage.

WARNING:

Do not use the charging

equipment if it is faulty or has been
damaged. Failure to follow this
instruction could result in personal injury,
death or property damage.

WARNING:

Install charging

equipment in compliance with local
regulations. Failure to follow this warning
could result in fire, serious personal injury
or death.

CHARGING EQUIPMENT

WARNING:

Do not use an

ungrounded wall outlet. The wall outlet
must be in good condition and meet
up-to-date local codes. Have a qualified
electrician check the wall outlet, if you
suspect that it is not properly grounded.
Failure to follow this instruction could
result in electric shock, personal injury,
or death.

WARNING:

It is recommended that

electrical outlets for use with your
charging equipment be installed by a
licensed, qualified electrician.
Installations must comply with the
provisions of all local codes. Failure to
follow this warning could result in
personal injury or death.

WARNING:

Do NOT DROP the

control box or coupler.

WARNING:

Do NOT use if stored

outside temperature range specified.

WARNING:

Do not attempt to

repair the charging equipment. Contact
your local dealer for assistance.

207

Charging Your Vehicle - Electric Motor

WARNING:

Read all warnings on

the charging equipment before using for
the first time.

WARNING:

Read all instructions in

this publication before using the charging
equipment.

WARNING:

To reduce the risk of

fire, connect only to a circuit provided
with 40 amps maximum branch circuit
overcurrent protection installed in
accordance with NEC and local electrical
code.

WARNING:

Do not use the charging

equipment with an extension cord, surge
protector, timer or other adapter. Failure
to follow this instruction could result in
electric shock or fire.

WARNING:

The wall plug must fit

firmly into the outlet. If the connection
feels loose, worn or the outlet is
damaged, have a qualified electrician
replace the outlet. Using charging
equipment with a worn outlet may cause
burns, property damage and increase the
risk of electric shock.

WARNING:

Fully insert the plug

into the wall outlet. Failure to follow this
instruction could result in electric shock.

WARNING:

Children should be

supervised when in the vicinity of the
charging equipment while plugged in.

WARNING:

Do not put fingers into

the electric charge coupler. Failure to
follow this instruction could result in
electric shock.

WARNING:

This equipment has

arcing or sparking parts. Do not expose
to flammable vapors. Position this
equipment at least 18 in (450 mm)
above the floor.

WARNING:

Do not connect or

disconnect any pluggable components
of the charging equipment when in use
or charging. Failure to follow this instruct
can cause damage to the charging
equipment.

WARNING:

Do not use the charging

equipment in temperatures outside of
the operation range of -22°F (-30°C) to
122°F (50°C).

WARNING:

Store the charging

equipment in a clean dry place between
the temperatures of -22°F (-30°C) to
185°F (85°C).

WARNING:

Do not plug the

charging equipment into an electrical
outlet that is submerged in water or
covered in snow.

WARNING:

Do not use charging

equipment in severe rain, snow or
electrical storm.

WARNING:

Do not allow charging

equipment to be immersed in water or
liquids. Failure to follow this warning
could result in fire, electric shock, or
serious personal injury or death.

WARNING:

When using the

charging equipment avoid moisture,
water, snow and foreign objects at all
times.

208

Charging Your Vehicle - Electric Motor

WARNING:

Do not replace the plug

on the connector. There are critical
safety devices in the plug, and the
charging equipment will not operate, if
the plug is replaced. Failure to follow this
instruction could result in electric shock,
personal injury, death, or fire.

WARNING:

Charging equipment

contains no user modifiable or repairable
parts. If the charging equipment plug
does not properly fit into the wall outlet,
have a qualified electrician install the
correct wall outlet. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

High voltage is present

in your electric meter housing and power
distribution service panel. Contact with
high voltage can cause death or serious
personal injury.

WARNING:

Visually inspect the

charging equipment before each use. Do
not use the charging equipment if it is
damaged.

WARNING:

Keep charging

equipment inside when not in use. Stow
the control box on the hanger or all the
charging equipment in the bag after use
to prevent damage to the charging
equipment and personal injury.

Your vehicle comes with a mobile charger
that has a low power connector to use with
a 120V plug NEMA 5-15 and a high power
connector to use with a 240V plug NEMA
14-50.

Specification Value

Specification Type

SAE

Charger Model

120-240 VAC

Voltage

32 amps max

continuous

Maximum Current

60Hz

Frequency

< 2 Watts

Power draw when

idle

< 4 Watts

Power draw when

charging

Approximately 20 ft

(6.1 m)

Cable length

8.6 lb (3.9 kg)

Weight

-22°F (-30°C) to

122°F (50°C)

Operating temper-

ature

-22°F (-30°C) to

185°F (85°C)

Storage temper-

ature

IP67

CCID Environ-

mental

Not required

Ventilation

209

Charging Your Vehicle - Electric Motor

E336365

Connector.

Coupler.

Control Box.

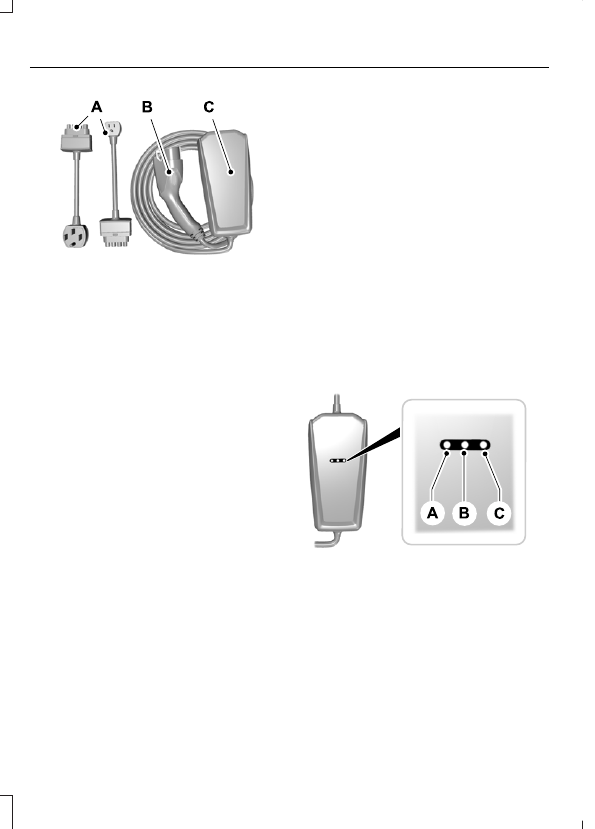

The mobile charger is located under the
passenger seat and allows you to charge
the vehicle's battery using a standard
household outlet.

You must plug the connector into the
control box first. Then plug the connector
into the household outlet, and then plug
the coupler into the vehicle charge port.

The power indicator illuminates blue when
the connector is properly inserted into the
control box and dedicated wall outlet.

Note:

To insert the connector, firmly grasp

the connector by the cable or plug and push
into the control box until an audible click is
heard. Make sure the connector is fully
inserted and flush with the control box
before inserting it into the outlet. Improper
insertion will cause a longer charge session.

Note:

Follow the installation instructions

provided with the mobile charger.

Note:

We recommend using the supplied

plugs and connectors.

Note:

If you do not use a dedicated circuit,

the circuit breaker could trip or open. If a
dedicated circuit is not available, contact a
licensed professional electrician regarding
the installation of a dedicated outlet.

Note:

The mobile charger does not charge

and gives a fault indication, if ground is not
present.

Note:

Plug the connector for the mobile

charger directly into the wall plug
receptacle. Do not plug the mobile charger
into any form of extension cord.

Note:

If the wall bracket is not used for

mounting the charging equipment, plug the
charging equipment into an outlet closer to
ground.

Mobile Charger Indicator Lights

E336515

Amber Fault Indicator Light.

Blue Status Indicator Light.

Red Trouble Indicator Light.

210

Charging Your Vehicle - Electric Motor

Indicator Description

Mobile Charger Fault Indicator Type

The amber fault indicator illuminates to

communicate that the charger is rebooting after

an error.

AMBER

When plugged into the wall outlet, the blue

indicator illuminates to communicate that the

charger is ready to use.

BLUE

The red indicator illuminates when the charger

has detected an error. If the red indicator is illu-

minated, the charger will not deliver power to

the vehicle. The error must be corrected before

a charging cycle can begin or continue.

RED

Note:

When first plugged into a wall outlet

the amber, blue and red indicators will blink
once. Then the blue indicator turns on,
followed by a blink of the red indicator.
After, the blue indicator turns off then back
on. This cycle will happen twice if a different
connector is used from a previous charge.

ACTION

MODE

RED

BLUE

AMBER

Make sure the outlet is operational,

and the circuit breaker is in the ON

position or try using another outlet.

Ensure the connector is fully

inserted into the mobile charger.

Ensure the plug is not severely

degraded. If the error persists,

UNPOWERED;

The mobile charger is

not powered.

OFF

No action required.

CHARGING;

OFF

PULSING

OFF

The mobile charger is

charging.

If you expect the mobile charger to

be charging the vehicle, make sure

the vehicle coupler is properly

inserted into the vehicle. Check and

adjust your charging time prefer-

ences in the on-screen display. If

your vehicle is still not charging,

STANDBY;

The mobile charger is

powered and ready to

charge. At the current

time the mobile charger

is not charging the

vehicle.

OFF

211

Charging Your Vehicle - Electric Motor

ACTION

MODE

RED

BLUE

AMBER

Wait for the mobile charger to

return to standby. If the mobile

charger cycles for more than 2-3

minutes, unplug the vehicle coupler.
Unplug and replug in the connector.

If the issue persists, contact us.

REBOOTING;

The mobile charger is

recovering after

encountering an error.

Make sure the connector and the

control box are properly connected.
Unplug and replug in the connector.

If the mobile charger is warm or in

a hot environment, try charging in a

cooler area. Try a different outlet.

Try a different connector if you have

one available. If the error persists,

CHARGING REDUCED;

The mobile charger is

charging at a reduced

rate due to overheating.

OFF

PULSING

Make sure the connector and

control box are properly connected.
Unplug and replug in the connector.

If the mobile charger is warm or in

a hot environment, try charging in a

cooler area. Try a different outlet.

Try a different connector if you have

one available. If the error persists,

CHARGING REDUCED,

AC PLUG OR WALL

OUTLET;

The mobile charger is

charging at a reduced

rate due to overheating

of the connector or the

wall outlet.

OFF

PULSING

FLASH

Make sure the connector and

control box are properly connected.
Unplug and replug in the connector.

If the mobile charger is warm or in

a hot environment, try charging in a

cooler area. Try a different outlet.

Try a different connector if you have

one available. If the error persists,

USER

TROUBLESHOOTING;

The mobile charger has
encountered a fault that

requires

troubleshooting.

OFF

212

Charging Your Vehicle - Electric Motor

Ford Transit (2022 year). Manual in english - page 12
