ACTION

MODE

RED

BLUE

AMBER

Try a different connector if you have

one available. If the error persists,

NON - RECOVERABLE

FAULT;

There is an internal fault

in the mobile charger

that cannot be

recovered.

OFF

Try using another connector if you

have one available. If not, contact

us about obtaining a replacement.

If your warranty has expired, you can
order a replacement from your Ford

dealer.

NON - RECOVERABLE

FAULT;

There is an internal fault

in the connector that
cannot be recovered.

FLASH

OFF

Potential shock hazard - immedi-

ately turn off circuit breaker for the

outlet within home. Discontinue use.

replacement.

GROUND LEAKAGE

FAULT;

Electrical current is

leaking through a

potentially unsafe path.

PULSING

OFF

Note:

When plugging into an unfamiliar

wall outlet, let the vehicle charge for several
minutes before leaving it unattended. The
red indicator will illuminate if not charging.
The unit will turn off if breaker or
infrastructure ground fault circuit interrupter
(GFCI) is tripped. You can view vehicle
charging status remotely via the Ford Pass
App.

Mobile Charger Auto-Restart

Auto-restart helps to make sure that your
vehicle will be charged and ready for use
when needed. A charge could be
interrupted if errors are detected. Charging
resumes once the error is no longer
detected. The red indicator illuminates
during an error condition.

The exception to the immediate
auto-restart is when the interruption is due
to a charger ground fault circuit interrupter
(GFCI) event. The charger attempts to
restart 15 minutes after a ground fault
circuit interrupter (GFCI) event. After the
fourth attempt to restart, the charger shuts
down and the red indicator stays on.

If the fault persists, do not continue to try
to charge your vehicle. Contact your
authorized dealer.

MOVING AND STORAGE
INSTRUCTIONS

Make sure you wrap the mobile charger
after charging. Store the mobile charger
in the storage bag supplied with the mobile
charger.

When charging is complete, replace the
mobile charger under the passenger seat.

Note:

Do not hold the mobile charger by

the power cable. Hold the complete unit
and carefully place back in the storage bag.

213

Charging Your Vehicle - Electric Motor

Note:

To remove the connector, firmly

grasp the connector by the cable or plug
and pull away from the control box.

CARE INSTRUCTIONS

Do not use cleaners or solvents as this
could damage your mobile charger. Do not
place stress on the charger cables. If unit
overheats, remove the mobile charger from
direct sunlight.

SAFETY FEATURES

The charger includes the following safety
features to protect against the risk of
electric shock:

•

Service Ground Check: The charger
constantly checks for the presence of
a service ground connection. If the
service ground ever fails, the charger
red indicator turns ON and shuts down
power to the vehicle.

•

Thermal Event Sensor: Charger module
senses out-of-ordinary thermal events
and decreases the charging current or
shuts the unit down if required.

•

Ground fault circuit interrupter (GFCI)
Protection: The charger has a ground
fault circuit interrupter (GFCI) reaction
system to protect against electric
shock. If the charger module detects
an output ground fault, it shuts down
power to the output cable and
illuminates the red indicator.

•

Insulation: The charger module,
connector, cable assembly, and charge
coupler are completely insulated.
There are no exposed live parts, to
protect against electric shock.

•

Unintentional Disconnection: The
charge coupler is designed to minimize
unintentional disconnection. A pilot
signal wire in the cable and charge
coupler eliminates the possibility of
electric shock when not connected to
a vehicle or if an unintended disconnect
occurs during a charge. Disconnection
during charging is safe.

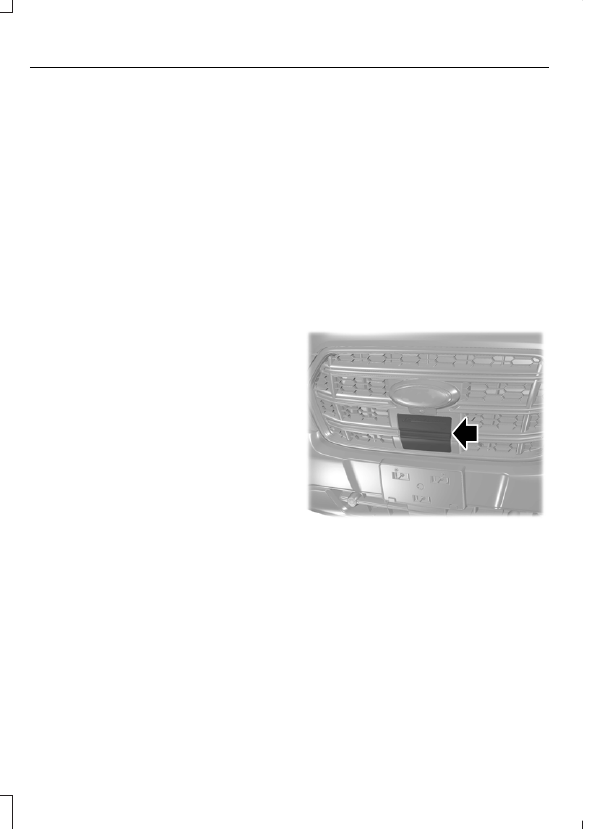

LOCATING THE CHARGE PORT

The charge port is on the front of the
vehicle. To open, press the center
right-hand edge of the charge port door
and then release.

E359296

Note:

Do not apply excessive force. Forcing

the door open or closed damages the charge
port.

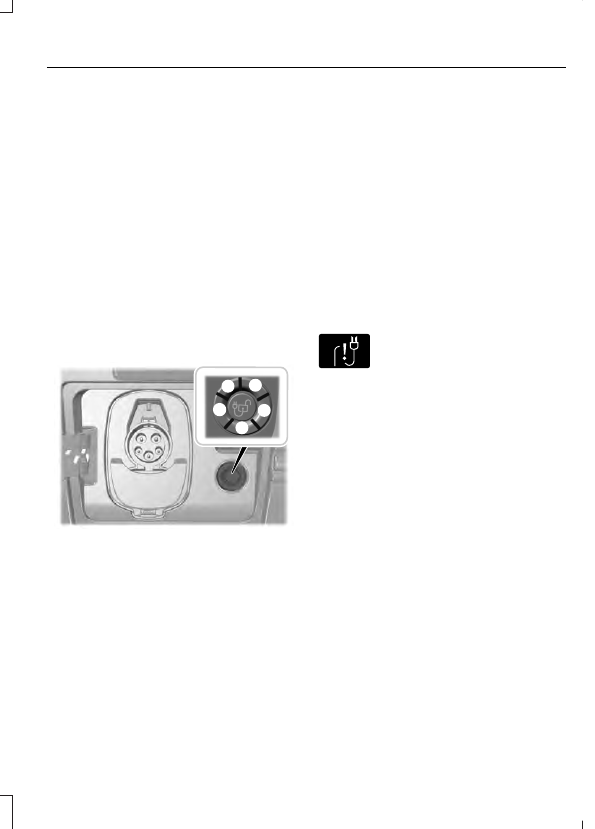

CHARGE PORT INDICATORS

The charge status indicator is next to the
charging port behind the charge port door.
It indicates the charge status of the high
voltage battery in your vehicle.

Divided into five zones, the charge status
indicator displays the state of charge in 20
percent increments.

214

Charging Your Vehicle - Electric Motor

The charge status indicator displays how
far along the charge is:
•

When zone A is pulsing, the charge is
between 0-20 percent.

•

When zone A illuminates, and zone B
is pulsing, the charge is between 20-40
percent.

•

When zones A and B illuminate and
zone C is pulsing, the charge is between
40-60 percent.

•

When zones A, B, and C illuminate, and
zone D is pulsing, the charge is between
60-80 percent.

•

When zones A, B, C, and D illuminate,
and zone E is pulsing, the charge is
between 80-100 percent.

•

When all zones illuminate, the charge
is 100 percent.

E359328

Note:

When charging stops, the charge

status indicator shows all the completed
zones solidly illuminated up in a blue color
for 30 seconds before turning off. For
example, if charging stops at 70 percent,
then A, B, and C light up solidly to indicate
a battery charge level of at least 60 percent
but less than 80 percent. Charging stops
when complete or when paused due to
charge settings or charge station actions.

Note:

If the charge status indicator does

not light up or pulse after plugging in, please
verify that the charge port light setting is On.
If you do not wish to have the charge status
indicator light up at all while charging, then
you can turn it Off. Locate the charge port
light under the vehicle settings on your
in-vehicle touchscreen.

There are three charge port indicator light
colors, which indicate a specific action:

White is used as a courtesy light to help
with plugging in and to acknowledge
actions such as plugging in and unplugging.

Blue is used when the vehicle is plugged in
and either charging or waiting to charge.

Amber is used to indicate charge faults.

E306677

Note:

Charging faults are identified by the

color amber on the charge status indicator.
Faults can occur within the vehicle charging
system or outside the vehicle, such as with
the mobile charger, charge station or
electrical supply.

Note:

If the system detects a fault in the

vehicle charging system at any point in a
charge cycle, the entire charge status
indicator illuminates solidly in an amber
color for 30 seconds and then turns off. If
this happens, unplug the charge coupler and
then plug it back into the charge port
receptacle. If the problem persists, have
your vehicle serviced as soon as possible.

Note:

If the system detects a fault outside

the vehicle, such as with the charge station
or mobile charger, the entire charge status
indicator flashes amber continuously for 30
seconds and then turns off. If this happens
check the mobile charger, charge station or
electrical supply.

215

Charging Your Vehicle - Electric Motor

AC CHARGING

CONNECTING THE CHARGER

WARNING:

Do not use the charging

equipment if it is faulty or has been
damaged. Failure to follow this
instruction could result in personal injury,
fire, electric shock, death or property
damage.

E306676

Charging Using the Mobile Charger

CAUTION: TO REDUCE THE RISK OF
FIRE-

The plug must be properly

grounded. Use a dedicated circuit. If you
do not use a dedicated circuit, the circuit
breaker could trip or open. If you do not
have a dedicated circuit, contact a licensed
professional electrician for proper
installation.

To charge the high voltage battery:

You must unwrap the mobile charger
completely before charging.

Put your vehicle in park (P).

Note:

Your vehicle must be in park (P) to

charge.

2. Plug the connector into the control box.

Note:

To insert the connector, firmly grasp

the connector by the cable or plug and push
into the control box until an audible click is
heard. Make sure the connector is fully
inserted and flush with the control box
before inserting it into the outlet. Improper
insertion will cause a longer charge session
or faults.

3. Plug the connector into the wall outlet.

4. Confirm that the mobile charger

indicator lights illuminate.

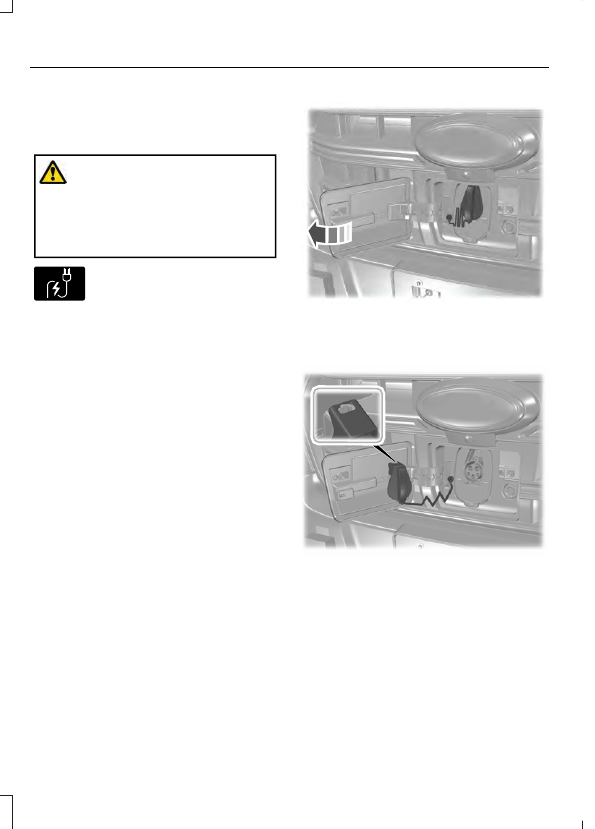

E359301

5. Press the center right hand edge of the

charge port door and then release to
open the door.

E359302

6. Remove the charge port dust cap and

hang it on the pin.

216

Charging Your Vehicle - Electric Motor

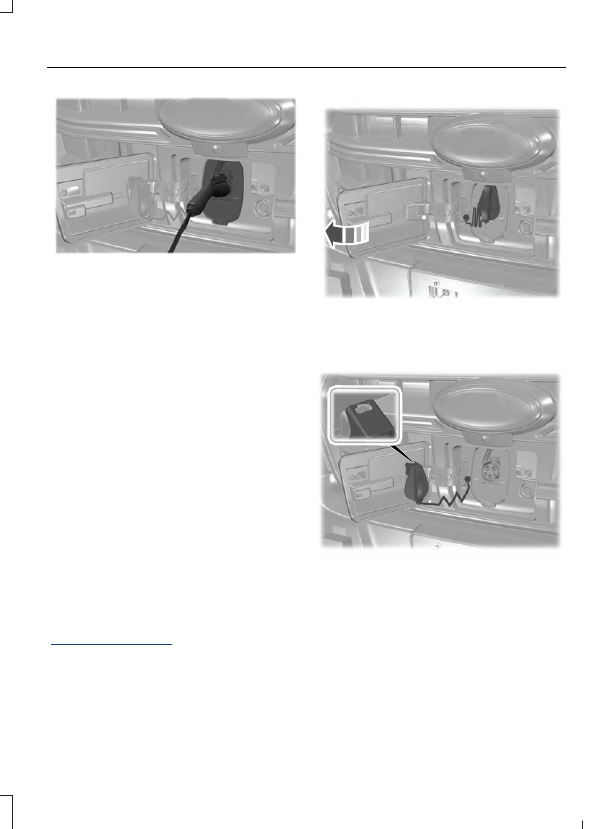

E359303

Plug the charge coupler into the charge
port receptacle on your vehicle.

Note:

Make sure the button clicks

confirming that you have completely
engaged the coupler. When you plug in your
vehicle, it starts charging to 100% by default
unless scheduled charging has been set up
for this location. See

Setting the Charging

Schedule and Preferences

(page 222).

Note:

Plug the connector into the wall

outlet before connecting the charge coupler
handle to your vehicle's charge port.

Note:

When the handle is properly engaged

the light ring illuminates. This indicates the
beginning of a normal charge cycle.

Note:

There could be a delay in light ring

illumination due to vehicle internal
communications.

Note:

If charging for your vehicle fails,

please contact the Customer Relationship
Center, or click on Live chat. To ensure
superior service, please take note of your
serial number when contacting customer
support.

For more information, visit

www.owner.ford.com

Charging At a Charge Station

Put your vehicle in park (P).

Note:

Your vehicle must be in park (P) to

charge.

E359301

2. Press the center right hand edge of the

charge port door and then release to
open the door.

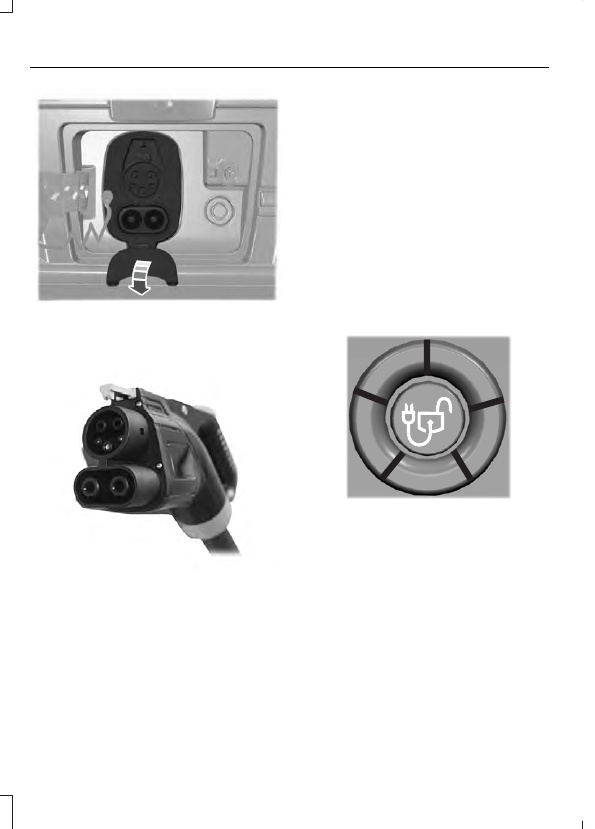

E359302

3. Remove the charge port dust cap and

hang it on the pin.

217

Charging Your Vehicle - Electric Motor

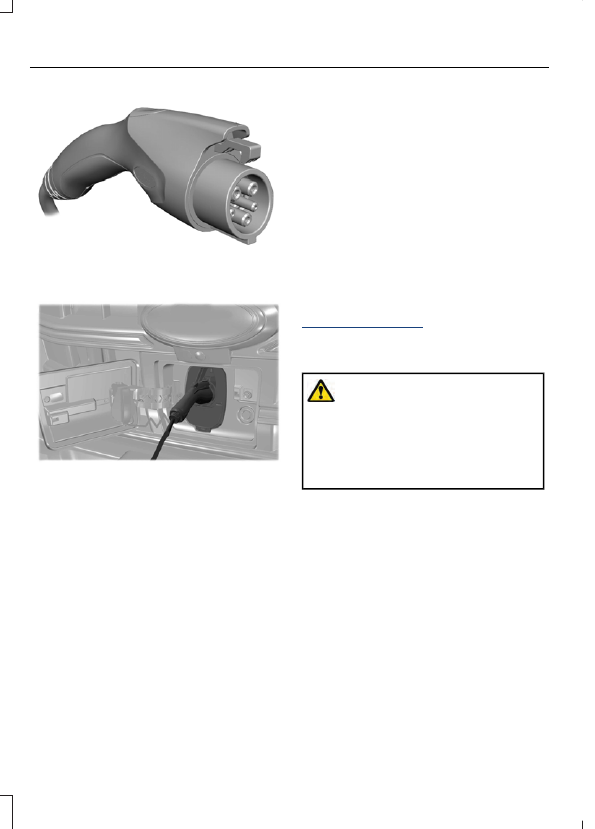

E335725

4. Select the appropriate charge station

coupler.

E359303

5. Plug the charge coupler handle into the

charge port receptacle on your vehicle.

Note:

Make sure the button clicks

confirming that you have completely
engaged the coupler. When you plug in your
vehicle, it starts charging to 100% by default
unless scheduled charging has been set up
for this location. See

Setting the Charging

Schedule and Preferences

(page 222).

Note:

When the handle is properly engaged

the light ring illuminates. This indicates the
beginning of a normal charge cycle.

Note:

There could be a delay in light ring

illumination due to vehicle internal
communications.

Information about public charge stations
is available through the in-vehicle screen
as well as the FordPass app with pricing,
power levels, and real time availability.
Rates for charging varies by power level,
provider, location, and time of day.

When charging your vehicle at a FordPass
Charging Network station, use the
FordPass App to activate and pay for
charging. You can also just plug in to
activate charging at Plug & Charge capable
stations. If the charging station is not in the
FordPass Charging Network, use the
directions on the charge station to activate
the charger.

For more information, visit

www.owner.ford.com

STOPPING CHARGING

WARNING:

To safely discontinue

charging at any time, follow the
disconnect instructions in stopping
charging. Charging will automatically and
safely come to a stop. The BLUE
STATUS indicator remains ON solid
when the coupler is removed.

Using the mobile charger:

Press the latch on the charge coupler
and remove it from the vehicle charge
port.

2. Remove the connector plug from the

wall outlet.

Note:

Do not pull the wall plug from the

wall outlet or the connector from the mobile
charger control box, while your vehicle is
charging. Doing so could damage the outlet
and the cord.

Note:

You cannot shift your vehicle out of

park (P) until you remove the charge
coupler.

3. Reinstall the charge port dust cap.

218

Charging Your Vehicle - Electric Motor

E359325

4. Press the center right-hand edge of the

charge port door to close.

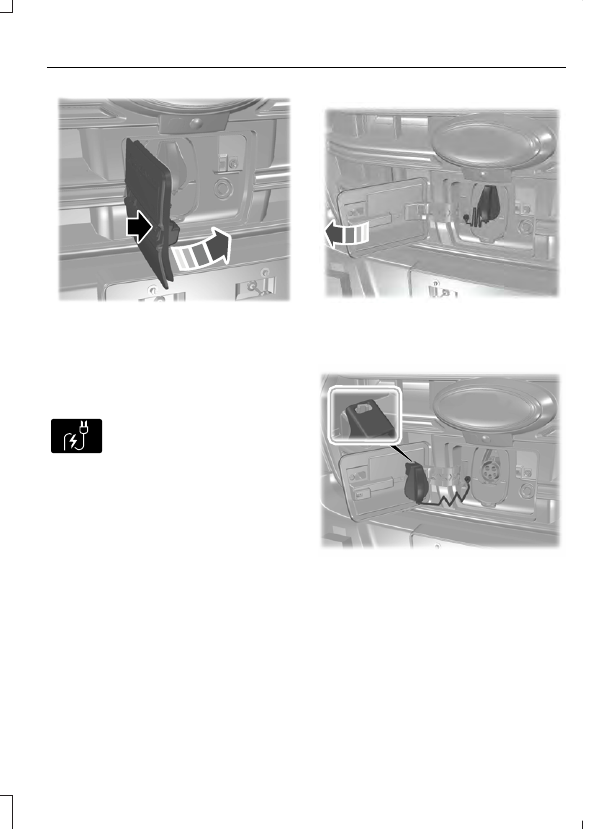

DC CHARGING

CONNECTING THE CHARGER

E306676

Put your vehicle in park (P).

Note:

Your vehicle must be in park (P) to

charge and for the charge status indicator
to illuminate.

E359301

2. Press the center right hand edge of the

charge port door and then release to
open the door.

E359302

3. Remove the charge port dust cap and

hang it on the pin.

219

Charging Your Vehicle - Electric Motor

E359311

4. Open the additional dust cap on the

charge port to expose lower
connectors.

E335188

5. Plug the charge coupler into the charge

port receptacle on your vehicle.

Note:

Make sure the button clicks

confirming that you have completely
engaged the coupler. Your vehicle locks to
the charge coupler.

Note:

When the handle is properly engaged,

the light ring illuminates. This indicates the
beginning of a normal charge cycle.

Note:

The vehicle monitors battery health

and may take actions including, but not
limited to, reducing the DC fast charge rate
to protect the battery hardware from
damage, and to maintain battery health.

Note:

When charging your vehicle at a

public charge station, follow the directions
on the charge station.

STOPPING CHARGING

E349661

Push the coupler unlock button on the
light ring.

2. Press the latch on the charge coupler

and remove it from the vehicle charge
port.

Note:

Do not attempt to remove the charge

coupler before you unlock it. Do not use any
kind of tool to try and remove a locked
charge coupler. Doing so can lead to
damage to your vehicle and the charge
coupler.

Note:

You cannot unlock the charge coupler

unless the vehicle remote is near the vehicle.

220

Charging Your Vehicle - Electric Motor

Note:

You can also unlock the cord through

the vehicle access menu. If the cord still
does not unlock, please contact roadside
assistance.

Note:

You cannot shift your vehicle out of

park (P) until you remove the charge
coupler.

3. Close the dust cap for the lower

connectors.

4. Reinstall the dust cap for the upper

connectors.

E359325

5. Press the center right-hand edge of the

charge port door to close.

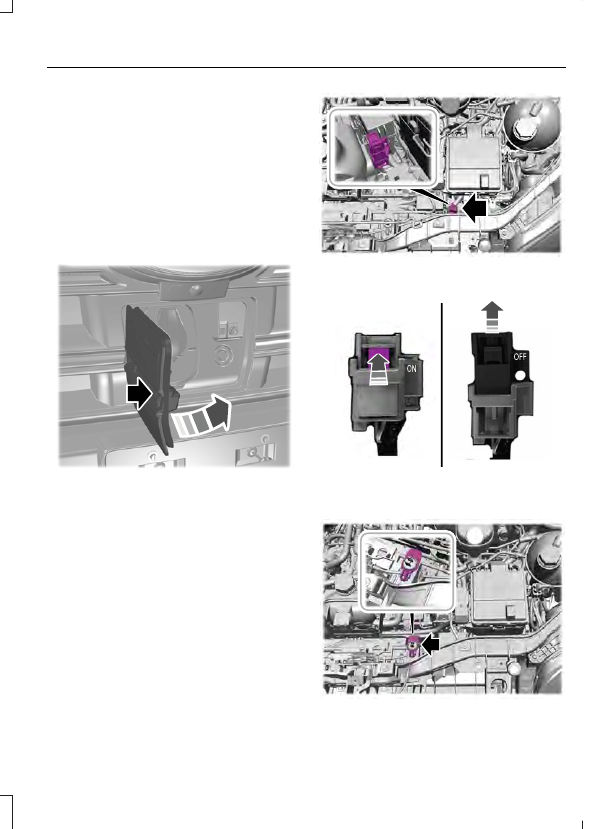

Charge Coupler Manual Release

In the event that your vehicle does not
unlock the charge coupler, you can
manually release it.

Switch your vehicle off.

2. Open the hood.

E359355

3. Locate the low voltage service

disconnect.

E354043

4. Press the latch and pull the low voltage

service disconnect to the off position.

E359382

221

Charging Your Vehicle - Electric Motor

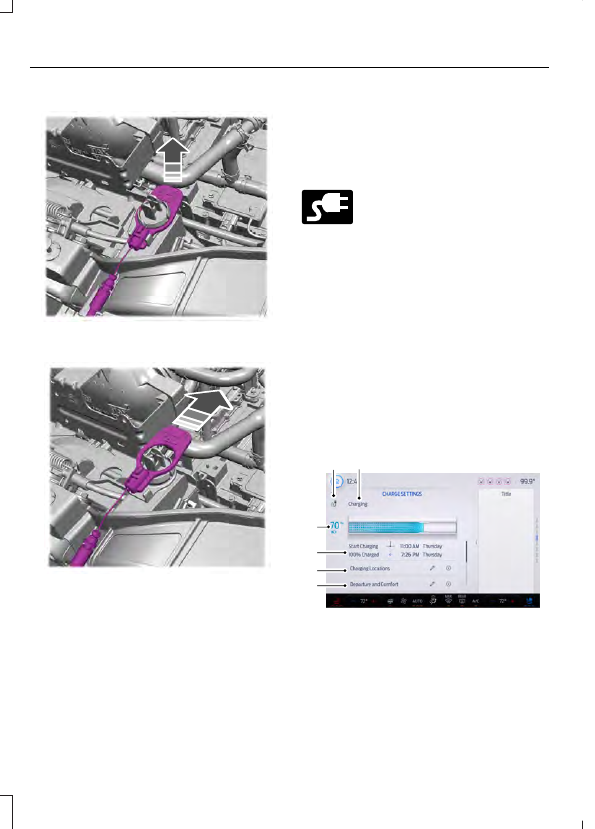

5. Locate the manual release mechanism.

E359383

6. Pull the manual release ring upward to

detach from grommet.

E359384

Pull the manual release ring firmly in
the direction shown.

8. Press the latch on the charge coupler

and remove it from the vehicle charge
port.

9. Reinstall the manual release ring to the

grommet.

10.

Push the low voltage service
disconnect to the on position.

11.

Close the hood.

SETTING THE CHARGING
SCHEDULE AND
PREFERENCES

E228962

You can schedule charging to
take advantage of lower-cost
electricity rates during off-peak

hours if you have signed up for a time of
use pricing plan with your utility provider.
You can also set an upper charge limit for
your battery and a departure time and
cabin temperature so your vehicle is ready
to go when you are.

Scheduled charging can be set up in the
on vehicle display or in the FordPass app.

To view your charge settings:

Press

Features

on the touchscreen.

2. Press Charge Settings on the

touchscreen.

Charge Settings Screen

E359392

Charge status icon.

Charge status.

High voltage battery state of
charge.

Charging time information.

222

Charging Your Vehicle - Electric Motor

Charging location preferences.

Departure and comfort
preferences.

Charge Status Icons

Displays when your vehicle is plugged in.

E306677

Not charging due to a fault.

E335144

Not currently charging.

E306676

Charging.

E306678

Waiting to charge based on
charge time settings.

Charge Status

Shows the present state of charging
system.

Action

Charge Status

The vehicle is unplugged and will start

charging once plugged in.

Will charge when plugged in

The vehicle is unplugged at a location with

charge times enabled. Charging is sched-

uled to start at the time displayed based

on your settings. You must plug in prior to

the start time shown for the vehicle to begin

charging at that time.

Will wait for preferred charge time

The vehicle is plugged in at a location with

charge times enabled. Charging will start

at the time displayed, which is based on

your charge time settings.

Waiting for preferred charge time

The vehicle is plugged in and charging has

been stopped through the FordPass mobile

app.

Charging stopped

The vehicle is plugged in and charging.

Charging

The vehicle is plugged into a DC Fast

Charge station and charging.

Fast charging

The vehicle finished charging to the target

state of charge setting.

Charged

The vehicle is plugged in and charging the

12V battery.

Charging 12V battery

The vehicle is plugged in and the climate

control system is operating according to

the departure and comfort settings.

Cabin conditioning

223

Charging Your Vehicle - Electric Motor

Action

Charge Status

The vehicle is plugged in and conditioning

the high voltage battery.

Battery conditioning

The vehicle is plugged in and there is a fault
within the vehicle charging system. Unplug
and plug back in. If the fault is still present,
contact your authorized EV certified dealer.

Vehicle charge fault

The vehicle is plugged in and a fault has

been detected with the charge station or
charging cord. Please check the charging

cord and the charging station or electrical

supply.

Charge station fault

A charging coupler has been plugged into

the vehicle but there is no connection with

a charging power source.

Charge station not detected

The vehicle is plugged in and charging has

been paused at the charge station.

Charge station paused

High Voltage Battery State of
Charge

Displays the remaining charge percentage
with 100% representing the total amount
of energy you can get from an external
charge.

Charging Time Information

When charging, the start and estimated
end time displays. When fast charging, the
end time is replaced with the estimated
time at 80% charge until the charge
reaches 80%, then the estimated time at
100% charge is displayed.

When your vehicle is at a stored charging
location and not plugged in, the start and
end times display based on known
charging infrastructure.

Note:

Charging time information is

estimated. Certain conditions could result
in longer charging times. See

Charging

Your Vehicle

(page 207).

Charging Locations

E353986

Press the edit button to set
preferred charge times for a
specific charging location.

Your vehicle prioritizes charging based on
your preferred time settings. You can set
two preferred charging time windows for
weekdays and two for weekends. This
feature allows you to take advantage of
electric utility rate plans that offer lower
pricing during certain times of day. Contact
your utility company to see what plans are
available.

Note:

Your vehicle will charge during your

preferred time windows. Charging outside
these windows only occurs when additional
charging time is needed to reach the
maximum charge level set for this location
by your next departure time.

Note:

You can also access this feature

using the FordPass app.

224

Charging Your Vehicle - Electric Motor

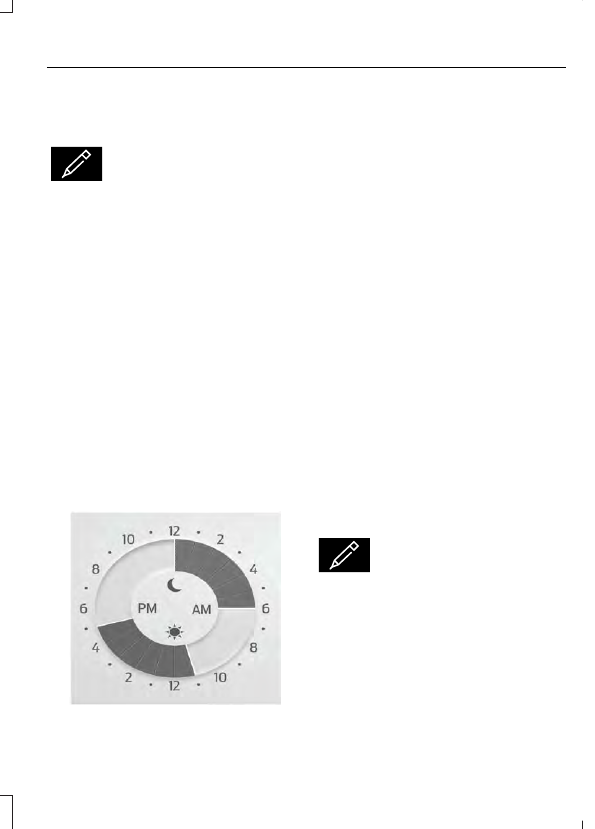

Charging Location Setup

Follow these steps to set time and charge
level preferences for a charging location.

E353986

Press the edit button for
charging locations on the charge
settings screen.

Select an address from the list of
recent charge locations. If the
previously saved charge locations are
not listed, then you must first select
add new location. You can also edit
settings for previously saved locations.

Note:

In order to save a charge location, the

vehicle must have previously charged at that
location.

2. Confirm that this is the location you

want to save with the help of the map
view. Edit the location name if desired
and set a maximum charge level. Press
next.

Note:

Depending on the GPS location, the

address on the navigation may not precisely
match up with your charging location.
Confirm on the map that the pin is in the
expected location.

Note:

Charging will stop when your vehicle

reaches the maximum charge level setting.

E359594

3. Set preferred charging times for

weekday and/or weekend by pressing
and dragging along the 24 hour time
wheel. You can set up to two blocks of
time (charge windows). Press next
once you have your desired time
settings for weekday and weekend.

Note:

Selecting all or none of the 24 hours

results in any time of day given equal priority
for charging.

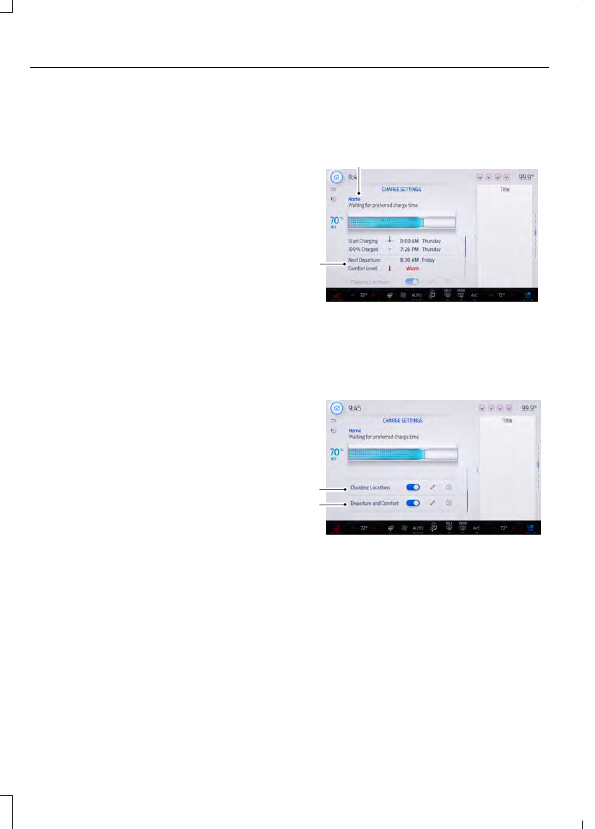

4. The summary screen displays your

settings for this location. Press save or
press the left arrow to go back and
change your settings. Whenever your
vehicle is at a saved charging location,
the charge settings screen displays the
location name, and the charging times
are based on your preferred time
settings for that location plus the next
departure time.

Note:

Reaching your max charge level by

your next departure time is always the
priority. When charge times are set, charging
outside your preferred charging time
windows could be necessary in order to
finish by your next departure time. In this
case, the vehicle will typically begin charging
right away after plugging in. Charging will
pause when the rest of the charge can be
done within the preferred charge windows.

Departure and Comfort

E353986

Press the edit button for
departure and comfort settings.

Setting departure times allows you to
control charging schedules and warm or
cool your cabin and the high voltage
battery when your vehicle is plugged in, so
your vehicle is ready to drive when you are.
By setting a departure time, your vehicle

225

Charging Your Vehicle - Electric Motor

can use your charge time settings to
minimize your electricity costs but still
prioritize finishing charging before your
scheduled departure. The calendar view
allows you to program two departure times
per day for each day of the week.

Note:

By using energy from your charging

source while plugged in, battery
temperature can be managed for best
driving performance and less energy will be
needed for heating or cooling of the cabin
at the start of your drive. This helps
maximize your driving range.

Note:

You can also access this feature

using the FordPass app.

Departure and Comfort Setup

Follow these steps to set departure times
and cabin comfort level.

Press the edit button for departure and
comfort on the charge settings screen.

2. Select a time for each day of the week

you want your settings to apply. Select
the hour and minutes as well as your
desired comfort level. Your selected
days/times now display your departure
and comfort settings. Press Save to
apply your settings. The next departure
display on the charge settings screen
will update appropriately.

Note:

Save your departure settings before

selecting additional days/times. The
process must be repeated in order to add
additional unique departure times and
comfort levels.

Note:

Cabin conditioning comfort level may

vary depending on whether you plug into a
normal household outlet or a higher power
outlet or charging station. The power
available for conditioning is limited to the
charging station power available. At low
ambient temperatures and low charge
power, a small amount of high voltage
battery power in addition to the charging
power could be used to heat the cabin.

Additional information and settings are
displayed on the charge settings screen
once charging locations and departure and
comfort have been set up.

E359393

Charging location name.

Next departure time and cabin
temperature.

E359394

On/Off switch for charging
locations.

On/Off switch for departure and
comfort.

Charging Location Name

Displays when your vehicle is at a stored
charging location.

226

Charging Your Vehicle - Electric Motor

Next Departure Time and Cabin
Comfort Level

Displays the next departure time and
associated cabin comfort setting.

On/Off Switch for Charging Locations

This switch is visible when your vehicle is
at a saved charging location. Use this
switch to turn your settings off and on for
this location only. Switching off for this
location does not delete your settings,
however, you must switch back on to
re-enable them.

Note:

If the charging locations switch is off,

the target state of charge returns to 100%.

On/Off Switch for Departure and
Comfort

This switch is visible when you have at
least one departure time set. Use this
switch to turn all departure times off and
on. Switching off departure and comfort
does not delete your settings, however,
you must switch back on to re-enable
them.

USING FORDPASS AND
CHARGING

The FordPass App allows you to do the
following:

•

Monitor and manage your vehicle's
charging, including charge schedules
and preferences.

•

Locate a charger and activate a charger
on the FordPass Charging Network.

•

Plan a trip and charging options along
your route.

•

Check charging station plug availability.

•

Initiate a charge session automatically
at Plug and Charge capable charge
stations.

•

Control your Ford Connected Charge
Station remotely.

•

Override charge preferences and
starting and stopping charging.

For more information, visit

www.owner.ford.com

CHARGING YOUR VEHICLE
HINTS

We recommend limiting the amount of DC
charges, and ending DC charges at 80%
state of charge as charging between 80
and 100% can incur high charging costs
due to the time to completion. Frequent
use of DC charging could result in reducing
your battery’s efficiency and lifespan.

In cold temperatures, you may notice that
DC charging takes longer when the outside
temperature drops below 50°F (10°C).
Shutting off climate control or reducing
climate control temperature and fan
settings for the first 10 to 15 minutes of DC
charging will allow the battery to warm up
and improve the charging rate.

Keep your vehicle plugged in when the
outside temperatures are very high or low.
This enables the system to maintain the
high voltage battery at the best condition
for your next drive.

Note:

When the temperature is below

freezing, fully turning off cabin heat for the
first 10 to 15 minutes of DC charging could
significantly improve the charging rate.

CHARGING YOUR VEHICLE –
TROUBLESHOOTING

CHARGING YOUR VEHICLE –
WARNING LAMPS

E228962

Plugged into charger.

227

Charging Your Vehicle - Electric Motor

CHARGING YOUR VEHICLE – INFORMATION MESSAGES

Action

Message

Your vehicle needs confirmation it is unplugged before
allowing a start. You must make sure your vehicle is unplugged
and you respond to the message promptly before starting
your vehicle.

Vehicle Plugged In ? Yes

Indicates that HV battery can no longer support the 12V
battery. Plug In your vehicle to charge the high voltage battery
and maintain the 12V battery at a healthy state.

Plug in to Maintain 12V

Battery

The vehicle is plugged in and a fault has been detected with
the charge station or charging cord. Please check the charging
cord and the charging station or electrical supply.

Charge Station Fault See

Manual

228

Charging Your Vehicle - Electric Motor

Ford Transit (2022 year). Manual in english - page 13
