Ford Transit (2022 year). Manual in english - page 9

Recommended Settings for
Heating

Press

AUTO

2. Adjust the temperature function to the

setting you prefer. Use 72°F (22°C) as
a starting point, then adjust the setting
as necessary.

Quickly Cooling the Interior

Press

MAX A/C

Recommended Settings for
Cooling

Press

AUTO

2. Adjust the temperature function to the

setting you prefer. Use 72°F (22°C) as
a starting point, then adjust the setting
as necessary.

Defogging the Side Windows in
Cold Weather

Press and release defrost or maximum
defrost.

2. Adjust the temperature control to the

setting you prefer. Use 72°F (22°C) as
a starting point, then adjust the setting
as necessary.

149

Climate Control - Vehicles With: Automatic Temperature

Control

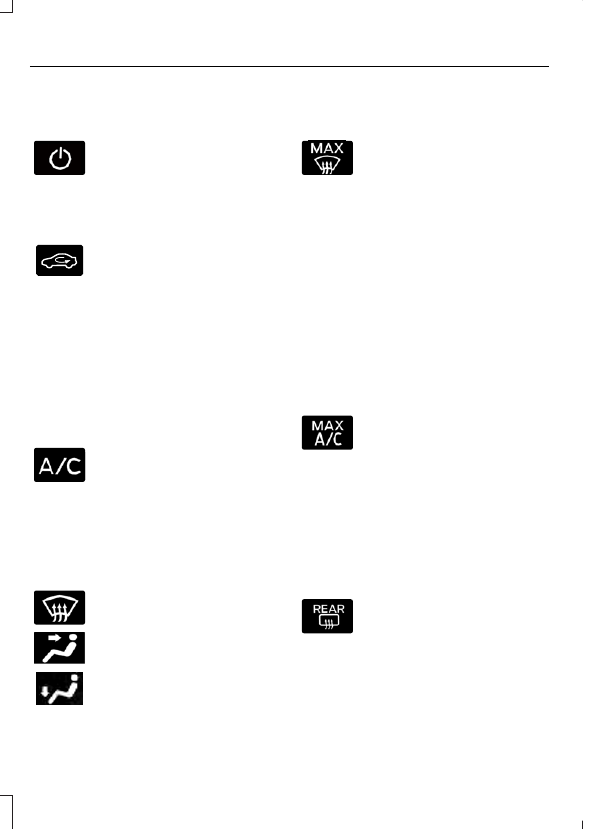

SWITCHING CLIMATE
CONTROL ON AND OFF

Press the button.

SWITCHING RECIRCULATED
AIR ON AND OFF

Press the button to recirculate
air currently in the passenger
compartment.

Note:

Recirculated air may turn off

automatically, or prevent you from switching
on in all air flow modes except MAX A/C to
reduce the risk of fogging. Recirculation may
also turn on and off automatically in various
air distribution control combinations to
improve heating or cooling efficiency.

SWITCHING AIR
CONDITIONING ON AND OFF

Press the button.

Note:

Under certain conditions, the air

conditioning compressor could continue to
operate after you switch air conditioning off.

SWITCHING DEFROST ON AND
OFF

Press the button to switch the
windshield air vents on.

E244097

Make sure that the instrument
panel air vents are switched off.

Make sure that the footwell air
vents are switched off.

SWITCHING MAXIMUM
DEFROST ON AND OFF

Turn the temperature control
clockwise past the highest
setting to maximize defrosting.

Note:

The temperature control springs back

to the highest setting.

Air flows through the windshield air vents,
and the blower motor adjusts to the
highest speed.

Note:

To prevent window fogging, you

cannot select recirculated air when
maximum defrost is on.

Note:

The heated rear window and air

conditioning also turn on when you select
maximum defrost.

SWITCHING MAXIMUM
COOLING ON AND OFF

Turn the temperature control
counterclockwise past the
lowest setting to maximize

cooling.

Note:

The temperature control springs back

to the lowest setting.

Note:

When you switch maximum cooling

off, air conditioning remains on.

SWITCHING THE HEATED
REAR WINDOW ON AND OFF

Press the button to clear the rear
window of thin ice and fog. The
heated rear window turns off

after a short period of time.

150

Climate Control - Vehicles With: Manual Temperature Control

Note:

Do not use harsh chemicals, razor

blades or other sharp objects to clean or
remove decals from the inside of the heated
rear window as this could cause damage to
the heated rear window grid lines not
covered by the vehicle Warranty.

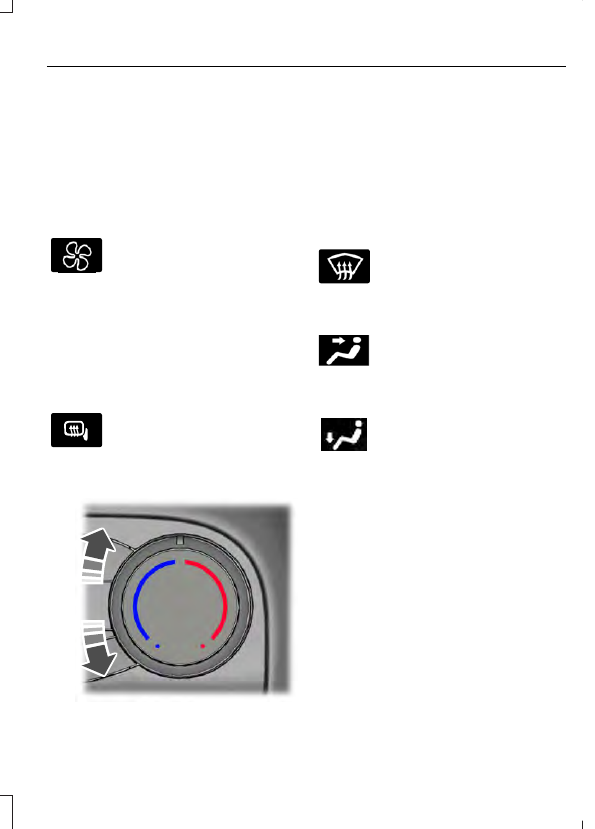

SETTING THE BLOWER MOTOR
SPEED

Note:

Lights on the control illuminate to

indicate the blower motor speed.

Note:

When you switch the blower motor

off, air conditioning turns off and the
windows could fog up.

SWITCHING THE HEATED
MIRRORS ON AND OFF

E266189

Press the button.

SETTING THE TEMPERATURE

E244106

Turn the temperature control
counterclockwise for cooler temperature
settings.

Turn the temperature control clockwise
for warmer temperature settings.

DIRECTING THE FLOW OF AIR

Directing Air to the Windshield Air
Vents

Press the button.

Directing Air to the Instrument
Panel Air Vents

E244097

Press the button.

Directing Air to the Footwell Air
Vents

Press the button.

CLIMATE CONTROL HINTS

General Hints

•

Prolonged use of recirculated air may
cause the windows to fog up.

•

You may feel a small amount of air
from the footwell air vents regardless
of the air distribution setting.

•

To reduce humidity build-up inside your
vehicle, do not drive with the system
switched off or with recirculated air
always switched on.

•

Do not place objects under the front
seats as this may interfere with the
airflow to the rear seats.

151

Climate Control - Vehicles With: Manual Temperature Control

•

Remove any snow, ice or leaves from
the air intake area at the base of the
windshield.

•

To improve the time to reach a
comfortable temperature in hot
weather, drive with the windows open
until you feel cold air through the air
vents.

Quickly Heating the Interior

Adjust the blower motor speed to the
highest speed setting.

2. Adjust the temperature control to the

highest setting.

3. Direct air to the footwell air vents.

Recommended Settings for
Heating

Adjust the blower motor speed to the
center setting.

2. Adjust the temperature control to the

midway point of the hot settings.

3. Direct air to the footwell air vents.

Quickly Cooling the Interior

Press

MAX A/C

2. Drive with the windows open for a short

period of time.

Recommended Settings for
Cooling

Adjust the blower motor speed to the
center setting.

2. Adjust the temperature control to the

midway point of the cold settings.

3. Direct air to the instrument panel air

vents.

Defogging the Side Windows in
Cold Weather

Direct air to the instrument panel and
windshield air vents.

2. Press and release

A/C

3. Adjust the temperature control to the

setting you prefer.

4. Adjust the blower motor speed to the

highest setting.

5. Direct air toward the side windows.

6. Close the instrument panel air vents.

152

Climate Control - Vehicles With: Manual Temperature Control

SETTING THE BLOWER MOTOR
SPEED

DIRECTING THE FLOW OF AIR

Directing Air to the Overhead Air
Vents

E244097

When you direct air to the
overhead air vents, the system
distributes cold air.

Directing Air to the Footwell Air
Vents

When you direct air to the
footwell air vents, the system
distributes hot air.

Directing Air to the Overhead Air
Vents and the Footwell Air Vents

When you direct air to the
Overhead and footwell air vents,
the system distributes warm air.

153

Rear Passenger Climate Control

FRONT SEAT PRECAUTIONS

WARNING:

Sitting improperly, out

of position or with the seatback reclined
too far can take weight off the seat
cushion and affect the decision of the
passenger sensing system, resulting in
serious injury or death in the event of a
crash. Always sit upright against your
seat back, with your feet on the floor.

WARNING:

Do not recline the seat

backrest too far as this can cause the
occupant to slide under the seatbelt,
resulting in personal injury in the event
of a crash.

WARNING:

Do not place objects

higher than the top of the seat backrest.
Failure to follow this instruction could
result in personal injury or death in the
event of a sudden stop or crash.

WARNING:

Do not adjust the driver

seat or seat backrest when your vehicle
is moving. This may result in sudden seat
movement, causing the loss of control
of your vehicle.

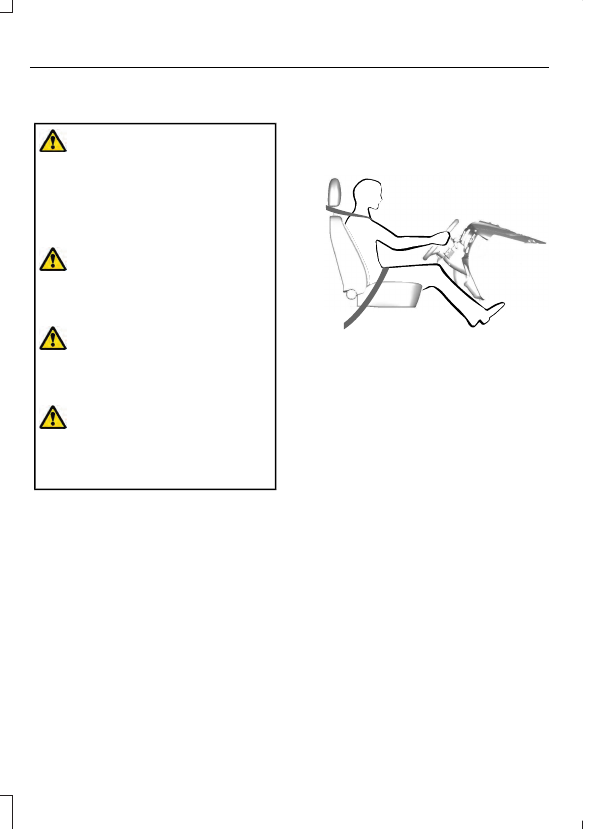

SITTING IN THE CORRECT
POSITION

E68595

When you use them properly, the seat,
head restraint, seatbelt and airbags will
provide optimum protection in the event
of a crash.

We recommend that you follow these
guidelines:
•

Sit in an upright position with the base
of your spine as far back as possible.

•

Do not recline the seat backrest so that
your torso is more than 30 degrees
from the upright position.

•

Adjust the head restraint so that the
top of it is level with the top of your
head and as far forward as possible.
Make sure that you remain
comfortable.

•

Keep sufficient distance between
yourself and the steering wheel. We
recommend a minimum of 10 in
(25 cm) between your breastbone and
the airbag cover.

•

Hold the steering wheel with your arms
slightly bent.

154

Front Seats

•

Bend your legs slightly so that you can
press the pedals fully.

•

Position the shoulder strap of the
seatbelt over the center of your
shoulder and position the lap strap
tightly across your hips.

Make sure that your driving position is
comfortable and that you can maintain full
control of your vehicle.

MANUAL SEATS

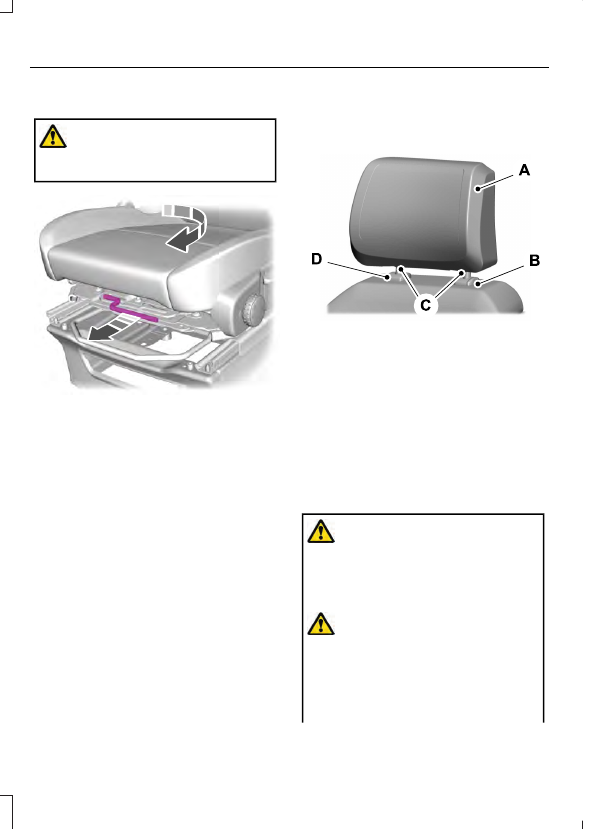

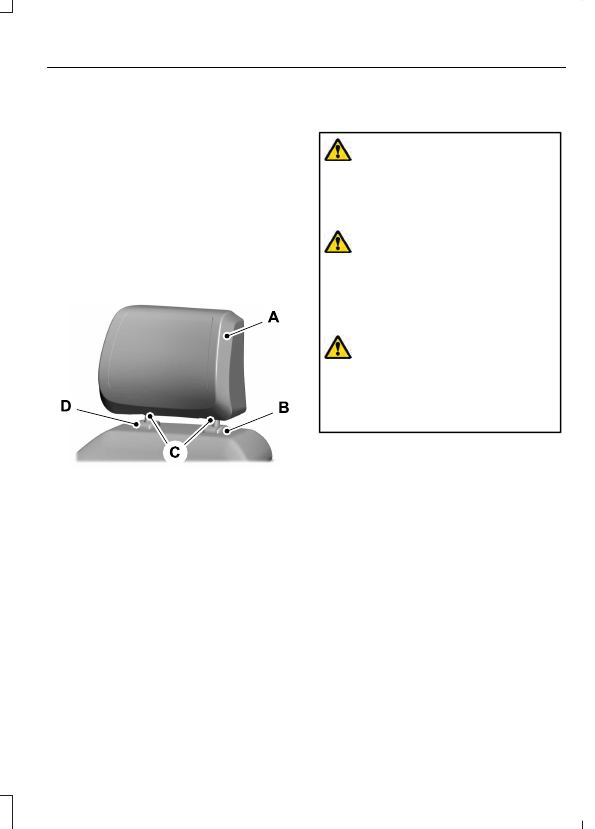

HEAD RESTRAINT COMPONENTS

E308298

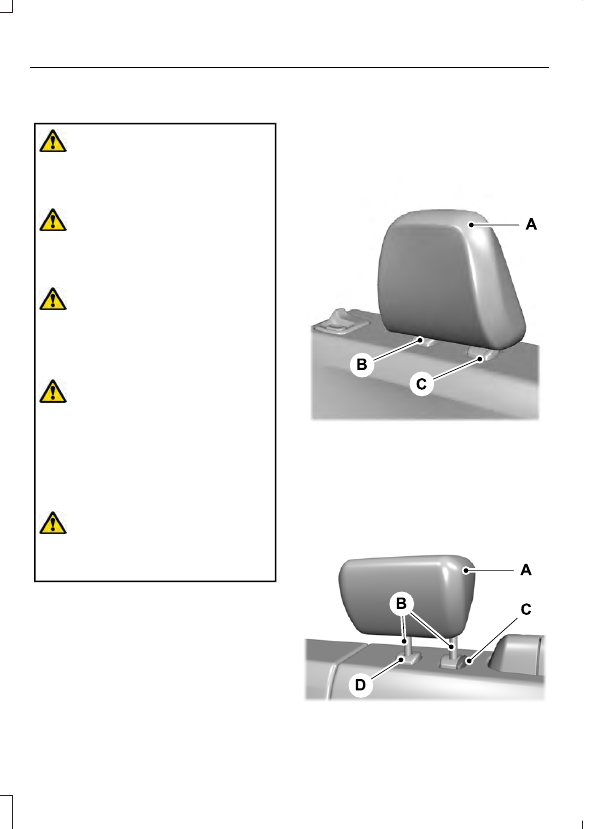

The head restraints consist of:

An energy absorbing head
restraint.

Guide sleeve adjust and release
button.

Two steel stems.

Guide sleeve unlock and remove
button (If equipped).

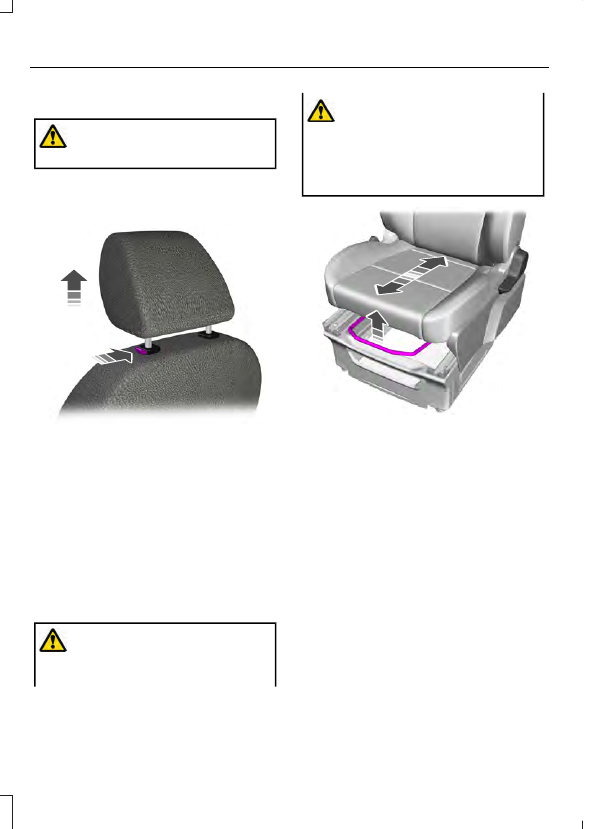

ADJUSTING THE HEAD
RESTRAINT

WARNING:

Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk
of neck injury in the event of a crash. Do
not adjust the head restraint when your
vehicle is moving.

WARNING:

The head restraint is a

safety device. Whenever possible it
should be installed and properly
adjusted when the seat is occupied.
Failure to adjust the head restraint
properly could reduce its effectiveness
during certain impacts.

WARNING:

Adjust the head

restraints for all passengers before you
drive your vehicle. This will help minimize
the risk of neck injury in the event of a
crash. Do not adjust the head restraints
when your vehicle is moving.

Adjust the head restraint so that the top
of it is level with the top of your head.

Raising the Head Restraints

Pull the head restraint upward.

2. Make sure that the head restraint locks

into place.

Lowering the Head Restraints

Press and hold the locking button.

2. Push the head restraint downward.

3. Make sure that the head restraint locks

into place.

155

Front Seats

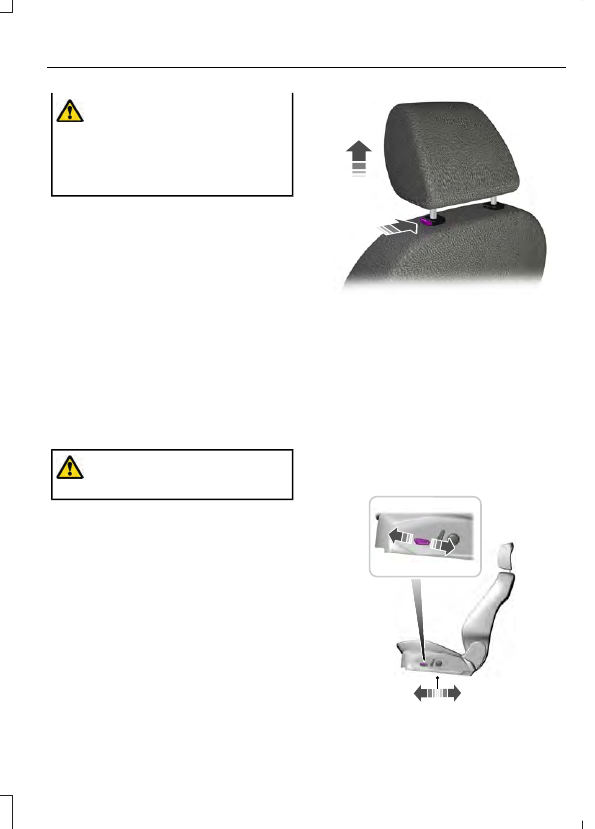

REMOVING THE HEAD RESTRAINT

WARNING:

Do not remove the

head restraint from an occupied seat.

Recline the seat backrest so that there
is enough room for you to remove the
head restraint.

E265266

2. Press the locking button and remove

the head restraint.

INSTALLING THE HEAD
RESTRAINT

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

MOVING THE SEAT BACKWARD
AND FORWARD

WARNING:

Do not place cargo or

any objects behind the seatback before
returning it to the original position.

WARNING:

Make sure the seat fully

locks into place by rocking it backward
and forward. Not securing the seat into
the locked position can be dangerous in
a crash and could cause serious personal
injury or death.

E177638

Note:

The driver seat has removable stop

bolts on the track to enable access to the
vehicle battery. See

Changing the 12V

Battery

(page 386).

156

Front Seats

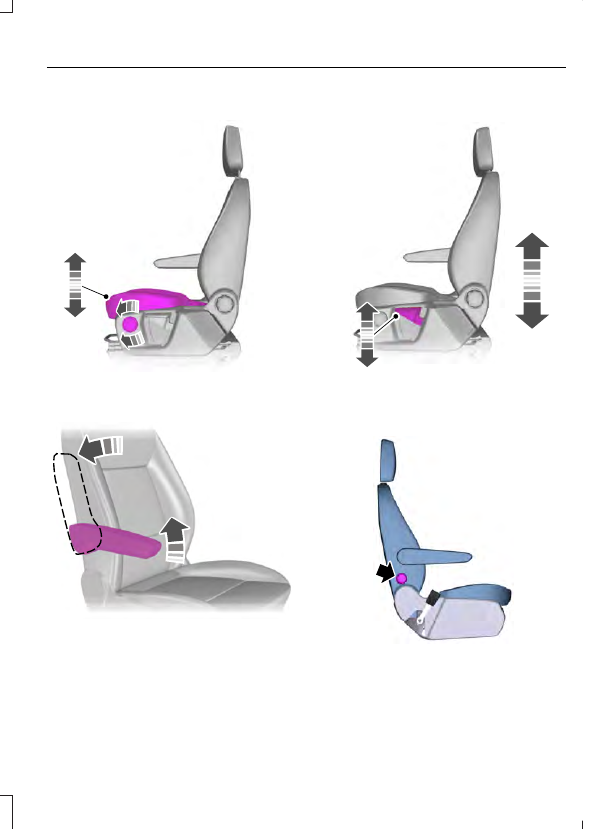

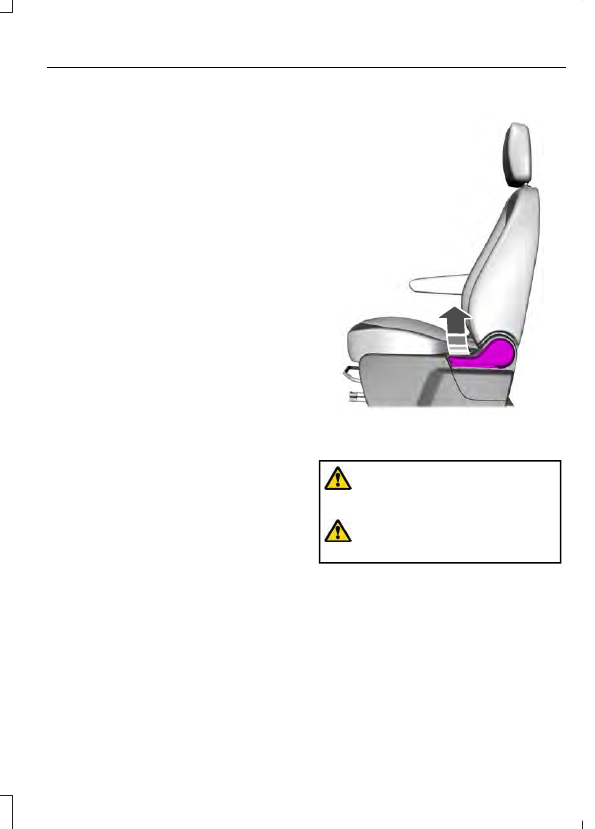

ADJUSTING THE SEAT CUSHION

E146959

FOLDING THE SEAT ARMREST

E337855

ADJUSTING THE SEAT HEIGHT

E146384

ADJUSTING THE LUMBAR
SUPPORT

E146386

157

Front Seats

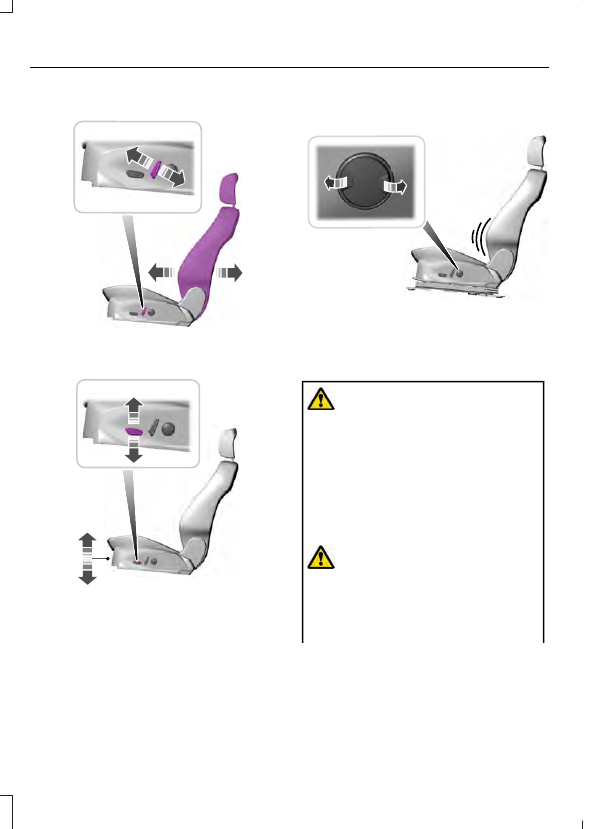

SWIVELING THE SEAT

WARNING:

Make sure the seat

locks into place and is facing forward
when your vehicle is moving.

E315195

The seat can swivel through 180 degrees
in an inboard direction.

You may need to adjust the seat to allow
sufficient clearance for it to swivel in a
single motion.

Note:

We recommend that the seat is

unoccupied.

Swivel Seat Audible Warning

Sounds when the driver or passenger seat
is not locked into place, and the ignition is
on.

POWER SEATS

HEAD RESTRAINT COMPONENTS

E308298

The head restraints consist of:

An energy absorbing head
restraint.

Guide sleeve lock and release
button.

Two steel stems.

Guide sleeve.

ADJUSTING THE HEAD
RESTRAINT

WARNING:

Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk
of neck injury in the event of a crash. Do
not adjust the head restraint when your
vehicle is moving.

WARNING:

The head restraint is a

158

Front Seats

WARNING:

Adjust the head

restraints for all passengers before you
drive your vehicle. This will help minimize
the risk of neck injury in the event of a
crash. Do not adjust the head restraints
when your vehicle is moving.

Adjust the head restraint so that the top
of it is level with the top of your head.

Raising the Head Restraints

Pull the head restraint upward.

2. Make sure that the head restraint locks

into place.

Lowering the Head Restraints

Press and hold the locking button.

2. Push the head restraint downward.

3. Make sure that the head restraint locks

into place.

REMOVING THE HEAD RESTRAINT

WARNING:

Do not remove the

head restraint from an occupied seat.

Do not remove the head restraint from
an occupied seat.

E265266

2. Press the locking button and remove

the head restraint.

INSTALLING THE HEAD
RESTRAINT

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

MOVING THE SEAT BACKWARD
AND FORWARD

E356723

159

Front Seats

ADJUSTING THE SEAT BACKREST

E356725

ADJUSTING THE SEAT HEIGHT

E356724

ADJUSTING THE LUMBAR
SUPPORT

E356727

HEATED SEATS

HEATED SEAT PRECAUTIONS

WARNING:

Use caution when using

the heated seat if you are unable to feel
pain to your skin because of advanced
age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use,
exhaustion or other physical conditions.
The heated seat could cause burns even
at low temperatures, especially if used
for long periods of time. Failure to follow
this instruction could result in personal
injury.

WARNING:

Do not poke sharp

objects into the seat cushion or seat
backrest. This could damage the heated
seat element and cause it to overheat.
Failure to follow this instruction could
result in personal injury.

160

Front Seats

WARNING:

Do not place anything

on the seat that blocks the heat, for
example a seat cover or a cushion. This
could cause the seat to overheat. Failure
to follow this instruction could result in
personal injury.

Do not:
•

Place heavy objects on the seat.

•

Operate the heated seat if water or any
other liquid spills on the seat. Allow the
seat to dry.

SWITCHING THE HEATED SEATS
ON AND OFF

The vehicle must be on to use this feature.

E146322

Press the heated seat symbol to cycle
through the various heat settings and off.
The more indicators that display, the
warmer the temperature of the seat.

Note:

Based on your remote start settings,

the heated seats may remain on after you
remote start your vehicle. The heated seats
may also turn on when you start your vehicle
if they were on when you switched your
vehicle off.

Automatic Heated Seats

(If Equipped)

When you switch on the auto setting, the
heated seats switch on to match your
climate control setting.

161

Front Seats

REAR SEAT PRECAUTIONS

WARNING:

Do not use the bench

seats as a bed when your vehicle is
moving. Failure to follow this warning
could result in serious personal injury or
death.

WARNING:

Do not place any

objects on a folded seat. Hard objects
may become projectiles in a crash or
sudden stop, which may increase the risk
of serious personal injury.

WARNING:

When reclining the

backrest forward and backward, take
care not to get your hands caught
between the seat backrest and the
frame, catches or mechanism. Failure to
take care may result in personal injury.

WARNING:

Do not place cargo or

any objects behind the seat backrest
before returning it to the original position.
Pull on the seat backrest to make sure
that it has fully latched after returning
the seat backrest to its original position.
An unlatched seat may become
dangerous if you stop suddenly or have
a crash.

WARNING:

When unfolding the

seat backrests, make sure that the
seatbelts are not trapped behind the
seat.

MANUAL SEATS

HEAD RESTRAINT COMPONENTS

Rear Seat Outermost Head Restraints

E324211

The head restraints consist of:

An energy absorbing head
restraint.

Guide sleeve.

Locking guide sleeve.

Rear Seat Center Head Restraint

E317993

162

Rear Seats

The head restraint consists of:

An energy absorbing head
restraint.

Two steel stems.

Guide sleeve adjust and release
button.

Guide sleeve unlock and remove
button (If equipped).

ADJUSTING THE HEAD
RESTRAINT

The outermost head restraints are
non-adjustable.

Pull the center head restraint up to raise
it.

To lower the center head restraint:

Press and hold the unlock and remove
button.

2. Push the head restraint down.

REMOVING THE HEAD RESTRAINT

Fold the seat backrest forward before
removing the head restraint.

2. Pull up the head restraint until it

reaches its highest position.

3. Press and hold the adjust and release

button and the unlock and remove
button.

4. Pull up the head restraint.

INSTALLING THE HEAD
RESTRAINT

Fold the seat backrest forward before
installing the head restraint.

2. Align the steel stems into the guide

sleeves and push the head restraint
down until it locks.

ADJUSTING THE SEAT BACKREST

E175474

REMOVING THE SEATS

WARNING:

Seats can weigh up to

132 lb (60 kg). Do not attempt to lift or
carry any seat on your own.

WARNING:

Do not use the release

handles to lift or carry the seat.

163

Rear Seats

E173870

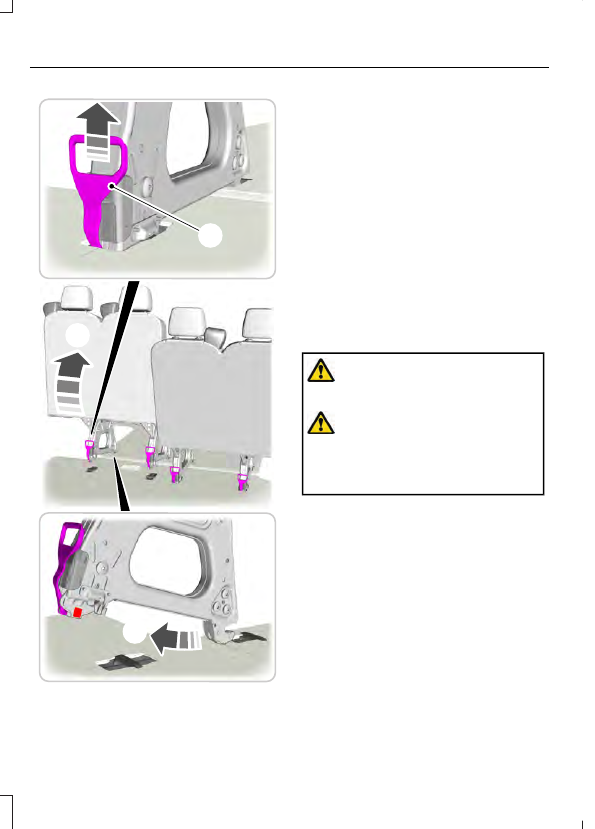

Pull the release handle up at an angle
from the floor.

2. While holding the handle in this

position, tilt the top of the seat forward
to release the seat frame rear catches
from the floor.

3. When the rear seat latches are clear of

the floor, release the handle.

4. Pull the seat backward to release the

seat frame front catches.

5. Remove the seat from the vehicle.

Note:

Two persons are required to release

the seat handles and remove the seat.

Note:

You can only remove seats that have

integral release handles.

Note:

The seatback does not fold forward.

INSTALLING THE SEATS

WARNING:

Make sure that the

floor catches are free from obstruction
before installing the seats.

WARNING:

Make sure that you

securely fasten the seat catches when
installing. Make sure that the latches are
correctly engaged by checking the red
latch indicators.

164

Rear Seats

Content .. 7 8 9 10 ..
