SWITCHING THE DAYTIME
RUNNING LAMPS ON AND OFF -
VEHICLES WITH: CONFIGURABLE
DAYTIME RUNNING LAMPS

WARNING:

The daytime running

lamps system does not activate the rear
lamps and may not provide adequate
lighting during low visibility driving
conditions. Make sure you switch the
headlamps on, as appropriate, during all
low visibility conditions. Failure to do so
may result in a crash.

1.

Using the instrument cluster display
controls on the steering wheel, select

Settings

.

2. Select

Vehicle Settings

.

3. Select

Lighting

.

4. Switch

Daytime Running Lights

 on or

off.

The daytime running lamps turn on when
all of the following occur:
•

You switch the system on.

•

You switch your vehicle on.

•

The transmission is not in park (P).

•

The lighting control is in the autolamps
position.

•

The headlamps are off.

Note:

Other lighting control positions do

not turn on the daytime running lamps.

SWITCHING THE FRONT FOG
LAMPS ON AND OFF

The front fog lamp button is on the lighting
control.

Press the button to switch the
front fog lamps on or off.

Note:

Only switch the front fog lamps on

during reduced visibility.

Note:

The brightness of the daytime running

lamps may decrease when the front fog
lamps are switched on.

Note:

When the lighting control is in the

autolamps position, you cannot switch the
fog lamps on unless the headlamps are on.

EXTERIOR LAMP INDICATORS

Front Fog Lamp

It illuminates when you switch
the front fog lamps on.

Turn Signal Lamp

It flashes when you switch the
turn signal lamps on.

Note:

An increase in the rate of flashing

warns of a failed turn signal lamp.

EXTERIOR LAMP AUDIBLE
WARNING

Exterior Lamps On

Sounds when you open the driver door and
the exterior lamps are on.

AUTOMATIC HIGH BEAM
CONTROL

HOW DOES AUTOMATIC HIGH
BEAM CONTROL WORK

Automatic high beam control turns the
high beams on if it is dark enough and no
other traffic is present. If it detects an
approaching vehicle’s headlamps or tail
lamps, or street lighting ahead, the system
turns the high beams off.

117

Exterior Lighting

A camera sensor, centrally mounted
behind the windshield of your vehicle,
continuously monitors conditions to turn
the high beams on and off.

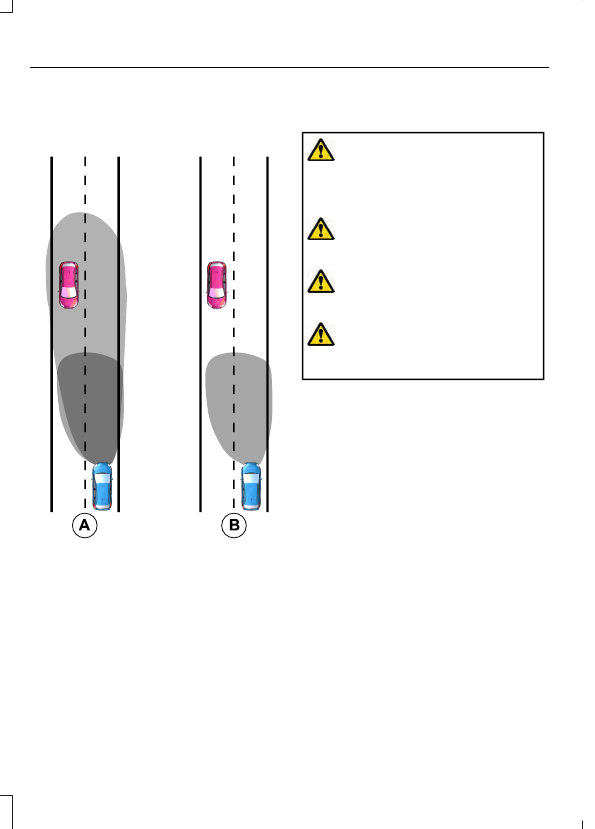

E327596

Without automatic high beam
control.

A

With automatic high beam
control.

B

AUTOMATIC HIGH BEAM
CONTROL PRECAUTIONS

WARNING:

The system does not

relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the high beams on or off.

WARNING:

Do not use the system

in poor visibility, for example fog, heavy
rain, spray or snow.

WARNING:

You may need to

override the system when approaching
other road users.

WARNING:

You may need to

override the system during inclement
weather.

AUTOMATIC HIGH BEAM
CONTROL REQUIREMENTS

The system turns the high beams on if all
of the following occur:
•

You switch the system on.

•

You set the lighting control to the
autolamps position.

•

The ambient light level is low enough
that you require high beams.

•

There is no traffic in front of your
vehicle.

•

The vehicle speed is greater than
approximately 32 mph (52 km/h).

118

Exterior Lighting

AUTOMATIC HIGH BEAM
CONTROL LIMITATIONS

The system turns the high beams off if any
of the following occur:
•

You switch the system off.

•

You set the lighting control to any
position except autolamps.

•

The ambient light level is high enough
that you do not require high beams.

•

The system detects an approaching
vehicle's headlamps or a leading
vehicle's tail lamps.

•

The system detects severe rain, snow
or fog.

•

The system detects street lighting.

•

The camera has reduced visibility.

•

The vehicle speed falls below
approximately 27 mph (44 km/h).

SWITCHING AUTOMATIC HIGH
BEAM CONTROL ON AND OFF

1.

Using the instrument cluster display
controls on the steering wheel, select

Settings

.

2. Select

Vehicle Settings

.

3. Select

Lighting

.

4. Switch

Auto Highbeam

 on or off.

AUTOMATIC HIGH BEAM
CONTROL INDICATORS

Illuminates to confirm when the
system is ready to assist.

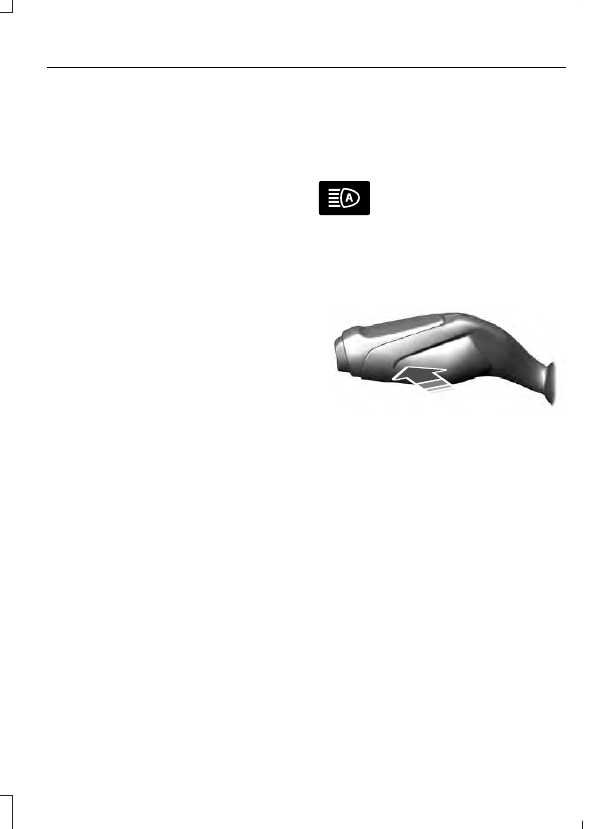

OVERRIDING AUTOMATIC HIGH
BEAM CONTROL

E354014

Push the lever away from you to switch
between high beam and low beam.

119

Exterior Lighting

AUTOMATIC HIGH BEAM CONTROL – TROUBLESHOOTING

AUTOMATIC HIGH BEAM CONTROL – INFORMATION MESSAGES

Description

Message

The camera has reduced visibility.  Clean the windshield.  If
the message continues to appear, have your vehicle checked
as soon as possible.

Front Camera Low Visib-
ility Clean Screen

The camera has malfunctioned.  Wait a short period of time
for the camera to cool down.  If the message continues to
appear, have your vehicle checked as soon as possible.

Front Camera Tempor-
arily Not Available

The camera has malfunctioned.  Have your vehicle checked
as soon as possible.

Front Camera Malfunc-
tion Service Required

120

Exterior Lighting

SWITCHING ALL OF THE
INTERIOR LAMPS ON AND OFF

E359550

E359551

INTERIOR LAMP FUNCTION

WHAT IS THE INTERIOR LAMP
FUNCTION

The interior lamp function switches the
courtesy and door lamps on or off.

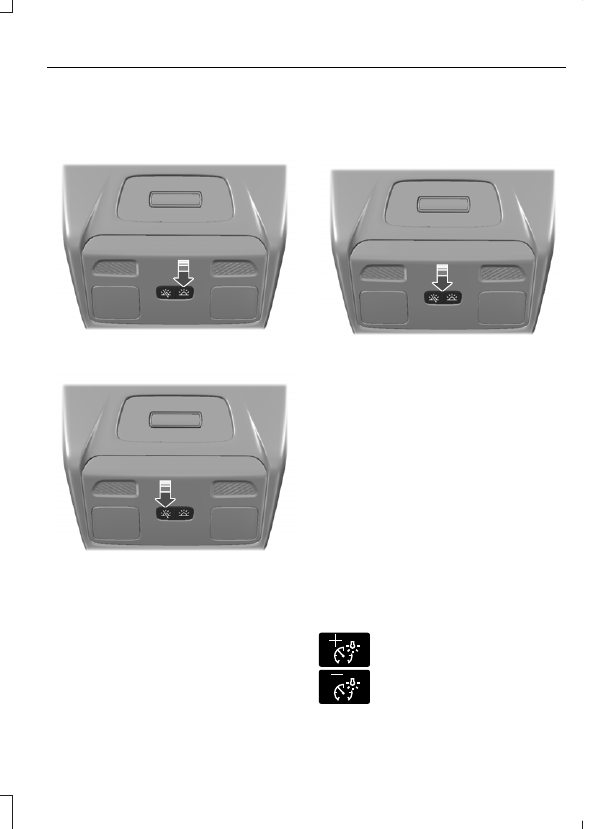

SWITCHING THE INTERIOR LAMP
FUNCTION ON AND OFF - BUS/
VAN

E359552

When you set the switch to the middle
position, the interior lamps turn on if:
•

You open any door.

•

You press the unlock button on the
remote control.

•

You switch the ignition off.

Note:

If you switch the ignition off, the

interior lamps could turn off after a short
time to prevent the vehicle battery from
running out of charge.

ADJUSTING THE INSTRUMENT
PANEL LIGHTING
BRIGHTNESS

The instrument lighting dimmer buttons
are on the lighting control.

E291299

E296433

Repeatedly press one of the
buttons to adjust the brightness.

121

Interior Lighting

CARGO LAMPS - VAN

SWITCHING THE CARGO LAMPS
ON AND OFF

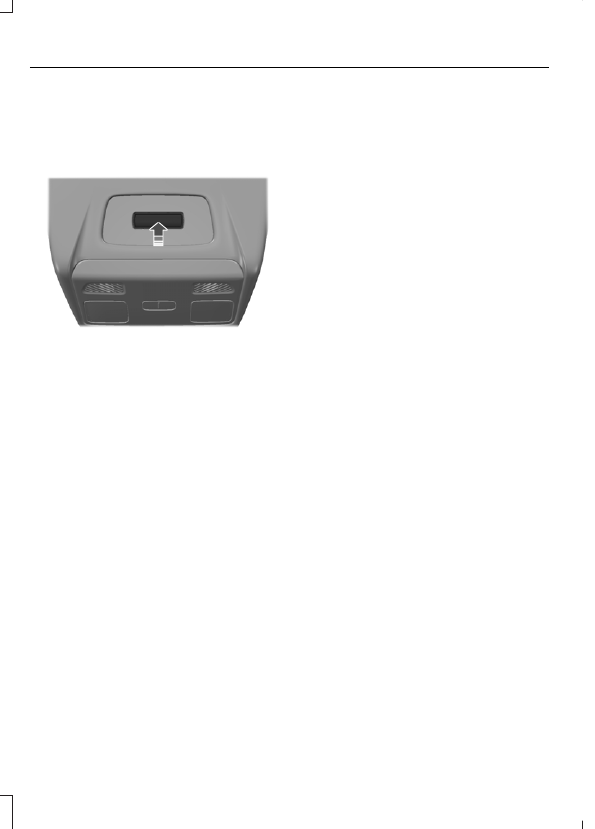

E359553

Press the button to switch the cargo lamps
on.  Press the button again to switch the
cargo lamps off.

The cargo lamps turn off after a short
period of time to prevent the battery from
running out of charge.

122

Interior Lighting

OPENING AND CLOSING THE
WINDOWS

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the power windows.
Failure to follow this instruction could
result in personal injury.

WARNING:

When closing the

power windows, verify they are free of
obstruction and make sure that children
and pets are not in the proximity of the
window openings.

Press the window control switch
to open the window.  Lift the
window control switch to close

the window.

Note:

The power windows operate with the

ignition on, and for several minutes after you
switch the ignition off or until you open a
front door.

To reduce wind noise or pulsing noise when
one window is open, slightly open the
opposite window.

Driver Side One-Touch Open

Fully press the window control switch and
release it.  Press again or lift it to stop the
window.

Driver Side One-Touch Close

Fully lift the window control switch and
release it.  Press again or lift it to stop the
window.

Resetting Driver Side One-Touch Close

1.

Lift and hold the window control switch
until the window is fully closed.

2. Release the window control switch.

3. Lift the window control switch for one

more second.

4. Release the window control switch.

5. Lift the window control switch again

for one more second.

Note:

Repeat the procedure if the window

does not close when you use one-touch.

WINDOW BOUNCE-BACK

WHAT IS WINDOW BOUNCE-BACK

The window stops and reverses if it detects
an obstruction when closing.

OVERRIDING WINDOW BOUNCE-
BACK

WARNING:

If you override

bounce-back, the window does not
reverse if it detects an obstacle. Take
care when closing the windows to avoid
personal injury or damage to your
vehicle.

1.

Close the window twice until it reaches
the point of resistance and let it
reverse.

2. Close the window a third time to the

point of resistance.  Bounce-back is
now disabled and you can close the
window manually.

Note:

The window goes past the point of

resistance and you can fully close it.

Note:

If the window does not close, have

your vehicle checked as soon as possible.

123

Windows

RESETTING WINDOW BOUNCE-
BACK

WARNING:

Bounce-back is off until

you reset the memory. Take care when
closing the windows to avoid personal
injury or damage to your vehicle.

1.

Lift and hold the switch until the
window is fully closed.

2. Release the switch.

3. Lift the switch again for one more

second.

4. Release the switch.

5. Lift the switch again for one more

second.

Note:

Repeat the procedure if the window

does not close when you use one-touch.

Note:

If you have disconnected the battery,

you must reset the bounce-back memory.

124

Windows

INTERIOR MIRROR
PRECAUTIONS

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

Note:

Do not clean the mirror housing or

glass with harsh abrasives, fuel or other
petroleum-based cleaning products.

MANUALLY DIMMING THE
INTERIOR MIRROR

Pull the tab below the mirror toward you
to reduce glare at night.

AUTO-DIMMING INTERIOR
MIRROR

WHAT IS THE AUTO-DIMMING
INTERIOR MIRROR

The mirror dims to reduce the effect of
bright light from behind. It returns to
normal when the bright light from behind
is no longer present or if you shift into
reverse (R).

AUTO-DIMMING INTERIOR
MIRROR LIMITATIONS

Do not block the sensors on the front and
back of the mirror.

Note:

A rear center passenger or raised rear

center head restraint could prevent light
from reaching the sensor.

125

Interior Mirror

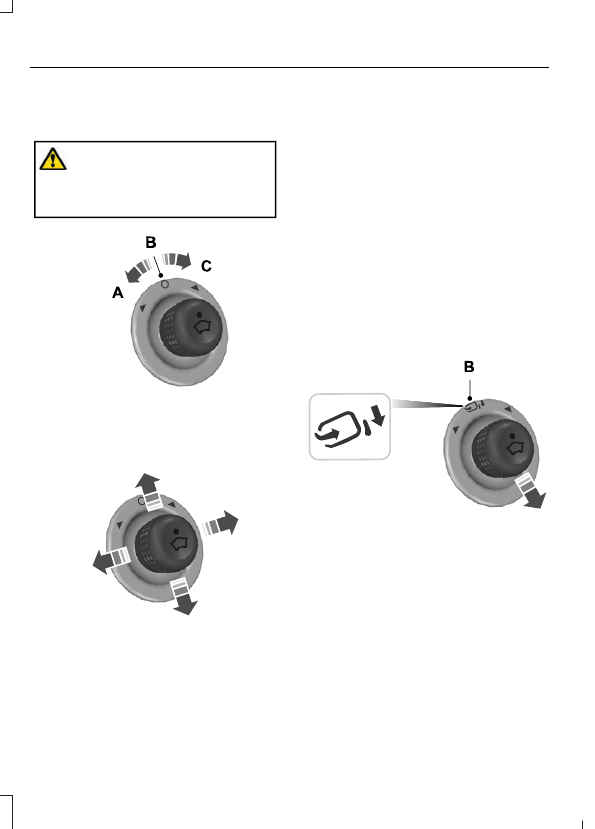

ADJUSTING THE EXTERIOR
MIRRORS

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

E71280

Left-hand mirror switch.

A

Neutral.

B

Right-hand mirror switch.

C

E71281

Move the adjustment control in the
direction of the arrows to adjust the mirror.

FOLDING THE EXTERIOR
MIRRORS - VEHICLES WITH:
MANUAL FOLD EXTERIOR
MIRRORS

Push the mirror toward the door window
glass.

Make sure that you fully engage the mirror
in its support when returning it to its
original position.

FOLDING THE EXTERIOR
MIRRORS - VEHICLES WITH:
POWER FOLD EXTERIOR
MIRRORS

E72184

Move the adjustment control downward
to fold or unfold the mirrors.

Note:

The power folding mirrors operate

with the ignition on, and for several minutes
after you switch the ignition off.

Note:

You can only fold the mirrors when

the adjustment control is set to position B.

Note:

If you fold and unfold the mirrors

several times within one minute, the power
fold function could turn off to protect the
motors from overheating.

Note:

Do not manually fold or unfold power

folding mirrors.

126

Exterior Mirrors

Loose Mirror

If your power-folding mirrors are manually
folded, they may not work properly, even
after you re-position them. You need to
reset them if:
•

The mirrors vibrate when you drive.

•

The mirrors feel loose.

•

The mirrors do not stay in the folded or
unfolded position.

•

One of the mirrors is not in its normal
driving position.

To reset the power-fold feature, use the
power-folding mirror control to fold and
unfold the mirrors. You may hear a loud
noise as your reset the power-folding
mirrors. This sound is normal. Repeat this
process as needed each time the mirrors
are manually folded.

127

Exterior Mirrors

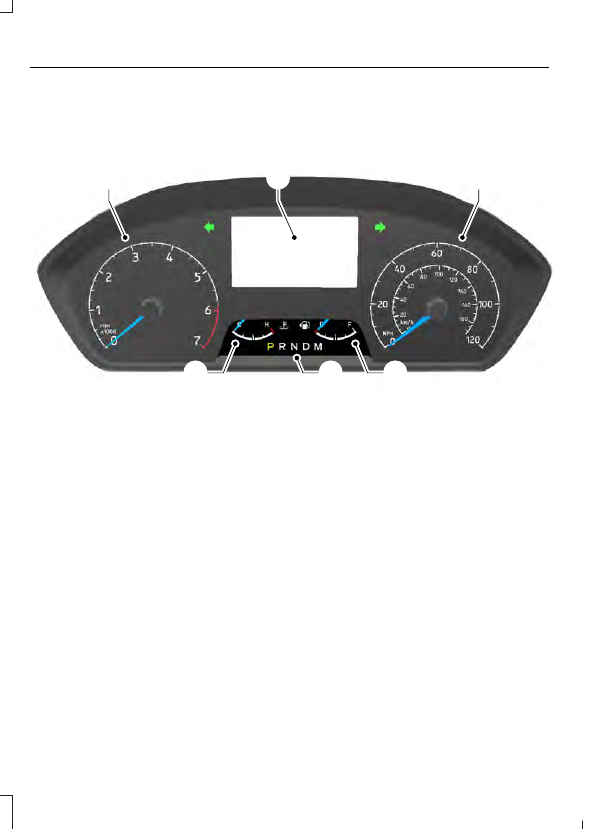

INSTRUMENT CLUSTER OVERVIEW - 3.5L DURATEC/3.5L
ECOBOOST™

A

B

C

E

D

F

E337945

Tachometer.

A

Instrument cluster display.

B

Speedometer.

C

Fuel gauge.

D

Automatic transmission position indicators.

E

Engine coolant temperature gauge.

F

128

Instrument Cluster

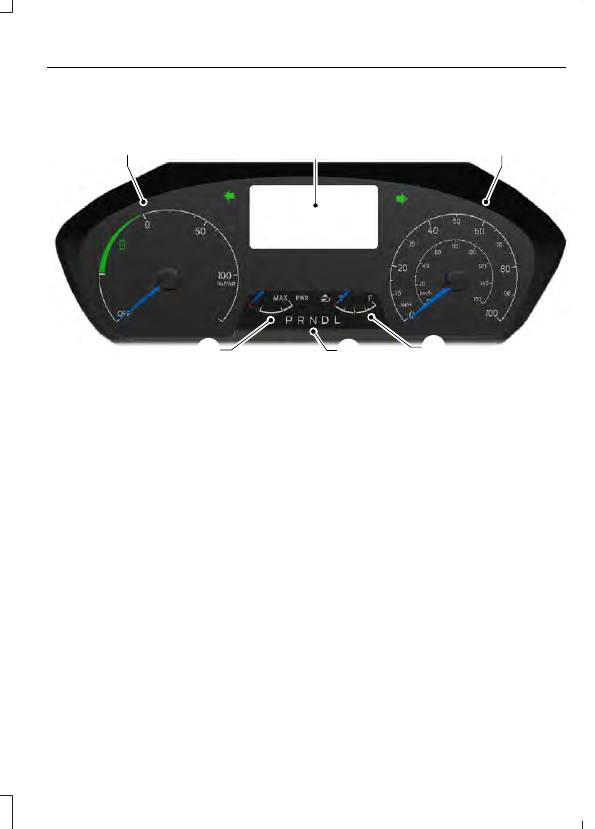

INSTRUMENT CLUSTER OVERVIEW - ELECTRIC MOTOR

A

C

B

D

F

E

E357217

Power gauge.

A

Instrument cluster display.

B

Speedometer.

C

High voltage battery gauge.

D

Automatic transmission position indicators.

E

Power availability.

F

WHAT IS THE TACHOMETER -
3.5L DURATEC/3.5L
ECOBOOST™

Indicates the engine speed.

WHAT IS THE POWER GAUGE
- ELECTRIC MOTOR

The Power Gauge displays power to the
wheels when accelerating or maintaining
speed. When slowing down by lifting your
foot off the accelerator pedal or pressing
the brake, the gauge displays the power
captured by the regenerative braking
system and returned to the high voltage
battery.

129

Instrument Cluster

What is Power Availability Gauge

Displays total available vehicle power.
Available power may be limited due to
temperature or low battery state of charge.
See

Maximizing Your Driving Range

(page 344).

WHAT IS THE SPEEDOMETER

Indicates the vehicle speed.

FUEL GAUGE - 3.5L DURATEC/
3.5L ECOBOOST™

WHAT IS THE FUEL GAUGE

Indicates approximately how much fuel is
in the fuel tank.

FUEL GAUGE LIMITATIONS

The fuel gauge may not provide an
accurate reading when your vehicle is on
an incline.

LOCATING THE FUEL FILLER
DOOR

The arrow adjacent to the fuel pump
symbol indicates on which side of your
vehicle the fuel filler door is located.

WHAT IS THE LOW FUEL
REMINDER

A low fuel level reminder displays and
sounds when the distance to empty
reaches 75 mi (120 km) to empty for
MyKey, and at 50 mi (80 km), 25 mi
(40 km), 12 mi (20 km) and 0 mi (0 km)
for all vehicle keys.

Note:

The low fuel reminder can appear at

different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

WHAT IS DISTANCE TO EMPTY

Indicates the approximate distance your
vehicle can travel on the fuel remaining in
the tank.

WHAT IS THE VEHICLE RANGE
DISPLAY - ELECTRIC MOTOR

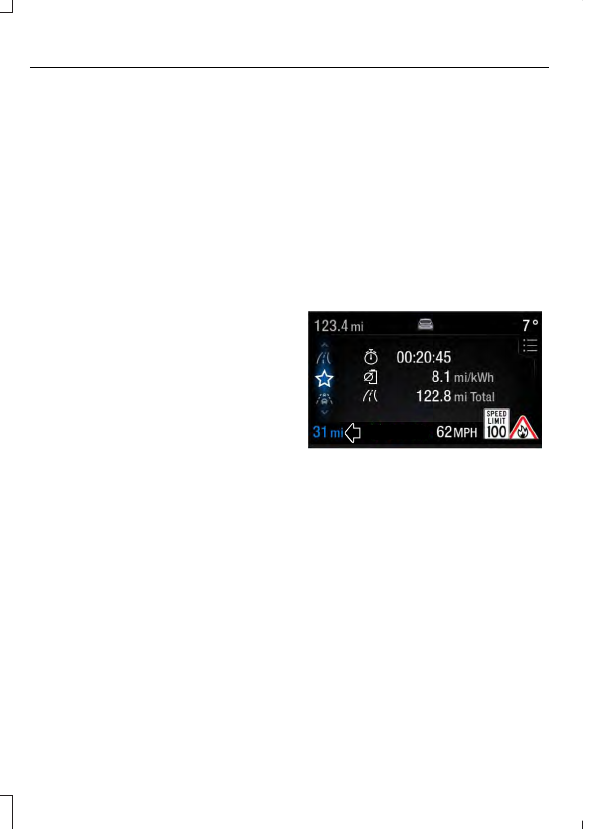

E359691

Displays the approximate range your
vehicle can travel on the battery power
that remains. Estimates vary based on the
energy used when driving.

The amount of energy being used when
driving is affected by:
•

Mild or aggressive acceleration or
braking.

•

Your vehicle's speed.

•

Use of accessories, such as climate
control.

•

Ambient temperature and weather
conditions.

•

Driving in a city or on a highway.

•

Driving on hilly road conditions.

•

Driving while carrying a heavy load.

130

Instrument Cluster

Changes in driving patterns can cause the
values to not only decrease but also
increase, or stay constant for periods of
time.

Note:

It is normal for vehicle range

estimates to vary due to changes in average
energy usage. This could cause different
range estimates each time you fully charge
your battery.  See

Maximizing Your Driving

Range

 (page 344).

Note:

After a high voltage to low voltage

energy transfer occurs, the high voltage
battery level decreases, resulting in a
reduction in the vehicle range by a few miles
or kilometers per transfer.

WHAT IS THE HIGH VOLTAGE
BATTERY GAUGE - ELECTRIC
MOTOR

Displays the high voltage battery state of
charge in the form of a gauge or a
percentage. A full fill or 100% charge
represents the total amount of energy you
can get from plugging your vehicle in.

The indicator is normally white. When a
low battery condition is reached the
indicator is amber.

Charging Status

Additional charge information displays
when you power on your vehicle without
pressing the brake pedal and your vehicle
is plugged in. Charging status includes the
charge start or charge end time as
appropriate. When DC charging, the time
at 80% displays followed by the time at
100%. You can modify your vehicle charge
settings on the information and
entertainment display.  See

Setting the

Charging Schedule and Preferences

(page 222).

Charge Required to Reach Destination

When the navigation system has an active
route, the instrument cluster displays the
charge level required in order to reach your
destination and the time when that charge
level is available.

WHAT IS THE ENGINE
COOLANT TEMPERATURE
GAUGE - 3.5L DURATEC/3.5L
ECOBOOST™

Indicates the engine coolant temperature.

WHAT ARE THE INSTRUMENT
CLUSTER WARNING LAMPS

Warning lamps alert you to a vehicle
condition that could become serious.
Some lamps illuminate when you start
your vehicle to make sure they work.  If any
lamps remain on after starting your vehicle,
refer to the respective system warning
lamp for further information.

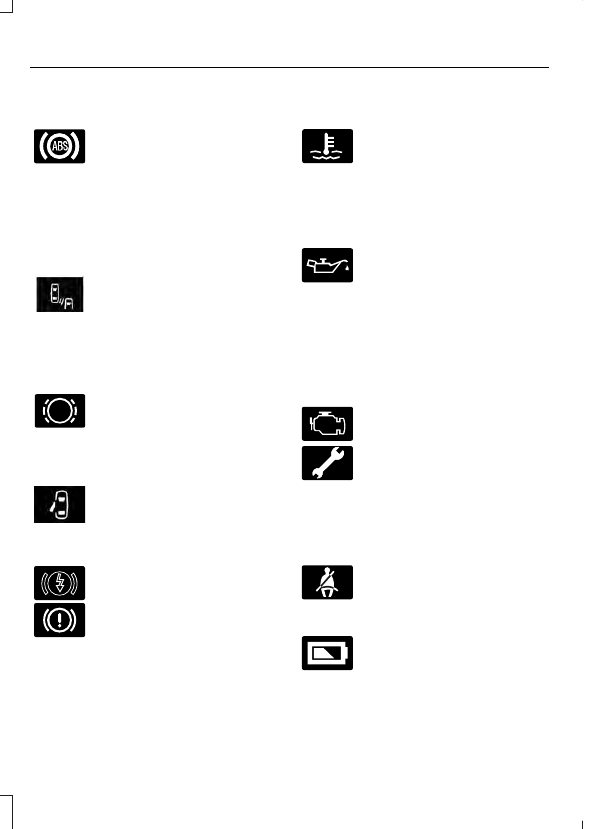

INSTRUMENT CLUSTER
WARNING LAMPS

Airbag Warning Lamp

E67017

If it does not illuminate when you
switch the ignition on, continues
to flash or remains on when the

engine is running, this indicates a
malfunction.  Have your vehicle checked
as soon as possible.

131

Instrument Cluster

Anti-Lock Brake System Warning
Lamp

If it illuminates when you are
driving, this indicates a
malfunction.  Your vehicle

continues to have normal braking without
the anti-lock brake system function.  Have
your vehicle checked as soon as possible.

Blind Spot Information System
And Cross Traffic Alert Warning
Lamp

E249861

E249861

  If the system malfunctions, the
warning lamp illuminates in the
instrument cluster and a

message appears in the information
display.  Have your vehicle checked as soon
as possible.

Brake Pad Wear Warning Lamp

It illuminates when the brake
pads have worn down to a
predetermined limit.  Have your

vehicle checked as soon as possible.

Door Ajar Warning Lamp

E249859

It illuminates when you switch
the ignition on and remains on if
any door or the hood is open.

Electric Park Brake Warning Lamp

E146190

It illuminates or flashes yellow
when the electric parking brake
requires service.

Engine Coolant Temperature
Warning Lamp

If it illuminates when your vehicle
is moving, this indicates that the
engine is overheating.  Stop your

vehicle as soon as it is safe to do so and
switch the engine off.  Have your vehicle
checked as soon as possible.

Engine Oil Pressure Warning Lamp

It illuminates when you switch
the ignition on.  If it illuminates
when the engine is running this

indicates a malfunction.  Stop your vehicle
as soon as it is safe to do so and switch the
engine off.  Check the engine oil level.  If
the oil level is sufficient, this indicates a
system malfunction.  Have your vehicle
checked as soon as possible.

Engine Warning Lamp

If both lamps illuminate when
the engine is running, stop your
vehicle as soon as it is safe to do
so.  Continuing to drive your
vehicle may cause reduced
power or the engine to stop.

Switch the ignition off and attempt to
restart the engine.  Have your vehicle
checked as soon as possible.

Fasten Seatbelt Warning Lamp

E71880

It illuminates until you fasten
your seatbelt.

High Voltage Battery

E335242

It illuminates white under normal
conditions. If it illuminates
amber, then the battery is low

on charge.

132

Instrument Cluster
