ROADSIDE ASSISTANCE

Vehicles Sold in the United States:
Getting Roadside Assistance

To fully assist you should you have a
vehicle concern, Ford Motor Company
offers a complimentary roadside
assistance program. This program is
separate from the New Vehicle Limited
Warranty.

The service is available:
•

24 hours a day, seven days a week.

•

For the coverage period supplied with
your vehicle.

Roadside Assistance covers:
•

A flat tire change with a good spare
(except vehicles supplied with a tire
inflation kit).

•

Battery jump start.

•

Lock-out assistance (key replacement
cost is the customer's responsibility).

•

Fuel delivery — independent service
contractors, if not prohibited by state,
local or municipal law, shall deliver up
to 2 gal (8 L) of gasoline or 5 gal (20 L)
of diesel fuel to a disabled vehicle.
Roadside Assistance limits fuel delivery
service to two no-charge occurrences
within a 12-month period.

•

Winch out — available within 100 ft
(30 m) of a paved or county
maintained road, no recoveries.

•

Towing — independent service
contractors, if not prohibited by state,
local or municipal law, shall tow Ford
eligible vehicles to an authorized dealer
within 35 mi (56 km) of the
disablement location or to the nearest
authorized dealer. If a member
requests a tow to an authorized dealer
that is more than 35 mi (56 km) from
the disablement location, the member
shall be responsible for any mileage
costs in excess of 35 mi (56 km).

•

Roadside Assistance includes up to
$200 for a towed trailer if the disabled
eligible vehicle requires service at the
nearest authorized dealer. If the towing
vehicle is operational but the trailer is
not, then the trailer does not qualify for
any roadside services.

Vehicles Sold in the United States:
Using Roadside Assistance

Complete the roadside assistance
identification card and place it in your
wallet for quick reference. This card is in
the Owner's Manual kit.

United States vehicle customers who
require Roadside Assistance, call
1-800-241-3673.

If you need to arrange roadside assistance
for yourself, Ford Motor Company
reimburses a reasonable amount for
towing to the nearest dealership within
35 mi (56 km). To obtain reimbursement
information, United States vehicle
customers call 1-800-241-3673.
Customers need to submit their original
receipts.

234

Roadside Emergencies

Vehicles Sold in Canada: Getting
Roadside Assistance

To fully assist you should you have a
vehicle concern, Ford Motor Company of
Canada, Limited offers a complimentary
roadside assistance program. This program
is eligible within Canada or the continental
United States.

The service is available 24 hours a day,
seven days a week.

This program is separate from the New
Vehicle Limited Warranty, but the coverage
is concurrent with the powertrain coverage
period of your vehicle. Canadian roadside
coverage and benefits may differ from the
U.S. coverage.

If you require more information, please call
us in Canada at 1-800-665-2006, or visit
our website at www.ford.ca.

HAZARD FLASHERS

Note:

The hazard flashers operate when

the ignition is in any position, or if the key is
not in the ignition. If used when the vehicle
is not running, the battery loses charge. As
a result, there may be insufficient power to
restart your vehicle.

The flasher control is on the
instrument panel. Use your
hazard flashers when your

vehicle is creating a safety hazard for other
motorists.

•

Press the flasher control and all front
and rear direction indicators flash.

•

Press the button again to switch them
off.

FUEL SHUTOFF

WARNING:

If your vehicle has been

involved in a crash, have the fuel system
checked. Failure to follow this instruction
could result in fire, personal injury or
death.

Note:

When you try to restart your vehicle

after a fuel shutoff, the vehicle makes sure
that various systems are safe to restart.
Once the vehicle determines the systems
are safe, then the vehicle allows you to
restart.

Note:

In the event that your vehicle does

not restart after your third attempt, contact
a qualified technician.

The fuel pump shutoff stops the flow of
fuel to the engine in the event of a
moderate to severe crash. Not every
impact causes a shutoff.

Should your vehicle shut off after a crash,
you may restart your vehicle.

Press

START/STOP

to switch off your

vehicle.

2. Press the brake pedal and

START/STOP

to switch on your

vehicle.

3. Remove your foot from the brake pedal

and press

START/STOP

to switch off

your vehicle.

4. You can attempt to start the vehicle

by pressing the brake pedal and

START/STOP

, or press

START/STOP

without pressing the brake pedal.

5. If the vehicle does not start, repeat

steps 1 through 4.

235

Roadside Emergencies

JUMP STARTING THE VEHICLE

WARNING:

Batteries normally

produce explosive gases which can
cause personal injury. Therefore, do not
allow flames, sparks or lighted
substances to come near the battery.
When working near the battery, always
shield your face and protect your eyes.
Always provide correct ventilation.

WARNING:

Keep batteries out of

reach of children. Batteries contain
sulfuric acid. Avoid contact with skin,
eyes or clothing. Shield your eyes when
working near the battery to protect
against possible splashing of acid
solution. In case of acid contact with skin
or eyes, flush immediately with water for
a minimum of 15 minutes and get prompt
medical attention. If acid is swallowed,
call a physician immediately.

WARNING:

Use only adequately

sized cables with insulated clamps.

Note:

Do not attempt to push-start your

automatic transmission vehicle. Attempting
to push-start a vehicle with an automatic
transmission may cause transmission
damage.

Note:

Do not disconnect the battery of the

disabled vehicle as this could damage the
vehicle electrical system.

Preparing Your Vehicle

Note:

Use only a 12-volt supply to start your

vehicle.

Park the booster vehicle close to the hood
of the disabled vehicle, making sure the
two vehicles do not touch.

Removing the Battery Shield

The battery is on the passenger side
underneath the battery shield.

E281082

Rotate and release three fasteners by
hand from the battery shield.

2. Remove the battery shield from the

vehicle.

Connecting the Jumper Cables

WARNING:

Do not connect the end

of the second cable to the negative (-)
terminal of the battery to be jumped. A
spark may cause an explosion of the
gases that surround the battery.

WARNING:

Do not use fuel lines,

engine valve covers, windshield wiper
arms, the intake manifold, or hood latch
as ground points.

Note:

If you are using a jump pack or

booster box, follow that manufacturer's
instructions.

Note:

In the illustration, the vehicle shown

is being jumped.

236

Roadside Emergencies

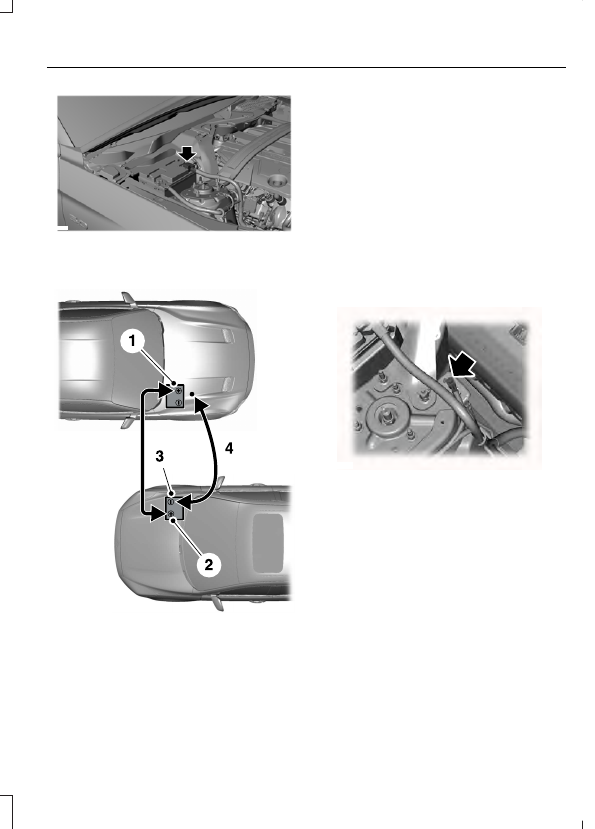

E274298

Note:

In the illustration that follows, the

bottom vehicle represents the booster
vehicle.

E281345

Pull the red rubber boot backwards.
Connect the positive (+) jumper cable
to the positive (+) terminal of the
discharged battery.

2. Connect the other end of the positive

(+) jumper cable to the positive (+)
terminal of the booster vehicle battery.

3. Connect the negative (-) jumper cable

to the negative (-) terminal of the
booster vehicle battery.

4. Make the final connection of the

negative (-) jumper cable to an
exposed metal part of the stalled
vehicle's engine, as shown in the
following illustration, away from the
battery and the fuel injection system,
or connect the negative (-) jumper
cable to a ground connection point if
available.

E204033

Starting the Engine

Start the engine of the booster vehicle
and moderately rev the engine , or
gently press the accelerator to keep
your engine speed between 2000 and
3000 RPM, as shown in your
tachometer.

2. Start the engine of the disabled vehicle.

3. Once you start the disabled vehicle, run

both vehicle engines for an additional
three minutes before disconnecting the
jumper cables.

Removing the Jumper Cables

Remove the jumper cables in the reverse
order that they were connected.

237

Roadside Emergencies

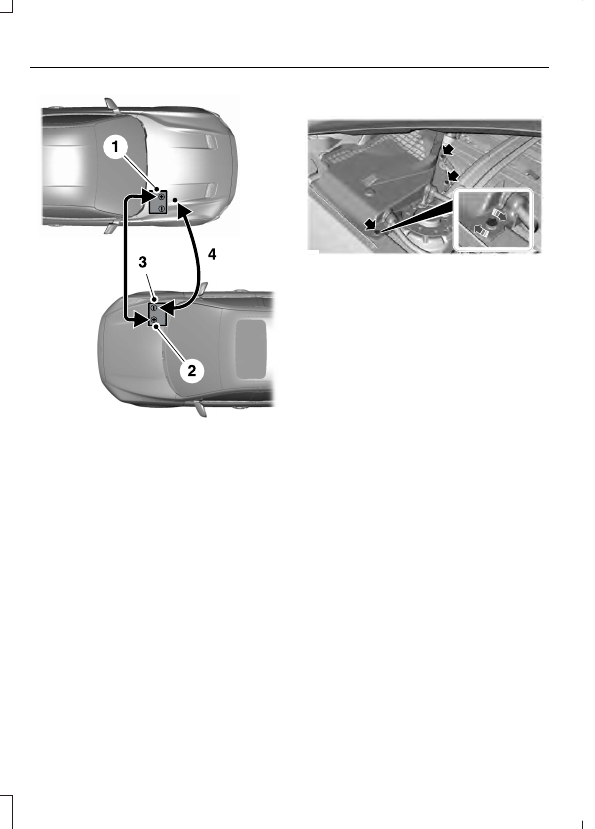

E281345

Remove the negative (-) jumper cable
from the disabled vehicle.

2. Remove the jumper cable on the

negative (-) terminal of the booster
vehicle battery.

3. Remove the jumper cable from the

positive (+) terminal of the booster
vehicle battery.

4. Remove the jumper cable from the

positive (+) terminal of the disabled
vehicle battery.

5. Allow the engine to idle for at least one

minute.

Installing the Battery Shield

E280805

Install the battery shield on the vehicle.

2. Install in reverse direction. Tighten

three fasteners by hand.

POST-CRASH ALERT SYSTEM

The system flashes the direction indicators
and sounds the horn (intermittently) in the
event of a serious impact that deploys an
airbag (front, side, side curtain or Safety
Canopy) or the seatbelt pretensioners.

The horn and indicators turn off when:
•

You press the hazard control button.

•

You press the panic button on the
remote entry transmitter (if equipped).

•

Your vehicle runs out of power.

•

Sounding of the horn is only enabled
in specific markets.

238

Roadside Emergencies

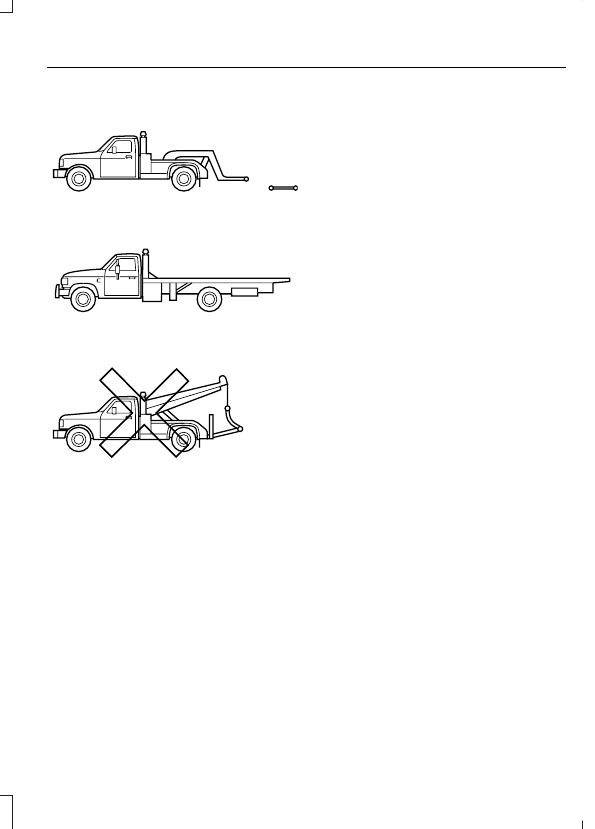

TRANSPORTING THE VEHICLE

E143886

If you need to have your vehicle towed,
contact a professional towing service or,
if you are a member of a roadside
assistance program, your roadside
assistance service provider.

We recommend the use of a wheel lift and
dollies or flatbed equipment to tow your
vehicle. Do not tow with a slingbelt. We do
not approve a slingbelt towing procedure.
If you tow your vehicle incorrectly, or by
any other means, vehicle damage may
occur.

The rear wheels must be on a tow dolly
when towing your vehicle from the front
using wheel lift equipment. This prevents
damage to the transmission.

The front wheels must be on a tow dolly
when towing your vehicle from the rear
using wheel lift equipment. This prevents
damage to the front fascia.

239

Roadside Emergencies

GETTING THE SERVICES YOU
NEED

Warranty repairs to your vehicle must be
performed by an authorized dealer. While
any authorized dealer handling your vehicle
line will provide warranty service, we
recommend you return to your selling
authorized dealer who wants to ensure
your continued satisfaction.

Please note that certain warranty repairs
require special training and equipment, so
not all authorized dealers are authorized
to perform all warranty repairs. This means
that, depending on the warranty repair
needed, you may have to take your vehicle
to another authorized dealer.

A reasonable time must be allowed to
perform a repair after taking your vehicle
to the authorized dealer. Repairs will be
made using Ford or Motorcraft® parts, or
remanufactured or other parts that are
authorized by Ford.

Away From Home

If you are away from home when your
vehicle needs service, contact the Ford
Customer Relationship Center or use the
online resources listed below to find the
nearest authorized dealer.

In the United States:

Mailing address

Ford Motor Company
Customer Relationship Center
P.O. Box 6248
Dearborn, MI 48126

Telephone

1-800-392-3673 (FORD)
TDD for the hearing impaired:
7-1-1 (where offered by your telephone
service provider)
If your vehicle is configured as a
motorhome please call 1-800-444-3311
for support.

Additional information and resources are
available online:

Website

www.owner.ford.com

These are some of the items that can be
found online:
•

U.S. dealer locator by Dealer Name,
City/State or Zip Code.

•

Owner Manuals.

•

Maintenance Schedules.

•

Recalls.

•

Ford Extended Service Plans.

•

Ford Genuine Accessories.

•

Service specials and promotions.

In Canada:

Mailing address

Customer Relationship Centre
Ford Motor Company of Canada, Limited
P.O. Box 2000
Oakville, Ontario L6K 0C8

Telephone

1-800-565-3673 (FORD)
TDD for the hearing impaired:
7-1-1 (where offered by your telephone
service provider)

Website

www.ford.ca

Facebook

FordServiceCA (English)
FordServiceQC (Français)

Twitter

@FordServiceCA

240

Customer Assistance

Additional Assistance

If you have questions or concerns, or are
unsatisfied with the service you are
receiving, follow these steps:

Contact your Sales Representative or
Service Advisor at your selling or
servicing authorized dealer.

2. If your inquiry or concern remains

unresolved, contact the Sales Manager,
Service Manager or Customer Relations
Manager.

3. If you require assistance or clarification

on Ford Motor Company policies,
please contact the Ford Customer
Relationship Center.

In order to help us serve you better, please
have the following information available
when contacting a Customer Relationship
Center:
•

Vehicle Identification Number.

•

Your telephone number (home and
business).

•

The name of the authorized dealer and
city where located.

•

The vehicle’s current odometer reading.

In some states within the United States,
you must directly notify Ford in writing
before pursuing remedies under your
state's warranty laws, and Ford is also
allowed a final repair attempt.

Additionally, in some states within the
United States, a consumer has the option
of submitting a warranty dispute to the
BBB Auto Line before taking action under
the Magnuson-Moss Warranty Act, or to
the extent allowed by state law, before
pursuing replacement or repurchase
remedies provided by certain state laws.
This dispute handling procedure is not
required prior to enforcing state created
rights or other rights which are independent
of the Magnuson-Moss Warranty Act or
state replacement or repurchase laws.

IN CALIFORNIA (U.S. ONLY)

California Civil Code Section 1793.2(d)
requires that, if a manufacturer or its
representative is unable to repair a motor
vehicle to conform to the vehicle’s
applicable express warranty after a
reasonable number of attempts, the
manufacturer shall be required to either
replace the vehicle with one substantially
identical or repurchase the vehicle and
reimburse the buyer in an amount equal to
the actual price paid or payable by the
consumer (less a reasonable allowance
for consumer use). The consumer has the
right to choose whether to receive a refund
or replacement vehicle.

California Civil Code Section 1793.22(b)
presumes that the manufacturer has had
a reasonable number of attempts to
conform the vehicle to its applicable
express warranties if, within the first 18
months of ownership of a new vehicle or
the first 18,000 mi (29,000 km), whichever
occurs first:

Two or more repair attempts are made
on the same non-conformity likely to
cause death or serious bodily injury OR

2. Four or more repair attempts are made

on the same nonconformity (a defect
or condition that substantially impairs
the use, value or safety of the vehicle)
OR

3. The vehicle is out of service for repair

of nonconformities for a total of more
than 30 calendar days (not necessarily
all at one time).

In the case of 1 or 2 above, the consumer
must also notify the manufacturer of the
need for the repair of the nonconformity
at the following address:

Ford Motor Company
16800 Executive Plaza Drive
Mail Drop 3NE-B
Dearborn, MI 48126

241

Customer Assistance

You are required to submit your warranty
dispute to BBB AUTO LINE before asserting
in court any rights or remedies conferred
by California Civil Code Section 1793.22(b).
You are also required to use BBB AUTO
LINE before exercising rights or seeking
remedies created by the Federal
Magnuson-Moss Warranty Act, 15 U.S.C.
sec. 2301 et seq. If you choose to seek
redress by pursuing rights and remedies
not created by California Civil Code Section
1793.22(b) or the Magnuson-Moss
Warranty Act, resort to BBB AUTO LINE is
not required by those statutes.

THE BETTER BUSINESS
BUREAU (BBB) AUTO LINE
PROGRAM (U.S. ONLY)

Your satisfaction is important to Ford
Motor Company and to your dealer. If a
warranty concern has not been resolved
using the three-step procedure outlined
earlier in this chapter in the Getting the
Services you need section, you may be
eligible to participate in the BBB AUTO
LINE program.

The BBB AUTO LINE program consists of
two parts – mediation and arbitration.
During mediation, a representative of the
BBB will contact both you and Ford Motor
Company to explore options for settlement
of the claim. If an agreement is not reached
during mediation or you do not want to
participate in mediation, and if your claim
is eligible, you may participate in the
arbitration process. An arbitration hearing
will be scheduled so that you can present
your case in an informal setting before an
impartial person. The arbitrator considers
the testimony provided and makes a
decision after the hearing.

Disputes submitted to the BBB AUTO LINE
program are usually decided within 40
days after you file your claim with the BBB.
You are not bound by the decision, and
may reject the decision and proceed to
court where all findings of the BBB Auto
Line dispute, and decision, are admissible
in the court action. Should you choose to
accept the BBB AUTO LINE decision, Ford
is then bound by the decision, and must
comply with the decision within 30 days
of receipt of your acceptance letter.

BBB AUTO LINE Application: Using the
information that follows, please call or
write to request a program application.
You will be asked for your name and
address, general information about your
new vehicle, information about your
warranty concerns, and any steps you have
already taken to try to resolve them. A
Customer Claim Form will be mailed that
needs to be completed, signed and
returned to the BBB along with proof of
ownership. Upon receipt, the BBB reviews
the claim for eligibility under the Program
Summary Guidelines.

You can get more information by
calling BBB AUTO LINE at
1-800-955-5100, or writing to:

BBB AUTO LINE a Division of BBB
National Programs, Inc.
1676 International Drive, Suite 550
McLean, VA 22102

BBB AUTO LINE applications can also be
requested by calling the Ford Motor
Company Customer Relationship Center
at 1-800-392-3673.

For additional information, refer to the
Better Business Bureau website.

Note:

Ford Motor Company reserves the

right to change eligibility limitations, modify
procedures, or to discontinue this process
at any time without notice and without
obligation.

242

Customer Assistance

UTILIZING THE
MEDIATION/ARBITRATION
PROGRAM (CANADA ONLY)

For vehicles delivered to authorized
Canadian dealers. In those cases where
you continue to feel that the efforts by Ford
of Canada and the authorized dealer to
resolve a factory-related vehicle service
concern have been unsatisfactory, Ford of
Canada participates in an impartial third
party mediation/arbitration program
administered by the Canadian Motor
Vehicle Arbitration Plan (CAMVAP).

The CAMVAP program is a straight forward
and relatively speedy alternative to resolve
a disagreement when all other efforts to
produce a settlement have failed. This
procedure is without cost to you and is
designed to eliminate the need for lengthy
and expensive legal proceedings.

In the CAMVAP program, impartial
third-party arbitrators conduct hearings at
mutually convenient times and places in
an informal environment. These impartial
arbitrators review the positions of the
parties, make decisions and, when
appropriate, render awards to resolve
disputes. CAMVAP decisions are fast, fair,
and final as the arbitrator’s award is
binding on both you and Ford of Canada.

CAMVAP services are available in all
Canadian territories and provinces. For
more information, without charge or
obligation, call your CAMVAP Provincial
Administrator directly at 1-800-207-0685
or visit www.camvap.ca.

GETTING ASSISTANCE
OUTSIDE THE U.S. AND
CANADA

Before exporting your vehicle to a foreign
country, contact the appropriate foreign
embassy or consulate. These officials can
inform you of local vehicle registration
regulations and where to find unleaded
fuel or petrol/gas engines or the proper
sulfur fuel for diesel engines.

If you cannot find the proper fuel
recommended for your vehicle, contact
our Customer Relationship Center.

The use of improper fuels in your vehicle
without proper conversion may damage
the effectiveness of your emission control
system and may cause engine knocking or
serious engine damage. Ford Motor
Company or Ford of Canada is not
responsible for any damage caused by use
of improper fuel. Using improper fuels may
also result in difficulty importing your
vehicle back into the United States.

If your vehicle must be serviced while you
are traveling or living in Asia-Pacific Region,
Sub-Saharan Africa, U.S. Virgin Islands
and/or Puerto Rico, Central America, the
Caribbean, and Israel and the Middle East,
contact the nearest authorized dealer. If
the authorized dealer cannot help you,
contact the corresponding Ford Customer
Assistance Center:

FORD MOTOR COMPANY

Customer Relationship Centers in:

243

Customer Assistance

E-mail

Fax

Phone

Customer Relation-

ship Center

apemcrc@ford.com

N/A

Asia Pacific

atnclien@ford.com

N/A

+1-800-841-3673

Caribbean and

Central America

menacac@ford.com

971 4 3327 266

Ford

Middle East

80004443673

Lincoln

80004441067

UAE

80004441066

Saudi Arabia

8008443673

Mobily and Zain cell

phone users in Saudi

800850078

Kuwait

22280384

nafcrc@ford.com

N/A

North Africa

atnclien@ford.com

N/A

+1-800-841-3673

Puerto Rico and U.S.

Virgin Islands

ssacrc@ford.com

N/A

Sub-Saharan Africa

infokr1@ford.com or

infokr@lincoln.com

N/A

+82-02-1600-6003

South Korea

If you buy your vehicle in North America
and then relocate to any of the above
locations, register your vehicle
identification number (VIN) and new
address with Ford Global Trade Services
by emailing, expcso@ford.com.

If you are in another foreign country,
contact the nearest authorized dealer. In
the event your inquiry is unresolved,
communicate your concern with the
dealership’s Sales Manager, Service
Manager or Customer Relations Manager.
If you require additional assistance or
clarification, please contact the respective
Customer Relationship Center as
previously listed.

Customers in the U.S. should call
1-800-392-3673.

244

Customer Assistance

ORDERING ADDITIONAL
OWNER'S LITERATURE

To order the publications in this portfolio,
contact Helm, LLC at:

HELM, LLC
47911 Halyard Drive, Suite 200
Plymouth, Michigan 48170
Attention: Customer Service

Or to order a free publication catalog, call
toll free: 1-800-782-4356

Monday-Friday 8:00 a.m. - 6:00 p.m. EST

Helm, LLC can also be reached by their
website:

www.helminc.com

(Items in this catalog may be purchased
by credit card, check or money order.)

Obtaining a French Owner’s
Manual

French Owner’s Manual can be obtained
from your authorized dealer or by
contacting Helm, LLC using the contact
information listed previously in this section.

REPORTING SAFETY DEFECTS
(U.S. ONLY)

If you believe that your vehicle has
a defect which could cause a
crash or could cause injury or
death, you should immediately
inform the National Highway
Traffic Safety Administration
(NHTSA) in addition to notifying
Ford Motor Company.

If NHTSA receives similar
complaints, it may open an
investigation, and if it finds that a
safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Ford Motor
Company.

To contact NHTSA, you may call
the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY:
1-800-424-9153); go to

www.safercar.gov

; or write to:

Administrator

1200 New Jersey Avenue,
Southeast

Washington, D.C. 20590

You can also obtain other
information about motor vehicle
safety from

www.safercar.gov

REPORTING SAFETY DEFECTS
(CANADA ONLY)

If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform Transport Canada and Ford of
Canada.

245

Customer Assistance

Transport Canada Contact Information

http://www.tc.gc.ca/eng/motorvehiclesafety/reporting-defects-motor-
vehicles.html (English)

Website

http://tc.canada.ca/recalls (English) http://tc.canada.ca/rappels (French)

Website

1-800-333-0510

Phone

Ford of Canada Contact Information

www.ford.ca

Website

1-800-565-3673

Phone

246

Customer Assistance

FUSE SPECIFICATION CHART

Power Distribution Box

WARNING:

Always disconnect the

battery before servicing high current
fuses.

WARNING:

To reduce risk of

electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs.

The power distribution box is in the engine
compartment. It has high-current fuses
that protect your vehicle's main electrical
systems from overloads.

If you disconnect and reconnect the
battery, you need to reset some features.
See

Changing the 12V Battery

(page 272).

Replace fuses with the same type and
rating. See

Changing a Fuse

(page 256).

E286912

247

Fuses

Protected Component

Fuse Rating

Fuse or Relay

Number

Electronic fan 1 (GT500).

60A

Not used (base).

—

Not used.

—

Electronic fan 1 (base).

30A

Not used (GT500).

—

Electronic fan 3 (base).

40A

Not used (GT500).

—

Automatic brake system pump.

50A

Body control module.

50A

Body control module.

60A

Body control module.

50A

Rear window defroster.

40A

Blower motor.

40A

Left-hand front window.

30A

Driver seat.

30A

Passenger seat.

30A

Climate controlled seat module.

30A

Convertible top slave motor (base).

20A

Not used (GT500).

—

Charge air cooler pump (GT500).

15A

Not used (base).

—

248

Fuses

Protected Component

Fuse Rating

Fuse or Relay

Number

Convertible top master motor (base).

20A

Not used (GT500).

—

Not used.

—

Steering column lock relay (base).

20A

Transmission control unit (GT500).

10A

Brake on-off switch.

10A

Horn.

20A

Powertrain control module relay.

10A

Air conditioning clutch.

10A

Voltage quality module.

30A

Steering column lock relay (GT500).

20A

Not used (base).

—

Windshield wiper motor.

25A

Not used.

—

Automatic brake system valve.

30A

Not used.

—

Starter motor solenoid.

30A

Not used.

—

Latch relay coil.

10A

Run/start (base).

15A

Left-hand high-intensity discharge head-
lamps (GT500).

20A

Exhaust valves.

15A

249

Fuses

Ford Mustang (2022 year). Manual in english - page 15
