WARNING:

Exceeding any

vehicle weight rating can
adversely affect the
performance and handling of
your vehicle, cause vehicle
damage and can result in the
loss of control of your vehicle,
serious personal injury or death.

Steps for determining the
correct load limit:

1. Locate the statement "The

combined weight of occupants
and cargo should never exceed
XXX kg or XXX lb." on your
vehicle’s placard.

2. Determine the combined

weight of the driver and
passengers that can be riding
in your vehicle.

3. Subtract the combined weight

of the driver and passengers
from XXX kg or XXX lb.

4. The resulting figure equals the

available amount of cargo and
luggage load capacity. For
example, if the “XXX” amount
equals 1,400 lb. and there can
be five 150 lb. passengers in
your vehicle, the amount of
available cargo and luggage
load capacity is 650 lb.
(1400-750 (5 x 150) = 650 lb.)

5. Determine the combined

weight of luggage and cargo
being loaded on the vehicle.
That weight may not safely
exceed the available cargo and
luggage load capacity
calculated in Step 4.

6. If you are towing a trailer, load

from your trailer is transferred
to your vehicle. Consult this
manual to determine how this
reduces the available cargo
and luggage load capacity of
your vehicle.

Helpful examples for calculating
the available amount of cargo
and luggage load capacity

Suppose your vehicle has a
1400-pound (635-kilogram) cargo
and luggage capacity. You decide
to go golfing. Is there enough load
capacity to carry you, four of your
friends and all the golf bags? You
and four friends average 220
pounds (99 kilograms) each and
the golf bags weigh approximately
30 pounds (13.5 kilograms) each.
The calculation would be: 1400 -
(5 x 220) - (5 x 30) = 1400 - 1100
- 150 = 150 pounds. Yes, you have
enough load capacity in your
vehicle to transport four friends
and your golf bags. In metric units,
the calculation would be: 635
kilograms - (5 x 99 kilograms) -
(5 x 13.5 kilograms) = 635 - 495 -
67.5 = 72.5 kilograms.

218

Load Carrying

Suppose your vehicle has a
1400-pound (635-kilogram) cargo
and luggage capacity. You and
one of your friends decide to pick
up cement from the local home
improvement store to finish that
patio you have been planning for
the past two years. Measuring the
inside of the vehicle with the rear
seat folded down, you have room
for twelve 100-pound
(45-kilogram) bags of cement. Do
you have enough load capacity to
transport the cement to your
home? If you and your friend each
weigh 220 pounds (99 kilograms),
the calculation would be: 1400 -
(2 x 220) - (12 x 100) = 1400 - 440
- 1200 = - 240 pounds. No, you do
not have enough cargo capacity
to carry that much weight. In
metric units, the calculation would
be: 635 kilograms - (2 x 99
kilograms) - (12 x 45 kilograms) =
635 - 198 - 540 = -103 kilograms.
You need to reduce the load
weight by at least 240 pounds
(104 kilograms). If you remove
three 100-pound (45-kilogram)
cement bags, then the load
calculation would be:1400 - (2 x
220) - (9 x 100) = 1400 - 440 -
900 = 60 pounds. Now you have
the load capacity to transport the
cement and your friend home. In
metric units, the calculation would
be: 635 kilograms - (2 x 99
kilograms) - (9 x 45 kilograms) =
635 - 198 - 405 = 32 kilograms.

The above calculations also
assume that the loads are
positioned in your vehicle in a
manner that does not overload
the front or the rear gross axle
weight rating specified for your
vehicle on the Safety Compliance
Certification label.

Special Loading Instructions -
for all vehicles

WARNING:

When loading

the roof racks, we recommend
you evenly distribute the load,
as well as maintain a low center
of gravity. Loaded vehicles, with
higher centers of gravity, may
handle differently than unloaded
vehicles. Take extra precautions,
such as slower speeds and
increased stopping distance,
when driving a heavily loaded
vehicle.

219

Load Carrying

TOWING A TRAILER - MACH 1

WARNING:

Your vehicle is

not approved for trailer towing.
Never tow a trailer with your
vehicle.

TOWING A TRAILER

WARNING:

Do not exceed

the GVWR or the GAWR
specified on the certification
label.

WARNING:

Towing trailers

beyond the maximum
recommended gross trailer
weight exceeds the limit of your
vehicle and could result in engine
damage, transmission damage,
structural damage, loss of
vehicle control, vehicle rollover
and personal injury.

Note:

There may be electrical

items such as fuses or relays that
can affect trailer towing operation.
See

Fuses

(page 247).

The load capacity of your vehicle
is designated by weight not
volume. You may not necessarily
be able to use all available space
when loading your vehicle or
trailer.

Towing a trailer places extra load
on the engine, transmission, axle,
brakes, tires, and suspension.
Inspect these components before,
during and after towing.

Load Placement

To help minimize how trailer
movement affects the vehicle
when driving:
•

Load the heaviest items closest
to the trailer floor.

•

Load the heaviest items in the
center of the left and right side
trailer tires.

•

Load the heaviest items above
the trailer axles or just slightly
forward toward the trailer
tongue. Do not allow the final
trailer tongue weight to go
above or below 10-15% of the
loaded trailer weight.

•

Select a ball mount with the
correct rise or drop. When both
the loaded vehicle and trailer
are connected, the trailer frame
should be level, or slightly
angled down toward the
vehicle, when viewed from the
side.

When driving with a trailer or
payload, a slight takeoff vibration
or shudder may be present due to
the increased payload weight.
Additional information regarding
proper trailer loading and setting
your vehicle up for towing is
located in the Load Carrying
chapter. See

Load Limit

(page

215).

220

Towing

You can also find information in
the

RV & Trailer Towing Guide

available at your authorized
dealer, or online.

RV & Trailer Towing Guide Online

http://www.fleet.ford.com/towing-guides/

Website

RECOMMENDED TOWING WEIGHTS

Website

Market

https://www.fleet.ford.com/

towing-guides/

United States of America

https://www.fleet.ford.ca/towing-

guides/

Canada

221

Towing

ESSENTIAL TOWING CHECKS

Follow these guidelines for safe towing:
•

Do not tow a trailer until you drive your
vehicle at least 1,000 mi (1,600 km).

•

Consult your local motor vehicle laws
for towing a trailer.

•

See the instructions included with
towing accessories for the proper
installation and adjustment
specifications.

•

Service your vehicle more frequently if
you tow a trailer. See your scheduled
maintenance information.

•

If you use a rental trailer, follow the
instructions the rental agency gives
you.

You can find information on load
specification terms found on the tire label
and Safety Compliance label as well as
instructions on calculating your vehicle's
load in the Load Carrying chapter. See

Load Limit

(page 215).

Remember to account for the trailer
tongue weight as part of your vehicle load
when calculating the total vehicle weight.

Hitches

Do not use a hitch that either clamps onto
the bumper or attaches to the axle.

Distribute the trailer load so 10-15% of the
total trailer weight is on the tongue.

Safety Chains

Note:

Never attach safety chains to the

bumper.

Always connect the safety chains to the
hook retainers of your vehicle hitch.

To connect the safety chains, cross them
under the trailer tongue and allow enough
slack for turning tight corners. Do not allow
the chains to drag on the ground.

Trailer Brakes

WARNING:

Do not connect a

trailer's hydraulic brake system directly
to your vehicle's brake system. Your
vehicle may not have enough braking
power and your chances of having a
collision greatly increase.

Electric brakes and manual, automatic or
surge-type trailer brakes are safe if you
install them properly and adjust them to
the manufacturer's specifications. The
trailer brakes must meet local and federal
regulations.

The rating for the tow vehicle's braking
system operation is at the gross vehicle
weight rating, not the gross combined
weight rating.

Trailer Lamps

WARNING:

Never connect any

trailer lamp wiring to the vehicle's tail
lamp wiring; this may damage the
electrical system resulting in fire. Contact
your authorized dealer as soon as
possible for assistance in proper trailer
tow wiring installation. Additional
electrical equipment may be required.

Trailer lamps are required on most towed
vehicles. Make sure all running lights, brake
lights, direction indicators and hazard lights
are working.

Before Towing a Trailer

Practice turning, stopping and backing up
to get the feel of your vehicle-trailer
combination before starting on a trip.
When turning, make wider turns so the
trailer wheels clear curbs and other
obstacles.

222

Towing

When Towing a Trailer

•

Do not drive faster than 70 mph
(113 km/h) during the first 500 mi
(800 km).

•

Do not make full-throttle starts.

•

Check your hitch, electrical connections
and trailer wheel lug nuts thoroughly
after you have traveled 50 mi (80 km).

•

When stopped in congested or heavy
traffic during hot weather, place the
transmission in park (P) or neutral (N)
to aid engine and transmission cooling
and to help air conditioning
performance.

•

Switch off the speed control with
heavy loads or in hilly terrain. The
speed control may turn off
automatically when you are towing on
long, steep grades.

•

Shift to a lower gear when driving down
a long or steep hill. Do not apply the
brakes continuously, as they may
overheat and become less effective.

•

If your transmission is equipped with a
Grade Assist or Tow/Haul feature, use
this feature when towing. This provides
engine braking and helps eliminate
excessive transmission shifting for
optimum fuel economy and
transmission cooling.

•

Allow more distance for stopping with
a trailer attached. Anticipate stops and
brake gradually.

•

Avoid parking on a slope. However, if
you must park on a slope:

Turn the steering wheel to point your
vehicle tires away from traffic flow.

2. Set your vehicle parking brake.

3. Place the automatic transmission in

park (P) or manual transmission in a
low gear.

4. Place wheel chocks in front and back

of the trailer wheels. Chocks are not
included with your vehicle.

Launching or Retrieving a Boat or
Personal Watercraft (PWC)

Note:

Disconnect the wiring to the trailer

before

backing the trailer into the water.

Note:

Reconnect the wiring to the trailer

after

removing the trailer from the water.

When backing down a ramp during boat
launching or retrieval:
•

Do not allow the static water level to
rise above the bottom edge of the rear
bumper.

•

Do not allow waves to break higher
than 6 in (15 cm) above the bottom
edge of the rear bumper.

Exceeding these limits may allow water to
enter vehicle components:
•

Causing internal damage to the
components.

•

Affecting driveability, emissions, and
reliability.

Any time the rear axle submerges in water,
replace the rear axle lubricant. Water may
contaminate the rear axle lubricant, which
is not a normal maintenance inspection
item unless there is a possibility of a leak
or other axle repair is required.

223

Towing

TRANSPORTING THE VEHICLE
- MACH 1

E203788

If you need to have your vehicle towed,
contact your roadside assistance center
or a professional towing service.

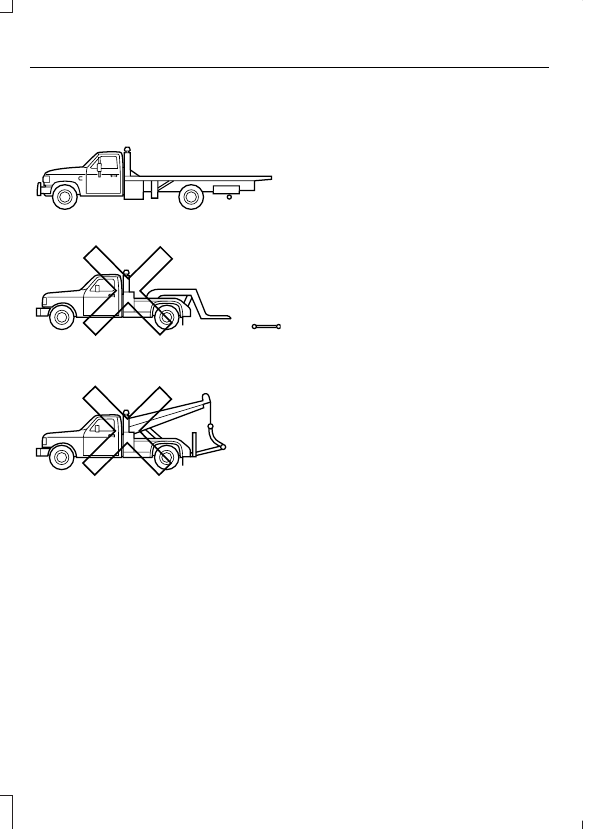

We recommend that your vehicle be towed
with flatbed equipment only. When towing
with a flatbed, race ramps or wood ramps
must be used when loading or unloading
your vehicle. Wheel baskets are required
when flatbed towing.

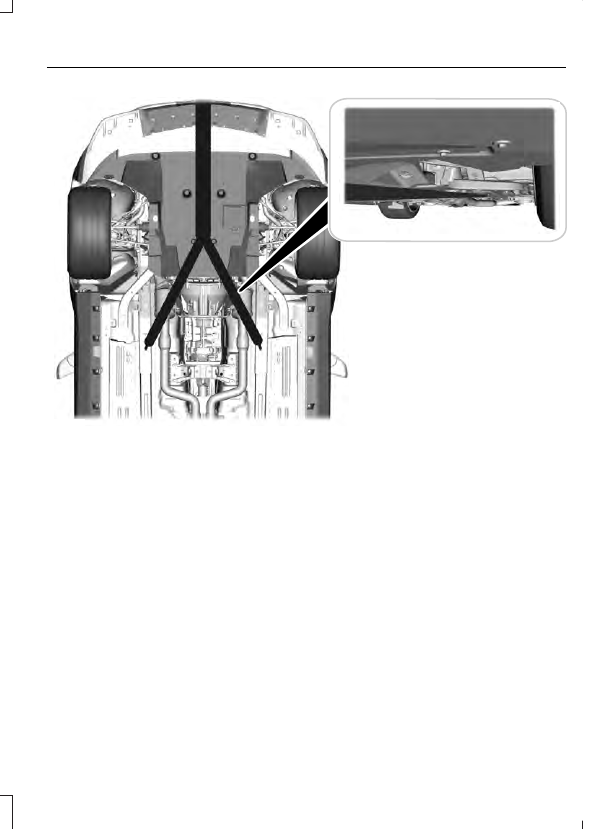

Your vehicle could come with a front
recovery hook to assist in vehicle recovery
situations.

Perform the following when towing your
vehicle:
•

Enable manual park override. See

Automatic Transmission

(page 165).

Note:

Do not use the Stay in Neutral Mode

for towing.

Note:

Do not tow with a slingbelt or wheel

lift equipment.

Note:

If the vehicle is towed incorrectly or

by any other means, vehicle damage may
occur.

224

Towing

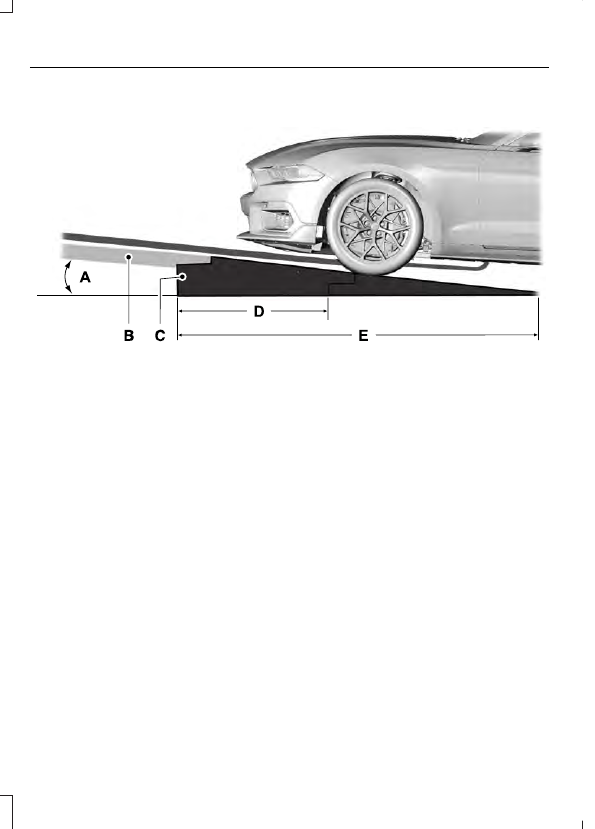

Preferred Flatbed Method

E342994

Seven degrees maximum.

Tow vehicle ramp.

Race ramps.

30 inches (76 centimeters) minimum.

70 inches (178 centimeters) minimum.

Use race ramps to load the vehicle.

The diagram illustrates the maximum
ramp angle allowable to load your vehicle
on a flatbed. Vehicle damage may occur
with greater angles.

Ramps must be used to achieve
appropriate undercarriage clearances.

226

Towing

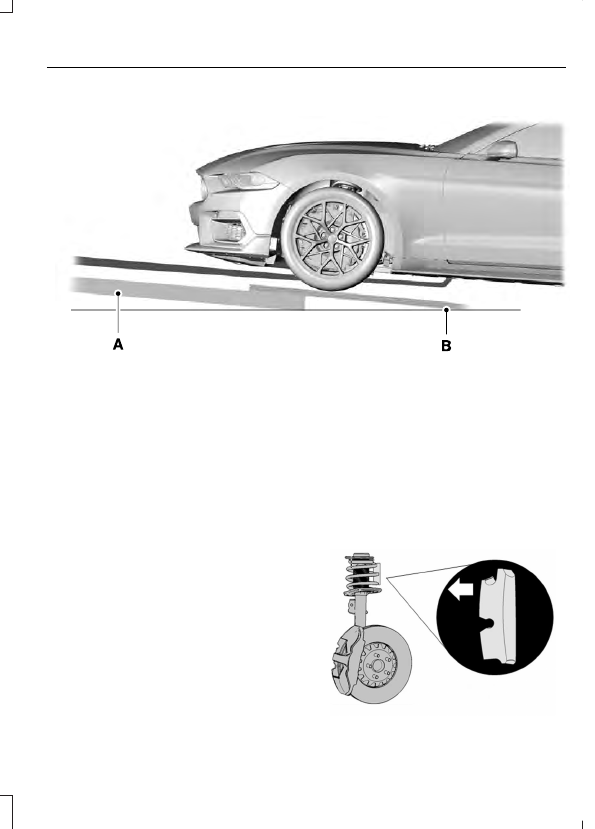

Alternate Flatbed Method

E342993

Tow vehicle ramp.

Wooden ramp.

Use 2 in (5 cm) by 8 in (20 cm) by 8 ft
(2.5 m) wooden ramps to load the vehicle.

The diagram illustrates the maximum
ramp angle allowable to load your vehicle
on a flatbed. Vehicle damage may occur
with greater angles.

Blocks must be used to achieve
appropriate undercarriage clearances.

Transporting or Trailering - Mach
1 Handling Package

(If Equipped)

Due to low ground clearance, your vehicle
is transported from the assembly plant to
the dealer with front suspension spacers
installed. These are removed by the dealer
prior to customer delivery and are provided
with the vehicle. If you plan to transport or
trailer your vehicle and need additional
clearance, the spacers may be reinstalled
for additional underbody clearance.

Note:

Suspension spacers must be

removed before driving your vehicle. Failure
to remove the spacers may cause damage
to suspension components and degrade
vehicle performance.

Note:

It is only possible for you to install or

remove the suspension spacers while the
vehicle is raised in the air.

E343027

227

Towing

Front Suspension

Insert the top of the spring spacer onto the
spring first, then snap the bottom of the
spacer into place.

TOWING THE VEHICLE ON
FOUR WHEELS

Emergency Towing

WARNING:

If your vehicle has a

steering wheel lock make sure the
ignition is in the accessory or on position
when being towed.

If your vehicle becomes inoperable without
access to wheel dollies or a vehicle
transport trailer, it can be flat-towed with
all wheels on the ground, regardless of the
powertrain and transmission configuration,
under the following conditions:
•

Your vehicle is facing forward for
towing in a forward direction.

•

Place the transmission in neutral (N).
If you cannot shift the transmission into
neutral (N), you may need to override
the gear shifter. See

Transmission

(page 164). Failing to do so may result
in damage to the transmission.

•

Maximum speed is 35 mph (56 km/h).

•

Maximum distance is 50 mi (80 km).

Recreational Towing

You cannot recreational tow your vehicle
with all wheels on the ground because
vehicle or transmission damage could
occur. You must recreational tow your
vehicle with all four wheels off the ground
such as when using a car-hauling trailer.
Otherwise, you cannot recreational tow
your vehicle.

228

Towing

OPENING THE CONVERTIBLE
TOP

When you use the top, you must first
unlatch it from the windshield and then
use the convertible top control.

Note:

The convertible top does not operate

unless the vehicle is stationary or traveling
under 3 mph (5 km/h). A chime sounds and
a warning message appears in the
instrument panel. When you slow down, the
top operates.

Note:

When you latch or unlatch the

convertible top, the audio system mutes
briefly. This allows the vehicle to optimize
the cabin’s sound quality depending on the
position of the convertible top.

To unlatch the convertible top:
1.

Bring the vehicle to a complete stop.
The ignition must be on. We
recommend that the vehicle remains
running when you open the top to
prevent draining the battery.

2. Check the convertible top stowage

compartment behind the rear seat to
be sure it is empty. Make sure the
convertible top outer surface is free of
debris.

3. Move the latch handle, above the

interior mirror, down toward the
windshield and rotate the handle
clockwise to release the convertible
top.

E174571

The windows open automatically when
you press the convertible top control.

To open the convertible top:
1.

Press and hold the convertible top
control on the overhead console, until
the windows are completely down and
the top stores completely.

2. Release the convertible top control.

E174568

Note:

Do not store articles behind the rear

seat. Articles in the convertible top stowage
compartment may break the rear glass
window when you open the top.

Note:

Opening the convertible top when

the top material is wet may cause mold or
mildew.

229

Convertible Top

(If Equipped)

CLOSING THE CONVERTIBLE
TOP

Closing the Convertible Top

Bring your vehicle to a complete stop
and make sure to leave the ignition on.
We recommend that your vehicle
remains running when you open the
top to prevent draining the battery.

Note:

The convertible top does not operate

unless your vehicle is stationary or traveling
under 3 mph (5 km/h). A tone sounds and
a warning message appears in the
instrument panel. When you slow down, the
top operates.

E174568

2. Press and hold the convertible top

control. When the convertible latch
handle is within reach, make sure it is
down and that you rotate it clockwise
so the latch is in the fully opened
position. Continue pressing the
convertible top control until the
windows completely lower, and the
top unfolds and moves forward toward
the windshield header.

3. When the top lines up evenly with the

windshield header, release the
convertible top control.

Latching the Convertible Top

E178453

Pull down on the latch handle and
rotate it counter-clockwise to secure
the convertible top.

2. After securing the convertible top fully,

push the latch handle up into the
stowed position to secure the latch.

Note:

When you latch or unlatch the

convertible top, the audio system briefly
mutes. This allows the vehicle to optimize
the cabin’s sound quality depending on the
position of the convertible top.

Note:

If you keep the top open for an

extended period of time or if the
temperature is low, the top material may
shrink slightly. If this happens, pull on the
latch handle to secure the top.

230

Convertible Top

(If Equipped)

REDUCED ENGINE
PERFORMANCE

WARNING:

If you continue to drive

your vehicle when the engine is
overheating, the engine could stop
without warning. Failure to follow this
instruction could result in the loss of
control of your vehicle.

If the engine coolant temperature gauge
needle moves to the upper limit position,
the engine is overheating. See

Gauges

(page 90).

You must only drive your vehicle for a short
distance if the engine overheats. The
distance you can travel depends on
ambient temperature, vehicle load and
terrain. The engine continues to operate
with limited power for a short period of
time.

If the engine temperature continues to rise,
the fuel supply to the engine reduces. The
air conditioning switches off and the engine
cooling fan operates continually.

Gradually reduce your speed and stop
your vehicle as soon as it is safe to do
so.

2. Immediately switch the engine off to

prevent severe engine damage.

3. Wait for the engine to cool down.

4. Check the coolant level. See

Engine

Coolant Check

(page 266).

5. Have your vehicle checked as soon as

possible.

Reduced Vehicle Top Speed

Your vehicle's ability to reach and maintain
top speed is partially dependent upon
ambient temperature. Under certain
environmental conditions, your vehicle's
top speed may be reduced to protect
powertrain components.

COLD WEATHER
PRECAUTIONS

The functional operation of some
components and systems can be affected
at temperatures below approximately
-13°F (-25°C).

BREAKING-IN

Your vehicle requires a break-in period. For
the first 1,000 mi (1,600 km), avoid driving
at high speeds, heavy braking, aggressive
shifting or using your vehicle to tow. During
this time, your vehicle may exhibit some
unusual driving characteristics.

Ground Clearance

Since ground clearance is reduced, use
caution when approaching curbs or curb
stops from the front and rear as vehicle
damage may occur. Additionally, when
crossing speed bumps or driveway curbs,
you should approach at a 45 degree angle
to reduce the risk of vehicle damage.

DRIVING ECONOMICALLY

The following helps to improve fuel
consumption:
•

Drive smoothly, accelerate gently and
anticipate the road ahead to avoid
heavy braking.

•

Regularly check your tire pressures and
make sure that they are inflated to the
correct pressure.

231

Driving Hints

•

Follow the recommended maintenance
schedule and carry out the
recommended checks.

•

Plan your journey and check the traffic
before you set off. It is more efficient
to combine errands into a single trip
whenever possible.

•

Avoid idling the engine in cold weather
or for extended periods. Start the
engine only when you are ready to set
off.

•

Do not carry unnecessary weight in your
vehicle as extra weight wastes fuel.

•

Do not add unnecessary accessories
to the exterior of your vehicle, for
example running boards. If you use a
roof rack, remember to fold it down or
remove it when not in use.

•

Do not shift into neutral when you are
braking or when your vehicle is slowing
down.

•

Shut all windows when driving at high
speeds.

•

Switch off all electric systems when
not in use, for example air conditioning.
Make sure that you unplug any
accessories from the auxiliary power
points when not in use.

DRIVING THROUGH SHALLOW
WATER

WARNING:

Do not attempt to

cross a deep or flowing body of water.
Failure to follow this instruction could
result in the loss of control of your
vehicle, personal injury or death.

Note:

Driving through standing water can

cause vehicle damage.

Note:

Engine damage can occur if water

enters the air filter.

Before driving through standing water,
check the depth. Never drive through water
that is higher than the bottom of the front
rocker area of your vehicle.

E266447

When driving through standing water, drive
very slowly and do not stop your vehicle.
Your brake performance and traction could
be limited. After driving through water and
as soon as it is safe to do so:

•

Lightly press the brake pedal to dry the
brakes and to check that they work.

•

Turn the steering wheel to check that
the steering power assist works.

Check the function of the following:

•

Horn

•

Exterior lights

FLOOR MATS

WARNING:

Use a floor mat

designed to fit the footwell of your
vehicle that does not obstruct the pedal
area. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING:

Pedals that cannot

move freely can cause loss of vehicle
control and increase the risk of serious
personal injury.

232

Driving Hints

WARNING:

Secure the floor mat

to both retention devices so that it
cannot slip out of position and interfere
with the pedals. Failure to follow this
instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING:

Do not place additional

floor mats or any other covering on top
of the original floor mats. This could
result in the floor mat interfering with the
operation of the pedals. Failure to follow
this instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING:

Always make sure that

objects cannot fall into the driver foot
well while your vehicle is moving. Objects
that are loose can become trapped
under the pedals causing a loss of
vehicle control.

E142666

To install floor mats that have eyelets,
position the floor mat eyelet over the
retention post and press down to lock in
position. Repeat for all eyelets on the floor
mat.

To remove the floor mats, reverse the
installation procedure.

Note:

Regularly check the floor mats to

make sure they are secure.

233

Driving Hints

Ford Mustang (2022 year). Manual in english - page 14
