GENERAL INFORMATION ON
RADIO FREQUENCIES

This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.

WARNING:

Changes or

modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.

The typical operating range for your
transmitter is approximately 33 ft (10 m).
Vehicles with the remote start feature will
have a greater range.

One of the following could cause a
decrease in operating range:
•

Weather conditions.

•

Nearby radio towers.

•

Structures around the vehicle.

•

Other vehicles parked next to your
vehicle.

The radio frequency used by your remote
control can also be used by other radio
transmitters, for example amateur radios,
medical equipment, wireless headphones,
wireless remote controls, cell phones,
battery chargers and alarm systems. If the
frequencies are jammed, you will not be
able to use your remote control. You can
lock and unlock the doors with the key.

Note:

Make sure to lock your vehicle before

leaving it unattended.

Note:

If you are in range, the remote control

will operate if you press any button
unintentionally.

Note:

The remote control contains sensitive

electrical components. Exposure to moisture
or impact may cause permanent damage.

Intelligent Access

 (If Equipped)

The system uses a radio frequency signal
to communicate with your vehicle and
authorize your vehicle to unlock when one
of the following conditions are met:
•

You activate the front exterior door
handle switch.

•

You press the luggage compartment
button.

•

You press a button on the transmitter.

If excessive radio frequency interference
is present in the area or if the transmitter
battery is low, you may need to
mechanically unlock your door. You can
use the mechanical key blade in your
intelligent access key to open the driver
door in this situation.  See

Remote

Control

 (page 58).

REMOTE CONTROL

Remote Control Limitations

The system may not function if:
•

The remote control remains stationary
for about a minute.

•

The vehicle battery has no charge.

•

The remote control battery has no
charge.

•

There is interference causing issues
with the remote control frequencies.

•

The remote control is too close to
metal objects or electronic devices, for
example keys or a cell phone.

58

Keys and Remote Controls

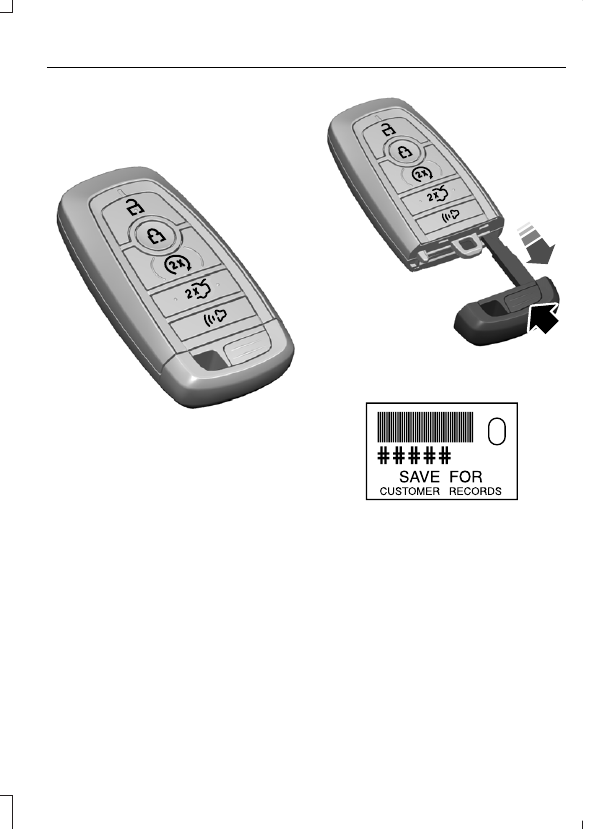

Intelligent Access Key

Note:

You may not be able to shift out of

park (P) unless the remote control is inside
your vehicle.

E307003

The remote control operates the power
locks and the remote start system.  The
key must be in your vehicle to use the push
button start.

Removable Key Blade

The remote control also contains a
removable key blade that you can use to
unlock your vehicle.

E307694

Push the release button and pull the key
blade out.

E151795

Note:

 Your vehicle keys came with a

security label that provides important key
cut information.  Keep the label in a safe
place for future reference.

Using the Key Blade

The key cylinder is under a cap on the driver
door handle.

To remove the cap:

59

Keys and Remote Controls

E151956

1.

Insert the key blade into the slot on the
bottom of the handle and apply
upward pressure.

2. While maintaining upward pressure,

move the cap rearward to release it.
Gently remove the key while doing so.

To install the cap:

E151957

1.

Place the cap just forward of the key
cylinder.

2. Applying pressure to the cap, move it

forward until it is in place. You may
hear a snap as it engages.

Make sure you have properly installed the
cap by trying to move it rearward.

Replacing the Battery

WARNING:

Keep batteries away

from children to prevent ingestion.
Failure to follow this instruction could
result in personal injury or death. If
ingested, immediately seek medical
attention.

WARNING:

If the battery

compartment does not securely close,
stop using the remote control and
replace it as soon as possible. In the
meantime, keep the remote control away
from children. Failure to follow this
instruction could result in personal injury
or death.

A message appears in the information
display when the remote control battery
is low.  See

Information Messages

 (page

113).

The remote control uses one coin-type
three-volt lithium battery CR2450 or
equivalent.

60

Keys and Remote Controls

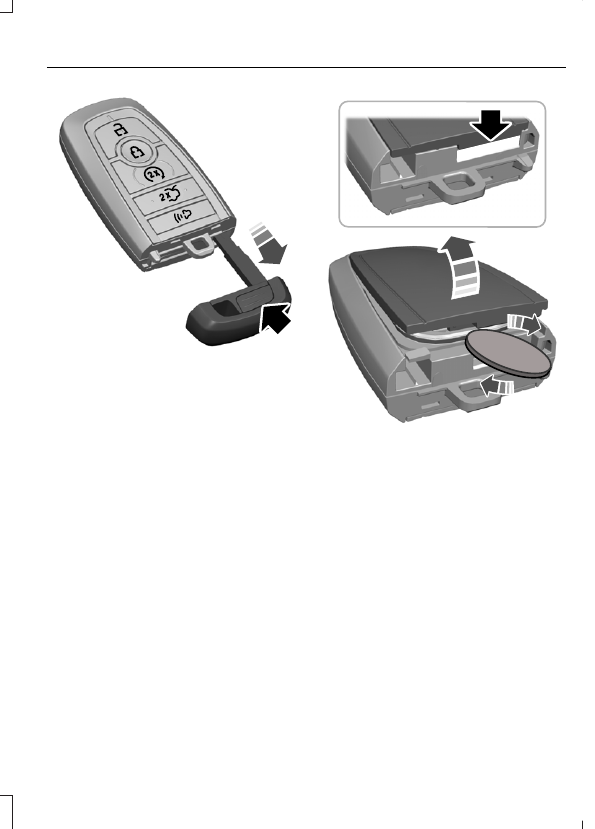

E307694

1.

Push the release button and pull the
key blade out.

E303824

2. Twist a thin coin under the tab hidden

behind the key blade head to remove
the battery cover.

61

Keys and Remote Controls

E218402

3. Insert a suitable tool, for example a

screwdriver, in the position shown and
carefully remove the battery.

Note:

Refer to local regulations when

disposing of remote control batteries.

Note:

Do not wipe off any grease on the

battery terminals or on the back surface of
the circuit board.

Note:

 Replacing the battery does not erase

the programmed key from your vehicle.  The
remote control should operate normally.

4. Install a new battery with the

+

 facing

upward.

5. Reinstall the battery cover and the key

blade.

Car Finder

E138623

Press the button twice within
three seconds.  The horn sounds
and the direction indicators

flash.  We recommend you use this method
to locate your vehicle, rather than using
the panic alarm.

Sounding the Panic Alarm

E138624

Press the button to sound the
panic alarm.  Press the button
again or switch the ignition on to

turn it off.

Note:

The panic alarm only operates when

the ignition is off.

Memory Feature

You can program your intelligent access
key to recall memory positions. See

Memory Function

 (page 137).

REPLACING A LOST KEY OR
REMOTE CONTROL

Replacement keys or remote controls can
be purchased from an authorized dealer.
Authorized dealers can program remote
controls for your vehicle.

62

Keys and Remote Controls

WHAT IS MYKEY

MyKey allows you to program keys with
restricted driving modes to promote good
driving habits.

MYKEY SETTINGS

NON-CONFIGURABLE MYKEY
SETTINGS

Seatbelt Reminder or Belt-
Minder™

MyKey mutes the audio system until the
drivers, and in some instances, passengers,
fasten their seatbelts.

Note:

If your vehicle includes an AM/FM

radio or a very basic audio system, then the
radio may not mute.

Satellite Radio

 (If Equipped)

Satellite radio adult content restrictions.

Early Low Fuel

The low fuel level warning lamp turns on
earlier.

Driving and Parking Aids

Parking aids, blind spot information system
and cross traffic alert turn on when you
start the engine and cannot be switched
off with a MyKey.

Pre-collision assist and lane keeping alert
turn on when you start the engine, but can
be switched off with a MyKey.

A new destination in the navigation system
can only be set using voice commands
when using a MyKey, and with your vehicle
moving.

Note:

MyKey drivers may be able to turn

the lane departure warning feature off, but
this feature turns back on automatically
with every new key cycle.

CONFIGURABLE MYKEY
SETTINGS

You can configure the following settings
after creating a MyKey.  See

Creating a

MyKey

 (page 64).

Speed Limit

WARNING:

Do not set MyKey

maximum speed limit to a limit that will
prevent the driver from maintaining a
safe speed considering posted speed
limits and prevailing road conditions. The
driver is always responsible to drive in
accordance with local laws and
prevailing conditions. Failure to do so
could result in accident or injury.

You can set a speed limit for your vehicle.
Warning messages appear in the
information display and a tone sounds if
your vehicle reaches the set speed. You
cannot override the set speed when using
a MyKey.

Speed Reminder

You can set a speed reminder for your
vehicle. Warning messages appear in the
information display and a tone sounds if
your vehicle exceeds the set speed.

Audio System Volume Limit

The audio system maximum volume is
reduced. A message appears in the
information display if you attempt to
exceed the volume limit. Automatic
volume control turns off.

63

MyKey™

Emergency Assistance

If you set emergency assistance to always
on, you cannot switch it off with a MyKey.

Do Not Disturb

If you set do not disturb to always on, you
cannot switch it off with a MyKey.

Note:

If a phone is connected using Apple

CarPlay or Android Auto while driving with
a MyKey, the driver can receive phone calls
and text messages even if the do not disturb
restriction is on. If the vehicle comes with
satellite radio, the adult content is not
restricted.

Traction Control

If you set traction control to always on, you
cannot switch it off with a MyKey.

CREATING A MYKEY

E174956

1.

Remove the rubber covering (A) in the
cupholder.

2. Place the remote control in the backup

slot (B) with the buttons facing up and
the key ring toward the front of your
vehicle.

3. Switch the ignition on.

4. Using your touchscreen, press

Menu

.

5. Press

Settings

.

6. Press

Vehicle

.

7.

Press

MyKey

.

8. Press

Create MyKey

.

9. Press

Yes

 if you want to create the key

as MyKey. A confirmation message
appears on the screen.

10.

Switch the ignition off.

Note:

We recommend that you label this

key.

PROGRAMMING A MYKEY

You can only program each MyKey to the
same settings.

1.

Switch the ignition on using an admin
key.

2. Select

Settings

 and press the menu

button.

3. Select

Settings

.

4. Select

MyKey

.

5. Select a setting and press the

OK

button.

6. Configure the setting.

7.

Switch the ignition off.

CLEARING ALL MYKEYS

When you clear all MyKeys, you remove all
restrictions and return all MyKeys to their
original admin key status.

1.

Switch the ignition on using an admin
key.

2. Using your touchscreen, press

Menu

.

3. Press

Settings

.

4. Press

Vehicle

.

5. Press

MyKey

.

6. Press

Clearing All MyKeys

.

7.

Press

Yes

 to clear all MyKeys from your

vehicle.

64

MyKey™

CHECKING MYKEY SYSTEM
STATUS

You can find information about the
distance traveled using a MyKey, and the
number of admin keys and MyKeys created
for your vehicle.

1.

Switch the ignition on.

2. Press

Settings

 on the touchscreen.

3. Press

Vehicle Settings

.

4. Press

MyKey

.

5. Press

MyKey Information

.

6. Switch the ignition off.

USING MYKEY WITH REMOTE
START SYSTEMS

MyKey is not compatible with unapproved,
aftermarket remote start systems. If you
choose to install a remote start system,
see an authorized dealer for an approved
remote start system.

MYKEY – TROUBLESHOOTING

MYKEY – INFORMATION MESSAGES - VEHICLES WITH: PUSH BUTTON
START

Description

Message

Displays when trying to create a MyKey and there is no admin
key in the backup position.  See

Creating a MyKey

 (page

64).

Place Key in Backup
Location

Displays when trying to create a MyKey with a key already
designated as a MyKey.

Key is Already a MyKey

Displays to confirm that you have a restricted key after you
switch the ignition off.

This Key restricted at
Next Key Cycle. Label
Key as MyKey

65

MyKey™

MYKEY – FREQUENTLY ASKED
QUESTIONS - VEHICLES WITH:
PUSH BUTTON START

What is an admin key?

•

An admin key is a key that you have not
created as a MyKey.  See

Creating a

MyKey

 (page 64).

Why am I not able create a MyKey?

•

You did not place the admin key in the
backup position.  See

Creating a

MyKey

 (page 64).

•

You did not use an admin key to switch
the ignition on.

•

The key used to switch the ignition on
is the only admin key. At least one key
needs to remain as an admin key.

•

You did not switch the ignition off after
creating the last MyKey.

Why am I not able to program a
MyKey?

•

The admin key is not inside your
vehicle.

•

The key used to switch the ignition on
is not an admin key.

•

You have not created any MyKeys.  See

Creating a MyKey

 (page 64).

Why am I not able to clear the
MyKeys?

•

The admin key is not inside your
vehicle.

•

The key used to switch the ignition on
is not an admin key.

•

You have not created any MyKeys.  See

Creating a MyKey

 (page 64).

Why is the MyKey distance not
accumulating?

•

The key used to start the engine is an
admin key.

•

An admin key and a MyKey are inside
your vehicle.

•

You have not created any MyKeys.  See

Creating a MyKey

 (page 64).

•

You have cleared the MyKeys.

Why am I not able to start the
engine with a MyKey?

•

An admin key and a MyKey are inside
your vehicle.

66

MyKey™

LOCKING AND UNLOCKING

You can use the power door lock control
or the remote control to lock and unlock
your vehicle.

Note:

Do not use the door latch assembly

to attach any accessory, such as handles or
steps, as this can cause damage to your
vehicle.

Power Door Locks

The power door lock control is on the driver
and front passenger door panels.

E332156

Unlock.

A

Lock.

B

Door Lock Indicator

An LED on each door window trim
illuminates when you lock the door.  It
remains on for up to 10 minutes after you
switch the ignition off.

Door Lock Switch Inhibitor

When you electronically lock your vehicle,
the power door lock switch no longer
operates after 20 seconds.  You must
unlock your vehicle with the remote
control, or switch the ignition on, to restore
function to these switches.  You can switch
this feature on or off in the information
display.  See

General Information

 (page

99).

Remote Control

You can use the remote control at any
time.  The luggage compartment release
button only works when your vehicle speed
is less than 5 mph (8 km/h).

Unlocking the Doors

E138629

Press the button to unlock the
driver door.  Press the button
again within three seconds to

unlock all doors.  The direction indicators
flash.

Note:

You can unlock the driver door with

the key blade if the remote control is not
functioning. See

Replacing a Lost Key or

Remote Control

 (page 62).

Note:

When you leave your vehicle

unattended for several weeks, remote
unlocking turns off. Unlock your vehicle
using the key blade, then start your vehicle
to restore the remote unlocking function.

Reprogramming the Unlocking
Function

You can reprogram the unlocking function
so that all doors unlock.

Press and hold both the lock and unlock
buttons on the remote control for three
seconds to change between driver door or
all doors unlock mode.  The direction
indicators flash twice to confirm the
change.  Driver door mode only unlocks the
driver door when you press the unlock

67

Doors and Locks

button once.  All door mode unlocks all
doors when you press the unlock button
once.  The unlocking mode applies to the
remote control and intelligent access.  You
can also change between the unlocking
modes using the information display. See

General Information

 (page 99).

Locking the Doors

E138623

Press the button to lock all
doors.  The direction indicators
flash.  Press the button again

within three seconds to confirm that all
the doors are closed.  The doors lock again,
the horn sounds and the direction
indicators flash if all the doors and the
luggage compartment are closed.

Mislock

If any door or the luggage compartment is
open, or if the hood is open on vehicles
with an anti-theft alarm or remote start,
the horn will sound twice and the direction
indicators do not flash.  You can switch
this feature on or off in the information
display.  See

General Information

 (page

99).

Opening the Luggage Compartment

E138630

Press twice within three seconds
to open the luggage
compartment.

Make sure to close and latch the luggage
compartment before driving your vehicle.
Objects may fall from an unlatched
luggage compartment. An unlatched
luggage compartment may block your rear
view.

Activating Intelligent Access

General Information

You can unlock and lock the vehicle
without taking the keys out of your pocket
or purse when your intelligent access key
is within 3 ft (1 m) of your vehicle.
Intelligent access uses a sensor on the
back of the door handle for unlocking and
a separate sensor on the face of each door
handle for locking.

The system does not function if:
•

Your vehicle battery has no charge.

•

The key battery has no charge.

•

The key frequencies are jammed.

Note:

The system may not function if the

key is close to metal objects or electronic
devices, for example keys or a cell phone.

Note:

If the system does not function, use

the key blade to lock and unlock your
vehicle.  See

Remote Control

 (page 58).

Unlocking Using Intelligent Access

E248553

With your intelligent access key within 3 ft
(1 m) of your vehicle, touch the unlock
sensor on the back of the door handle for
a brief period and then pull on the door
handle to unlock, being careful to not
touch the lock sensor at the same time or
pulling the door handle too quickly. The
intelligent access system requires a brief
delay to authenticate your intelligent
access key fob.

68

Doors and Locks

Locking Using Intelligent Access

E248554

With your intelligent access key within 3 ft
(1 m) of your vehicle, touch the outer door
handle lock sensor for approximately one
second to lock, being careful to not touch
the unlock sensor on the back of the door
handle at the same time. After locking, you
can immediately pull on the door handle
to confirm locking occurred without
inadvertently unlocking.

Opening the Luggage Compartment

E175208

Press the exterior release button hidden
above the license plate.

Smart Unlocks

This feature helps to prevent you from
unintentionally locking your intelligent
access key inside your vehicle’s passenger
compartment or luggage compartment.

When you electronically lock your vehicle
with any door open, your vehicle in park
and the ignition off, your vehicle searches
for an intelligent access key in the
passenger compartment after you close
the last door. If your vehicle finds a key, all
of the doors immediately unlock and the
horn sounds twice, indicating that a key is
inside.

You can override the smart unlock feature
and intentionally lock the intelligent access
key inside your vehicle. To do this, lock your
vehicle after you have closed all the doors
by:
•

Pressing the lock button on another
intelligent access key.

•

Touching the locking area on the
handle with another intelligent access
key in your hand.

When you open one of the front doors and
lock your vehicle using the power door lock
control, all doors lock then unlock if:
•

The ignition is on.

•

The ignition is off and the transmission
is not in park (P).

Autolock

Autolock locks all the doors when:
•

All doors are closed.

•

The ignition is on.

•

You shift into any gear putting your
vehicle in motion.

•

Your vehicle reaches a speed greater
than 12 mph (20 km/h).

Autolock repeats when:
•

You open then close any door while the
ignition is on and your vehicle speed is
9 mph (15 km/h) or lower.

•

Your vehicle reaches a speed greater
than 12 mph (20 km/h).

69

Doors and Locks

Autounlock

Autounlock unlocks all the doors when:
•

The ignition is on, you have closed all
the doors, and your vehicle has been
moving at a speed greater than 12 mph
(20 km/h).

•

Your vehicle comes to a stop and you
switch the ignition off or to the
accessory position.

•

You open the driver door within 10
minutes of switching the ignition off or
to accessory.

Note:

The doors do not autounlock if you

electronically lock your vehicle after you
switch the ignition off and before you open
the driver door.

Enabling or Disabling Autounlock

You can enable or disable the autounlock
feature in the information display or an
authorized dealer can do it for you.  See

General Information

 (page 103).

Locking and Unlocking the Doors
with the Key Blade

Turn the top of the key toward the front of
your vehicle once to lock all doors.

Turn the top of the key toward the rear of
your vehicle once to unlock the driver door
only.  See

Remote Control

 (page 58).

Locking the Doors Individually

E180643

If the central locking function does not
operate, lock the doors individually using
the key in the position shown.

Left-Hand Side

Turn clockwise to lock.

Right-Hand Side

Turn counterclockwise to lock.

Unlocking the Doors

If the central locking function does not
operate, unlock the driver door and then
unlock all other doors individually by
pulling the interior door handles.

70

Doors and Locks

Note:

If you have unlocked the doors using

this method, you must lock the doors
individually to restore the central locking
function.

Unlocking the Luggage Compartment
(Convertible Only)

E188353

If the power decklid release does not
operate because of a discharged battery,
pull the rear seat left-hand side seatback
cushion aside, insert the mechanical key
blade into the key slot and turn the key to
release the decklid latch.

Opening the Luggage
Compartment

From Inside Your Vehicle

E188015

Press the button on the instrument panel
to open the luggage compartment.

From Outside Your Vehicle

E175208

Press the exterior release button hidden
above the license plate.  You need to have
your vehicle unlocked or have an intelligent
access key within 3 ft (1 m) of the luggage
compartment.

With the Remote Control

E138630

Press twice within three seconds
to open the luggage
compartment.

Illuminated Entry

The interior lamps and select exterior
lamps illuminate when you unlock the
doors with the remote entry system.

The illuminated entry system turns off the
lights if:
•

The ignition is on.

•

You press the remote control lock
button.

•

After 25 seconds of illumination.

The lights do not turn off if:

•

You switch them on with the lamp
control.

•

Any door is open.

71

Doors and Locks

Illuminated Exit

The interior lamps and select exterior
lamps illuminate when all doors are closed
and you switch the ignition off.

The lamps turn off if all the doors remain
closed and:
•

After 25 seconds elapse.

•

You press the

START/STOP

 button.

Battery Saver

If you leave on the courtesy lamps, dome
lamps or headlamps, the battery saver
turns them off 10 minutes after you switch
off the ignition.

Accessory Mode Battery Saver for
Intelligent Access Keys

If you leave your vehicle in the run ignition
state, it turns off once it detects a certain
amount of battery drain or after 45
minutes.

INTERIOR LUGGAGE
COMPARTMENT RELEASE

WARNING:

Keep vehicle doors and

luggage compartment locked and keep
keys and remote transmitters out of a
child’s reach. Unsupervised children
could lock themselves in the trunk and
risk injury. Children should be taught not
to play in vehicles.

WARNING:

Do not leave children

or animals unattended in the vehicle. On
hot days, the temperature in the trunk or
vehicle interior can rise very quickly.
Exposure of people or animals to these
high temperatures for even a short time
can cause death or serious heat-related
injuries, including brain damage. Small
children are particularly at risk.

Your vehicle is equipped with a release
handle that provides a means of escape
for children and adults if they become
locked inside the luggage compartment.

Adults should familiarize themselves with
the operation and location of the release
handle.

E144403

The handle is located inside the luggage
compartment either on the luggage
compartment door (lid) or near the tail
lamps. It is composed of a material that
will glow for hours in darkness following
brief exposure to ambient light.

Pull the handle and push up on the luggage
compartment door (lid) to open from
within the luggage compartment.

72

Doors and Locks

PASSIVE ANTI-THEFT
SYSTEM

Note:

The system is not compatible with

non-Ford aftermarket remote start systems.
Use of these systems may result in vehicle
starting problems and a loss of security
protection.

Note:

Metallic objects, electronic devices

or a second coded key on the same key
chain may cause vehicle starting problems
if they are too close to the key when starting
your vehicle. Prevent these objects from
touching the coded key while starting your
vehicle. Switch the ignition off, move all
objects on the key chain away from the
coded key and restart your vehicle if a
problem occurs.

Note:

Do not leave a duplicate coded key

in your vehicle. Always take your keys and
lock all doors when leaving your vehicle.

SecuriLock

The system helps prevent your vehicle
from starting unless you use a coded key
programmed to your vehicle. Using the
wrong key may prevent your vehicle from
starting. A message may appear in the
information display.

If you are unable to start your vehicle with
a correctly coded key, it is not operating
properly. A message may appear in the
information display.

Automatic Arming

Your vehicle arms immediately after
switching the ignition off.

Automatic Disarming

Switching the ignition on with a coded key
disarms your vehicle.

Replacement Keys

Note:

Your vehicle comes equipped with

two intelligent access keys.

The intelligent access key functions as a
programmed key that operates the driver
door lock and activates the intelligent
access with push button start system, as
well as a remote control.

If your programmed transmitters are lost
or stolen and you do not have an extra
coded key, you need to have your vehicle
towed to an authorized dealer. You need
to erase the key codes from your vehicle
and program new coded keys.

Store an extra programmed key away from
your vehicle in a safe place to help prevent
any inconveniences. See your authorized
dealer to purchase additional spare or
replacement keys.

Programming a Spare Intelligent
Access Key

Note:

You can program a maximum of four

intelligent access keys to your vehicle.

You must have two previously
programmed intelligent access keys inside
your vehicle and the new unprogrammed
intelligent access keys readily accessible.
See an authorized dealer to have the spare
key programmed if two previously
programmed keys are not available.

Make sure that your vehicle is off before
beginning this procedure. Make sure that
you close all the doors before beginning
and that they remain closed throughout
the procedure. Perform all steps within 30
seconds of starting the sequence. Stop
and wait for at least one minute before
starting again if you perform any steps out
of sequence.

Read and understand the entire procedure
before you begin.

73

Security
