Ford Mustang (2022 year). Manual in english

E204921

E142587

Insert the belt tongue into the proper
buckle (the buckle closest to the
direction the tongue is coming from)
until you hear a snap and feel it latch.
Make sure you securely fasten the
tongue in the buckle.

E142588

2. To unfasten, press the release button

and remove the tongue from the
buckle.

Using Seatbelts During Pregnancy

WARNING:

Always ride and drive

with your seatback upright and properly
fasten your seatbelt. Fit the lap portion
of the seatbelt snugly and low across
the hips. Position the shoulder portion of
the seatbelt across your chest. Pregnant
women must follow this practice. See
the following figure.

E142590

Seatbelts

Pregnant women should always wear their
seatbelt. Position the lap belt portion of a
combination lap and shoulder belt low
across the hips below the belly and worn
as tight as comfort allows. Position the
shoulder belt to cross the middle of the
shoulder and the center of the chest.

Seatbelt Locking Modes

WARNING:

If your vehicle is

involved in a crash, have the seatbelts
and associated components inspected
as soon as possible. Failure to follow this
instruction could result in personal injury
or death.

All safety restraints in the vehicle are
combination lap and shoulder belts and
have vehicle sensitive locking mode. In
addition, the front outboard passenger and
rear seat seatbelts have the automatic
locking mode.

Vehicle Sensitive Mode

This is the normal retractor mode, which
allows free shoulder belt length
adjustment to your movements and
locking in response to vehicle movement.
For example, if the driver brakes suddenly
or turns a corner sharply, or the vehicle
receives an impact of about 5 mph
(8 km/h) or more, the combination
seatbelts lock to help reduce forward
movement of the driver and passengers.

In addition, the retractor is designed to lock
if you pull the webbing out too quickly. If
the seatbelt retractor locks, slowly lower
the height adjuster to allow the seatbelt
to retract. If the retractor does not unlock,
pull the seatbelt out slowly then feed a

small length of webbing back toward the
stowed position. For rear seatbelts, recline
the rear seat backrest or push the seat
backrest cushion away from the seatbelt.
Feed a small length of webbing back
toward the stowed position.

Automatic Locking Mode

In this mode, the shoulder belt
automatically pre-locks. The belt still
retracts to remove any slack in the
shoulder belt. The automatic locking mode
is not available on the driver seatbelt.

When to Use the Automatic Locking
Mode

Use this mode any time a child safety seat,
except a booster, is installed in passenger
front or rear seating positions. Properly
restrain children 12 years old and under in
a rear seating position whenever possible.
See

Child Safety

(page 25).

How to Disengage the Automatic
Locking Mode

Unbuckle the combination lap and
shoulder belt and allow it to retract
completely to disengage the automatic
locking mode and activate the vehicle
sensitive (emergency) locking mode.

SEATBELT WARNING LAMP
AND INDICATOR CHIME

E71880

This lamp illuminates and an
indicator chime will sound if the
driver seatbelt has not been

fastened when the vehicle's ignition is
turned on.

Seatbelts

Conditions of operation

Then

The seatbelt warning lamp illuminates and

the indicator chime sounds for a few

seconds.

The driver seatbelt is not buckled before

the ignition switch is turned to the on posi-

tion...

The seatbelt warning lamp and indicator

chime turn off.

The driver seatbelt is buckled while the

warning lamp is illuminated and the indic-

ator chime is sounding...

The seatbelt warning lamp and indicator

chime remain off.

The driver seatbelt is buckled before the

ignition switch is turned to the on position...

SEATBELT REMINDER

WARNING:

The system will only

provide protection when you use the
seatbelt correctly.

This system monitors all seating positions
and provides audio and graphic feedback.

E71880

This lamp illuminates and a
warning tone sounds if you do
not fasten your seatbelt when

you switch the ignition on. The lamp and
tone switch off when you fasten your
seatbelt or about one minute has elapsed.

When the initial warning expires for the
driver, more warnings are provided for the
driver and front passenger. This lamp
illuminates and a warning tone sounds if
you or your front passenger do not fasten
the seatbelt buckle and the vehicle speed
exceeds 6 mph (9.7 km/h). To deactivate
the warning, see Deactivating and
Activating the Belt-Minder.

Note:

To avoid inadvertent warnings, do

not place large objects on the seat.

E206718

This lamp illuminates when you
switch the ignition on, identifying
the number of seating positions

with fastened buckles. It illuminates again
when a seating position changes from
unfastened to fastened.

E357531

This warning displays and a tone sounds
if an occupant unfastens the rear seatbelt
buckle or it becomes unfastened.

Note:

If a rear seat is unoccupied, or an

occupant never fastens the seatbelt buckle
to begin with, the warning will not display.

Note:

Front seating positions appear in this

warning display. Warnings for unfastened
front seatbelt buckles appear in the initial
warning lamp.

Seatbelts

Seatbelt Status

To view the seatbelt status, use the
information display controls on the
steering wheel.

E357538

E274703

Seatbelt fastened.

Seatbelt not fastened.

Seatbelt recently unfastened.

Fault.

Deactivating and Activating the
Seatbelt Reminder - Front Seats Only

WARNING:

While the system

allows you to deactivate it, this system
is designed to improve your chances of
being safely belted and surviving an
accident. We recommend you leave the
system activated for yourself and others
who may use the vehicle.

Note:

The driver and front passenger

warnings switch on and off independently.
When you perform this procedure for one
seating position, do not buckle the other
position as this terminates the process.

Read Steps 1 - 4 before starting the
procedure.

Make sure that:
•

You set the parking brake.

•

The transmission is in park (P).

•

The ignition is off.

•

You close all vehicle doors.

•

You unbuckle the driver and front
passenger seatbelts.

Switch the ignition on. Do not start the
engine.

2. Wait until the seatbelt warning lamp

turns off (about one minute). After
Step 2, wait an additional five seconds
before proceeding with Step 3. When
you start Step 3, you must complete
the procedure within 30 seconds.

3. For the seating position you are

switching off, buckle then unbuckle the
seatbelt three times at a moderate
speed, ending in the unbuckled state.
After Step 3, the seatbelt warning lamp
turns on.

4. When the seatbelt warning lamp is on,

buckle then unbuckle the seatbelt.
After Step 4, the seatbelt warning lamp
flashes for confirmation.

•

This switches the feature off if it is
currently on.

•

This switches the feature on if it is
currently off.

Seatbelts

CHILD RESTRAINT AND
SEATBELT MAINTENANCE

Inspect the vehicle seatbelts and child
safety seat systems periodically to make
sure they work properly and are not
damaged. Inspect the vehicle and child
restraint seatbelts to make sure there are
no nicks, tears or cuts. Replace if
necessary. All vehicle seatbelt assemblies,
including retractors, buckles, front seatbelt
buckle assemblies, buckle support
assemblies (slide bar-if equipped),
shoulder belt height adjusters (if
equipped), shoulder belt guide on seat
backrest (if equipped), child safety seat
LATCH and tether anchors, and attaching
hardware, should be inspected after a
crash. Read the child restraint
manufacturer's instructions for additional
inspection and maintenance information
specific to the child restraint.

We recommend that all seatbelt
assemblies in use in vehicles involved in a
crash be replaced. However, if the crash
was minor and an authorized dealer finds
that the belts do not show damage and
continue to operate properly, they do not
need to be replaced. Seatbelt assemblies
not in use during a crash should also be
inspected and replaced if either damage
or improper operation is noted.

Properly care for seatbelts. See

Vehicle

Care

(page 292).

SEATBELT EXTENSIONS

WARNING:

Persons who fit into

the vehicle's seatbelt should not use an
extension. Unnecessary use could result
in serious personal injury in the event of
a crash.

WARNING:

Only use extensions

provided free of charge by our dealers.
The dealer will provide an extension
designed specifically for this vehicle,
model year and seating position. The use
of an extension intended for another
vehicle, model year or seating position
may not offer you the full protection of
your vehicle's seatbelt restraint system.

WARNING:

Never use seatbelt

extensions to install child restraints.

WARNING:

Do not use a seatbelt

extension with an inflatable seatbelt.

WARNING:

Do not use extensions

to change the way the seatbelt fits
across the torso, over the lap or to make
the seatbelt buckle easier to reach.

If, because of body size or driving position,
it is not possible to properly fasten the
seatbelt over your lap and shoulder, an
extension that is compatible with the
seatbelts is available free of charge from
our dealers. Only use our seatbelt
extensions made by the original equipment
seatbelt manufacturer with our seatbelts.
Ask your authorized dealer if your extension
is compatible with your vehicle restraint
system.

Seatbelts

The Personal Safety System provides an
improved overall level of frontal crash
protection to front seat occupants and is
designed to help further reduce the risk of
airbag-related injuries. The system is able
to analyze different occupant conditions
and crash severity before activating the
appropriate safety devices to help better
protect a range of occupants in a variety
of frontal crash situations.

The Vehicle Personal Safety System
consists of:
•

Driver and passenger dual-stage airbag
supplemental restraints.

•

Front seat outermost seatbelts with
pretensioners, energy management
retractors and seatbelt usage sensors.

•

Driver seat position sensor.

•

Passenger seat position sensor.

•

Front passenger sensing system.

•

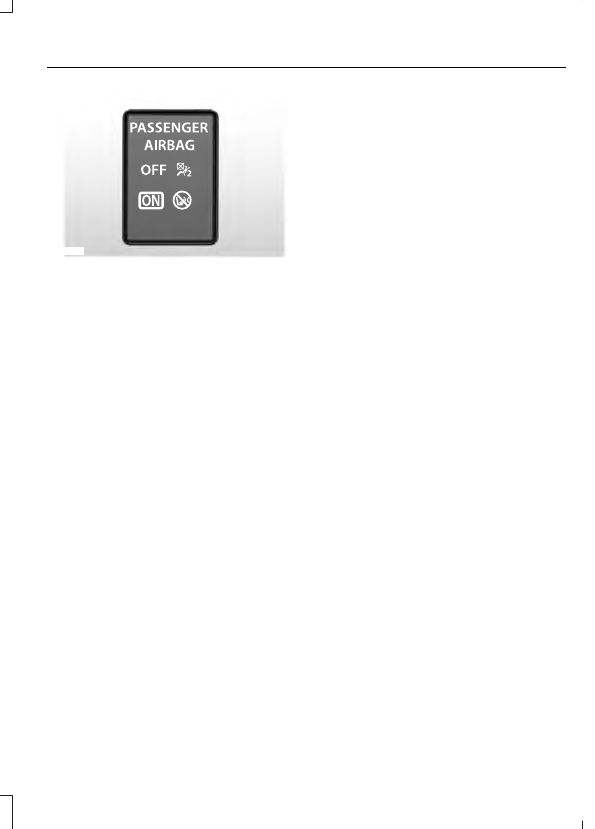

Passenger airbag off and on indicators.

•

Front crash severity sensors.

•

Restraints control module with impact
and safing sensors.

•

Restraint system warning lamp and
tone.

•

The electrical wiring for the airbags,
crash sensors, seatbelt pretensioners,
front seatbelt usage sensors, driver
seat position sensor, front passenger
sensing system and indicators.

How Does the Personal Safety
System Work?

The Personal Safety System can adapt the
deployment strategy of the safety devices
according to crash severity and occupant
conditions. A collection of crash and
occupant sensors provides information to
the restraints control module. During a
crash, the restraints control module may
deploy the seatbelt pretensioners, one or
both stages of the dual-stage airbags
based on crash severity and occupant
conditions.

Personal Safety System™

PRINCIPLE OF OPERATION

WARNING:

Airbags do not inflate

slowly or gently, and the risk of injury
from a deploying airbag is the greatest
close to the trim covering the airbag
module.

WARNING:

All occupants of your

vehicle, including the driver, should
always properly wear their seatbelts,
even when an airbag supplemental
restraint system is provided. Failure to
properly wear your seatbelt could
seriously increase the risk of injury or
death.

WARNING:

Even with advanced

restraints systems, properly restrain
children 12 and under in a rear seating
position. Failure to follow this could
seriously increase the risk of injury or
death.

WARNING:

Do not place your arms

on the airbag cover or through the
steering wheel. Failure to follow this
instruction could result in personal injury.

WARNING:

Keep the areas in front

of the airbags free from obstruction. Do
not affix anything to or over the airbag
covers. Objects could become projectiles
during airbag deployment or in a sudden
stop. Failure to follow this instruction
could result in personal injury or death.

WARNING:

Airbags can kill or injure

a child in a child restraint. Never place a
rear-facing child restraint in front of an
active airbag. If you must use a
forward-facing child restraint in the front
seat, move the seat upon which the child
restraint is installed all the way back.

WARNING:

Do not attempt to

service, repair, or modify the
supplementary restraint system or
associated components. Failure to
follow this instruction could result in
personal injury or death.

WARNING:

Several airbag system

components get hot after inflation. To
reduce the risk of injury, do not touch
them after inflation.

WARNING:

If a supplementary

restraint system component has
deployed, it will not function again. Have
the system and associated components
inspected as soon as possible. Failure to
follow this instruction could result in
personal injury or death.

The airbags are a supplemental restraint
system and are designed to work with the
seatbelts to help protect the driver and
right front passenger from certain upper
body injuries. Airbags do not inflate slowly;
there is a risk of injury from a deploying
airbag.

Note:

You will hear a loud bang and see a

cloud of harmless powdery residue if an
airbag deploys. This is normal.

The airbags inflate and deflate rapidly
upon activation. After airbag deployment,
it is normal to notice a smoke-like, powdery
residue or smell the burnt propellant. This
may consist of cornstarch, talcum powder
(to lubricate the bag) or sodium
compounds (for example, baking soda)
that result from the combustion process
that inflates the airbag. Small amounts of
sodium hydroxide may be present which
may irritate the skin and eyes, but none of
the residue is toxic.

Supplementary Restraints System

While the system is designed to help
reduce serious injuries, contact with a
deploying airbag may also cause abrasions
or swelling. Temporary hearing loss is also
a possibility as a result of the noise
associated with a deploying airbag.
Because airbags must inflate rapidly and
with considerable force, there is the risk of
death or serious injuries such as fractures,
facial and eye injuries or internal injuries,
particularly to occupants who are not
properly restrained or are otherwise out of
position at the time of airbag deployment.
Thus, it is extremely important that
occupants be properly restrained as far
away from the airbag module as possible
while maintaining vehicle control.

Routine maintenance of the airbags is not
required.

DRIVER AND PASSENGER
AIRBAGS

WARNING:

Do not place your arms

on the airbag cover or through the
steering wheel. Failure to follow this
instruction could result in personal injury.

WARNING:

Keep the areas in front

WARNING:

Airbags can kill or injure

E151127

The driver and front passenger airbags will
deploy during significant frontal and near
frontal crashes.

The driver and passenger front airbag
system consists of:
•

Driver and passenger airbag modules.

•

Front passenger sensing system.

E67017

· Crash sensors and monitoring
system with readiness indicator.
See

Crash Sensors and Airbag

Indicator

(page 56).

Proper Driver and Front Passenger
Seating Adjustment

WARNING:

National Highway

Traffic Safety Administration (NHTSA)
recommends a minimum distance of at
least 10 in (25 cm) between an
occupant's chest and the driver airbag
module.

To properly position yourself away from
the airbag:
•

Move your seat to the rear as far as you
can while still reaching the pedals
comfortably.

•

Recline the seat slightly (one or two
degrees) from the upright position.

Supplementary Restraints System

After all occupants have adjusted their
seats and put on seatbelts, it is very
important that they continue to sit
properly. A properly seated occupant sits
upright, leaning against the seatback, and
centered on the seat cushion, with their
feet comfortably extended on the floor.
Sitting improperly can increase the chance
of injury in a crash event. For example, if
an occupant slouches, lies down, turns
sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the
chance of injury during a crash is greatly
increased.

Children and Airbags

WARNING:

Airbags can kill or injure

E142846

Children must always be properly
restrained. Accident statistics suggest that
children are safer when properly restrained
in the rear seating positions than in the
front seating position. Failure to follow
these instructions may increase the risk of
injury in a crash.

FRONT PASSENGER SENSING
SYSTEM

WARNING:

Even with advanced

restraints systems, properly restrain
children 12 and under in a rear seating
position. Failure to follow this could
seriously increase the risk of injury or
death.

WARNING:

Sitting improperly, out

of position or with the seatback reclined
too far can take weight off the seat
cushion and affect the decision of the
passenger sensing system, resulting in
serious injury or death in the event of a
crash. Always sit upright against your
seat back, with your feet on the floor.

WARNING:

Do not stow objects in

the seatback map pocket or hang
objects off a seatback if a child is in the
front passenger seat. Do not place
objects under the front passenger seat
or between the seat and the center
console. Check the passenger airbag
indicator lamp for proper airbag status.
Failure to follow these instructions may
interfere with the front passenger seat
sensing system and increase the risk of
serious injury.

WARNING:

Any alteration or

modification to the front passenger seat
may affect the performance of the front
passenger sensing system. This could
seriously increase the risk of injury or
death.

This system works with sensors that are
part of the front passenger seat and
seatbelt to detect the presence of a
properly-seated occupant and determine
if the front passenger frontal airbag should
be enabled (may inflate) or not.

Supplementary Restraints System

E253573

The front passenger sensing system uses
a passenger airbag status indicator that
illuminates indicating that the front
passenger frontal airbag is either on
(enabled) or off (disabled).

The indicators are on the overhead
console.

Note:

The passenger airbag status indicator

lamps illuminate for a short period of time
when you first switch the ignition on to
confirm it is functional.

The front passenger sensing system is
designed to disable (will not inflate) the
front passenger frontal airbag when the
front passenger seat is unoccupied, or a
rear facing infant seat, a forward-facing
child restraint, or a booster seat is
detected. Even with this technology,
parents are

strongly

encouraged to

always properly restrain children in the rear
seat.

•

When the front passenger sensing
system disables (will not inflate) the
front passenger frontal airbag, the
passenger airbag status indicator
illuminates the off lamp and stays lit
to remind you that the front passenger
frontal airbag is disabled.

•

If you install the child restraint and the
passenger airbag status indicator
illuminates the on lamp, switch the
vehicle off, remove the child restraint
from the vehicle and reinstall the
restraint following the child restraint
manufacturer's instructions.

The front passenger sensing system is
designed to enable (may inflate) the front
passenger frontal airbag anytime the
system senses that a person of adult size
is sitting properly in the front passenger
seat.

•

When the front passenger sensing
system enables the front passenger
frontal airbag (may inflate), the
passenger airbag status indicator
illuminates the on lamp and remains
illuminated.

If a person of adult size is sitting in the front
passenger seat, but the airbag off indicator
lamp is lit, it is possible that the person is
not sitting properly in the seat. If this
happens:
•

Switch the vehicle off and ask the
person to place the seat backrest in an
upright position.

•

Have the person sit upright in the seat,
centered on the seat cushion, with the
person’s legs comfortably extended.

•

Restart the vehicle and have the person
remain in this position for about two
minutes. This allows the system to
detect that person and enables (may
inflate) the passenger frontal airbag.

•

If the indicator off lamp remains lit
even after this, advise the person to
ride in the rear seat.

Supplementary Restraints System

Passenger Airbag

Passenger Airbag Status

Indicator

Occupant

Disabled

OFF: Lit

Empty

ON: Unlit

Disabled

OFF: Lit

Child

ON: Unlit

Enabled

OFF: Unlit

Adult

ON: Lit

After all occupants have adjusted their
seats and put on seatbelts, it is very
important that they continue to sit
properly. A properly seated occupant sits
upright, leaning against the seat backrest,
and centered on the seat cushion, with
their feet comfortably extended on the
floor. Sitting improperly can increase the
chance of injury in a crash event. For
example, if an occupant slouches, lies
down, turns sideways, sits forward, leans
forward or sideways, or puts one or both
feet up, the chance of injury during a crash
greatly increases.

If you think that the status of the passenger
airbag off indicator lamp is incorrect, check
for the following:

•

Objects lodged underneath the seat.

•

Objects between the seat cushion and
the center console.

•

Objects hanging off the seat backrest.

•

Objects stowed in the seat backrest
map pocket.

•

Objects placed on the occupant's lap.

•

Cargo interference with the seat.

•

Other passengers pushing or pulling on
the seat.

•

Rear passenger feet and knees resting
or pushing on the seat.

The conditions listed above may cause the
weight of a properly seated occupant to
be incorrectly interpreted by the front
passenger sensing system. The person in
the front passenger seat may appear
heavier or lighter due to the conditions
described in the list above.

E67017

Make sure the front passenger
sensing system is operating
properly. See

Crash Sensors

and Airbag Indicator

(page 56).

If the airbag readiness light is lit, do the
following:

The driver and adult passengers should
check for objects lodged underneath the
front passenger seat, or cargo interfering
with the seat.

If there are lodged objects, or cargo is
interfering with the seat, take the following
steps to remove the obstruction:

•

Pull the vehicle over.

•

Switch the vehicle off.

•

Driver and adult passengers should
check for any objects lodged
underneath the front passenger seat
or cargo interfering with the seat.

•

Remove the obstruction(s) (if found).

•

Restart the vehicle.

Supplementary Restraints System

•

Wait at least two minutes and verify
that the airbag readiness light is no
longer illuminated.

•

If the airbag readiness light remains
illuminated, this may or may not be a
problem due to the front passenger
sensing system.

Do not attempt to repair or service the
system. Take your vehicle immediately to
an authorized dealer.

If it is necessary to modify an advanced
front airbag system to accommodate a
person with disabilities, contact the Ford
Customer Relationship Center. See

Getting the Services You Need

(page

240).

SIDE AIRBAGS

WARNING:

Do not place objects

or mount equipment on or near the
airbag cover, on the side of the front or
rear seatbacks, or in areas that may
come into contact with a deploying
airbag. Failure to follow these
instructions may increase the risk of
personal injury in the event of a crash.

WARNING:

Accessory seat covers

not released by Ford Motor Company
could prevent the deployment of the
airbags and increase the risk of injuries
in a crash.

WARNING:

Do not lean your head

on the door. The side airbag could injure
you as it deploys from the side of the
seatback.

WARNING:

Do not attempt to

service, repair, or modify the
supplementary restraint system or
associated components. Failure to
follow this instruction could result in
personal injury or death.

WARNING:

If a supplementary

The side airbags are on the outermost side
of the seat backrests of the front seats. In
certain sideways crashes or rollovers, the
airbags will be inflated. The airbag was
designed to inflate between the door panel
and occupant to further enhance the
protection provided occupants in side
impact crashes.

Coupe

E152533

Supplementary Restraints System

Convertible

E174777

The system consists of the following:
•

A label or embossed side panel
indicating that your vehicle has side
airbags.

•

Side airbags inside the driver and front
passenger seat backrests.

E67017

·Crash sensors and monitoring
system with a readiness
indicator. See

Crash Sensors

and Airbag Indicator

(page 56).

Note:

For some models, the passenger

sensing system deactivates the passenger
seat-mounted side airbag if it detects an
empty passenger seat.

DRIVER AND PASSENGER
KNEE AIRBAGS

WARNING:

To reduce risk of injury,

do not obstruct or place objects in the
deployment path of the airbag.

WARNING:

Close the glove box

door when your vehicle is moving. Failure
to follow this instruction could reduce
the effectiveness of the passenger knee
airbag and increase the risk of injury in a
crash.

A driver knee airbag is located under or
within the instrument panel. A passenger
knee airbag is located within or under the
glove box door. During a crash, the
restraints control module may activate the
driver and passenger knee airbags based
on crash severity and occupant conditions.
Under certain crash and occupant
conditions, the driver and passenger knee
airbag may deploy but the driver front
airbag may not activate. As with front and
side airbags, it is important to be properly
seated and restrained to reduce the risk of
death or serious injury.

E67017

Make sure the knee airbags are
operating properly. See

Crash

Sensors and Airbag Indicator

(page 56).

SAFETY CANOPY™ - COUPE

WARNING:

Do not place objects

or mount equipment on or near the
headliner at the siderail that may come
into contact with a deploying curtain
airbag. Failure to follow these
instructions may increase the risk of
personal injury in the event of a crash.

WARNING:

Do not lean your head

on the door. The curtain airbag could
injure you as it deploys from the
headliner.

WARNING:

Do not attempt to

service, repair, or modify the
supplementary restraint system or
associated components. Failure to
follow this instruction could result in
personal injury or death.

Supplementary Restraints System

WARNING:

All occupants of your

WARNING:

To reduce risk of injury,

do not obstruct or place objects in the
deployment path of the airbag.

WARNING:

If a supplementary

The Safety Canopy deploys during
significant side crashes or when a certain
likelihood of a rollover event is detected
by the rollover sensor. The Safety Canopy
is mounted to the roof side rail sheet metal,
behind the headliner, above each row of
seats. In certain sideways crashes or
rollover events, the Safety Canopy will be
activated, regardless of which seats are
occupied. The Safety Canopy is designed
to inflate between the side window area
and occupants to further enhance
protection provided in side impact crashes
and rollover events.

E75004

The system consists of the following:
•

Safety Canopy curtain airbags above
the trim panels over the front and rear
side windows identified by a label or
wording on the headliner or roof-pillar
trim.

•

A flexible headliner which opens above
the side doors to allow air curtain
deployment

E67017

· Crash sensors and monitoring
system with a readiness
indicator. See

Crash Sensors

and Airbag Indicator

(page 56).

Properly restrain children 12 years old and
under in the rear seats. The Safety Canopy
will not interfere with children restrained
using a properly installed child or booster
seat because it is designed to inflate
downward from the headliner above the
doors along the side window opening.

The design and development of the Safety
Canopy included recommended testing
procedures that were developed by a
group of automotive safety experts known
as the Side Airbag Technical Working
Group. These recommended testing
procedures help reduce the risk of injuries
related to the deployment of side airbags
(including the Safety Canopy).

Supplementary Restraints System

CRASH SENSORS AND
AIRBAG INDICATOR

WARNING:

Modifying or adding

equipment to the front of your vehicle
could affect the performance of the
airbag system, increasing the risk of
injury. This includes the hood, bumper
system, frame, front body structure, tow
hooks, hood pins, push bar and
snowplows.

Your vehicle has a collection of crash and
occupant sensors. These sensors provide
information to the restraints control
module which activates the following:

•

Driver airbag.

•

Passenger airbag.

•

Front seatbelt pretensioners.

•

Adaptive steering column.

•

Knee airbag(s).

•

Seat mounted side airbags.

•

Safety Canopy airbags.

Based on the type of crash, the restraints
control module deploys the appropriate
safety devices.

The restraints control module also
monitors the readiness of the above safety
devices plus the crash and occupant
sensors. The readiness of the safety
system is indicated by a warning indicator
light in the instrument cluster or by a
backup tone if the warning light is not
working. Routine maintenance of the
airbag is not required.

A difficulty with the system is indicated by
one or more of the following:

E67017

The readiness light will not
illuminate immediately after you
switch the ignition on.

•

The readiness light either flashes or
stays lit.

•

You will hear a series of five tones. The
tone pattern repeats periodically until
the problem, the light or both are
repaired.

If any of these things happen, even
intermittently, have the supplemental
restraint system serviced at an authorized
dealer immediately. Unless serviced, the
system may not function properly in the
event of a crash.

The seatbelt pretensioners and the front
airbag supplemental restraint system are
designed to activate when the vehicle
sustains frontal deceleration sufficient to
cause the restraints control module to
deploy a safety device.

The fact that the seatbelt pretensioners
or front airbags did not activate for both
front seat occupants in a crash does not
mean that something is wrong with the
system. Rather, it means the restraints
control module determined the accident
conditions (crash severity, belt usage)
were not appropriate to activate these
safety devices.
•

The front airbags activate only in
frontal and near-frontal crashes. Front
airbags may activate in rollovers, side
impacts or rear impacts if the crash
causes sufficient frontal deceleration.

•

The seatbelt pretensioners activate in
frontal, near-frontal and side crashes,
and in rollovers.

•

The knee airbag(s) may deploy based
on crash severity and occupant
conditions.

Supplementary Restraints System

Ford Mustang (2022 year). Manual in english - page 3
