Ford Galaxy / Ford S-MAX. Manual - part 697

Instrument Cluster and Panel Illumination
- Instrument Cluster and Panel
Illumination

S-MAX/Galaxy 2006.5 (02/2006-)

Diagnosis and Testing

Refer to Wiring Diagrams Section 413-00, for schematic and connector
information.

General Equipment

Instrument Cluster and Dimmable Backlighting

The dimmable illumination utilizes light emitting diodes (LEDs) and bulb(s).

The following dimmable components are backlit using LEDs only:

transmission control lever
heater control panel
audio unit
navigation system display module
instrument cluster
climate control module
hazard switch
traction control system disable switch
right-hand and left-hand heated front seat switch(es)

Inspection and Verification

1. 1. Verify the customer concern.

2. 2. Visually inspect for obvious signs of mechanical or electrical damage.

Visual Inspection Chart

3. 3. If an obvious cause for an observed or reported concern is found, correct the cause

(if possible) before proceeding to the next step

4. 4. If the cause is not visually evident, verify the symptom and refer to the Symptom

Chart.

Symptom Chart

Worldwide diagnostic system (WDS)

Mechanical

Electrical

Engine/engine compartment or underbody
components
Fluid levels
Accessory installation

Fuse(s)
Loose or corroded connector
(s)
Instrument cluster
Switch(es)
Wiring Harness
Circuit(s)
LED(s)

Symptom

Possible Sources

Action

The control illumination is inoperative

Fuse.
Headlamp switch.
Circuit.

*
*
*

REFER to the WDS.

The instrument panel illumination does not
dim

Dimmer switch.

INSTALL a new

headlamp/dimmer switch

Pinpoint Tests

NOTE: Use a digital multimeter for all electrical measurements.

unit.

The Instrument cluster illumination is
inoperative

Circuit(s).
Instrument

cluster.

*
*

REFER to the WDS.

The climate control illumination is inoperative

Circuit(s).
Climate control

assembly.

*
*

REFER to the WDS.

The audio system illumination is inoperative

Circuit(s).
Audio unit.

*
*

REFER to the WDS.

The navigation system display module
illumination (vehicles with Travel Pilot EX) is
inoperative

Circuit(s).
Navigation

system display
module.

*
*

REFER to the WDS.

The navigation system display module
illumination (vehicles with DVD Navigation
System with Touchscreen) is inoperative

Circuit(s).
Navigation

system display
module.

*
*

REFER to the WDS.

The cigar lighter illumination is inoperative

Circuit(s).
Cigar lighter.

*
*

GO to Pinpoint Test

The hazard switch illumination is inoperative

Circuit(s).
Hazard switch.

*
*

GO to Pinpoint Test

The front seat heater switch(es) illumination
is inoperative

Circuit(s).
Front seat heater

switch(es).

*
*

GO to Pinpoint Test

The front and rear window defrost switch
illumination is inoperative

Circuit(s).
Rear window

defrost switch.

*
*

GO to Pinpoint Test

The parking aid switch illumination is
inoperative

Circuit(s).
parking aid

switch.

*
*

GO to Pinpoint Test

The electronic parking brake switch
illumination is inoperative

Circuit(s).
Electronic parking

brake switch.

*
*

GO to Pinpoint Test

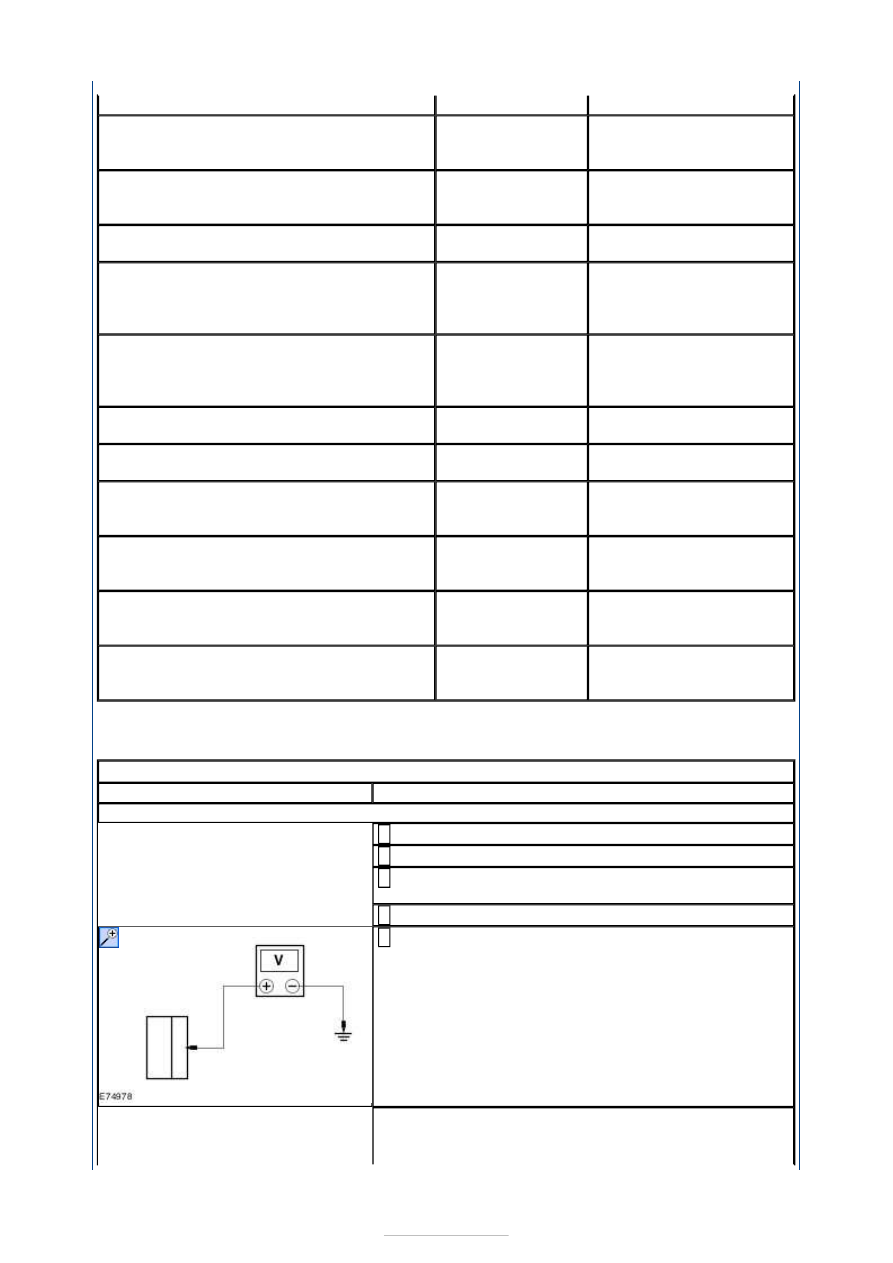

PINPOINT TEST A : THE CIGAR LIGHTER ILLUMINATION IS INOPERATIVE

TEST CONDITIONS

DETAILS/RESULTS/ACTIONS

A1: CHECK CIRCUIT CLN17S (BN) FOR VOLTAGE

Disconnect Cigar Lighter C2DC07-B.

Ignition switch in position II.

Make sure that the illumination dimmer switch is in
the full illumination position.

Place the headlamp switch in the ON position.

Measure the voltage between the cigar lighter
C2DC07-B pin 1, circuit CLN17S (BN), harness side

and ground.

Is the voltage greater than 10 volts?
Yes

GO to A2

REPAIR the circuit CLN17S (BN) or circuit CLN17G
(BN) as necessary. TEST the system for normal
operation.

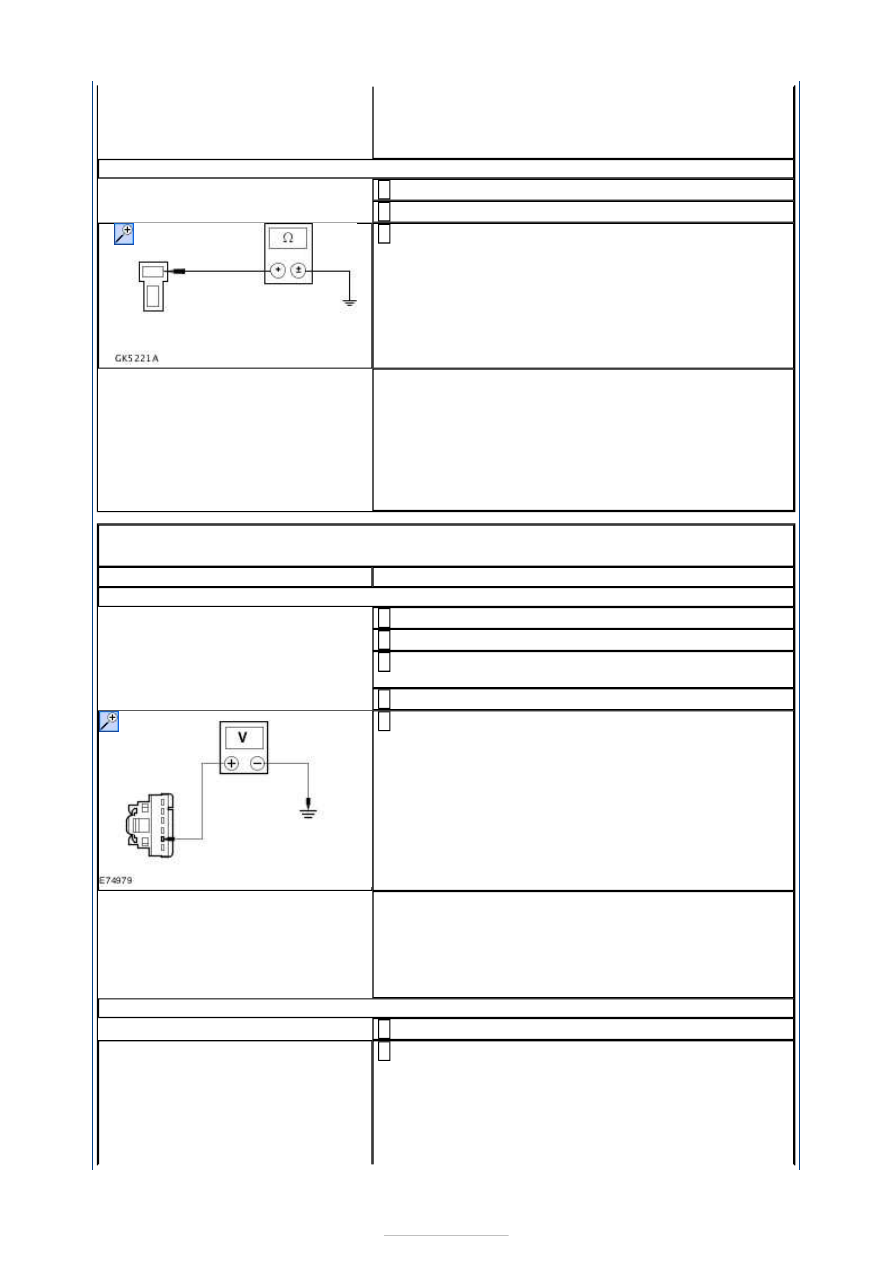

A2: CHECK CIRCUIT GD138AZ (BK/WH) FOR OPEN

Connect Cigar Lighter C2DC07-B.

Disconnect Cigar Lighter C2DC07-A.

Measure the resistance between the cigar lighter
C2DC07-A pin 1, circuit GD138AZ (BK/WH), harness

side and ground.

Is the resistance less than 5 ohms?
Yes

INSTALL a new cigar lighter. TEST the system for
normal operation.

REPAIR circuit GD138AZ (BK/WH) or circuit GD138AL
(BN/WH) as necessary. TEST the system for normal
operation.

PINPOINT TEST B : THE HAZARD SWITCH ILLUMINATION IS
INOPERATIVE

TEST CONDITIONS

DETAILS/RESULTS/ACTIONS

B1: CHECK CIRCUIT CLS38A (VT/WH) FOR VOLTAGE

Disconnect Hazard Switch C2LS32.

Ignition switch in position II.

Make sure that the illumination dimmer switch is in
the full illumination position.

Place the headlamp switch in the ON position.

Measure the voltage between the hazard switch
C2LS32 pin 5, circuit CLS38A (VT/WH), harness side

and ground.

Is the voltage greater than 10 volts?
Yes

GO to B2

REPAIR the circuit. TEST the system for normal
operation.

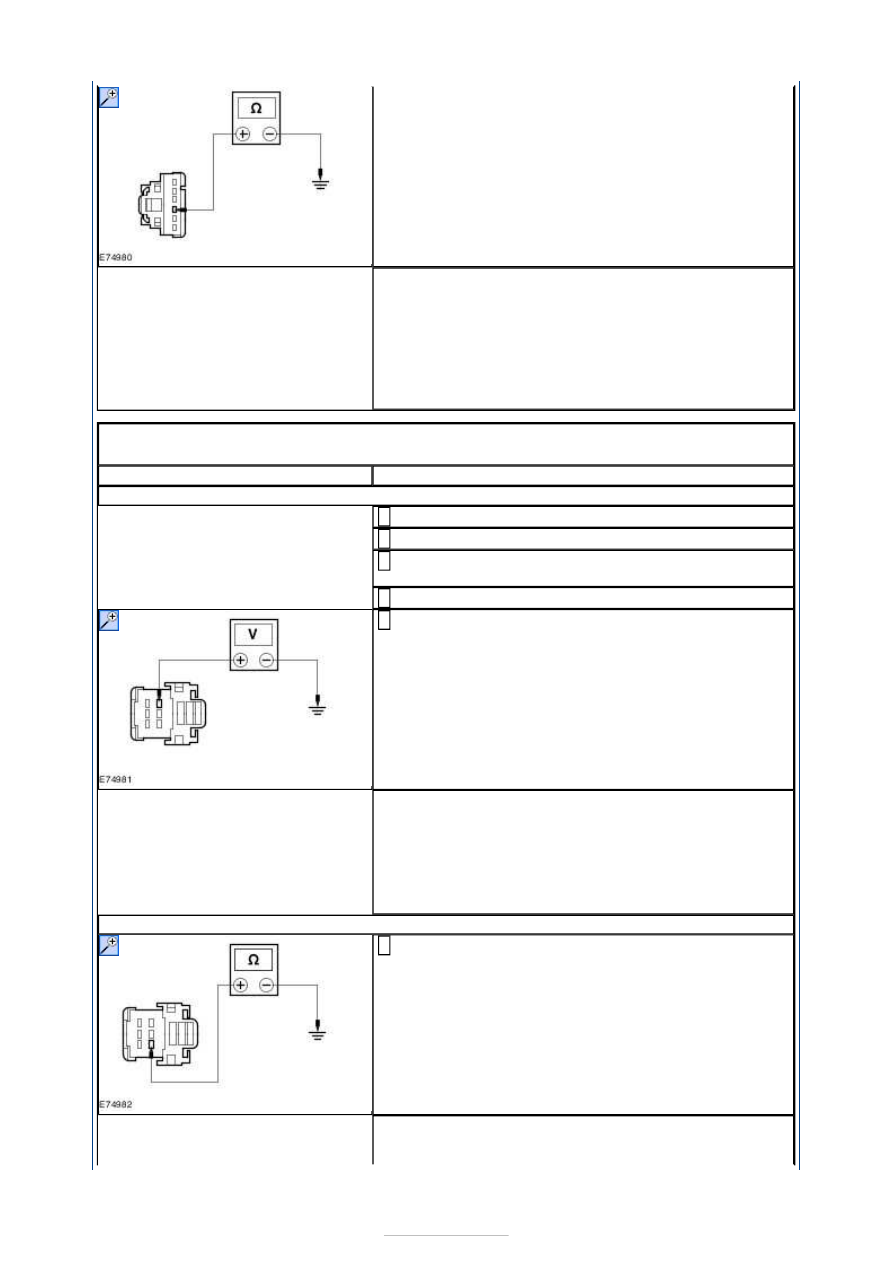

B2: CHECK CIRCUIT GD133CF (BK) FOR OPEN

Ignition switch in position 0.

Measure the resistance between hazard switch
C2LS32 pin 4, circuit GD133CF (BK), harness side

and ground.

Is the resistance less than 5 ohms?
Yes

INSTALL a new hazard switch. TEST the system for
normal operation.

REPAIR the circuit GD133CF (BK) or circuit GD133AW
(BK) as necessary. TEST the system for normal
operation.

PINPOINT TEST C : THE FRONT SEAT HEATER SWITCH ILLUMINATION IS
INOPERATIVE

TEST CONDITIONS

DETAILS/RESULTS/ACTIONS

C1: CHECK INOPERATIVE FRONT SEAT HEATER SWITCH FOR VOLTAGE

Disconnect Front Seat Heater Switch - C3HS29.

Ignition switch in position II.

Make sure that the illumination dimmer switch is in
the full illumination position.

Place the headlamp switch in the ON position.

Measure the voltage between the front seat heater
switch C3HS29 pin 3, circuit CLN17H (BN), harness

side and ground.

Is the voltage greater than 10 volts?
Yes

GO to C2

REPAIR circuit CLN17H (BN), circuit CLN17J (BN) or
circuit CLN17G (BN) as necessary. TEST the system
for normal operation.

C2: CHECK THE FRONT SEAT HEATER SWITCH FOR OPEN

Measure the resistance between the front seat
heater switch C3HS29 pin 1, circuit GD138AP (BK),

harness side and ground.

Is the resistance less than 5 ohms?
Yes
