Ford Galaxy / Ford S-MAX. Manual - part 693

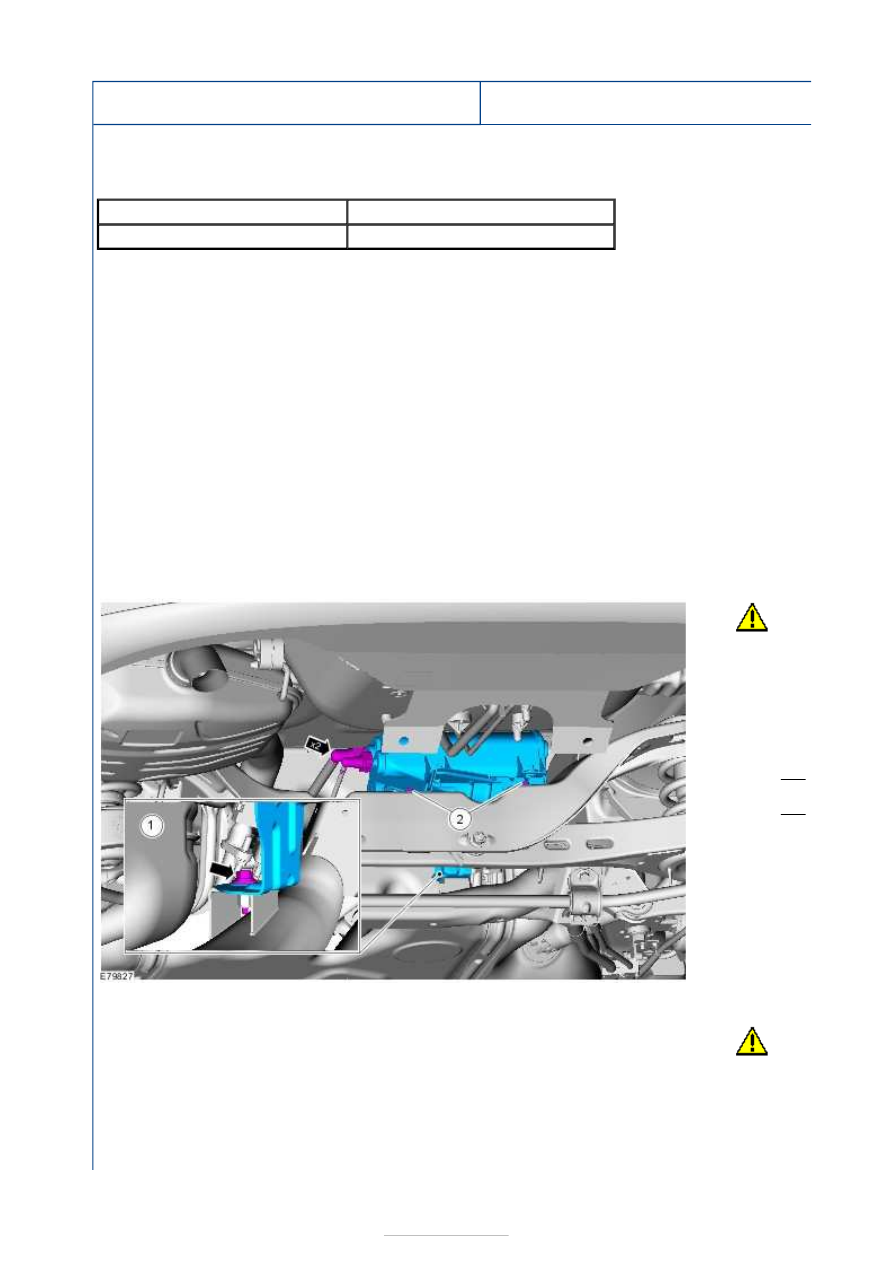

Auxiliary Climate Control - Auxiliary
Evaporator Rear Outlet and Inlet Line

S-MAX/Galaxy 2006.5 (02/2006

Removal and Installation

Materials

Removal

NOTE: Removal steps in this procedure may contain installation details.

All except vehicles with diesel engine

All vehicles

Name

Specification

Compressor Oil - Air Conditioning WSH-M1C231-B / 6U7J-M1C231-AA

1. Carry out the air conditioning (A/C) system recovery

procedure.

Refer to:

Air Conditioning (A/C) System Recovery,

Evacuation and Charging

(412-00 Climate Control System

- General Information, General Procedures).

2. Raise the vehicle.

Refer to:

Lifting

(100-02 Jacking and Lifting, Description

and Operation).

3. Refer to:

Petrol and Petrol-Ethanol Fuel Systems Health

and Safety Precautions

(100-00 General Information,

Description and Operation).

CAUTION:

Make sure
that all
openings are
sealed. Use
new blanking
caps.

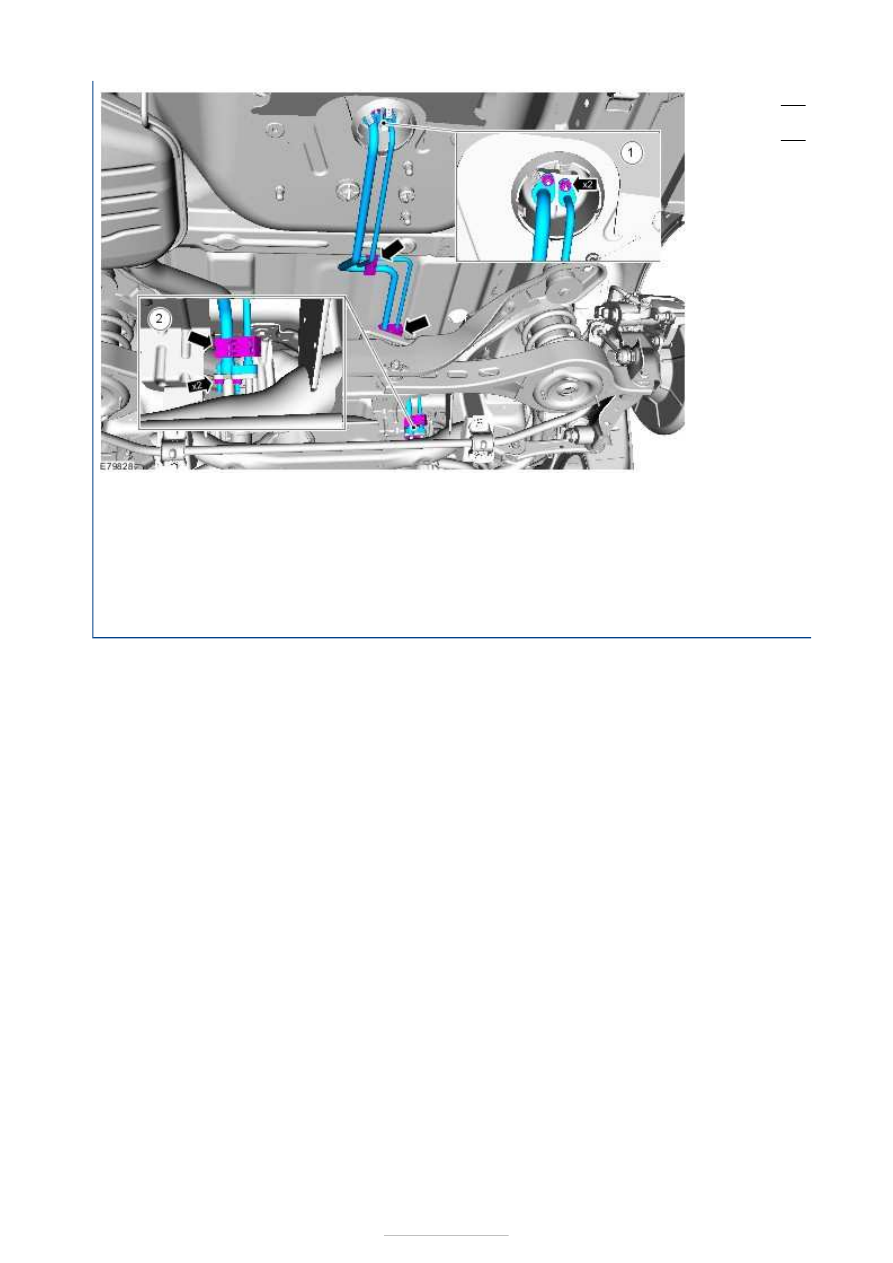

1. Torque:

2. Torque:

CAUTION:

Make sure
that all
openings are
sealed.

1. Torque:

Installation

2. Torque:

1. Coat the O-rings on the refrigerant lines.

Material:

Compressor Oil - Air Conditioning (WSH-

M1C231-B / 6U7J-M1C231-AA)

2. To install, reverse the removal procedure.

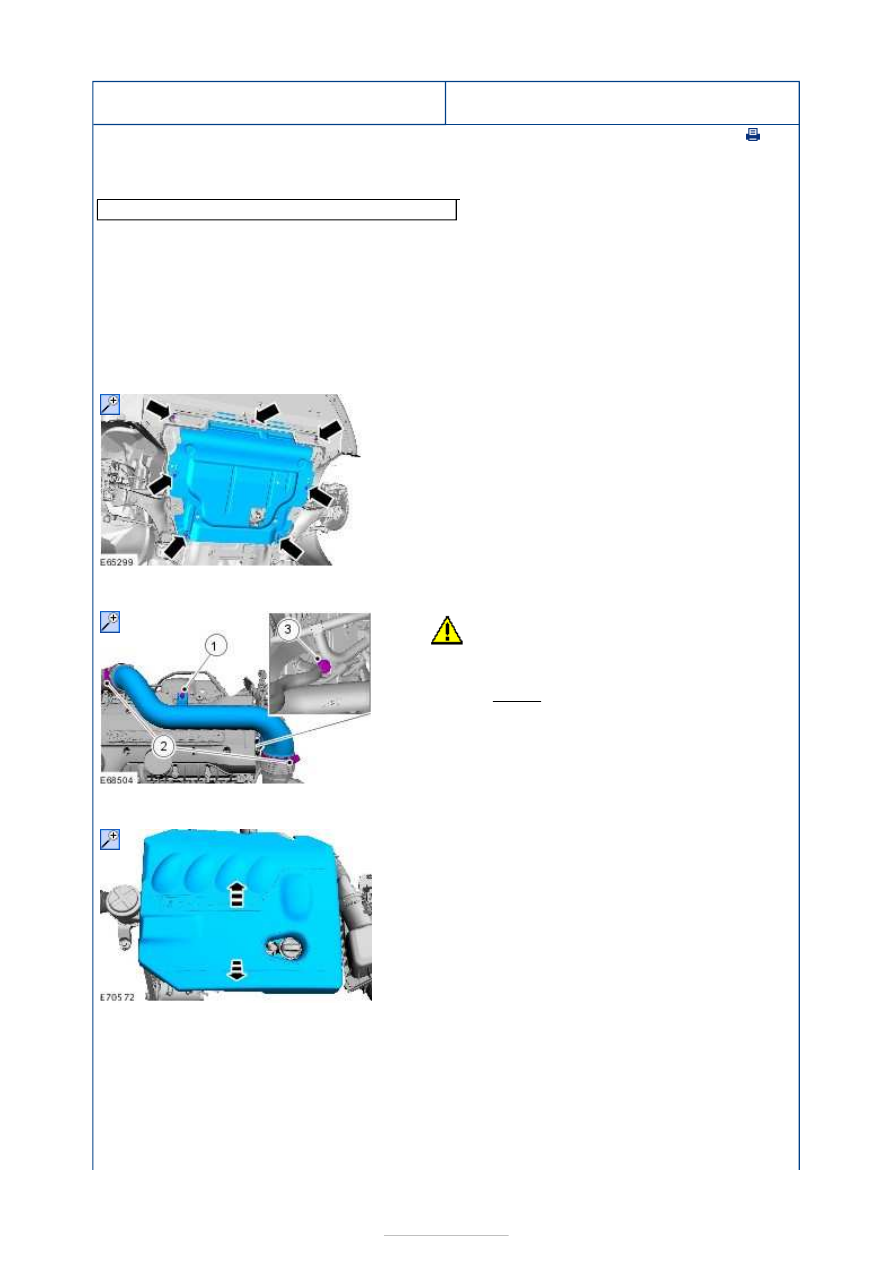

Auxiliary Climate Control - Auxiliary
Coolant Flow Pump

S-MAX/Galaxy 2006.5 (02/2006-)

Removal and Installation

General Equipment

Removal

NOTE: Removal steps in this procedure may contain installation details.

Vehicles with 1.8L diesel engine

Vehicles with 2.5L engine

Vehicles with 2.0L engine

All vehicles

Hose clamp remover/installer

1. Raise and support the vehicle.

Refer to: Anheben mit Hebebühne (100-02,
Description and Operation).

CAUTION: The inside surfaces of the

ends of the pipe must be clean and free from
oil residues.

Torque:

10 Nm

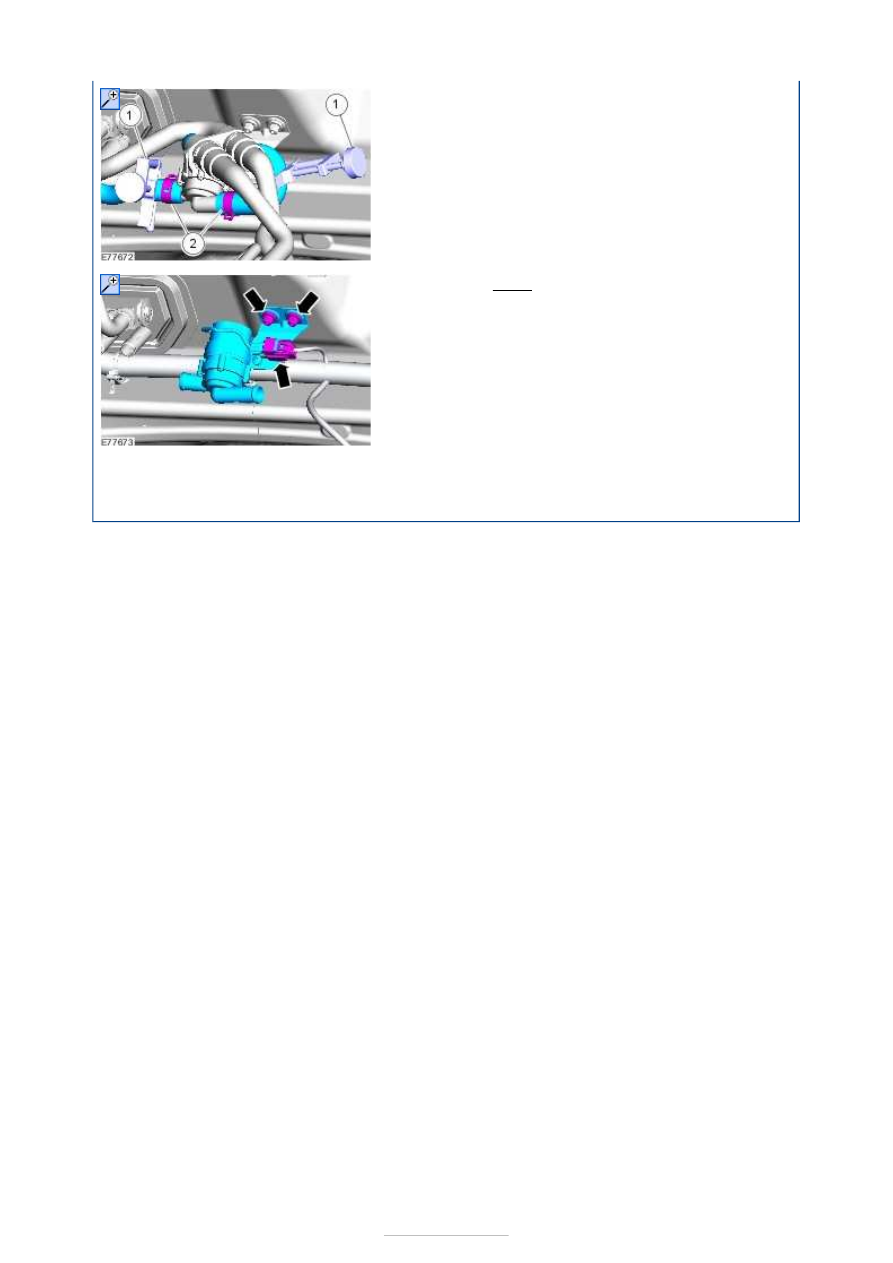

2. General Equipment:

Hose clamp

remover/installer

Installation

6. Torque: 8 Nm

1. Install the components in reverse order.
