Ford Galaxy / Ford S-MAX. Manual - part 455

Electronic Engine Controls - 2.0L Duratec-
HE (107kW/145PS) - MI4/2.0L Duratec-
HE Flex Fuel (107kW/145PS) - MI4 -
Powertrain Control Module (PCM)

S-MAX/Galaxy 2006.5 (02/2006-)

Removal and Installation

General Equipment

Removal

Vehicles with PCM security shield

3.5 mm drill bit
Center punch
Ford diagnostic equipment

NOTE: This step is only necessary when
installing a new component.

Download the PCM and throttle body configuration
information into the diagnostic tool, using the
Programmable Modules Installation routine.

General Equipment:

Ford diagnostic equipment

2. Refer to:

Battery Disconnect and Connect

(414-01

Battery, Mounting and Cables, General
Procedures).

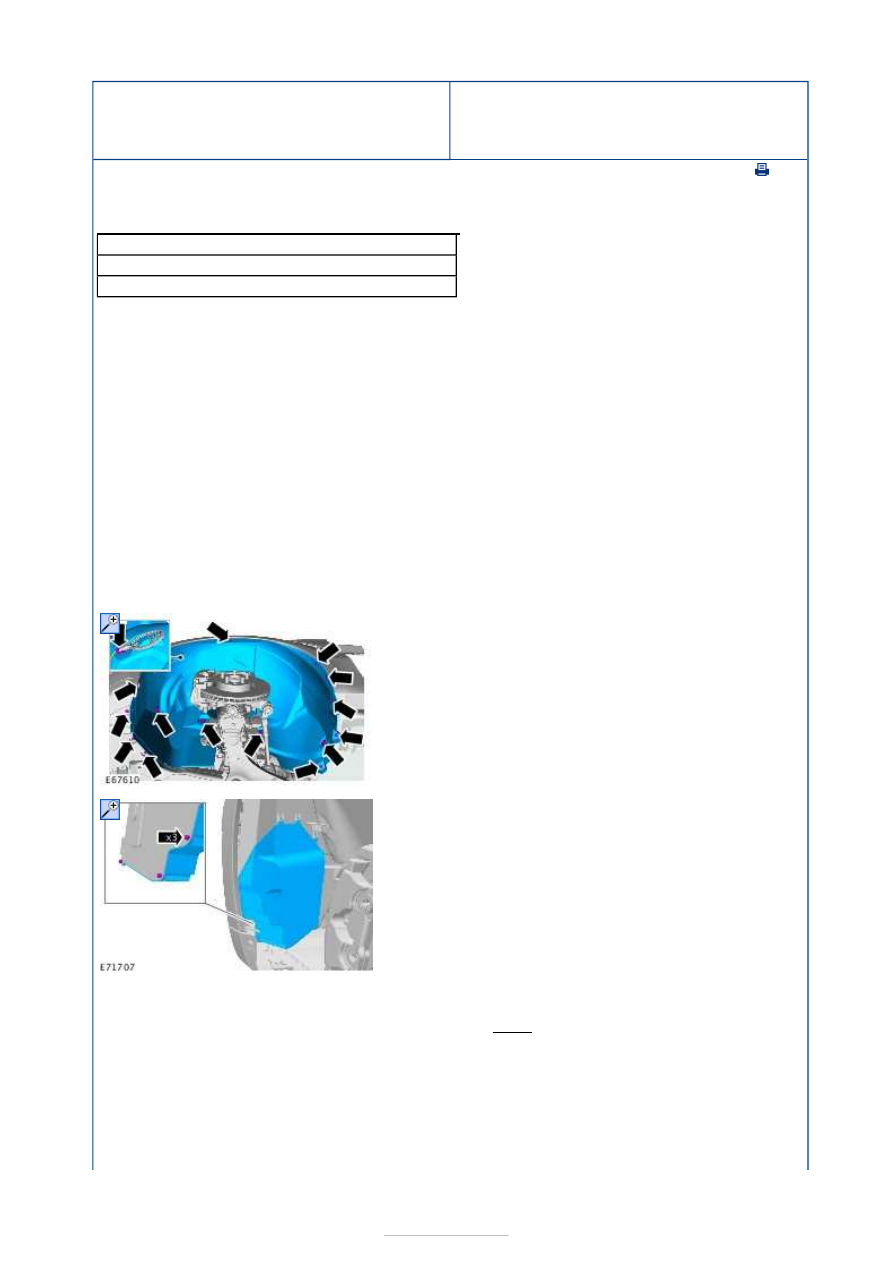

3. Left-hand side wheel and tire.

Refer to:

Wheel and Tire

(204-04 Wheels and

Tires, Removal and Installation).

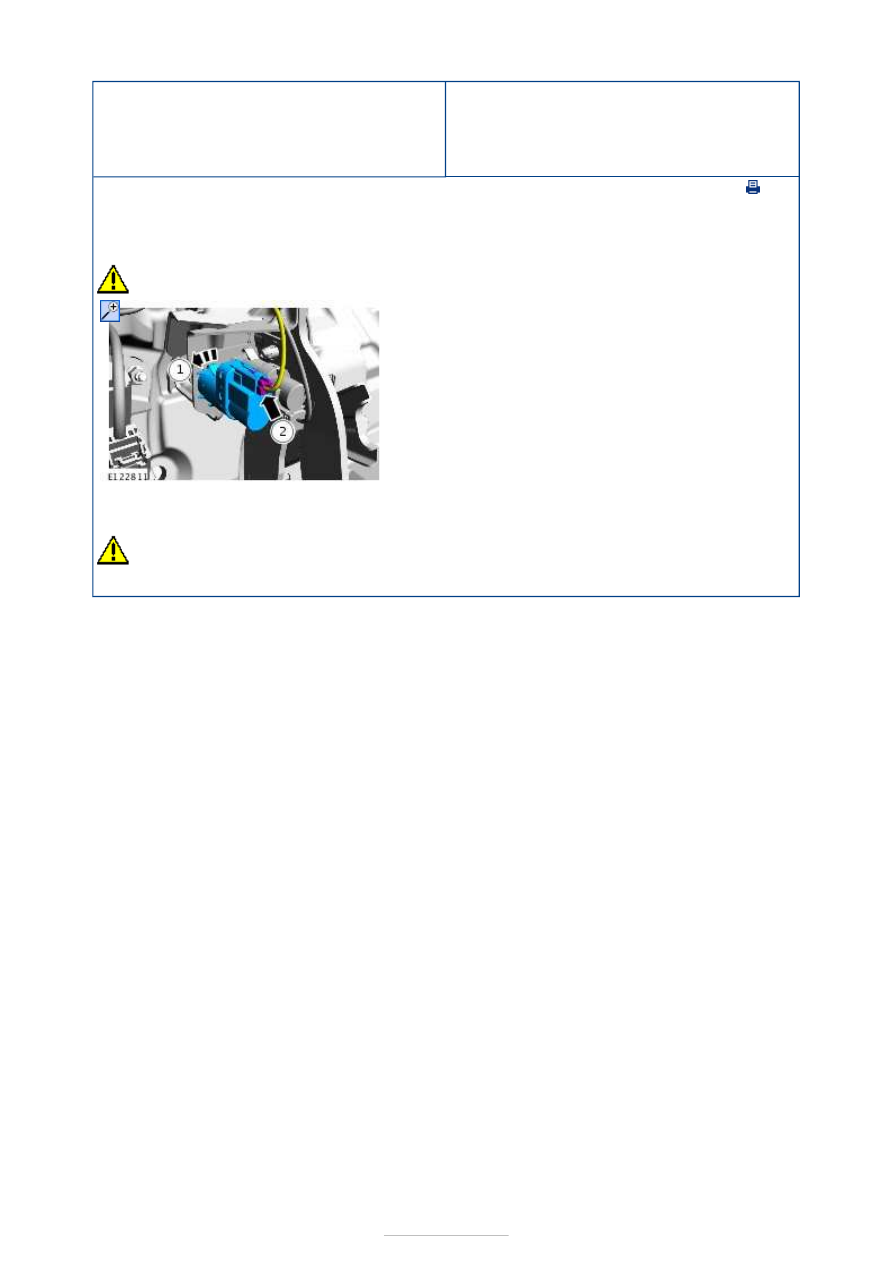

6. Torque: 3 Nm

Vehicles without PCM security shield

Installation

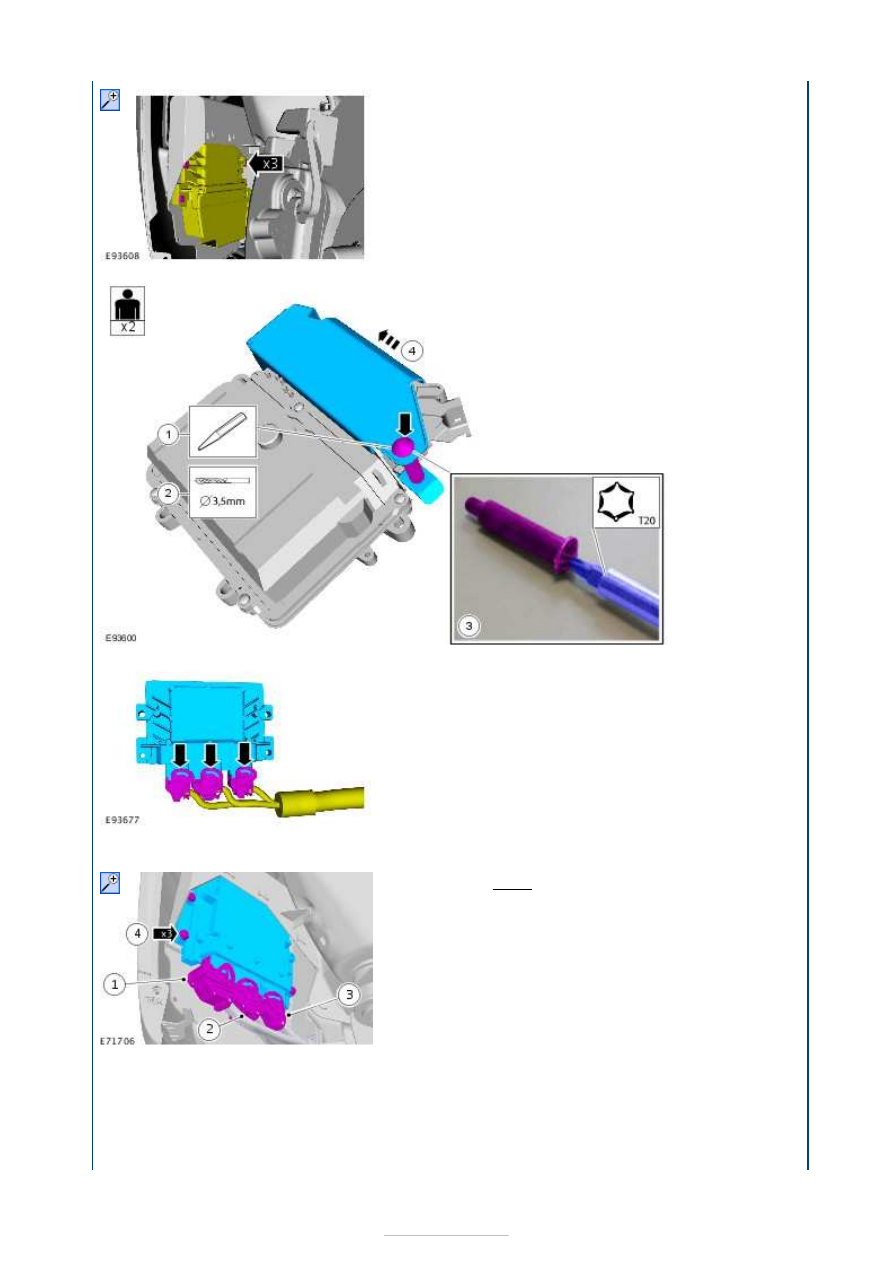

Vehicles with PCM security shield

7. General

Equipment:

Center
punch

General
Equipment:

3.5 mm
drill bit

9. Torque: 3 Nm

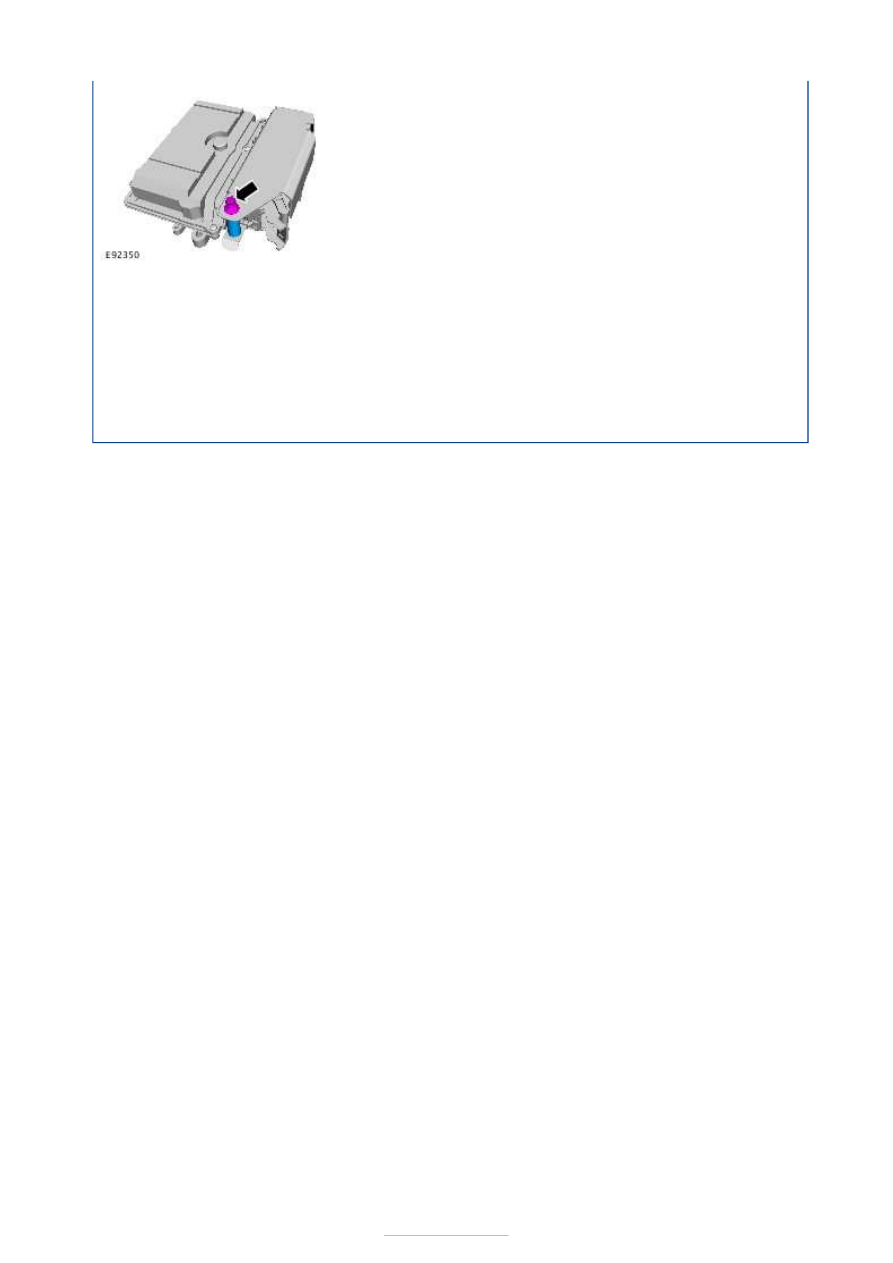

1. To install, reverse the removal procedure.

All vehicles

2. Tighten the shear bolt until the head is sheared

off.

NOTE: This step is only necessary when
installing a new component.

Upload the PCM configuration information into the
PCM, using the Programmable Modules Installation
routine.
