Ford Galaxy / Ford S-MAX. Manual - part 83
Power Brake Actuation - Brake Booster—2.0L
Duratorq-TDCi (100kW/136PS) - DW-C/2.0L
Duratorq-TDCi (85kW/115PS) - DW/2.2L
Duratorq-TDCi (129kW/175PS) - DW/2.0L
Duratorq-TDCi (103kW/140PS) - DW, RHD
FWD
S-MAX/Galaxy 2006.5 (02/2006

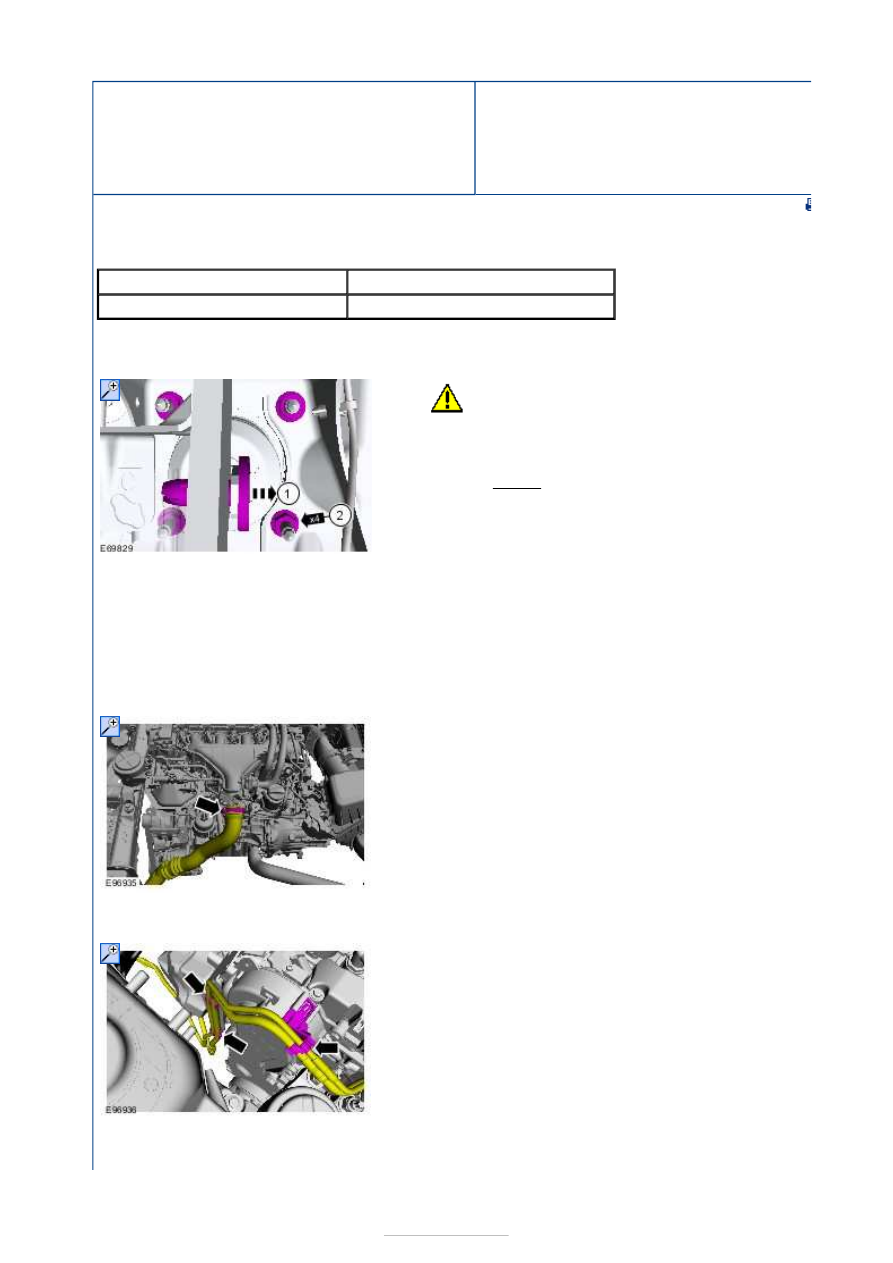

Removal and Installation
Materials
Removal
NOTE: Removal steps in this procedure may contain installation details.
Name
Specification
Compressor Oil - Air Conditioning WSH-M1C231-B / 6U7J-M1C231-AA

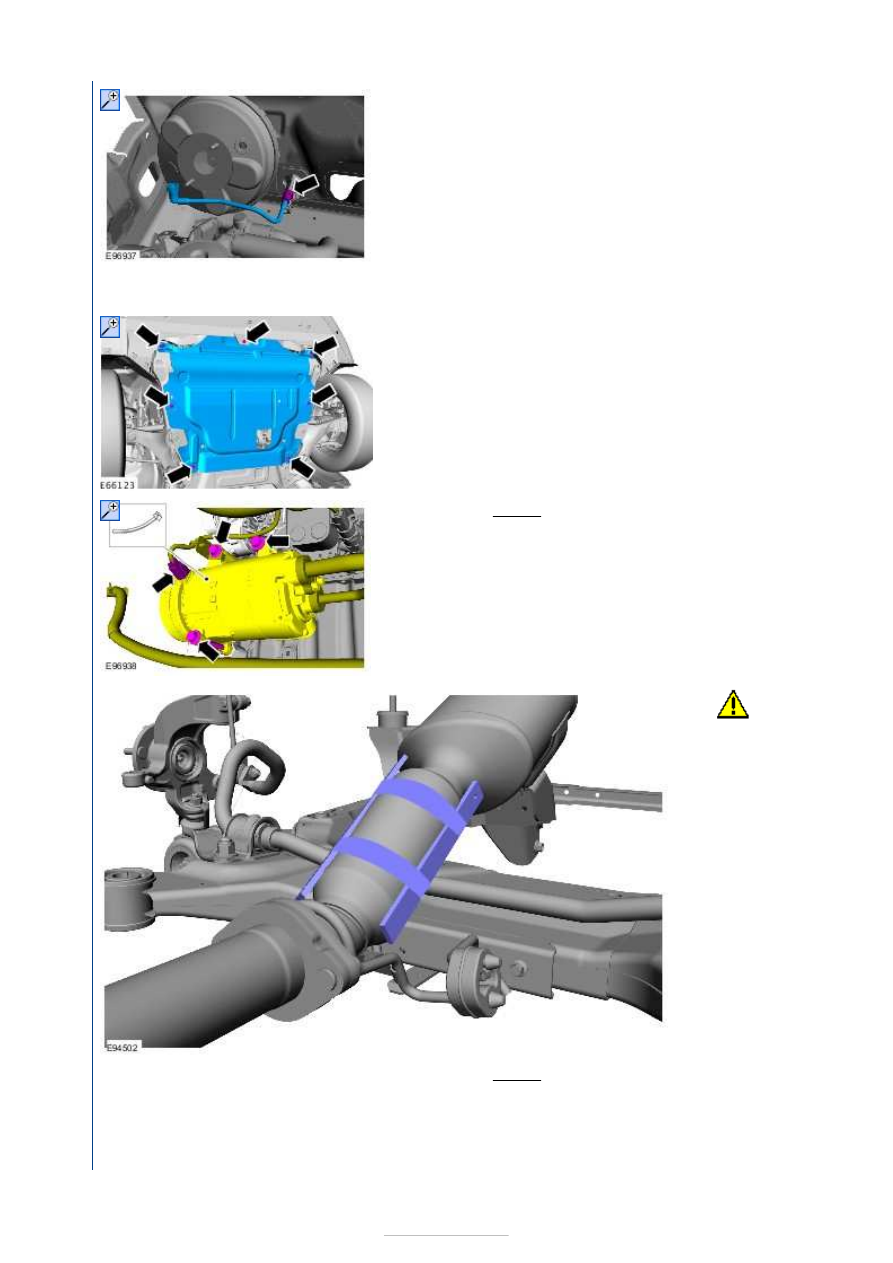

1.
CAUTION: Make sure that the brake pedal
remains in the rest position.
NOTE: The brake pedal actuating rod pin will be
damaged during removal.
Torque:
24 Nm
2. Refer to:
Accessory Drive Belt
(303-05E Accessory Drive
- 2.0L Duratorq-TDCi (85kW/115PS) - DW/2.0L
Duratorq-TDCi (100kW/136PS) - DW/2.0L Duratorq-
(103kW/140PS) - DW, Emission Requirements: Stage IV,
Removal and Installation).
3. Refer to:
Air Conditioning (A/C) System Recovery,
Evacuation and Charging
(412-00 Climate Control
System - General Information, General Procedures).

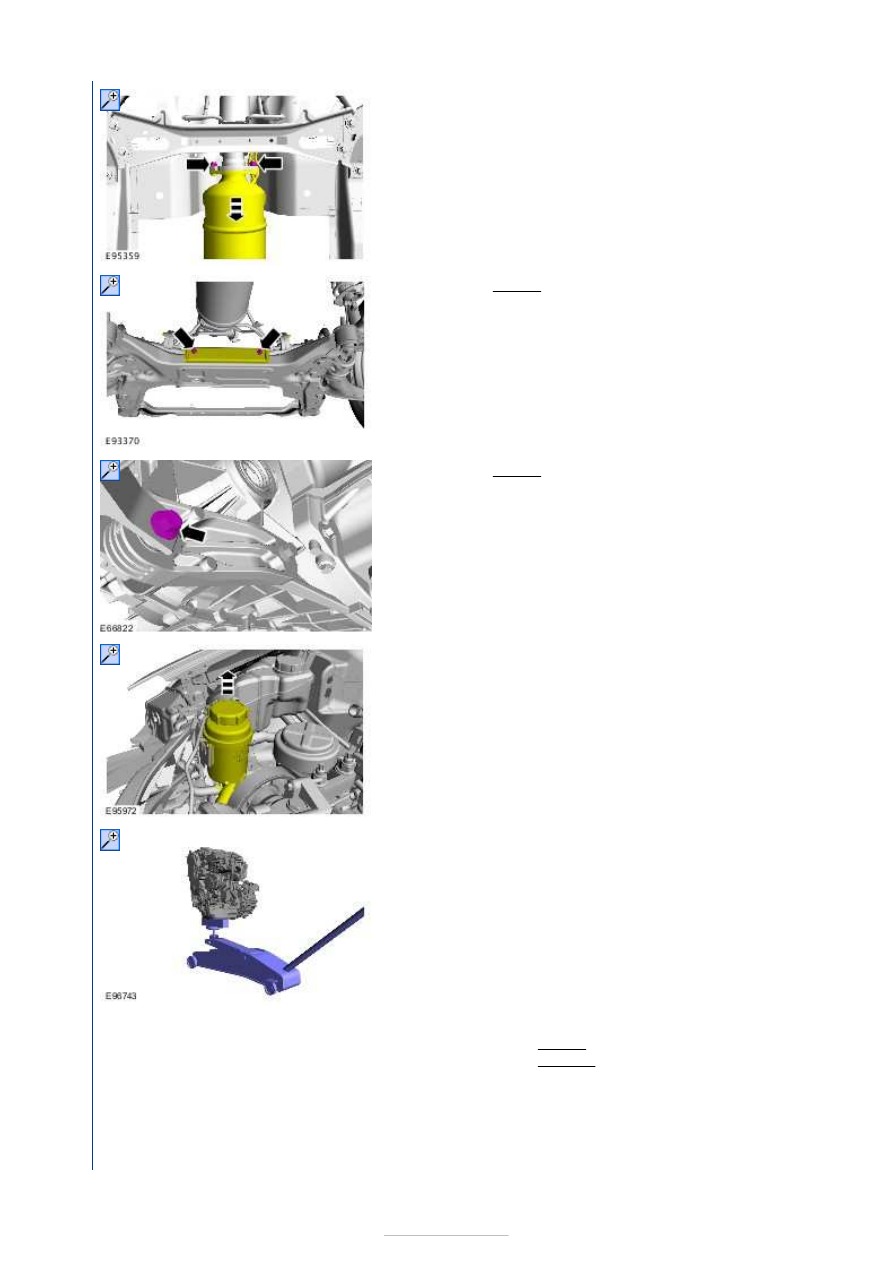

4.
5. Refer to:
Brake Master Cylinder - RHD FWD
(206-06
Hydraulic Brake Actuation, Removal and Installation).

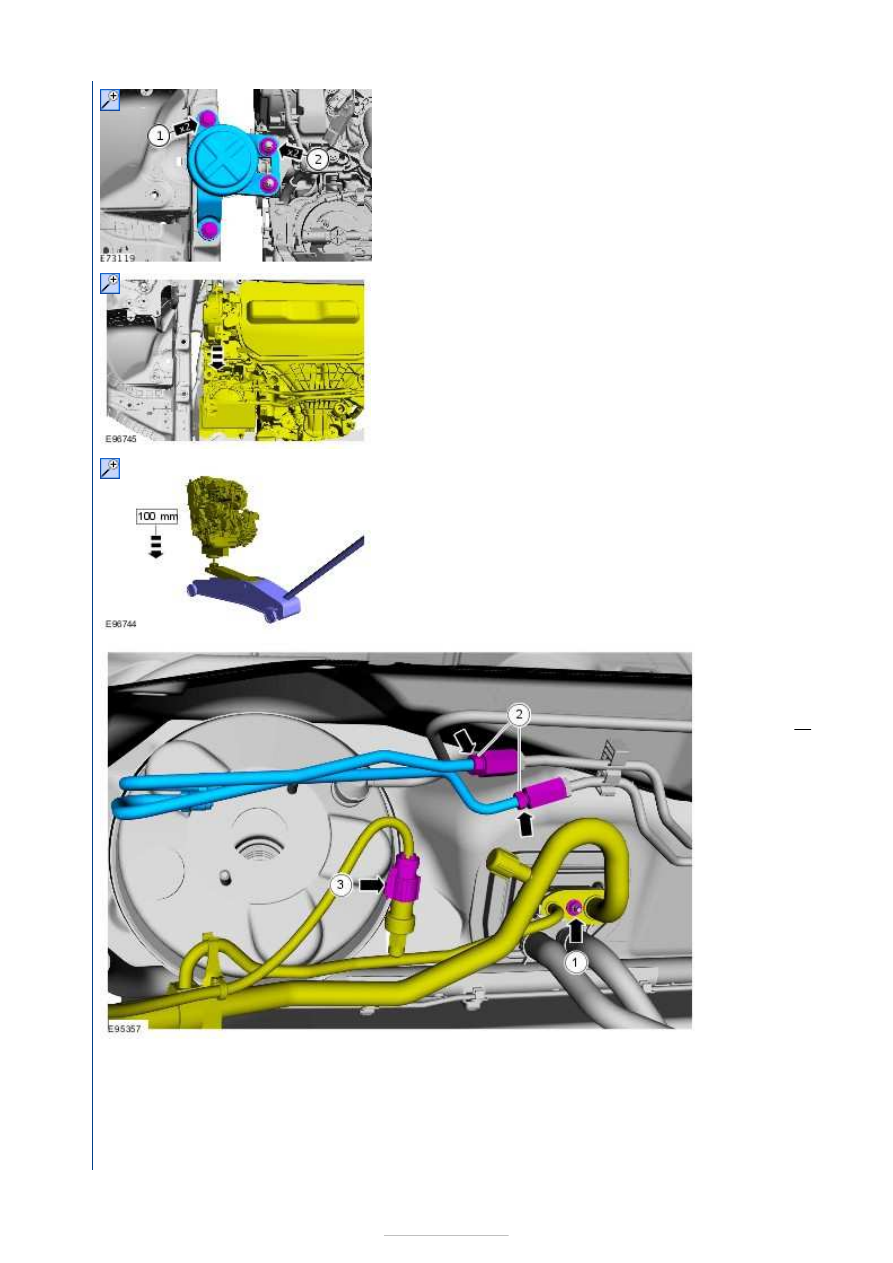

6.
7.
