Ford Ranger EV (2001 year). Manual - part 190

414-03B-156

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

Modules 13-15

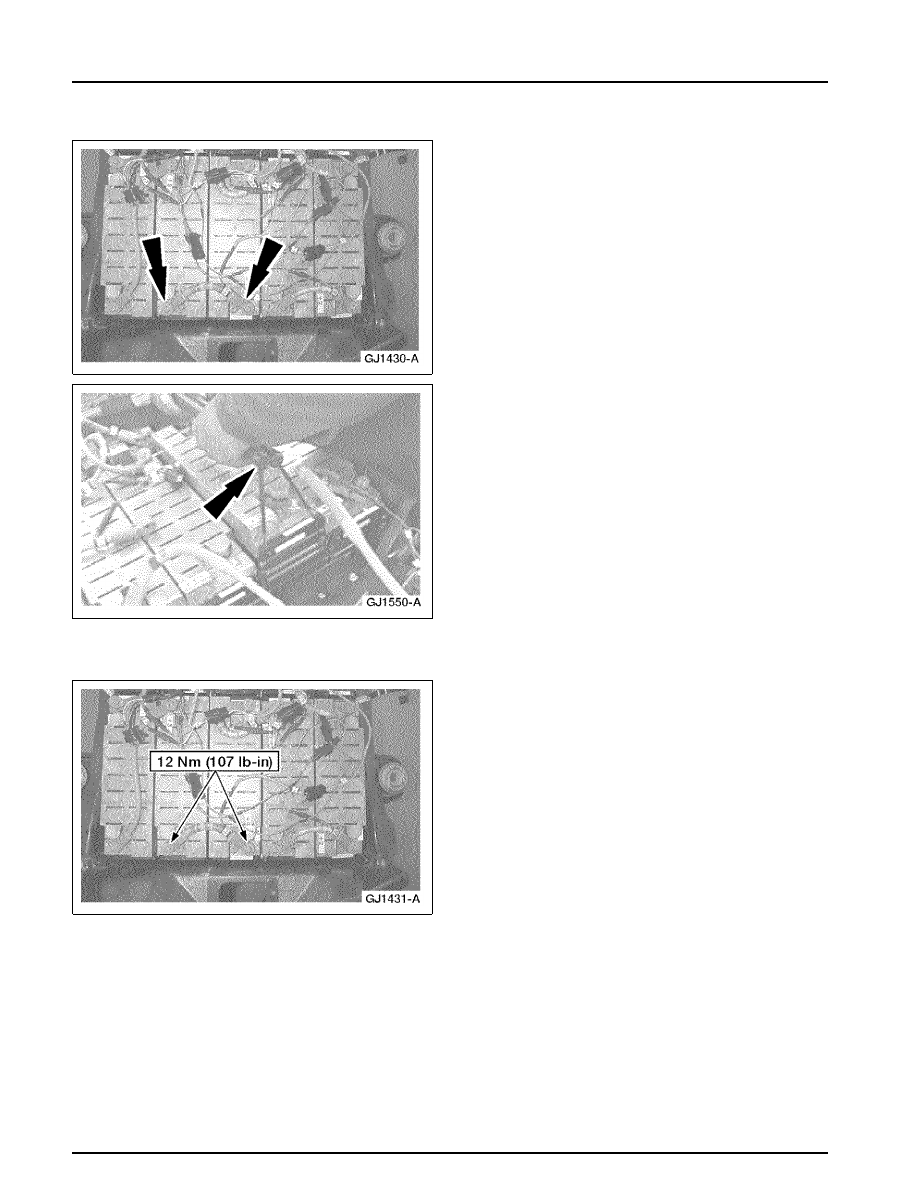

10. Disconnect the necessary module.

•

Disconnect the HVJ cables and discard the
nuts.

11. Using the special tool, remove the module.

Installation

1. NOTE: The arrow on the battery hold down tie

bars must be pointed towards the front of the
traction battery.
To install, reverse the removal procedure.

•

Fill the high-voltage jumper connectors with
Nyogel after final tightening of the nuts.

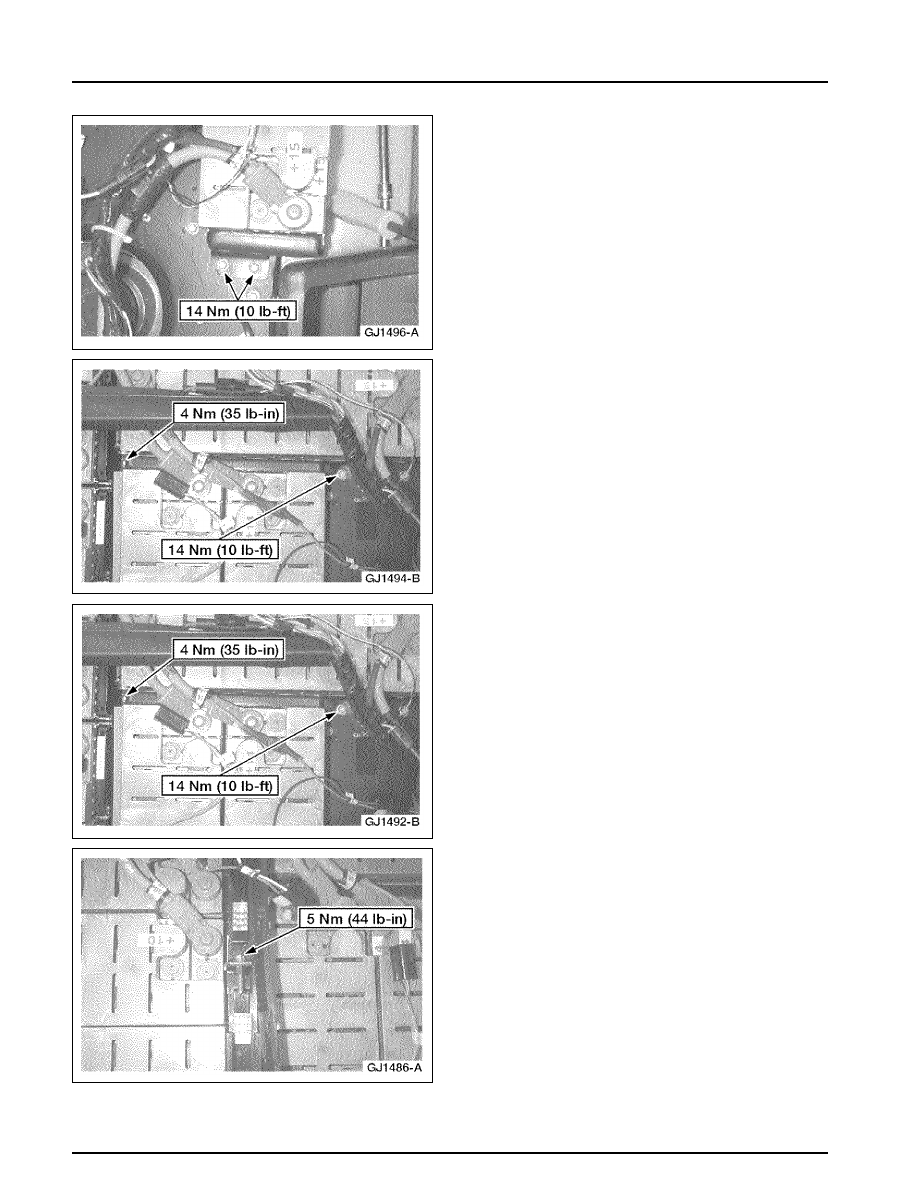

414-03B-157

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

414-03B-158

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

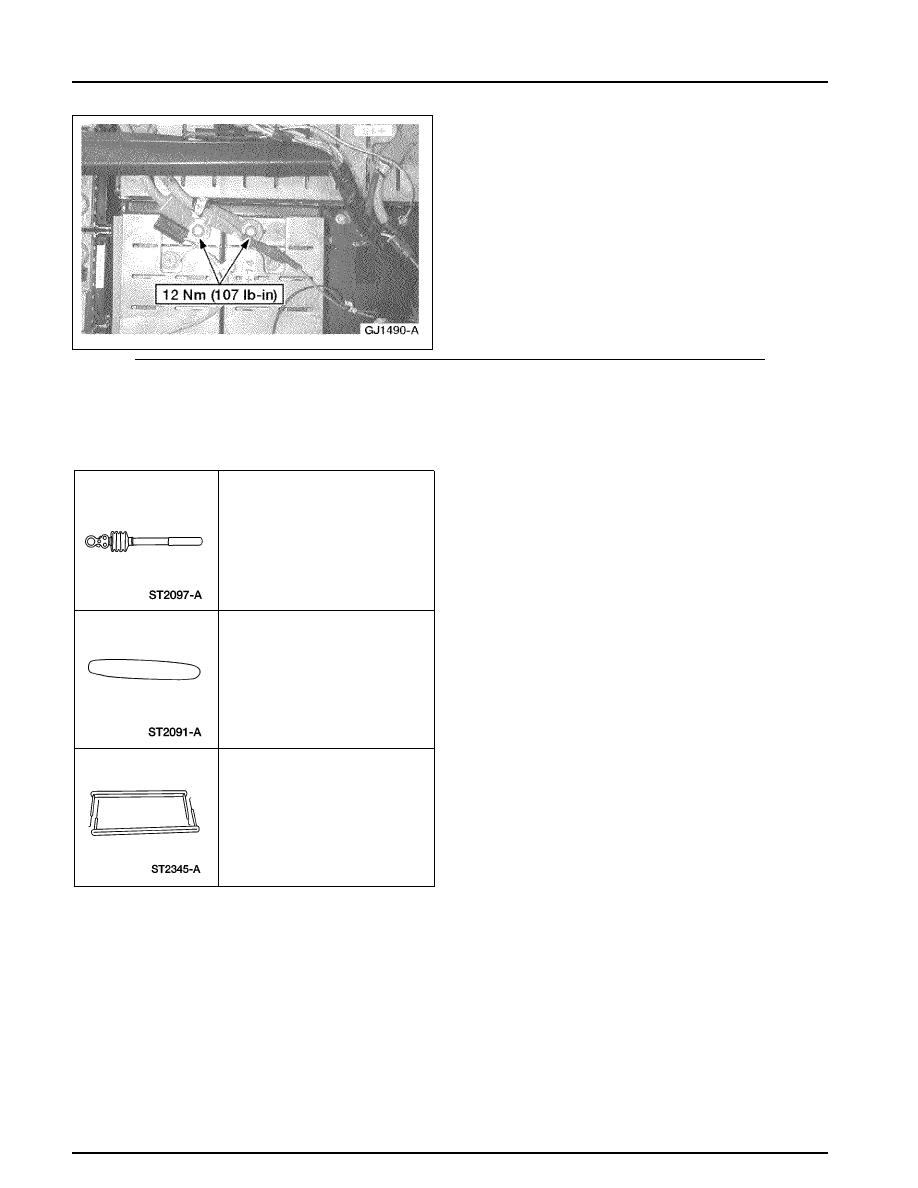

Traction Battery Module — Modules 17, 18, 21

Special Tool(s)

Battery Post Torque Wrench

307-026

Battery Terminal Cap Opener

418-F215

Battery Handles

414-F001

Removal

1. This procedure contains steps specific to the

modules listed. Do not start with this procedure.
Refer to

414-03B-159

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

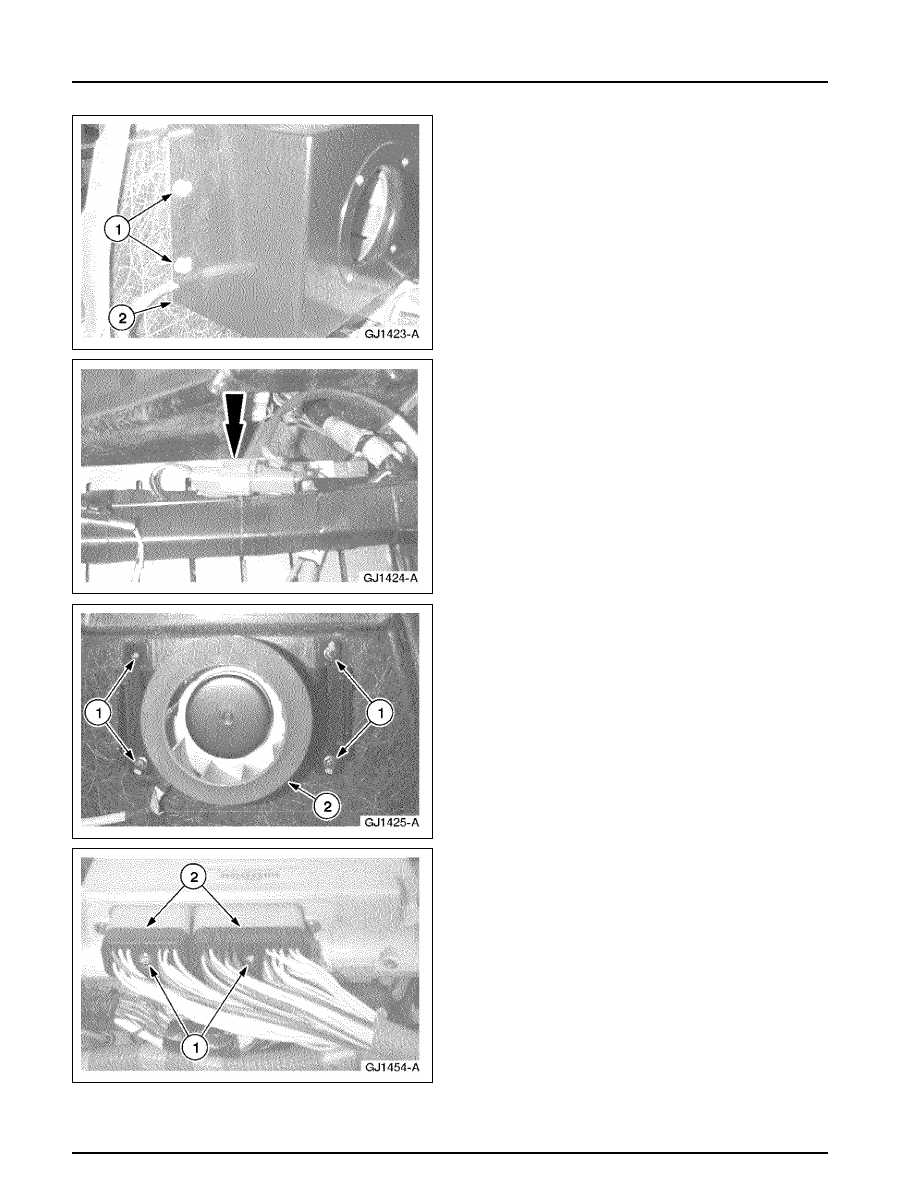

2. Remove the blower cover.

1 Remove the four bolts (two each side).
2 Remove the blower cover.

3. Disconnect the blower electrical connector.

4. Remove the flow through blower.

1 Remove the nuts.
2 Remove the blower.

5. Disconnect the high-voltage connector.

1 Loosen the bolts.
2 Disconnect the connectors.
