Ford Ranger EV (2001 year). Manual - part 189

414-03B-152

414-03B-152

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

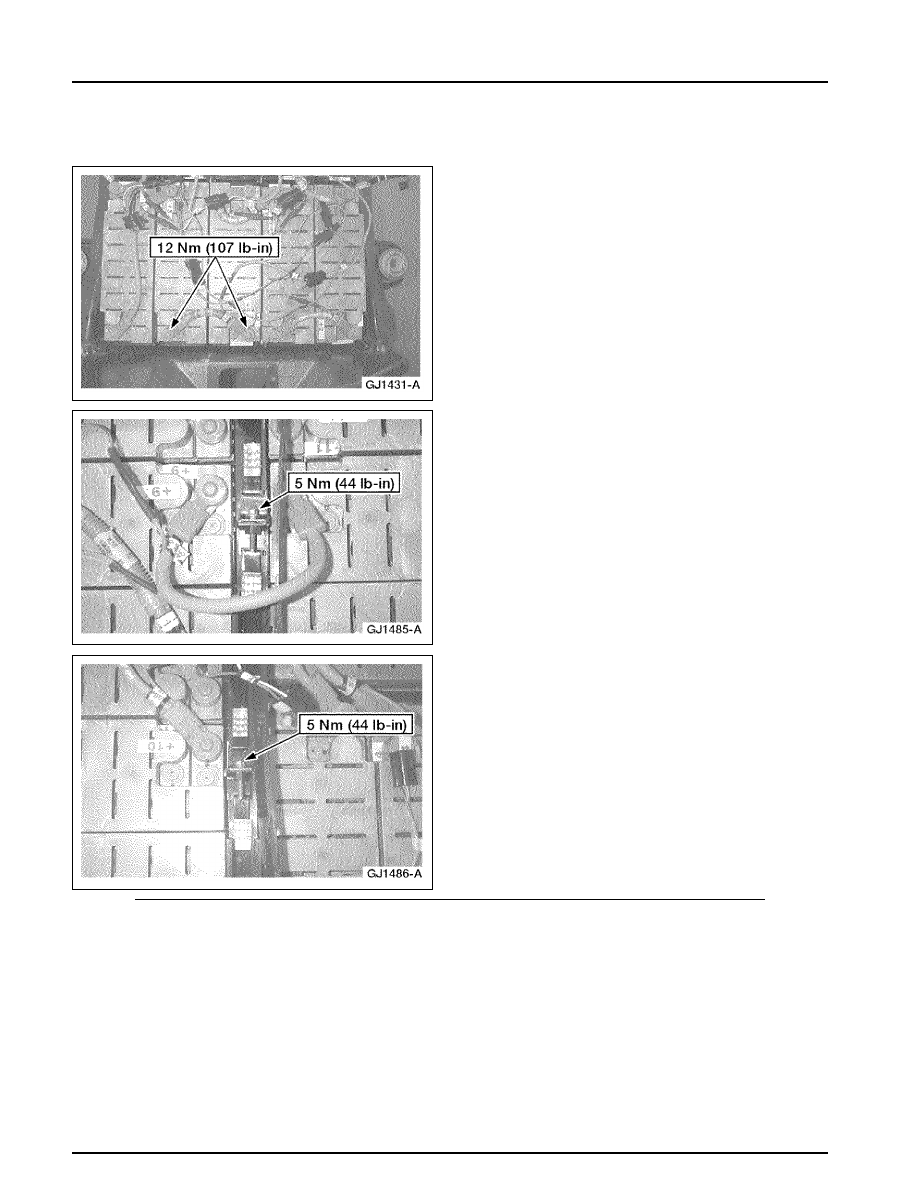

Installation

1. NOTE: The arrow on the battery hold down tie

bars must be pointed towards the front of the
traction battery.
To install, reverse the removal procedure.

•

Fill the high-voltage jumper connectors with
Nyogel after final tightening of the nuts.

414-03B-153

414-03B-153

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

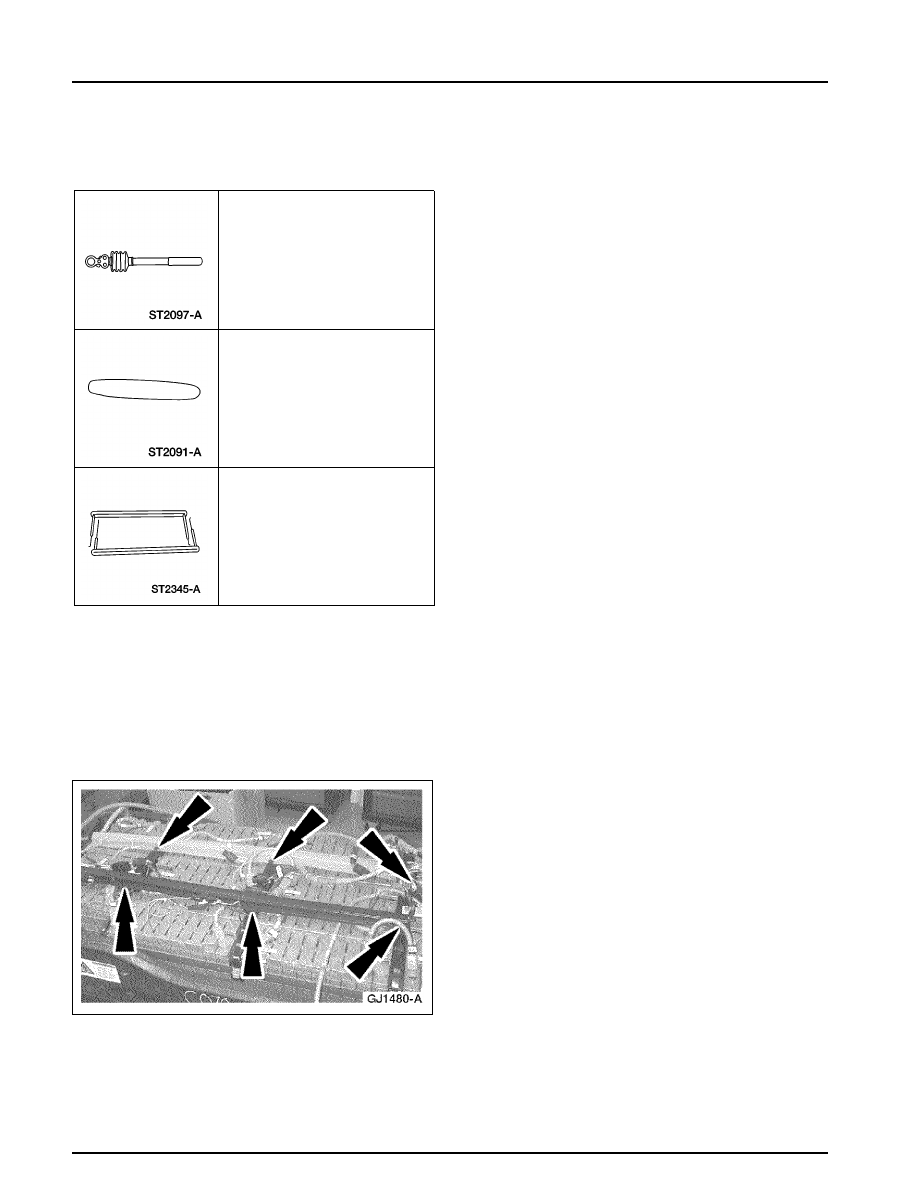

Traction Battery Module — Modules 13-15

Special Tool(s)

Battery Post Torque Wrench

307-026

Battery Terminal Cap Opener

418-F215

Battery Handles

414-F001

Removal

Modules 13-15
1. This procedure contains steps specific to the

modules listed. Do not start with this procedure.
Refer to

Traction Battery Module Replacement

to begin module replacement.

2. Remove the high and low-voltage harness push

pins.

414-03B-154

414-03B-154

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

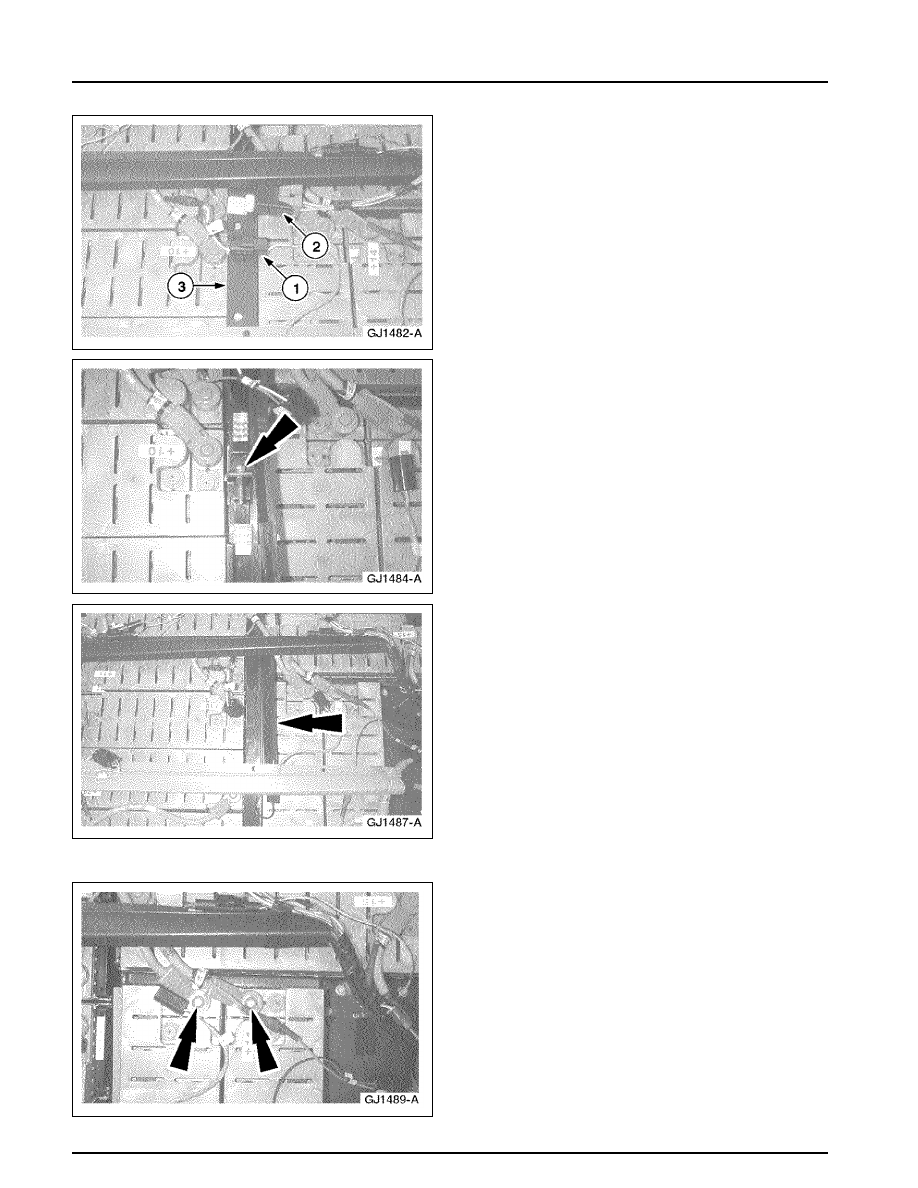

3. Unclip the battery hold down tie bar cover.

1 Unclip and disconnect the sensor lead

electrical connector.

2 Unclip the relay.
3 Unclip the cover.

4. Remove the battery hold down strap bolt and

pull the straps back off the battery hold down
tie bar.

5. Remove the battery hold down tie bar.

Modules 13,14

6. Disconnect the 14+ and 13- HVJs.

•

Disconnect the HVJ cables and discard the
nuts.

414-03B-155

414-03B-155

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

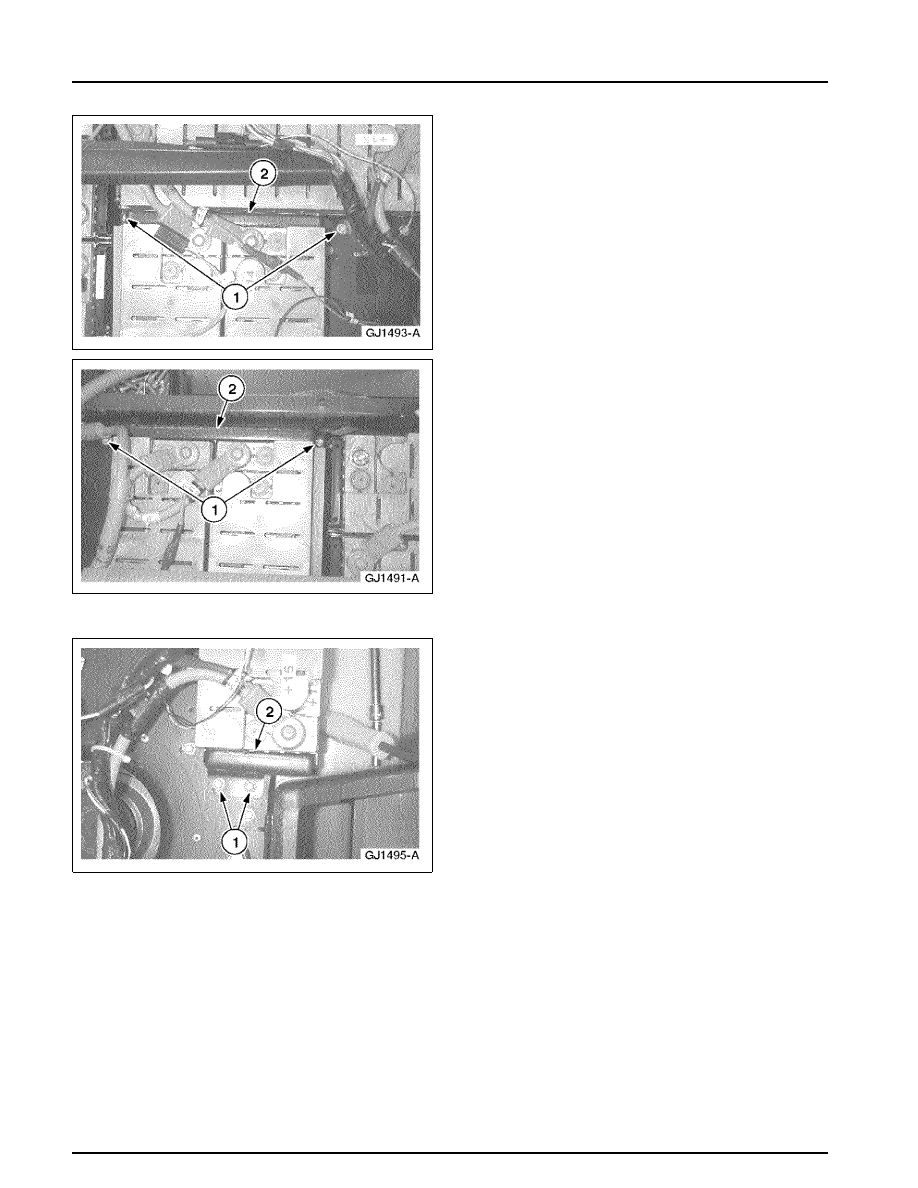

7. Remove the battery hold down bracket.

1 Remove the bolts.
2 Remove the bracket.

8. Remove the battery hold down bracket.

1 Remove the bolts.
2 Remove the bracket.

Module 15

9. Remove the battery hold down bracket.

1 Remove the bolts.
2 Remove the bracket.
