414-03B-148

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

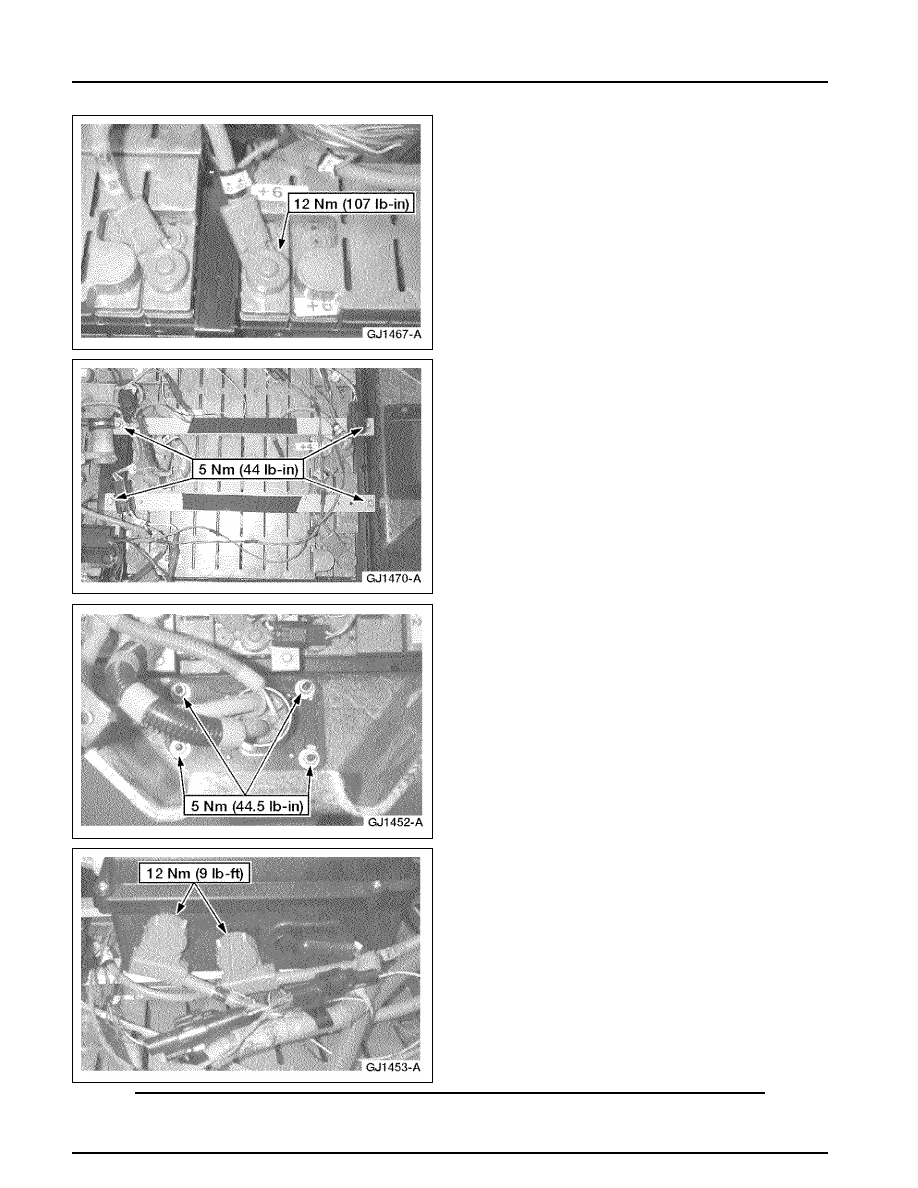

414-03B-149

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

Traction Battery Module — Modules 10, 11, 12, 23, 24

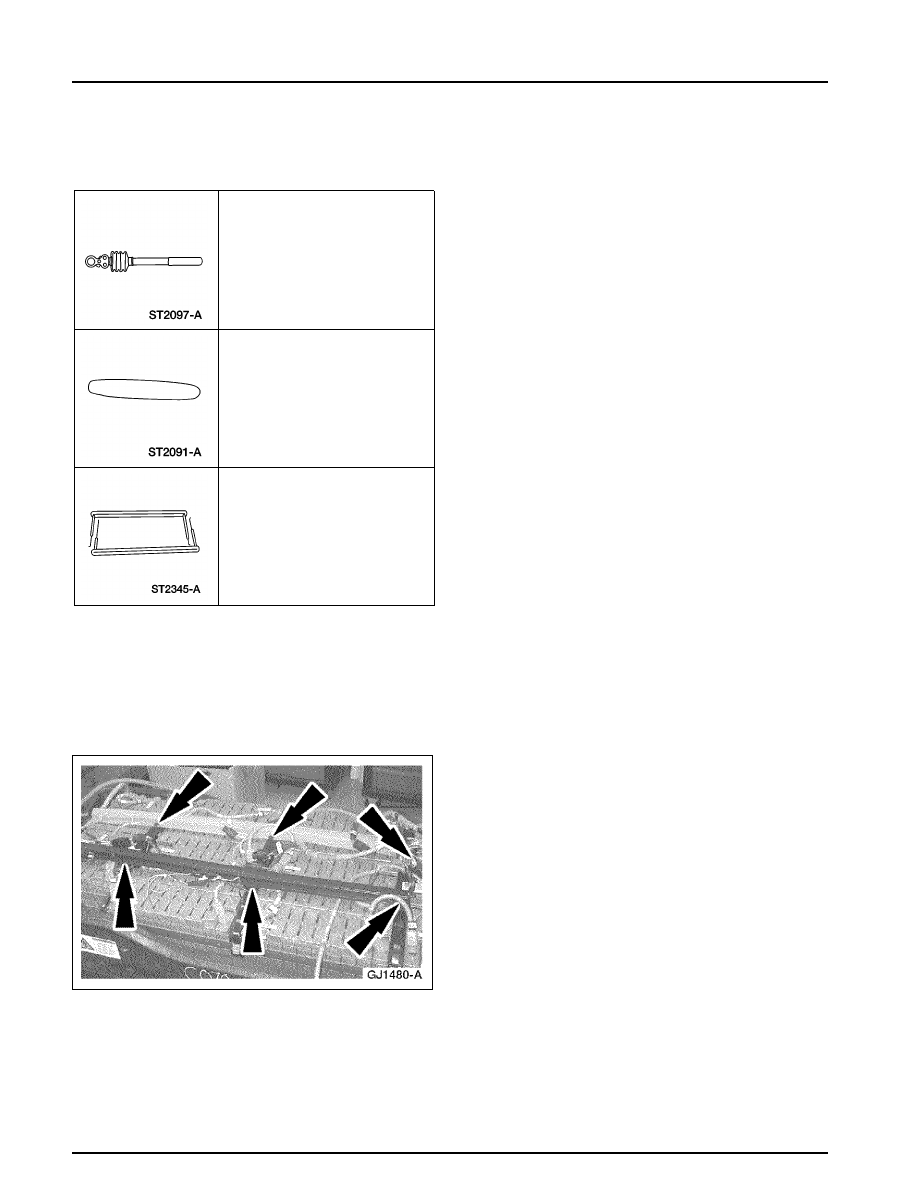

Special Tool(s)

Battery Post Torque Wrench

307-026

Battery Terminal Cap Opener

418-F215

Battery Handles

414-F001

Removal

1. This procedure contains steps specific to the

modules listed. Do not start with this procedure.
Refer to

2. Remove the high and low-voltage harness push

pins.

414-03B-150

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

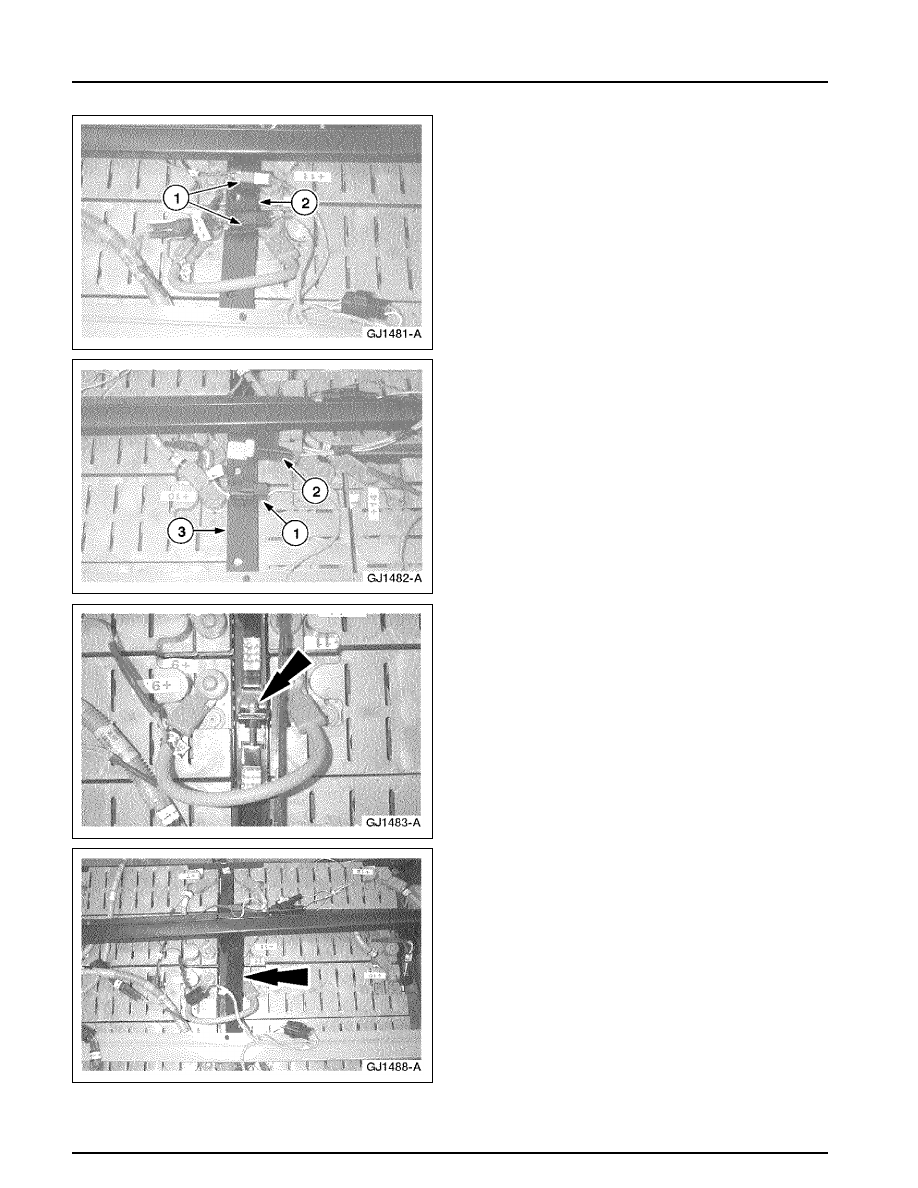

3. Unclip the battery hold down tie bar cover.

1 Unclip and disconnect the sensor lead

electrical connectors.

2 Unclip the cover.

4. Unclip the battery hold down tie bar cover.

1 Unclip and disconnect the sensor lead

electrical connector.

2 Unclip the relay.
3 Unclip the cover.

5. Remove the battery hold down strap bolt and

pull the straps back off the battery hold down
tie bar.

6. Remove the battery hold down tie bar.

414-03B-151

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

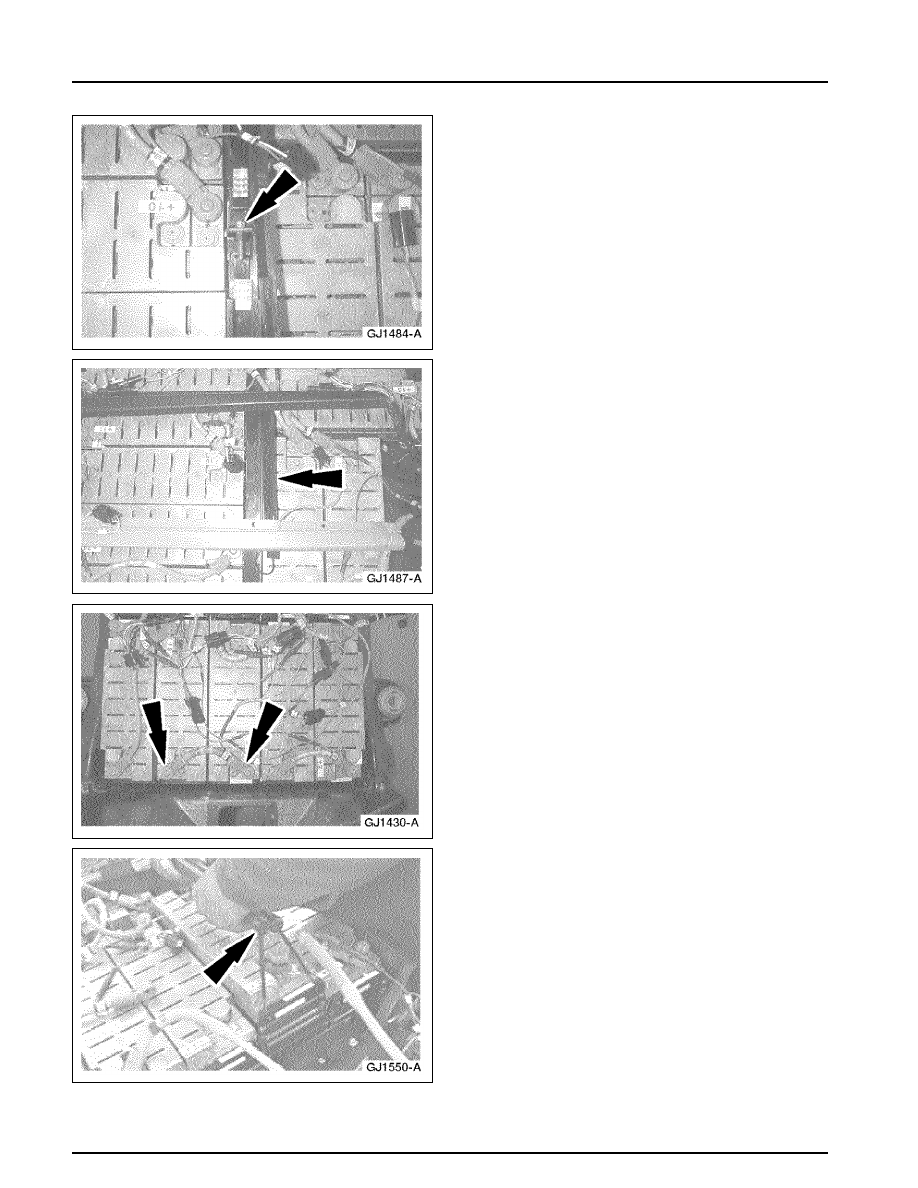

7. Remove the battery hold down strap bolt and

pull the straps back off the battery hold down
tie bar.

8. Remove the battery hold down tie bar.

9. NOTE: If removing module 12, disconnect the

two thermistors.
Disconnect the necessary module.

•

Disconnect the HVJ cables and discard the
nuts.

10. Using the special tool, remove the module.
