414-03A-192

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

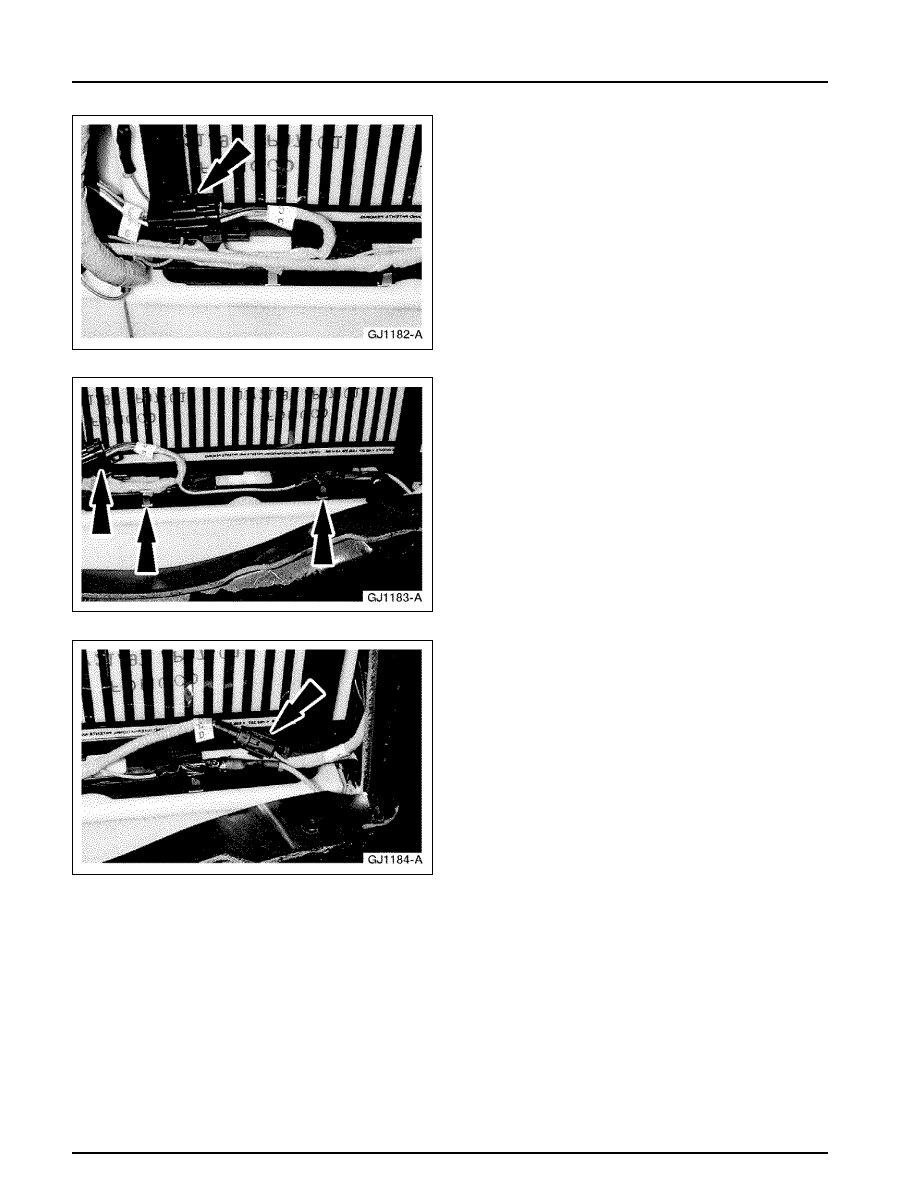

70. Connect the G sense lead connector.

71. Clip the G sense lead harness into the separator

plate.

72. Connect the D sense lead connector.

414-03A-193

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

73. Connect the C sense lead connector.

74. Clip the heater connector into the high-voltage

harness.

75. Clip the two heating element connectors into

the high-voltage harness, located behind the
contactor box.

414-03A-194

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

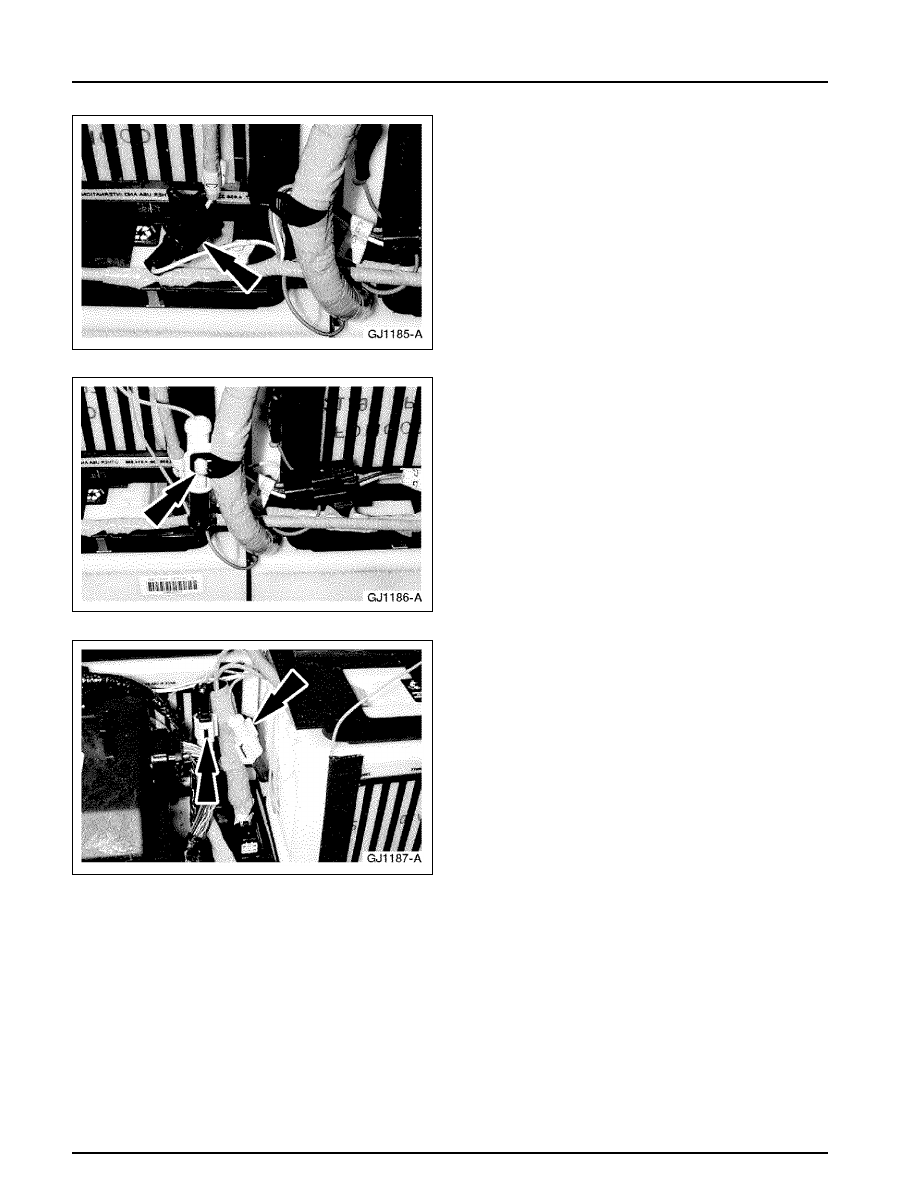

76. Connect the A sense lead and clip it into the

separator plate.

77. Connect the V sense lead connector.

•

Clip the sensor lead onto the separator plate.

78. Connect the R, U, and W sense leads.

414-03A-195

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

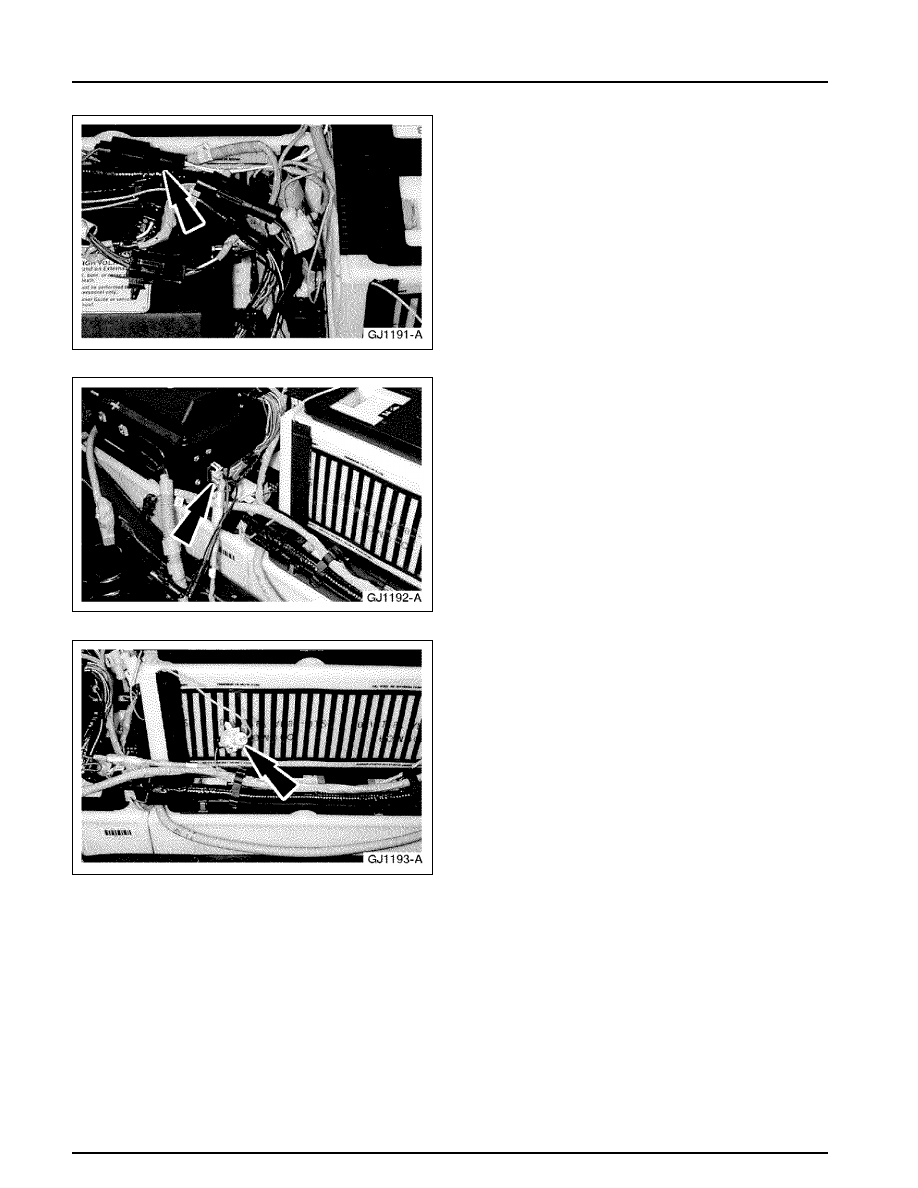

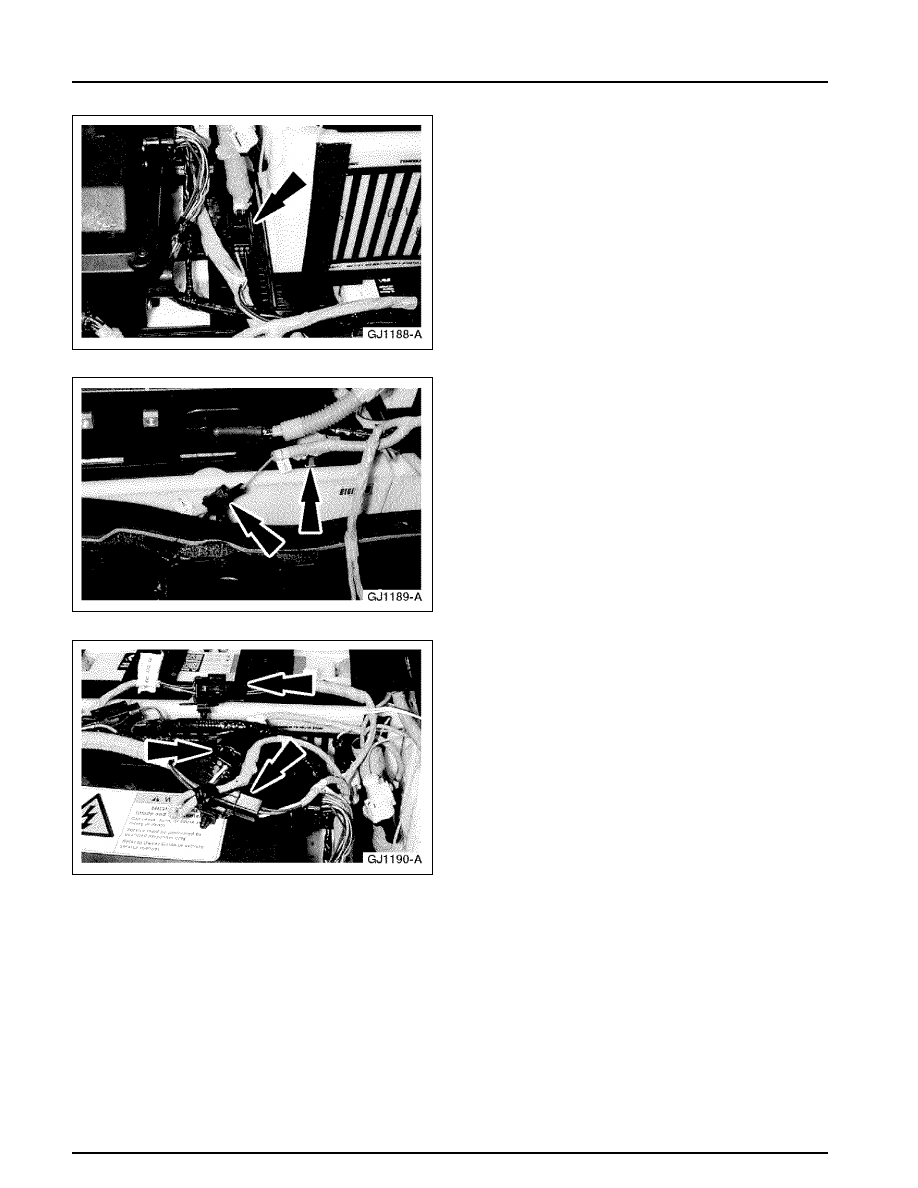

79. Connect the temperature sensor to the 2- battery

module.

80. Connect the heater harness connector to the

contactor box.

81. Connect the heating element connector to the

heater harness, located on the side of battery
module 2.
