414-03A-188

414-03A-188

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

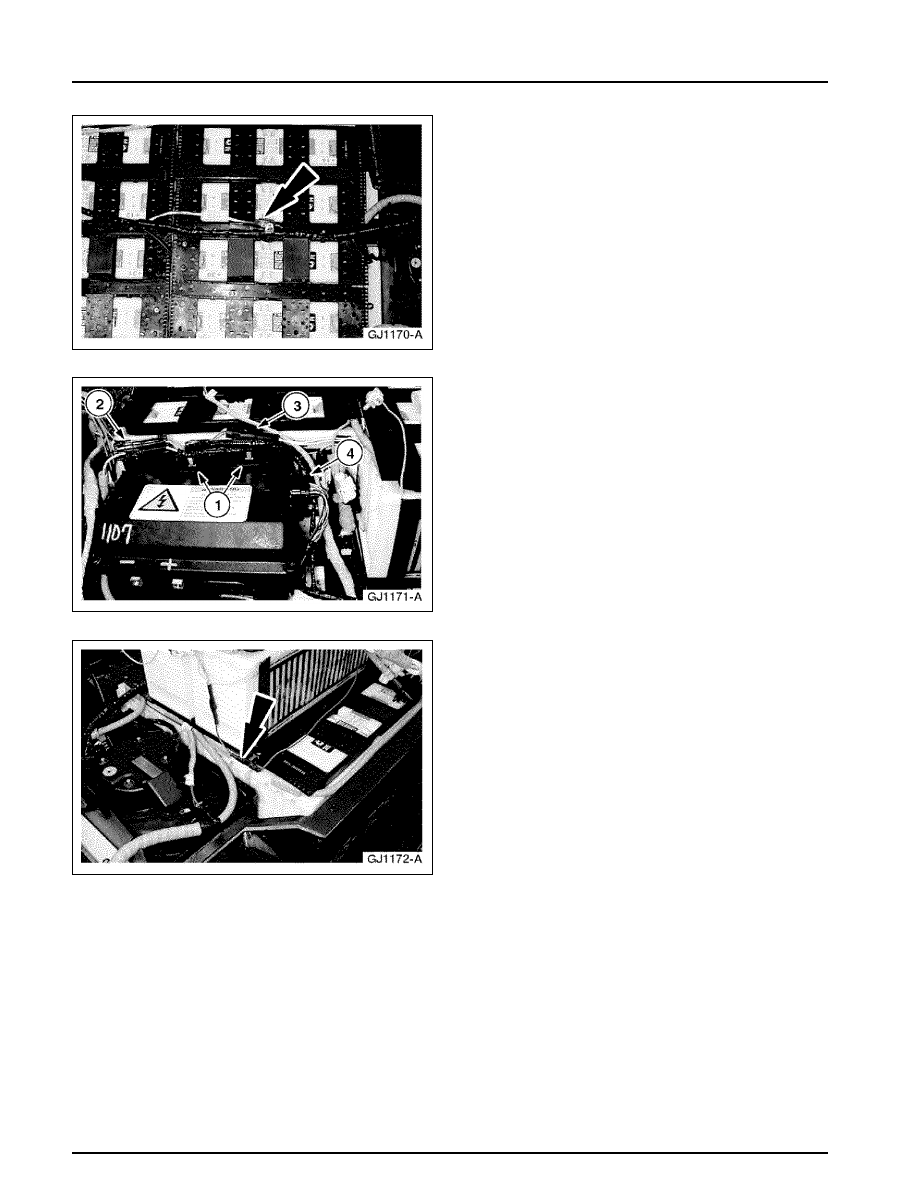

58. Connect the temperature sensor electrical

connector to the low-voltage harness.

59. Connect the low-voltage harness to the

contactor box.
1 Clip the two harness clips to the contactor

box.

2 Connect the two-pin auxiliary connector.
3 Connect the temperature sensor connector.
4 Connect the harness connector to the

contactor box.

60. Connect and clip the sense lead wiring to the

separator plate.

414-03A-189

414-03A-189

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

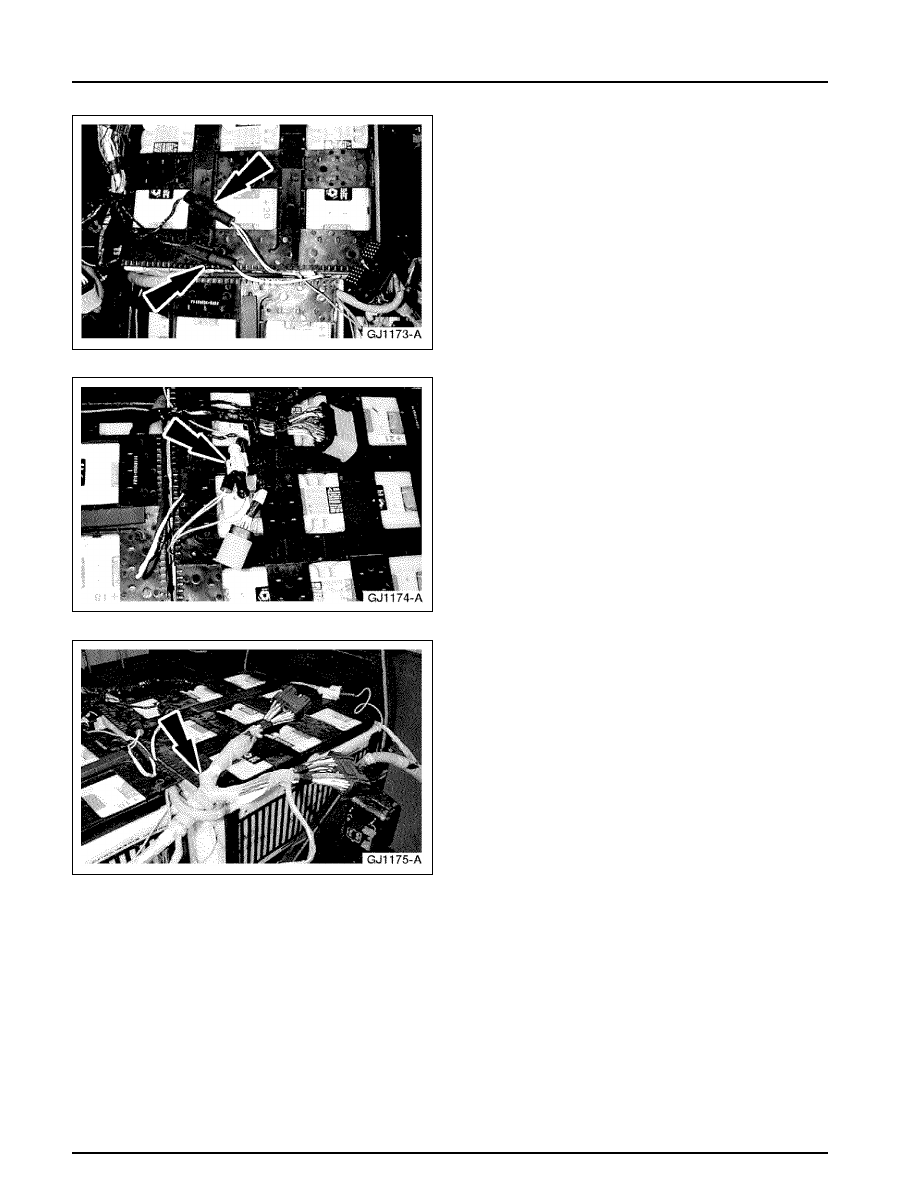

61. Connect the two temperature sensor electrical

connectors.

•

Connect the 17- to the brown / brown and
white connector.

•

Connect the 26+ lead to the green / red
connector.

62. Connect the heating element connector.

•

Clip the connector on the low-voltage
harness connector.

63. Position the orange high-voltage harness.

•

The high-voltage harness passes through the
HVJ as illustrated.

414-03A-190

414-03A-190

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

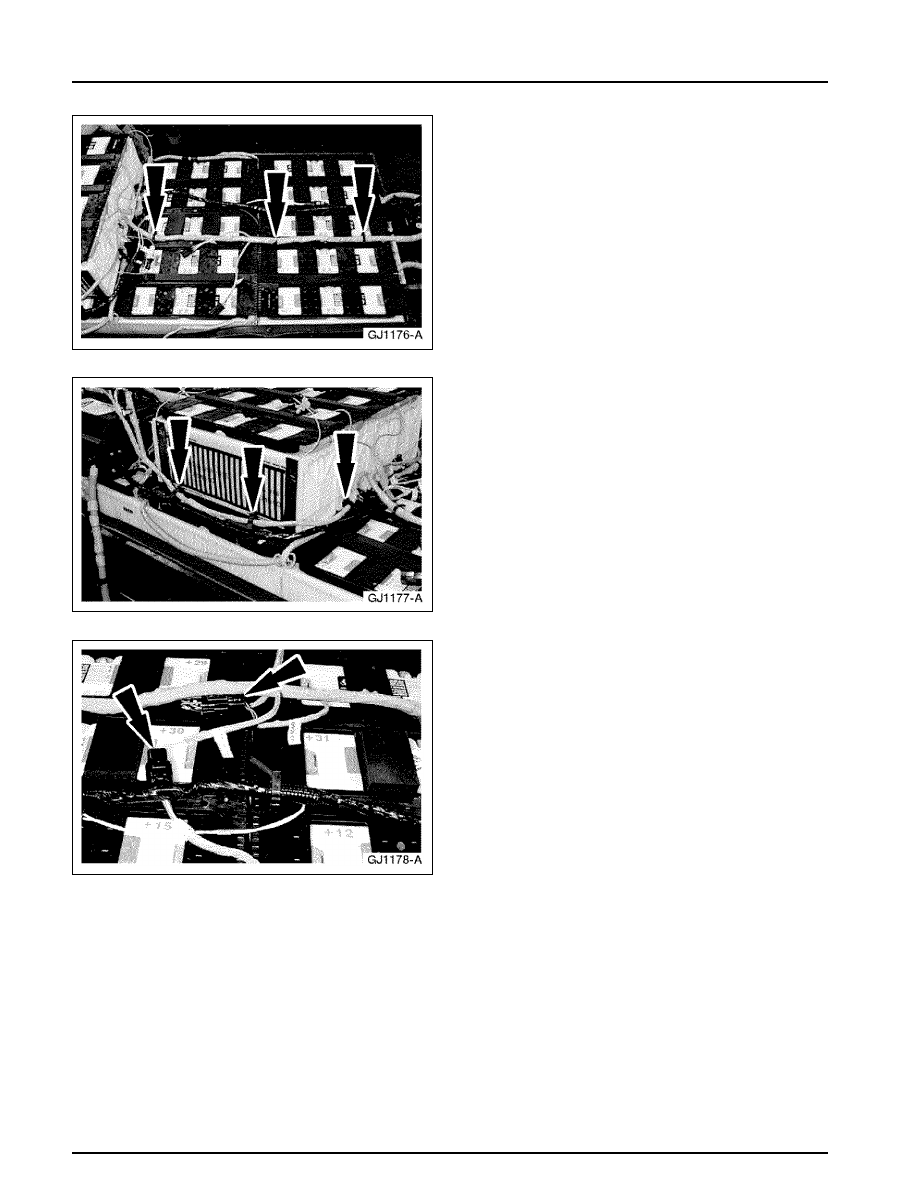

64. Clip the three high-voltage harness clips onto

the separator plate.

65. Clip the three high-voltage harness clips onto

the separator plate.

66. Connect the J and S high-voltage connectors

and clip them onto the separator plate.

414-03A-191

414-03A-191

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

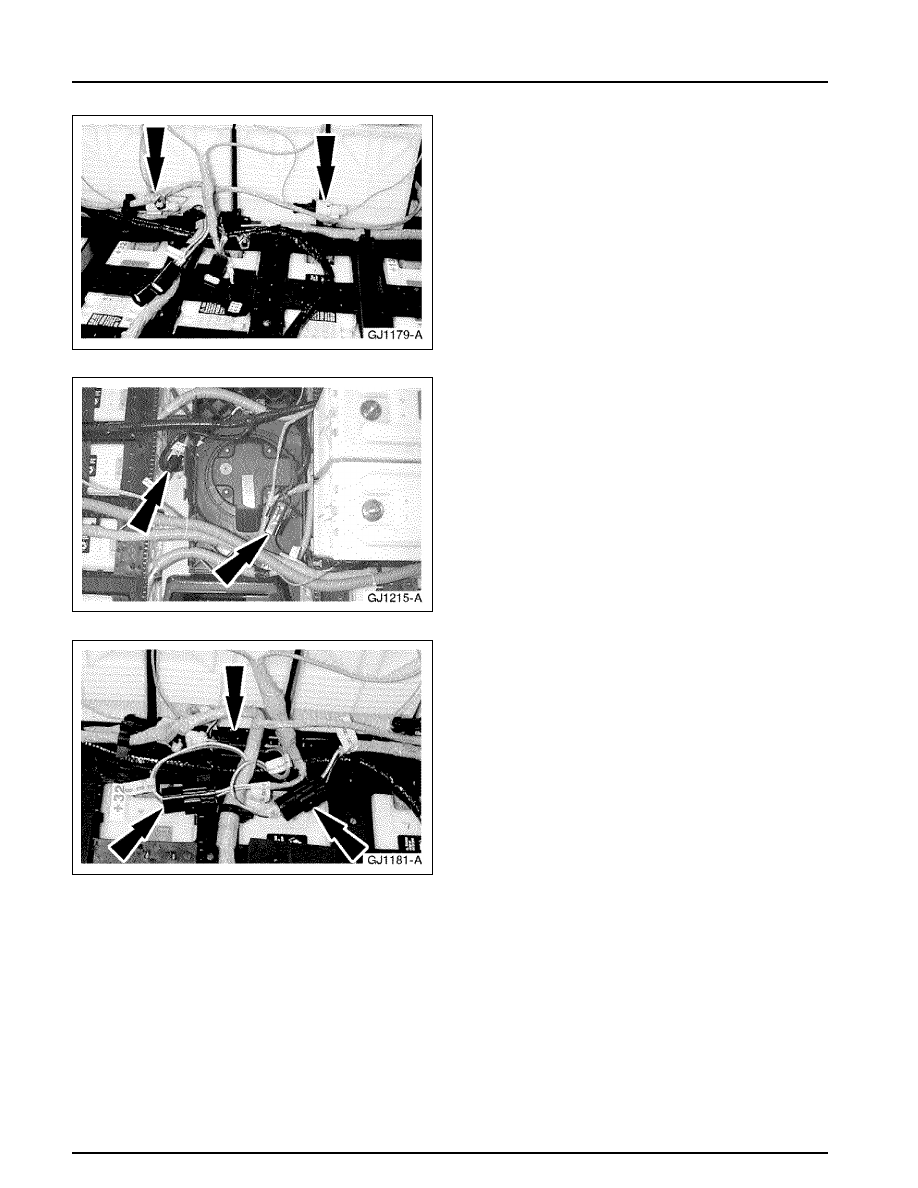

67. Clip the heater harness connectors onto the

high-voltage harness.

68. Connect the K and L sense lead connectors.

69. Connect the T, B, and H sense lead connectors.

1 Connect the T, B, and H connectors.
2 Clip the H connector into the separator

plate.

3 Clip the T and B connectors into the wiring

harness.
