Ford Ranger EV (2001 year). Manual - part 146

414-03A-180

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

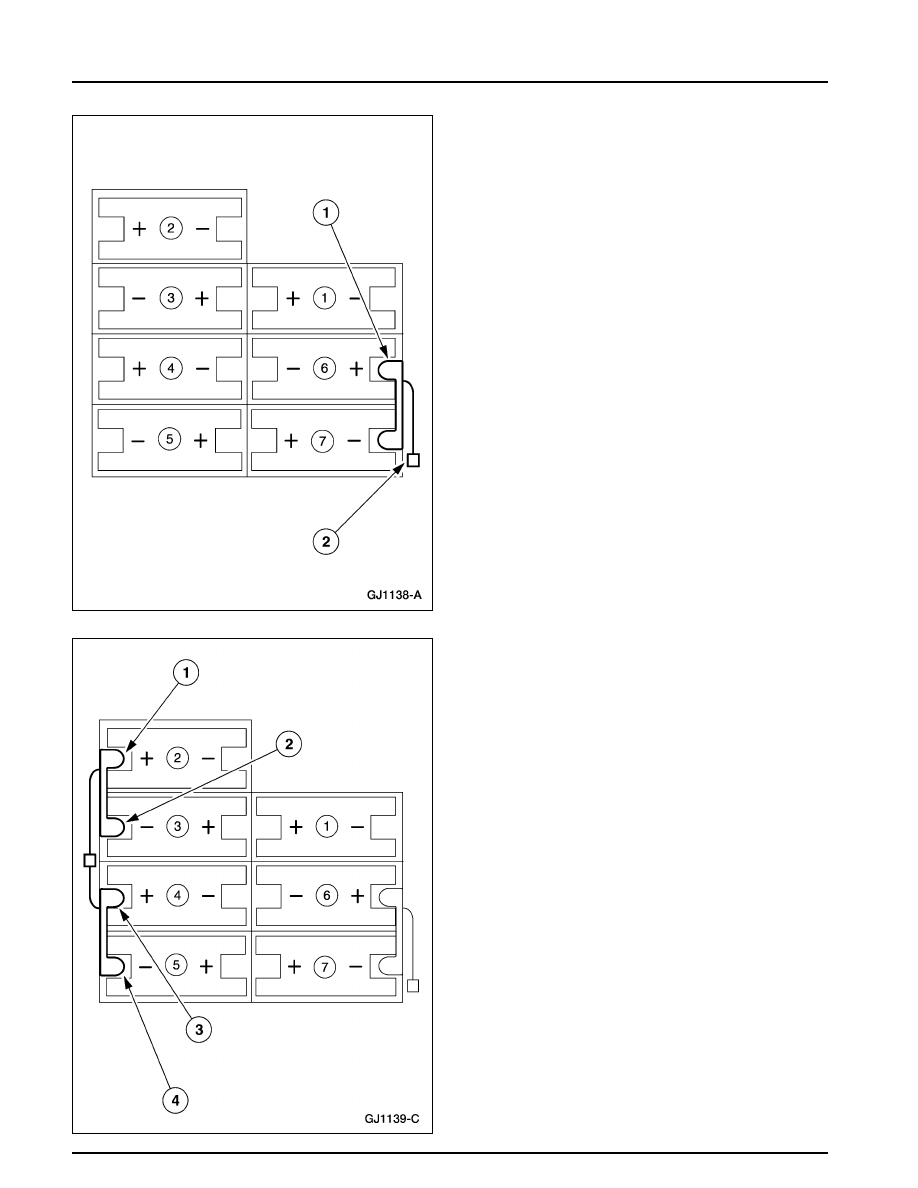

38. Install the D HVJ.

1 Install the 6+ nut.
2 Install the 7- nut.

39. Install the B HVJ.

1 Install the 2+ nut.
2 Install the 3- nut.
3 Install the 4+ nut.
4 Install the 5- nut.

414-03A-181

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

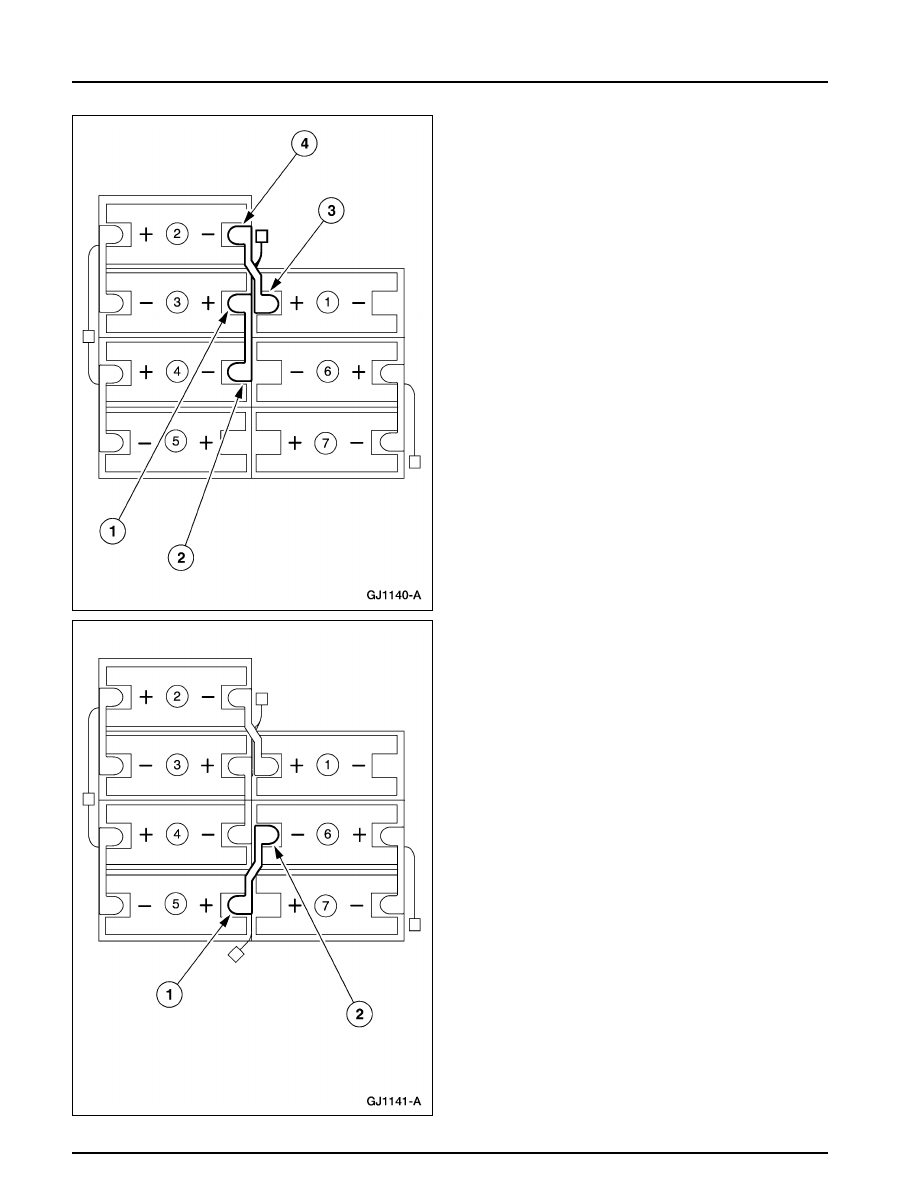

40. Install the A HVJ.

1 Install the 3+ nut.
2 Install the 4- nut.
3 Install the 1+ nut.
4 Install the 2- nut.

41. Install the L HVJ.

1 Install the 5+ nut.
2 Install the 6- nut.

414-03A-182

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

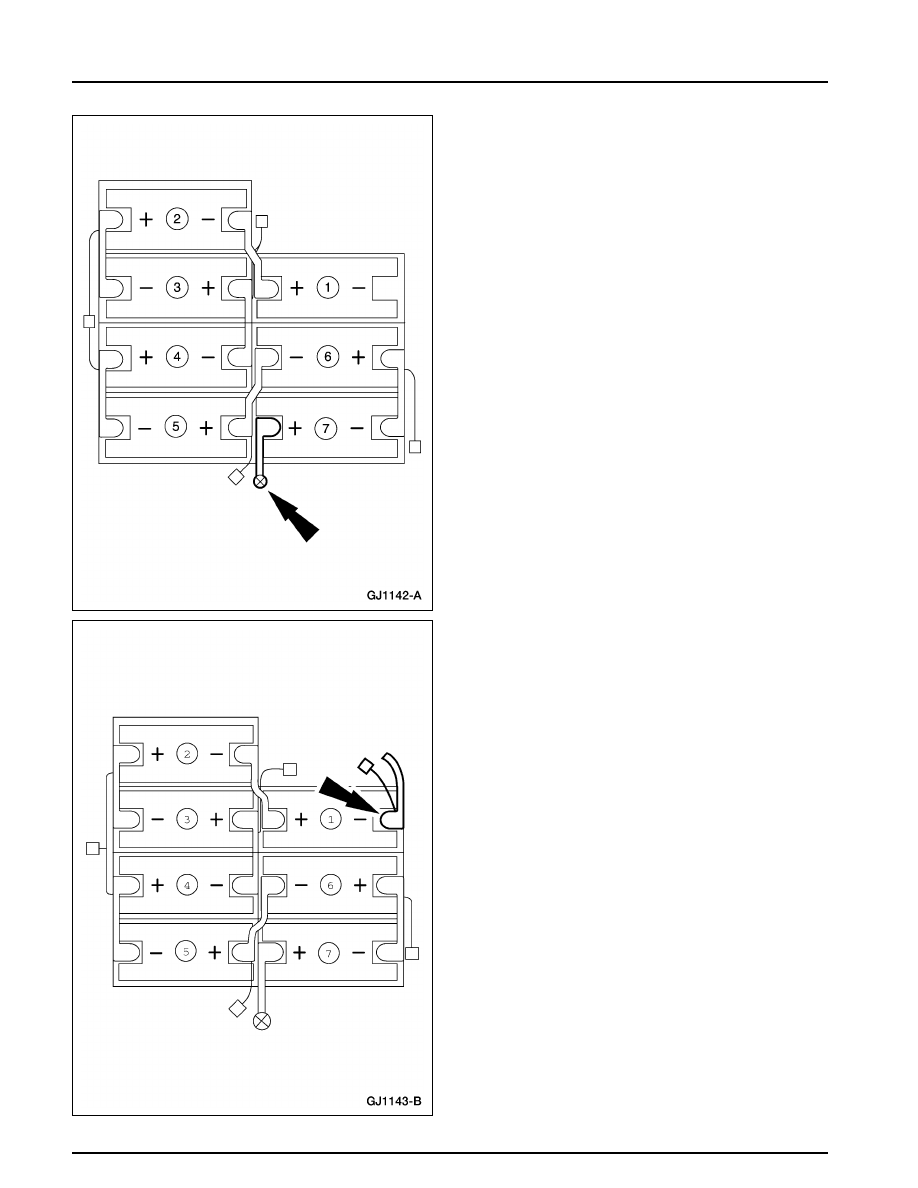

42. Connect the remaining G HVJ end from the

lower level battery module to the 7+ battery
module terminal.

•

Install the nut.

43. NOTE: The remaining end of the H HVJ is not

connected at this time.
Connect the H HVJ to the 1- battery module
terminal.

•

Install the nut.

414-03A-183

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

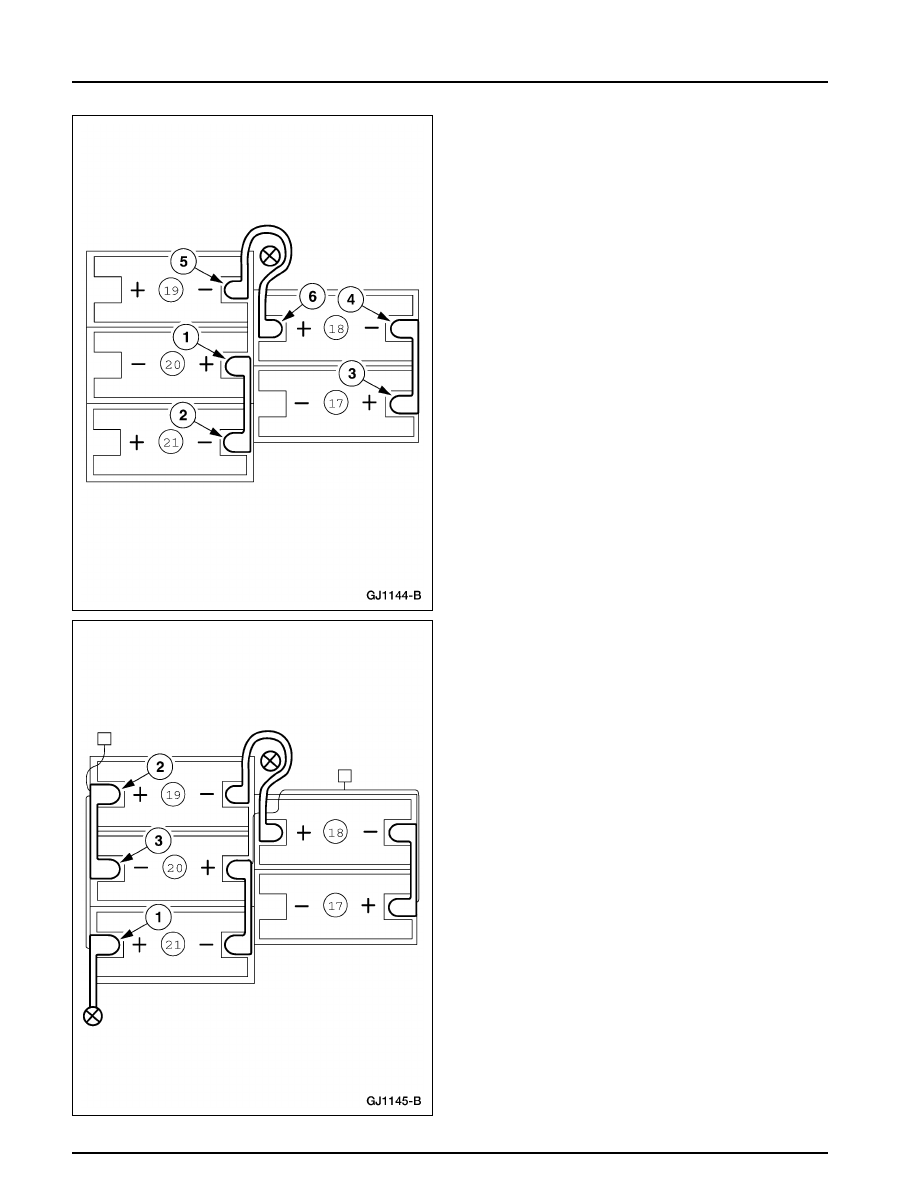

44. NOTE: The F HVJ contains a large fuse that is

routed around the rear of the battery modules.
Install the F HVJ.
1 Install the 20+ nut.
2 Install the 21- nut.
3 Install the 17+ nut.
4 Install the 18- nut.
5 Install the 19- nut.
6 Install the 18+ nut.

45. Connect the remaining M HVJ ends from the

lower-level battery module.
1 Install the 21+ nut.
2 Install the 20- nut.
3 Install the 19+ nut.
