High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

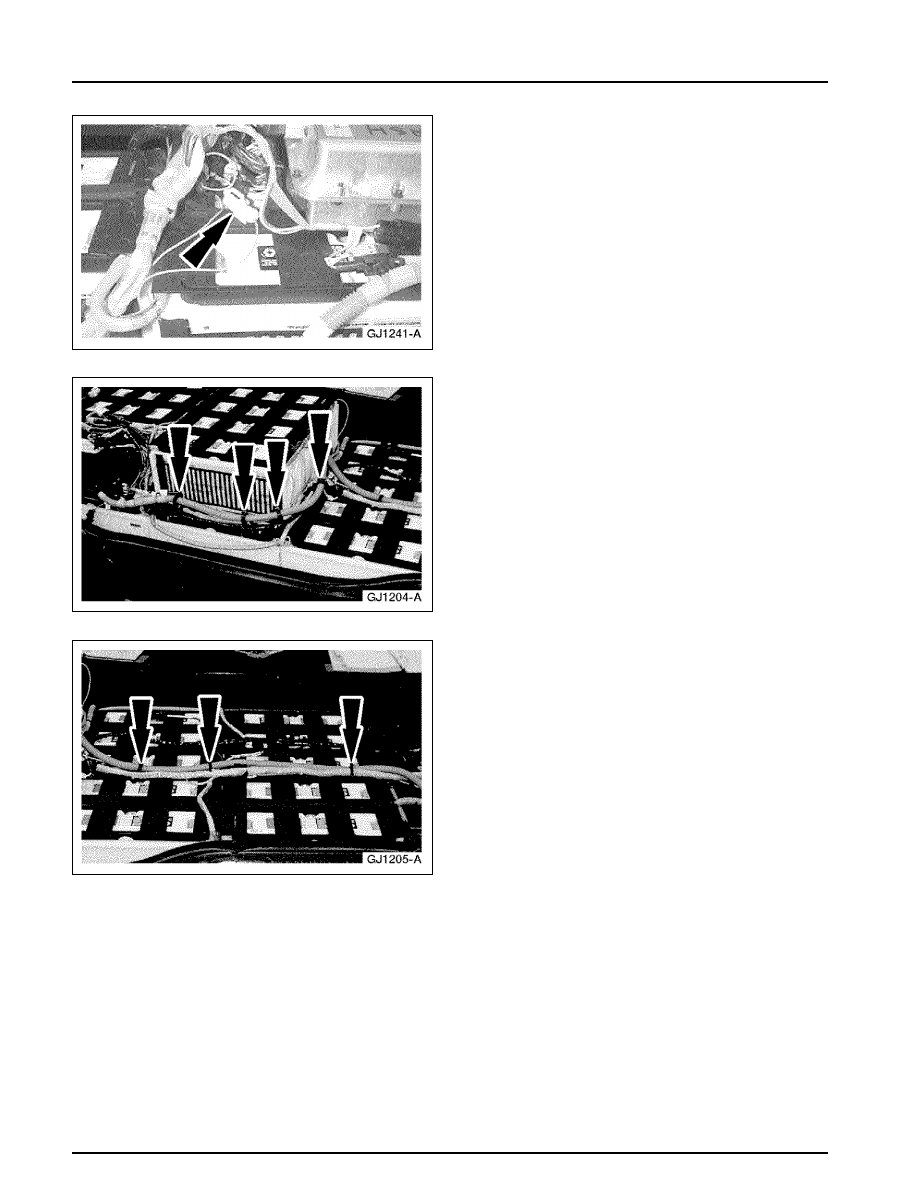

82. Connect the two heating element connectors to

the harness and clip them into the separator
plate.

83. Connect the heating element connector to the

harness.

84. Position the heater harness down the center of

the battery around the LH front battery
modules.

85. Install two clips into the LH front separator

plate.

•

Place a zip tie through each of the clips.

414-03A-197

414-03A-197

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

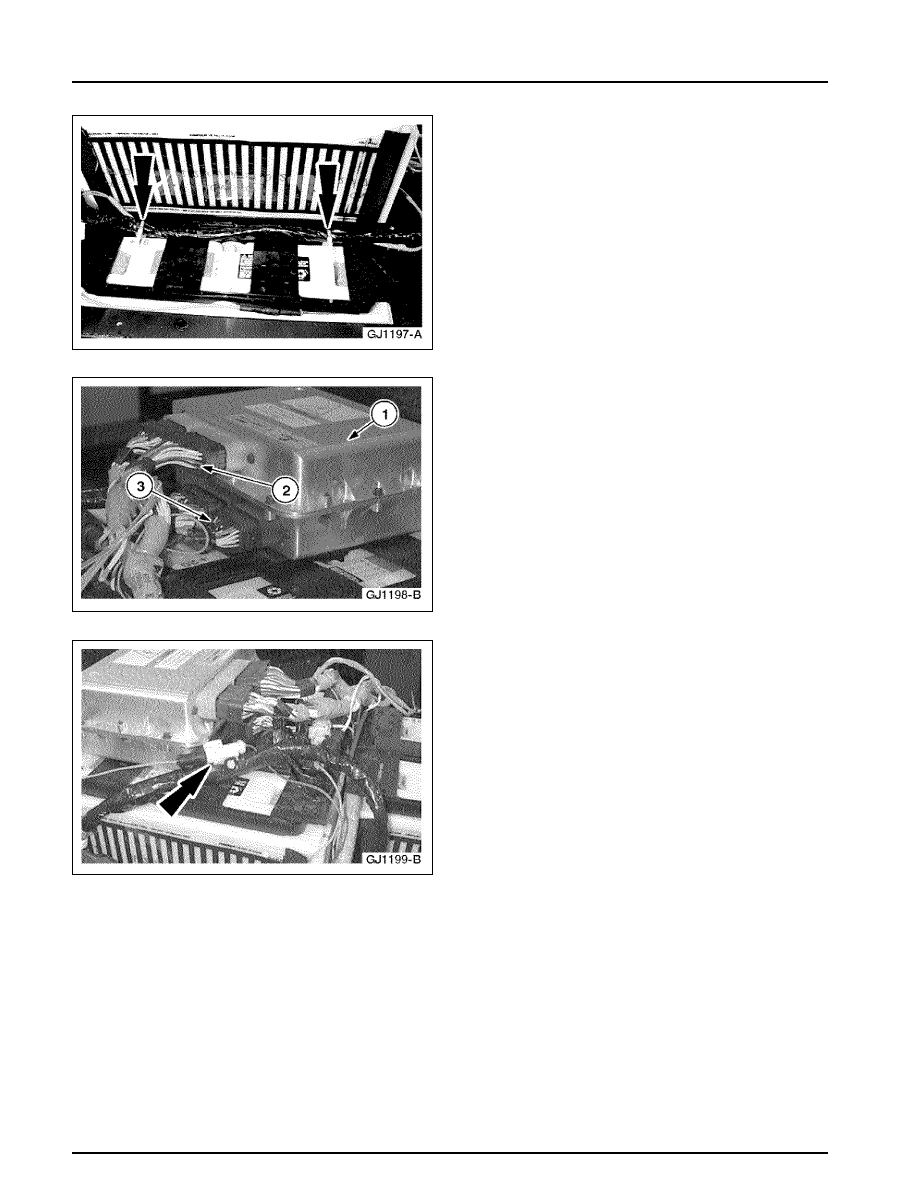

86. Position the heater harness and low-voltage

harness across the separator plate and zip tie
them into place.

87. NOTE: The battery module is held into place

with strips of Velcro

TM

.

Install the BCM.
1 Position the BCM.
2 Connect the two upper high-voltage

connectors.

3 Connect the two lower low-voltage

connectors.

88. Clip the heating element connector into the

low-voltage harness.

414-03A-198

414-03A-198

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

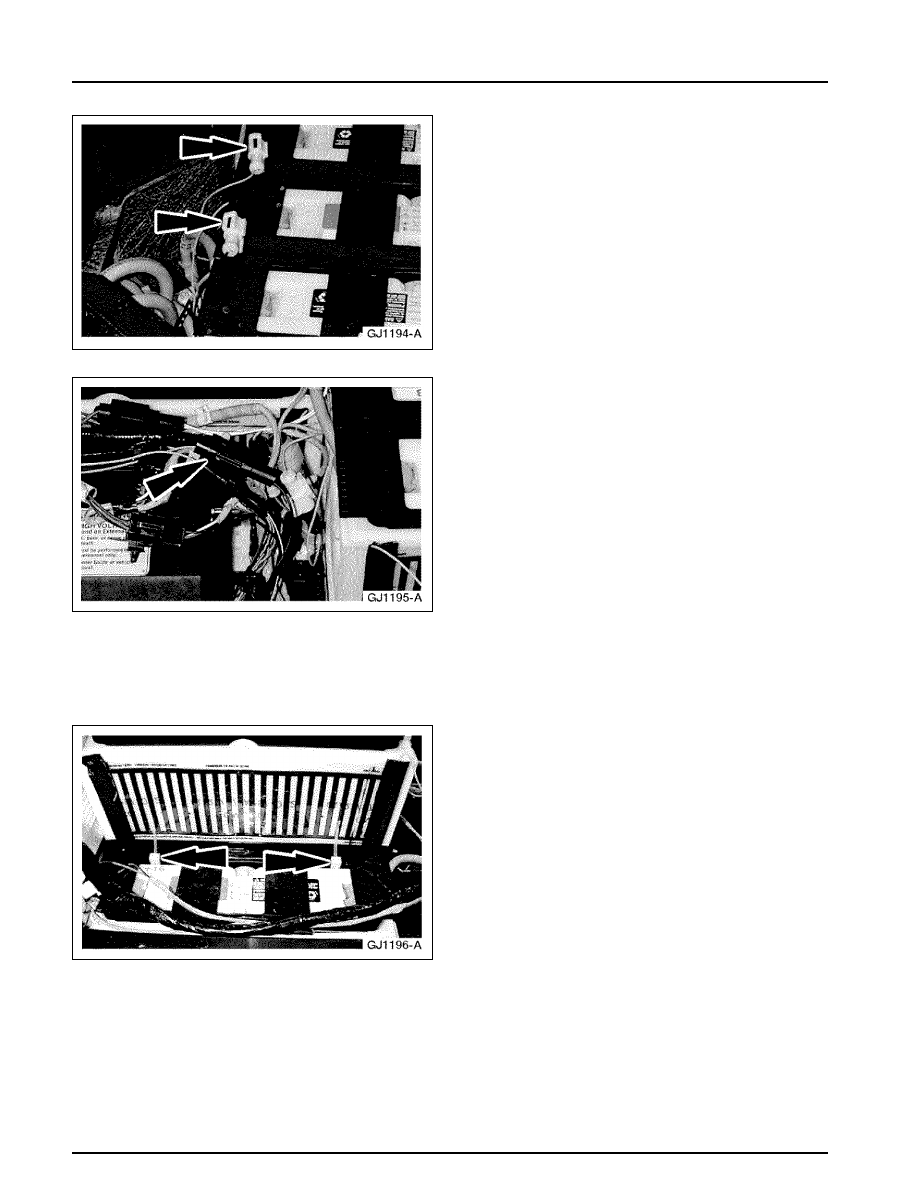

89. Clip the contactor box jumper harness into the

separator plate.

90. Connect the P and M sense lead connectors.

•

Clip the P sense lead connector into the
high-voltage harness.

91. Connect the E, F, and N sense lead connectors.

•

Clip the F and N connectors into the
high-voltage harness.

•

Clip the E connector into the separator plate.

414-03A-199

414-03A-199

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

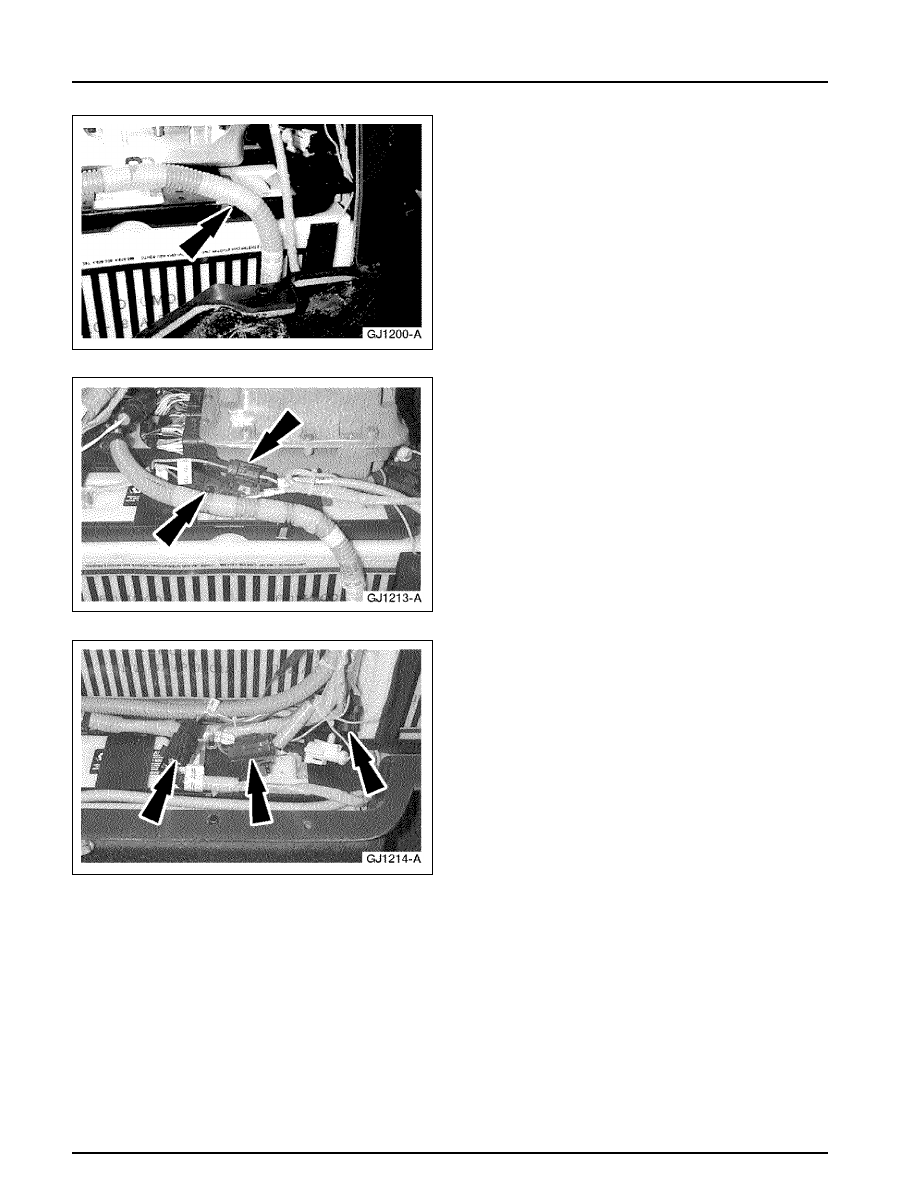

92. Connect the heating element electrical connector

and clip it into the BCM harness.

93. Position the contactor box harness.

•

Clip the contactor box harness into the four
high-voltage harness clips.

94. Clip the three contactor box harness clips into

the separator plate.
