414-03A-168

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

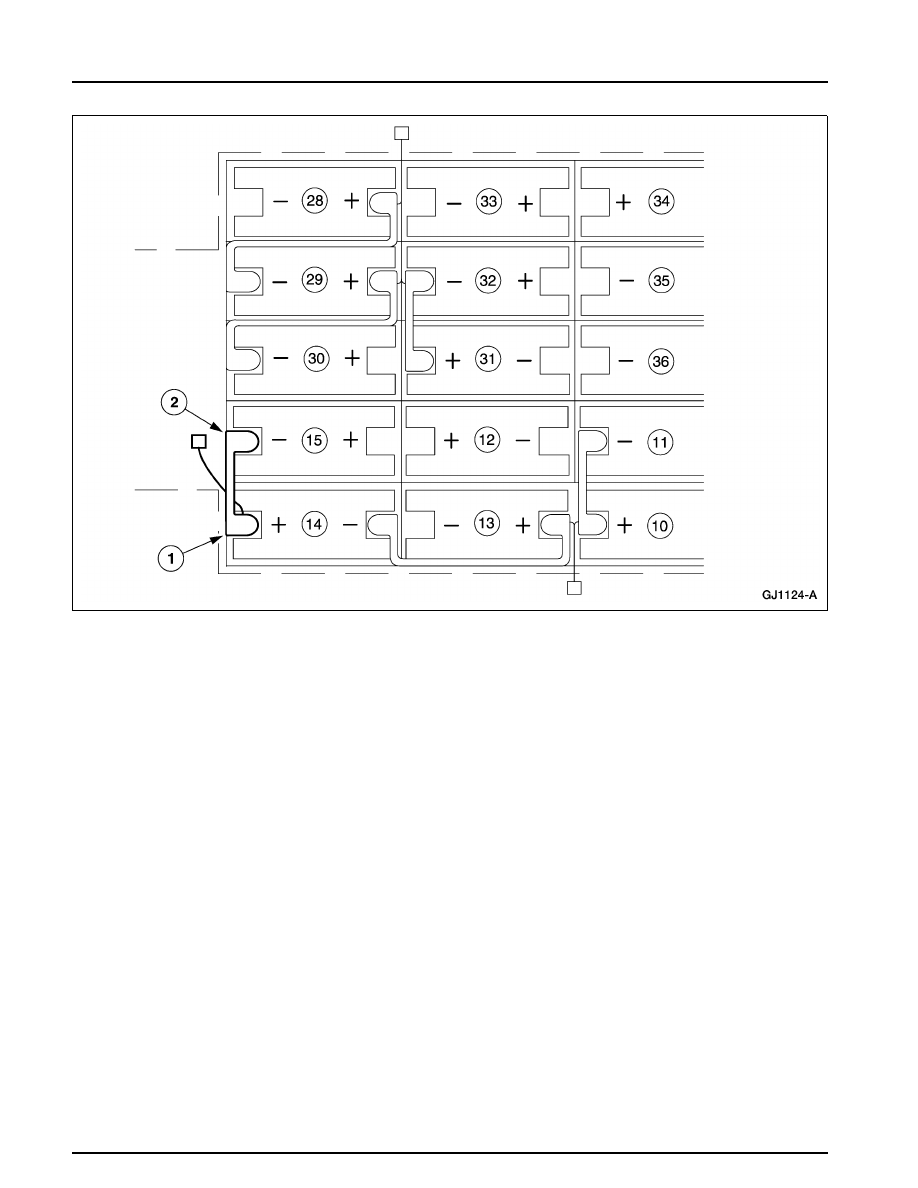

17. Install the K HVJ.

1 Install the 14+ nut.
2 Install the 15- nut.

414-03A-169

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

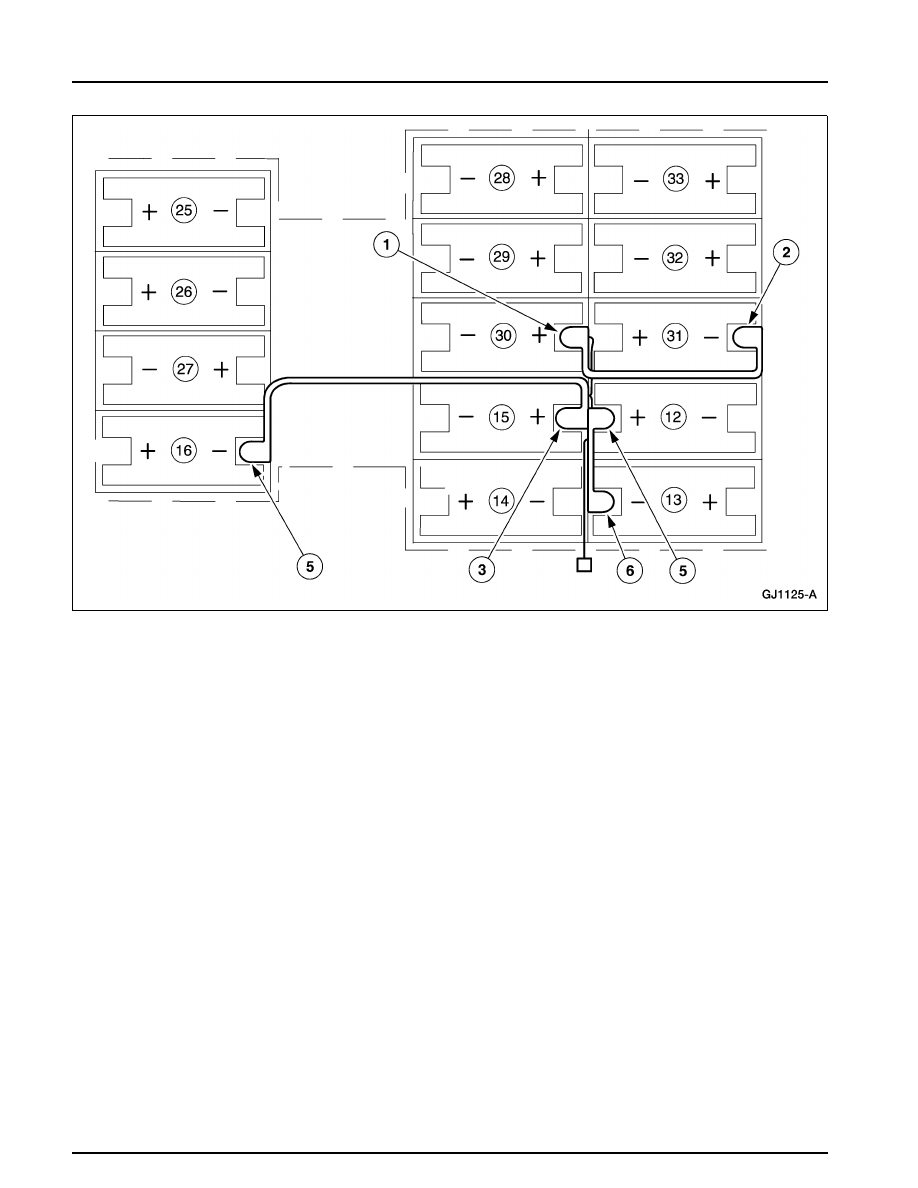

18. Install the J HVJ.

1 Install the 30+ nut.
2 Install the 31- nut.
3 Install the 15+ nut.
4 Install the 16- nut.
5 Install the 12+ nut.
6 Install the 13- nut.

414-03A-170

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

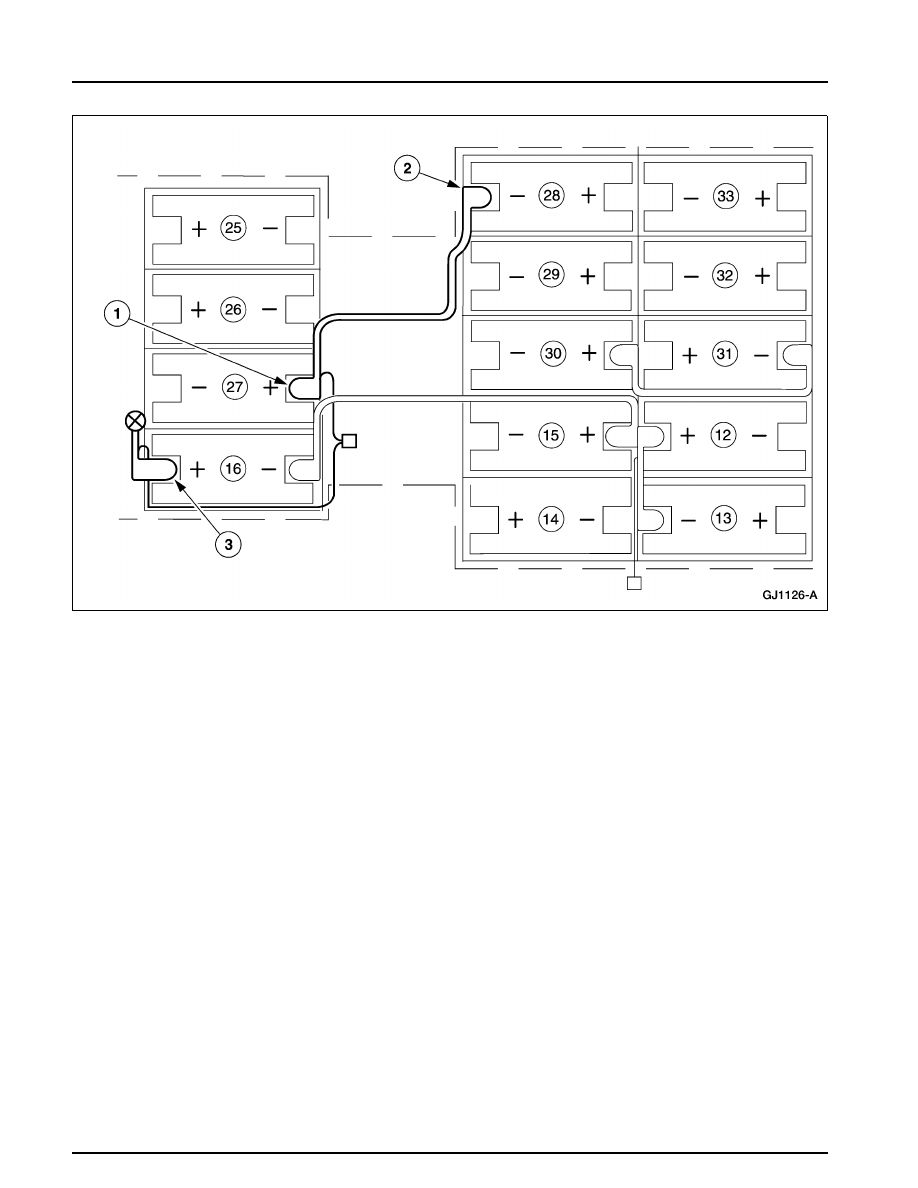

19. Install the L HVJ.

1 Install the 27+ nut.
2 Install the 28- nut.
3 Install the 16+ nut.

•

The remaining end is not connected at this
time. Close the cap.

414-03A-171

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

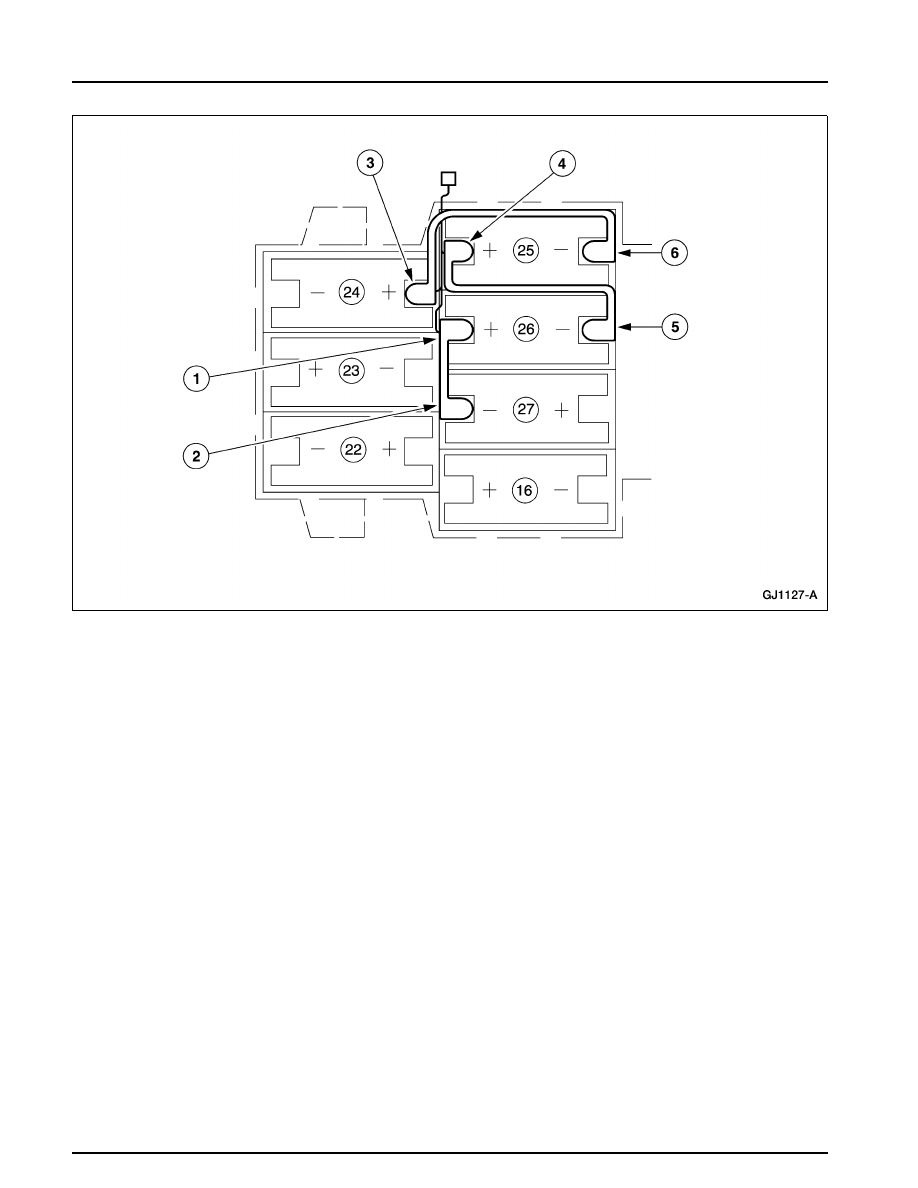

20. Install the N HVJ.

1 Install the 26+ nut.
2 Install the 27- nut.
3 Install the 24+ nut.
4 Install the 25+ nut.
5 Install the 26- nut.
6 Install the 25- nut.
