414-03A-160

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

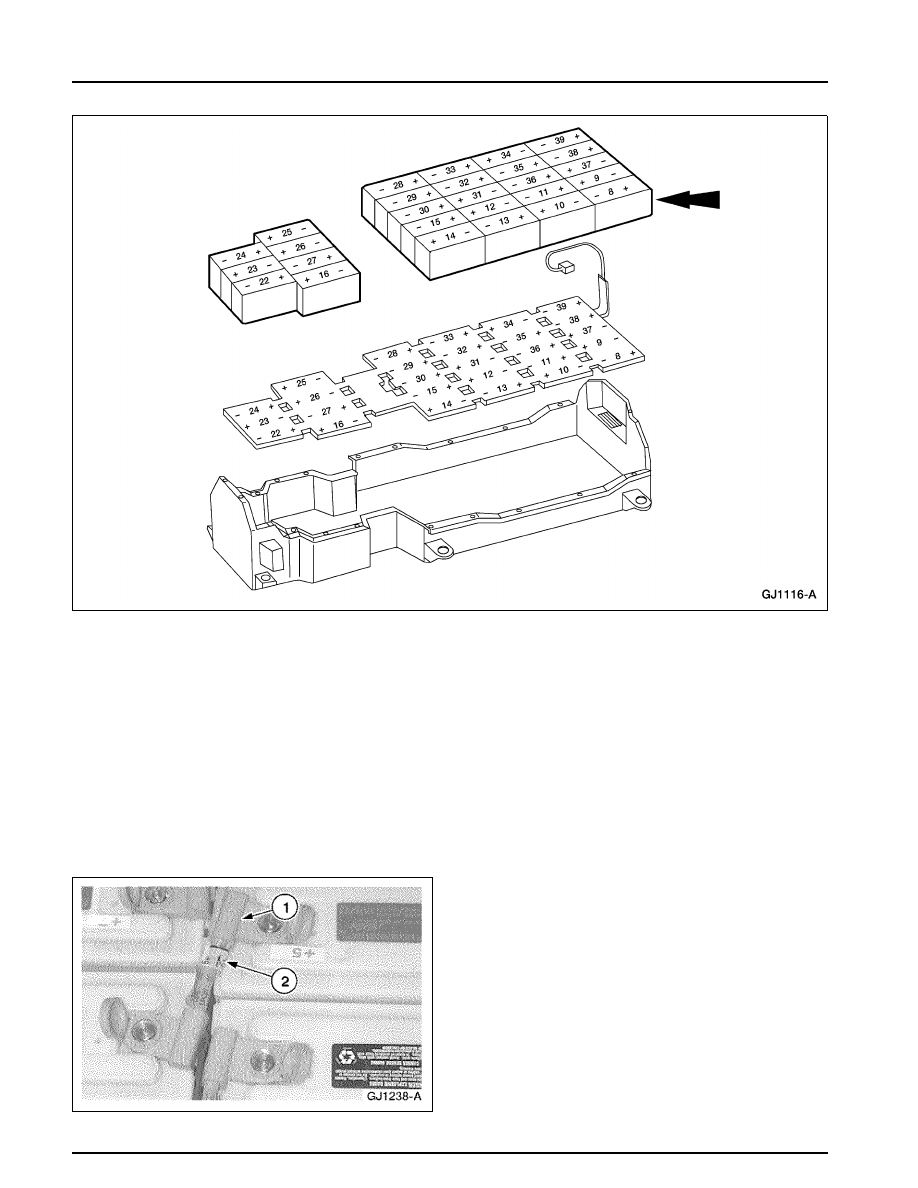

8. NOTE: The battery module numbers

correspond to the numbers on the heating
blanket.
NOTE: The battery modules must be installed
with the terminals oriented as illustrated.
Install the 27 lower-level battery modules.

•

Label the battery modules as illustrated.

NOTE: The high-voltage jumper (HVJ) retaining
nuts are hand-tightened during initial installation.

9. HVJ installation notes:

1 Position the HVJ cable ends parallel to the

side of the battery module.

2 Route the sense lead wiring under the main

HVJ cable.

414-03A-161

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

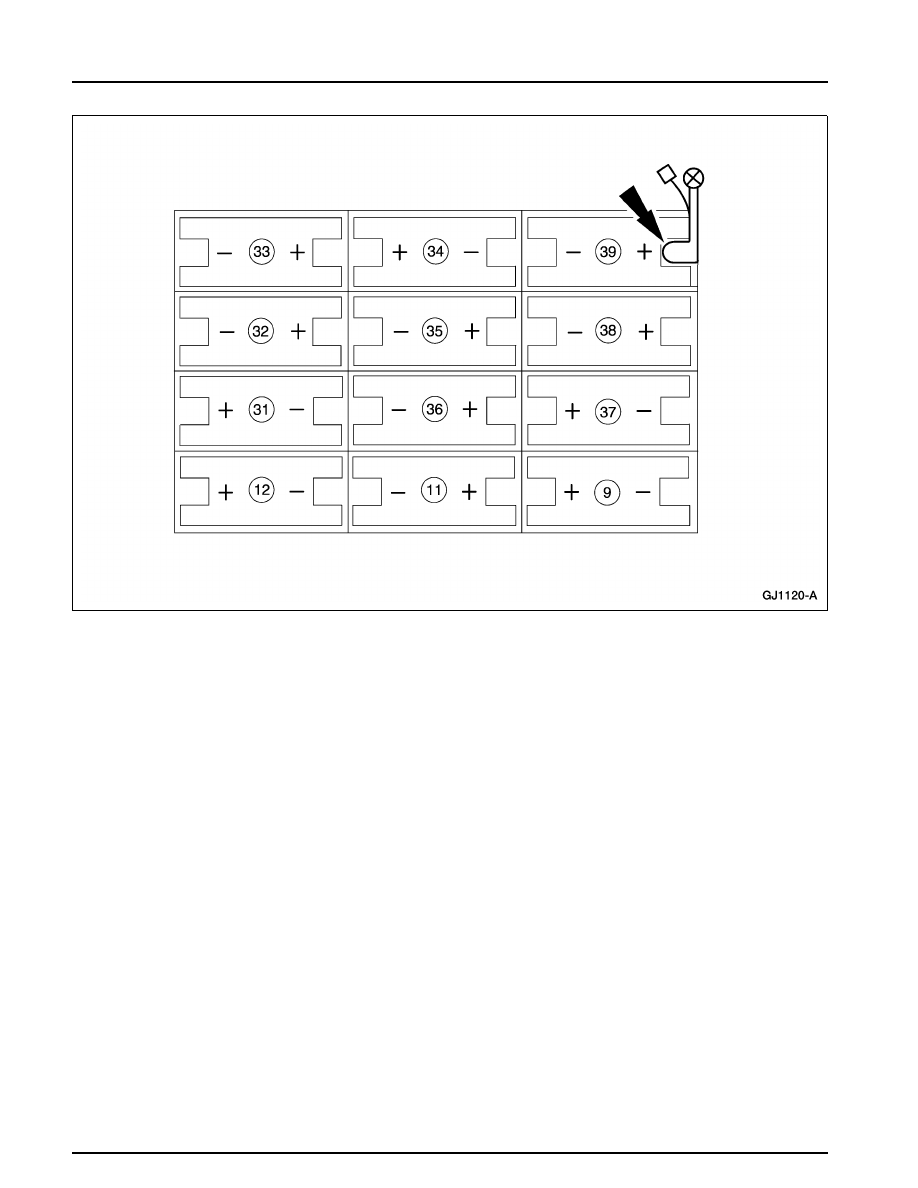

10. Install the W HVJ.

•

Install the 39+ nut.

414-03A-162

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

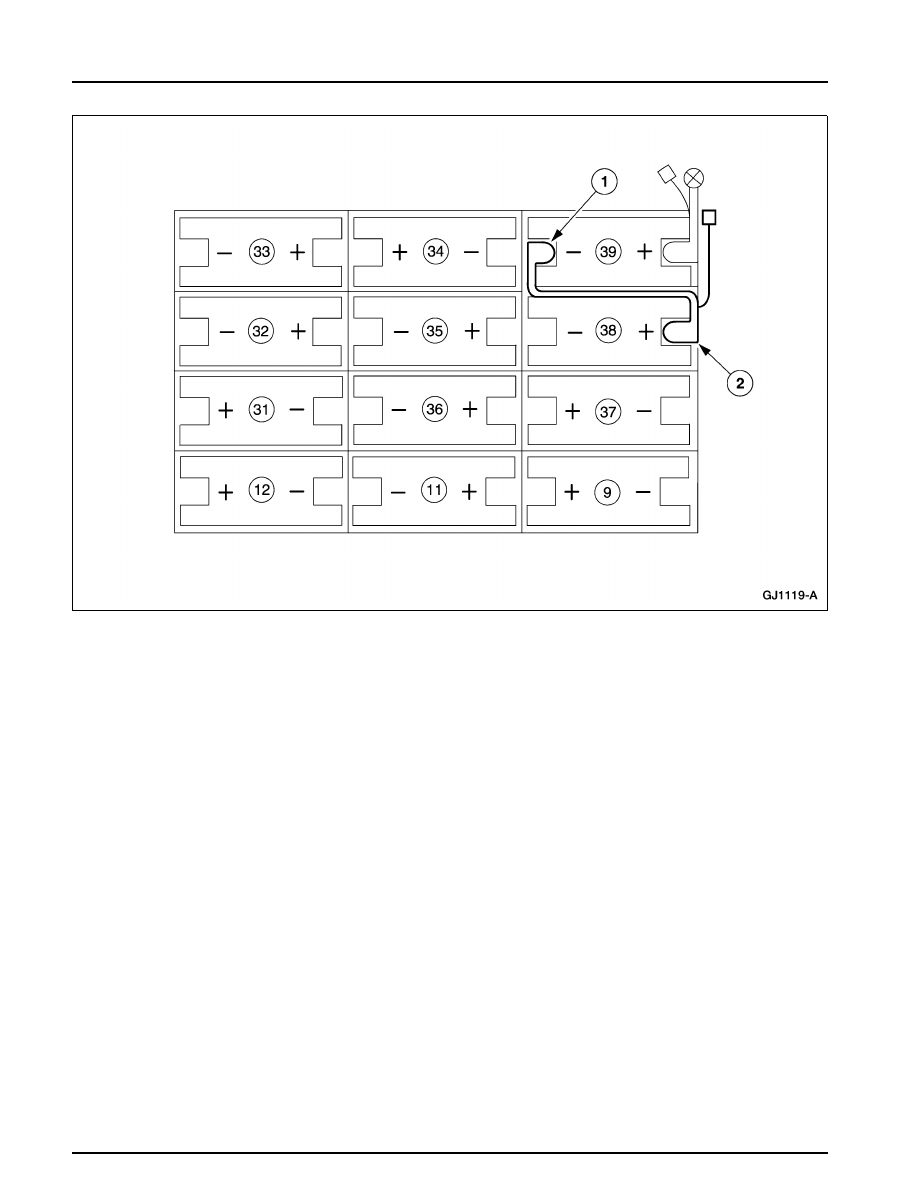

11. Install the V HVJ.

1 Install the 39 - nut.
2 Install the 38+ nut.

414-03A-163

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

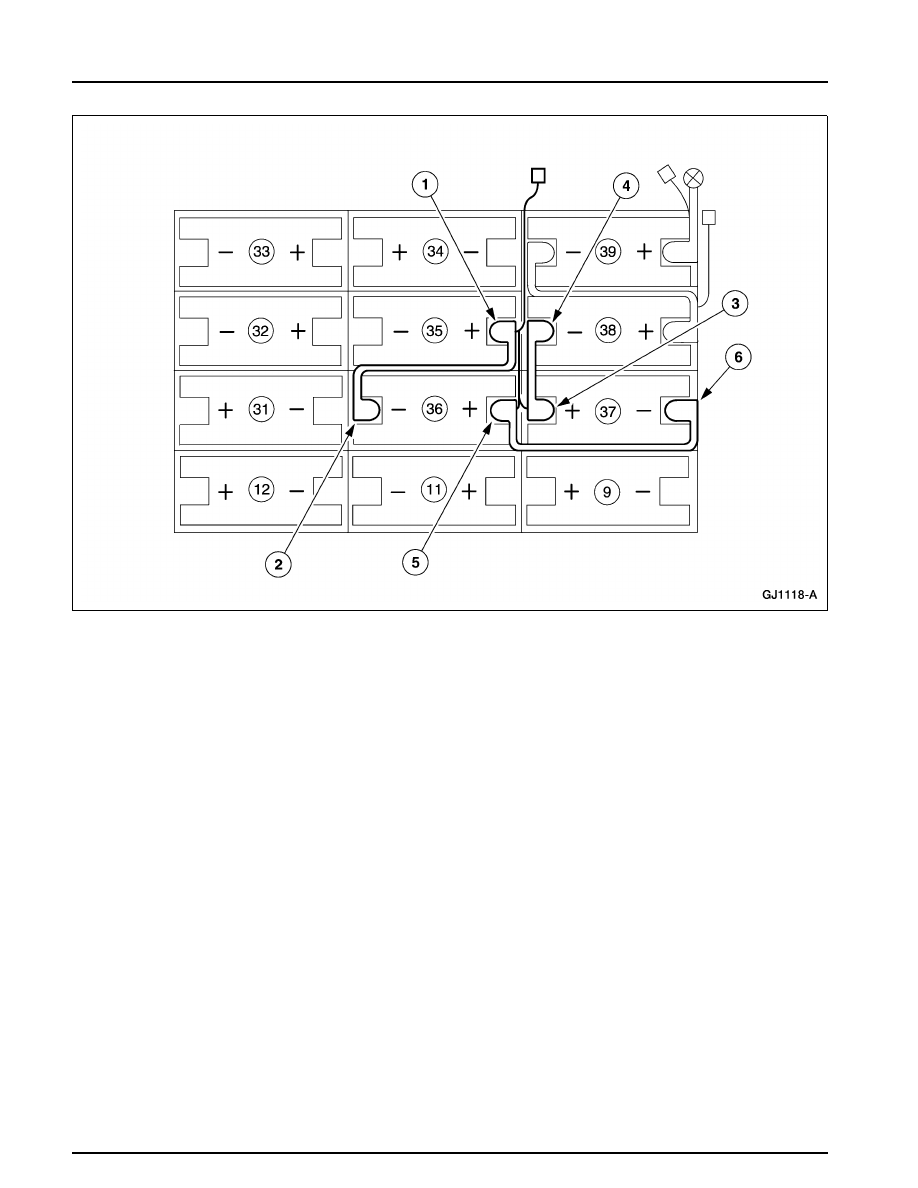

12. Install the U HVJ.

1 Install the 35+ nut.
2 Install the 36- nut.
3 Install the 37+ nut.
4 Install the 38- nut.
5 Install the 36+ nut.
6 Install the 37- nut.
