Ford Ranger EV (2001 year). Manual - part 142

414-03A-164

414-03A-164

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

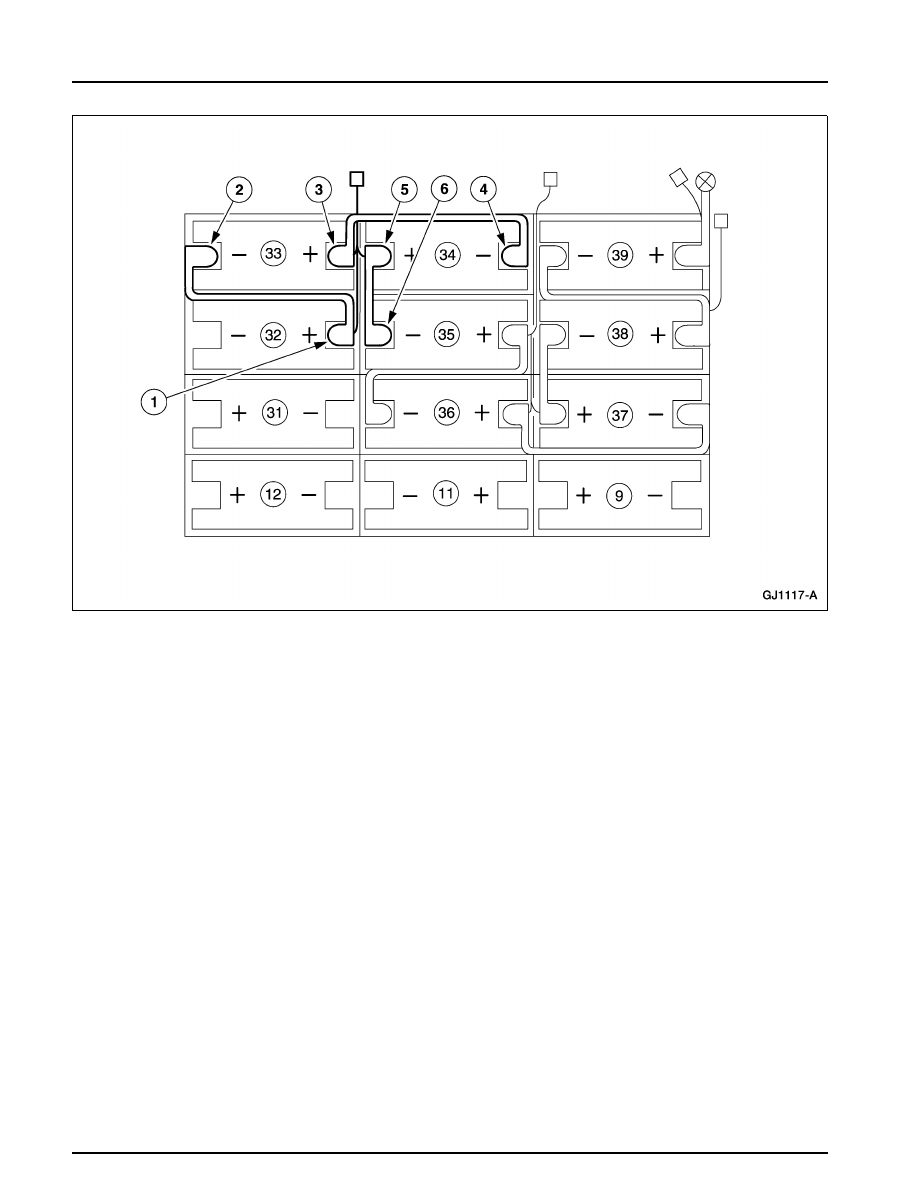

13. Install the T HVJ.

1 Install the 32+ nut.
2 Install the 33- nut.
3 Install the 33+ nut.
4 Install the 34- nut.
5 Install the 34+ nut.
6 Install the 35- nut.

414-03A-165

414-03A-165

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

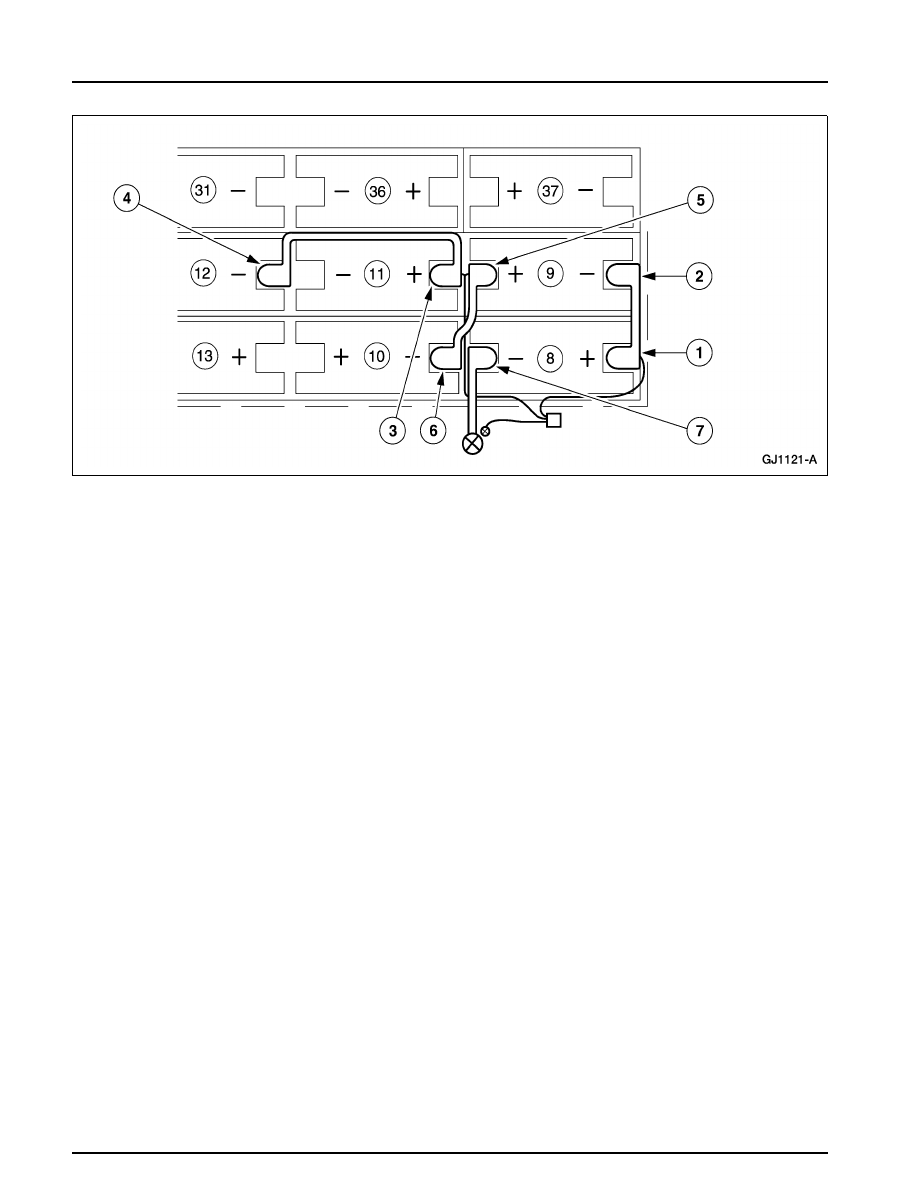

14. Install the G HVJ.

1 Install the 8+ nut.
2 Install the 9- nut.
3 Install the 11+ nut.
4 Install the 12- nut.
5 Install the 9+ nut.
6 Install the 10- nut.
7 Install the 8- nut.

•

The remaining end is not connected at this
time. Close the cap.

414-03A-166

414-03A-166

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

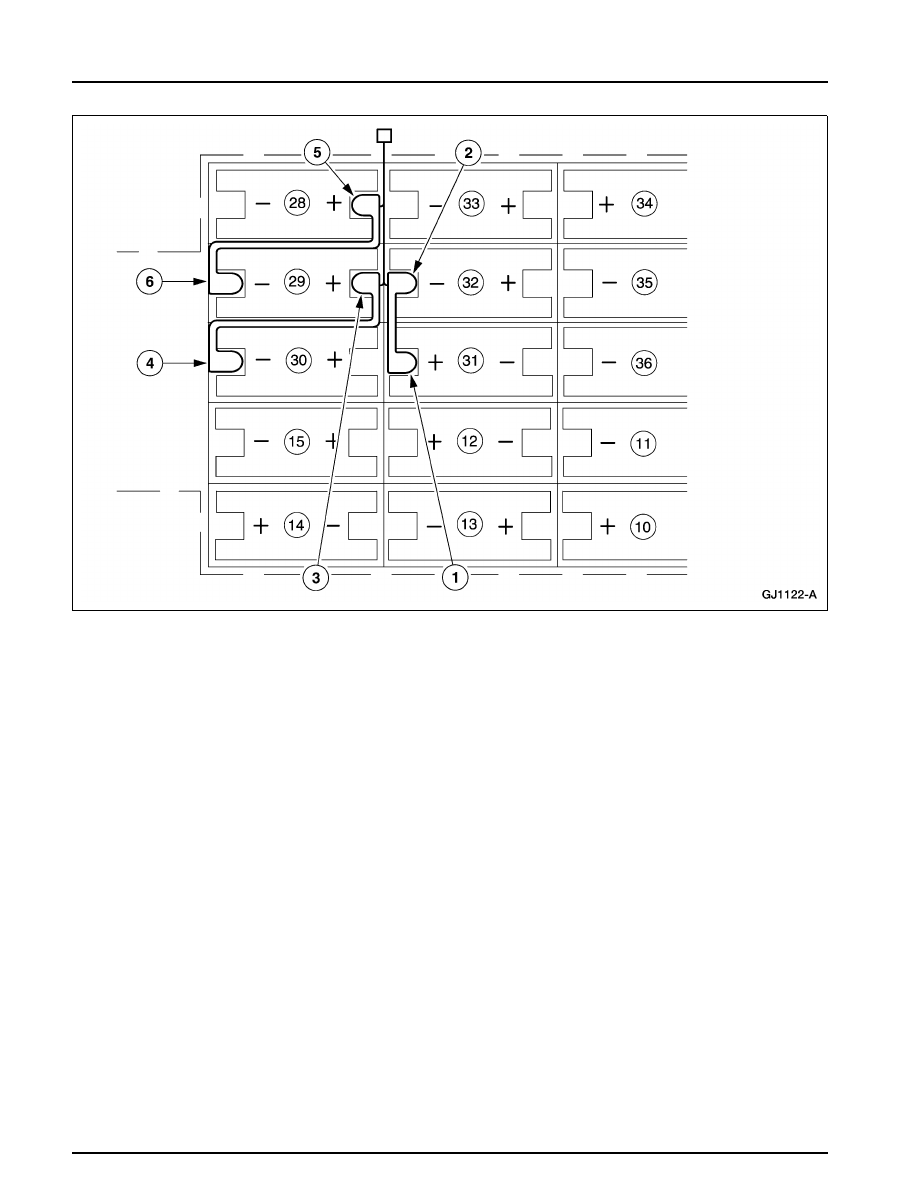

15. Install the S HVJ.

1 Install the 31+ nut.
2 Install the 32- nut.
3 Install the 29+ nut.
4 Install the 30- nut.
5 Install the 28+ nut.
6 Install the 29- nut.

414-03A-167

414-03A-167

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

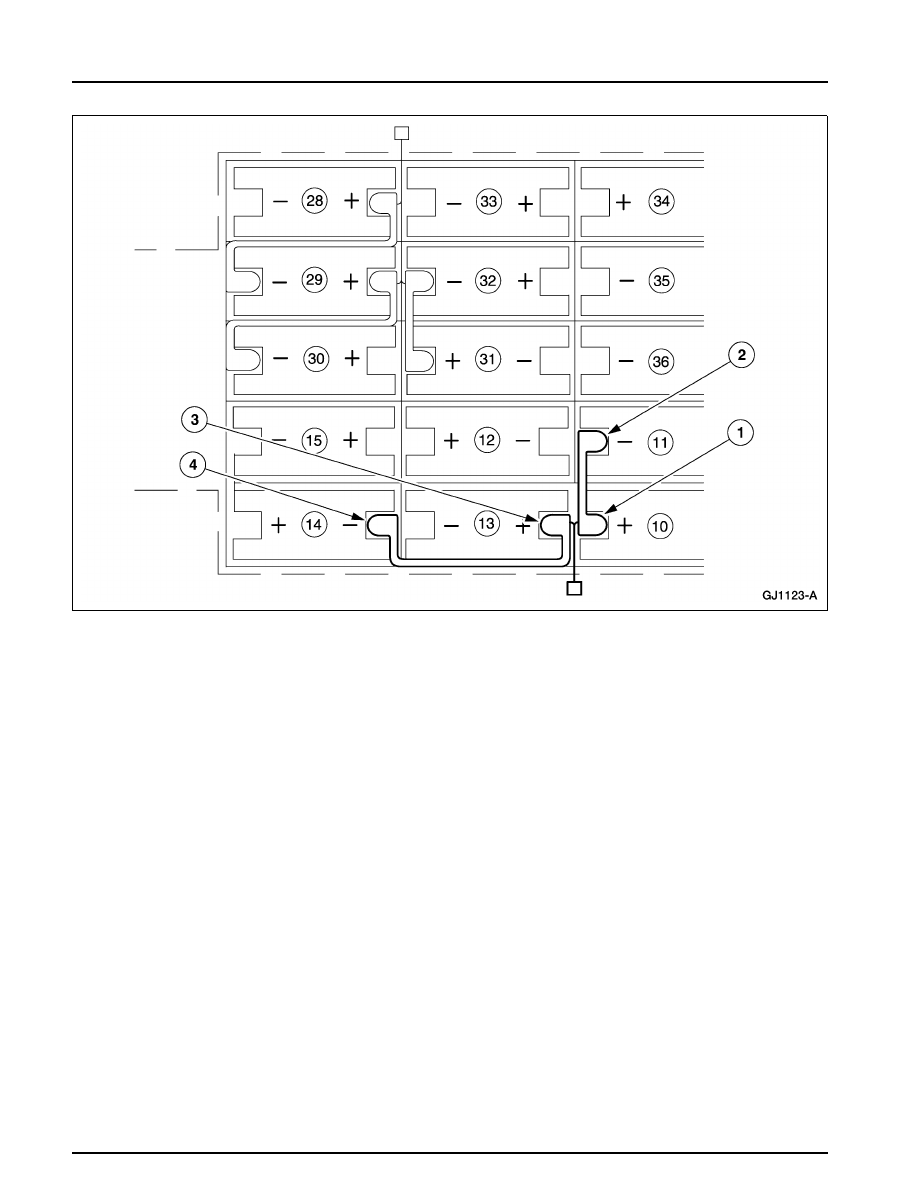

16. Install the R HVJ.

1 Install the 10+ nut.
2 Install the 11- nut.
3 Install the 13+ nut.
4 Install the 14- nut.
