Ford Ranger EV (2001 year). Manual - part 37





206-05-9

206-05-9

Parking Brake and Actuation

REMOVAL AND INSTALLATION (Continued)

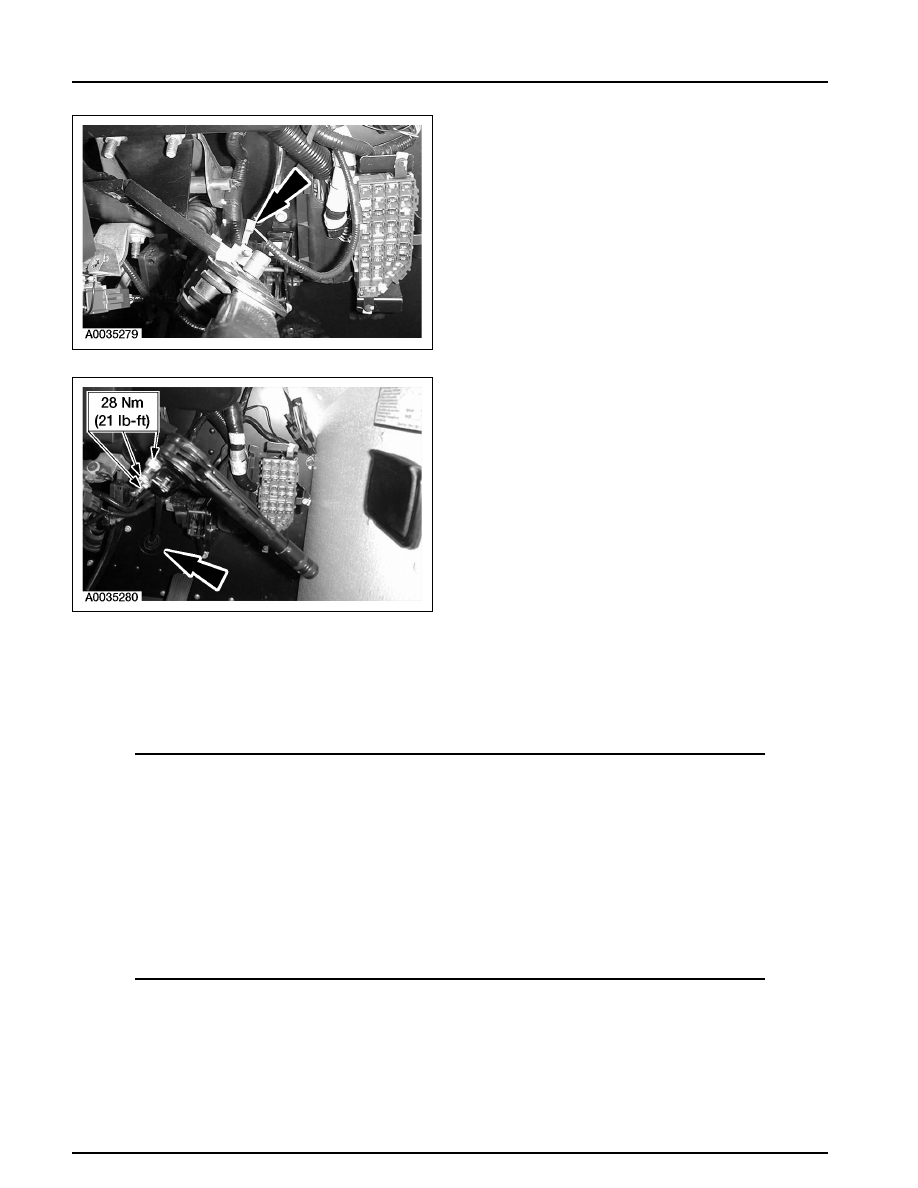

6. Disconnect the parking brake control switch

electrical connector.

7. Remove the three bolts, loosen the grommet

from the bulkhead and remove the parking
brake control assembly.

8. Remove the front cable from the control

assembly.

9. To install, reverse the removal procedure.

Parking Brake Cables —Intermediate

Removal

1. The intermediate cable on the Electric Ranger is

carryover from the standard Ranger. Refer to
Section 206-05 of the 2001 Ranger Workshop
Manual.

206-05-10

206-05-10

Parking Brake and Actuation

REMOVAL AND INSTALLATION (Continued)

Parking Brake Cables —Rear

Removal

1. Remove the traction battery. Refer to

 Section

414-03A

 or

 Section 414-03B

.

2. Release tension on the parking brake cable.

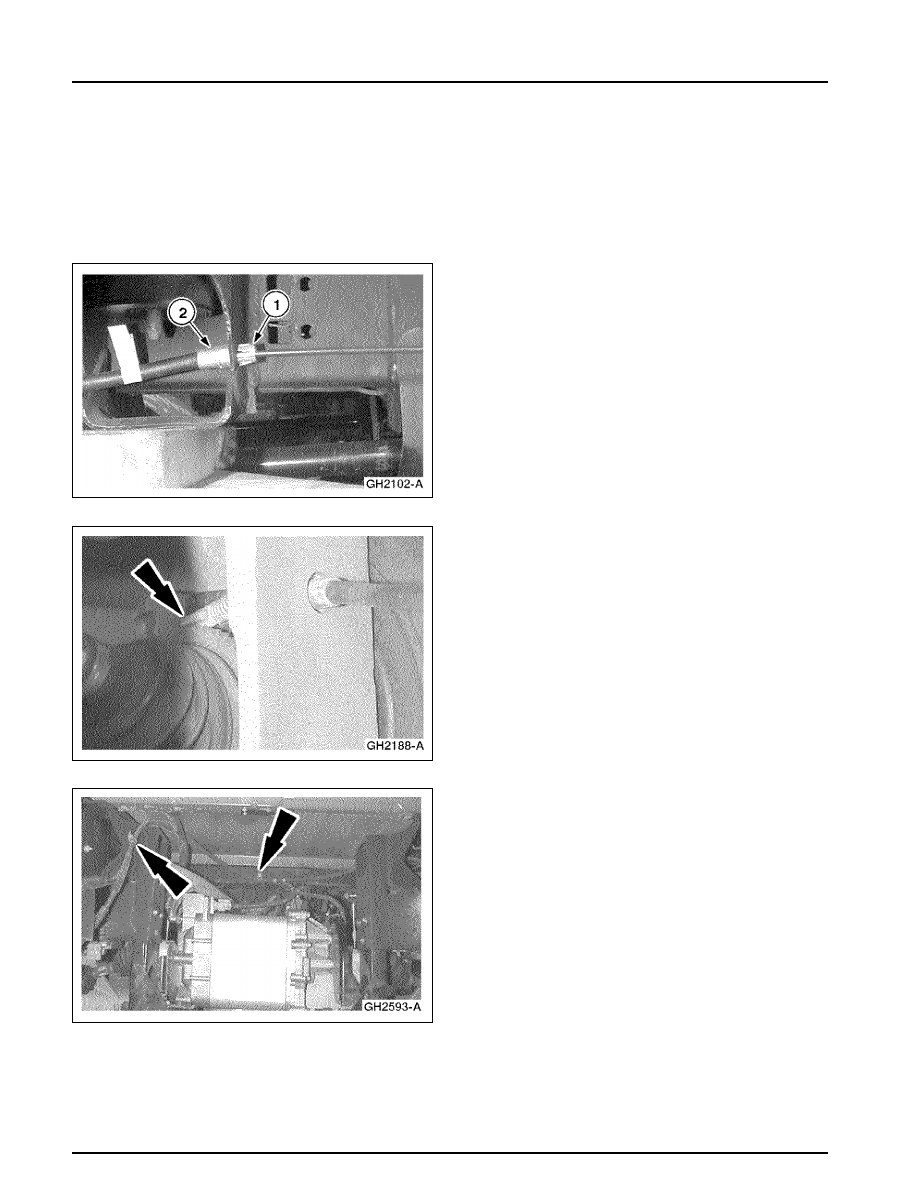

1 Compress the retainer.
2 Remove the front parking brake cable from

the bracket.

3. NOTE: RH shown, LH similar.

Disconnect the LH and RH parking brake
cables.

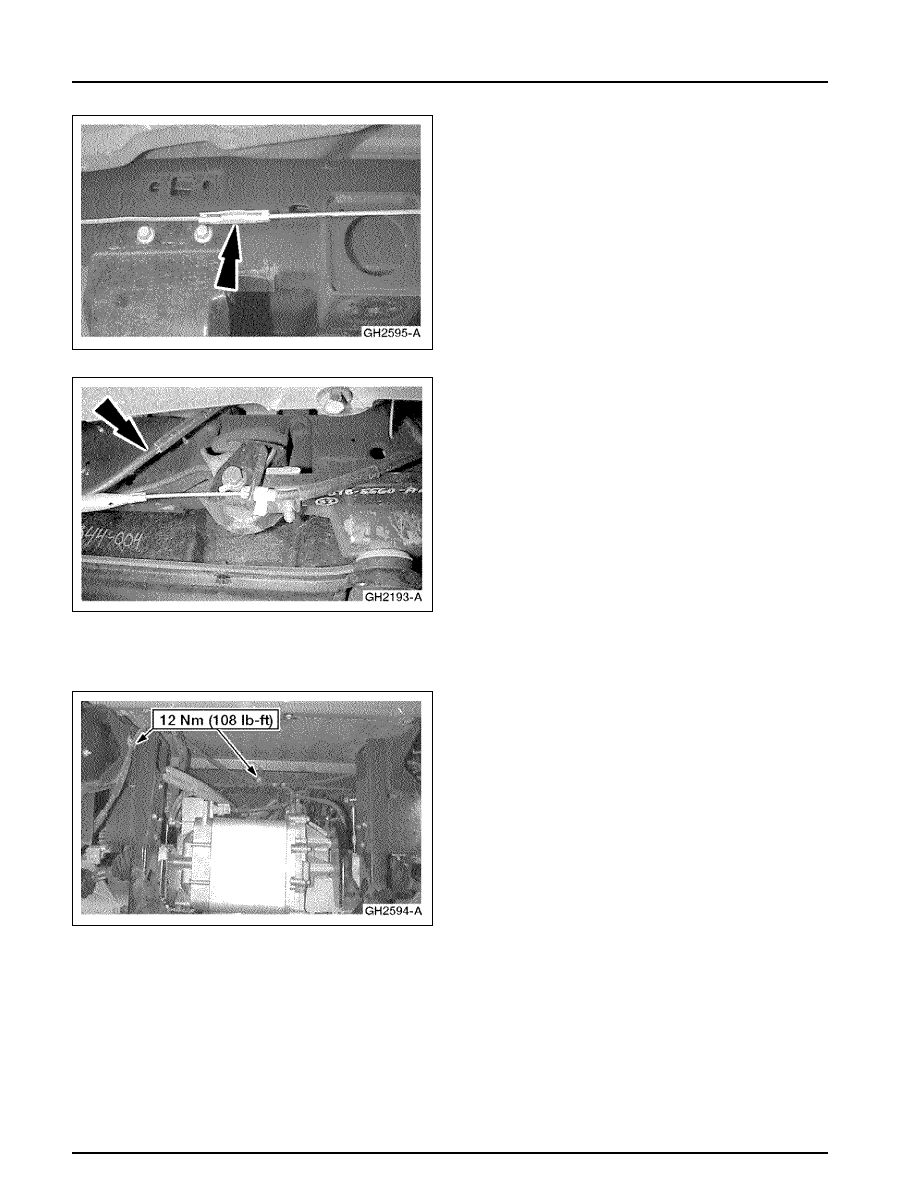

4. Remove the two RH brake cable bracket bolts

(RH only).

206-05-11

206-05-11

Parking Brake and Actuation

REMOVAL AND INSTALLATION (Continued)

5. Disconnect the rear brake cable from the

intermediate brake cable.

6. Remove the rear parking brake cable.

•

Disconnect the parking brake cable.

Installation

1. To install, reverse the removal procedure.
