Ford Ranger EV (2001 year). Manual - part 36

206-05-5

206-05-5

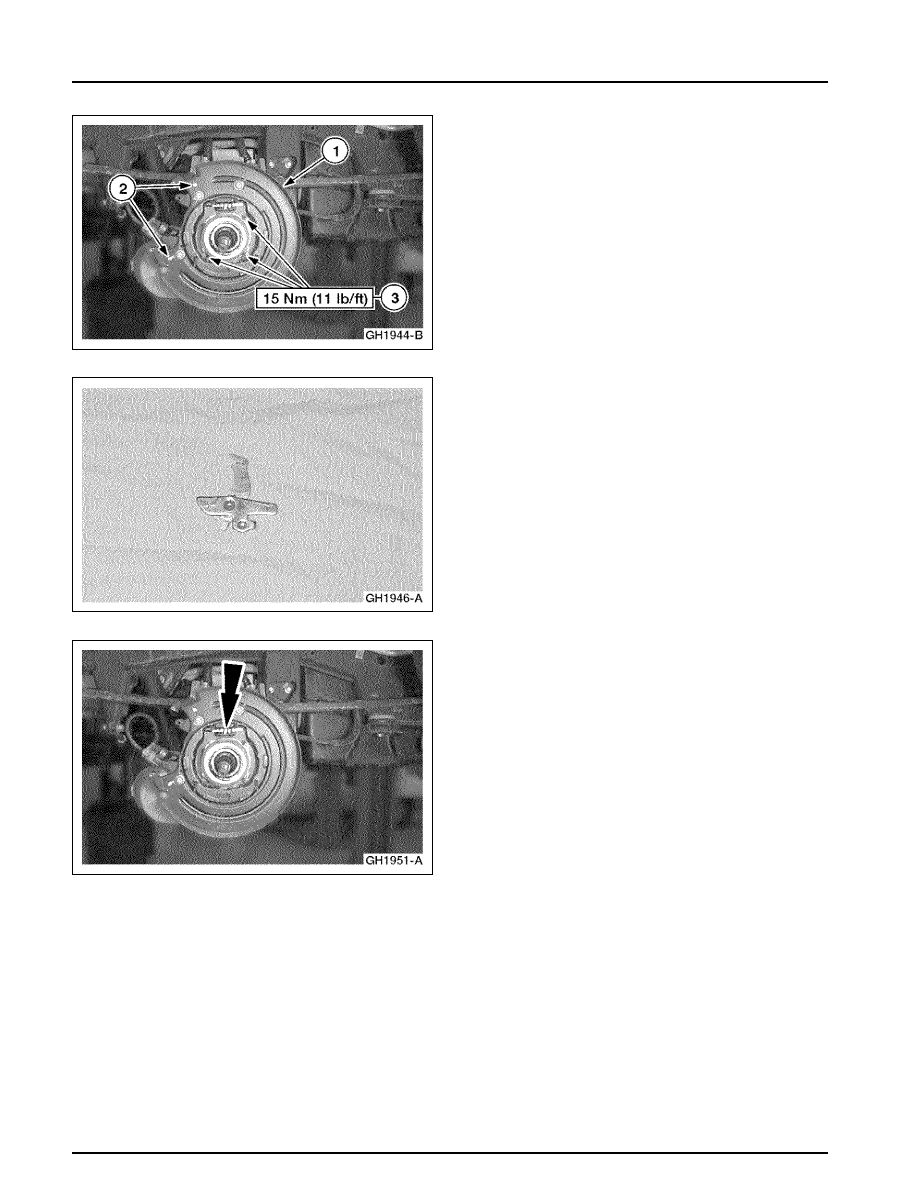

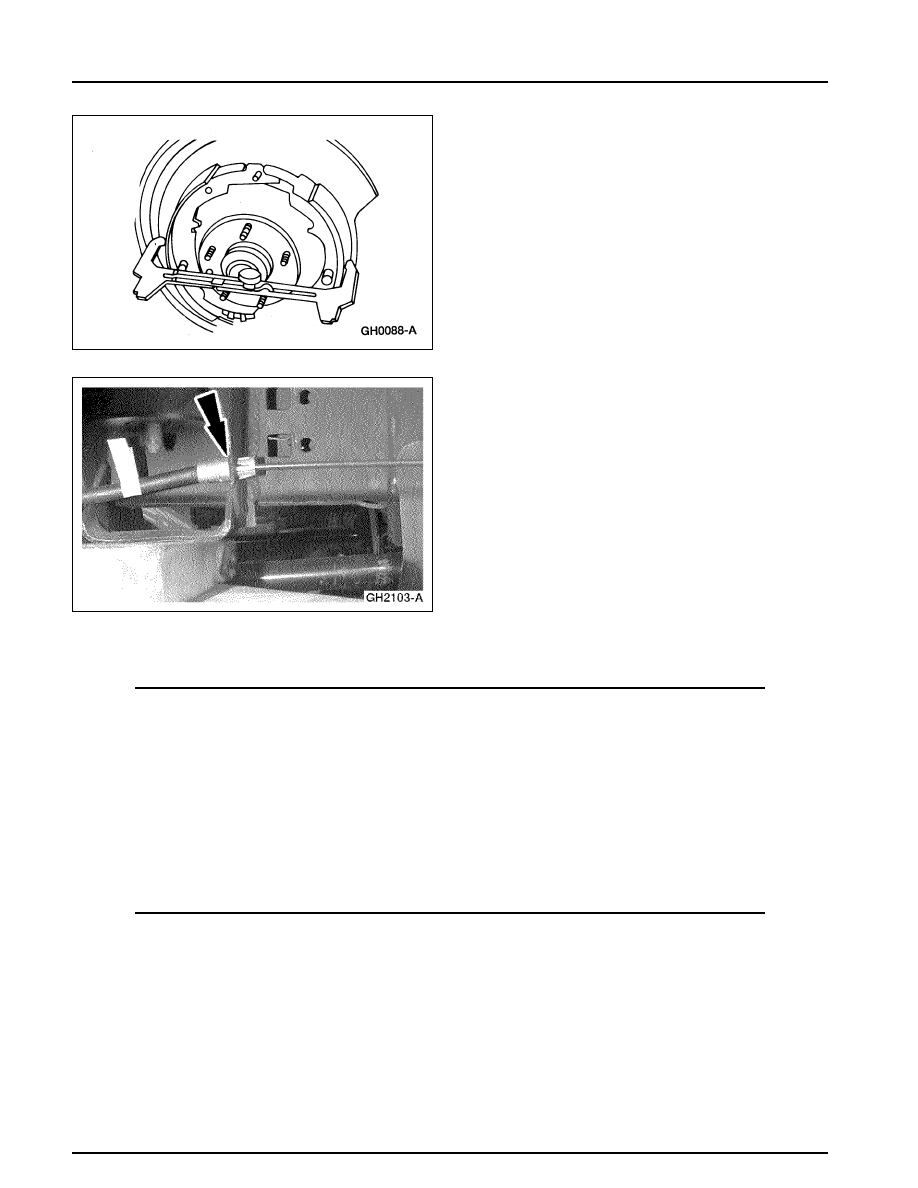

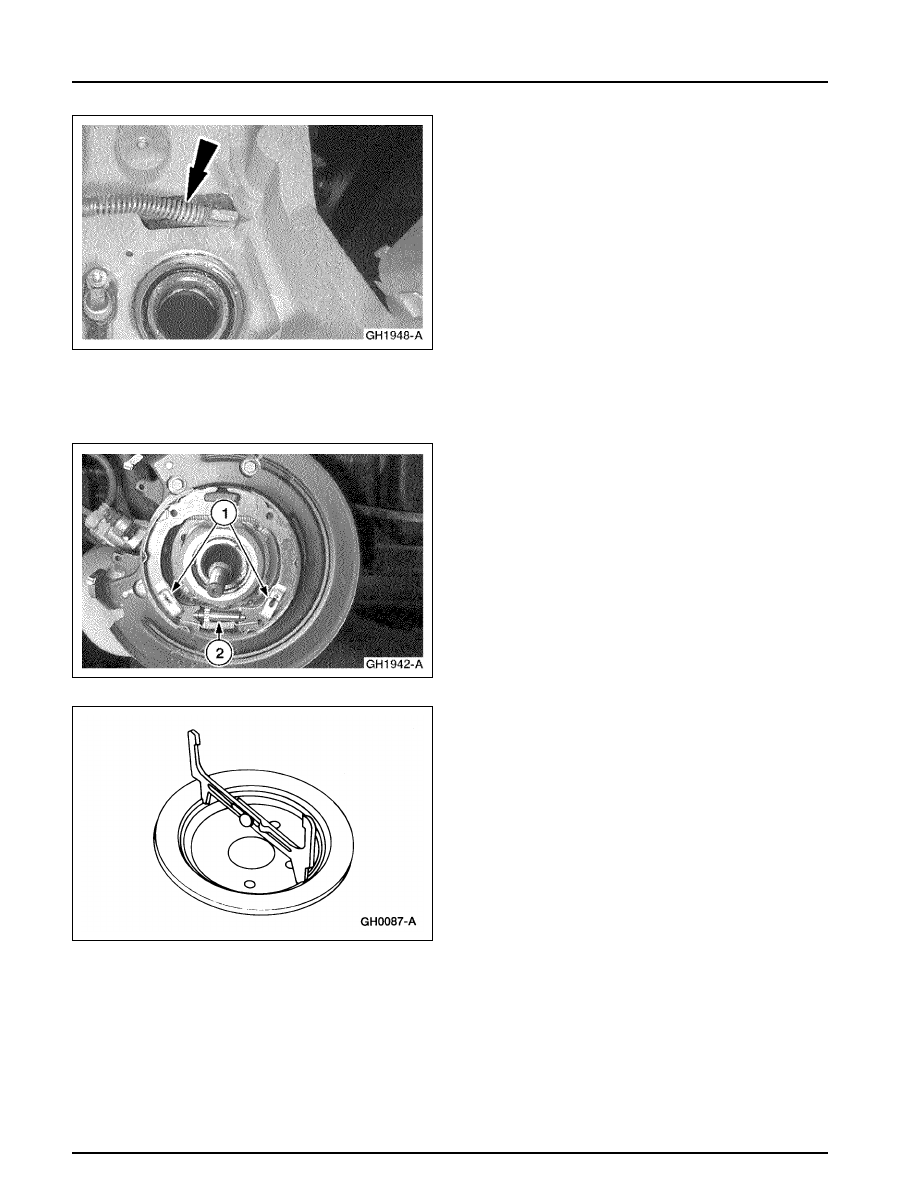

Parking Brake and Actuation

REMOVAL AND INSTALLATION (Continued)

2. Install the backing plate.

1 Position the backing plate.
2 Install two new rivets.
3 Install the three bolts.

3. Assemble the parking brake linkage.

4. NOTE: Position the linkage that connects to the

cable facing down.
Install the parking brake linkage.

206-05-6

206-05-6

Parking Brake and Actuation

REMOVAL AND INSTALLATION (Continued)

5. Connect the parking brake cable.

6. Install the inside upper brake shoe spring on the

brake shoes.

7. NOTE: The inside upper brake shoe spring

must be installed prior to positioning the brake
shoes.
Position the brake shoes and install the adjuster
and spring.
1 Install the retaining clips.
2 Position the adjuster and install the spring.

8. Use Brake Adjusting Gauge to measure the

inside diameter of the drum portion of the rear
disc brake rotor.

206-05-7

206-05-7

Parking Brake and Actuation

REMOVAL AND INSTALLATION (Continued)

9. Use Brake Adjusting Gauge to set the rear

brake shoe and lining to 0.508 mm (0.02 in)
less than the inside diameter of the drum
portion of the rear disc brake rotor.

•

Rotate the adjusting screw as necessary.

10. Position the parking brake cable in the bracket.

11. Install the hub. Refer to

 Section 204-02

.

Parking Brake Cables —Front

Removal

1. The parking brake control cables on the Electric

Ranger are carryover from the standard Ranger.
Refer to Section 206-05 of the 2001 Ranger
Workshop Manual.

Parking Brake Cables —Postal Ranger EV

Removal and Installation

1. Raise and support the vehicle. For additional

information, refer to

 Section 100-02

206-05-8

206-05-8

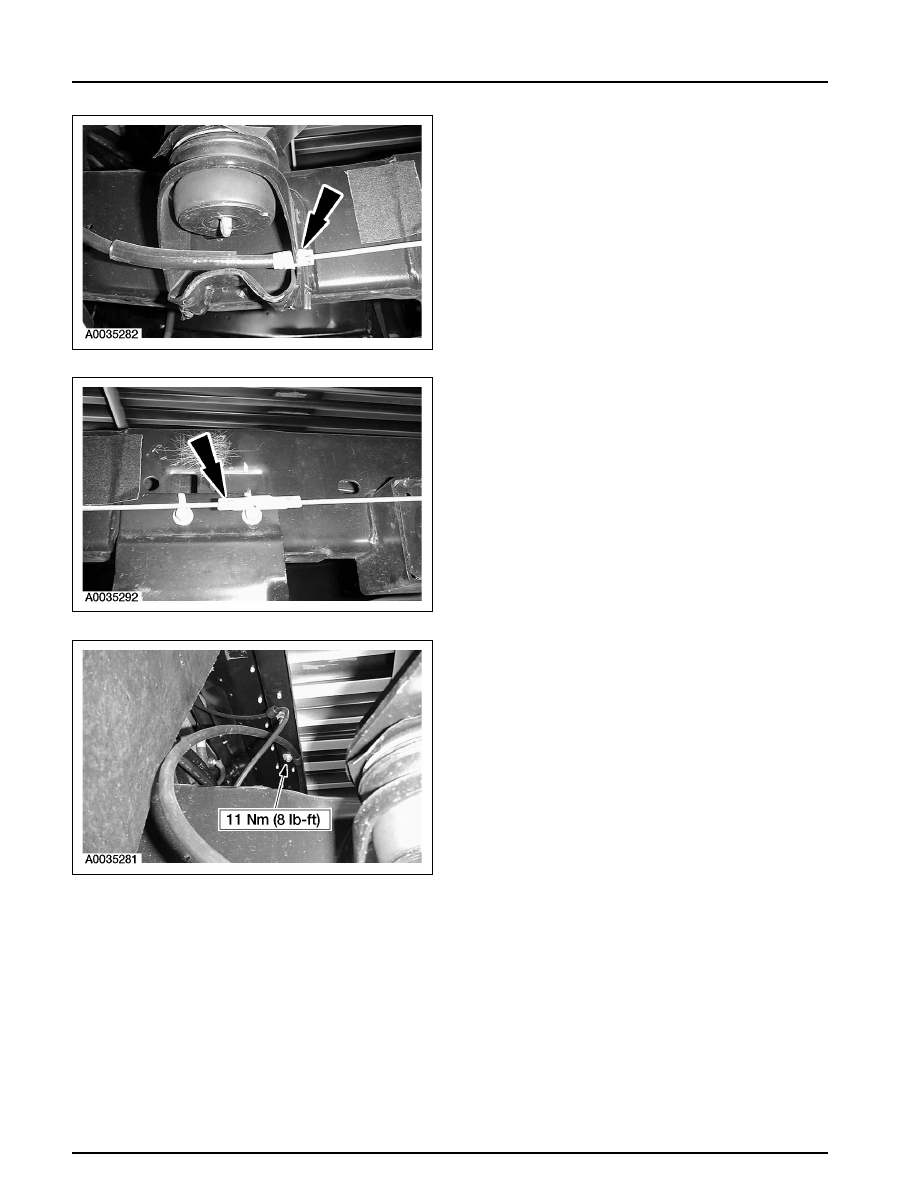

Parking Brake and Actuation

REMOVAL AND INSTALLATION (Continued)

2. Remove the front cable from the bracket.

3. Remove the front cable from the rear cable.

4. Remove the front cable hold-down bolt.

5. Lower the vehicle.
