Ford Ranger EV (2001 year). Manual - part 35

206-05-1

206-05-1

Parking Brake and Actuation

Manual Table of Contents

SECTION 206-05 Parking Brake and Actuation

VEHICLE APPLICATION:

Ranger EV

CONTENTS

PAGE

SPECIFICATIONS .......................................................................................

206-05-2

REMOVAL AND INSTALLATION

Parking Brake Assembly .............................................................................

206-05-2

Parking Brake Cables —Front ......................................................................

206-05-7

Parking Brake Cables —Intermediate .............................................................

206-05-9

Parking Brake Cables —Postal Ranger EV .......................................................

206-05-7

Parking Brake Cables —Rear .....................................................................

206-05-10

206-05-2

206-05-2

Parking Brake and Actuation

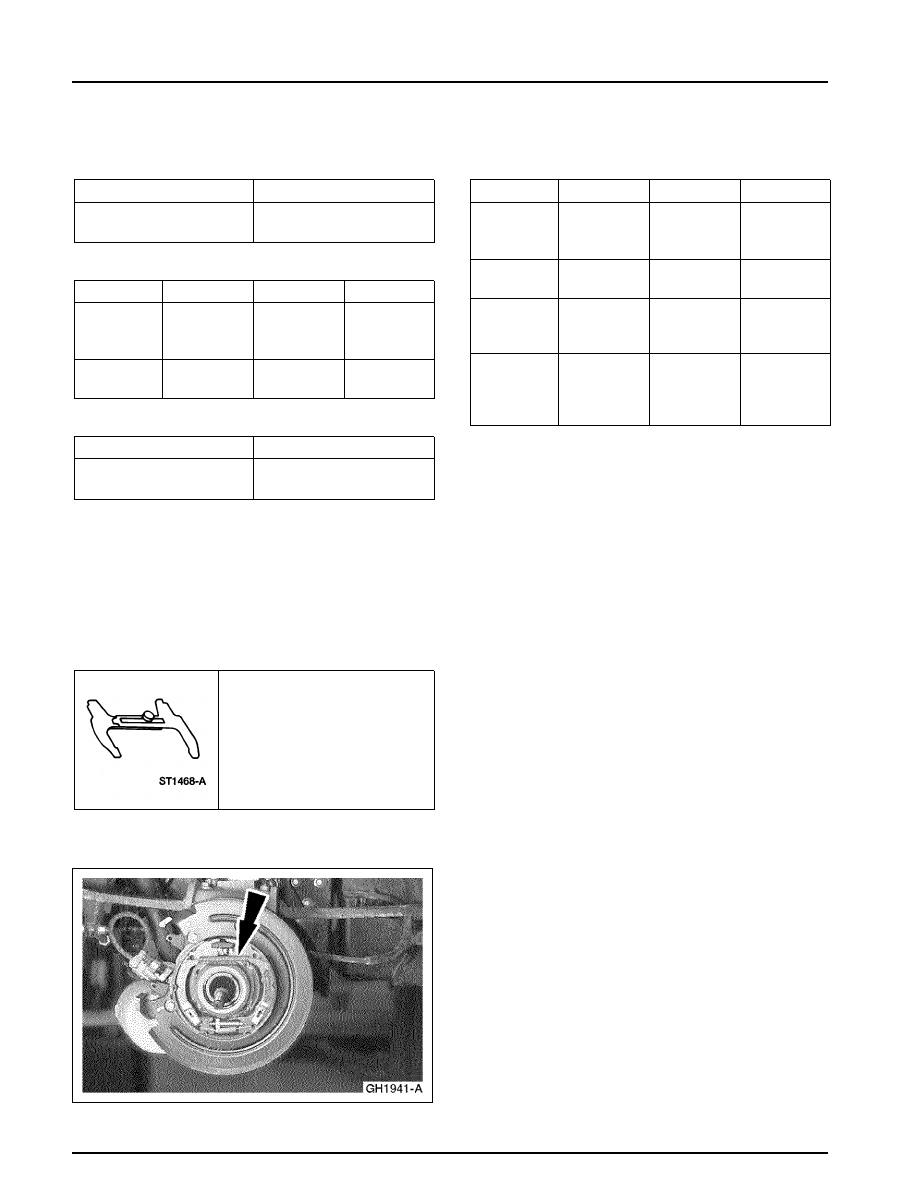

SPECIFICATIONS

General Specifications

Torque Specifications—Postal Ranger EV

Item

Specification

Description

Nm

Lb-Ft

Lb-In

Parking Brake Shoe

0.508 mm (0.02 in)

Brake cable

12

—

108

Lining Setup Diameter

bracket

bolts

Torque Specifications

Backing

15

11

—

plate bolts

Description

Nm

Lb-Ft

Lb-In

Control

28

21

—

Brake cable

12

—

108

bracket

bracket

bolts

bolts

Parking

11

8

—

Backing

15

11

—

brake cable

plate bolts

bracket

bolts

General Specifications—Postal Ranger EV

Item

Specification

Parking Brake Shoe

0.508 mm (0.02 in)

Lining Setup Diameter

REMOVAL AND INSTALLATION

Parking Brake Assembly

Special Tool(s)

Brake Adjusting Gauge or

equivalent

206-D002 (D81L-1103-A)

1. Remove the hub. Refer to

 Section 204-02

.

2. Remove the upper shoe spring.

206-05-3

206-05-3

Parking Brake and Actuation

REMOVAL AND INSTALLATION (Continued)

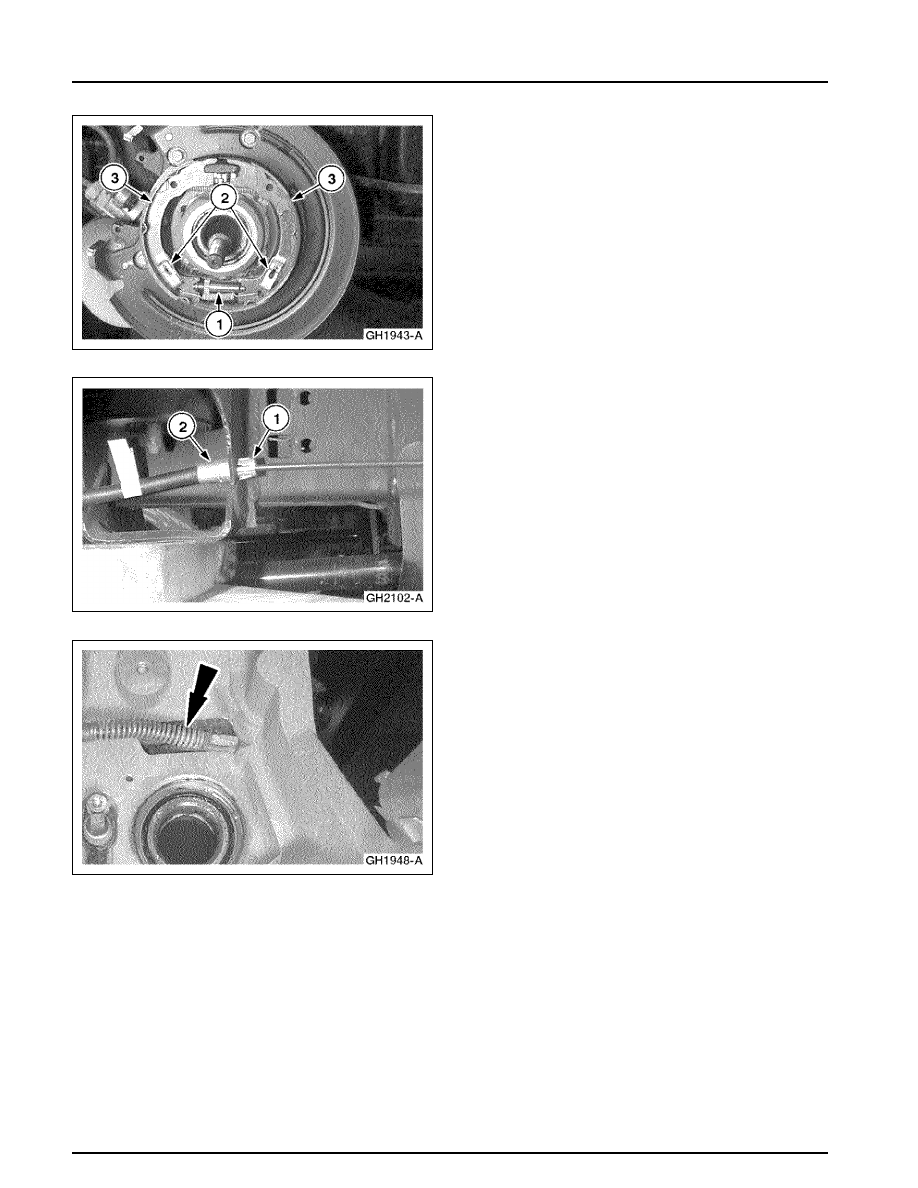

3. Remove the brake shoes.

1 Remove the lower spring and adjuster.
2 Remove the shoe retaining clips.
3 Remove the brake shoes.

4. Release tension on the parking brake cable.

1 Compress the retainer.
2 Remove the parking brake cable from the

bracket.

5. Disconnect the parking brake cable.

206-05-4

206-05-4

Parking Brake and Actuation

REMOVAL AND INSTALLATION (Continued)

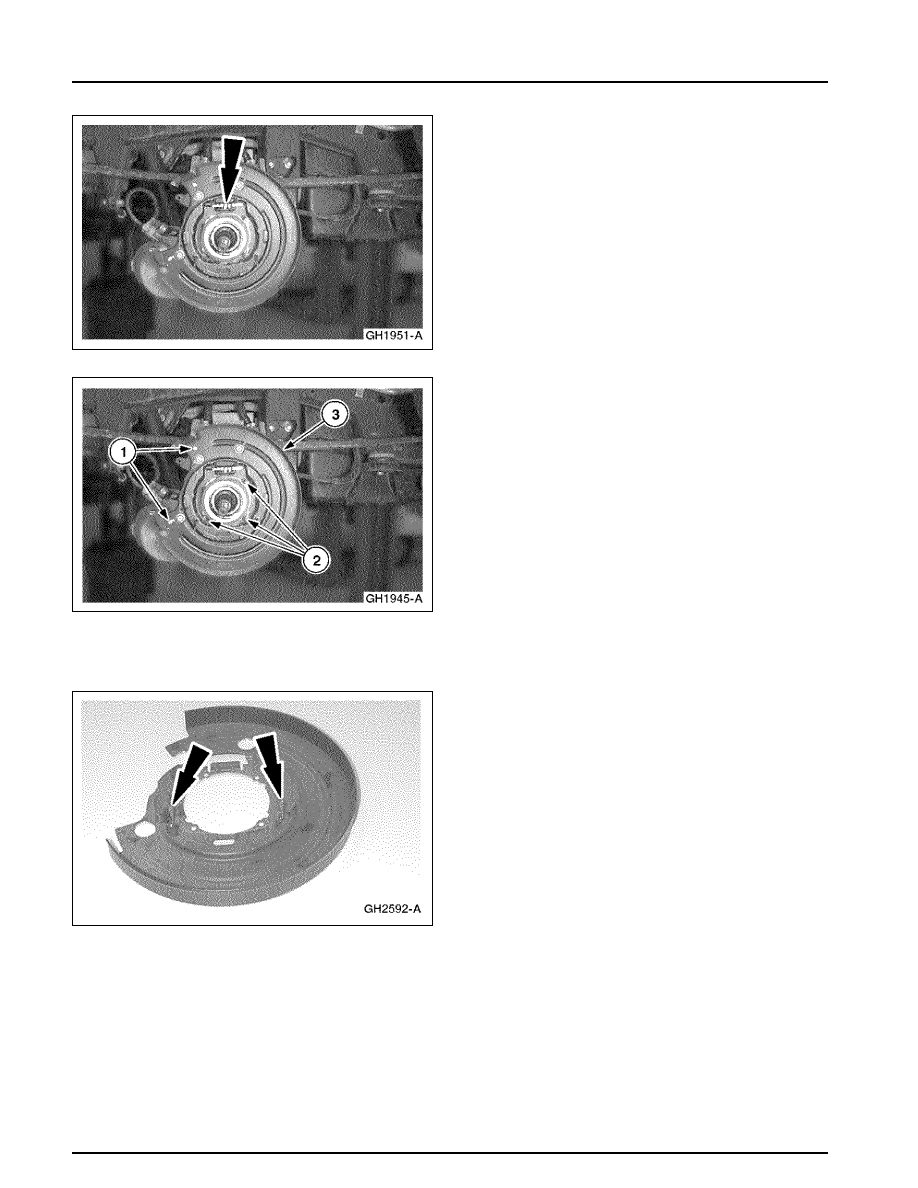

6. Remove the parking brake linkage.

7. Remove the backing plate.

1 Drill out the two rivet heads.
2 Remove the three bolts.
3 Remove the backing plate.

Installation

1. Install new brake shoe retaining pins in the

backing plate.
