Ford Ranger EV (2001 year). Manual - part 33





205-05-3

205-05-3

Rear Drive Halfshafts

REMOVAL AND INSTALLATION (Continued)

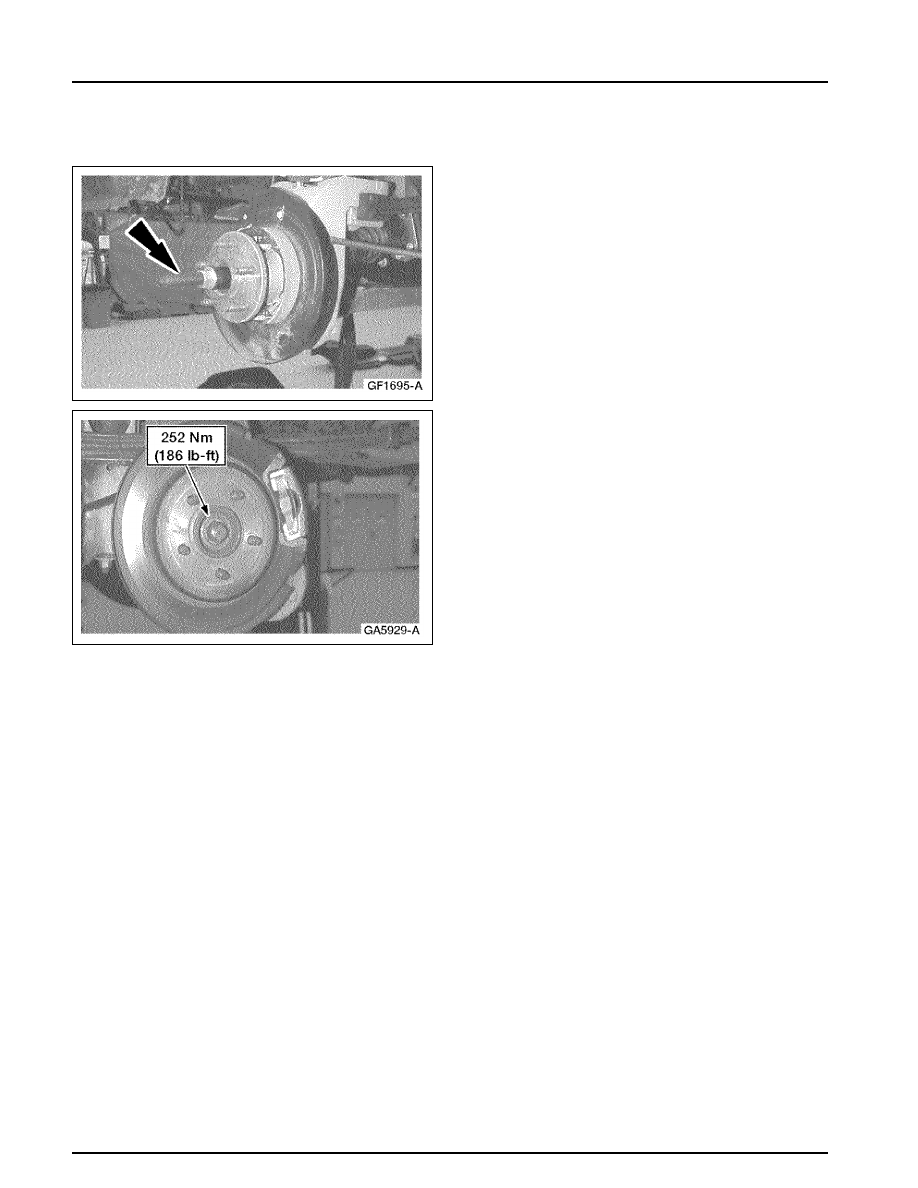

Installation

1. Install the halfshaft.

•

Use the installation tool from Wheel Bearing
Removal Removal and Installation Kit or
equivalent.

2. Install the halfshaft end washer and nut.

•

Tighten the nut to draw the halfshaft
completely into the hub.

3. Install the motor/transaxle. Refer to

 Section

303-01

.

206-04-2

206-04-2

Rear Disc Brake

SPECIFICATIONS

General Specifications

Torque Specifications

Item

Specification

Description

Nm

Lb-Ft

Rear Disc Brake Lining

3.12 mm (0.125 in)

Brake Line Bolt

35

26

Minimum Thickness

Caliper Bolts

25

18.5

Rear Disc Brake Rotor

12 mm (0.472 in)

Lug Nuts

115

85

Nominal Thickness
Rear Disc Brake Rotor

10.5 mm (0.40 in)

Minimum Thickness
Maximum Rear Disc

0.0051 mm (0.0002 in)

Brake Rotor Runout
Silicone Brake Caliper

ESE-M1C171-A

Grease D7AZ-19A331-A

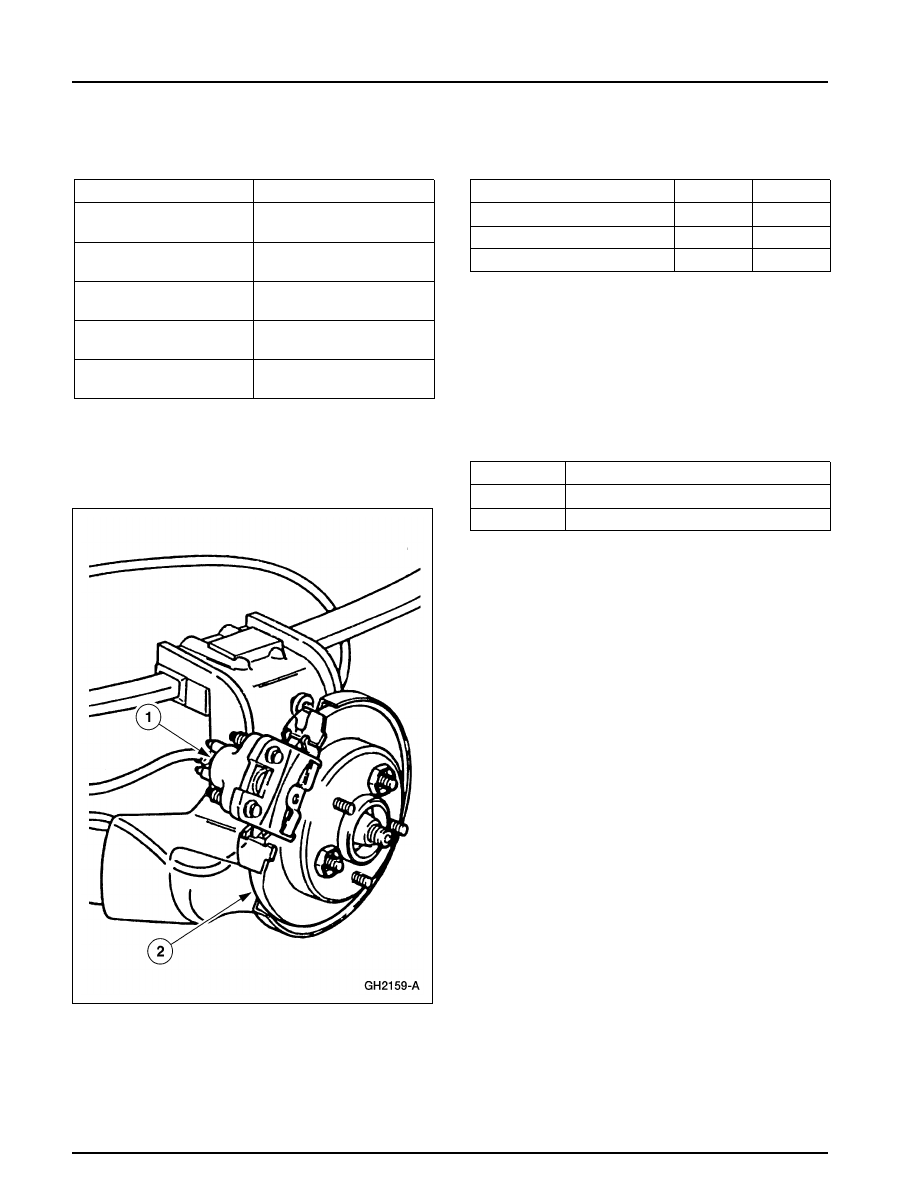

DESCRIPTION AND OPERATION

Item

Description

Rear Disc Brakes

1

Rear Disc Brake Caliper

2

Rear Disc Brake Rotor

The rear disc brakes on the Electric Ranger are
composed of Explorer calipers, rotors, and pads.
The brakes are hydraulically activated and the
parking brake operates independently from the disc
brake system. A separate regenerative braking
system uses vehicle momentum to replace energy to
the drive battery. The regenerative braking system
does not mechanically interact with the front or rear
disc brakes.

206-04-3

206-04-3

Rear Disc Brake

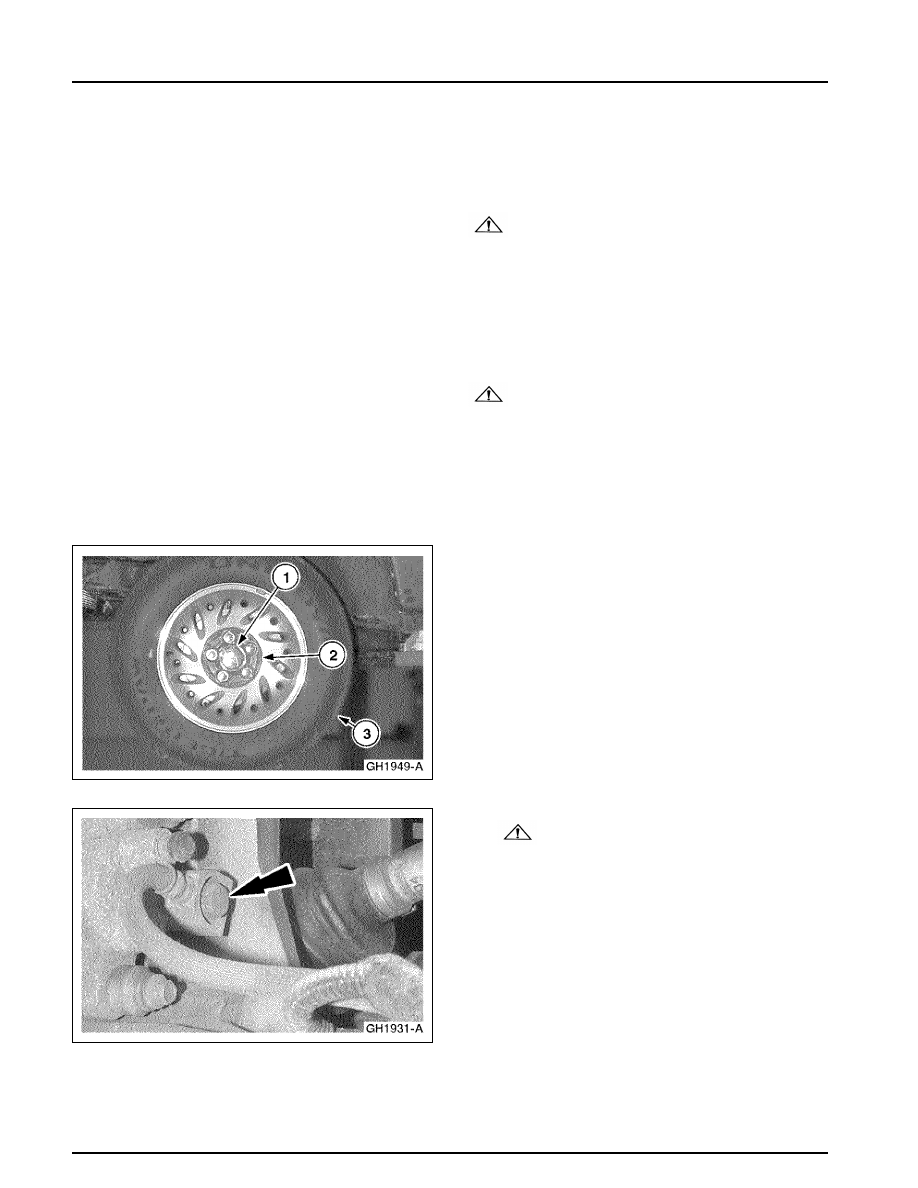

REMOVAL AND INSTALLATION

Rear Disc Brakes —Caliper

Removal

WARNING: Brake fluid contains polyglycol

ethers and polyglycols. Avoid contact with eyes.
Wash hands thoroughly after handling. If brake
fluid contacts eyes, flush eyes with running water
for 15 minutes. Get medical attention if irritation
persists if taken internally, drink water and
induce vomiting. Get medical attention
immediately.

CAUTION: Brake fluid is harmful to

painted and plastic surfaces. If brake fluid is
spilled onto a painted or plastic surface,
immediately wash it with water.

1. Raise and support the vehicle. Refer to

 Section

100-02

.

2. Remove the wheel.

1 Remove the center cap.
2 Remove the lug nuts.
3 Remove the wheel.

3.

CAUTION: Do not allow brake fluid to

contact the brake pads or any painted
surfaces.
Disconnect the brake line.

•

Remove the bolt.
