501-05-13

Interior Trim and Ornamentation

501-05-13

REMOVAL AND INSTALLATION (Continued)

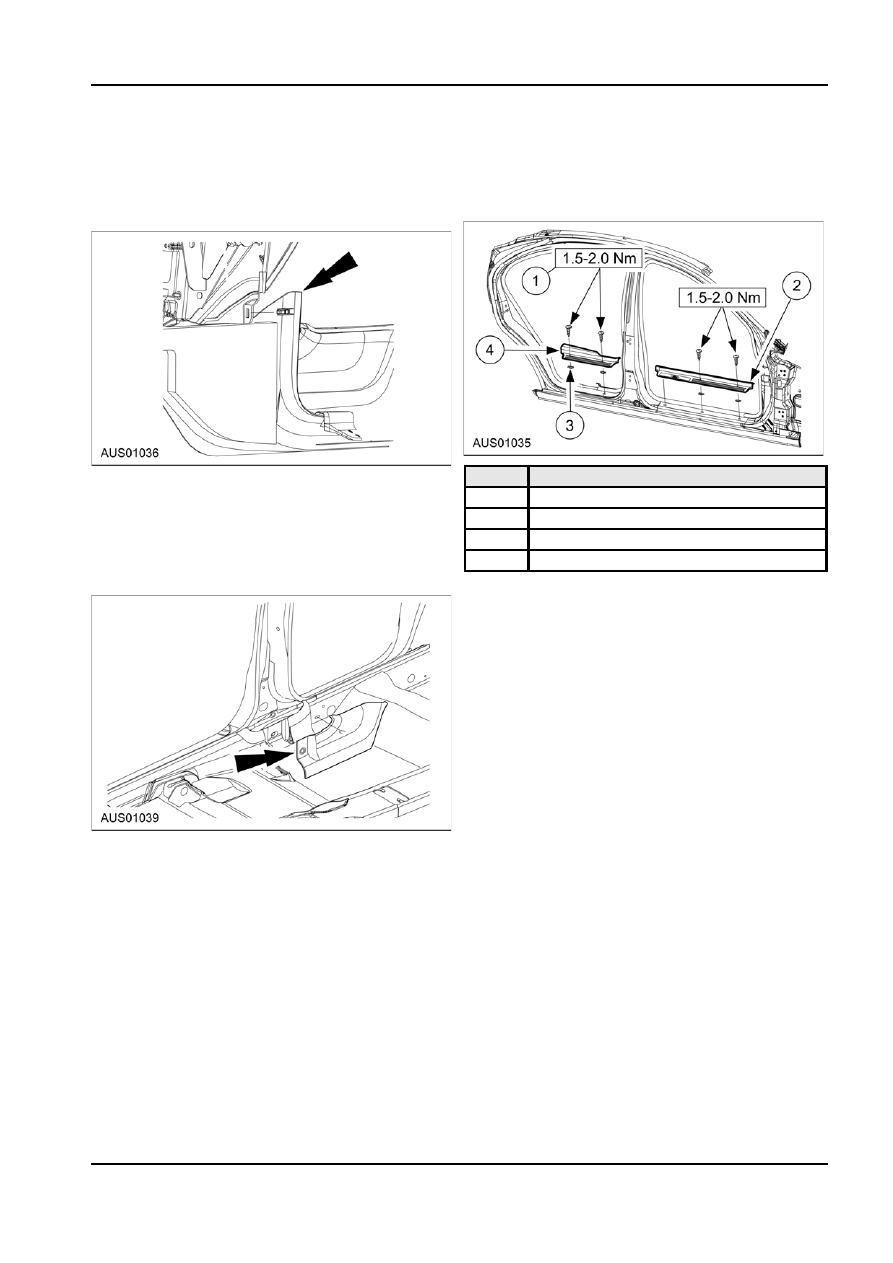

Front Inner Scuff Plate (LH)

Rear Outer Scuff Plate

Removal

Removal

1.  Remove front inner scuff plate (LH) as shown in

1.  Remove outer scuff plate as shown in figure.

figure .

Item

Description

Installation

1

Screw

1.  Reverse removal procedure.

2

Front Outer Scuff Plate

Rear Inner Scuff Plate

3

Screw Grommet

4

Rear Outer Scuff Plate

Removal
1.  Remove rear inner scuff plate as shown in figure.

Installation
1.  Reverse removal procedure.

Installation
1.  Reverse removal procedure.

G11876 en

501-08-1

Exterior Trim and Ornamentation

501-08-1

SECTION : 501-08 Exterior Trim and

Ornamentation

VEHICLE APPLICATION : 2003.0 BA Falcon
CONTENTS

PAGE

DESCRIPTION AND OPERATION

  Exterior Trim and Ornamentation   .........................................................................................501-08-2

REMOVAL AND INSTALLATION

  Radiator Grille   .......................................................................................................................501-08-3

  Licence Plate Housing   ..........................................................................................................501-08-3

  Rear Decklid Moulding — High Series, SWB Sedan   ............................................................501-08-4

  Rear Decklid Moulding — Low Series, SWB Sedan   ............................................................501-08-4

  Rear Liftgate Moulding — Wagon   .........................................................................................501-08-5

  Rear Decklid Moulding — Wagon   .........................................................................................501-08-5

  Window Moulding   ..................................................................................................................501-08-5

  Door Moulding — All Vehicles   ..............................................................................................501-08-6

  Rocker Panel Moulding — SWB & LWB   ..............................................................................501-08-7

  Body Side Protection Moulding   .............................................................................................501-08-7

  Roof Ditch Moulding  ..............................................................................................................501-08-8

  Decklid Spoiler   ......................................................................................................................501-08-8

501-08-2

Exterior Trim and Ornamentation

501-08-2

DESCRIPTION AND OPERATION

Exterior Trim and Ornamentation

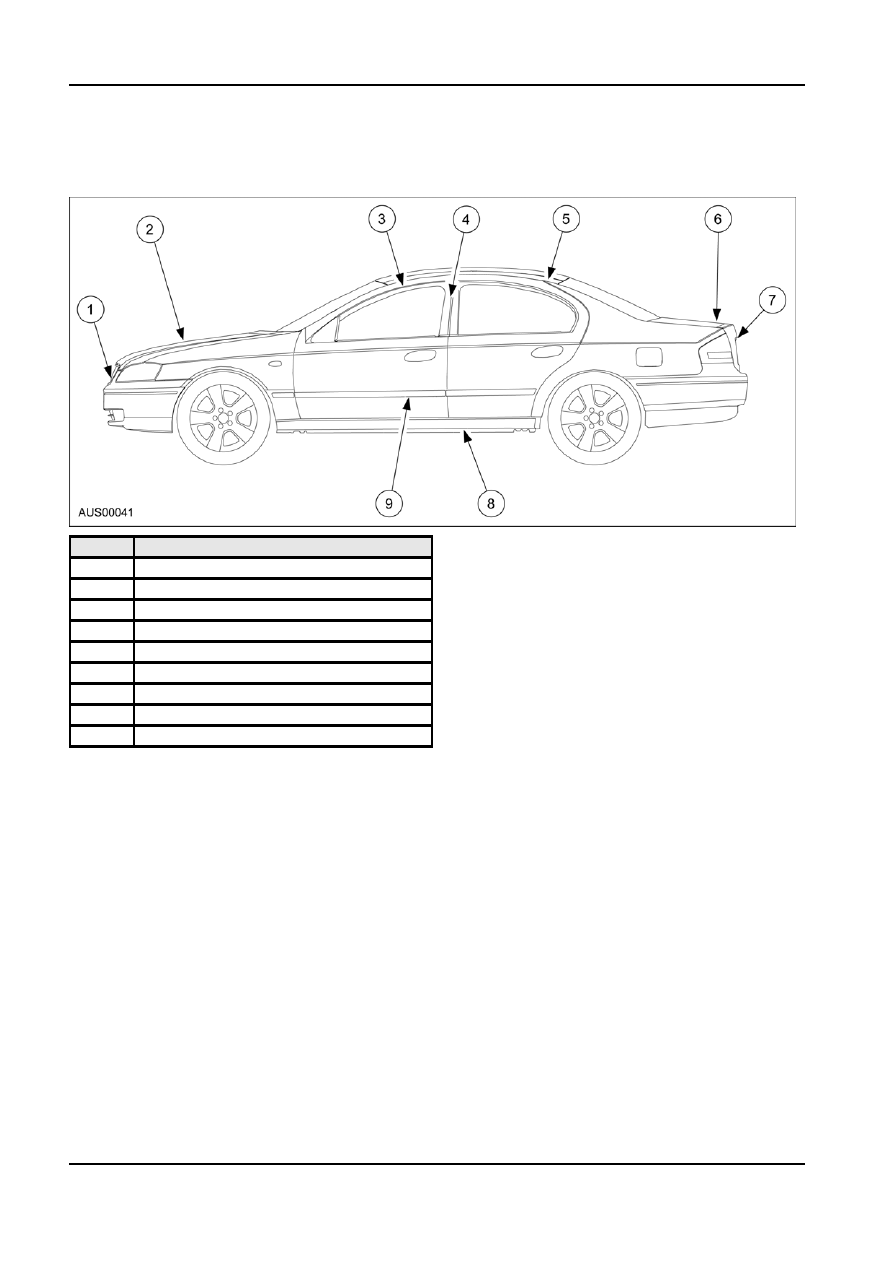

Component Location

Item

Description

1

Radiator Grille

2

Hood Moulding

3

Door Moulding

4

Window Moulding

5

Roof Ditch Moulding

6

Decklid Spoiler

7

Licence Plate Moulding

8

Rocker Pane Moulding

9

Door Moulding

G86721 en

501-08-3

Exterior Trim and Ornamentation

501-08-3

REMOVAL AND INSTALLATION

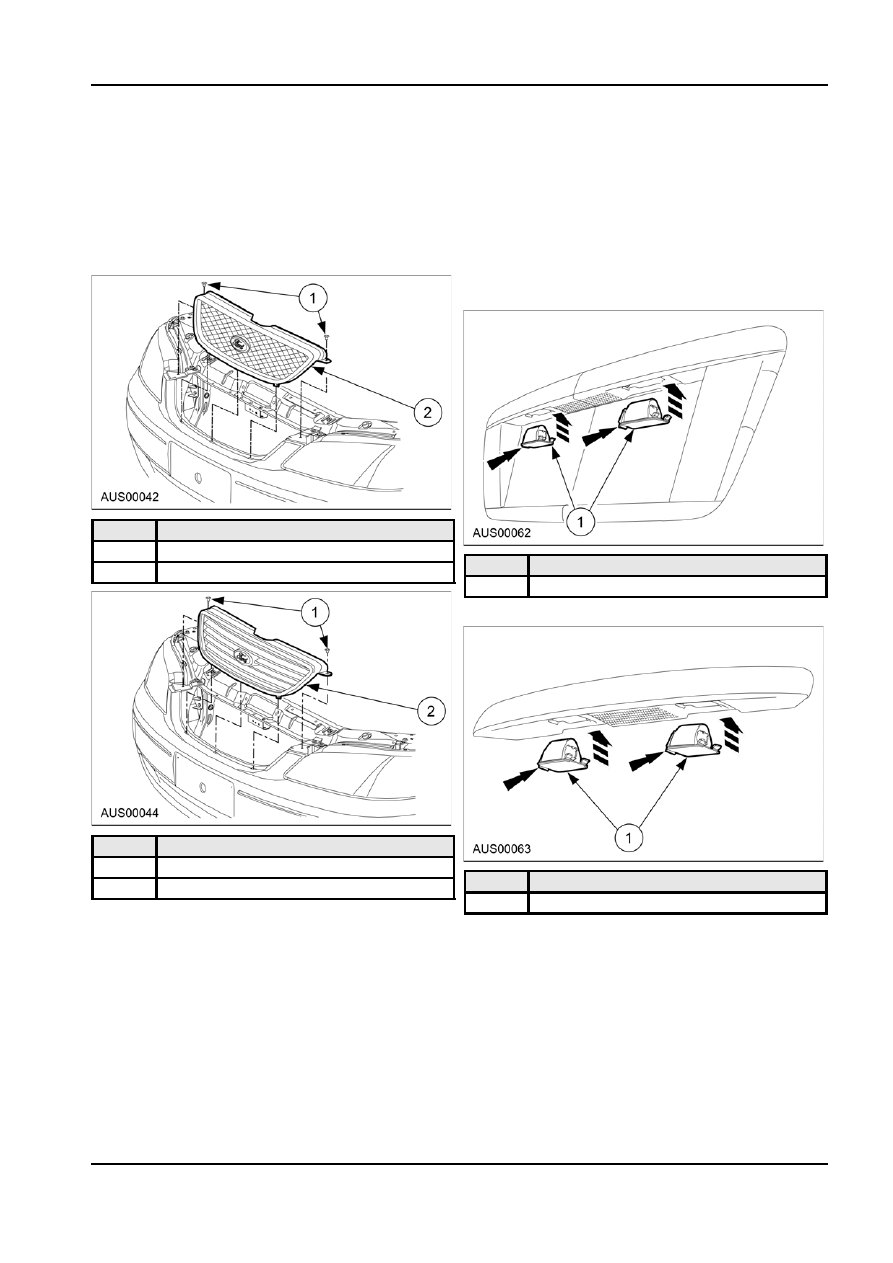

Radiator Grille

Licence Plate Housing

Removal

Removal

1.  Raise the Hood.

1.  Gently use a screwdriver to depress the clip tab

on the side of the lamp housing to remove it from

2.  Remove the two scrivets along the top rear edge

the applique.

of the grille.

NOTE: The lamp will still be attached to the

3.  Lift the grille up and away.

applique by the bulb holder and wiring.

Hi Series

Item

Description

1

Scrivet - 8mm

Item

Description

2

Grille - SWB/UTE

1

Number Plate Lamp

Lo Series

Item

Description

1

Scrivet - 8mm

Item

Description

2

Grille - LWB

1

Number Plate Lamp

Installation

2.  Turn the bulb holder approximately 1/8 of a turn

1.  To install, reverse the removal procedure.

anti-clockwise until it is free of the lamp housing.

Installation
1.  To install, reverse the removal procedure.

NOTE: Tabs prevent the bulb holder from being

inserted into the lamp housing at the incorrect

orientation. Do not apply force.

G86722 en
